label automatic cutting machine of high speed ES-061

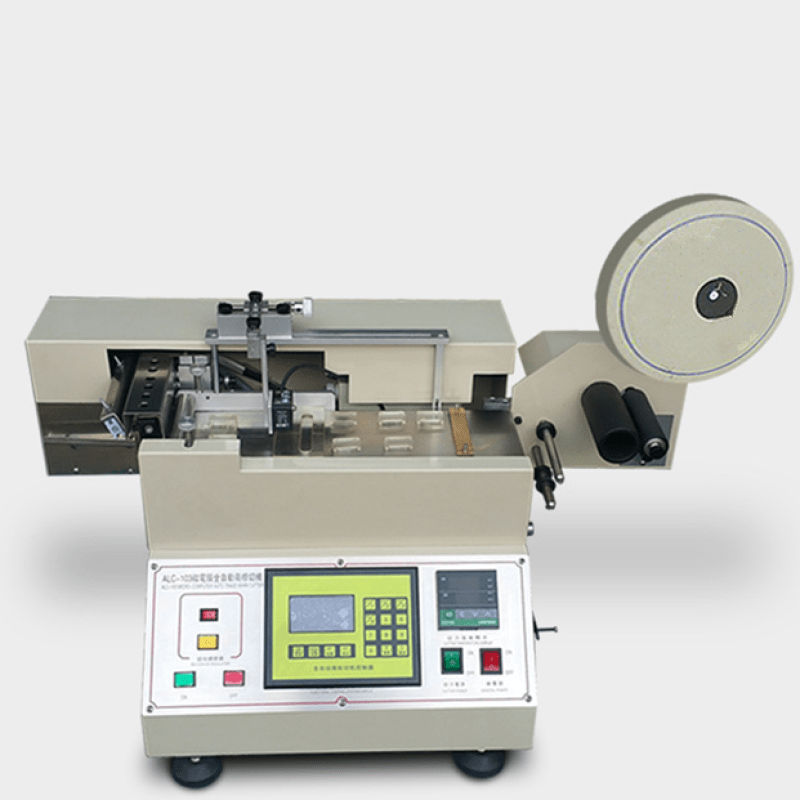

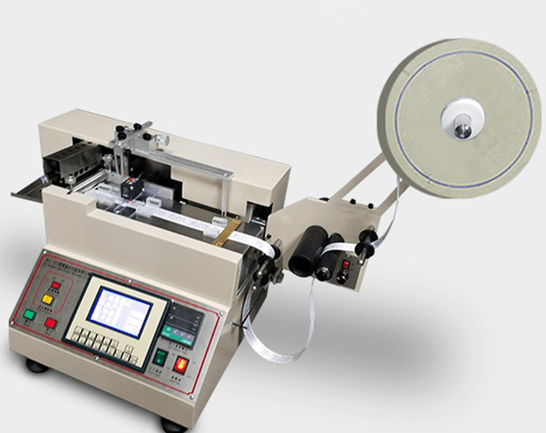

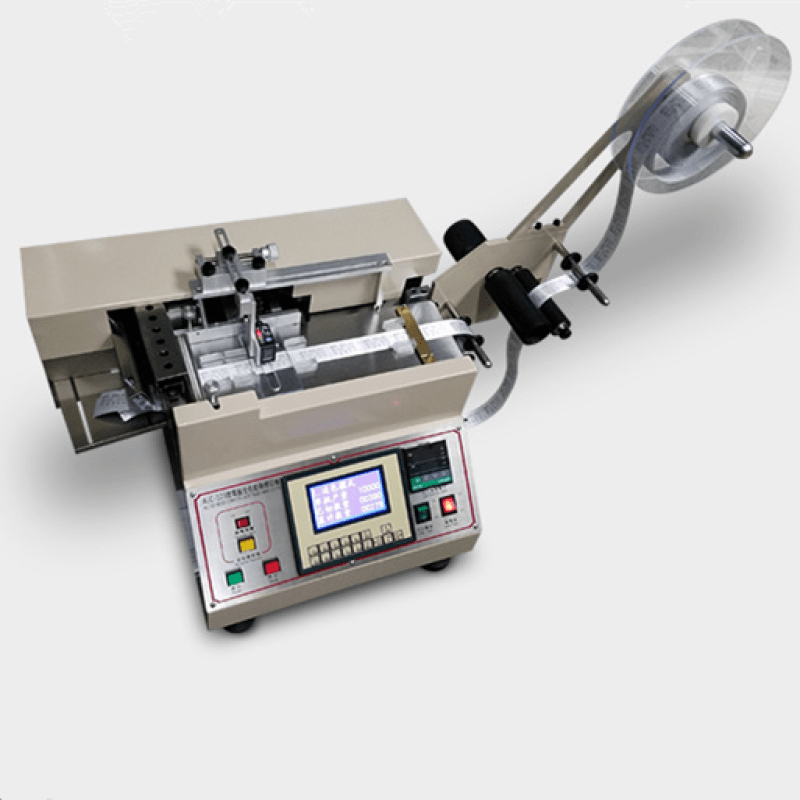

The label automatic cutting machine of high speed   ES-061

The label automatic cutting machine of high speed  ES-061  is made for cutting all kinds of  labels with high speed and full automation , this label cutter  is suitable to cut labels in apparel industries like care labels , printed labels ,size labels and also barcode labels , other labels with logo or pattern prints  etc.



The fast label cutter  power reachs 1.5KW and the maximum cutting width is 125mm , it supports both hot cut and cold cut , ,most importantly,  this wash care label cutter has the imported electrical eye which can target the labels precisely and cut them out completely without dislocation ,this care label cutting machine has two versions based on cutting speed of 300 cuts/min and 500 min/cuts . A feeder is backed up from behind for self feeding-in the cutting material . another feature is that it collects and piles up the labels after cutting process which avoid human labour to put them in order.



The high productivity and precision perfect cutting of labels make the ES-061 ideal option for label manufacturers



 Cutting material





【Technical Data】

Model No.:  ES-061

Product name : The high speed care label automatic cutting machine

Function : Cutting care label with precision and full automation

Cutting width :  125mm

Cutting length : 1-9999.9mm

Power : 220V 50HZ 1500W

Cutting speed : 300 /500 cuts /min

Feature : With automatic feeder

Net weight: 43KG

Knife material : High speed knife D2

Dimension : 830L*460W*700H (mm)





【Product Advantage】

1, Fast speed cutting  ,Independent designed control system plus reasonable

 machine structure design ,the machine have two speed  version

 which can reach 300 cuts/min and 500 cuts /min individually.





 2, Cut out the  labels perfectly with precision targeting

capability of the cutting labels ,Imported electrical eye,

precision targeting of the cutting labels ,high sensitivity ,easy adjustment,

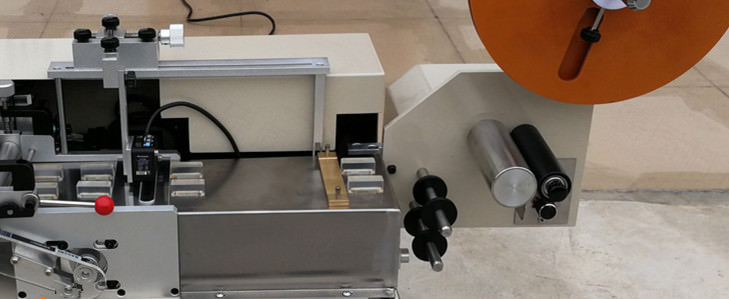

high quality cutting material transport feeder from behind

which ensure cutting material transporting precision







3, Four functions to apply

Color targeting, manual adjustment, length setting ,waste cutting material  clearance .

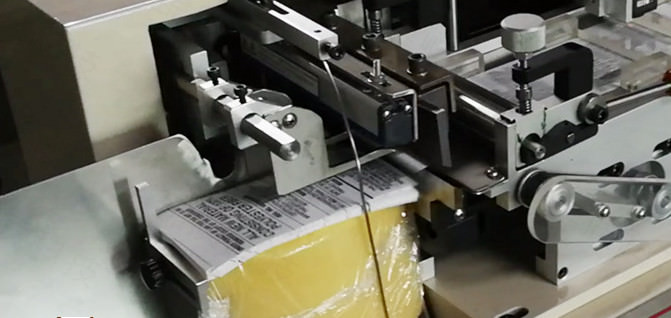

 4, Self collecting of finished cutting material

It saves the human labour to collect and pile up the cutting material





5, Self release of cutting material ,the machine had been equiped

 with a feeder from the tail , the feeding time can be adjusted and it applies to different length cutting

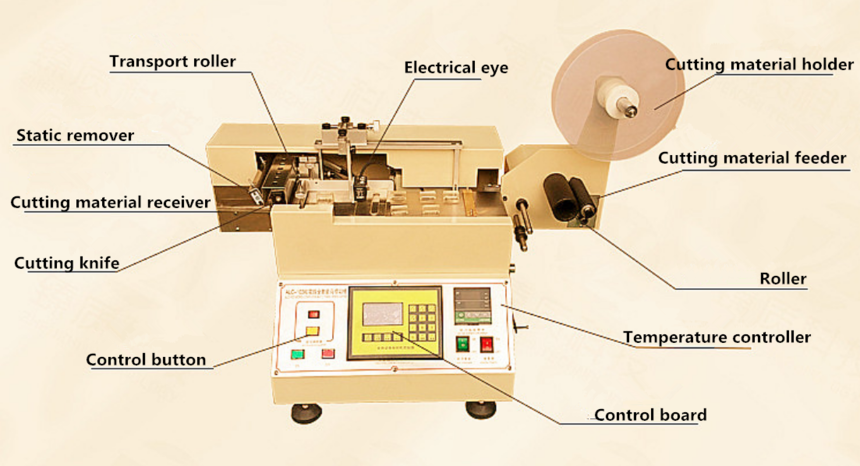

 【Product Details】

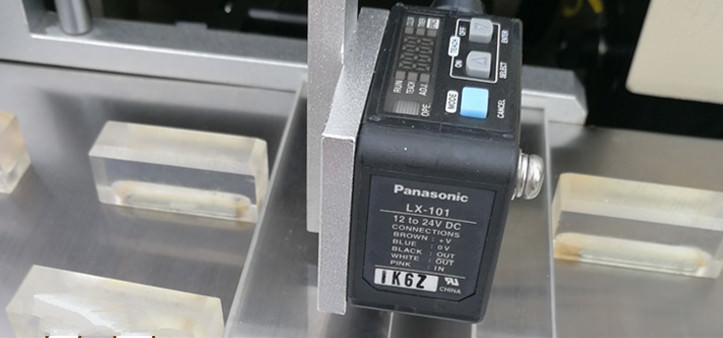

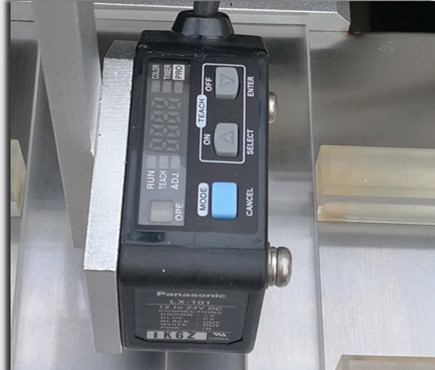

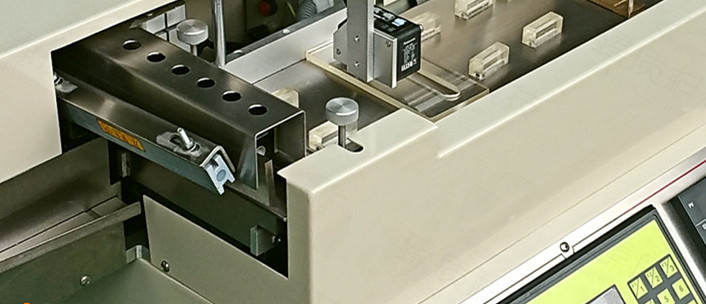

1,Imported color marking sensor ,the electrical eye.

Apply with panasonic color marking sensor ,

high sensitivity which ensures the precision location of care label and

 cut them out perfectly ,easy operation as well.



2, Hot and cold cut

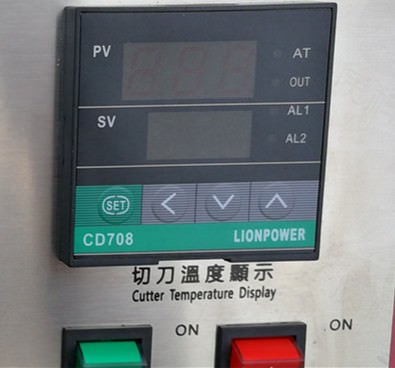

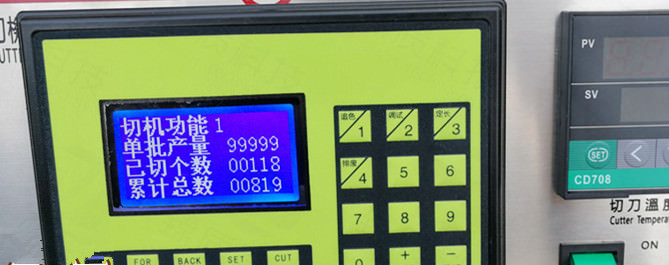

 The temperature controller can adjust the upper knife temperature to heat it up ,

it applies to cutting material which require heat sealing edges .

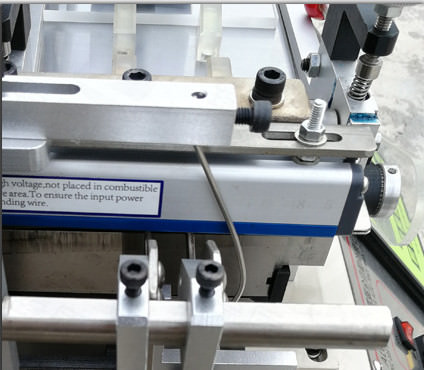

   3, Static remover

Imported japanese brand , precision location ,durable in use  It is able

 to remove the statics which generated during the cutting process and

 avoid the cut material from attaching to the knife or avoid failure to feed in cutting material .

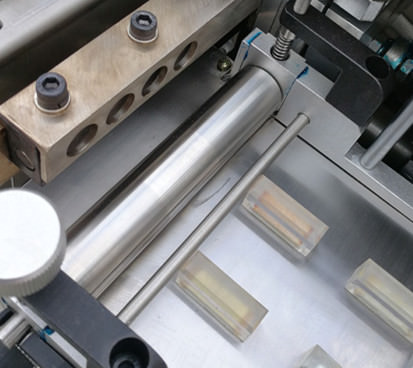

4, Stainless steel transport roller

The transport roller is made of stainless steel ,

it is abrasion resistant and anti-rust which ensure a good contact

between the roller and cutting material

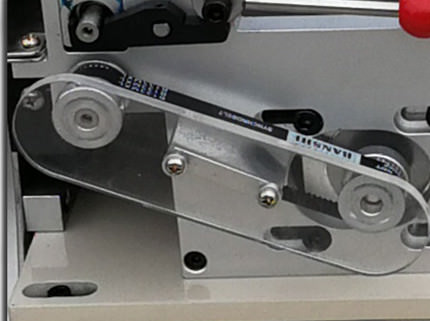

  5, Safety cover

There are multi safety cover between the transport roller ,

rubber bands and cuttign knife ,which ensures the safety of workers during operation.

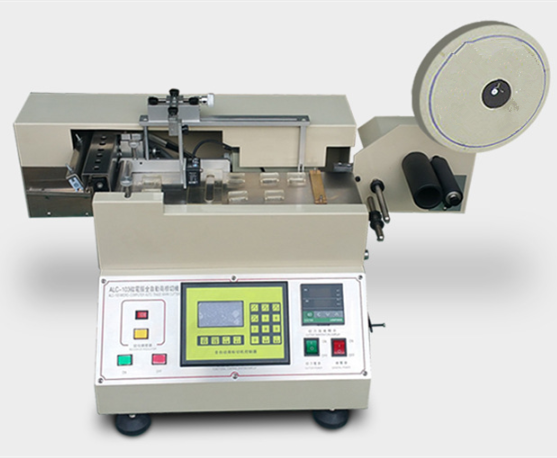

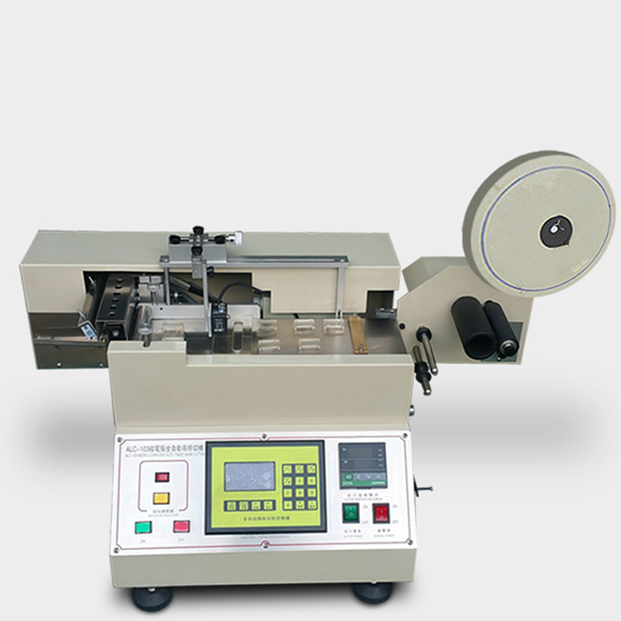

Front view

Side view

Side view



【Warranty】

All  the spare parts of  the label automatic cutting machine ES-061 except the knife will have one year of free maintainance by changing the spare parts for free and free shipping of spare parts to overseas clients starting from the issuing date of commercial invoice  after on line diagnosis .

【Packing】

1 Set/ wooden case , foam paddings will be put inside the wooden case to protect the machine against rough overseas shipping.
