 【Product Description】

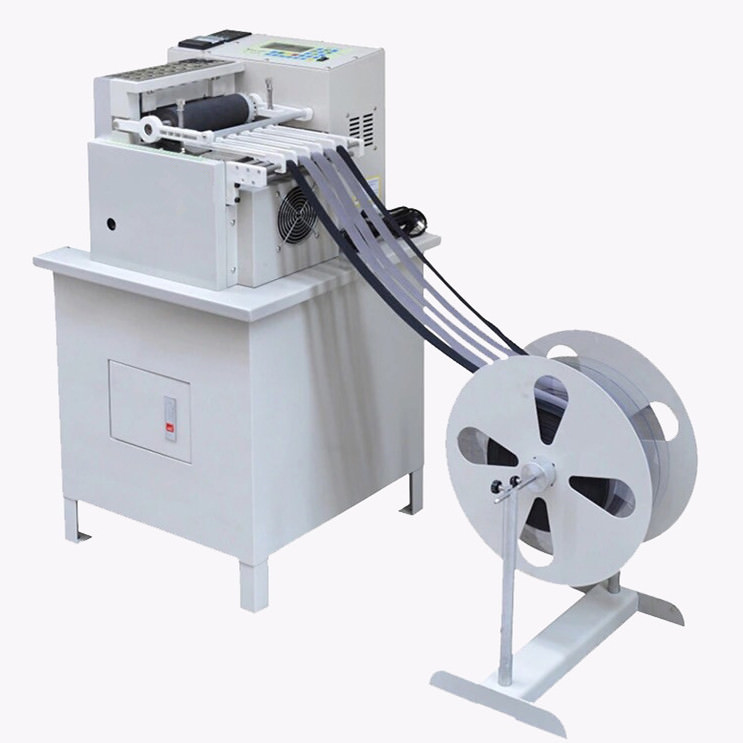

The rope webbing cutting machine with hot and cold cut ES-010 is heavy duty machinery  which is specially designed for cutting thick rigid narrow fabrics like webbings and all kinds of ropes featuring with high productivity and hot &cold cut capabilities  . the rope cutter power reached 0.95KW , the maximum cutting width of this rope automatic cutting machine is 160 mm , this enable the heady duty rope cutter to cut multi ropes and thick rigid webbings at the same time and consequently increase the productivities under the assistance of the separation directing fixture bars .

The knife is made of specialized structure of thick steel knife , the maximum heating temperature achieves 650 degrees.  the rope hot cutter gurantees high efficiency heat sealing of the cutting edges with such high temperature .

This heavy hot&cold cut webbing&rope automatic cutting machine will self stop working when running out of cutting material which require no baby sitting

and it  is care free .

【Youtube video】

 Webbing cutting machine

 big rope cutting

Multi-ropes cutting

【Technical Data】

Model No.:  ES-010

Product Name: The heavy hot&cold cut automatic cutting machine

Language : English& Chinese

Knife type : Hot& cold cut

Knife material : Thick steel with specialized mechanical structure

Automation : Full automation

Power : 0.9KW

Weight : 90KG

Cutting width :1-160mm

Cutting length : 1-99999mm

Shell material : 304 Stainless steel

The maximum knife temperature : 650 degrees

Dimension : 70*70*125mm

  【Product Advantage】

1, High productivity   ,the cutting width of the machine is extended to 160mm and with the help of the alignment fixture bars , the machine can cut multi cutting material at one time which greatly elevate the production efficiency.

 2, High power cutting , this is a heavy cutting machine ,the power reach 0.95 KW and with a thick and specialized structure steel knife , it can cut very thick and rigid fabrics , big and hard ropes .

3, High temperature knife heat-melting the cutting edges ,the knife heating temperature can reach 650 degrees at maximum which it can heat sealing the cutting edges efficiently  and instantly .

【Product Details】

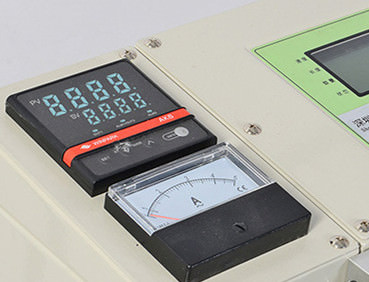

1, Multi function keys

 Upgraded control board , The transport speed is adjustable ,

 self stop working when running out of cutting material,

heating temperature at adjustment.

  2, Thick steel knife

Applied with thick steel knife with specialized mechanical structure to achieve nice cutting edge finish

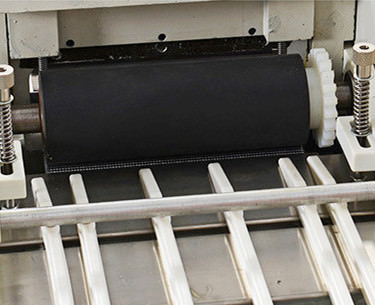

   3,Alignment fixture bars

Applied with Good quality fixture device which ensure the machine can cut multi cutting material at one time ,

high efficency and labour saving

 .

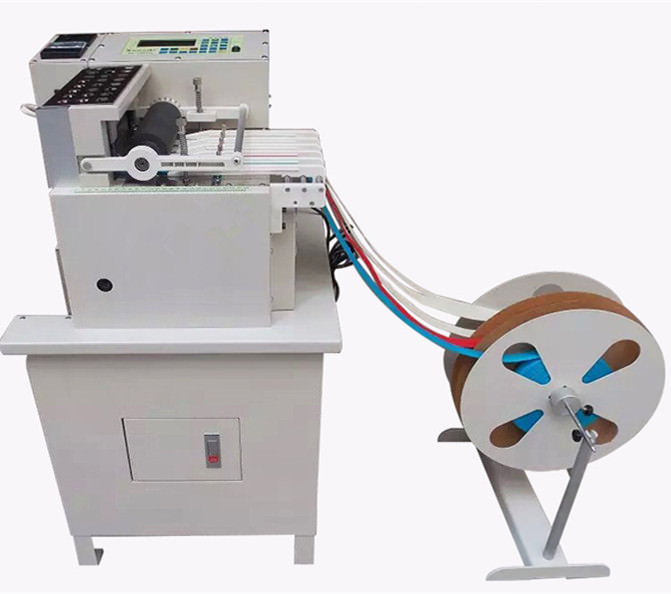

Front view

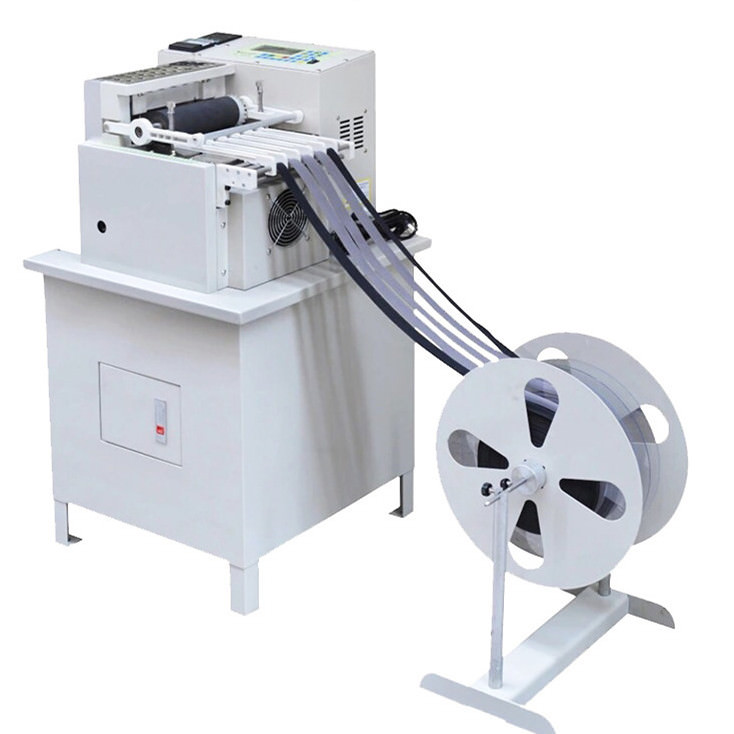

Side view

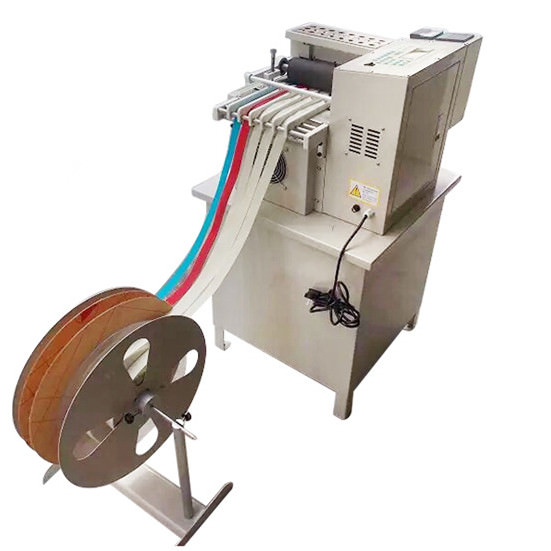

Back view

【Warranty】

All  the spare parts of  the rope webbing cutting machine  ES-010  except the knife will have one year of free maintainance by changing the spare parts for free

and free shipping of spare parts to overseas clients starting from the issuing date of commercial invoice  after on line diagnosis .

 【Packing】

1 SET/ WOODEN CASE , foam sheets willl be wrapped around the machine to protect it against rough handling .
