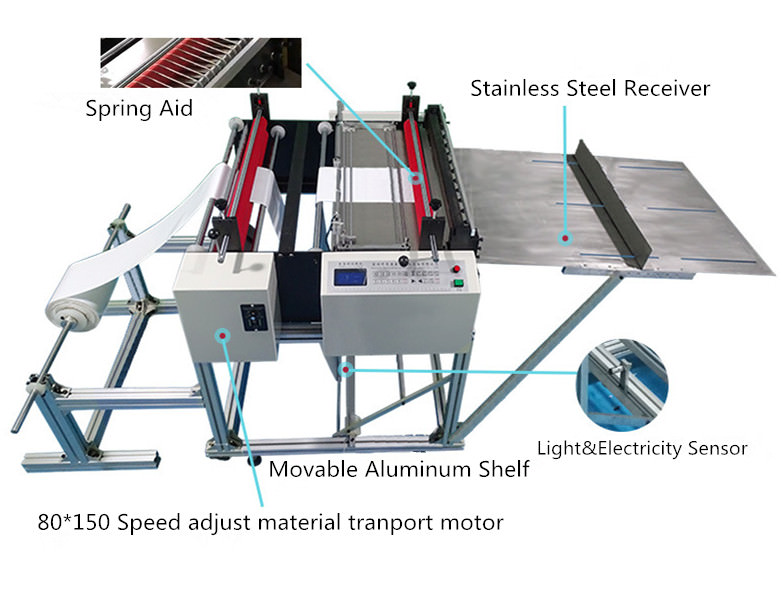

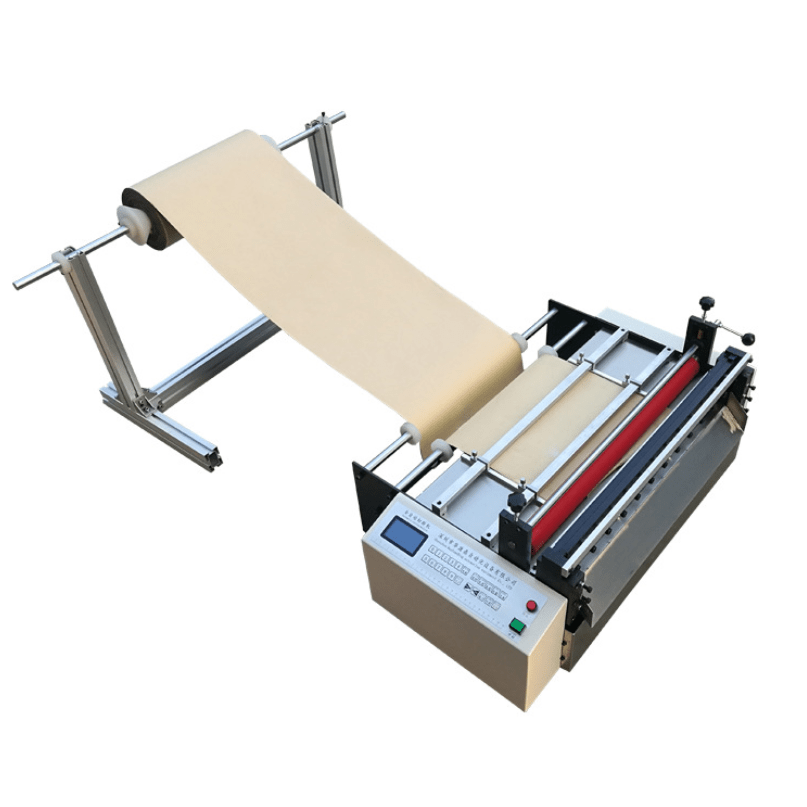

The roll to sheet cutter machine ES-C600
The roll to sheet cutter machine ES-C600 is designed for cutting all kinds of roll material such as PET protective films rolls , PVC rolls , PE rolls Foam rolls ,,non woven fabrics rolls ,leather rolls etc into sheet material , The automatic roll to sheet cutter features with automatic and precision cutting with no fraying edges with the support of high power motor and SKD-11 mold steel knife blade ,
A fixed length , total cutting amount and speed can be adjusted at will on the automatic reel to sheet cutting machine, after these settings ,the cutting machine will do the rest, proceeding to automatic cutting sequence.
Different models of the automatic roll to sheet cutting machine can be provided based on the maximum cutting width . customer is welcome to share with their maximum cutting width for their cutting material . we will provide the right model roll ot sheet cutter machine .
【Youtube video】
【Product Advantage】
Abrasion Resistance High speed thick steel Knife
Maintaining Long time working
Applying with imported SKD-11 mold steel, thickness reached 14-23mm, sharp enough leaving no hairly edges
High Power Engine
Alternate Motor&High Precision Transport Rolling &Cutting Performance &Steady Power
【Technical Data】

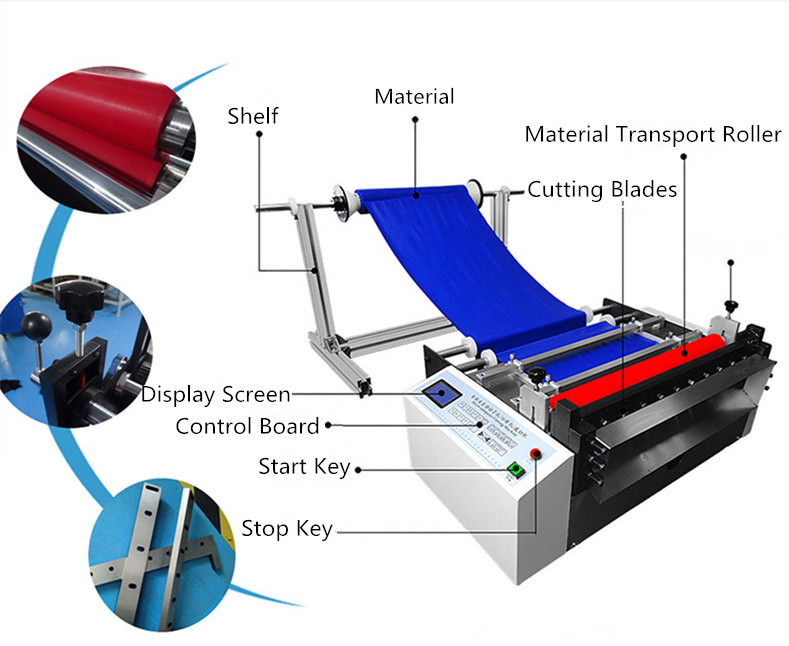

Cutting Blades Material : SKD-11 Transport Motor: High Function Stepping Motor
Roller Material : PU Cutting Blades Motor: High Precision Alternate Motor
Shelf Material : Aluminum Working Voltage: 220V ,50/60HZ
| Model No | Cutting Width | MaterialWeight(Steady/Suitable/Maximum) | Speed ((Steady/Suitable/Maximum)) | Machine Weight | Lenth(mm)+Shelf | Width(mm) | Height(mm) | Power(w) |
| ES-C100 (Thin blades) | <100 | 15kg (L Shelf) | 40/65/90 | 40kg | 380+(300) | 360 | 390 | 200 |
| ES-C100 (Thick blades) | <100 | 15kg (L Shelf) | 40/65/90 | 40kg | 380+(300) | 360 | 390 | 200 |
| ES-C100S(Cut metallics) | <100 | 15kg (L Shelf) | 40/65/90 | 45kg | 380+(300) | 450 | 390 | 350 |
| ES-C200(Table set) | <200 | 15kg (L Shelf) | 40/65/90 | 50kg | 380+(300) | 480 | 390 | 200 |
| ES-C300(Table set) | <300 | 20kg/30kg/40kg | 40/60/90 | 75kg | 590+(550) | 580 | 390 | 300 |
| ES-C400(Table set) | <400 | 20kg/30kg/40kg | 40/60/90 | 85kg | 590+(550) | 680 | 390 | 300 |
| ES-C500(Table set) | <500 | 20kg/25kg/35kg | 30/60/80 | 110kg | 620+(550) | 830 | 550 | 450 |
| ES-C600(Table set) | <600 | 20kg/25kg/35kg | 30/60/80 | 125kg | 620+(550) | 930 | 550 | 450 |
| ES-C700(Table set) | <700 | 20kg/25kg/35kg | 40/60/80 | 145kg | 620+(550) | 1030 | 550 | 450 |
| ES-C800(Table set) | <800 | 20kg/25kg/35kg | 40/60/80 | 160kg | 620+(550) | 1130 | 550 | 450 |
| ES-C1000(Table set) | <1000 | 15kg/20kg/30kg | 30/50/70 | 250kg | 640+(550) | 1330 | 550 | 850 |
| ES-C1200(Table set) | <1200 | 15kg/20kg/30kg | 30/50/70 | 290kg | 640+(550) | 1530 | 550 | 580 |
| ES-C500(Stand Set) | <500 | BELOW 150kg | 180/250/360 | 170kg | 1480 | 830 | 1220 | 650 |
| ES-C600(Stand Set) | <600 | 180/250/350 | 185kg | 1480 | 930 | 1220 | 650 | |
| ES-C700(Stand Set) | <700 | 170/230/340 | 215kg | 1480 | 1030 | 1220 | 650 | |
| ES-C800(Stand Set) | <800 | 170/230/330 | 230kg | 1480 | 1130 | 1220 | 650 | |
| ES-C1000(Stand Set) | <1000 | 150/200/280 | 340kg | 1500 | 1330 | 1220 | 850 | |
| ES-C1200(Stand Set) | <1200 | 140/180/250 | 380kg | 1500 | 1530 | 1220 | 950 |
【Customised solution】
Non-standard Custom design ,spare parts aid is available from us
Electrical Eye Equipment Statics Removing Equipment
Heat Aid Equipment Material Transport Aid Equipment
Round Knife Set Separation Cutting Set
Overlaping Assistance Straight Lead Aid
【Warranty 】
All the spare parts of roll to sheet cutter ES-C600 except the knife will have one year of free maintainance by changing the spare parts for free
and free shipping of spare parts to overseas clients starting from the issuing date of commercial invoice after on line diagnosis .
【Packing】
1Set/ Wooden case (The goods will be wrapped up with foam paddings and and the packed with wooden case )
