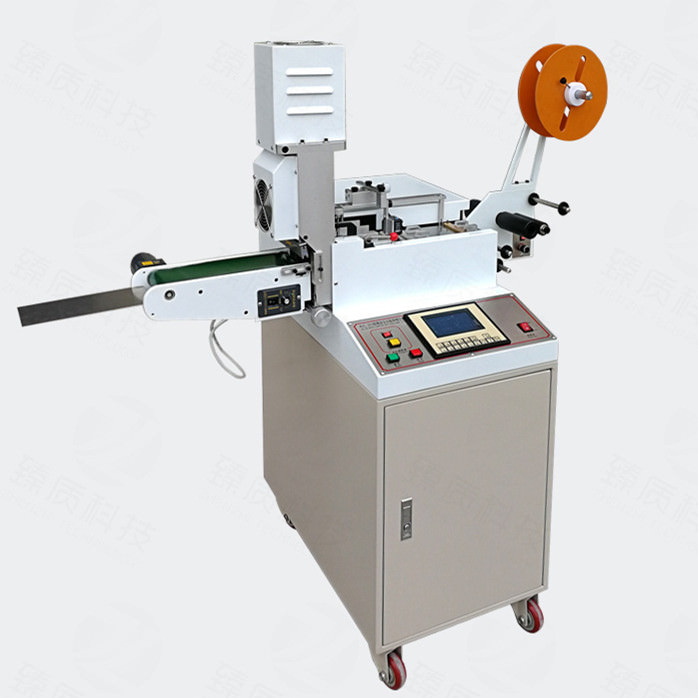

Ultrasonic label cutter machine of high speed ES-063

The ultrasonic label cutter machine   ES-063

The ultrasonic label cutter machine ES-063  is made  for cutting all kinds of labels with high speed and  ultrasonic  cut to seal off the cutting edge.  we have two speeds type of the ultrasonic label cutting machine ,  250 pcs/min  type or 500pcs/min type . The labels are cut and sealed off in extremely short time at 20KHZ ultrasonic intensity with the help of the ultrasonic device.

The cutting edge are sealed by ultrasonics cutting knife without fraying cutting edge , the cutting edge will look natural and smooth. The ultrasonic woven label cutter make sure a complete label is cut out  with cutting length accuracy  which the ultrasonic fabric label cutting machine reaches cutting lengh accuracy of 0.1mm with the help of the color targeting electrical eye device.

The high speed ultrasonic had the waste label clearance capability , the machine will not stop working when there appears the turnaround waste labels ,instead , it will remove and cut out the waste label .



The machine had a feeder from behind to send in the cutting material which avoids jamming and sudden pulling during label transporting .

meanwhile , The ultrasonic label cutter machine can self collect the cutting material which save human labour to collect them .



【Technical Data】

Model No.:  ES-063

Product name : The high speed ultrasonic label automatic cutting machine

Application  : Cutting label with precisely and with  high speed and smooth edge

Cutting length : 1-9999.9mm

Cutting width :  0-85mm

Power : 220V/110V 50HZ

Electrical eye device : Panasonic SUNX LX-101

Feature : Ultrasonic cutter ,  With automatic feeder and good collection of the finished label

Cutting speed :  250 cuts /min , 500 cuts/min

Net weight: 105KG

Dimension : 930L*650W*1480H (mm)



 【Product Advantage】

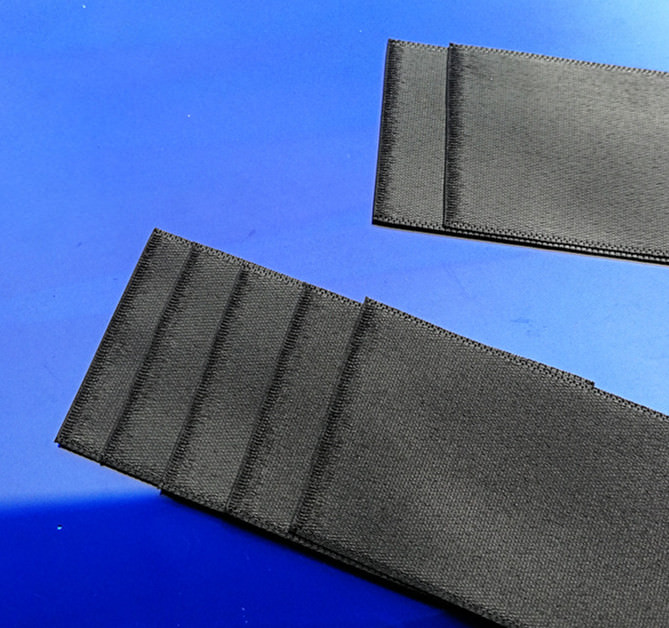

1, Natural and smooth cutting edge without fraying edges

Unlike the hot cut  sealing, the ultrasonic cutting  seal of the cutting edge in much shorter time so as to

gurantee both fast cutting speed and good sealing effect.  The cutting edge will look natural,

It make the label high-end and raise brand image.





 2, Two high speed types to choose from ,  250 pcs/min or 500 pcs/min

Six speed level to change the cutting speed , For example , when the cutting speed  is 500pcs /min ,

The production will be 30000pcs per hour for  and 250,000pcs day and

7,200,000 pcs/month, the machine will achieve a great production output.



3, Cutting length accuracy .

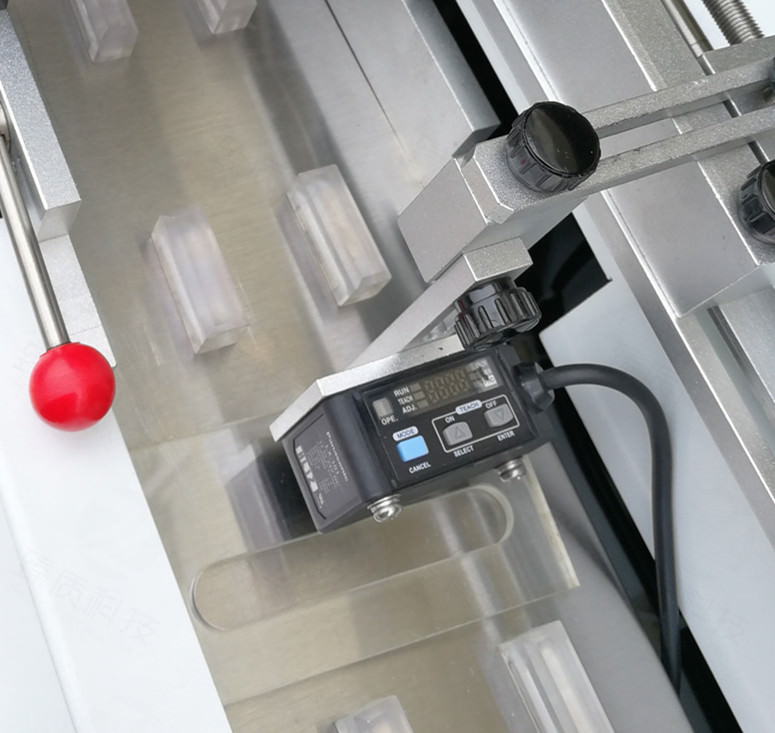

The cutting length accuracy will  reach 0.1mm with imported panasonic

 electrical eye , backed up by high quality motor





 4, The machine keeps working when it come across waste label.

The turnaround waste label will be cleared without affecting the working of the machine.

The waste label in the label rolls  does not stop the machine working

 It has 4 functions : Color targeting, self adjustment, fixed length setting ,waste label clearance .





5, Self sending in cutting material without  jamming  the cutting material or tying the knots.

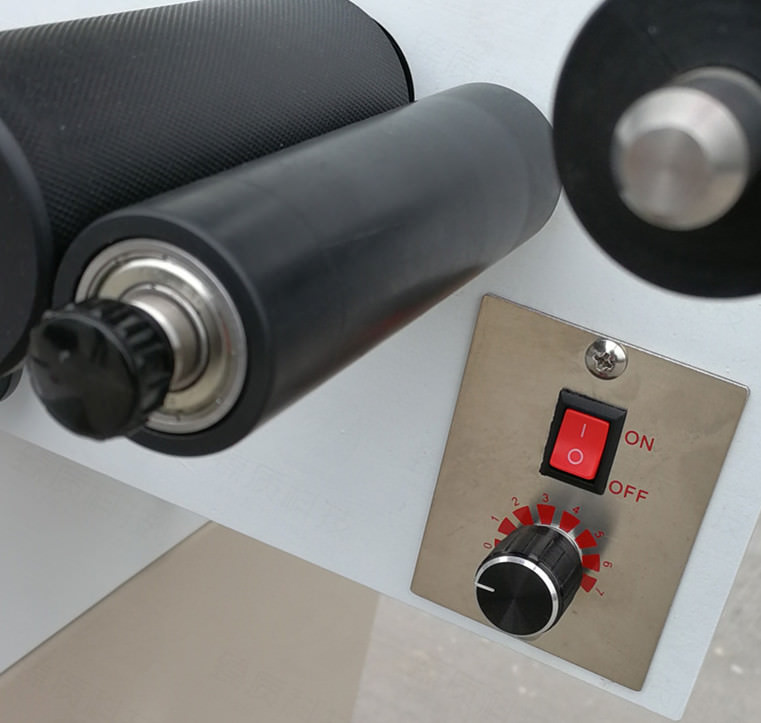

the machine is equiped with  a feeder from the tail to release the cutting material automatically ,

It avoids any pulling or  jamming and tie-up of the knots during cutting process.

Smooth material transporting  will make sure the  cutting speed and cutting precision.



6,  Put  the finished cut labels in order

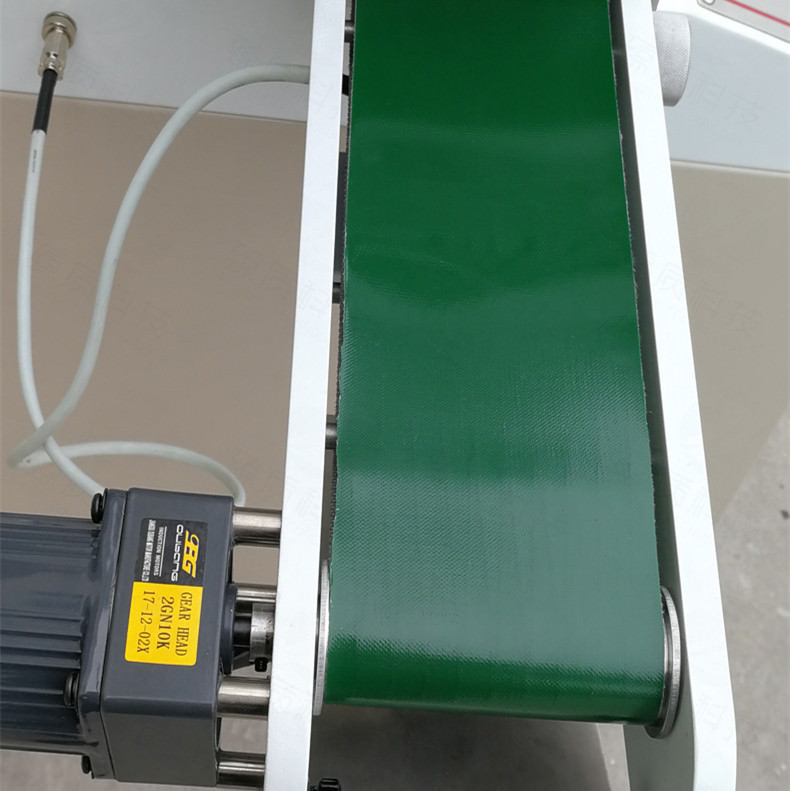

the transport bands help collect and put the finished cut labels  in order.

which save human labour and the pack-up time and raise efficiency.





 【Product Details】

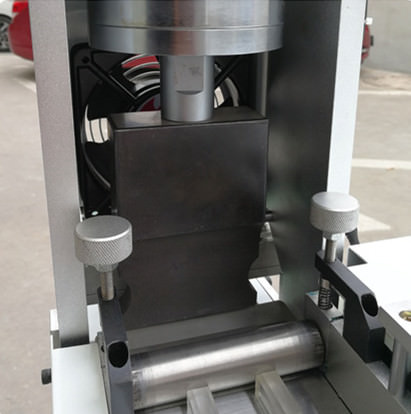

1,Taiwan utrasonic device

The utrasonic device applies with taiwan system circuits ,

Using IC to control back route design ,self frequency tracking ,

overload protection device , stable quatliy ,The output force of

 the taiwan utrasonic vibrator is more powerful and stable.

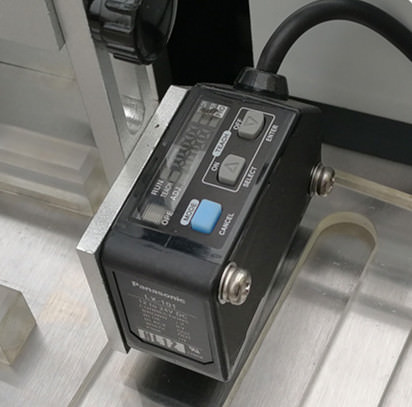

2, Panasonic electrical eye

It applies with color mark tracking mode of

45us super speed reaction to color mark and

advanced color mark identification capability , easy to operate

and maintain stability during working process.

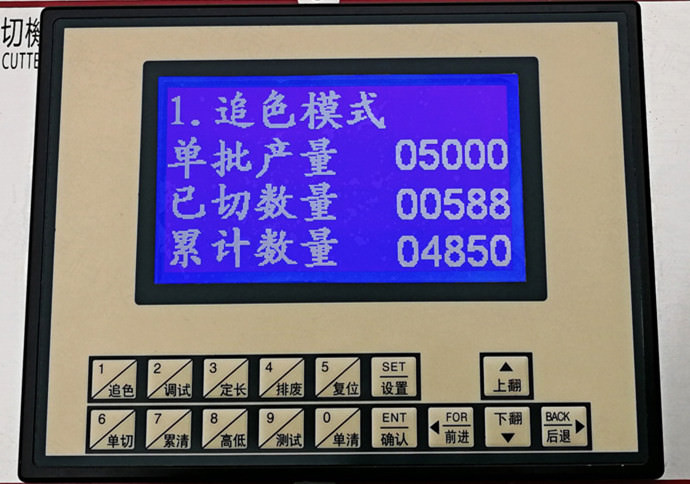

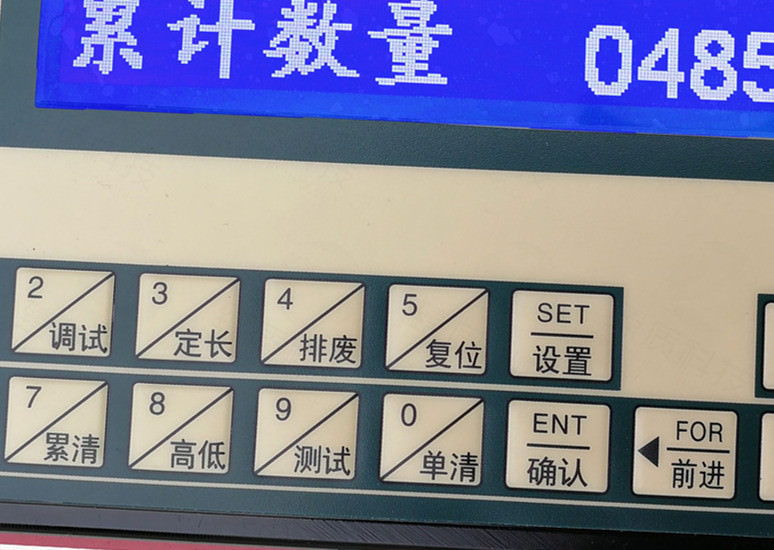

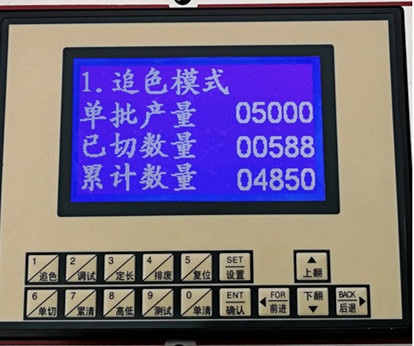

   3, PLC SCREEN

Easy to read , easy to identify , the keys will be simple  and with memory and self storing the parameters .

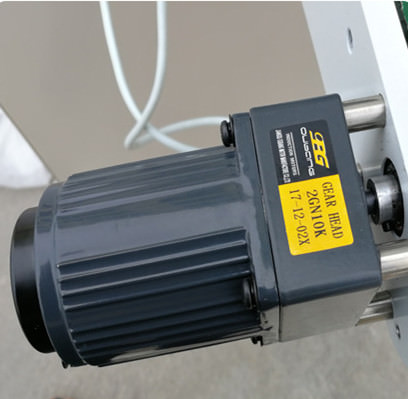

4, Good quality motor

Good quality for the cutting material transport motor , knife motor and cutting

 material release motor , they are high  power and with  precision material transporting capability.

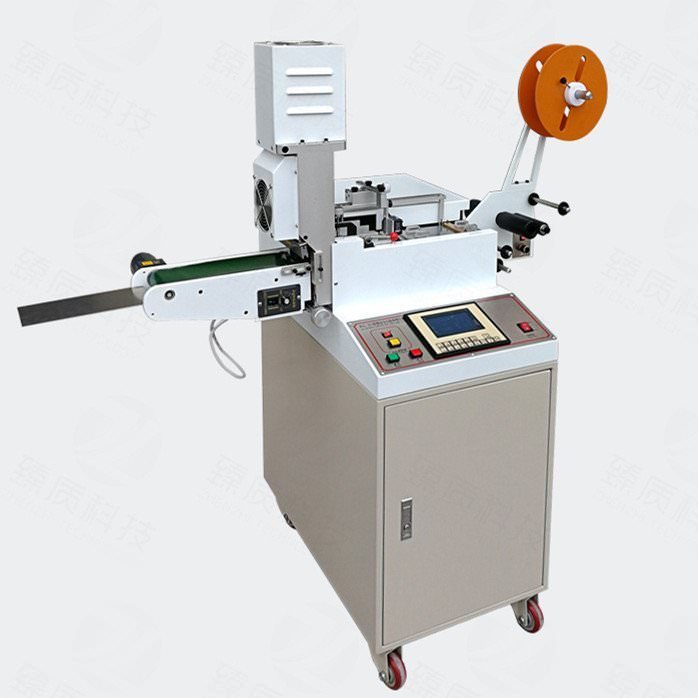

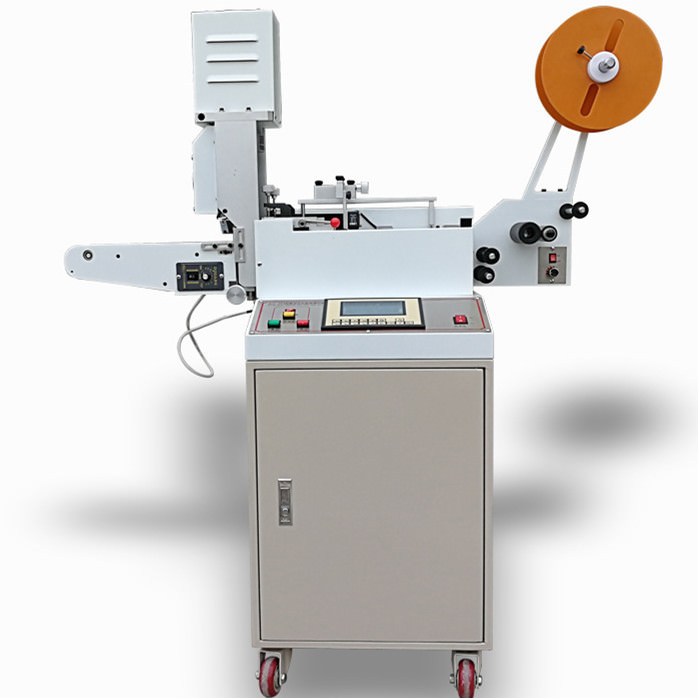

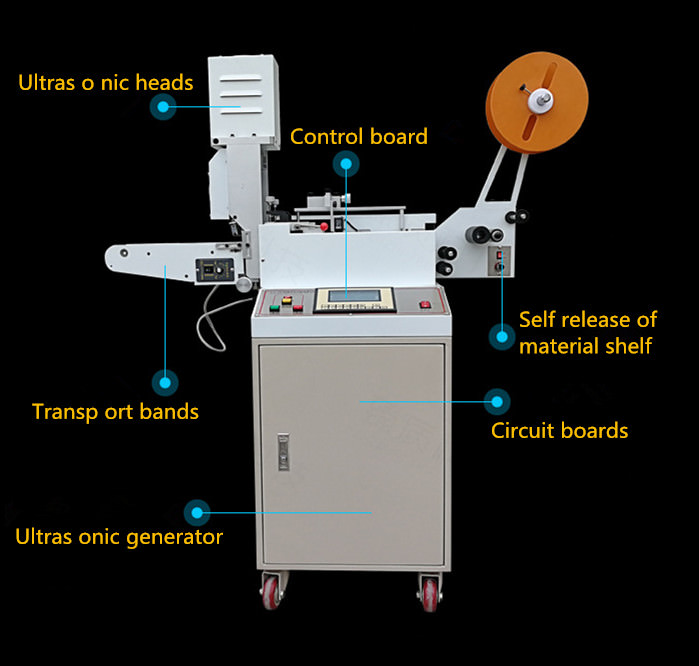

  Front view

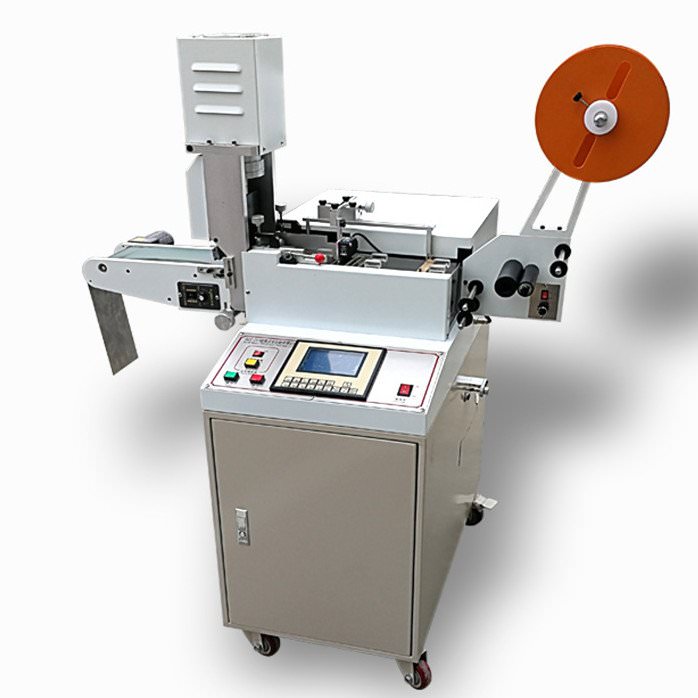

Side view

Side view

【Warranty】

All  the spare parts of  the ultrasonic label cutter machine ES-062 except the knife will have one year of free maintainance by changing the spare parts for free

and free shipping of spare parts to overseas clients starting from the issuing date of commercial invoice  after on line diagnosis .



【Packing】

1 Set/ Wooden Case , foam sheet will be wrapped around the machine before wooden case packing  for safe protection .
