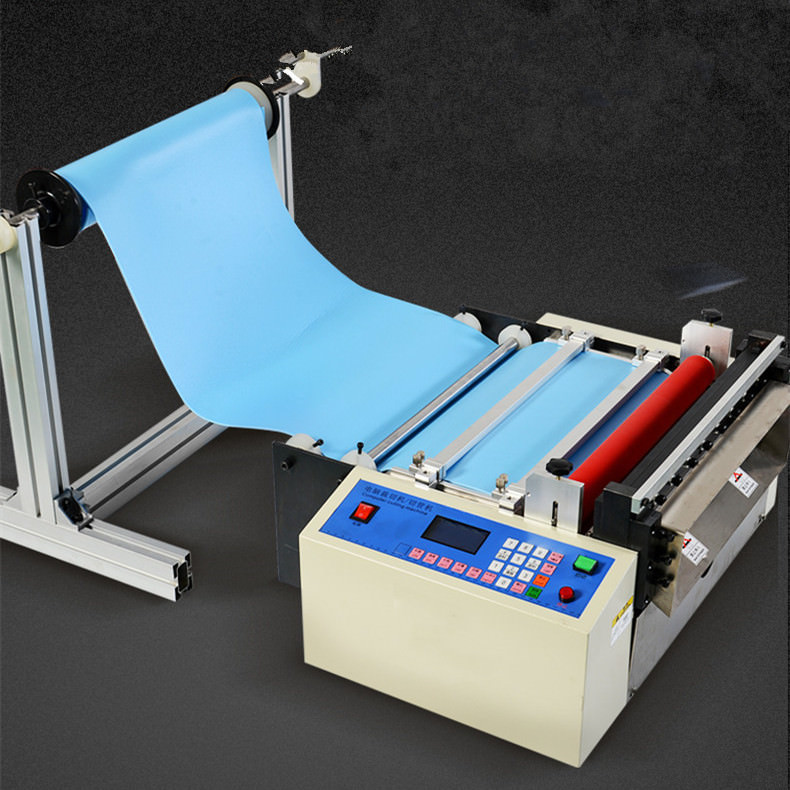

Non woven roll to sheet cutting machine ES-052

The non woven roll to sheet  cutting machine ES-052

The non woven roll to sheet  cutting machine ES-052 is made for the cutting non woven fabric rolls into sheet with precise length , it is also suitable to cut plastics film rolls like PET  film rolls , PVC rolls , EVA rolls ,leather rolls , metallics rolls like aluminium foil rolls , copper foil rolls  into sheets .

The cutting knife of this non woven roll to sheet cutter is made of high speed knife  , high quality SKD11 and it is in special mechanical structure.   the cutting edge is nice with no fraying edges , the cutting width ranges between 1-415mm , the Cutting length precision of the non woven roll to sheet cutting machine  is within 0.1mm.

This fabric roll to sheet cutting machine dimension  is 680*580*400mm ,Net weight  is 60kg,

In contrast  to manual cutting method, this roll to sheet automatic cutting machine will increase productivity and save human labour costs.





【Youtube video】

【Technical Data】

Model No.:  ES-052

Product Name: The non woven fabric automatic cutting machine

Function : Cutting all kinds of rolls into sheets material

Electrical Power : 680W

Display : English LCD

Maximum Cuttting length : 100 Meters

Cutting width :415mm

Cutting length tolerance : 0.002*Lmm

Transport length precision : 0.01mm

Transport motor : High precision stepping motor

Knife material: SKD11 high speed steel knife

Cutting knife motor: High power speed changing motor

Dimension :680*580*400mm

Machine weight : 60KG



 【Product Advantage】

1, Wide application ,the machine is made for cutting all kinds of non woven fabric material and other plastic film rolls into sheet.

2, Nice and smooth cutting edges  due to that the  cutting knife is made of high quality SKD11 high speed knife in special mechanical structure ,

the cutting edges  will leave no fraying edges

 3, Safety design ,the machine will be safe to operate by staff .



 【Product Details】

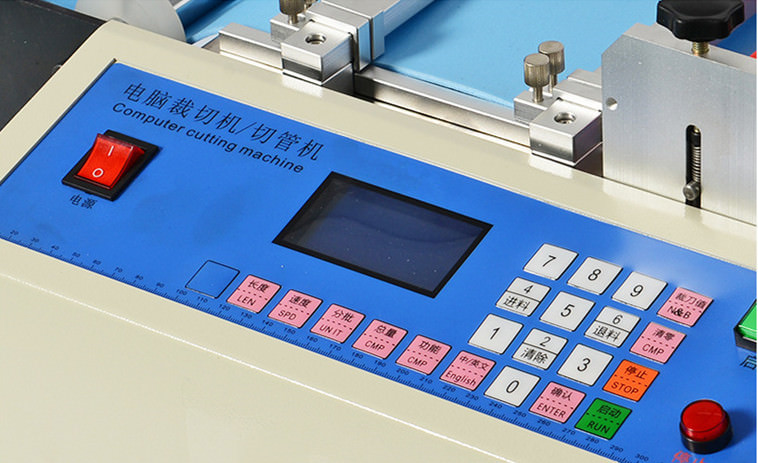

1,English Chinese Operating system

LCD display screen ,easy operation control board

English Chinese language at switch in one key

Customer can set the Cutting speed , Cutting amount , batch amount , batch halting time at will .

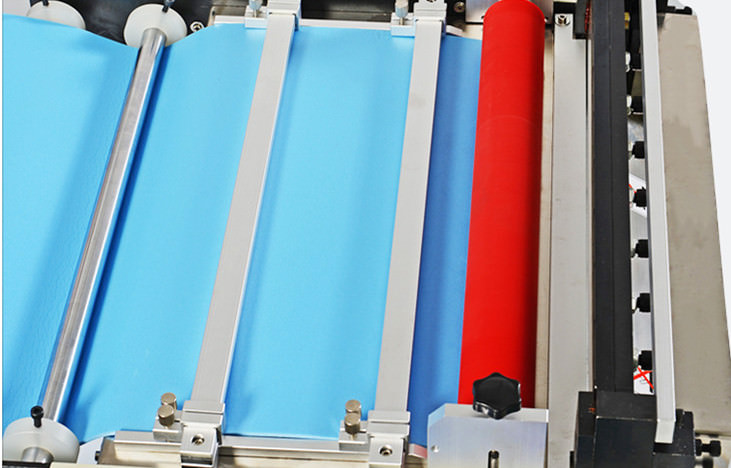

  2,Transporting rubber rollers

 The transporting rubber roller is Made from rubber  which is abrasion resistant, high temperature resistant,

meanwhile , it had been equiped with pressure screws on both ends  that  efficiently avoid cutting material slippery.

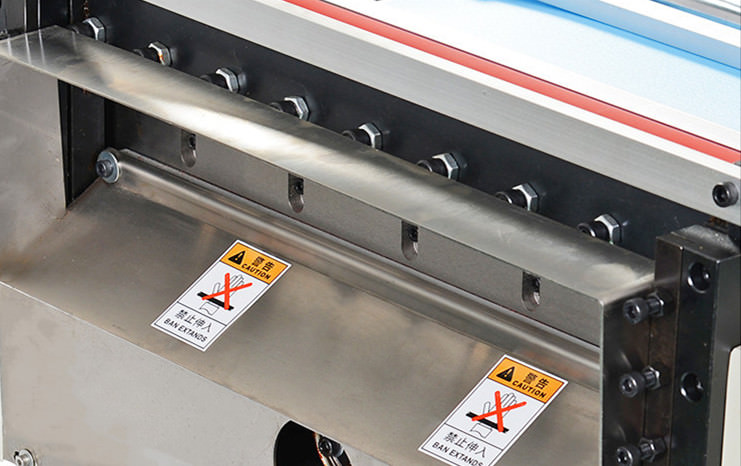

3, Vaccum-heat treated steel knife

Applies with high quality SKD11 high speed knife in special mechanical structure ,

sharp edges , durable in use , making the cutting edges smooth without fraying silks .

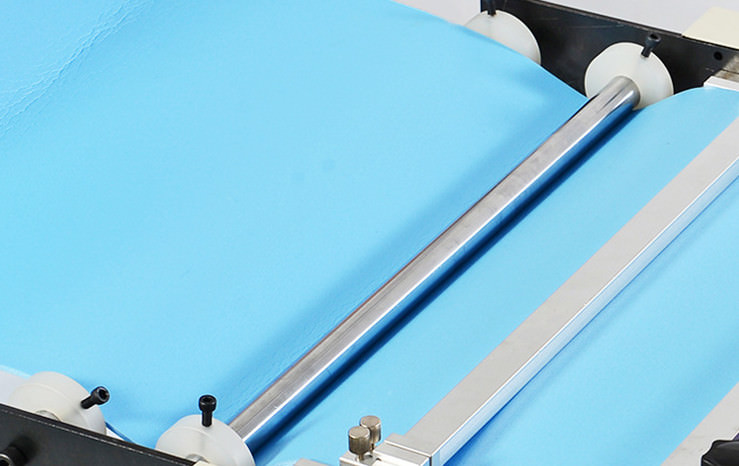

   4, Fixture  device

 Ensuring the cutting material are in the same horizon to avoid any cockying

 and avoiding the cutting material from derailing

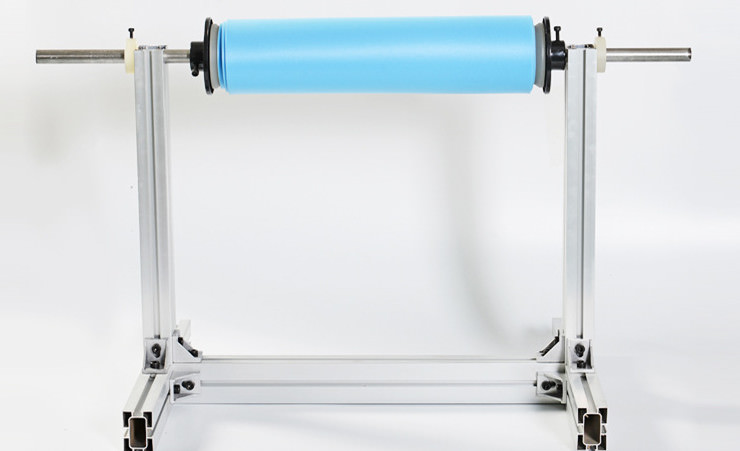

5, Cutting material holding stand with axis

Hold to the ground ,stable working  performance and with axis for good relese of

 cutting material and  it can bear all kinds of cutting material with medium weight

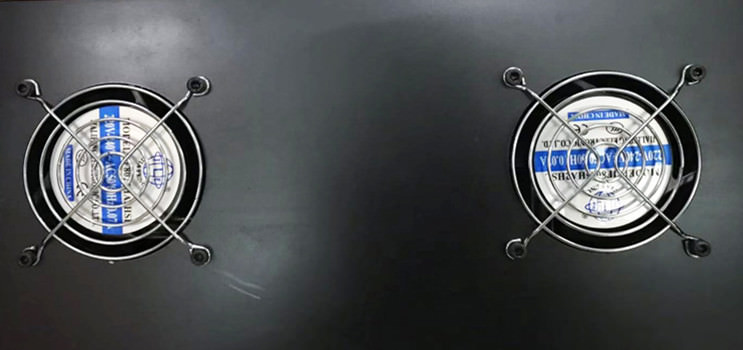

6, Multi High power heat dispersing fans

The machine had put up with  multi super power fans  to lower  the machine heats and extend to long hours working.

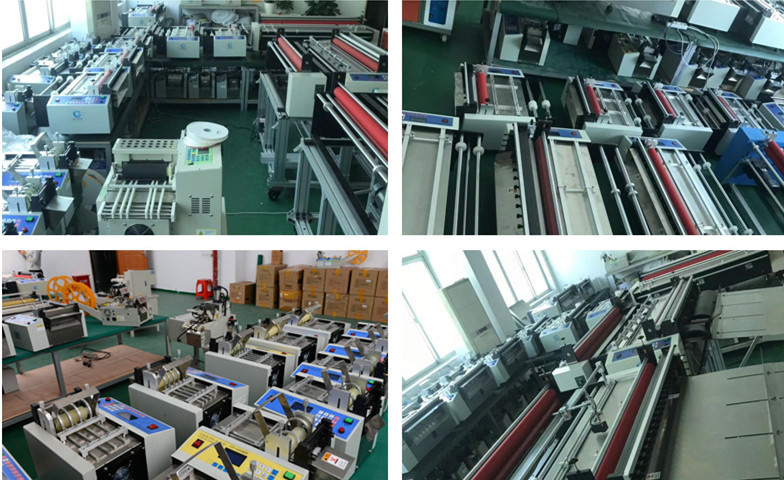

 【Ware house】

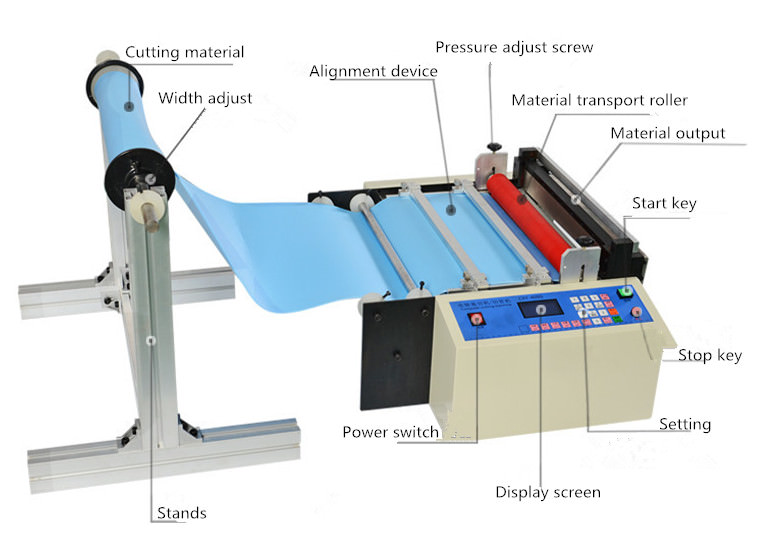

Front view



【Warranty】

All  the spare parts of the non woven roll to sheet cutting machine ES-052  except the knife will have one year of free maintainance by changing the spare parts for free

and free shipping of spare parts to overseas clients starting from the issuing date of commercial invoice  after on line diagnosis .

 【Packing】

1 Set/ Wooden case ,foams will wrapped around the machine to protect it against rough handling overseas .
