Label cutting machine ES-016

The label cutting machine ES-016

The label cutting machine  ES-016 is made for the precise cutting  of all kinds of  labels like  woven labels , satin & cotton labels , printed labels ,wash care labels,  size labels and also logo printed elastic tapes etc. with color tracking eletrical eye device  .

The eletrical eye device can sense every single label with the location tracking capability and cut them out completely , no more and no less  .

This  woven label hot cut machine  can do hot cut  to heat seal the  fraying cutting edges for woven labels  .  The hot  cutting temperature can reach up to 450 ℃

This woven label cutting machine  cut out your labels and logo printed elastics/ webbings preicsely and automatically , the cutting speed is fast and can be adjusted to catch up production demands.  the label automatic cutting machine  is labour free for label manufacturers .

【Technical Data】

Brand : ESMAI                                                                                     Knife Type : Hot& Cold Knife with electrical eye device

Model No.: ES-016                                                                              Voltage: 110V/220V

Usage:  Cutting labels automatically and precisely                             Power:0.44KW

Cutting Speed : 110 Times/Minute(based cutting length 50mm)        Weight: 26/27kg

Size (L*W*H): 560*415*410(mm)                                                          Cutting width:1-90mm

Cutting Length: 1-99999mm                                                                Blade Maximum heating temperature: 450 ℃

【Product Advantage】

1,  Color tracking capability to ensure every label is cut out completely and precisely

2, Specialized for label cutting .

3, High productivity and labour free with full automation .

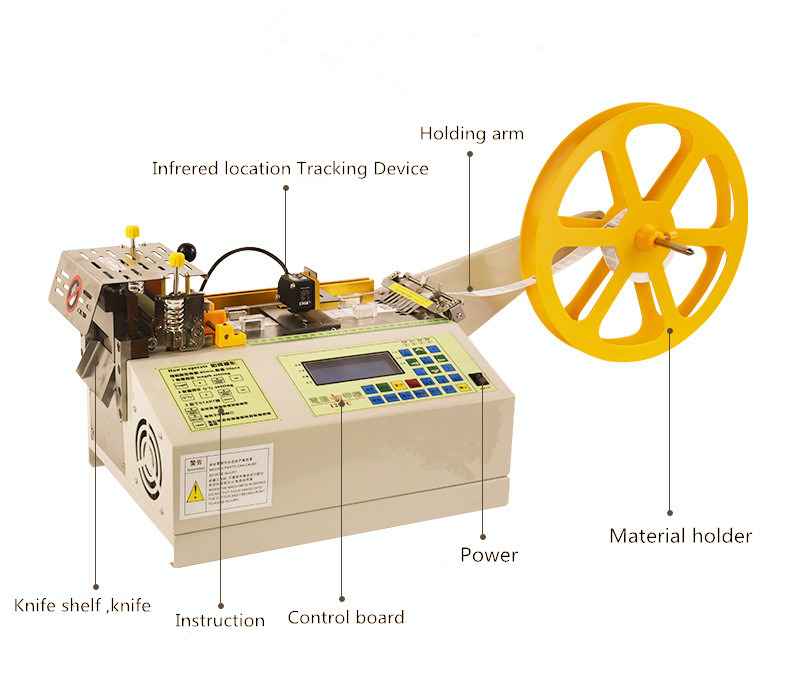

【Product Details】

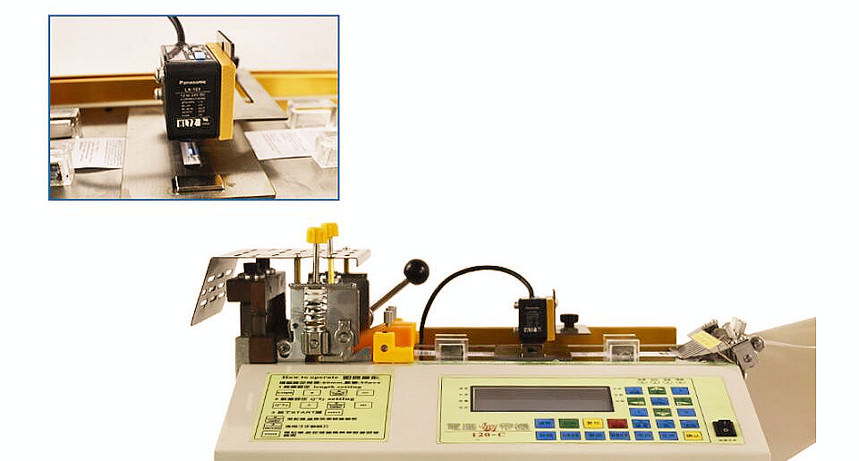

1,The eletrical eye device had been equipped on the cutting machine  and

enable  it to trace the color and ensure the labels are cut out precisely ,

no more and no less

                                                                                                2, Labour Free& Care Free

                                                                                                with the sensors and alarming device equiped

       3, Holding clips

       Keep the steady transport of cutting material ,avoid cocking .

       Assisting the good quality cut of your material , labour saving

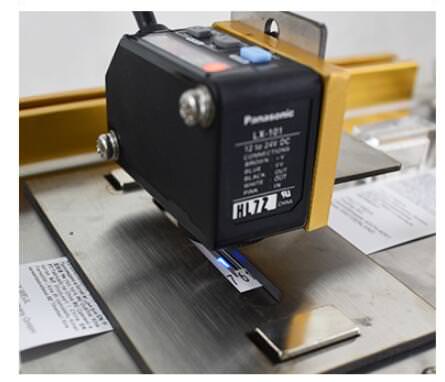

【Electrical eye processing guide】

The user can measure the cutting length of their label  , set the measured cutting length on the cutting machine then to adjust with the electrical eye device ,the electrical eye is placed on top the machine and labels , the electrical eye light is normally set near the words area or pattern area about 1mm or 2 mm away . if the electrical eye light remains in the same spot of the labels for every length label cut , it means our electrical eye adjustment is a success.  if the electrical eye light move close to the words or pattern area to the right , it means our set cutting length is more than the actual label length , if the electrical eye light move away from the words or pattern area to the left , it means our set cutting length is smaller than the actual label length , then we should  reset the cutting length on the machine accordingly.

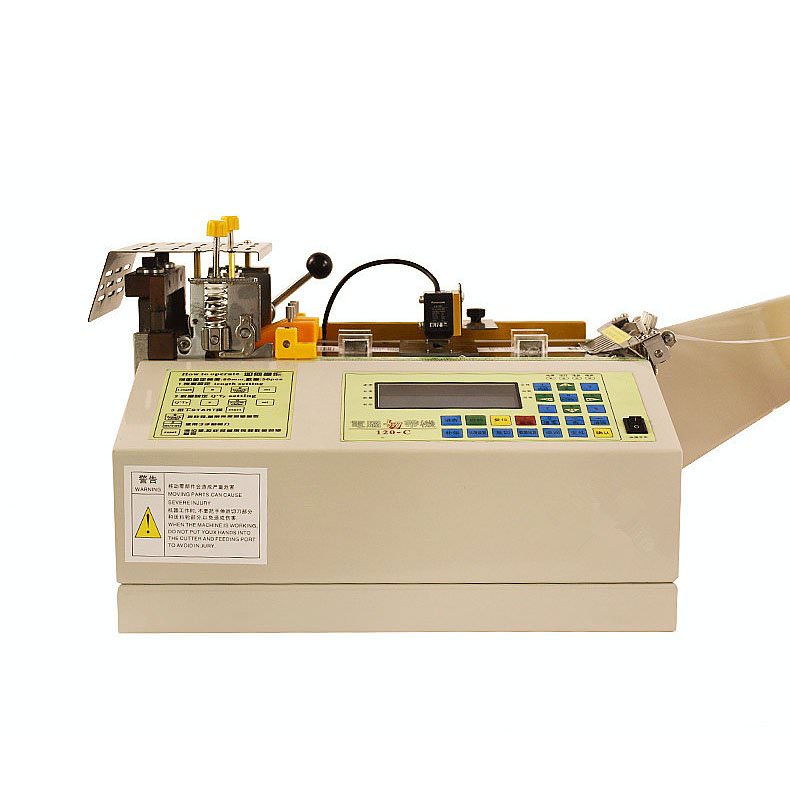

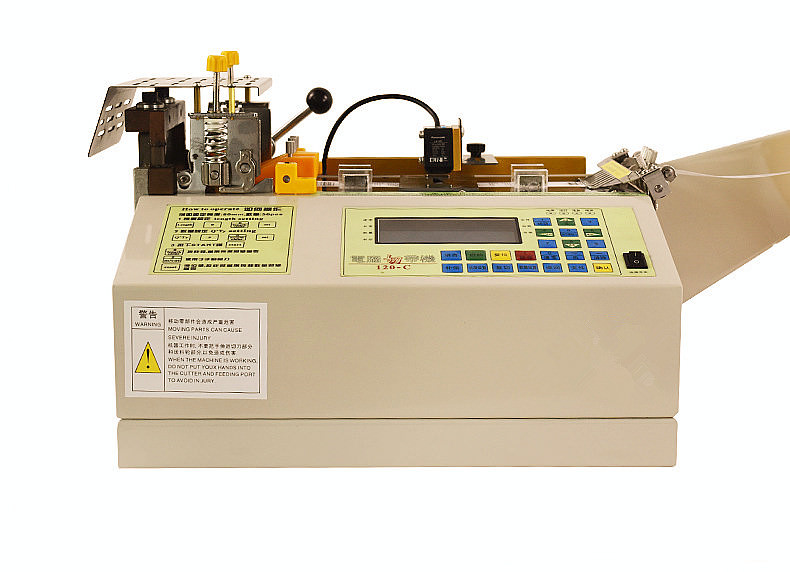

Front View

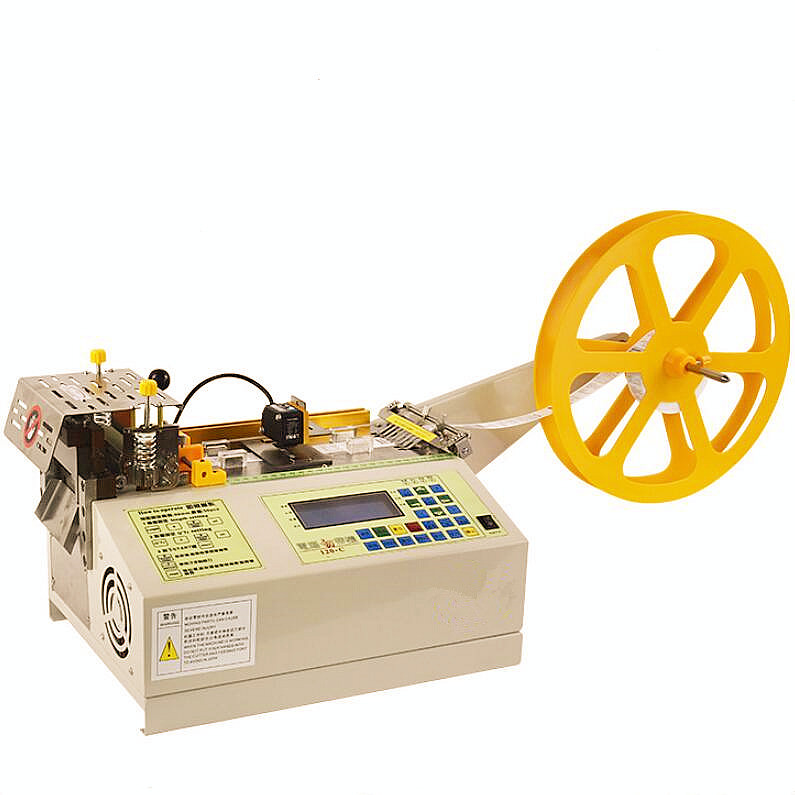

Side View

【Warranty】

All  the spare parts of this label cutting machine ES-016 except the knife will have one year of free maintainance by changing the spare parts for free

and free shipping of spare parts to overseas clients starting from the issuing date of commercial invoice  after on line diagnosis .

【Packing】

1Set/Carton ,Foam paddings will be placed inside the carton for safe shipping overseas
