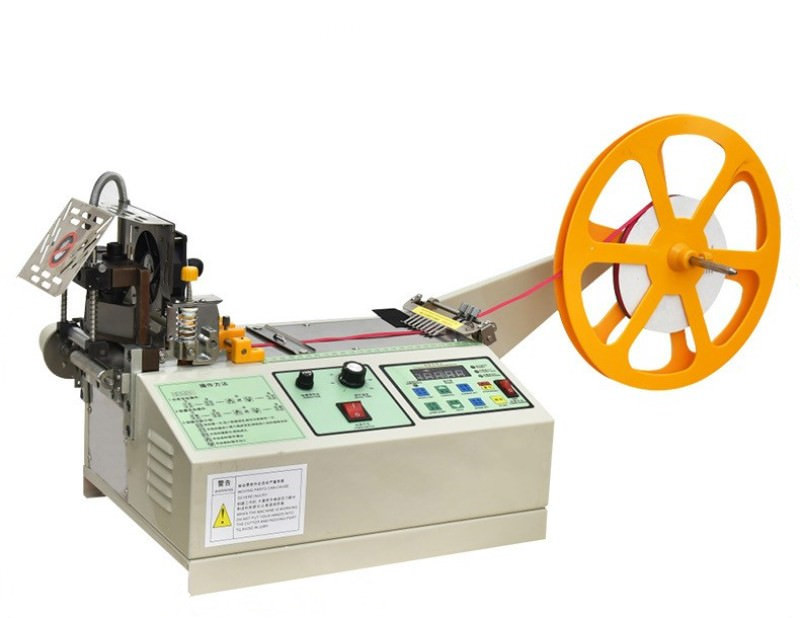

Hot ribbon cutter machine with angle cut ES-042-1

Hot ribbon cutter machine   ES-042-1

【Product Description】

The hot ribbon cutter machine  ES-42-1 is made  for  the hot cut of ribbon tapes and other narrow width thin fabrics into needed cutting length .

As the ribbon is very thin fabrics ,this hot ribbon cutter machine and sealer had been which equiped with a special structure knife specially designed for cutting ribbons with wonderful performance.

The ribbon cutter and sealer also provides hot cut and the knife can be heated up to 450 ℃ which will heat seal the fraying cutting edge with high efficiency.

Meanwhile , this automatic ribbon hot knife cutting machine is also called ribbon angle cutter , because it also can support with angle cut on the cutting edges .

The cutting width range is 1-50mm ,  the ES-042-1 can cuts ribbons with full automation which will greatly lift the production efficiency.





Sample ribbons



【Technical Data】

Brand :ESMAI

Product Name : Hot ribbon cutter machine with angle cut ES-042-1

Model No.: ES-042-1

Automation : Full automation

Usage : Ribbon and other narrow fabric cutting.

Knife Tool : Hot knife

Power : 0.44KW

Voltage : 110/220V

Cutting Width : 1-50mm

Cutting Length : 1-99999mm

Knife Maximum Temperature: 450 ℃

Weight : 24/25KG

Dimension(L*W*H) :  560*415*410(mm)

【Product Advantage】

1,Specially  made for cutting ribbon and other thin narrow fabrics , the machine had been put on special structure knife for the fast and high quality cut of ribbons

and other thin narrow- width materials

2, Angle and Heat cut , the knife can be  rotated to cut different angle shapes on the cutting edge .

3, Hot cut  to seal the cutting edge of ribbons , it will avoid the fraying cutting edge and make a nice cut ribbon

4,Full automation ,  customer can set the  cutting length , total cutting amount  and the machine will do the rest and proceed to automatical cutting performance .

the machine will no need baby sitting which it will stop working itself when running out of the cutting material .

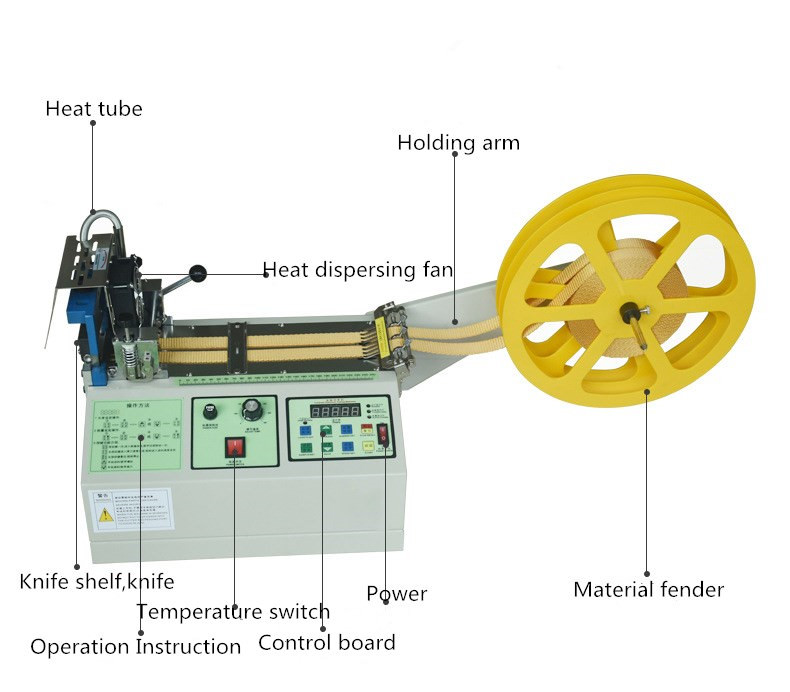

【Product Details】

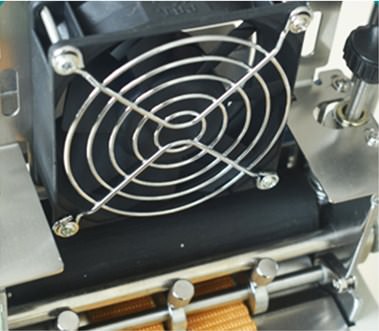

1, Multi Heat dispersing fan

The machine had been equiped with Multi-heat fans

to maintain the long workings hours and prolong its life span

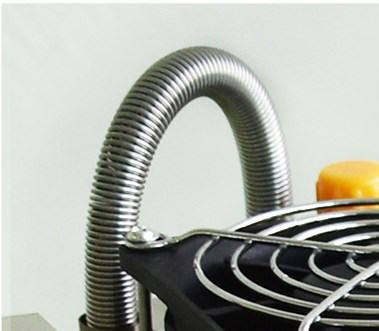

 2, High quality heat tube

The heat tube will be high quality  ,it raises  the heating temperature very fast

 and stable working  durable in use

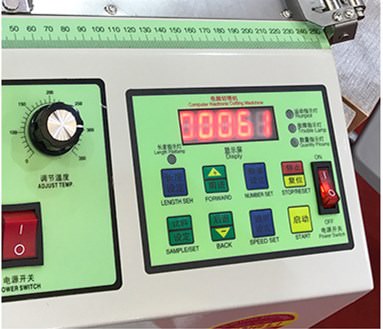

3, Each -to -operate Control board

Simple manual keys , easy to operate the machine .

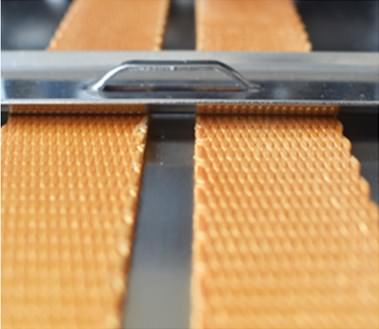

 4, Cutting material directing clip

This directing clip will hold down the cutting material and avoid the cutting material from swaying and cocky

it enable multi ribbon material to be cut at the same time .

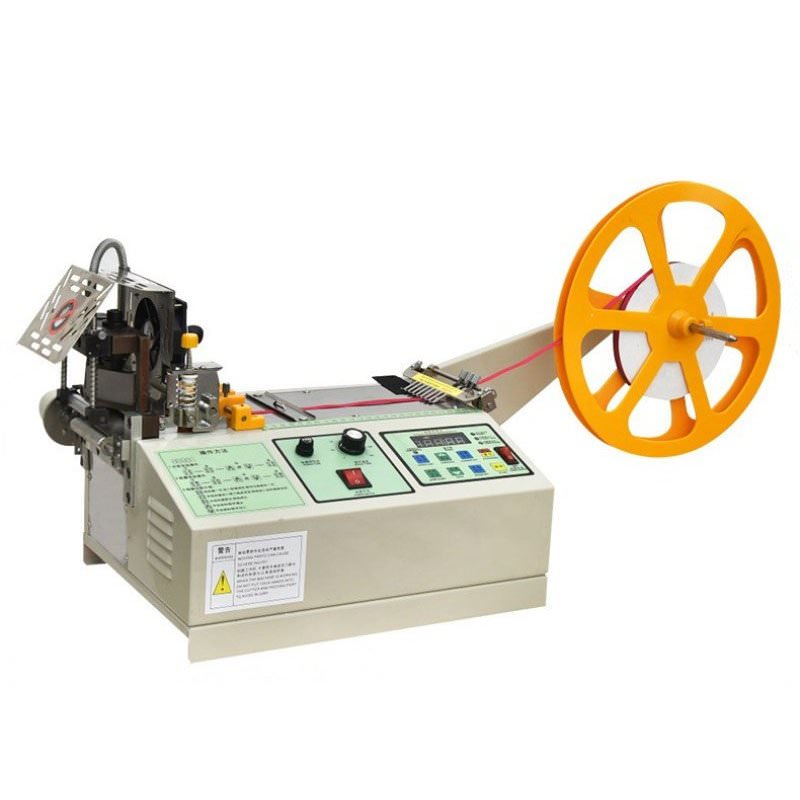

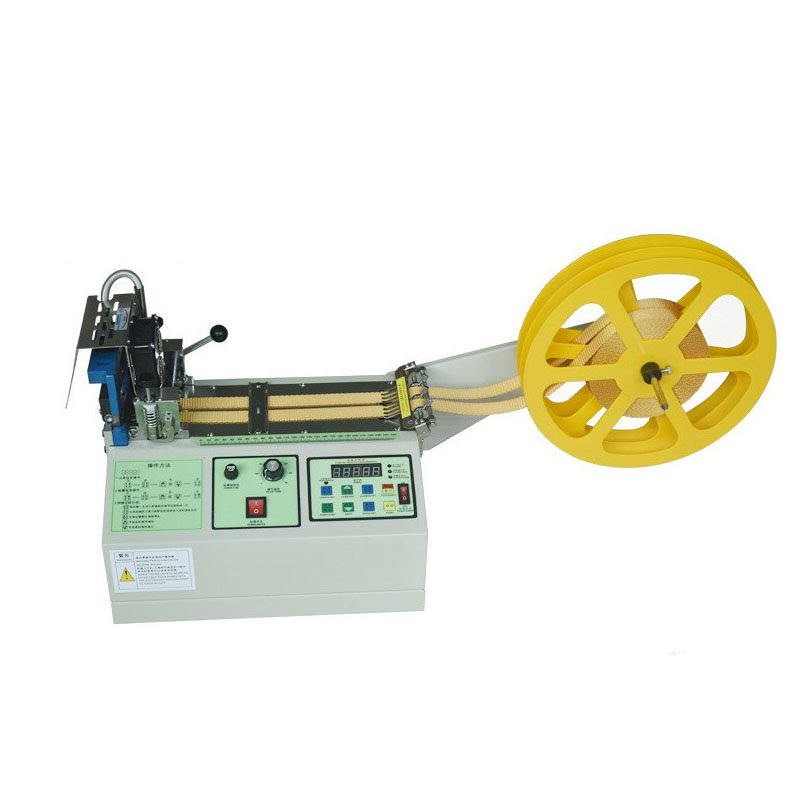

Front view

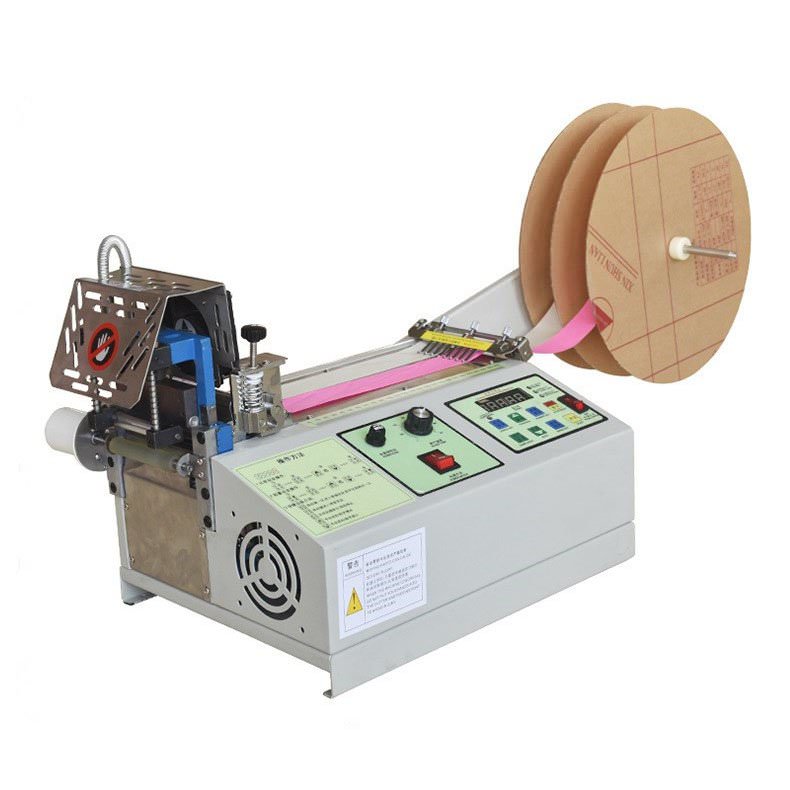

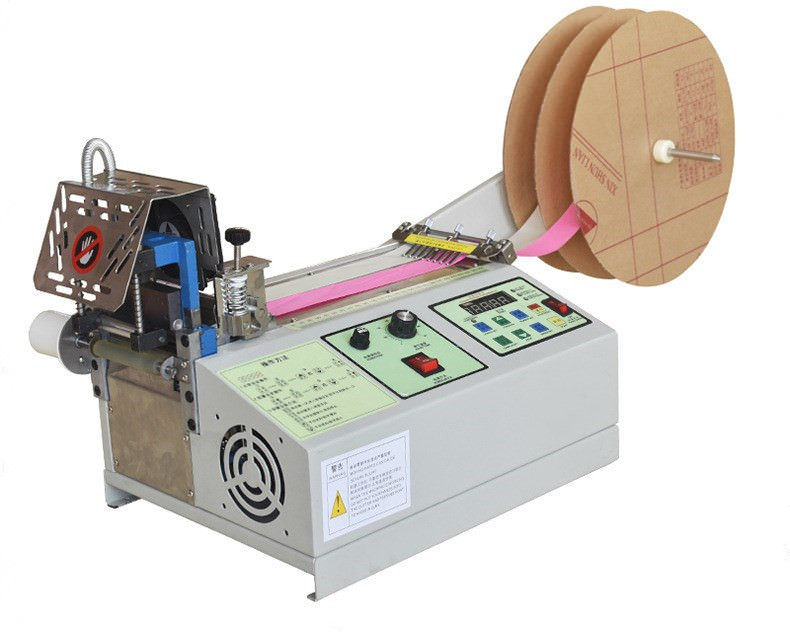

Side view

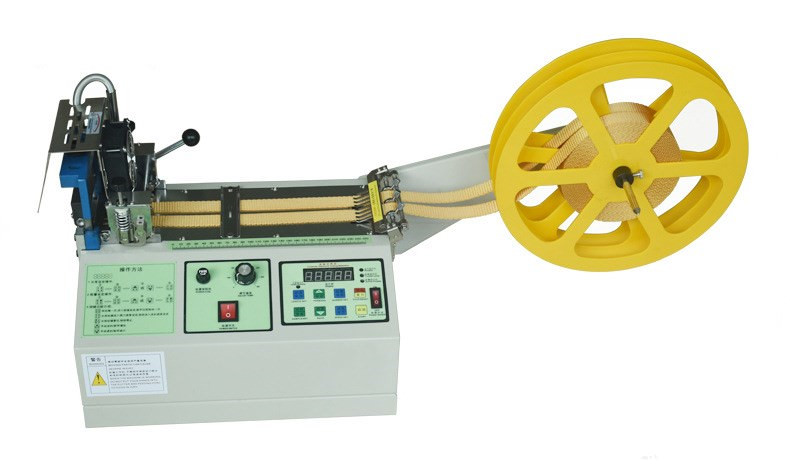

Front view 2

【Warranty】

All  the spare parts of Hot ribbon cutter machine  ES-018  except the knife will have one year of free maintainance by changing the spare parts for free

and free shipping of spare parts to overseas clients starting from the issuing date of commercial invoice  after on line diagnosis .



【Packing】

  1 Set/ Carton ,foam will be wrapped around the machine to protect it against rough handling .
