Webbing ribbon ultrasonic hole punch cutter ES-049

The webbing ribbon ultrasonic hole punch cutter ES-049

【Product Description】

The webbing ribbon ultrasonic hole punch cutter ES-049 is made for both  the hole punching and cutting of different narrow fabrics like webbings , ribbons , leathers  ,watch straps  etc with nice cutting edge  with help of ultrasonic device .

The ultrasonic webbing hole punch cutting machine  features with ultrasonic device for both cutting and hole punching  .

With the help of a good quality servor motor, the ultrasonic hole punching cutting machine for ribbon will deliver a good cutting and hole punching performance .

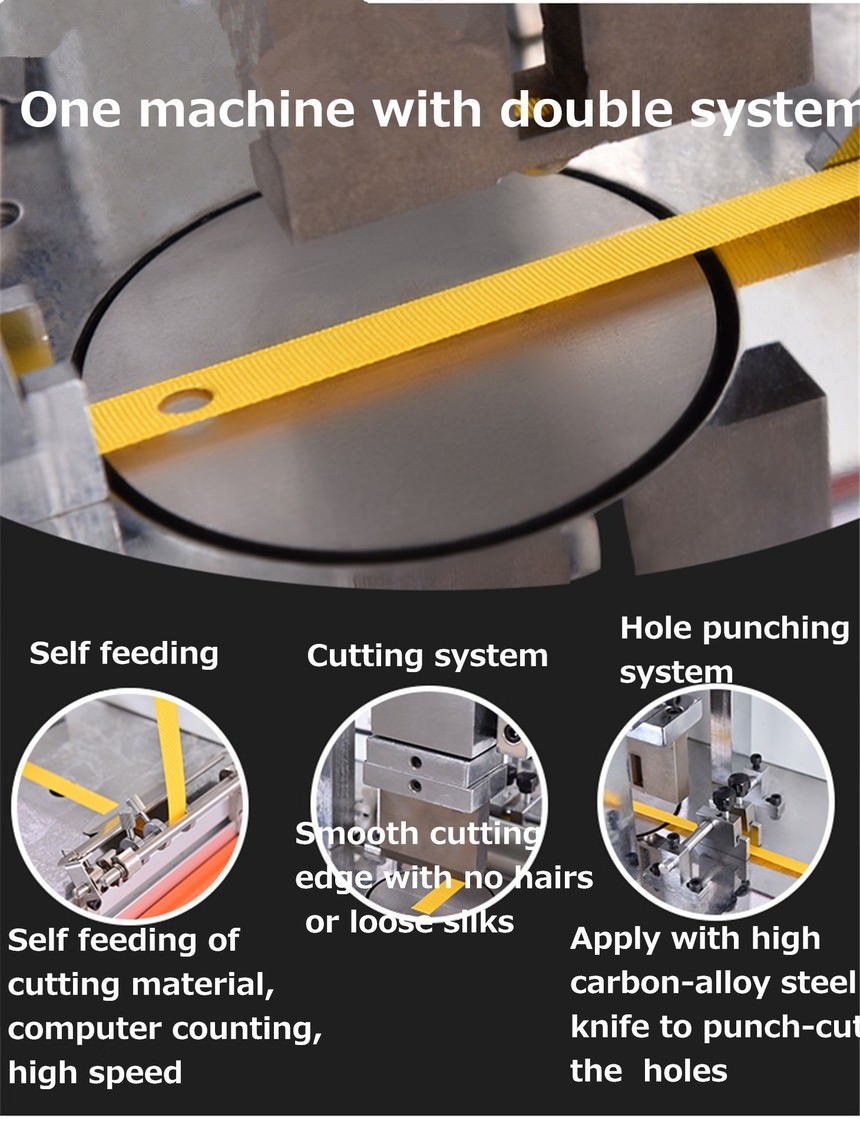

The ribbon ultrasonic hole punch cutter applies with high carbon-alloy steel knife to punch-cut the holes and it does self feed for cutting material with computer counting and maintains the high speed to lift production output.



【Youtube video】





【Technical Data】

Model No.:  ES-049

Product Name: The Utrosonic automatic double ends hole punching and cutting machine

Electrical system : 220V  50/60HZ

Display  screen : PLC Screen ,english language

Power : 2.0KW

Cutting mechanism : Utrasonic aids for both cutting and double ends hole punching

Net weight: 172KG

Dimension :980*650*1250mm





 【Product Advantage】



1, Full automation in cutting and hole punching , this machine is made up of  both cutting system and double ends hole punching system to

gurantee a full automation hole punching and cutting



2, Nice  cutting edges , the cutting edges and hole punch cut edges will be nice and smooth without fraying edge .

compared to hot cutting , the untrasonic cutting technique will leave no yellow and dark color on the cutting edges ,the cutting edge will look natural.



3, Hole punching distance will be even , A good quality servor motor plays the key role for the even hole punching distance.





【Product Details】

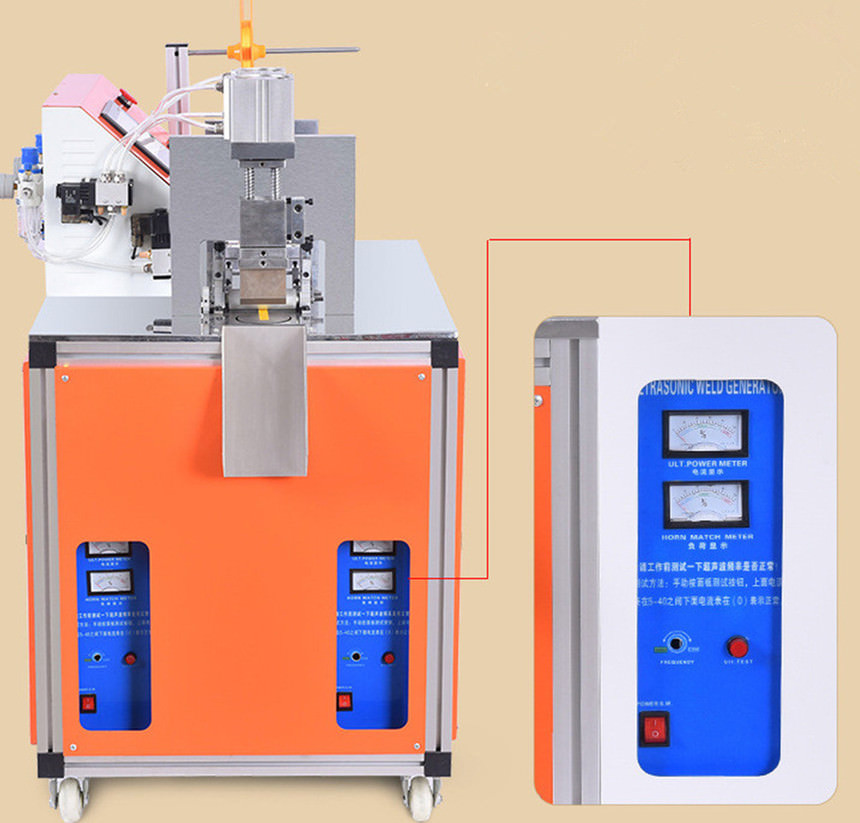

1,Utrasonic generator of good quality

The utrasonic device can identify the material itself and match

with the right heating temperature , save the human labour to adjust

 heating temperature and avoid the cutting material to stick to the knife and generate silk edges

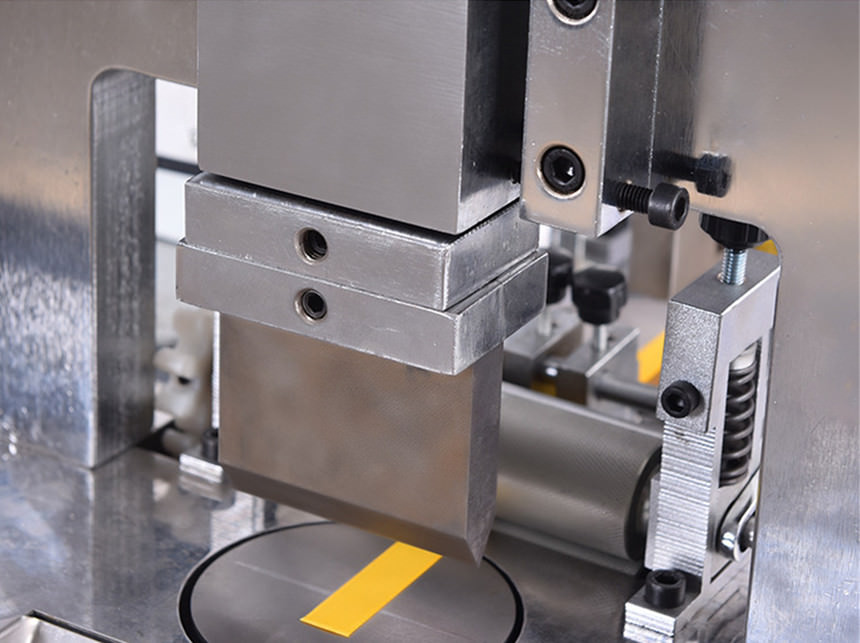

    2, Steel knife which is made of Carbon-alloy

  Applied with carbon -alloy made steel knife for hole punching and

  edge cutting which result in perfect cutting edges without hairy edges

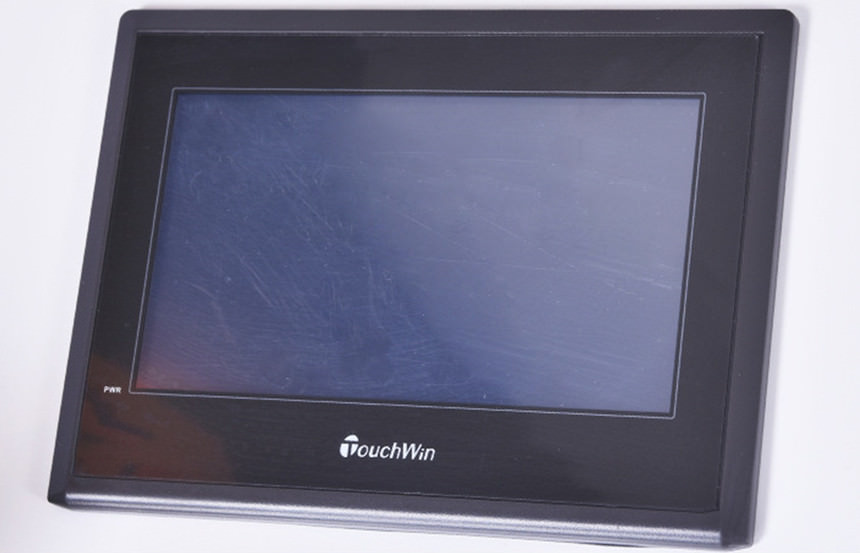

 3,Double language for english and chinese at switch ,PLC Control display

 It achieved with interminent hole punching and cutting cabability ,

 Customer are free to set on the display screen no matter how

 many holes you would like to punch out in the narrow fabrics and

 the distance between the holes can also be set .







  4,Imported spare parts , quality assured

Apply with sweden alloy steel , durable in long working hours

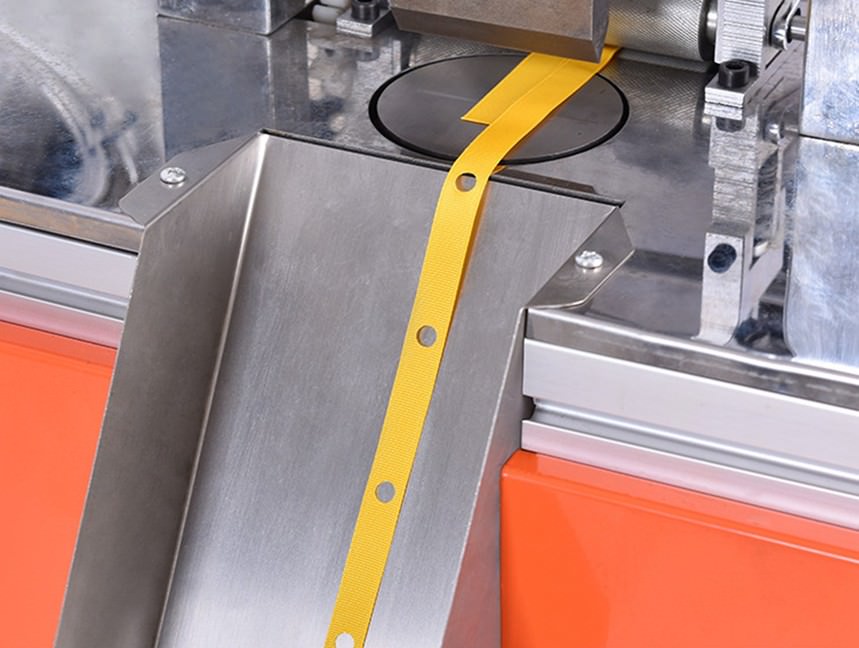

   5, Precision even hole punch distance and fast speed punching

Full automation in hole punching and cutting  without fraying edges   after ultrasonic cut

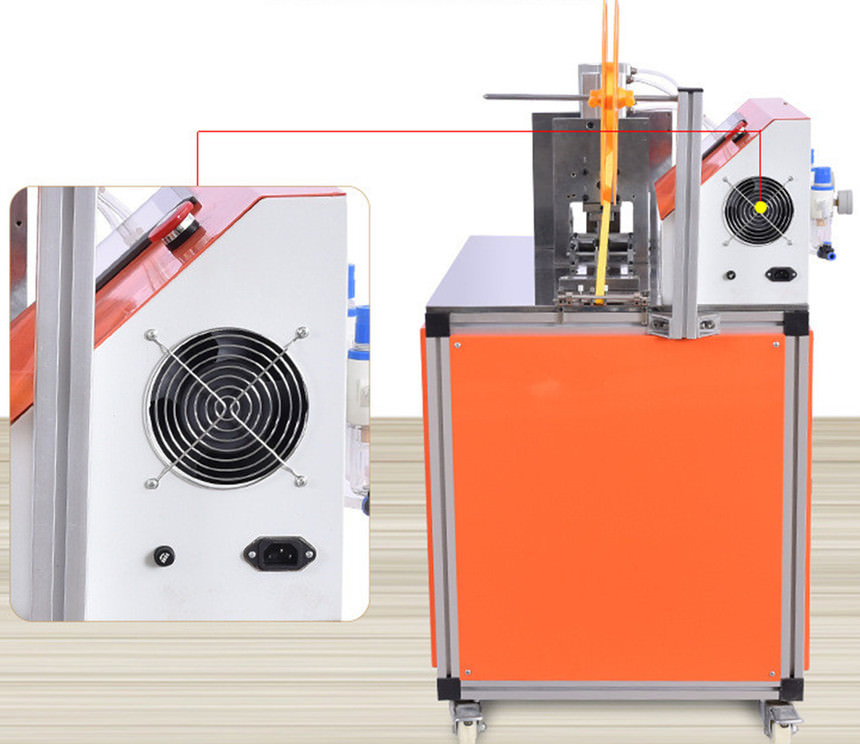

  6 , High power heat disperse device

 High efficient in dispersing the heat to gurantee long working hours of the machine

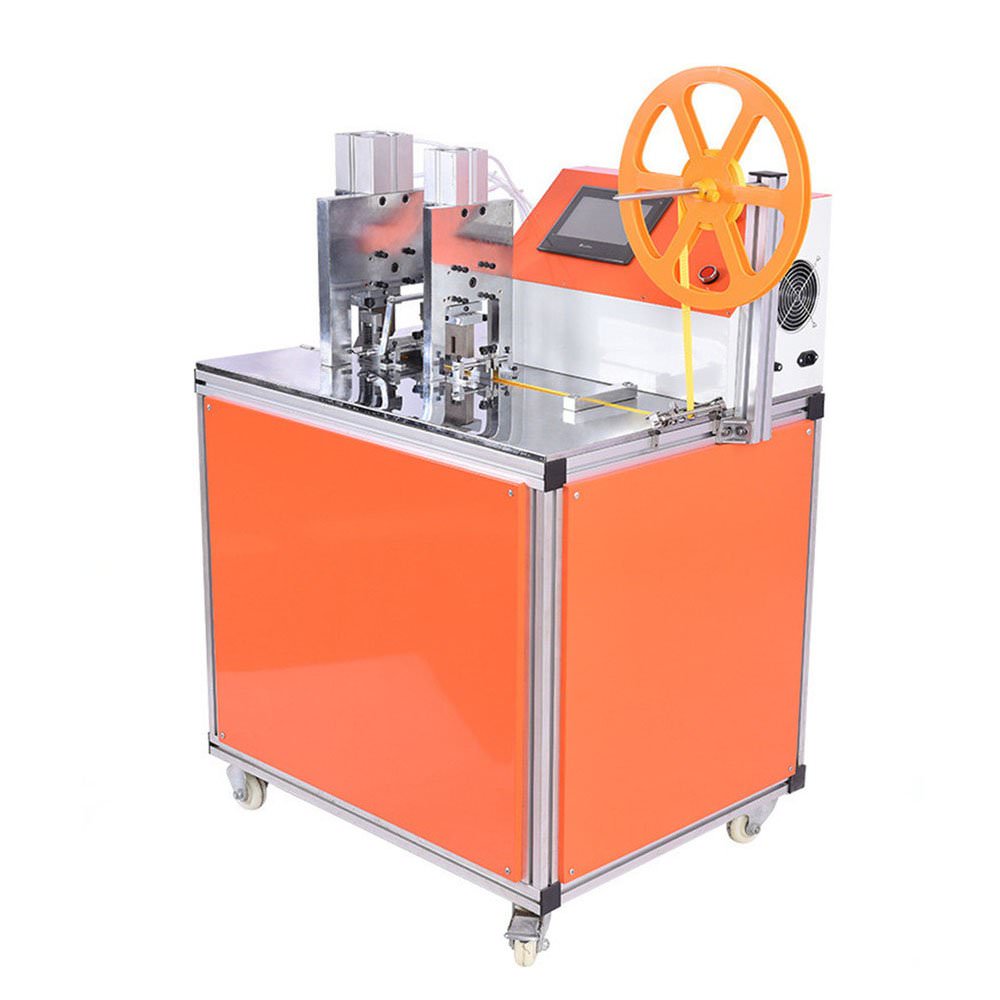

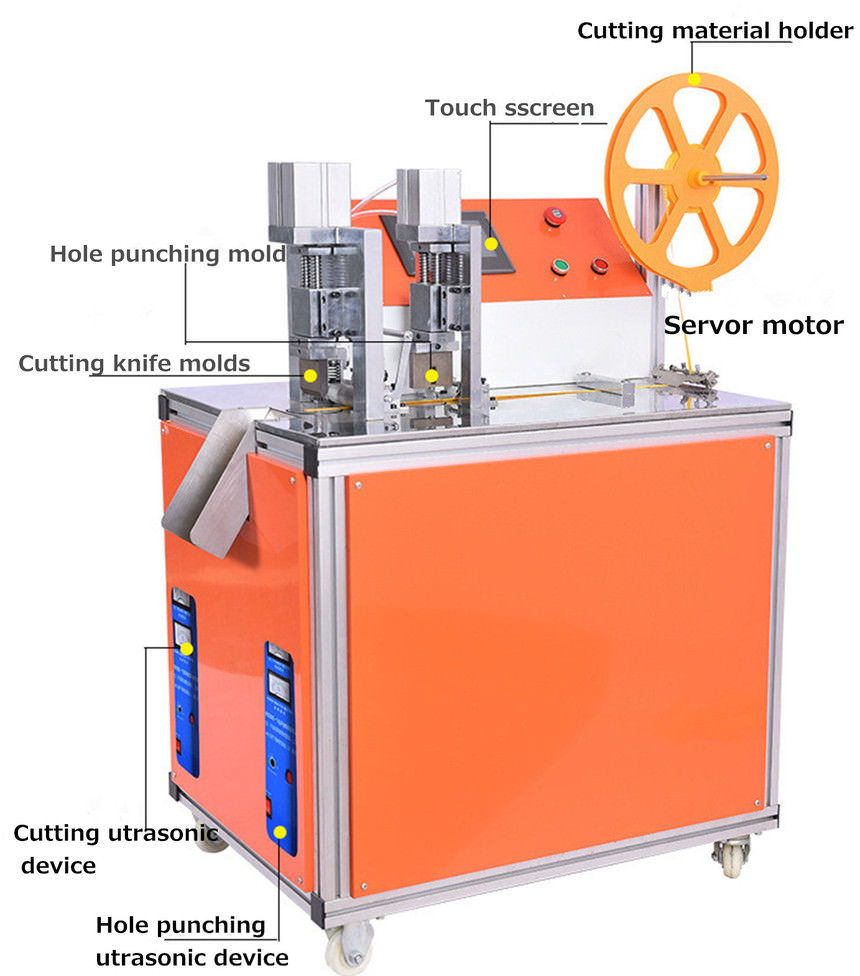

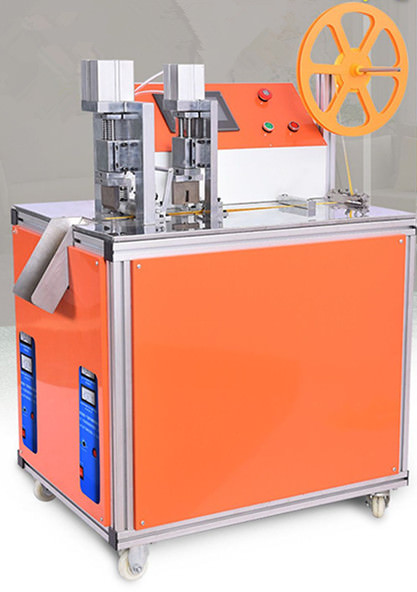

Front view

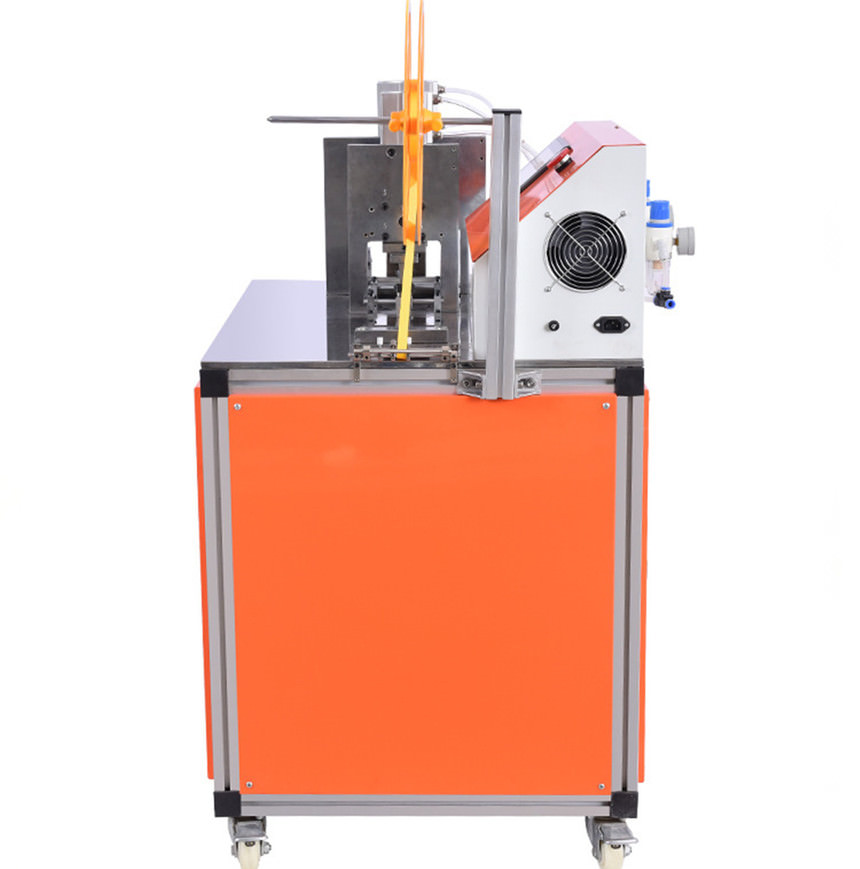

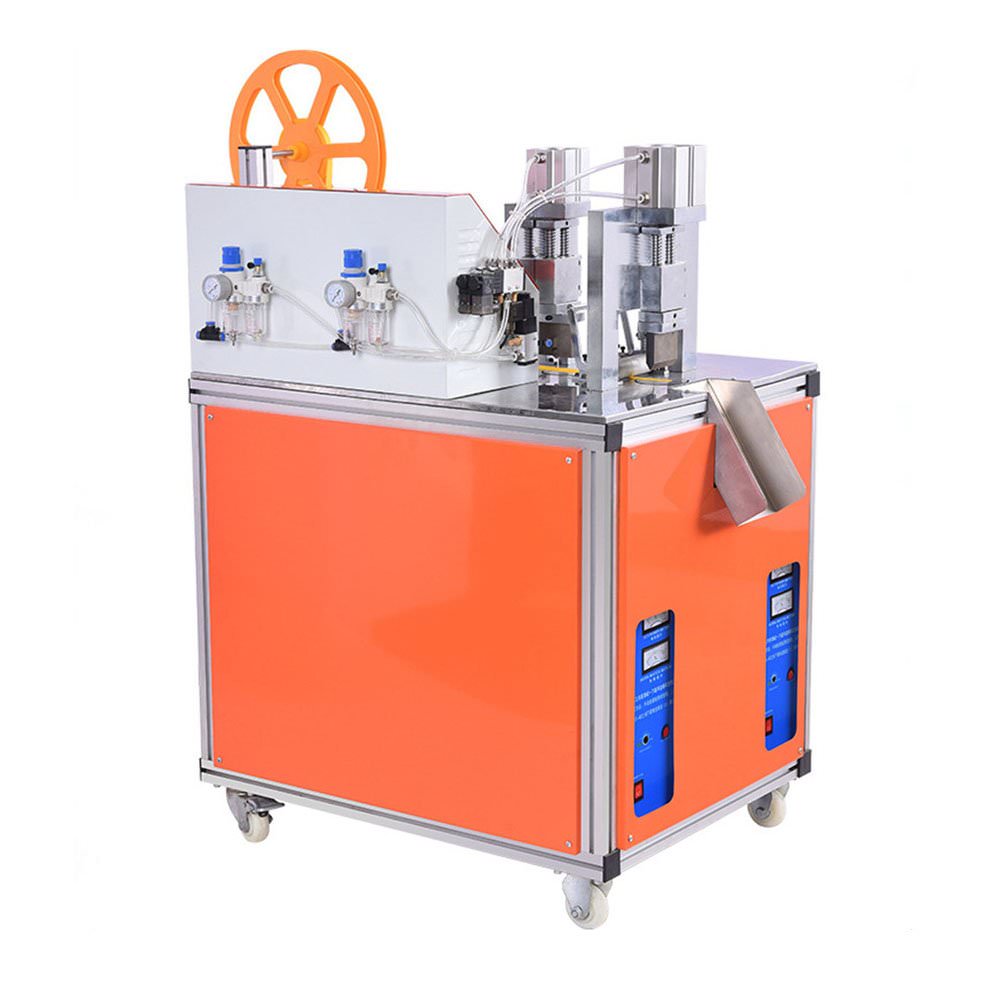

Side view

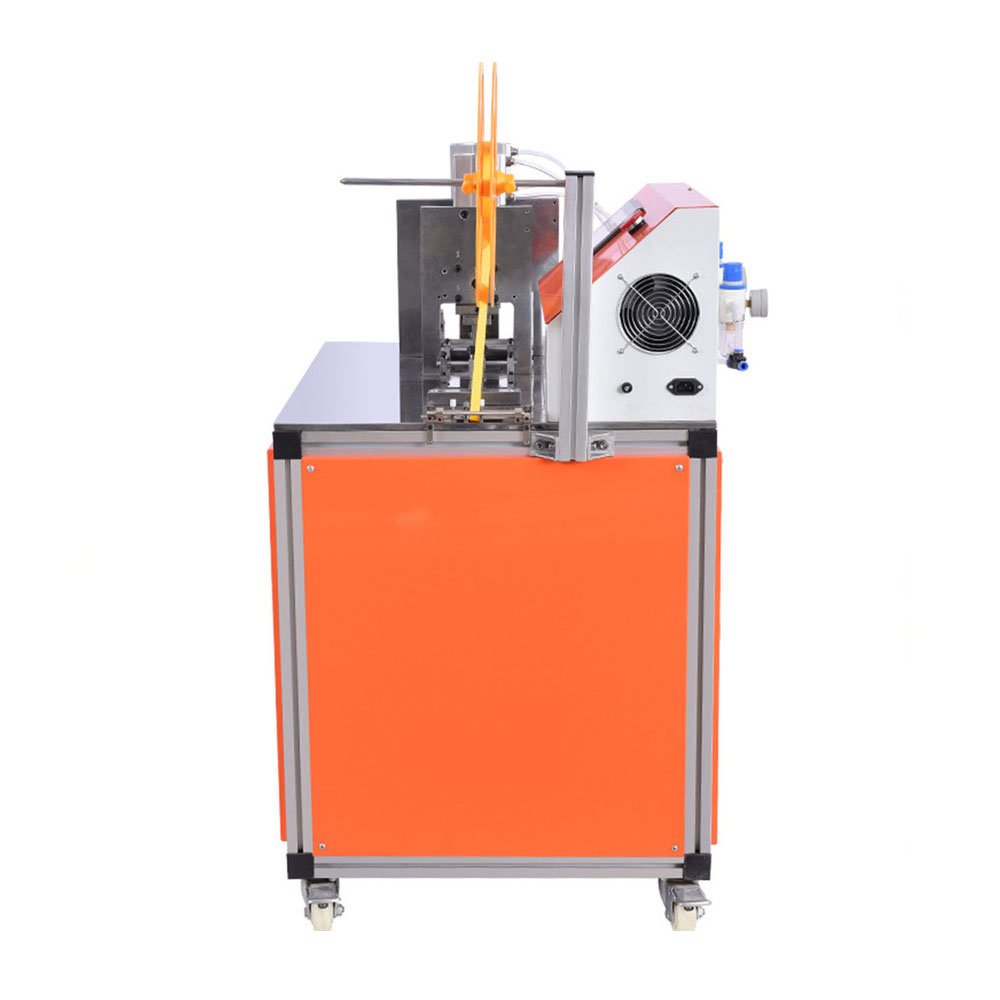

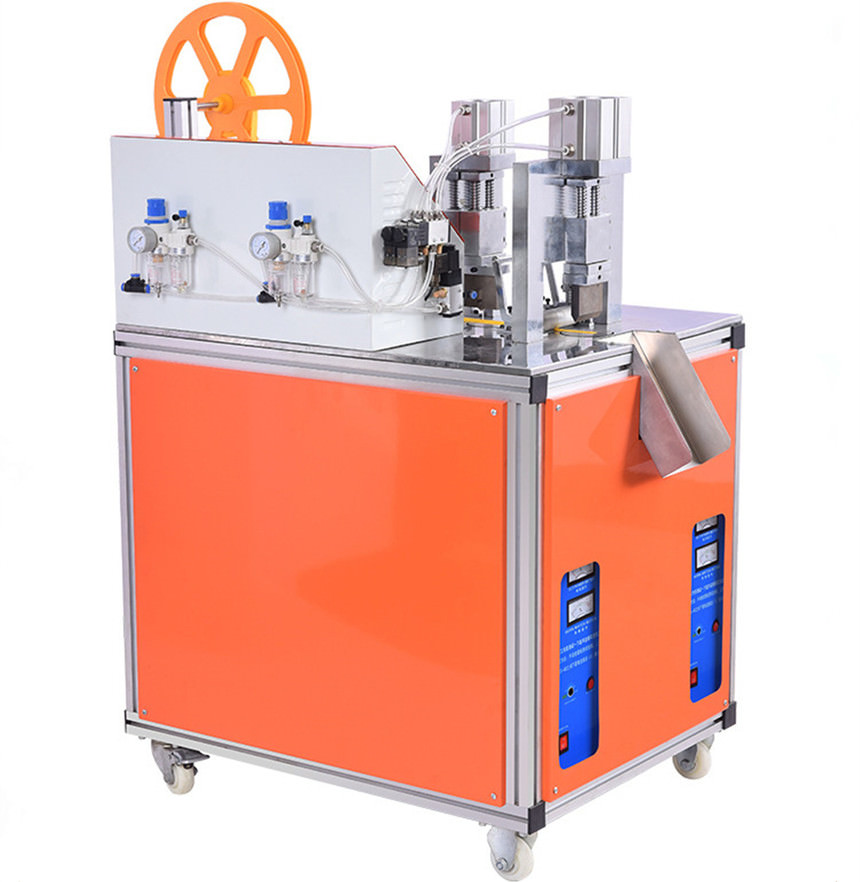

Side View

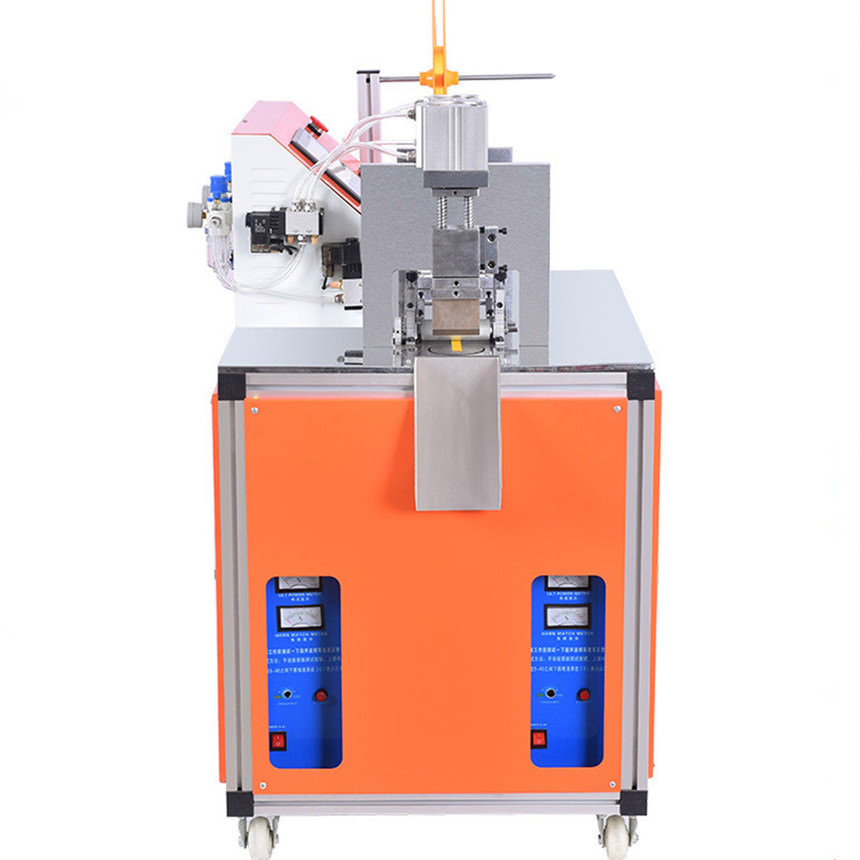

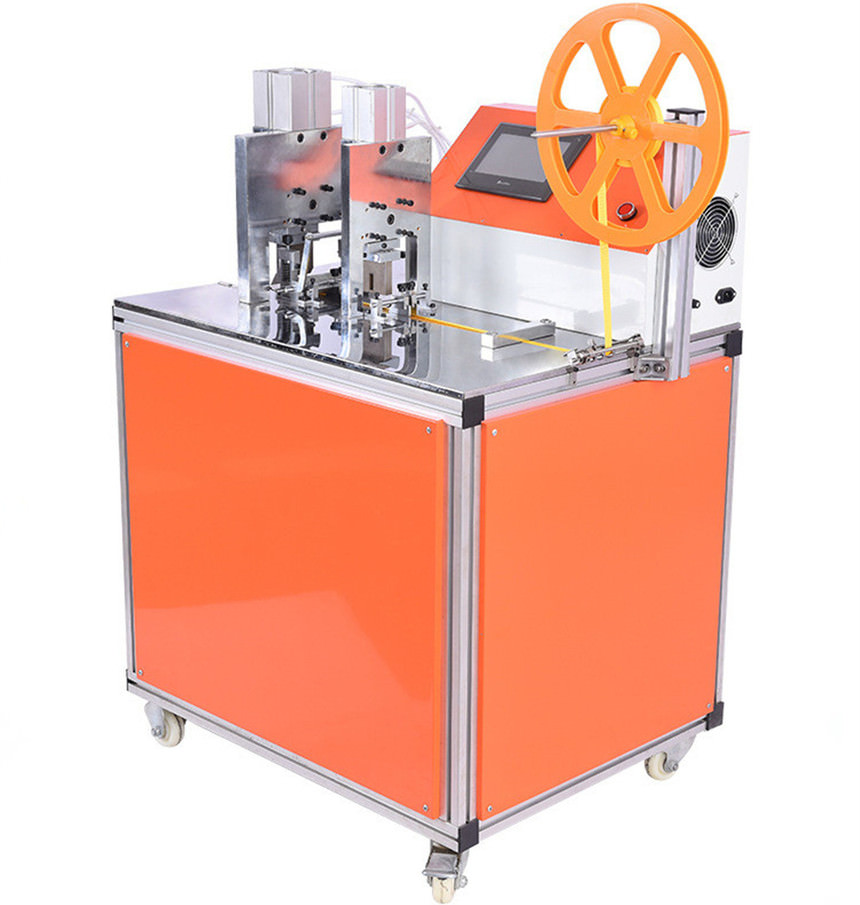

Back View





【Warranty】

All  the spare parts of webbing ribbon ultrasonic hole punch cutter ES-049  except the knife will have one year of free maintainance by changing the spare parts for free

and free shipping of spare parts to overseas clients starting from the issuing date of commercial invoice  after on line diagnosis .



 【Packing】

  1 Set/ Wooden case , foams will be wrapped around the machine before wooden case packing to protect it against rough handling
