Door gaskets joining press machine ES-068

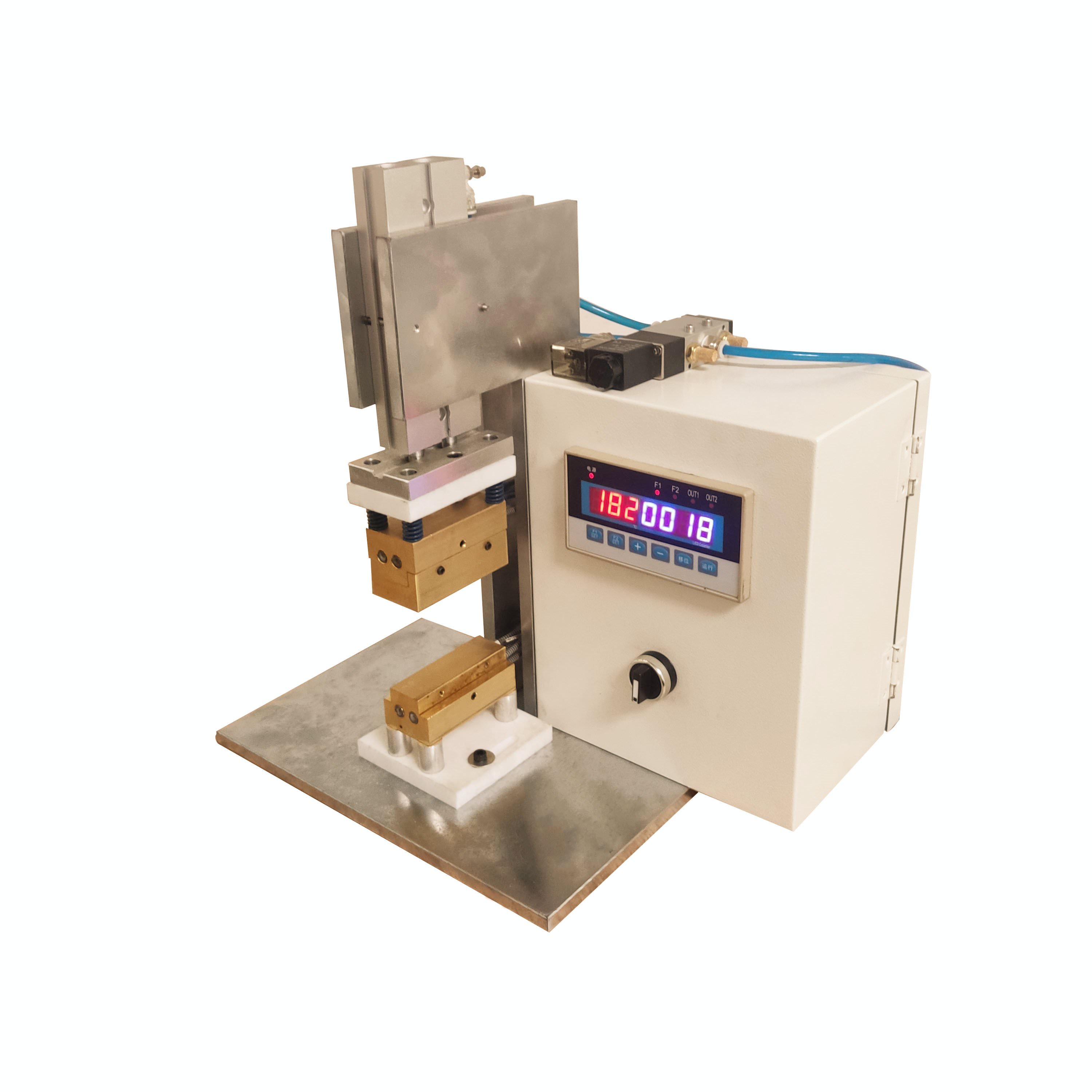

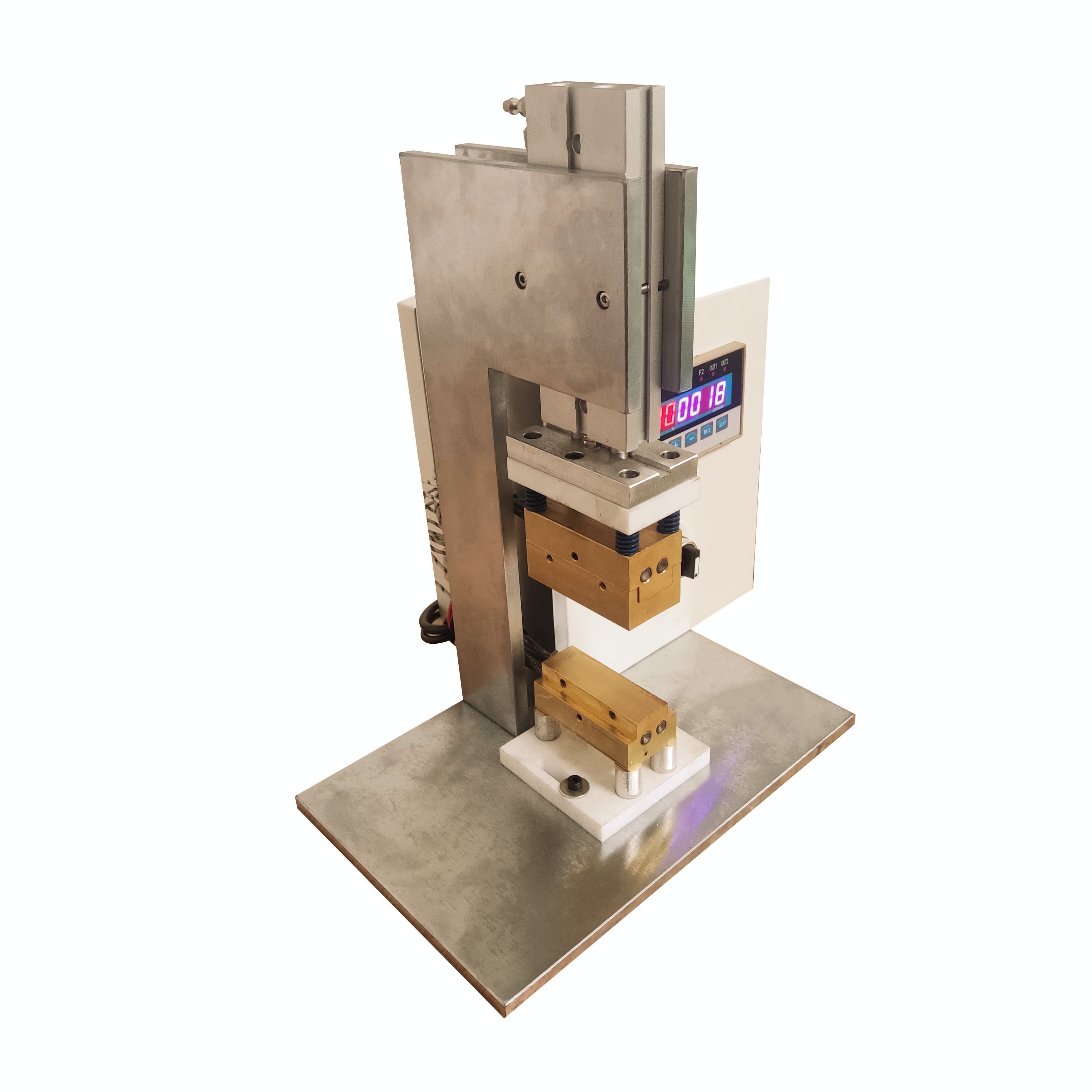

The door gaskets joining press machine  ES-068

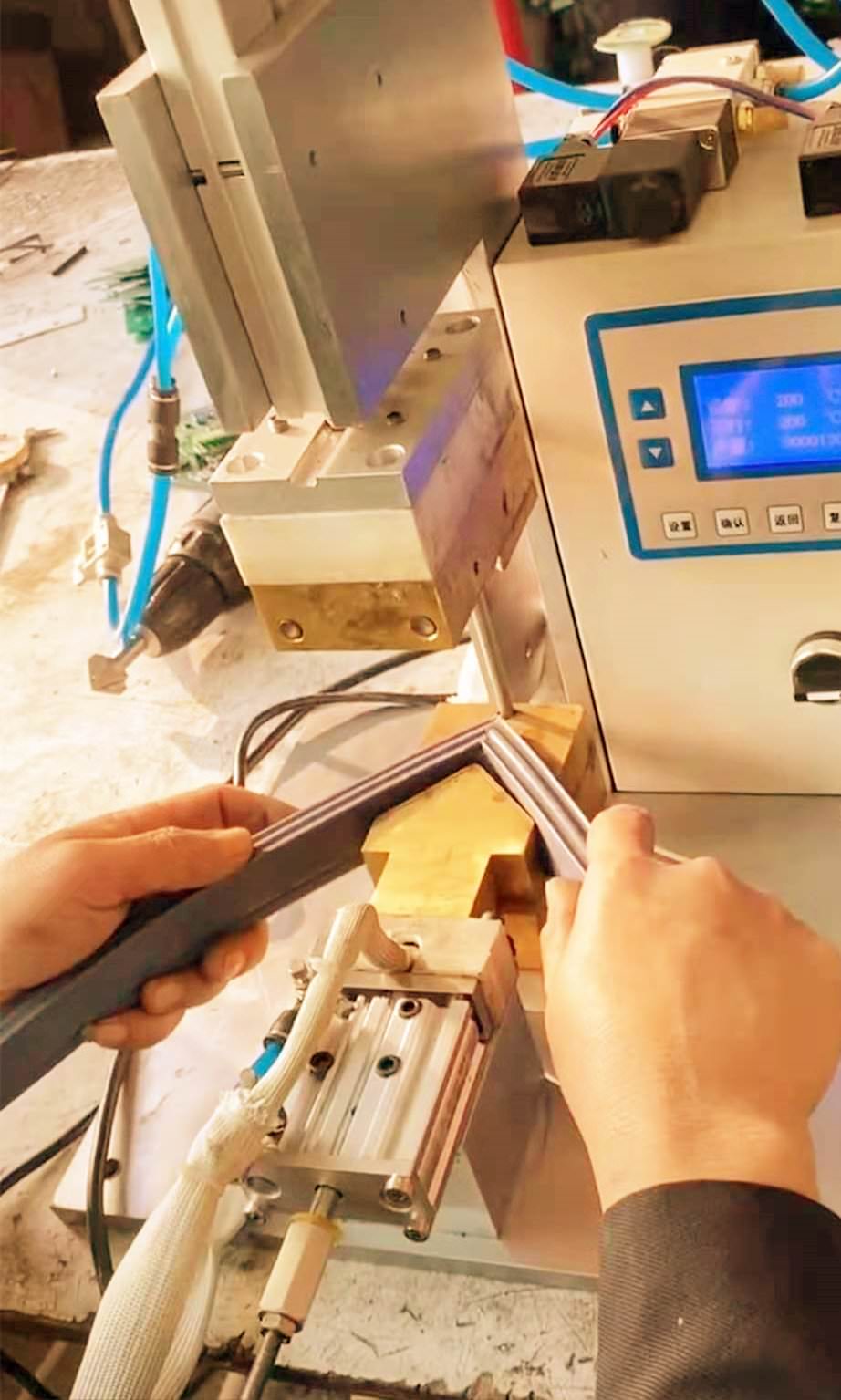

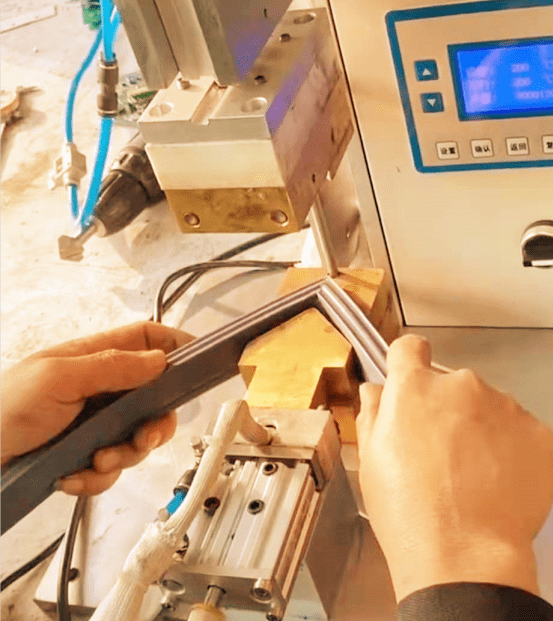

The door gaskets joining press machine ES-068 is designed for  joining door gaskets like silicone door gaskets , rubber , EPDM door gaskets into 90 degrees  angle  for the application as door gaskets seals in the doors and windows .

The door seals heat press machine supplies high temperature of up 400 degrees , the mold die is made of copper which will be of high heat tranfer efficiency.  the cavity in the copper mold is based on customer's door seals sizes .

As the door gaskets and seals  comes in irregular cross section shapes ,  normally it is advisable for customer to send their door gaskets samples , we will customise the mold die based on the actual sample also the electrical drawings if possible.

The door gaskets heat press machine  are air motivated which it will be linked to air compressor , the air force will maximize the heat efficiency together with high temperature  and allow the adhesive to cure fastly for a strong bond of  silicone or rubber door gaskets .

In contrast to manual jointing of silicone or rubber gaskets door seals into 90 degree angle  in a fixtures , the door seals splicing machine can raise bonding efficiency and ensure high productivity for customers who have heavy production demand for door seals and gaskets .

【Technical data】

Model No.: ES-068

Product name : The door gaskets joining press machine

Mold Material : Copper

Copper Mold Temperature Range:0-400℃

Heat time range : Set heating time at will

Upper Mold size: 40*80*13mm(Mold Thickness Ajustable)

Down mold size : 40*80*13mm(Mold Thickness Adjustable)

Power Input: AC220V  50/60HZ , 0.8KW

Working Air Pressure: 4-6bar

The highest productivity:1000 times/hour

Net weight: 20KGS

Input  Pressure: 6KG,  Maximum pressure :40KG

Machine Size: L350*W350*H500mm

【Product Advantage】

1, Fast joining door gaskets that is more efficient and productive .

2, Automatic bonding ,  the upper copper mold will come down and up automatically  which requires no treading on the foot padel .

3, Safety design , if any emergency happens ,  user can tread on the foot padel  , the upper mold will come up to ensure worker safety.

4, Customised mold design , customer  can send their door gaskets to us , we will make the right cavity on the copper mold .

【Product detail 】

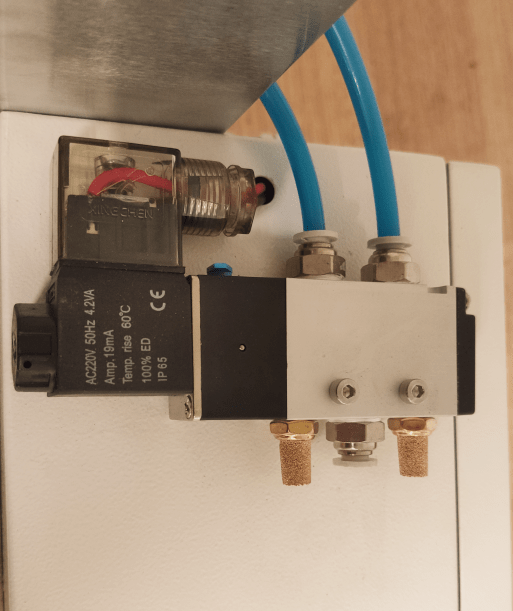

1,  Air pressing to maximize the bonding effect ,

the machine will be linked to a air compressor for air press force

2, Special shape copper mold , we have strong mold design capability to

cater to customer's specifical needs

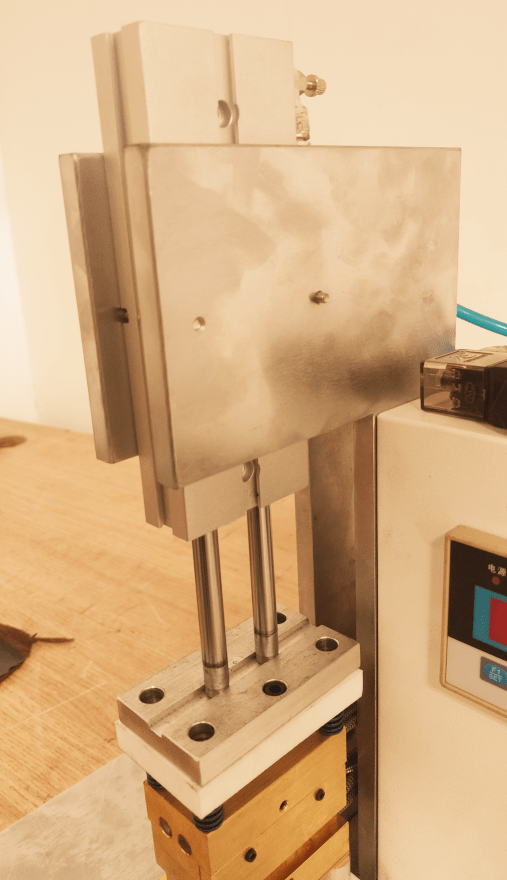

                                                                                                                                                              3,Long travel range of upper mold which allow it to

                                                                                                                                                               release more pressing force and bond more larger gaskets.

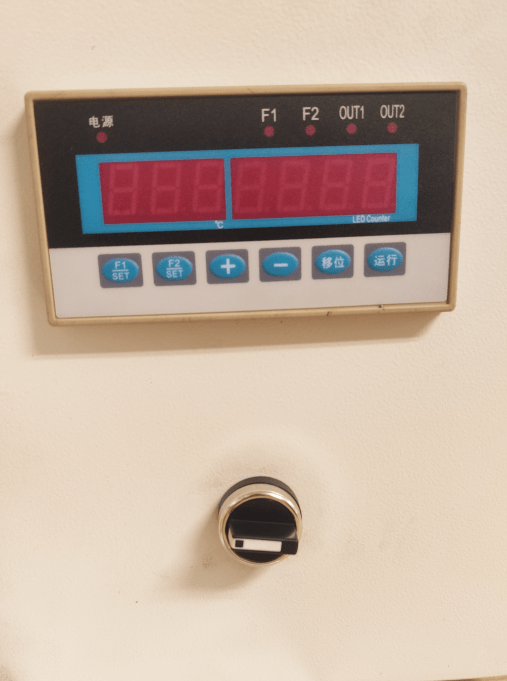

 4, Easy operation control board, the temperature setting ,the heat time setting ,

the counts are assembled in one screen for easy operation  purpose

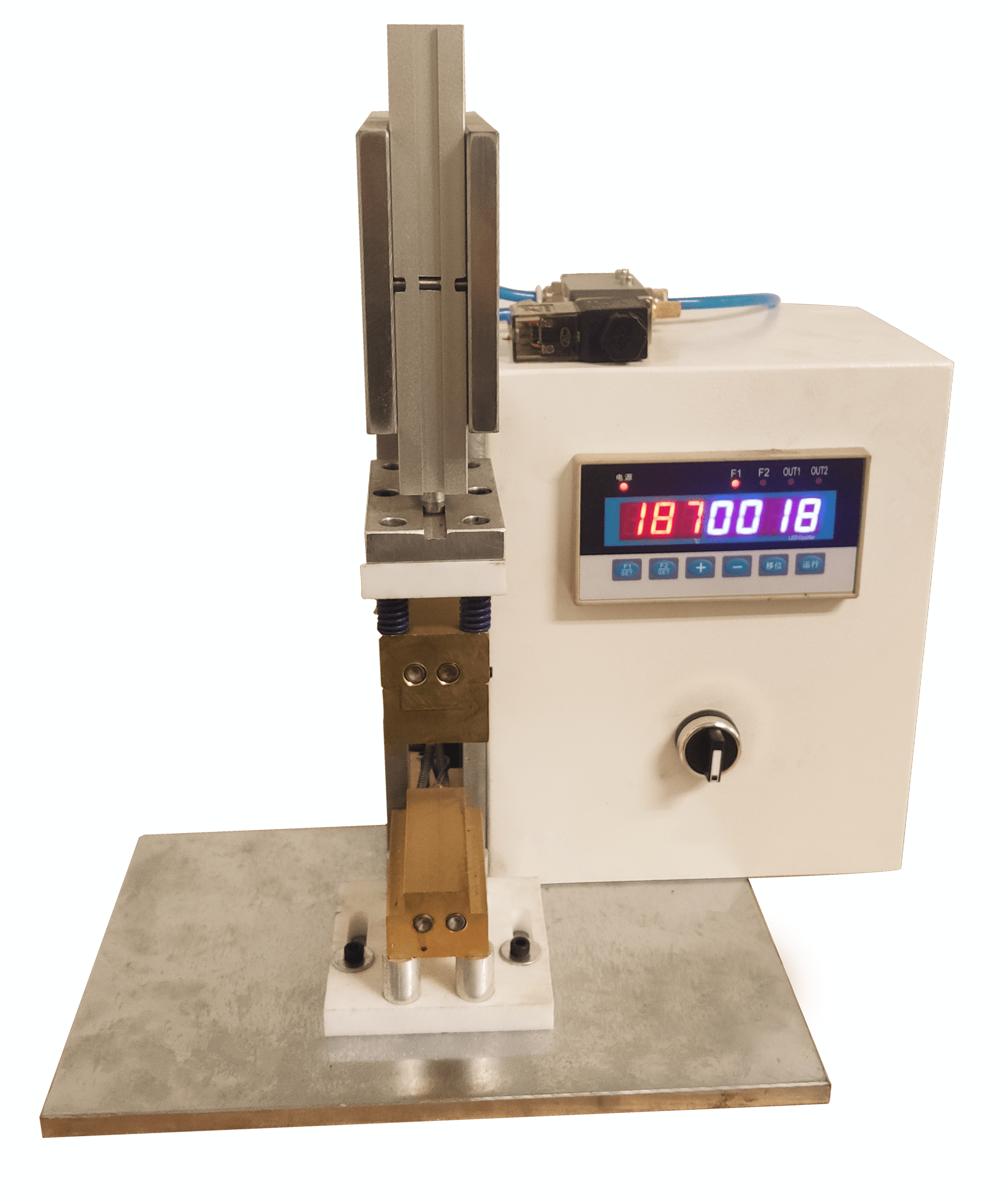

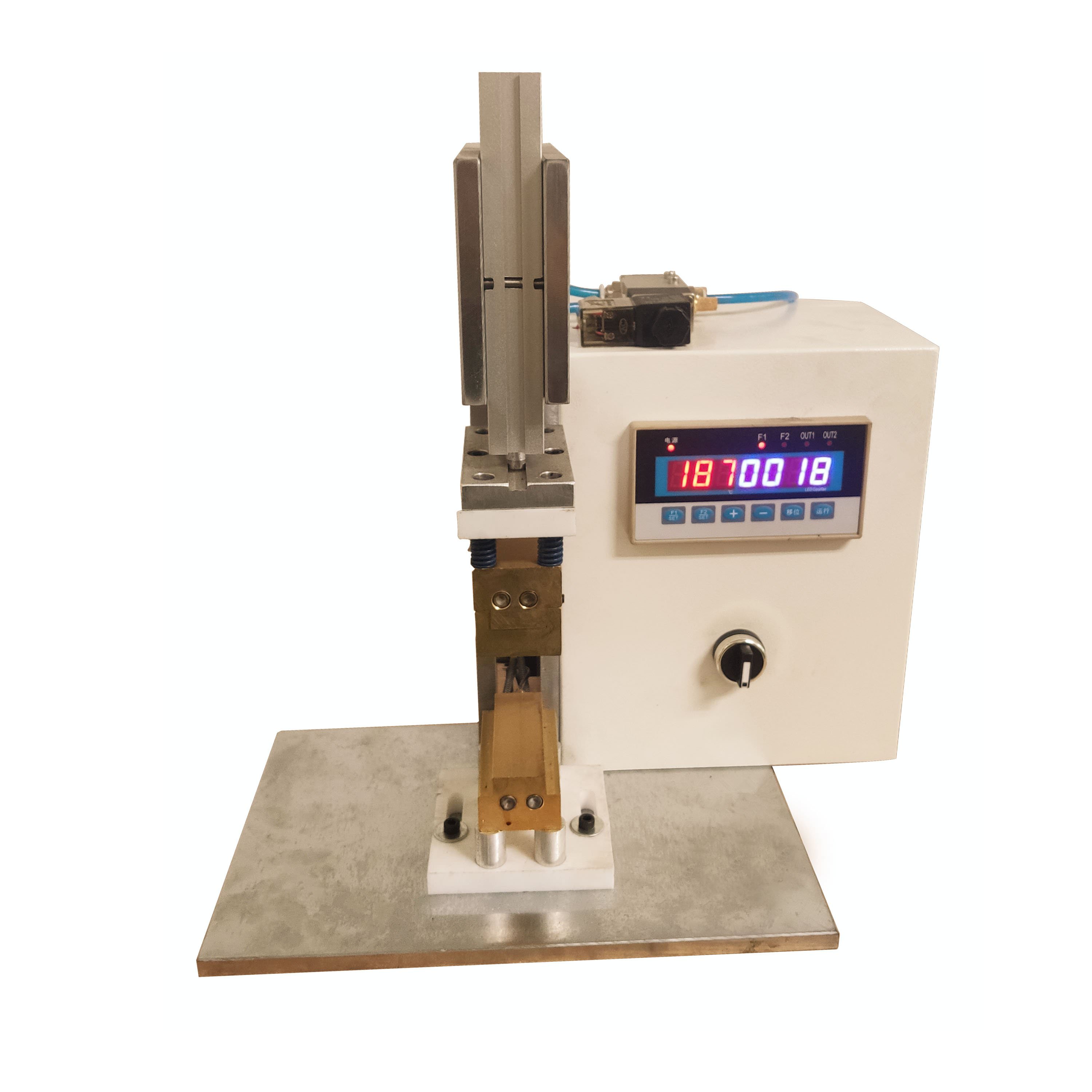

【Front view】

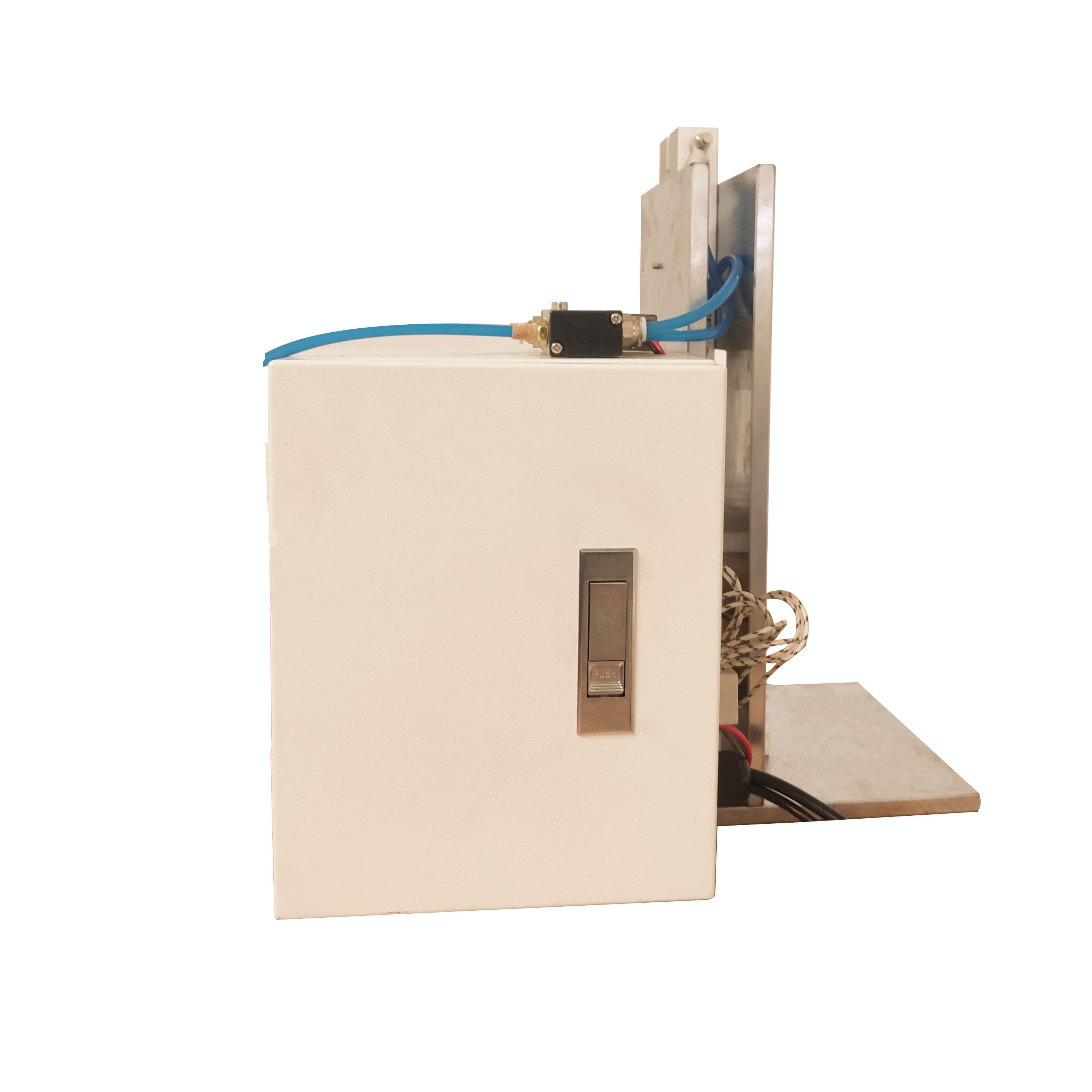

【Side view】

【Side view】

【Back view】

【Warranty】

All  the spare parts of the door gaskets joining press machine will have one year of free maintainance  by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice  after on line diagnosis .

【Packing】

 Wooden Case Packing for overseas safe shipping , 1SET /WOODEN CASE
