High speed elastic rubber band cutting machine ES-X300

High speed elastic rubber band cutting machine  ES-X300

【Product Description】

The high speed elastic rubber band cutting machine  ES-X300   is applied for cutting rubber tubes and rubber sleeves into elastic rubber bands fastly . the rubber band cutter machine had been equiped with high speed motor which enable this rubber cutting machine to cut  out same length rubber bands from rubber sleeves or tubes at amazing speed and high precision reaching 0.1mm oweing to a customised high speed motor.

Meanwhile ,The elastic rubber tube cutting machine applies with a vaccum treated steel knife , the rubber bands will not stick to each after cutting compared to other cutting machine in the market with high speed and the cutting edge is smooth flat  and nice .

Customer  can set the desired cutting length , total cutting amount and the machine will do the rest , proceed to automatic cutting sequence . the cutting speed can be also adjusted freely base on your production needs .

The rubber sleeve automatic  cutter machine ES-X300  features with high productivity with 400 pieces output per minute  of 2mm length rubber bands  which is great helpful when customer are in heavy production of elastic rubber bands , the cutting length ranges 0-99999 MM.

We have two typies of ES-X300 to choose from ,the standard type or the super speed type ,customer can choose the one they want based on their production demand and budget.

【Youtube  video 】

Same speed as ES-X200

【Product  Detail 】

1, High productivity , applied with high speed motor to ensure fast cutting of small length elastic rubber bands .

2, Precision cutting length , the cutting length precision reach 0.1 mm & Smooth flat cutting edge .

3, Simple control board which  easy to operate  and teach staff to use the machine

4,Chinese and english language at switch

5, Delicate setting for cutting length , total cutting machine , cutting speed , batch amount and batch  stopping time

【Technical Data】

Model No.: ES-X300

Brand :ＥＳＭＡＩ

Product name : High speed elastic rubber band cutting machine

Feature : High speed & high productivity cutting .

Voltage: 220/110V  50/60HZ

Motor : Customised high speed motor.

Cutting width : 310 MM

Cutting  Heights: 0—13MM

Cutting length : 0-99999 MM

Cutting speed : 400 pcs/ minute for 2mm elastic rubber bands

Cuttting precision : 0.1 mm

Net Weight :   85 KG

Dimensions:　Ｌ650：Ｗ 650：Ｈ45０ｍｍ

【Product advantage 】

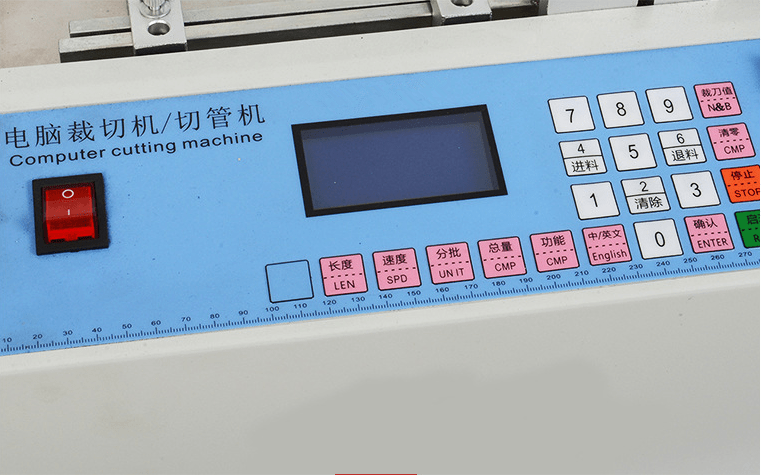

1, English  & Chinese language , one key switch

LCD control screen ,  English and Chinese language at switch , simple control board , easy to operate

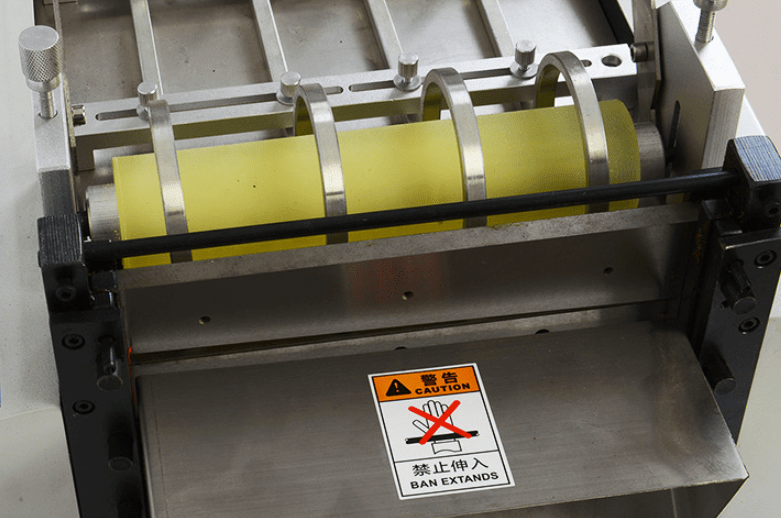

2., High quality  cutting material transport roller

High quality PU rubber ,  abrasion resistance , heat resistance ,high temperature resistance, apply pressure screw

on both sides to adjust the rolling pressure and efficiently avoid slippery during material transporting.

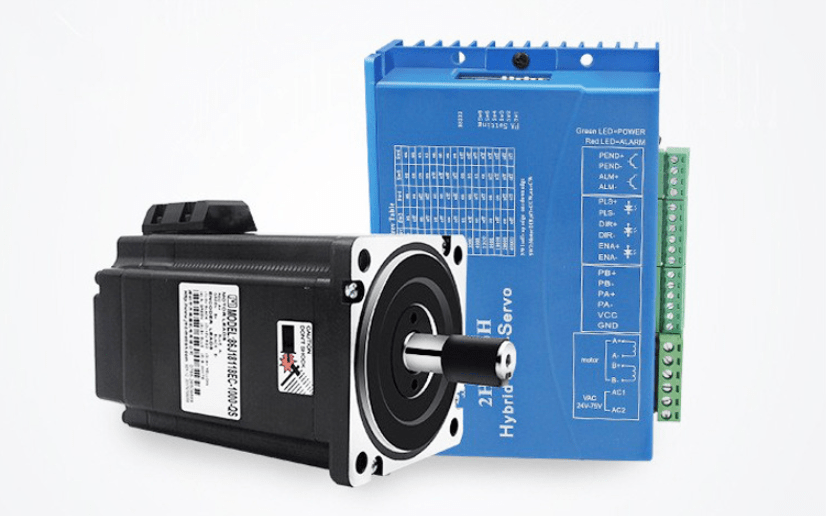

3,High precision motor

Computer programmed controlling precision at 0.1mm ,transporting cutting material more fast ,

high power and stability , long life span.

4,Vaccum heat treated steel knife

Applied with SKD 11 high speed knife material and specialized mechnical structure,  sharp cutting blades,

durable in use, ensuring no fraying cutting edgs.

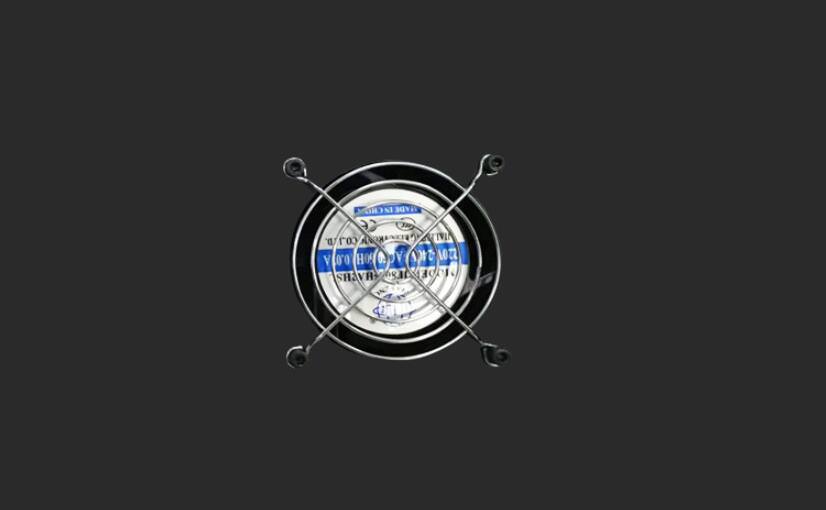

5,High power fans

Disperse heat quickly , Maintaining long working hours of the machine .

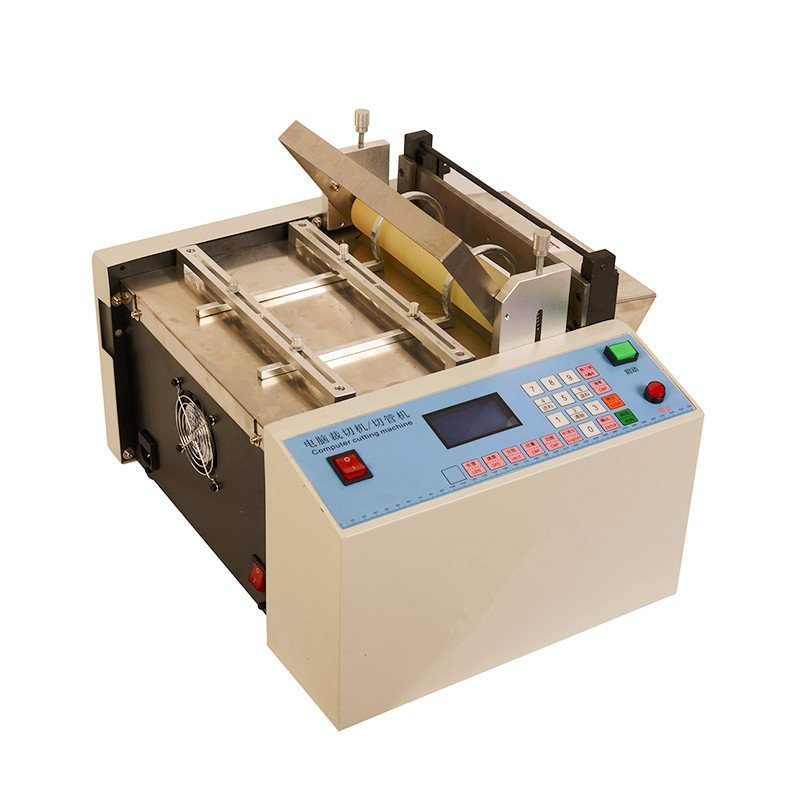

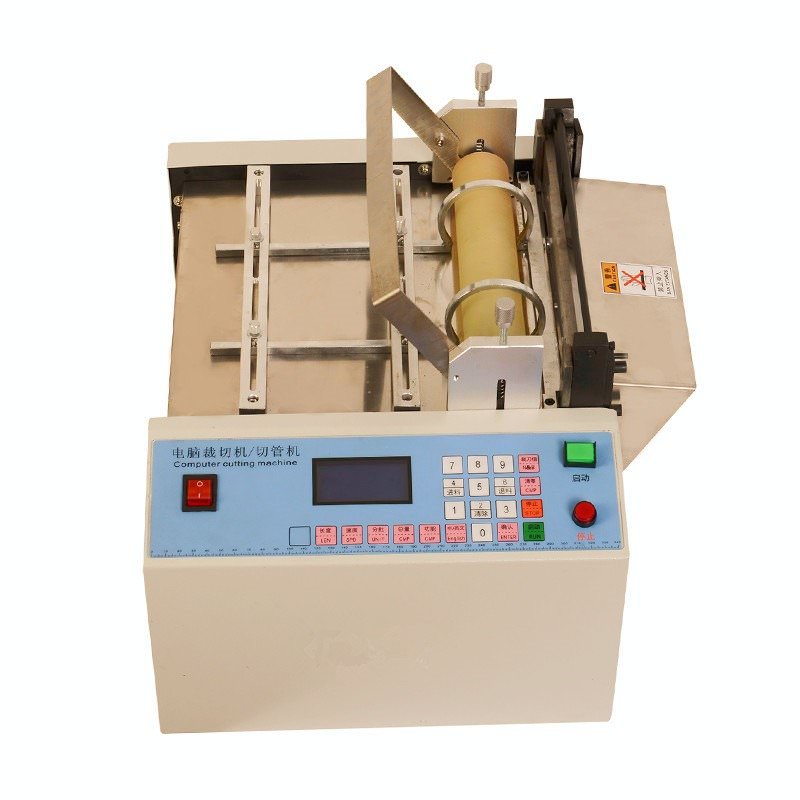

Front view

Side view

【Warranty】

All  the spare parts of High speed elastic rubber band cutting machine ES-X300  except the knife will have one year of free maintainance

by changing the spare parts for freeand free shipping of spare parts to overseas clients starting from the issuing date of commercial invoice

 after on line diagnosis .

【Packing】

1SET/ WOODEN CASE  (Inside the wooden case will be packed with foam pading material to protect the machine goods)
