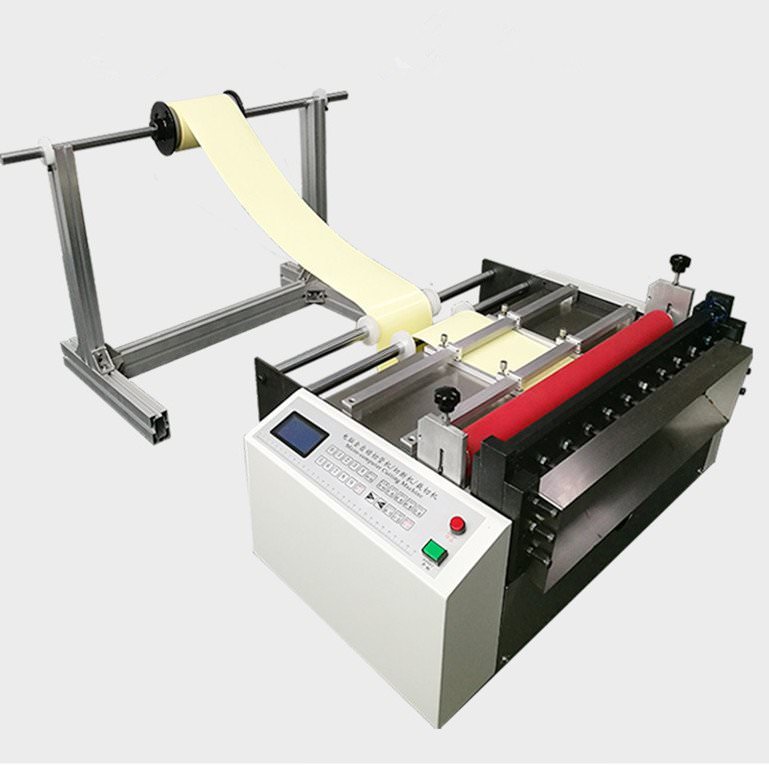

PE bag heat sealing cutting machine ES-C300

PE bag heat sealing cutting machine ES-C300

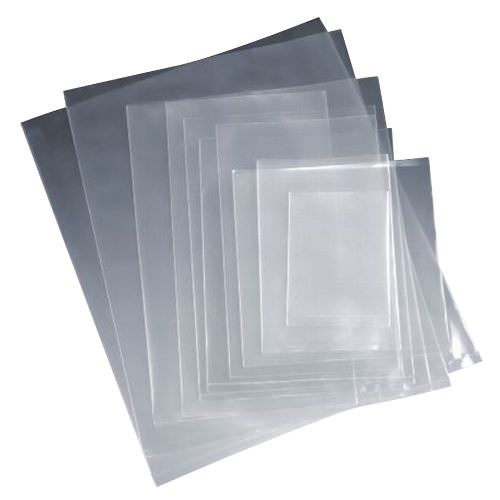

The PE bag heat sealing cutting machine ESC-300  is customised  type cutting machine which is designed for making PE Bags , this type of PE Bag making machine can  heat seal one side of the PE sleeves to form the PE bag bottom and cut off the PE sleeve on the other side to make a nice PE bags . the PE bag heat sealing cutter machine had been equiped with a heat sealing device on top of the machine to heat seal the PE bag bottom with high tempeature .

The cutting knife of this plastic bag heat sealing cutting machine is made of SKD-11 , mold steel , the knife body thickness reach14-23mm ,making sure the cutting edge is smooth and nice.

This machine can also be used on PVC shrink bags , so called PVC shrink bag heat sealing cutting machine . the roller is made of high quality PU material which is abrasion and high temperature resistant . a good quality roller plays an important role in  cutting length precision .

The motor the ES-C300 applied is high power alternate motor which gurantees precision transport of cutting material and maintains cutting length precision .

The PE bag heat sealing cutting machine ESC-300 heat seal and cut the PE sleeve to make PE bags in full automation and high productivity .

【Youtube video】

【Product Advantage】

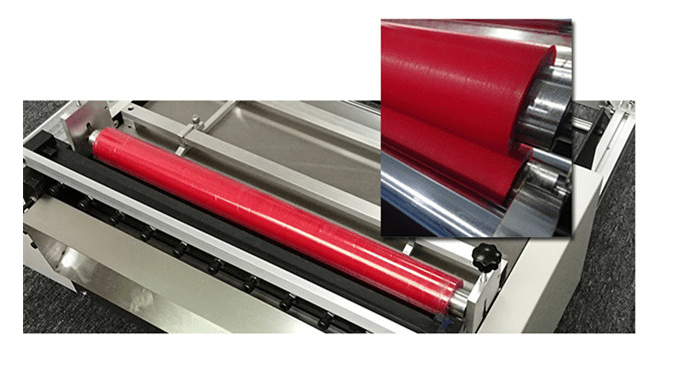

Double roller

The roller is made from PU material, abrasion resistant&pressure resistant & high temperature resistant

Up and down roller working together for good transporting of the cutting material ,

stable trarnsporting and guarantee cutting length precision

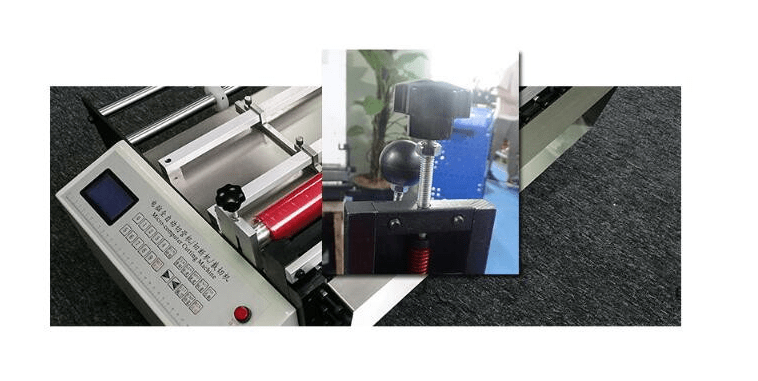

Roller pressure adjusment screws

The roller distance can be adjusted by the pressure adjustment screws  based on different cutting material .

The roller adjustement screws can adjust the pressure between the cutting material and rollers .

if cutting length tolerance increase , you can tighten the screws guarantee cutting length precision.

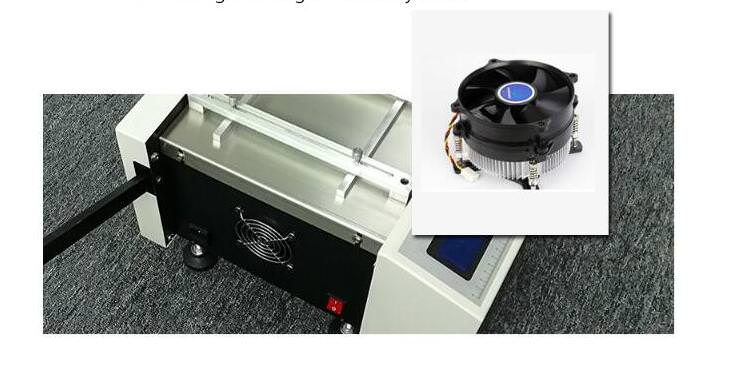

Heat disperse fans

High power heat dispersing fan in mute sound , lower the heat concentration due to long hour working

Maintaining the long time steady working performance .

Abrasion Resistance  High speed thick steel Knife

Maintaining Long time working

Applied with imported SKD-11 mold steel, thickness reached 14-23mm, sharp cutting and leave no fraying edges

High Power motor

Alternate Motor&High Precision Transport Rolling &Cutting Performance &Steady Power

【Technical Data】

Product Name :  PE bag heat sealing cutting machine     Model No.: ES-C300

Cutting Blades Material : SKD-11                                      Transport Motor: High Function Stepping Motor

Cutting width : 300 mm                                                     Supported material shelf : 20KG/30KG/40KG

Speed : 40/60/90                                                               Machine power : 300

Roller Material : PU                                                           Cutting Blades Motor: High Precision Alternate Motor

Shelf Material : Aluminum                                                 Working Voltage: 220V ,50/60HZ

Machine dimension : L 590 *W580 * H390 MM

【Customised solution】

    Customised cutting solution is available from us to maximize customer value.

          Hot  cutting  Equipment                                                     Feeder device

                                Round Knife Set                                                Separation Cutting knife  Set

                   Overlaping Assistance                                                   Flat surface fixture device.

 【Warranty 】

All  the spare parts of  the PE bag heat sealing cutting machine  ES-C300  except the knife will have one year of free maintainance by changing the spare parts for free

and free shipping of spare parts to overseas clients starting from the issuing date of commercial invoice  after on line diagnosis .

【Packing】

1Set/ Wooden case  (The goods will be wrapped up with foam paddings and and the packed with wooden case  )
