Hook and loop cutting machine of big size ES-076

Hook and loop cutting machine of big size  ES-076

【Product Description】

The Hook and loop cutting machine of big size  ES-076   is designed for cutting big width hook and loop ,velcro tapes , leathers , and other narrow fabric  tapes with full automation .this hook and loop cutter machine features with wide cutting width of 160mm which is more suitable to cut big width velcro tapes .

The flat knife and round knife can be switched to make  this hook and loop cutting machine  cut both round edges and straight edges ,we can customise the knife mold to cut customer velcro tapes of different diameters and shapes.

Customer are welcome to send their drawings and share with us the diameter size data ,we will customise the knife molds accordingly , for some irregular edge shapes , customer send their velcro tape sample , we will c, normally it take 2-3 days to finish making the mold . we also have some stock for regular molds ,if customer order is urgent , we can directly send the machine on the exact day when  customer place the order .

Youtube video

The best advantage of this velcro tape cutting machine is that it requires no baby sitting ,  this hook and loop cutter machine will self stop working when running of cutting material.

Great productivity can be achieved from this velcro cutter machine as multi directing fixtures are placed on the machine ,   as the  as a velcro tape cutting machine manufacturer for many years, good quality is also assured with one year warranty for all the spare parts (except the knife ).

【Technical Data】

Product name : Hook and loop cutting machine of big size

Brand : ESMAI                                                                                  Knife Type :  Cold knife  & Round knife molds

Model No.: ES-076                                                                           Voltage: 110V/220V

Type: Full Automatic Cutting Machine                                            Power:0.44KW

Cutting Speed : 110 Times/Minute(based cutting length 50mm)  Weight:  28kg

Size (L*W*H): 560*415*410(mm)                                                     Cutting width:1-160mm

Cutting Lenth: 1-99999mm                                                             Edge round knife : To be customised

【Product Advantage】

1, Customised knife molds design , both round knife and straight knife are supportive

2, Durable Knife blades with long term life span for the hook and loop cutting machine .

3, No need baby sitting ,  Self stop working when running of cutting material

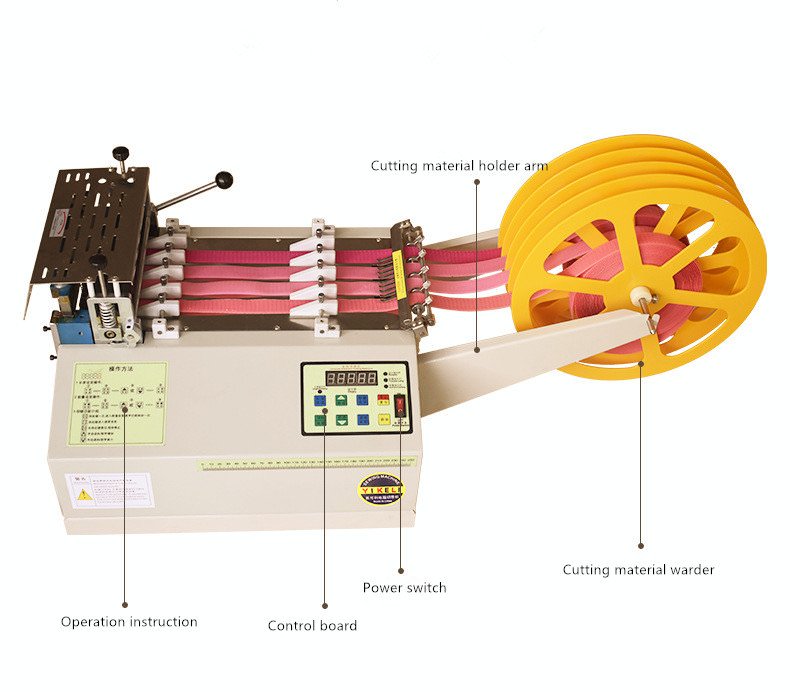

【Product Details】

1, Different round knife molds can be customised based

on customer's velcro edge shapes and sizes .

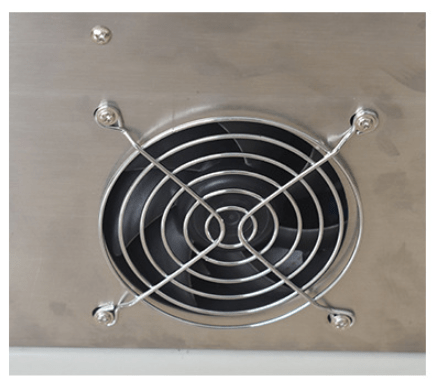

2, Multi fans are equiped with the machine to ensure long working hours

and long shelf life of the machine

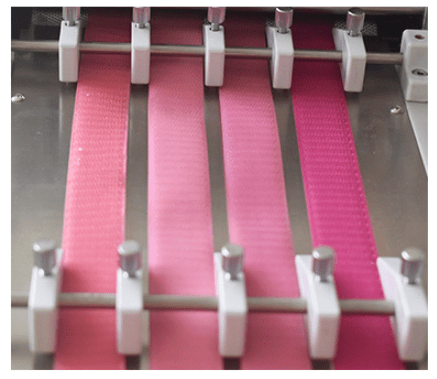

3, Multi directing fixtures  which the machine to cut multi velcro tapes at the same time and

elevate production efficiency. and hold the hook and loop steady and avoid swaying for

high quality cutting edge .

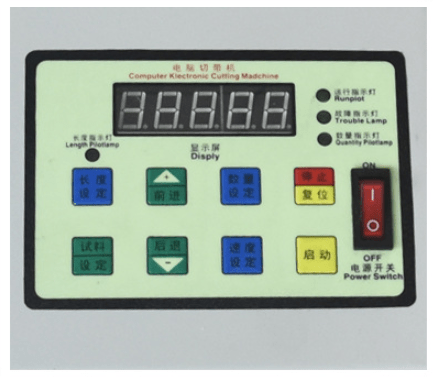

4,Easy to operate control board ,the control board will be easy to use

and teach staff to use at ease

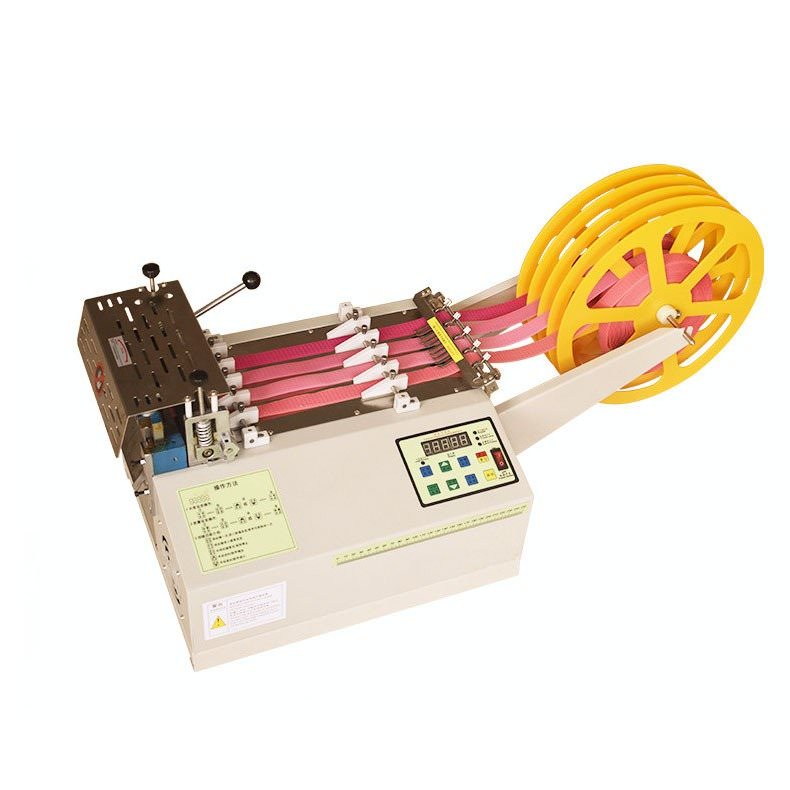

Front View

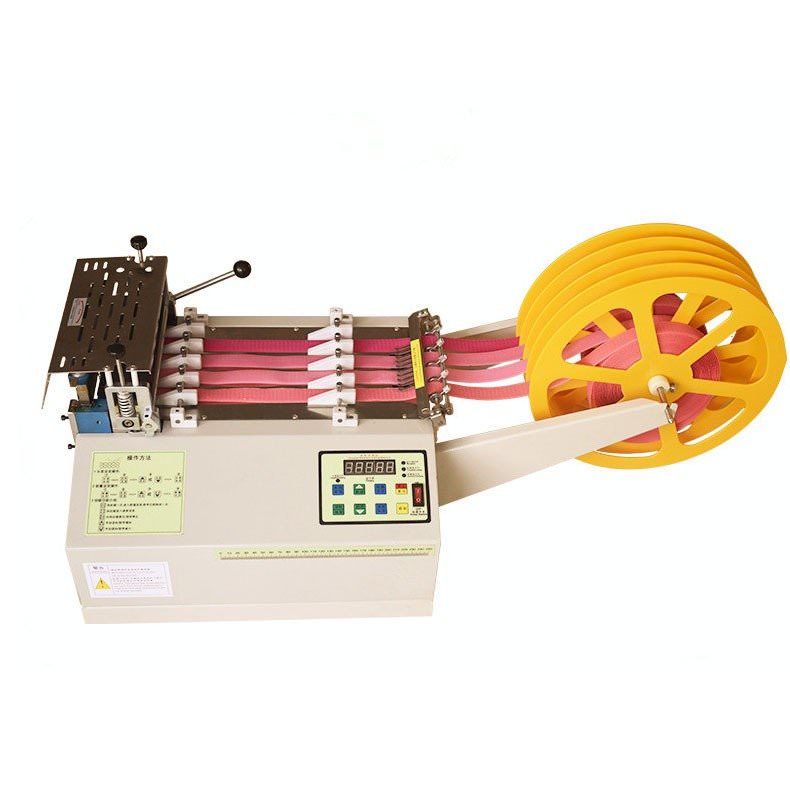

Side View

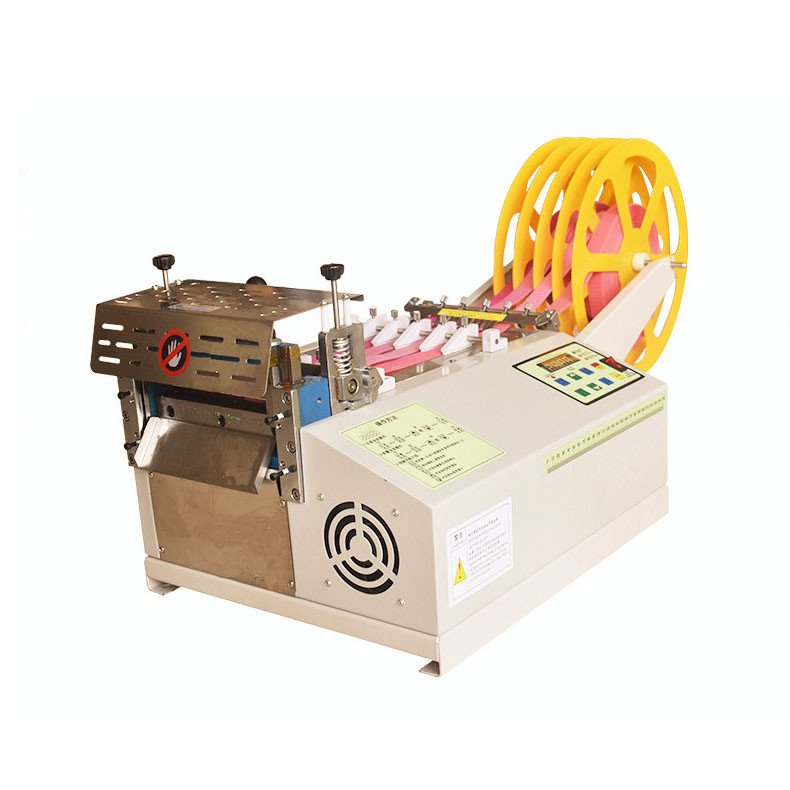

Side View

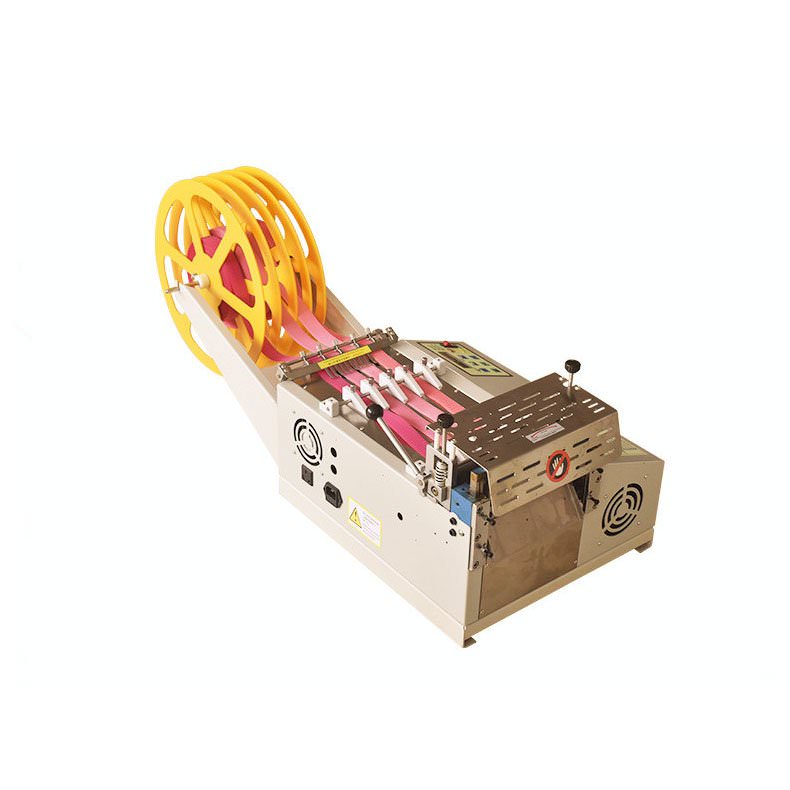

Back View

【Warranty 】

 As a  hook and loop cutting machine manufacturer , all  the spare parts of Hook and loop cutting machine of big size  ES-076  except  the knife  will have one year of free maintainance  by changing the spare parts

for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice  after on line diagnosis .

【Packing】

1Set/Carton ,foam paddings will be put inside carton for safe overseas shipping
