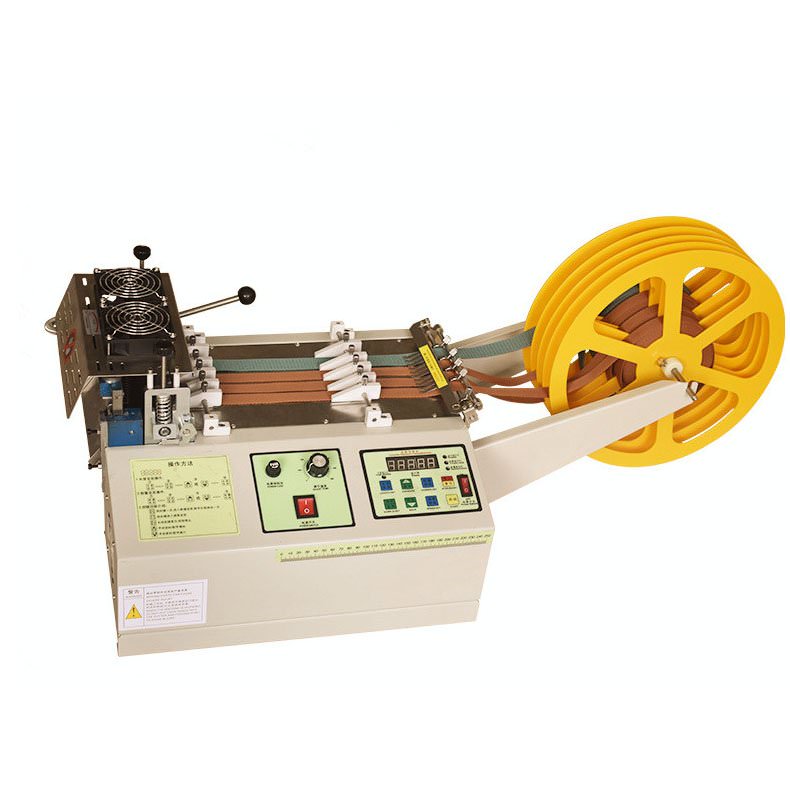

Webbing cutter machine of 160mm cutting width

Webbing cutter machine of 160mm cutting width ES-077

The webbing cutter machine of 160mm cutting width ES-077  is suitable for cutting big webbings or multi small webbings with 160 mm cutting width  , this industrial webbing cutter is also universal use for cutting other narrow fabrics like zippers , elastics , nonwoven fabrics etc.

This webbing cutter and sealer  also support with both hot and cold cut , one key switch  ,the maximum hot cutting cutting temperature reach up 450 ℃ which will seal off the fraying webbing instantly during cutting process making a nice smooth cutting edge on the webbing.

Youtube video

The control board on the machine is simple  ,it is easy to operate and teach staff to use it ,  customer can set the cutting length ,total cutting amount , set the heating temperature  ,start the machine , the webbing hot cutter will do the rest , proceed to automatic cutting sequence which save human labour. once running out of cutting machine , the machine will self stop cutting process which requires no baby sitting .

The webbing cutter machine  applies with precision control system and good quality rubber roller and motor ,the cutting length precision reaches 0.1mm .

The best feature of this machine is its  big cutting width of 160 mm  which can cut big webbings or multi small webbings at the same time which greatly elevate production efficiency.

【Technical Data】

Product name : Webbing cutter machine of 160mm cutting width

Brand : ESMAI                                                                                     Knife Type : Hot &Cool  Cut

Model No.: ES-076                                                                             Voltage: 110V/220V

Type: Full Automatic Cutting Machine                                               Power:0.44KW

Cutting Speed : 110 Times/Minute(based cutting length 50mm)     Weight: 27/28kg

Size (L*W*H): 560*415*410(mm)                                                        Cutting width:1-160 mm

Cutting Lenth: 1-99999mm                                                                Blade Maximum heating temperature: 450 ℃

【Product Advantage】

1, High productivity with multi webbing to be cut at the same time  .

2, Hot cut up to 450 ℃ to heat seal the cutting edge of webbings  ,making a nice smooth cutting edge .

3, No need baby sitting , the webbing hot cutter will self stop working when running out of cutting material .

4,Easy to use , the staff can use the machine at ease without complicated training.

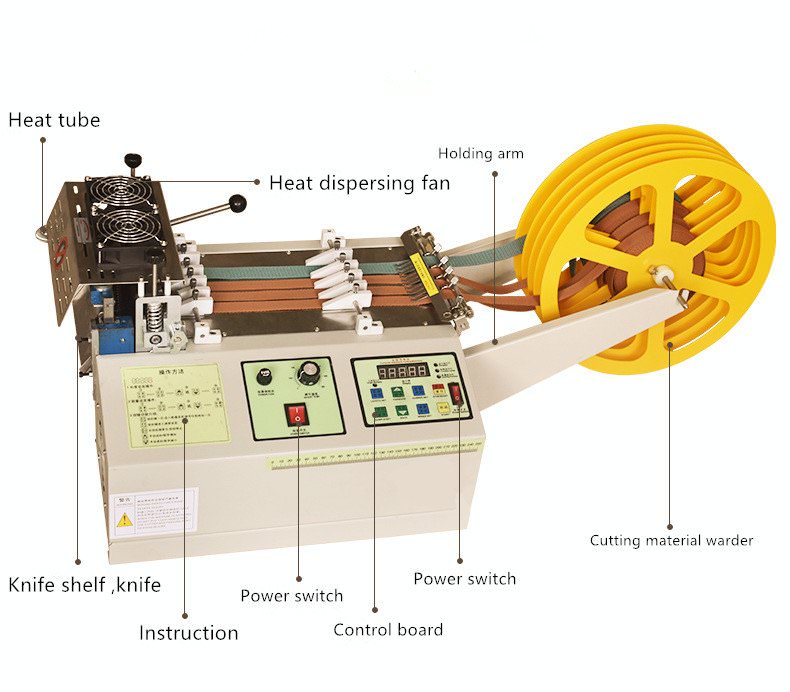

【Product Details】

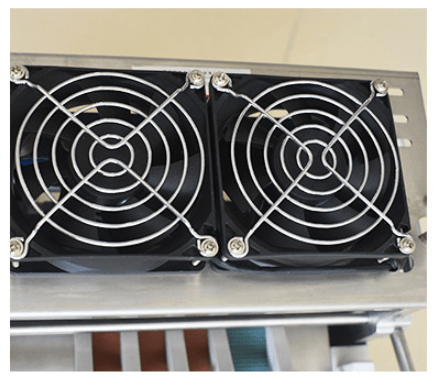

1,Multi heat dispersing fans

Ensuring long time working of the machine and maintain long shelf life.

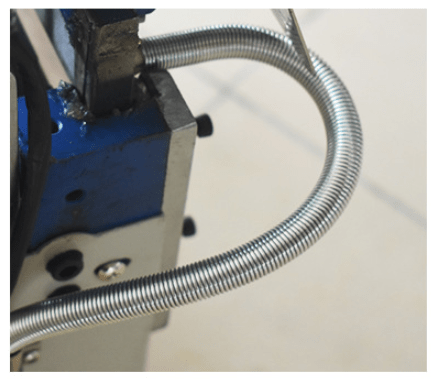

2,Heat generating tube

High quality heat generating tube,fast temperature rise , stable and steady in use

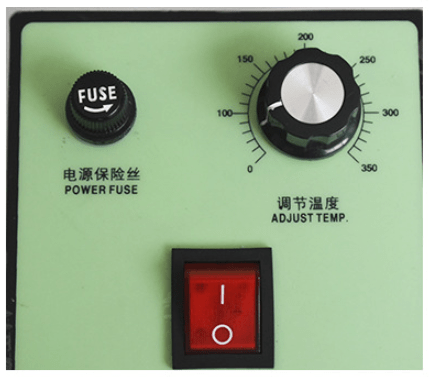

3,Control board of easy operation

Simple use, easy to operate, Chinese& English one key switch .

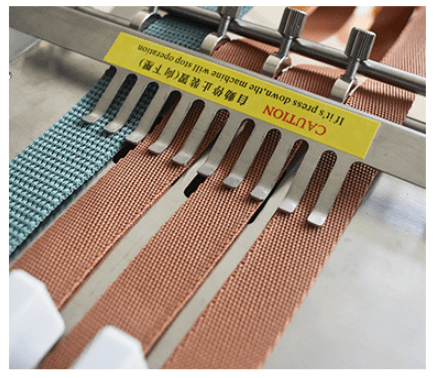

4, Pressing clips

High mechanical strength pressing clips which is not easy to wear off after long term use.

maintain the steady transport of  cutting material and the pressing clip will fall down beneath the

machine when cutting material runs out and  signal to the machine to stop working ,

this function requires no baby sitting , ensuring full automation and fully labour free .

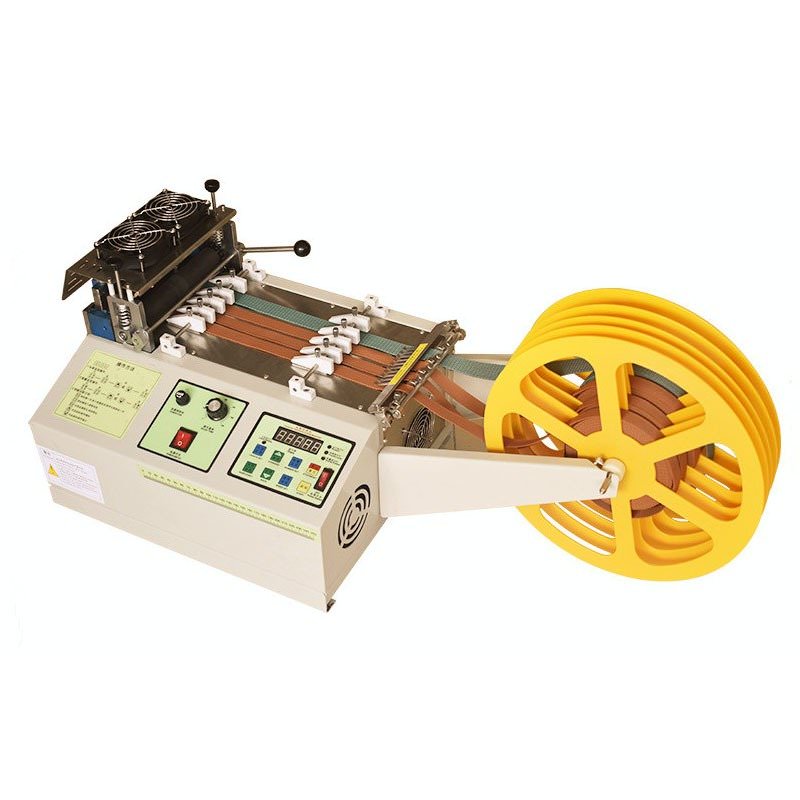

Front View

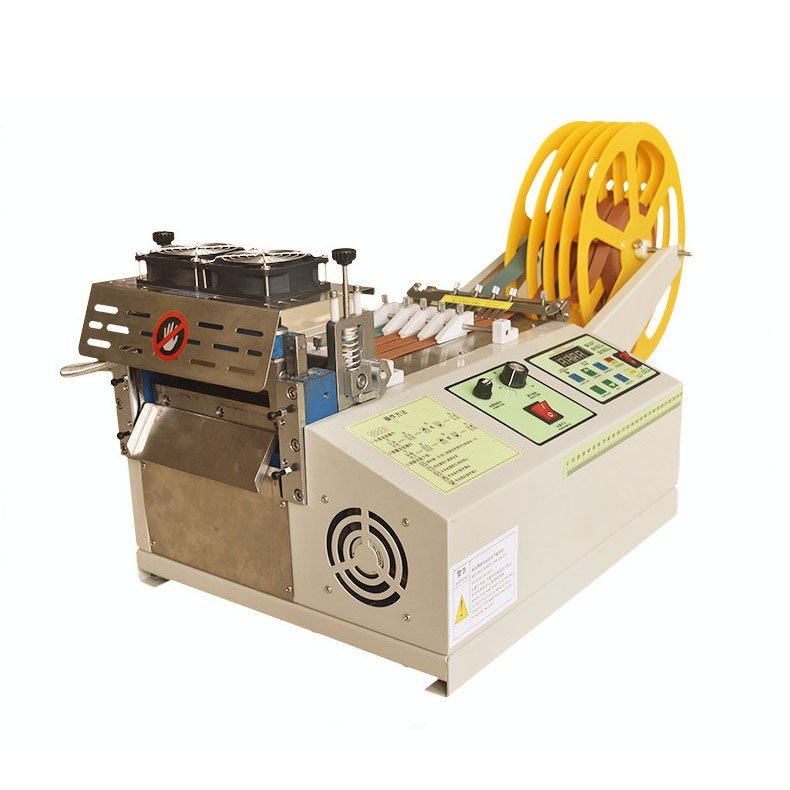

Side View

Side View

【Warranty】

As a webbing cutting machine manufacturer , all  the spare parts of the webbing cutter machine of 160mm cutting width ES-077 except the knife will have one year of free maintainance by changing the spare parts for free and free shipping of spare parts to overseas clients starting from the issuing date of commercial invoice  after on line diagnosis .

【Packing】

1Set/Carton ,  foam paddings inside the carton to ensure safe overseas delivery.
