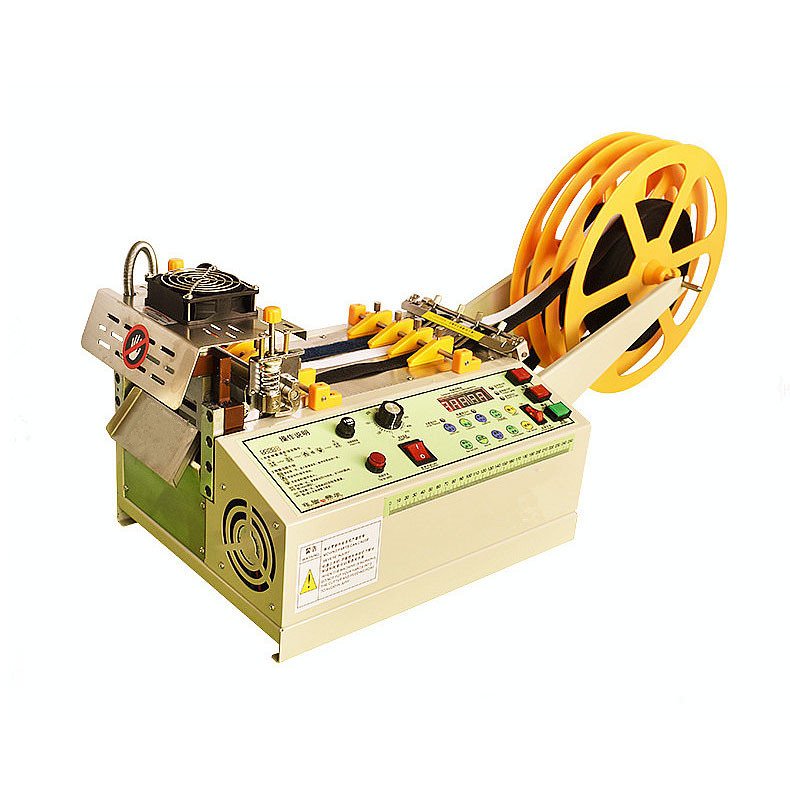

Hot knife webbing cutting machine of 125mm cut width ES-079

Hot knife webbing cutting machine  ES-079

The hot knife webbing cutting machine  ES-079  is designed for both hot and cold cut  for  narrow fabrics like braided webbings, woven & knitted elastics ,zipppers ,shoelaces ,velcro tapes ,nonwoven fabrics etc .

The knife can do both hot cutting and cold cold with a temperature switch off and on , the maximum knife temperature of  this webbing tape cutting machine can reach up to 450 ℃ featuring with fast temperature rise in a few minutes , the heat is generated by a high quality heat tube inserted into the the knife . the cutting webbing will be sealed off the fraying ends instantly and result in smooth nice cutting edge .

The cutting length will be precise with good quality rubber roller and high power motor , the cutting width for this nylon webbing cutting machine is 125mm , machine power 0.44KW

Youtube video

Moreover , This hot knife webbing cutter will also self terminate its work when finish cutting the material , the  press bar which holds cutting material will fallen into the machine when cutting material runs out and signal to the machine to stop working  and trigger the alarm for worker to put on new tape rolls .

This is also called webbing cold cutting machine , when the temperature switch turned off , this machine can also be applied for cutting velcro tapes ,leathers etc which require no hot cutting .

【Technical Data】

Product name : Hot knife webbing cutting machine  ES-079

Brand : ESMAI                                                                                  Knife Type :Hot & cold knife at switch

Model No.: ES-076                                                                           Voltage: 110V/220V

Type: Full Automatic Cutting Machine                                            Power:0.44KW

Cutting Speed : 110 Times/Minute(based cutting length 50mm)  Weight:  28kg

Size (L*W*H): 560*415*410(mm)                                                     Cutting width:1-125mm

Cutting Length: 1-99999mm                                                           Hot knife Temperature range :  0~450 ℃

【Product Advantage】

1, High temperature hot cutting with temperature heated up to 450 ℃

2, Wide cutting width of 125 mm , can cut more than two webbings at one time which lift productivity.

3, Full automatic  , terminate work when the cutting material runs out

【Product Details】

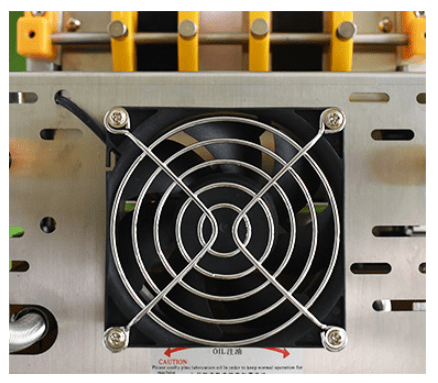

1,Multi fans are equiped onto the machine to disperse heat and consequently

 maintain long working of the machine as it constantly doing hot cut for webbings ,

the lift span is also expanded

2, High quality heat tube  is put on the knife

which generates the heat fast and get the knife hot in a short while

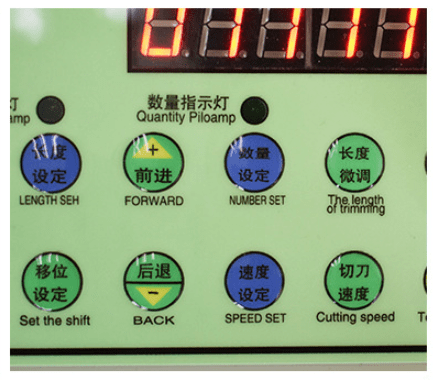

3, Easy to use control board , the control keys are simple ,

customer can manage to use the machine easily and so does his staff

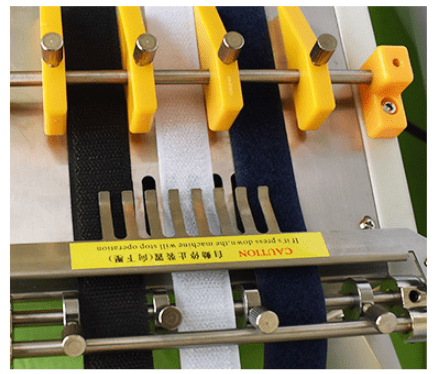

4,Straight leading device which leads the cutting straight without changing

its course during transport cutting processing and ensures a good quality cut

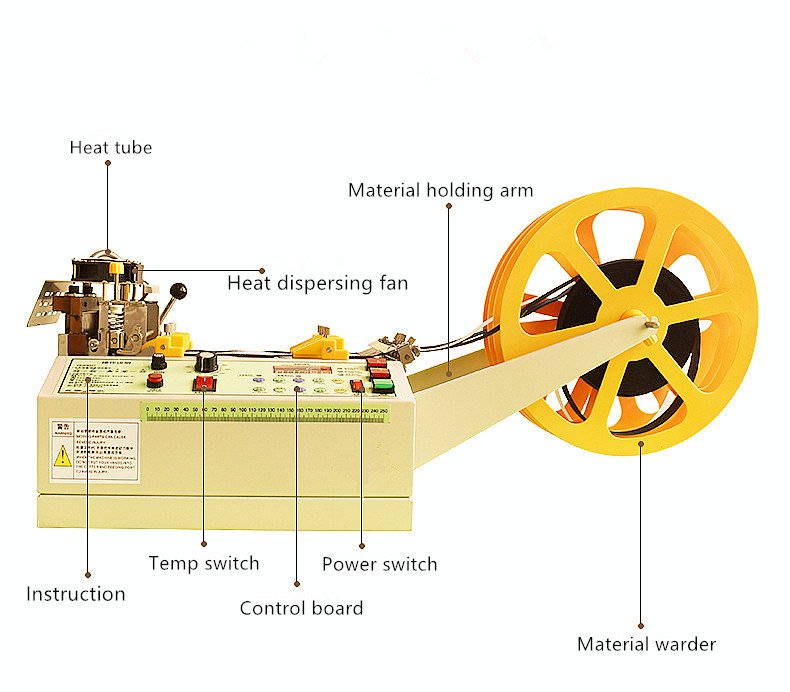

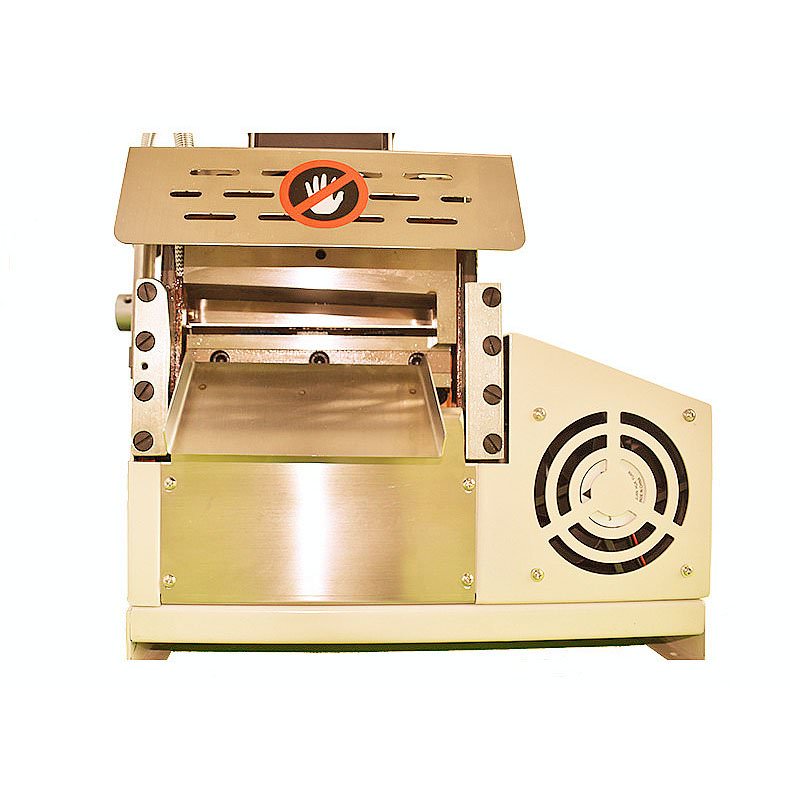

Front View

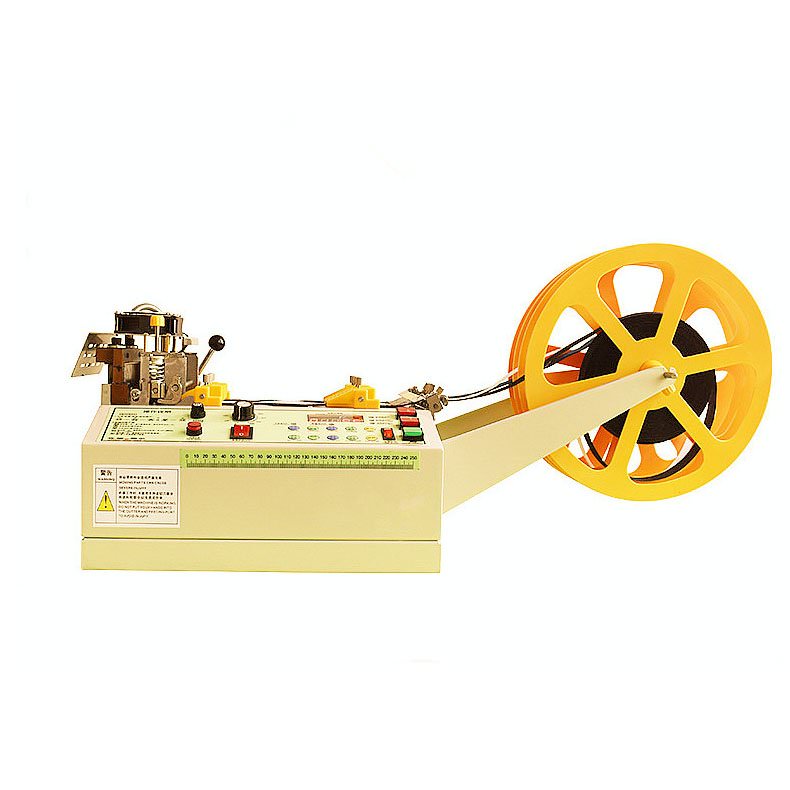

Side View

Side View

【Warranty 】

 As a webbing cutter machine supplier , all the spare parts of Hot knife webbing cutting machine  ES-079  except  the knife  will have one year of free maintainance  by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice  after on line diagnosis .

【Packing】

1Set/Carton ,foam paddings will be put inside carton for safe overseas shipping
