Ultrasonic webbing elastic cutting machine ES-100

Product Details
Brand ESMAI
Serial Number ES-100
Country of Origin China
Certificate CE
Payment & Shipping Terms
Price Quote Based on quantity
Minimum Order 1 SET
Average Delivery Time Production -4 days, delivery time 5-7 days by express
Payment Method TT
Package Details 1SET/WOODEN CASE
Ability to Supply 500 Sets/ month

Ultrasonic webbing elastic cutting machine ES-100



【Product Description】

The ultrasonic webbing elastic cutting machine  ES-100 applies with ultrasonic knife  and specially designed for cutting webbing ,elastics and other narrow fabrics with natural and smooth cutting edge. compared to hot cutting , the sealed cutting edge will have no  hardening or black color on the cutting edge. this ultrasonic webbing cutter machine is suitable for customers with high requirement for their webbing&elastic material .

The ultrasonic intensity can adjusted on the ultrasonic elastic cutting machine and the knife dropping and lifting speed is controlled by adjusting air amounts . this advantage allows the knife to have relatively longer contacting time with the cutting material and seal off the fraying edge better.

This elastic ultrasonic cutter machine had been equipped with sensor clip which will fall down beneath the machine surface when cutting material runs out and trigger the alarm for workers to reload with new cutting material , this function make this machine attention free during working .  this machine also have been fitted with fixtures which allow multi webbing &elastics to be cut at the same time which will boost productivity.

The best advantage of this elastic ultrasonic cutter machine  that it combines both ultrasonic cutting mechanism and air controlling knife speed for an excellent sealed nice cutting edge of webbing and elastics .

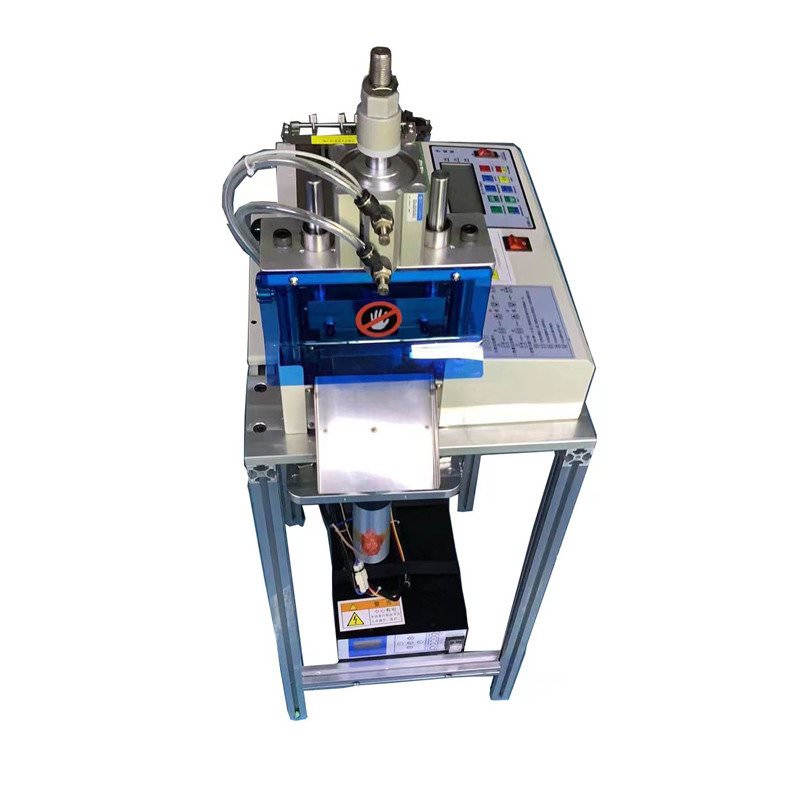

ultrasonic webbing elastic cutting machine

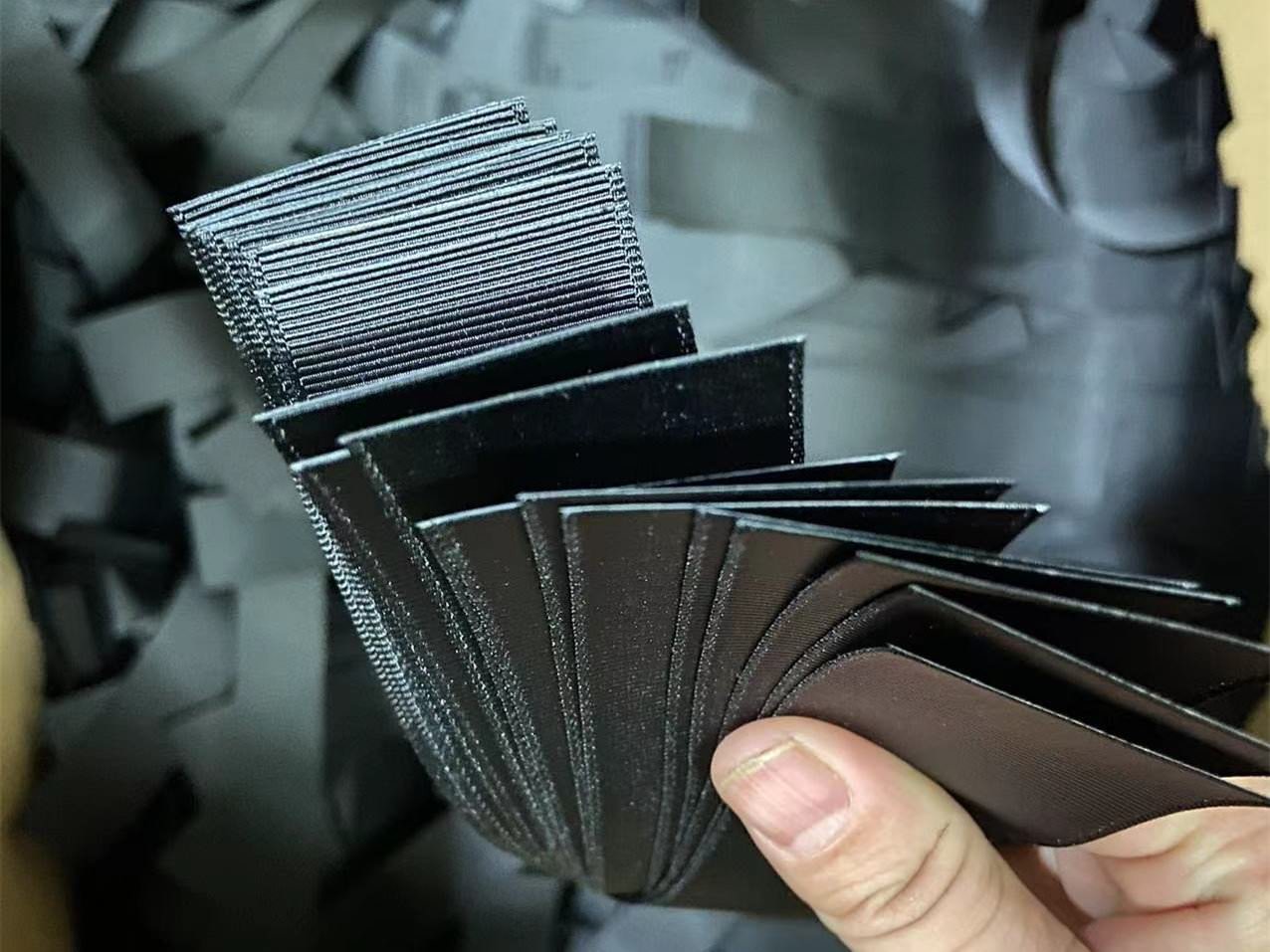

Cutting sample



ultrasonic cutting webbing elastic

Youtube video





【Technical Data】

Model No.: ES-100

Brand :ESMAI

Product name : Ultrasonic webbing elastic cutting machine

Voltage : 220/110V

Frequency:50/60HZ

Power: 0.75KW

Knife type : Ultrasonic cutting knife

Work speed  : 45pcs/min

Working mechanism: Ultrasonic knife to seal the cutting edge

Net Weight : 60KG

Dimensions: L400:W400:H1150mm



【Product advantage 】

1,  Natural smooth cutting edge   , the ultrasonic sealed cutting edge will have no fraying and no hardening compared to hot cutting .

2, ,Wide application , widely applicale to cut all kinds of webbings , elastics and other narrow fabrics.

3, Full automatic cutting ,  Once fixed length and cutting amount had been set , the machine will proceed to automatic cutting process.



【Product  Detail 】



1,Ultrasonic cutting knife  ,the ultrasonic knife will seal off the fraying edge during cutting process and make a nice smooth cutting edge .



2 ,Air control knife working speed ,the knife dropping and lifting speed is controlled by the air ,customer can adjust the air amount to control the knife speed so the knife have longer time to

contact webbing or elastics and get a good ultrasonic sealing.



3,  Sensor , the sensor clip will fall down beneath the machine  when running out of cutting material and trigger alarm and notify workers to load on with new cutting material .



4, Fixture& clips  which ensures the narrow fabrics are transported straight foward steadily and result with good quality straight cutting edge





View

ultrasonic webbing cutter machine







【Warranty】

All  the spare parts of the ultrasonic webbing elastic cutting machine ES-100  will have one year of free maintainance by changing the spare parts

for free and free shipping of spare parts to overseas clients starting from the issuing date of commercial invoice  after on line diagnosis .



【Packing】

1SET/ WOODEN CASE (Inside the wooden case will be packed with foam pading material to protect the machine goods)
