Adhesive silicone rubber kiss cut machine ES-050

Product Details
Brand ESMAI
Serial Number ES-050
Country of Origin China
Certificate CE
Payment & Shipping Terms
Price Quote Based on quantity
Minimum Order 1 SET
Average Delivery Time Production 7-10 days, delivery time by sea
Payment Method TT
Package Details 1SET/WOODEN CASE
Ability to Supply 100 Sets/ month

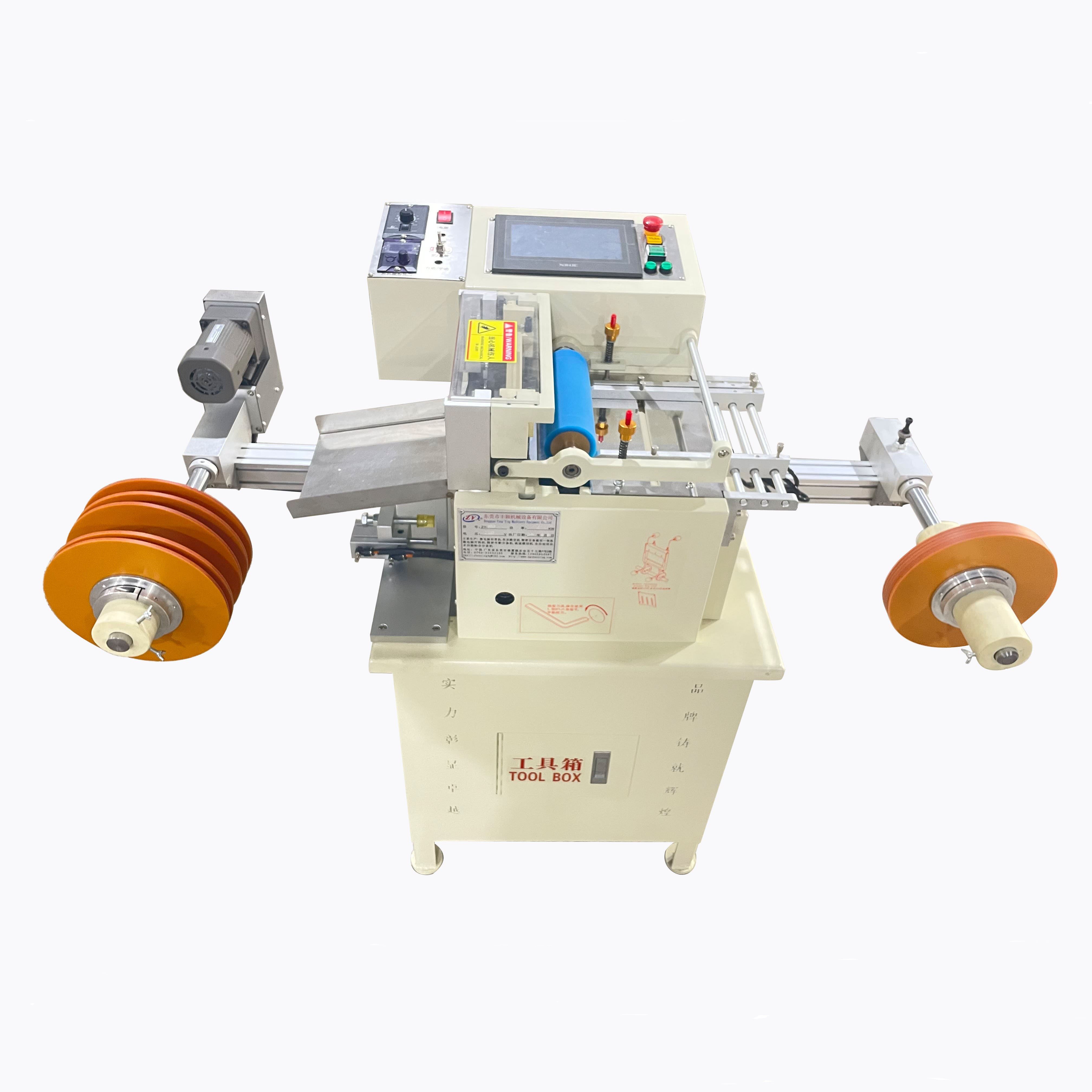

Adhesive silicone rubber kiss cut machine ES-050



【Product Description】

The adhesive silicone&rubber kiss cut machine ES-050  is designed for kiss cutting or fully cut through adhesive silicone or rubber material with backing tapes with high precision and high productivity. the machine also is widely applicable to other rubber material , foam rubber, EVA ,insulation paper, electrical fabrics with backing tapes etc

The maximum cutting width of this self adhesive rubber kiss cut machine is 160 mm ,it can kiss cut multi small width material at one time , the cutting length precision reaches +_0.3mm ,the kiss cut depth can be adjusted on the machine freely to kiss cut different thickness material , the kiss  cut material cutting thickness ranges

0.05MM-1MM.

Adhesive silicone rubber kiss cut machine

Youtube video



The collection device is also equiped on the machine which can automatically coil up the kiss cut material in roll form . the machine applies with PLC touch screen

which simplify the operation to easy use . the safety cover is added on the knife for safety purpose. The cutting speed is adjustable on this adhesive silicone rubber kiss cut machine.   customer can set working speed based on their production requirement .



【Technical Data】

Product name : Adhesive silicone rubber kiss cut machine

Model No.: ES-050

Function : Kiss cut&fully cut through

Operation : PLC Touch screen

Cutting width : 1-160mm

Cutting length : 1-9999.9MM

Cutting thickness :  0.05MM-1MM

Cutting speed: 80times/Min

Cutting precision: ±0.3MM

Machine power : 0.75KW

Machine weight :140KG

Machine dimension : L*W*H=1300*570*1100MM



【Product Advantage】



1, Kiss cut adhesive material without cutting through the backing tape



2, Automatic collecting coiling kiss cut material into roll form .



3, Wide application to  silicone ,rubber, foam rubber, EVA ,insulation paper, electrical fabrics etc.



【Product Details】

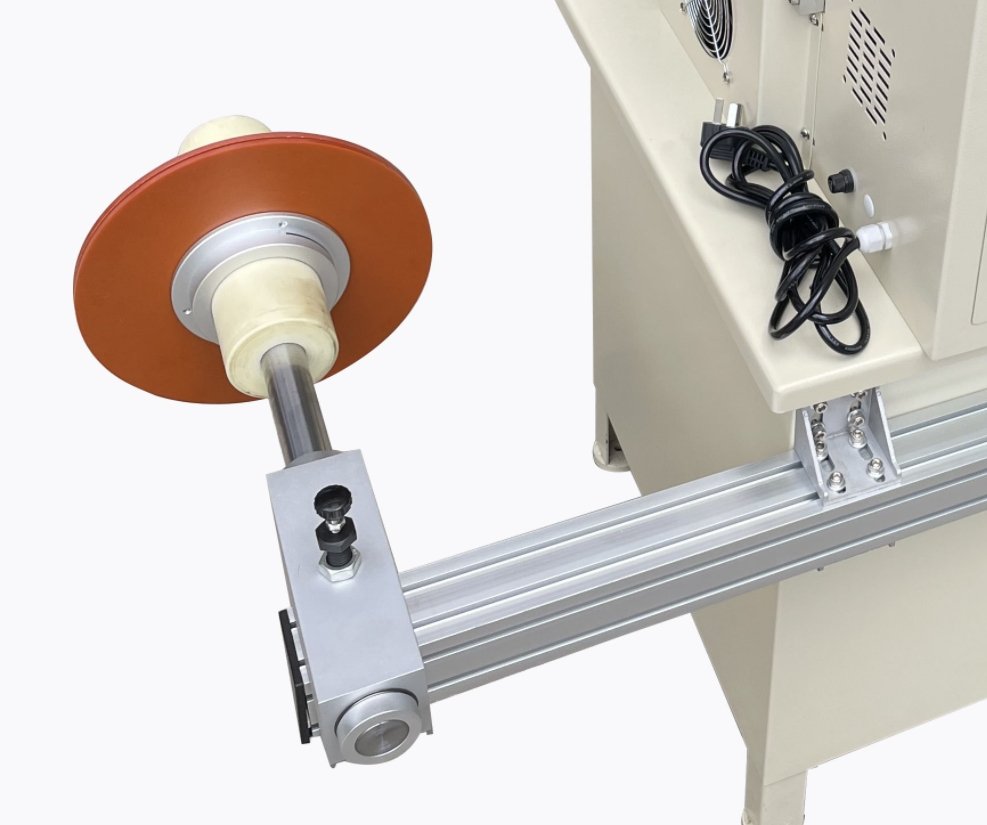

1,Collection device  , the kiss cut material will be automatically coiled up into a roll which save labour

to roll up in order .



collection roller

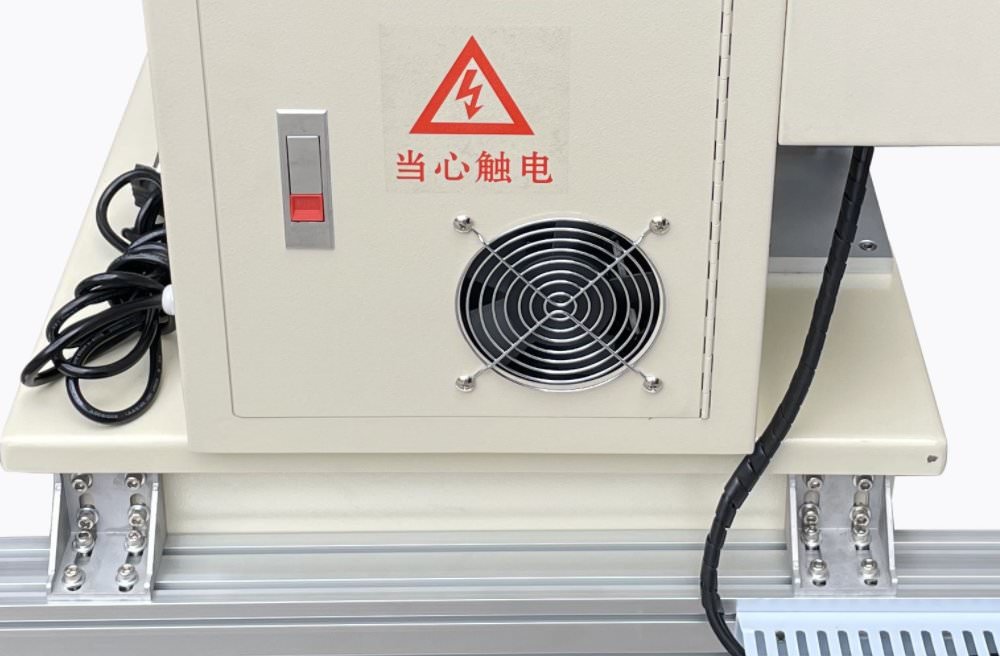

2, Heat dispersing fans  ,the self adhesive foam rubber kiss cut machinee applies good quality fans to disperse the heat generated by the

machine in time enabling the machine to work long  hours ,both day and night shift.

dispersing fan

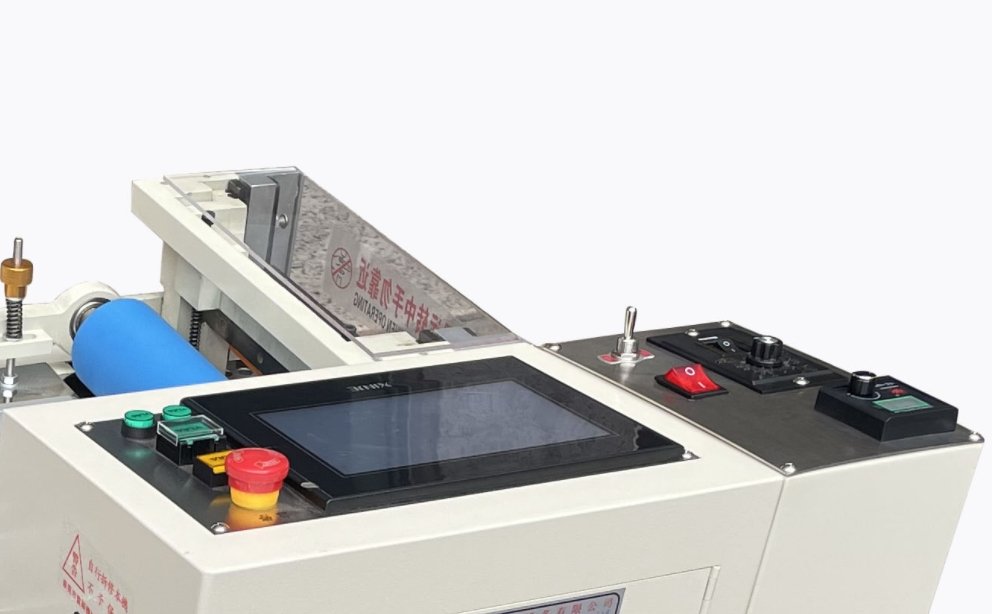

3, Easy to operate control board , the adhesive rubber sheet kiss cut machine  applies with PLC touch screen

which will be easy to operate the machine ,customer can set the cutting length ,cutting depth and cutting quantity on

the machine easily .

touch screen

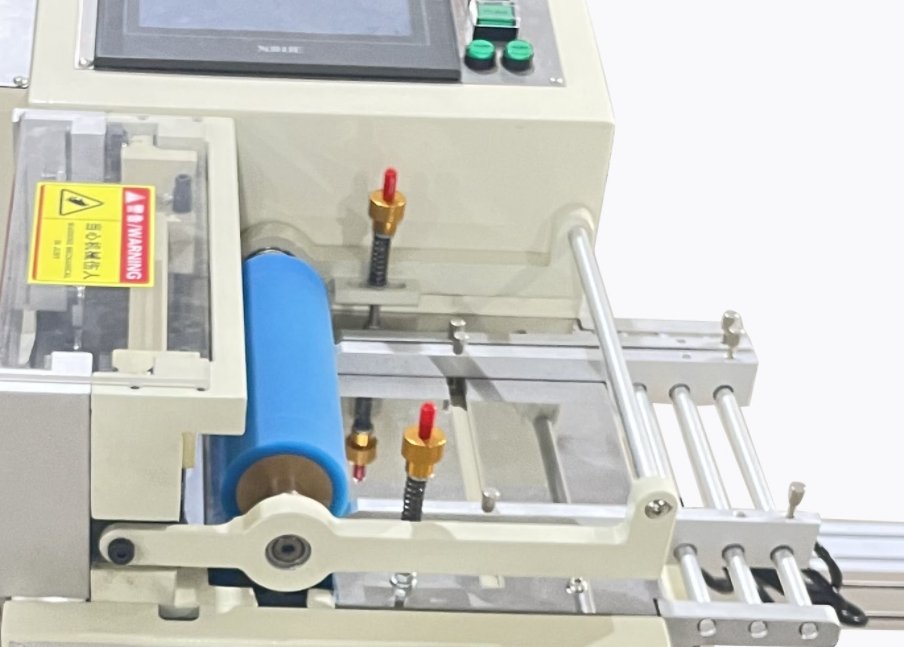

4, Good quality transport roller&fixtures , the  self adhesive rubber kiss cut machine applies with good quality transport roller

which can transport the length precisely with the help of servo motor control .

and the fixtures can be adjusted their distance to hold different width cutting material for straight cutting

without swaying .



good PU roller

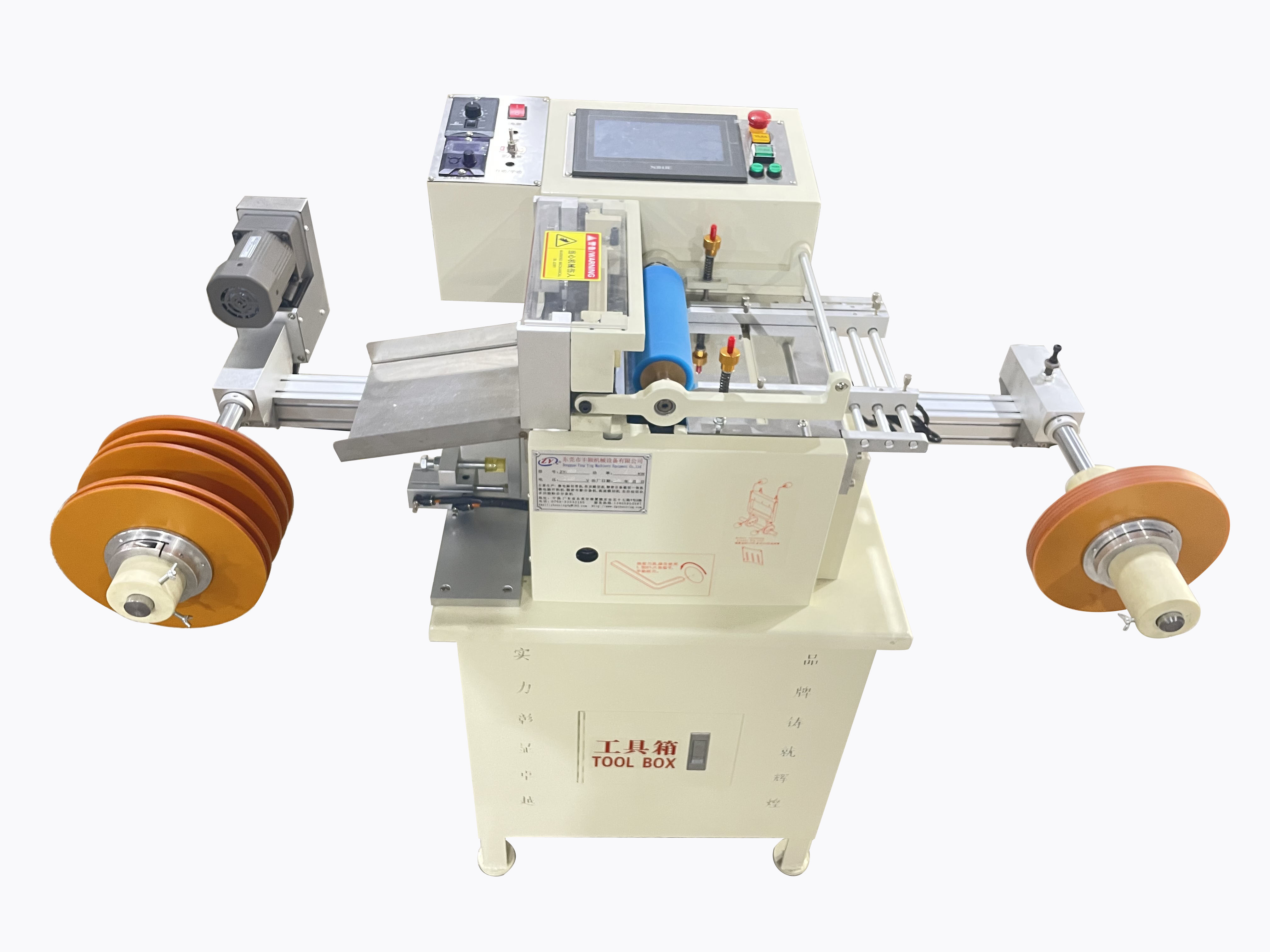

Front View



self adhesive rubber kiss cut machine

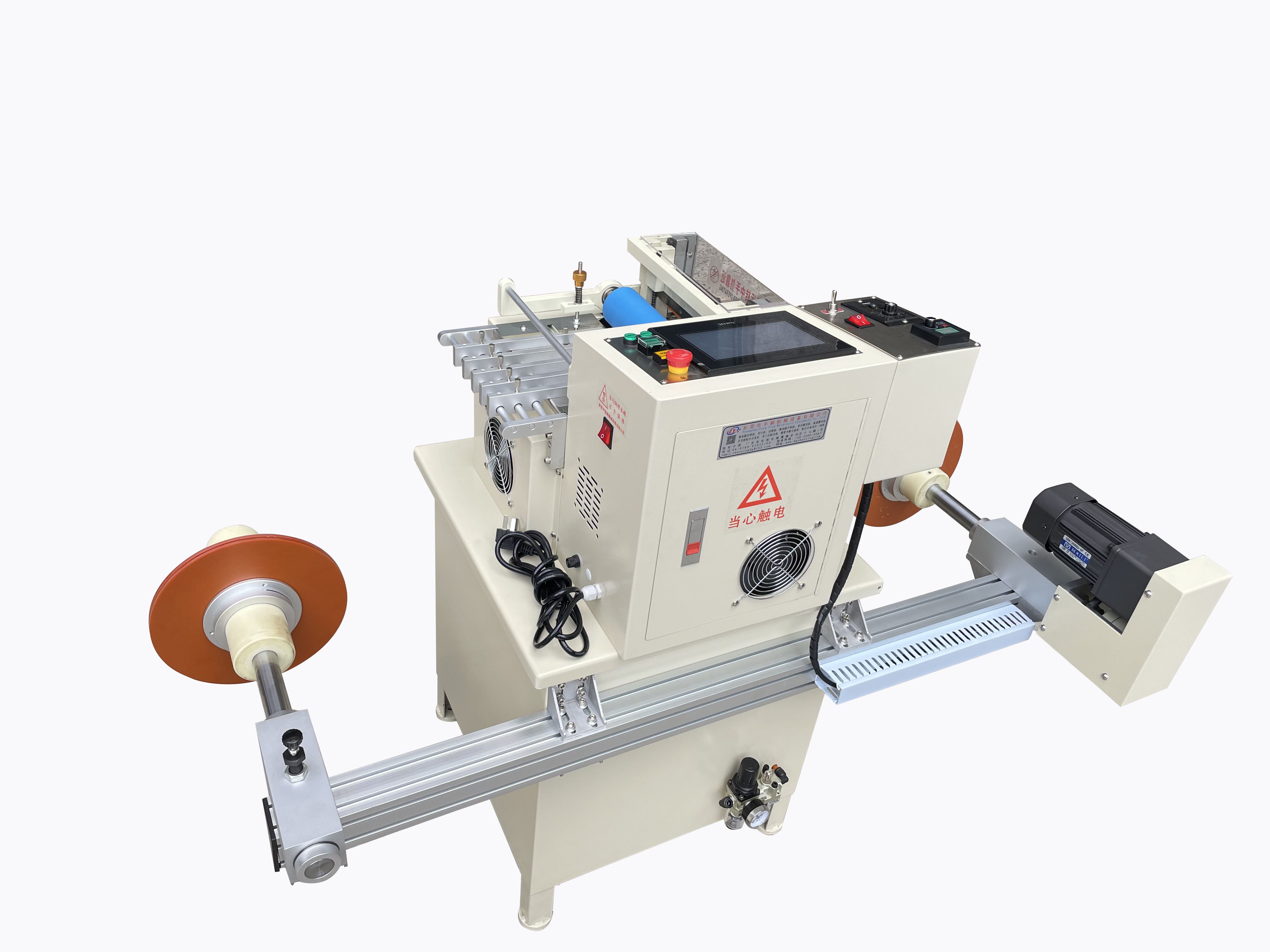

Side View



self adhesive foam rubber kiss cut machine

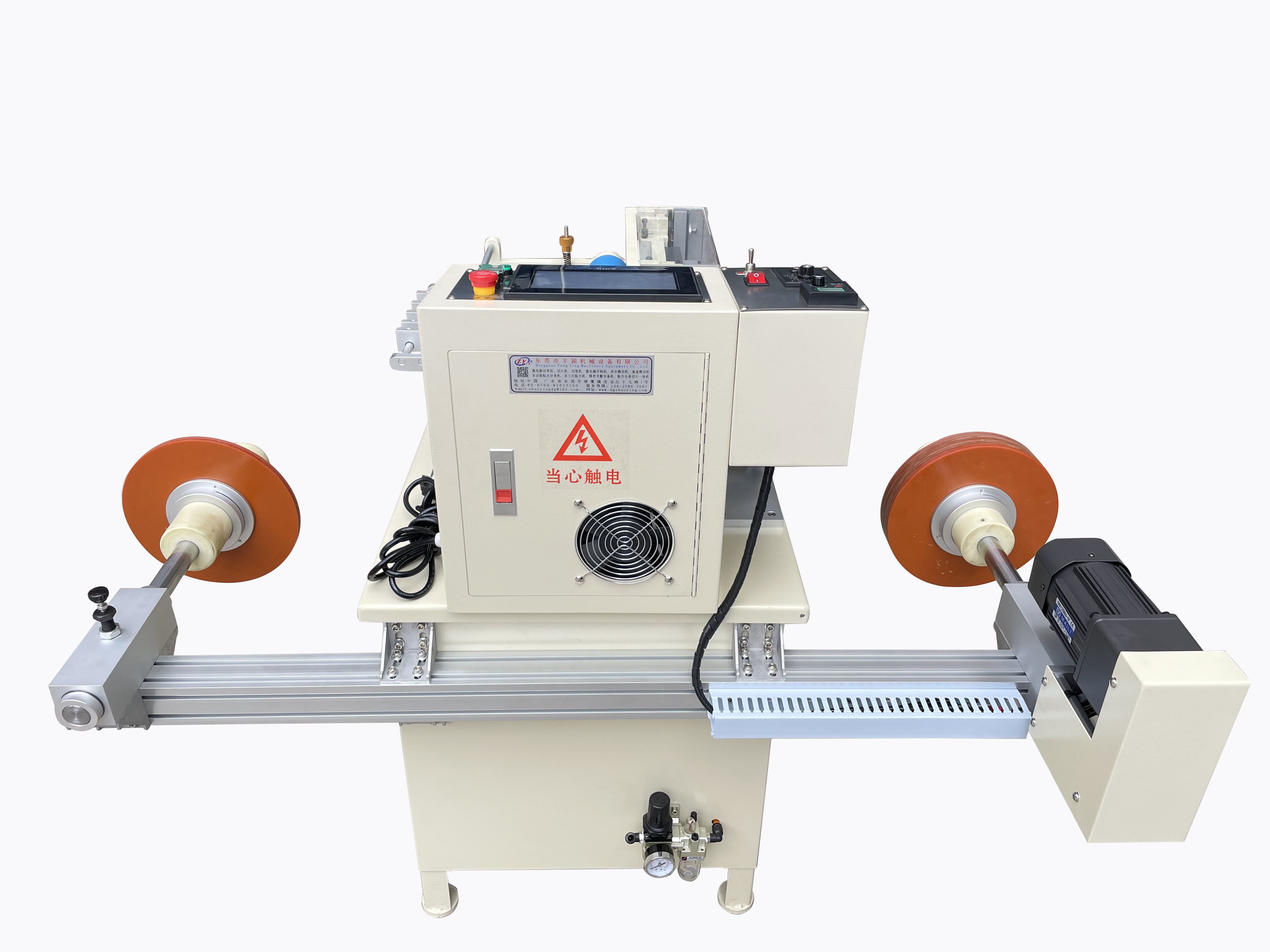

Back view

adhesive rubber sheet kiss cut machine







【Warranty 】

 As a  cutting machine supplier , all the spare parts of  the adhesive silicone rubber kiss cut machine ES-050 except  the knife  will have one year of free maintainance

by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice  after on line diagnosis .



【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping
