Rope cutting and clipping tying machine

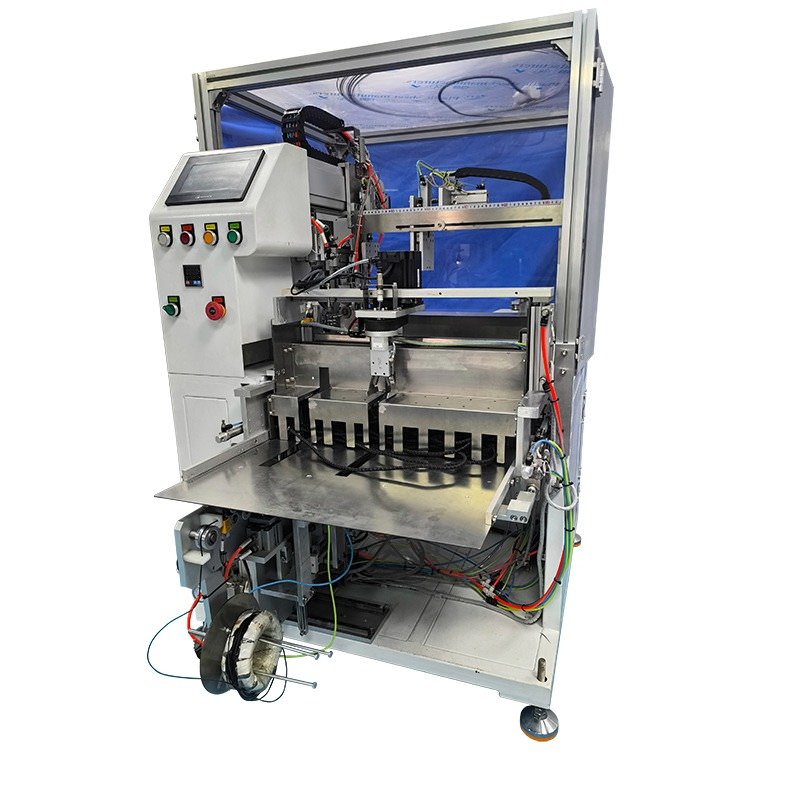

 Rope cutting and clipping tying machine  ES-103

The rope cutting and clipping tying machine  ES-103 is designed specially for automatic hot cut ropes , clip rope into a loop form and collection of clipped rope loop

and tie up 50 pcs of rope loop into one bundle in one machine .

This rope automatic cutting bundling machine has three feeding system, feeding ropes , feeding clipping stainless steel wires , feeding tying rubber wires . the ropes is hot cut on the machine with hot cutting knife reaching high temperature up to 400 ℃ which heat seals the rope ends.  the clipped rope forms a strong loop . the clipping system cut and clip a small  piece of 316 stainless steel of 1.8mm  diameter on the rope ends . once the clip is form , it is hard to break by human force . the clipped part is smooth touch and clipped inside without  clipping wire protruding out and hurting human hands .

This rope automatic cutting clipping machine applies with PLC touch screen which is easy to operate , customer can set the cutting length , how many bundles and how many quantity for one bundle etc .



Youtube video



The maximum cutting length of this rope cutting and bundling machine is 1.6 meters , it can also customised for the maximum cutting length ,the machine power is 2kw , the capacity for the collection box is 50 pcs for one bundle of rope diameter of 6mm . the collection box capacity can also be customised based on customer's requirement .

Say goodbye to manual hot cut ropes, clip ropes into loop and put a bunch of ropes together  and tie up the rope loops into one bundle , this rope cutting and clipping tying machine combines all the processings in one machine which saves labour and increase productivity .



【Technical Data】

Product name : Rope hot cut clipping tying machine

Model No.：ES-103

Funcition：Hot cut ropes + Clip into loop +Collecting and tying into bundle of 50pcs

Voltage：110/220V

Machine Power： 2KW

Working air pressure：0.7MPA

Control system : PLC Touch screen

Machine moving component : Screw guide rail&servo motor

Feeding system : Feeding ropes +feeding 316 Stainless steel +feeding tying wire

Knife Hot cutting temperature : 0-400 ℃

Maximum cutting length : 1.6 meters

Capacity for collection box : 50pcs for rope diameter 6mm

Machine Productivity : 6 pc/min（Based on 125mm/500mm cutting length）

Machine Net Weight : 192KG

Machine dimension：L1200*W900*H1650mm



【Product Advantage】

1, Automatic feeding ropes&clipping wires &tying wires +Hot cut ropes + clip into loop +Collection of clipped rope loops

+Tie up 50pcs of rope loop into one bundle  ,all above processings are achieved in one machine ,save labour to do it manually

2, Hot cut ropes and  seal the rope ends



3, The clipped ropes form a strong loop and not easy to break .



【Product Details】

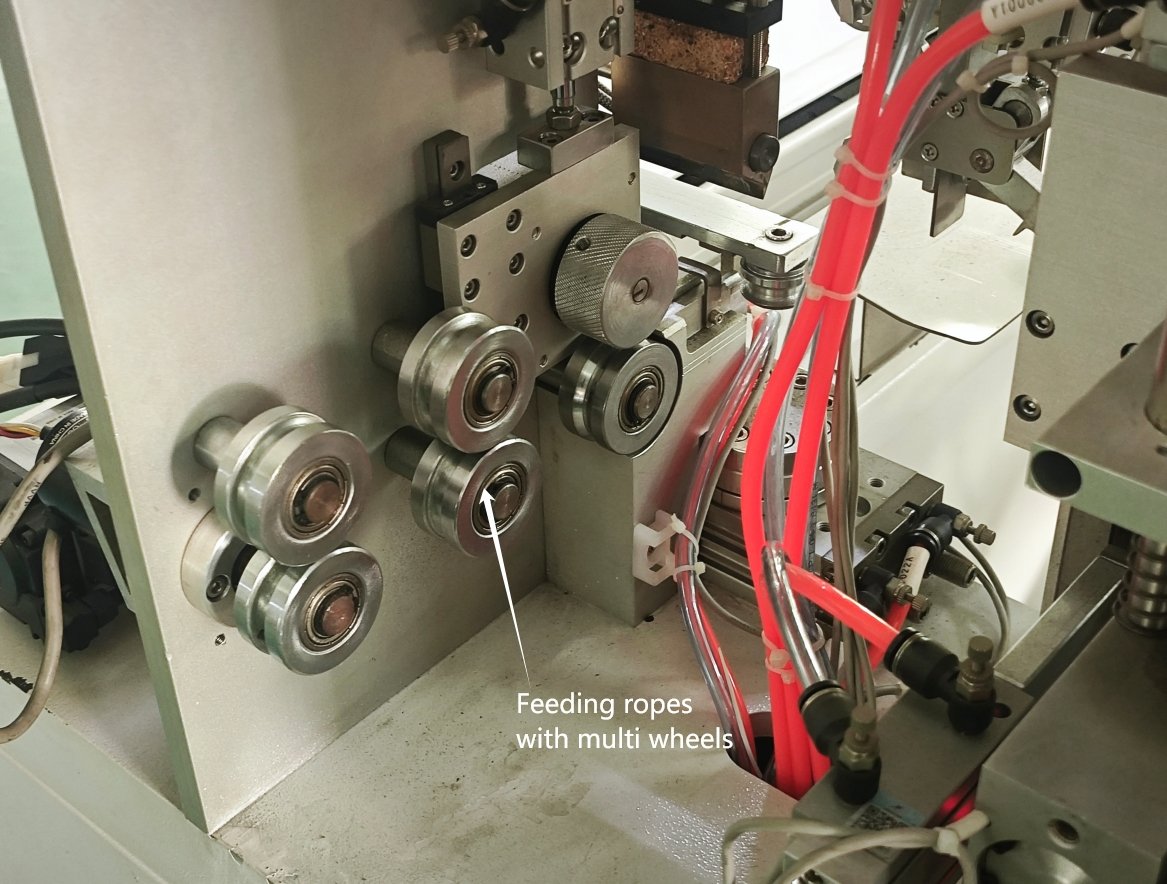

1,Feeding ropes ,feeding clipping wires and feeding tying wires & Hot cut ropes  , this rope automatic

cutting clipping machine will feed all these three materials at the same time ,the drawing device will

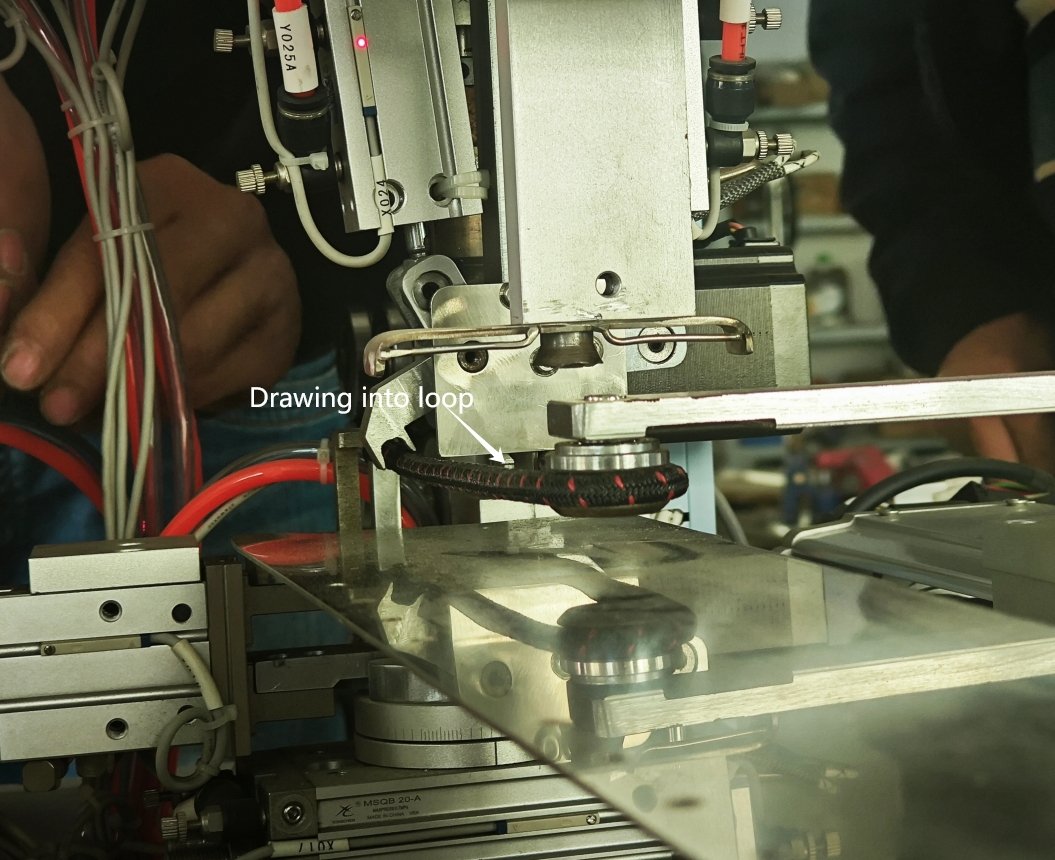

draw the rope into fixed length and into loop shape , then the hot knife will hot cut

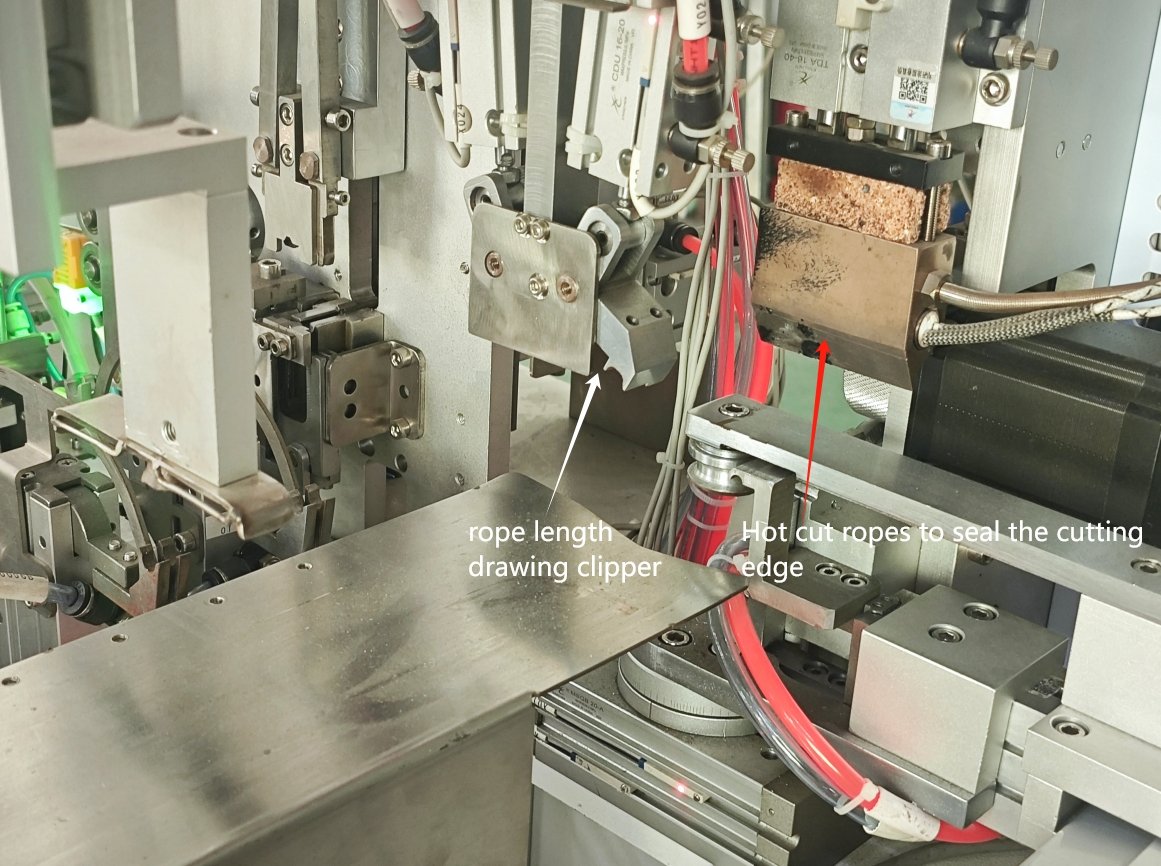

 the rope and heat seal the ends to avoid fraying . the hot knife can reach up to 400 ℃ high temperature.





2,Clip ropes and taking ropes to collection boxes   ,after the rope was cut into fixed length and formed a loop

,It will be forwarded to the clipping zone and be clipped and fixed by 316 stainless steel which forms a strong

loop

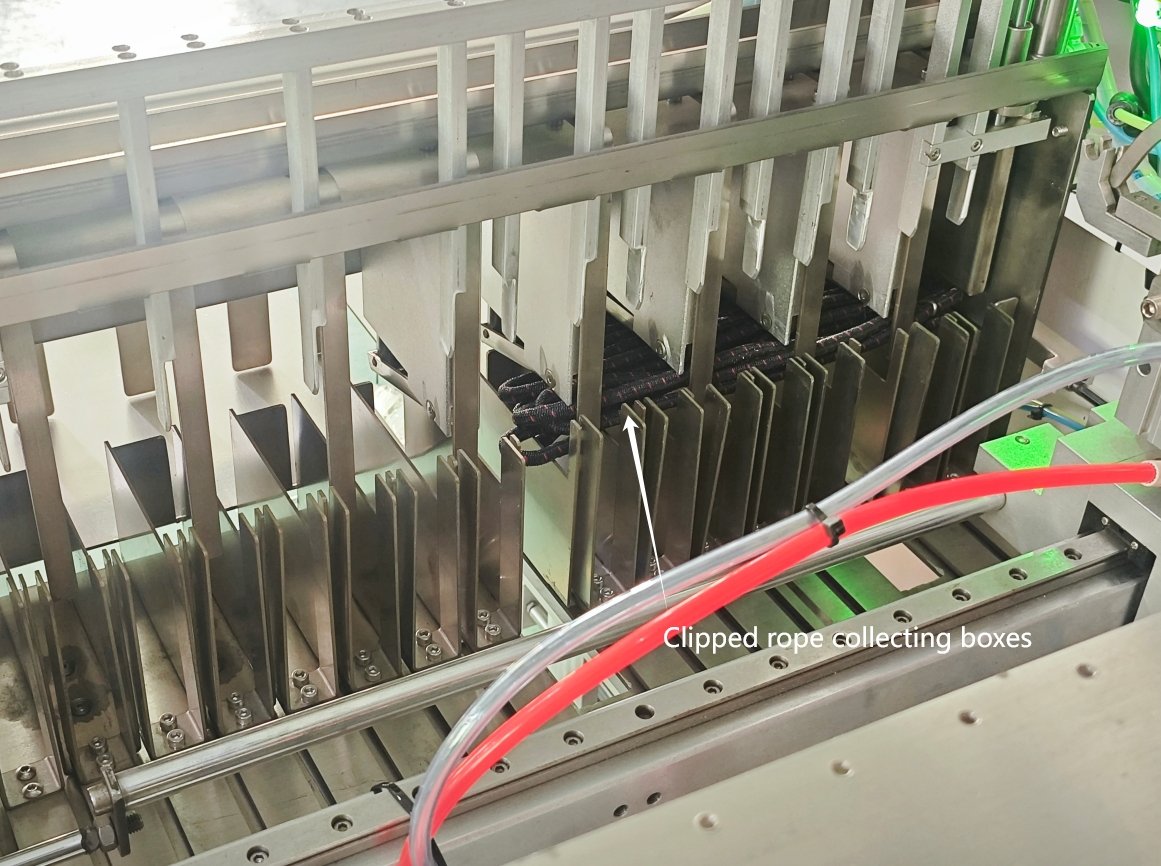

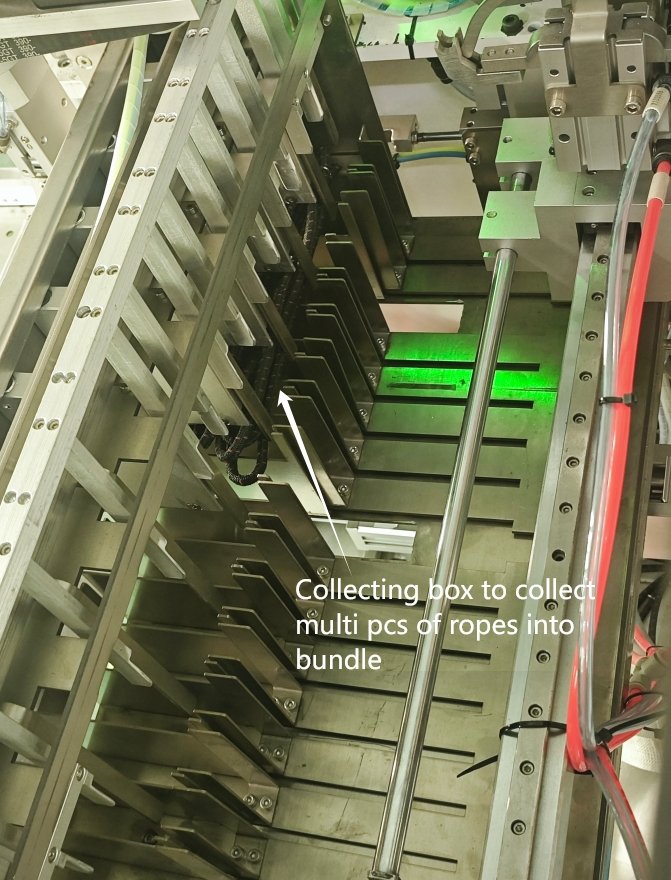

3, Collection box ,the clipped rope loops will be collected into the collection boxes , the collection

box had capacity to collection 50 pcs of  rope diameters up to 6mm , the collection capacity can

be customised based on customer's requirement .

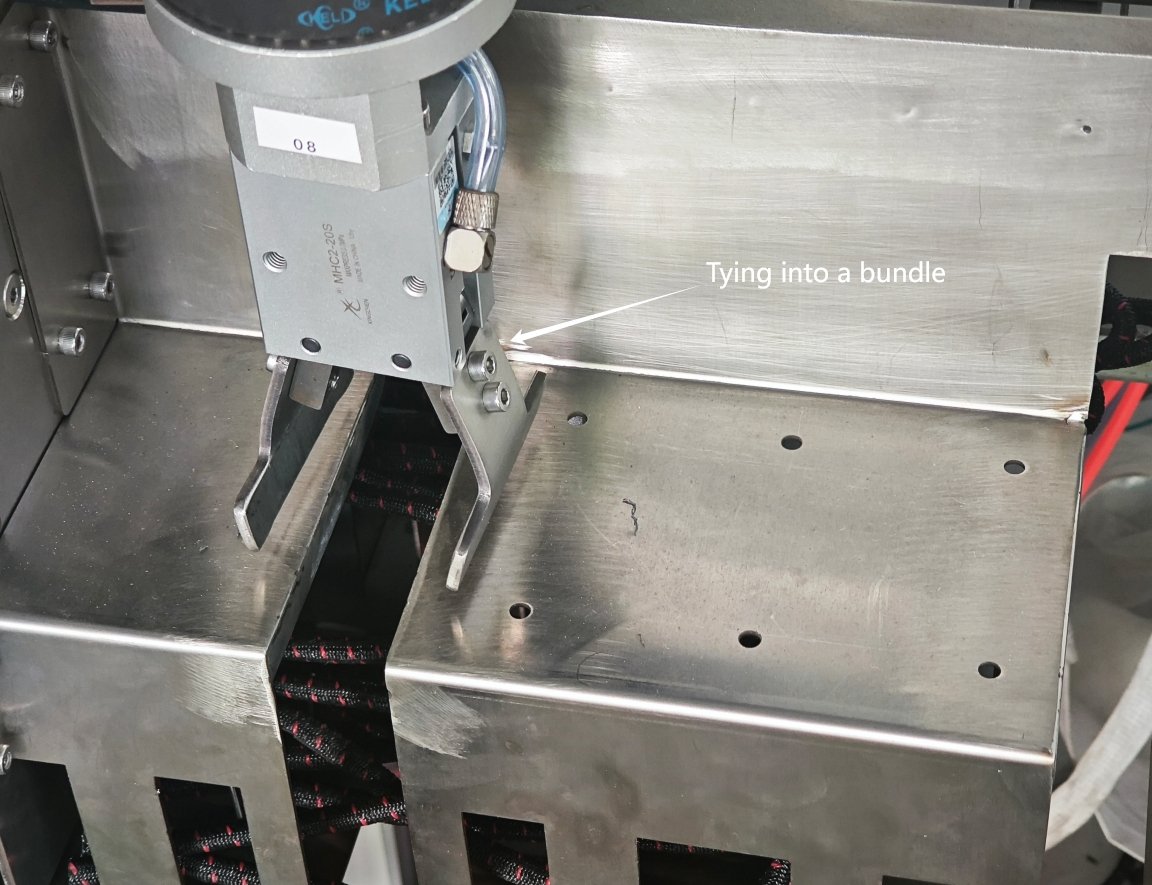

4,Tying ropes into bundle  and push out and release finished ropes  , the rope automatic cutting bundling machine

will tie up the clipped loop ropes into one bundle when reaching 50 pcs of loop ropes  or other quantity for a bundle .

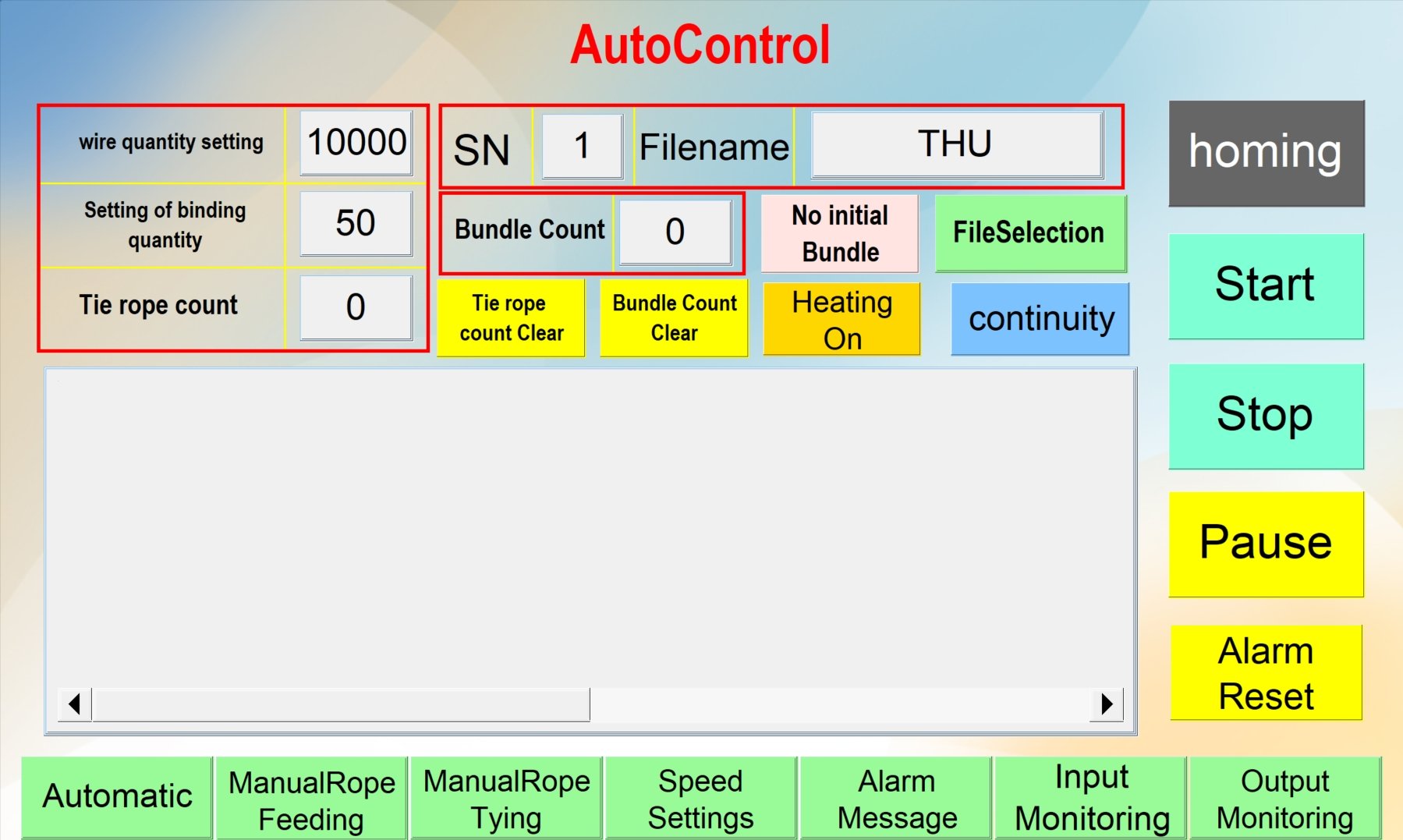

5,PLC touch screen control ,this rope automatic cutting clipping machine applies with PLC touch screen

to control the machine , customer can set cutting length , amount for each bundle , bundle quantity  ,

machine working speed etc. if any emergency , there will be alarm code and customer can locate the problem easily

by identifing the alarm code , the alarm code will trace to the root of the exact problem.

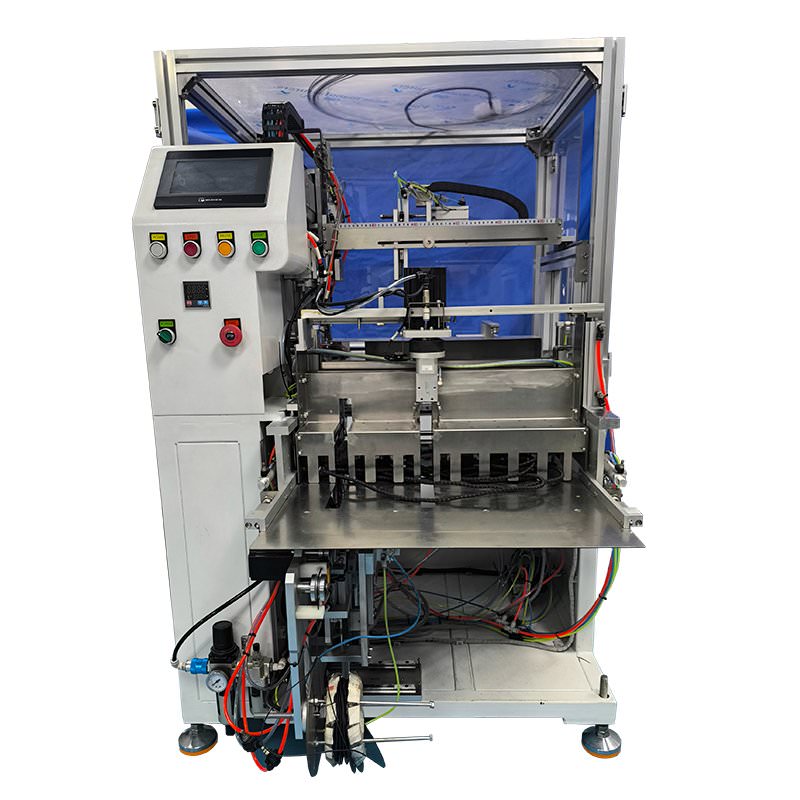

Front View

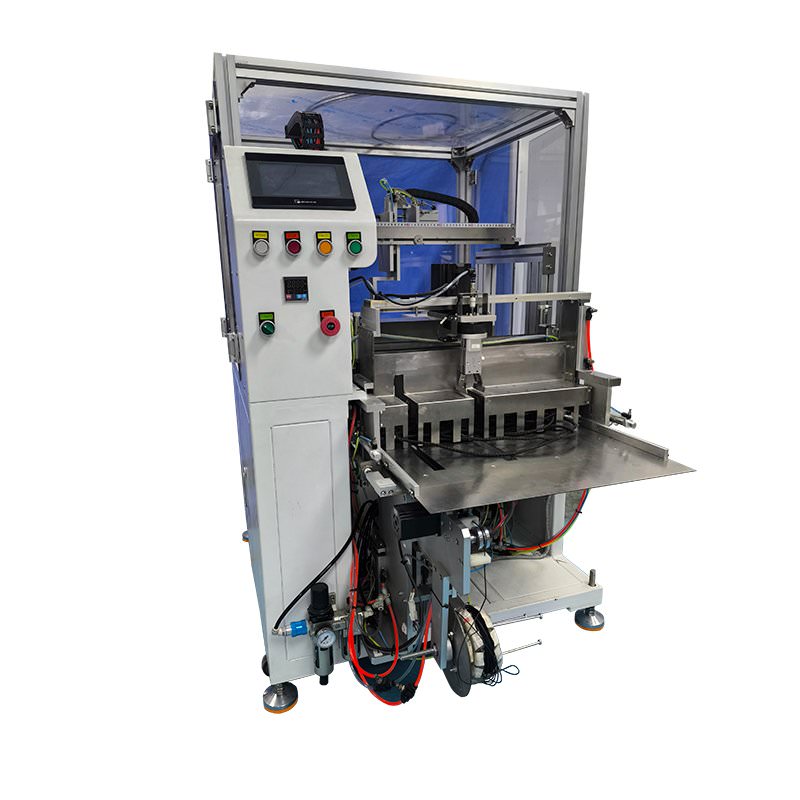

Side View





Side View





【Warranty 】

 As a rope cutting and clipping tying machine supplier , all the spare parts of the machine  will have one year of free maintainance

by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice

after on line diagnosis .



【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping
