Automobile cabin air filter paper pleating machine

Product Details
Brand ESMAI
Serial Number ES-061-6
Country of Origin China
Certificate CE
Payment & Shipping Terms
Price Quote Based on quantity
Minimum Order 1 SET
Average Delivery Time Production 7-10 days, delivery time by sea
Payment Method TT
Package Details 1SET/WOODEN CASE
Ability to Supply 100 Sets/ month

Automobile cabin air filter paper pleating machine ES-061-6

【Product Description】

The automobile cabin air filter paper pleating machine  ES-061-6 is designed for automatically slitting and pleating air filter paper into folded shapes ,it is widely applicable to activated carbon cloth, and other filter papers with good folding line , The folding distance is adjustable.

Automobile cabin air filter paper pleating machine



Youtube video

The maximum air filter paper width to be processed is 600mm ,the pleating height ranges 8-55mm ,the pleating speed ranges 0-120 folds  per minute ,customer can set the speed based on production requirement.

The pleating are done by both upper and down knife with preheating temperature ranges 0-200℃, the preheating power is 3KW , the folding line of air filter paper becomes permanant after heat pleating knives

The pleated air filter papers are in good shape after pleated by the automobile air filter paper folding machine and high productivity and labour saving compared to do it manually .





【Technical Data】

Product Name: Automobile cabin air filter paper pleating machine

Model: ES-061-6

Functions: Preheating and Folding non-woven fabric, activated carbon cloth, and other filter papers

with good folding line; automatic loading and unloading filter paper. The folding distance is adjustable.

Features: Automatic material feeding+good folding line

Drive Method: Motor, cylinder

Maximum folding width: 600mm

Adjustable Folding Height Range: 8-55mm

Folding Speed: 0-120 folds per minute, adjustable

Motor Power: 0.75KW

Preheating Power: 3KW

Temperature Control Range: 0 to 200 degrees Celsius

Working Air Pressure: 0.6MPA

Changeover Time: 15-30 minutes (depending on technician proficiency)

Dimensions (L*W*H): 1470*1520*1240mm

Machine Weight: 450KG

【Product Advantage】



1,Slitting air filter paper into different width based on requirement.


2, Pleating air filter paper in good shape ,adjustable pleating heights



3,High productivity and labour saving compared to manual folding and pleating the air filter papers .



【Product Details】

1,Reinforcement fixture , this cabin air filter paper folding  machine had applied with reinformance fixture for pleated air filter paper

after pleating to reinforce the pleating effect .

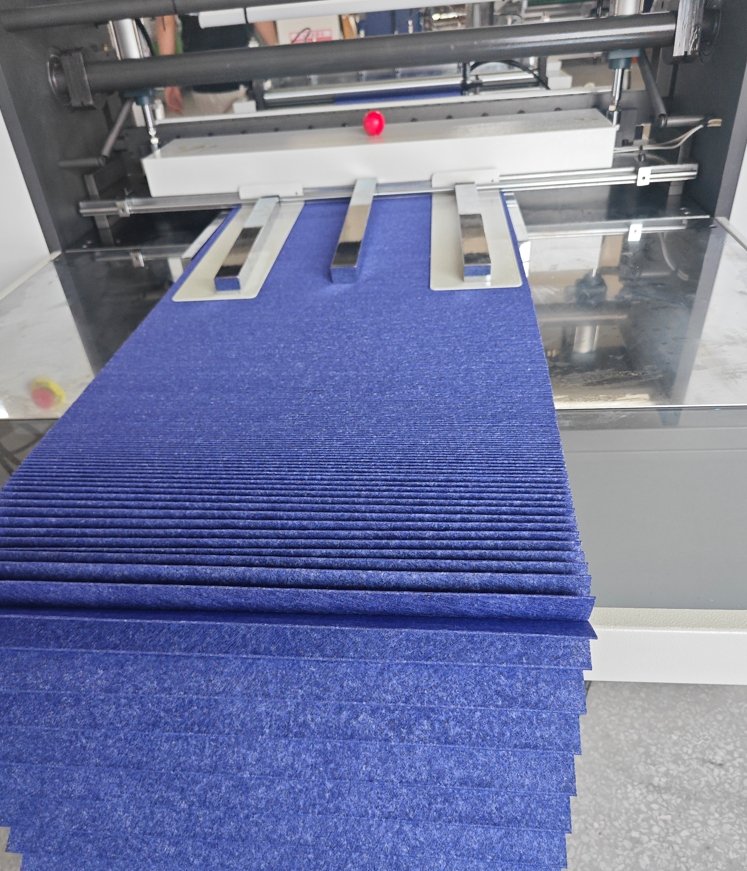

folded paper

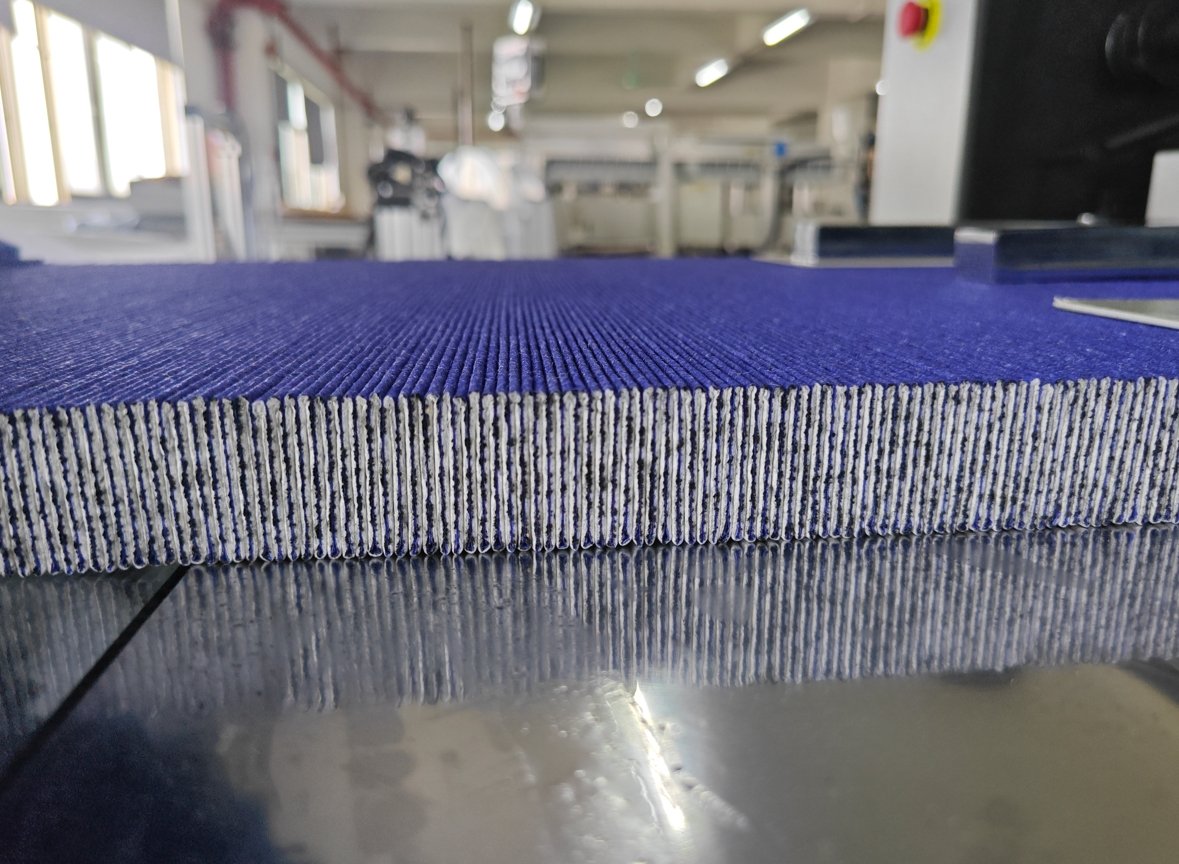

The pleated air filter paper are in good pleated shapes .

well folded paper

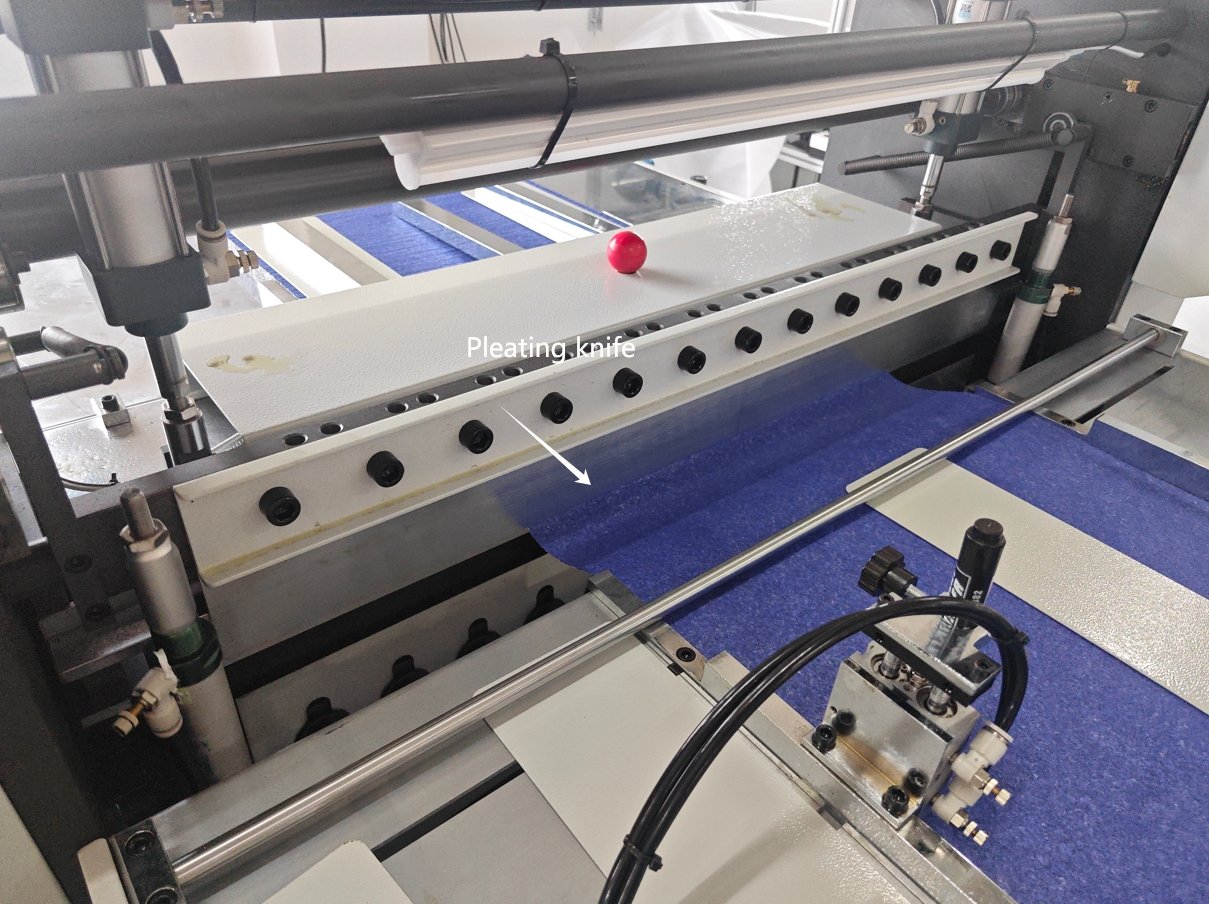

2,Pleating knife  , the cabin air filter paper folding  machine applies with both upper and down knife as pleating knives

they will work together to pleat the paper into different height , the pleating line is permanant after the pleating knives

are heated in pleating process.

pleating knives

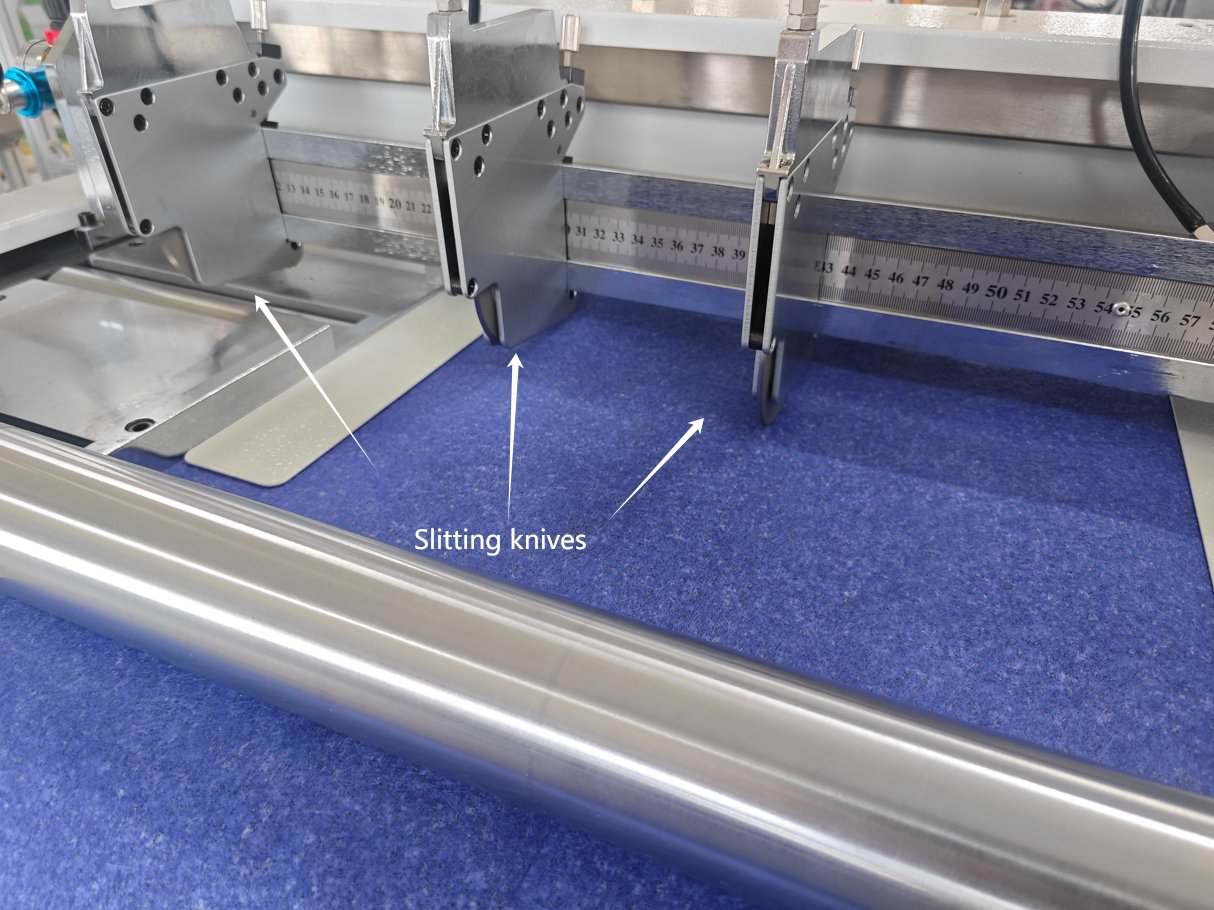

3, Slitting knife , the filter paper will be slitted into different small width by the slitting knives , customer can load the amount

slitting knives based on the slitting width .

slitting knives

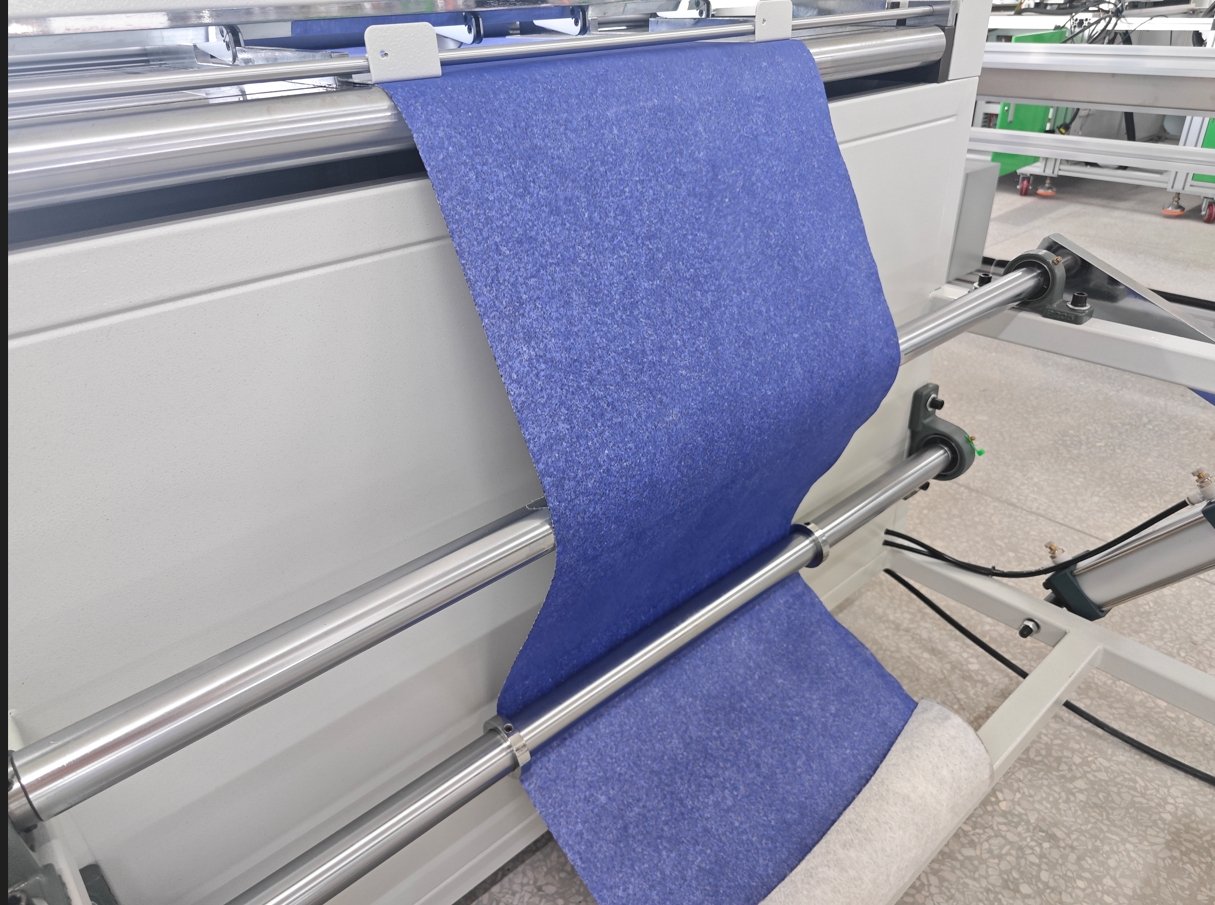

material holder shelf



4,PLC touch screen  ,thiscar air filter paper pleating machine applies with touch screen contol which is easy to operate

customer can set the both upper and down knife preheating temperature and folding height of air filter paper and

also set the machine speed based on production requirement.

plc touch screen

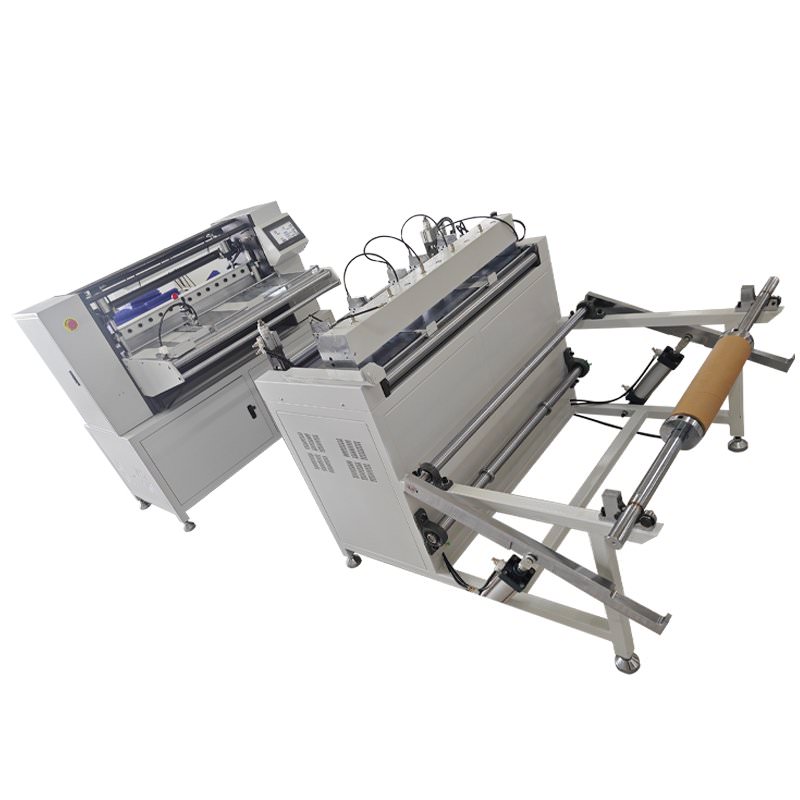

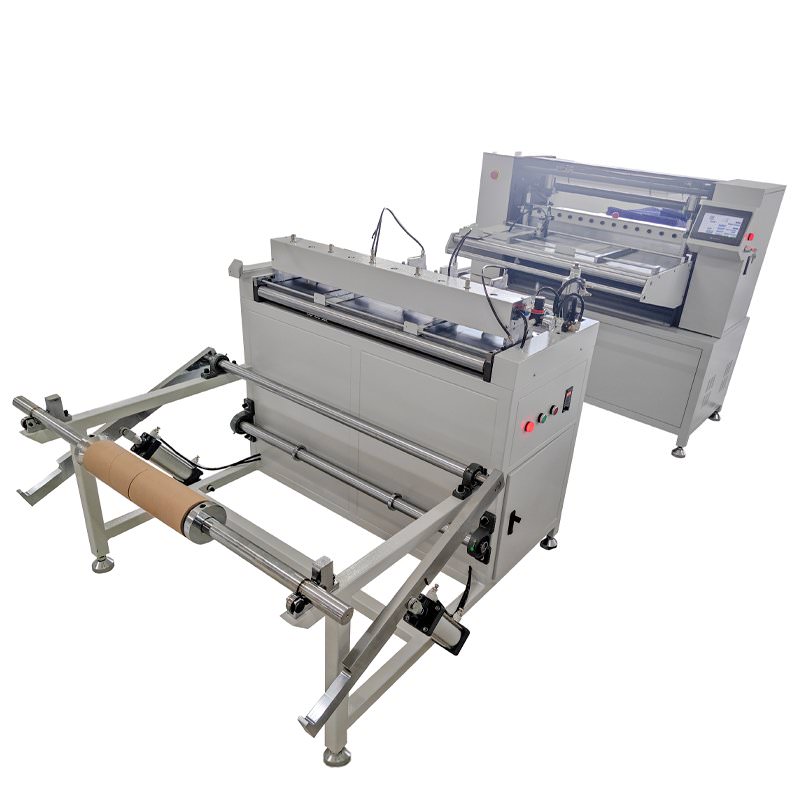

Front View





Automotive cabin air filter paper pleating machine

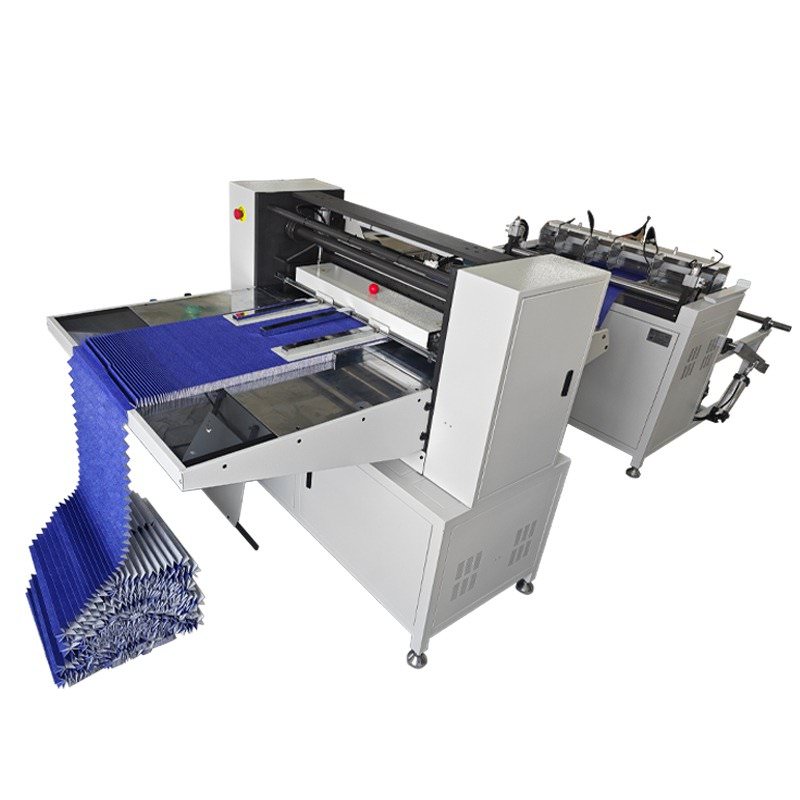

Side View



Cabin air filter paper folding machine

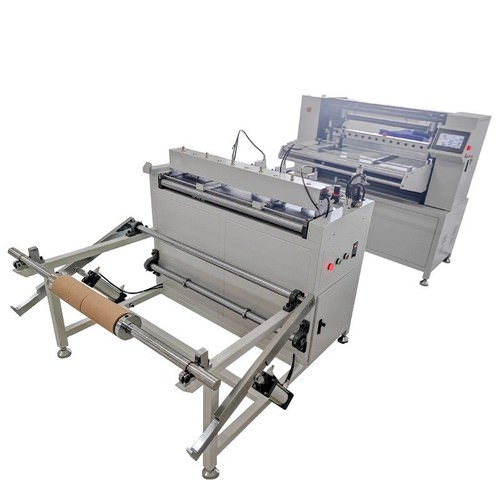

Side View

automotive air filter creasing line machine









【Warranty 】

 As a automobile cabin air filter paper pleating machine supplier , all the spare parts of the machine  will have one year of free maintainance

by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice

after on line diagnosis .



【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping
