Velcro tubular webbing laser cutting machine ES-135

Velcro tubular webbing laser cutting machine ES-135

The Velcro tubular webbing laser cutting machine  ES-135 is designed for automatic laser cutting all kinds of velcro shapes  and webbings like tubular webbbings without sticking the edges and other materials .the laser cutting width is 180mm .

The laser cutting system with unlimited feeding eliminates the traditional XY-axis movement mechanism, adopting a split design that requires only lateral movement on the X-axis. The Y-axis utilizes a high-precision stepper motor for material feeding and retrieval, saving time on manual loading and unloading. The laser tube power can be adjusted to to laser cut different thickness material .

This velcro tubular webbing laser cutting machine is widely applicable to  industries include the garment accessories industry, footwear and bag industry, and craft packaging industry.



Youtube video

This laser cutting machine applies with horizontal moveable laser  head, the whole machine power is 1.5 KW , the laser cutting length ranges 2MM-99999MM , the laser cuttting power is 120W and can be customised if required , it applies with touch screen which is easy to operate and it leaves with USB connection for customer to upload their material drawings for laser cutting which will be convenient to use

With the help of this velcro tubular webbing laser cutting machine, customer can cut different shapes of velcro like hook and loop cable ties , round velcro , one side round and one straight straight velcro , four round corner velcros  ,velcro strips , adhesive backed velcro without sticking the knives and unlike other traditional cutting machines , this laser cutting machine is wide application and saves labour for velcro and webbing and other material producers



【Technical Data】

Product name: Velcro tubular webbing cutting machine

Model: ES-135

Application: Cutting Velcro, tubular webbing and other materials

Features: Widely used in cutting materials of various shapes

Voltage : 220V

Frequency: 50/60HZ

Operation display: Touch screen

Language: Chinese/English

Cutting method: X-axis horizontal movement, Y-axis uses stepper motor to

feed forward and backward

Cutting length: 2MM-99999MM

Laser power: 120W

Machine efficiency: 1.5KW

Heat dissipation method: Water cooling

Air pressure requirement 0.6-0.8Mpa

Cutting width: 180mm

Machine size: length 175 width 78 height 114CM

Machine weight: 170KG



【Product Advantage】



1,Wide application to laser cut velcro in all kinds of shapes  and laser cut tubular webbing  without sticking the edges and webbings with holes

2, Ajustable high laser cutting power to cut different material



3, The Laser head  applies with  X and Y moving method to realize all shapes of cuting .



【Product Details】

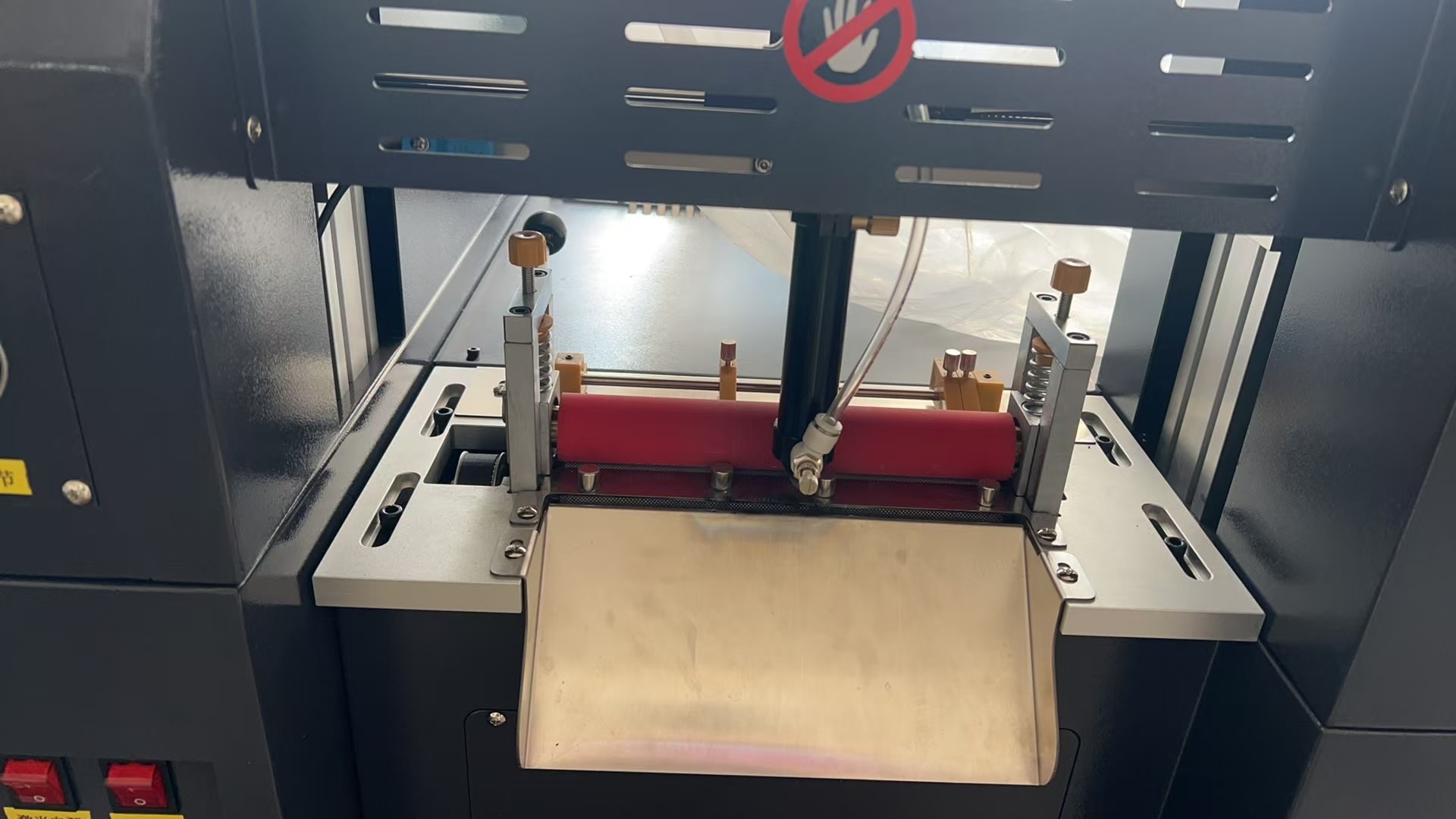

1,Laser cutting , the laser cutting head power can be adjusted to cut different material and with back and foward movement of  Y axis

to feed and retreat material and Horizontal movement of  X , It allows this velcro shape laser cutting machine to cut out different shapes

of velcros  and webbings and other material .

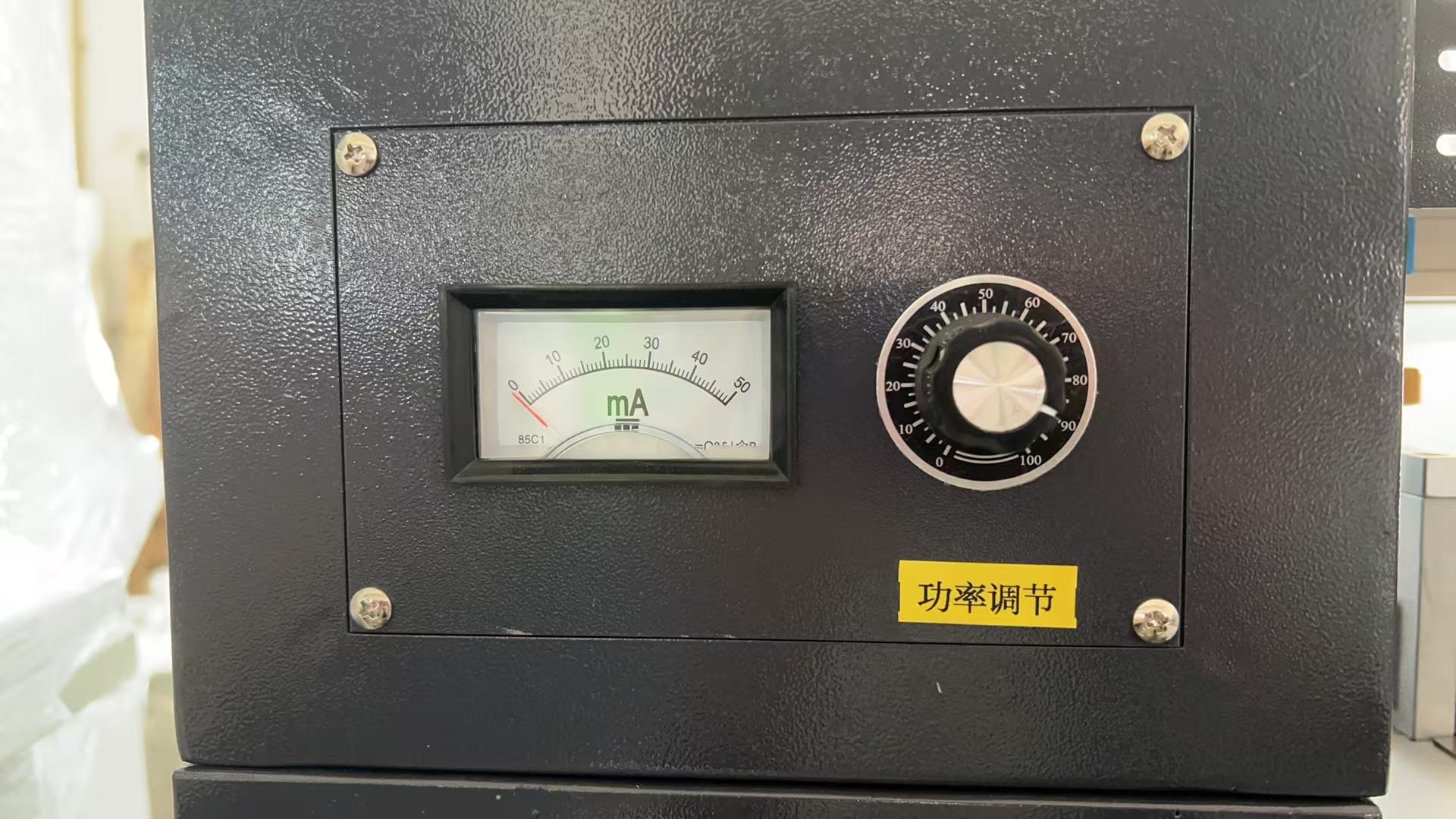

2,Control laser power, this hook and loop velcro cable tie laser cutting machine  applies with



3, Easy operation , Customer can input the  drawings into this  tubular webbing laser cut machine and the machine will cut out the

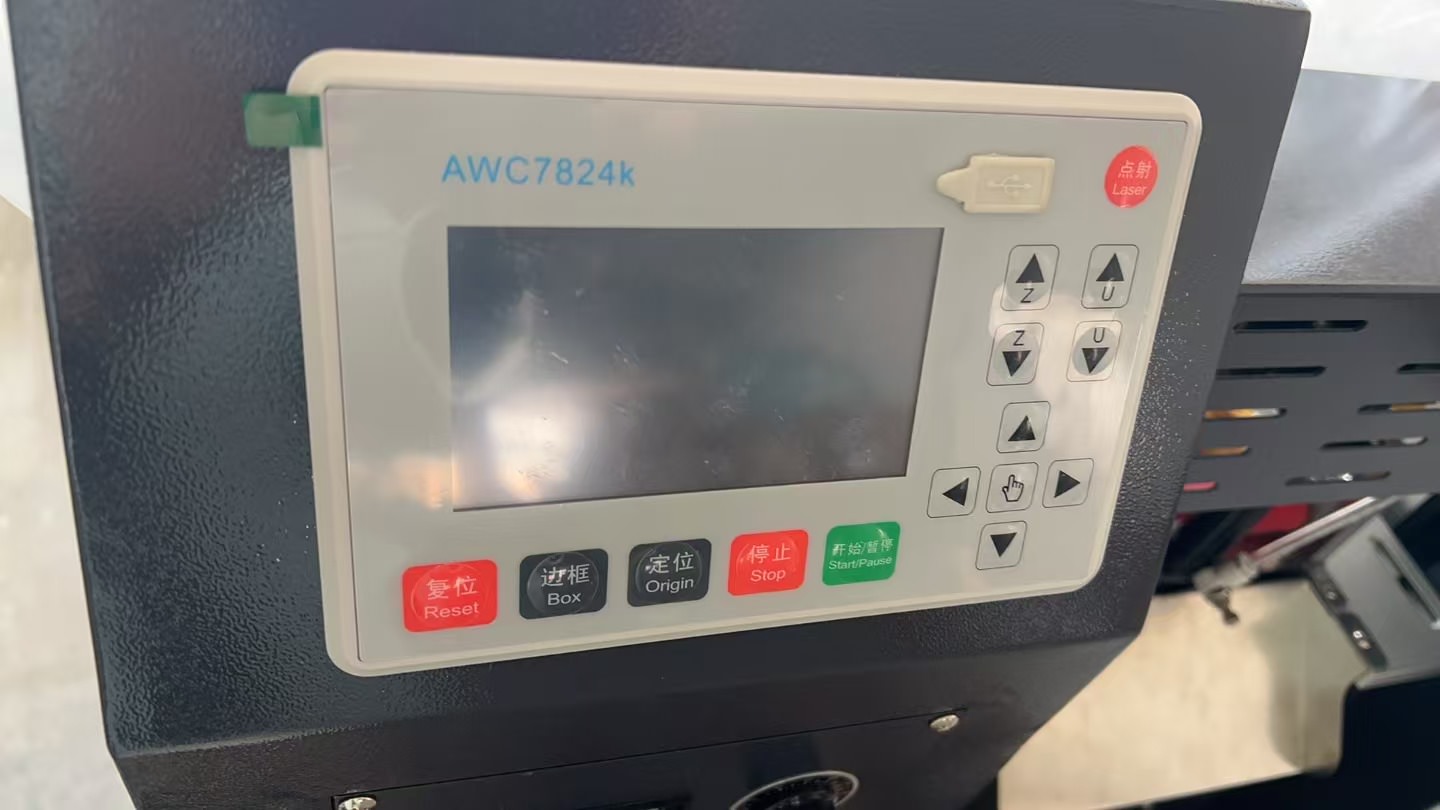

shapes automatically  . It applies touch screens and physical keys for easy operation of the machine .

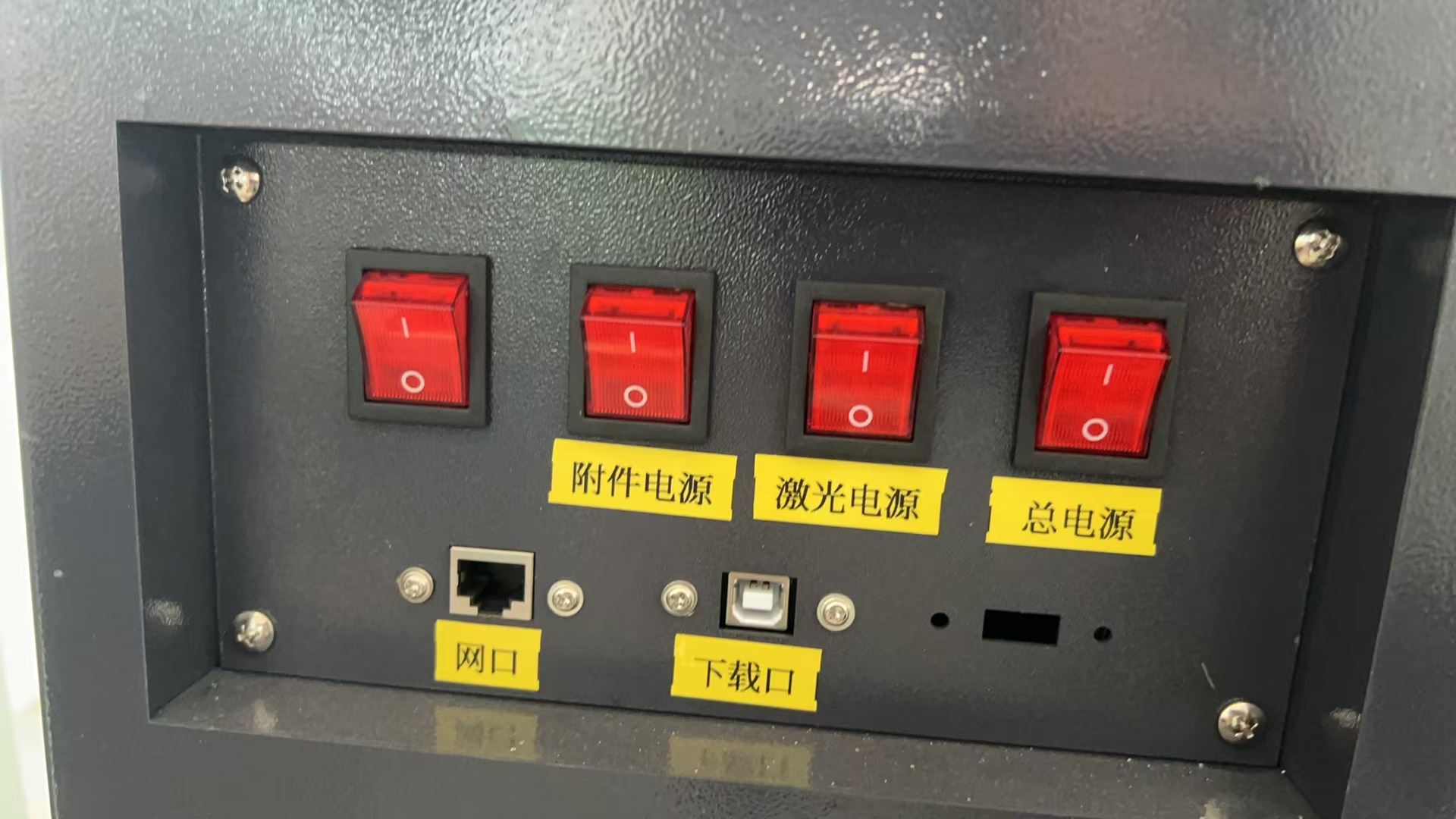

4,Connect to internet , This laser cutting machine had inlet for plugging internet wires and USB connnection  for inputting

new drawings for laser cutting shapes .

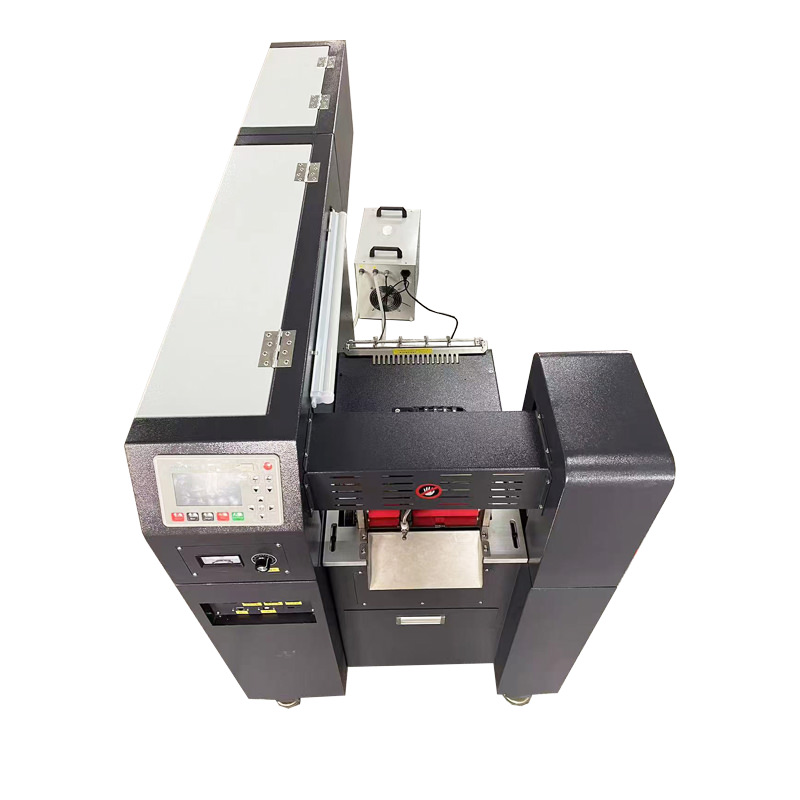

Front View

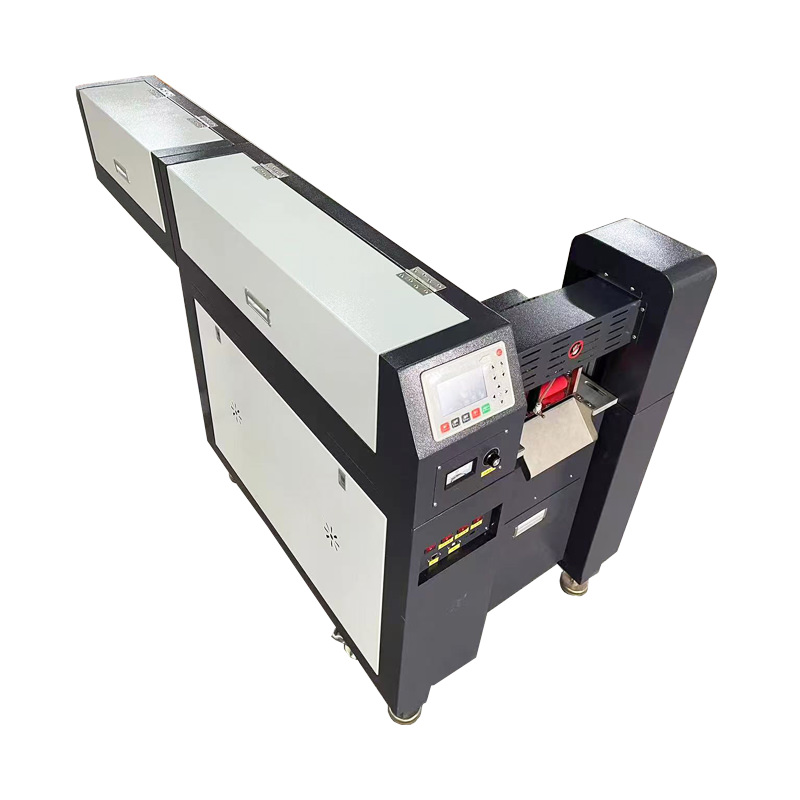

Side View



Side View











【Warranty 】

 As a Velcro tubular webbing laser cutting machine  supplier , all the spare parts of the machine  will have one year of free maintainance

by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice

after on line diagnosis .



【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping
