Big round velcro die cut machine (200mm width)ES-071-1

Big round velcro die cut machine    ES-071-1

【Product Description】

The big round velcro punch cutter machine  ES-071  is designed for die cutting different  big shape velcros and other material tapes ,the punching die cut mold will be customised based on customer's velcro shape and sizes .

The maximum cutting width is 200 mm which allow this machine to cut big  size and different shape material , the punch  die cut speed of  this velcro die cut machine  can be adusted based on production requirement, this large size velcro shape cutter  applies with high power motor up to 1.5kw which drives the heavy punching mold easily and gurantees steady die cut performance .

Youtube video

Compared to the  the old type of roller cut type machine  which cause deshape of cutting material  and need to change EVA foam sheets on the roller frequently  , this round corner velcro cutting machine not only ensures  that every  velcro are die cut out in exact sizes but also the die cut material leave off the original material straightforwardly  which do need require further post taking off them from the original material manually .

【Technical Data】

Product name : Big round velcro die cut machine

Brand : ESMAI                                                                                   Feature : Cutting big shape velcro

Model No.: ES-071-1                                                                        Voltage: 110V/220V

Mold type : Cusomised die cut mold                                               Power: 1.5KW

Cutting Speed :  75-80  pcs / minute                                               Net Weight:  90kg

Packing Dimension (L*W*H): 610*700*780(mm)                             Maximum Cutting width: 200mm

Cutting Length: 1-99999mm                                                            Speed : 0-99

【Product Advantage】

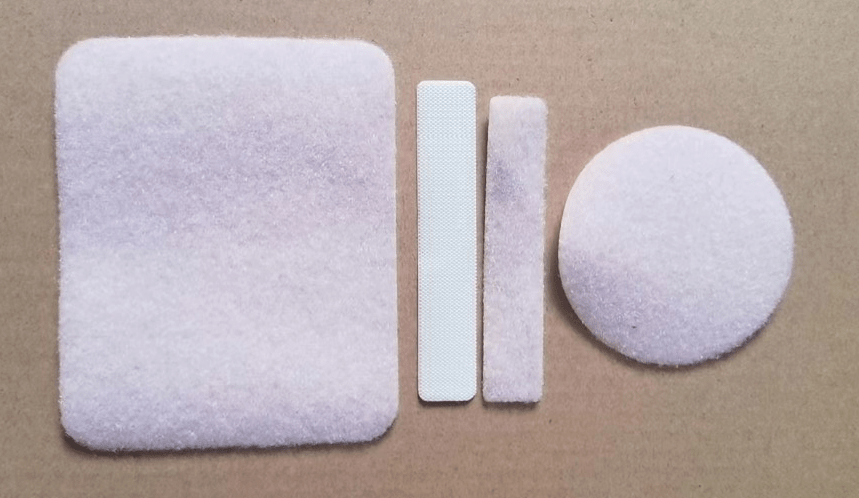

1, Customised die cut mold based on customer's velcro shape and sizes

2, Precise die cut size  without deshape ,steady working performance

3, The die cut material leave off the velcro  immediately without sticking to the original velcro material

【Product Details】

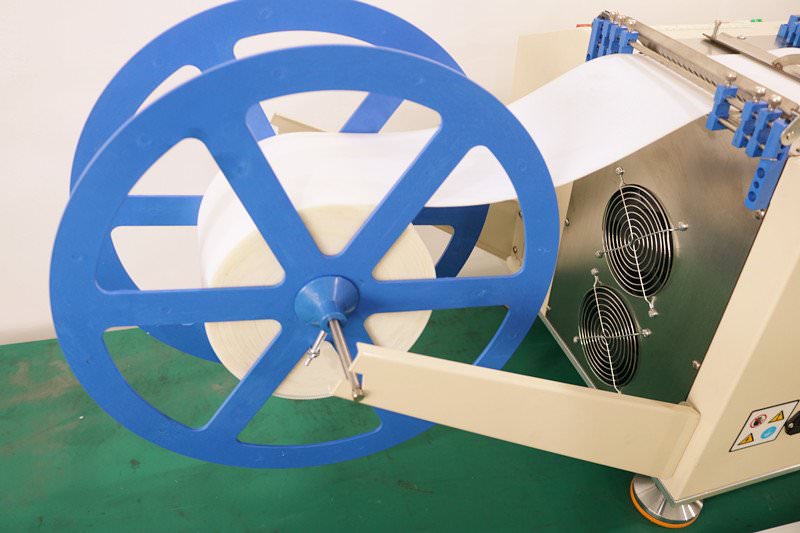

1,Material holder  , the material holder will load and hold the cutting material steady for cutting purpose

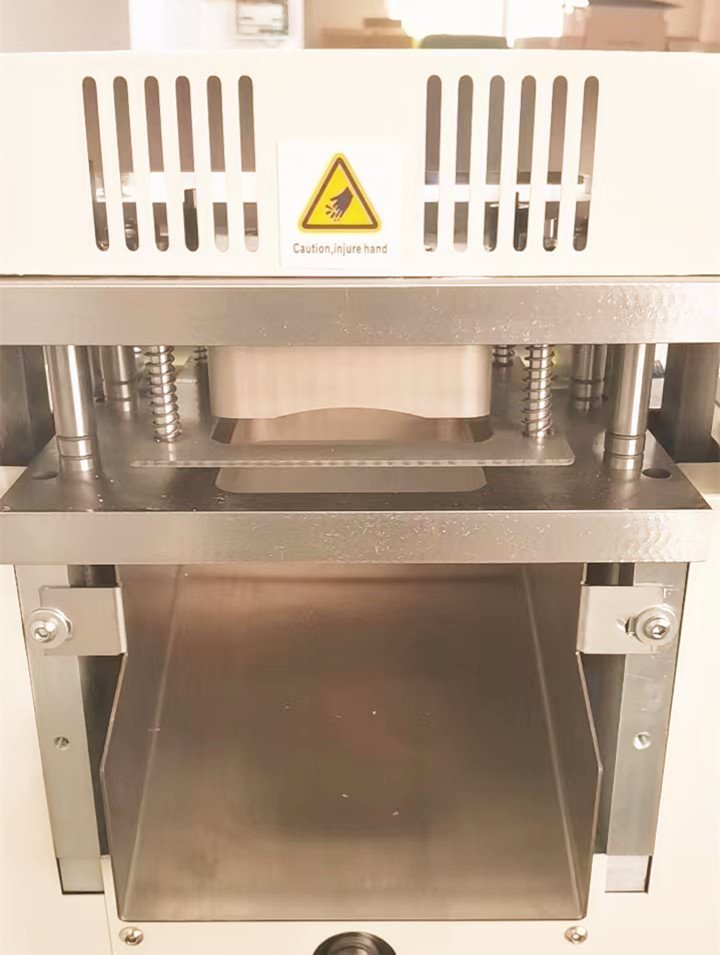

2, Customised die cut mold  ,Customers are welcome to send their velcro shape drawing and size data

to us ,we will customise the precision  die cut mold accordingly

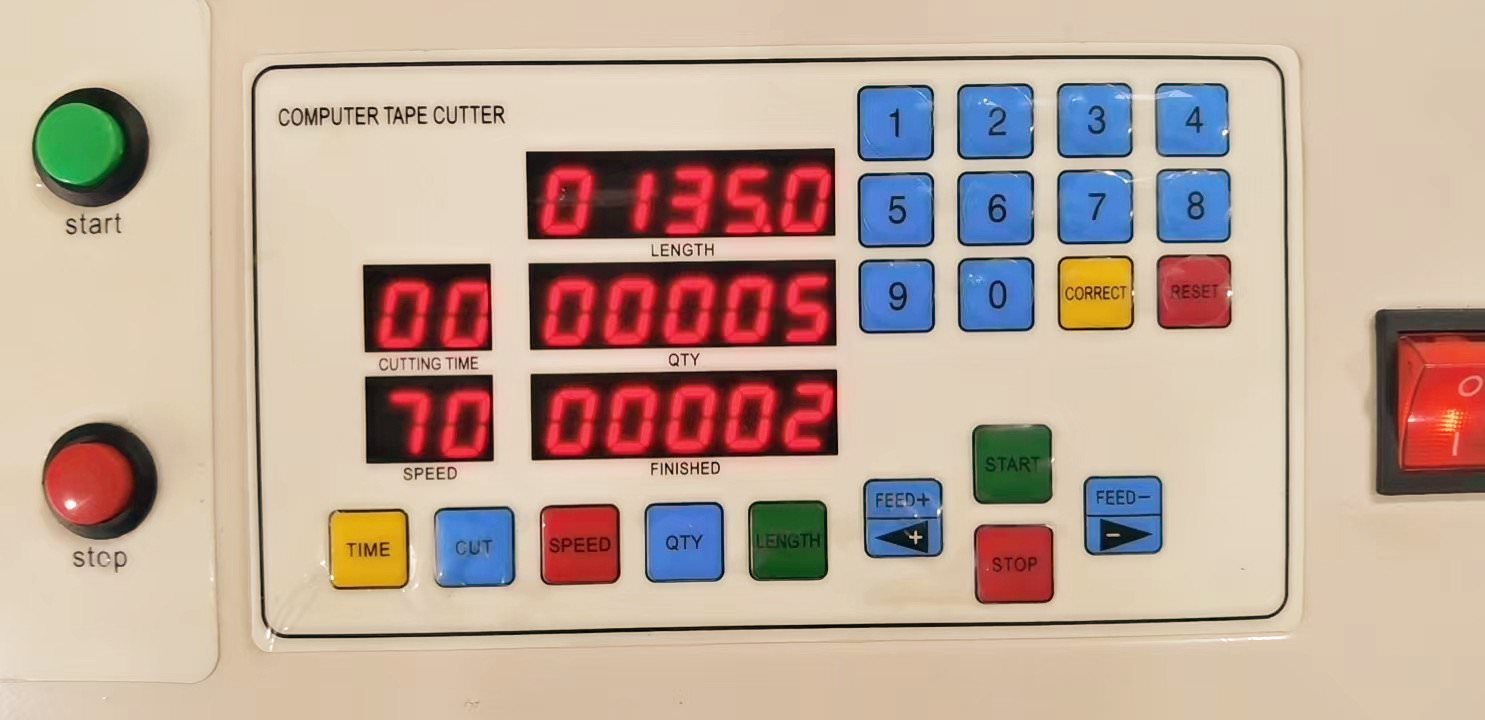

3, Easy to operate control board , the control board are simplified for easy operation

The work stuff can set cutting length, total cutting amount ,cutting speed easily on the machine .

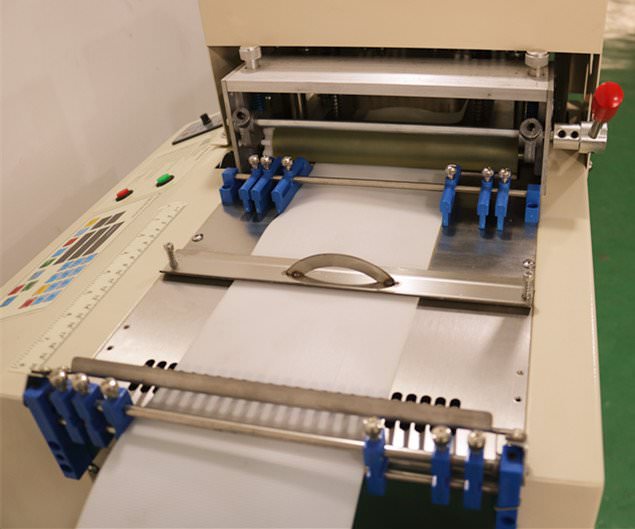

4,Holding fixture clip  ,they hold down velcro material  and avoid it from cocky during transportation

it keeps the steady transportation of the velcro material . meanwhile ,when the cutting material

runs out  the holding clip fall into the machine and stop cutting and trigger the alarm

for  worker to change new cutting material.

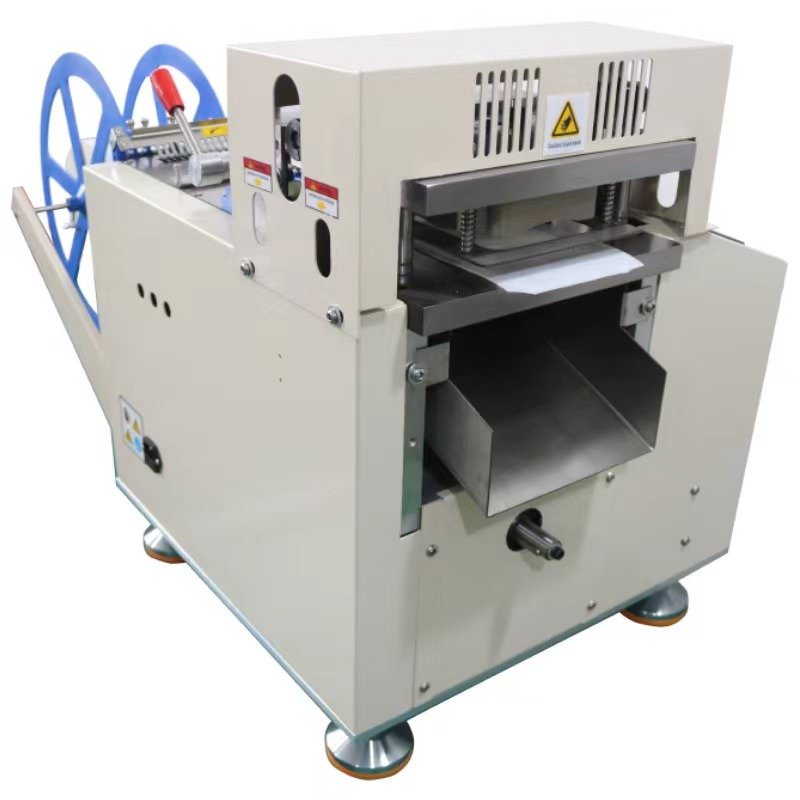

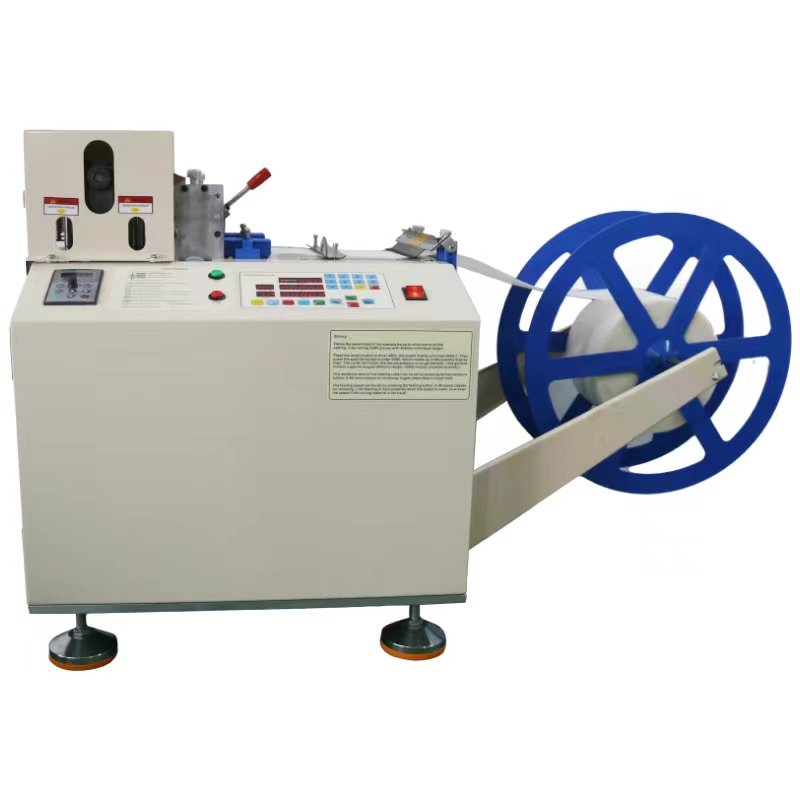

Front View

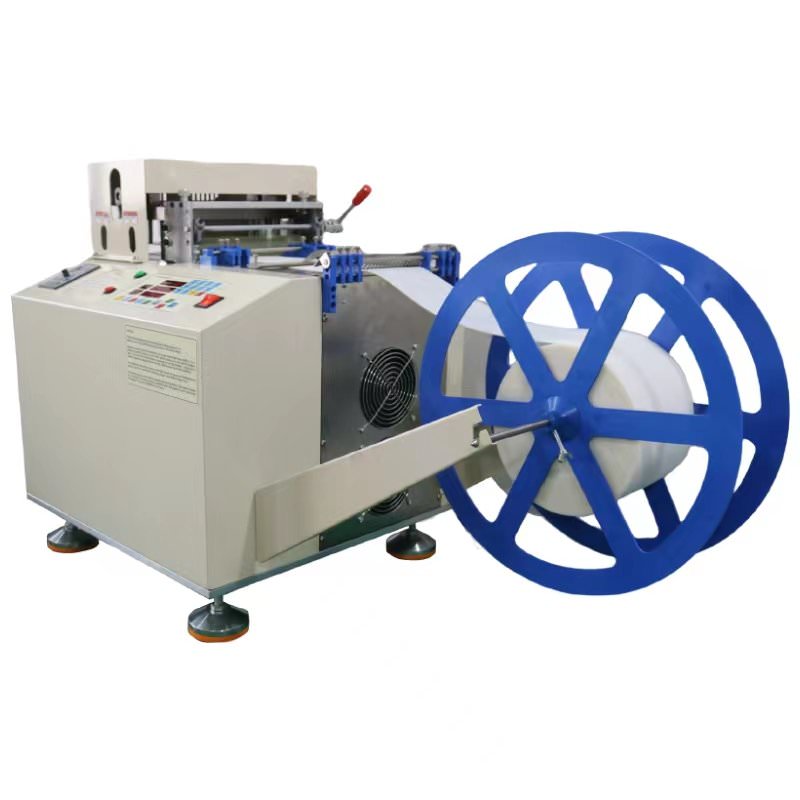

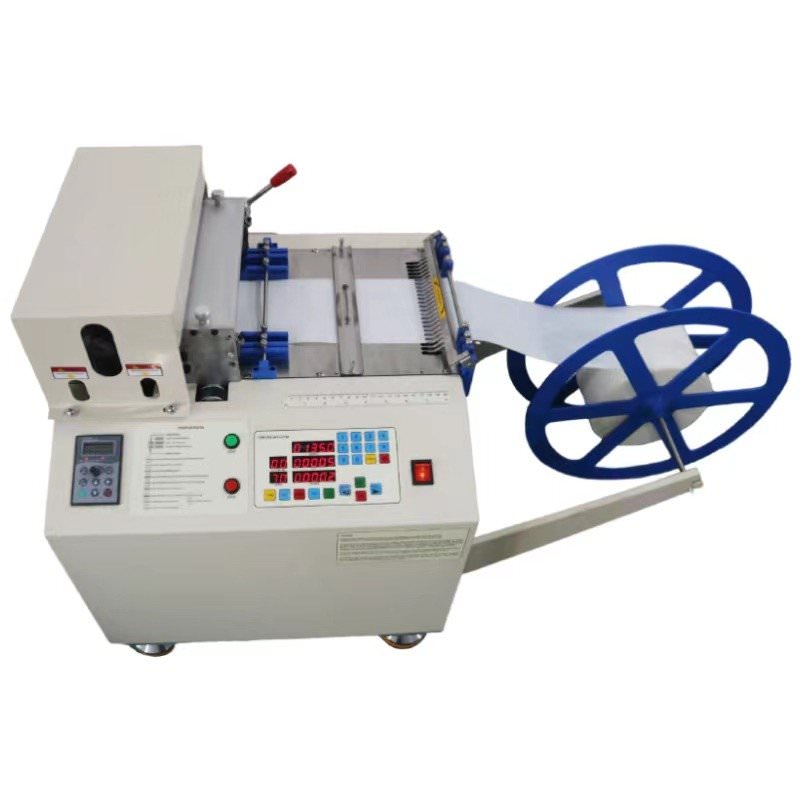

Side View

Side View

Side View

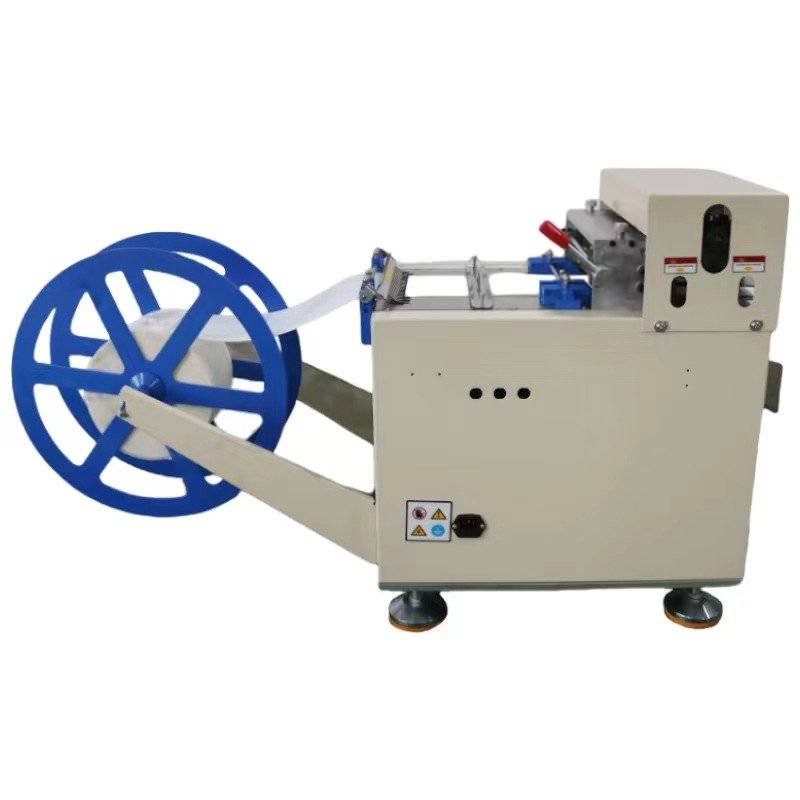

Back view

【Warranty 】

 As a velcro cutter machine supplier , all the spare parts of Big round velcro die cut machine  ES-071-1  except  the knife  will have one year of free maintainance  by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice  after on line diagnosis .

【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping
