Big round velcro punch cutter machine ES-071

Big round velcro punch cutter machine  ES-071

【Product Description】

The big round velcro punch cutter machine  ES-071  is designed for the punch cut of  big round shape or curve shape velcro tapes , hook and loop fasteners and other narrow fabircs  with precision same punch cut size without deshape , the  large round hook and loop cutting machine are equiped with strong motor to perform the punch cut which guarantees stable and strong punching cut performance .

The punch cut speed of the round hook and loop punch cutter machine reached 70-75 pcs , the maximum cutting width is 120mm , the punching mold can be customised based on customer's request . normally this big curve velcro tape cutting machine allows for OD sizes between 50-120MM .

Youtube video

In contrast to the old type of roller cut type machine  which cause deshape of cutting material  and need to change rubber on the roller frequently  , this big curve velcro tape cutting machine  not only guarantees every round velcro are punched cut out in exact sizes but also it make sure  the punch out cutting material will come off cleanly from the original velcro material  which save human labour to take them out manually .

【Technical Data】

Product name : Big round velcro punch cutter machine ES-071

Brand : ESMAI                                                                                  Round Velcro size : OD 0-120mm

Model No.: ES-071                                                                           Voltage: 110V/220V

Type: Full Automatic Punch Cutter Machine                                   Power:0.65KW

Cutting Speed :  75-80  pcs / minute                                              Weight:  35kg

Packing Dimension (L*W*H): 510*440*600(mm)                            Maximum Cutting width: 120mm

Cutting Length: 1-99999mm                                                           Mold  : Customised punching mold

【Product Advantage】

1, Customised knife molds design based on customer's velcro sizes

2, Same punch sizes without deshape ,stable working performance

3, Punch Cut material come out clean and  doesn't stick to the original material after punch cut

【Product Details】

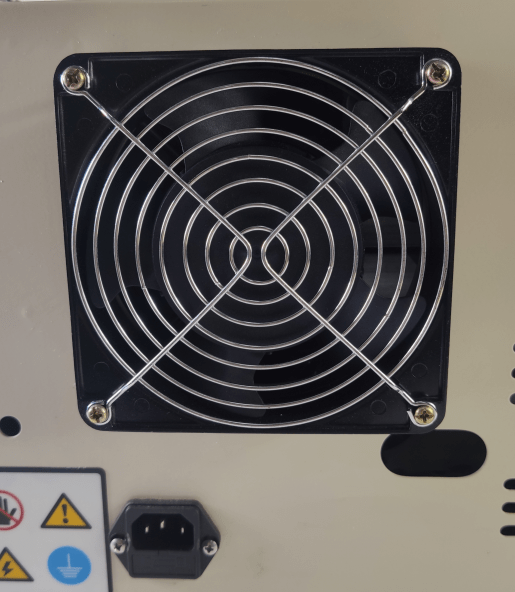

1,High power fans are equiped onto the machine to drive away heats and keep the machine

working long hours and sustain a long life span .

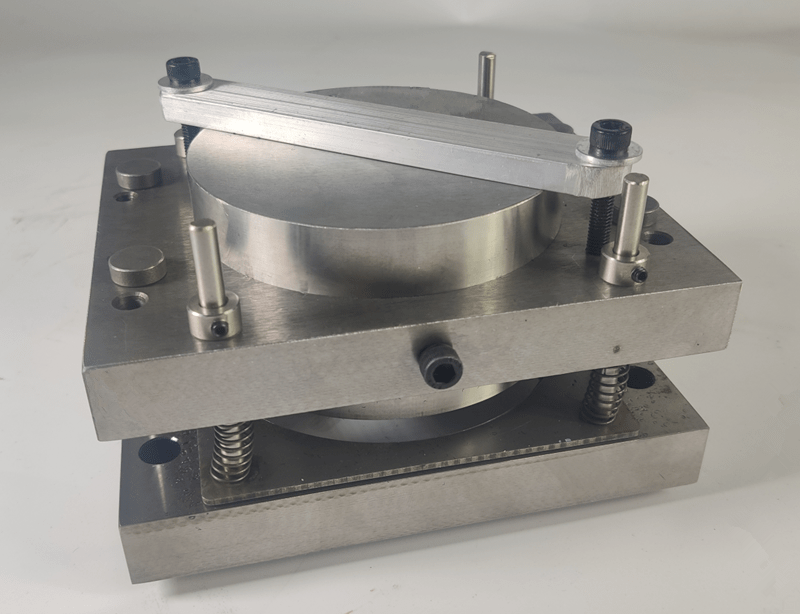

2, Customised punching mold   are available based on base on customer's velcro sizes ranges

from 80mm-120mm

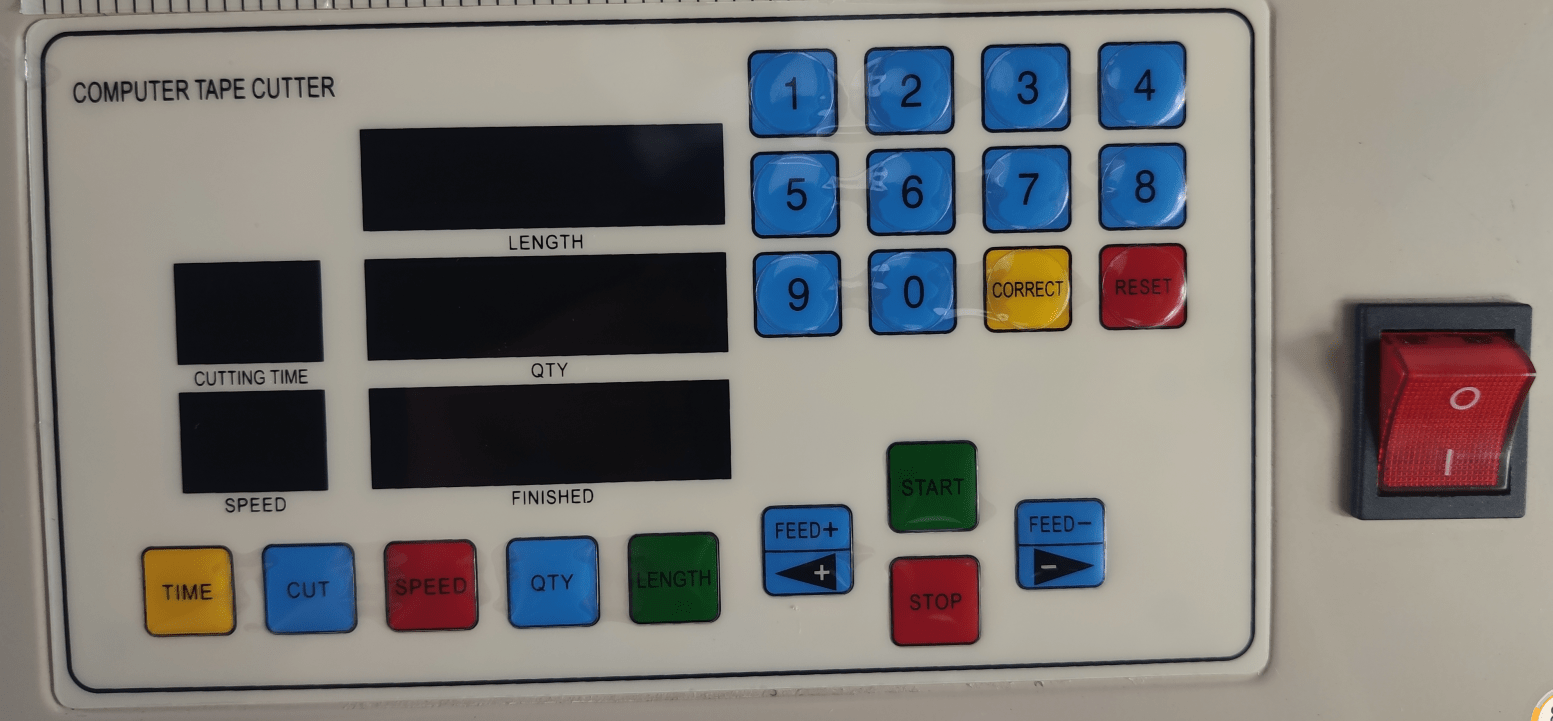

3, Easy to use control board , the setting keys are simplified on the control board

Customer can set cutting length, total cutting amount ,cutting speed easily on the machine

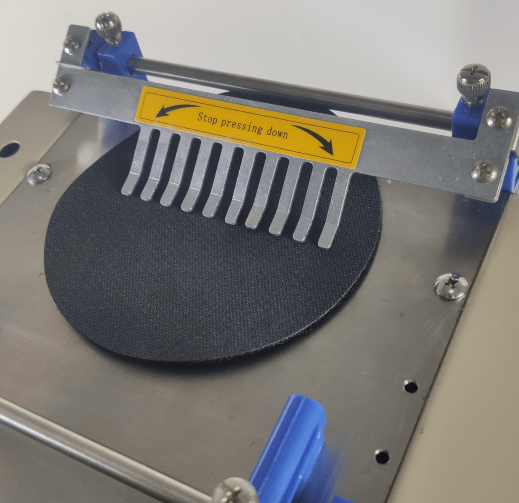

4,Holding clip  which hold down velcro material  and avoid it from cocky during transportation

it keeps the steady transportation of the velcro material . meanwhile ,when the cutting material

runs out  the holding clip fall into the machine and stop cutting and trigger the alarm

for  worker to change new cutting material.

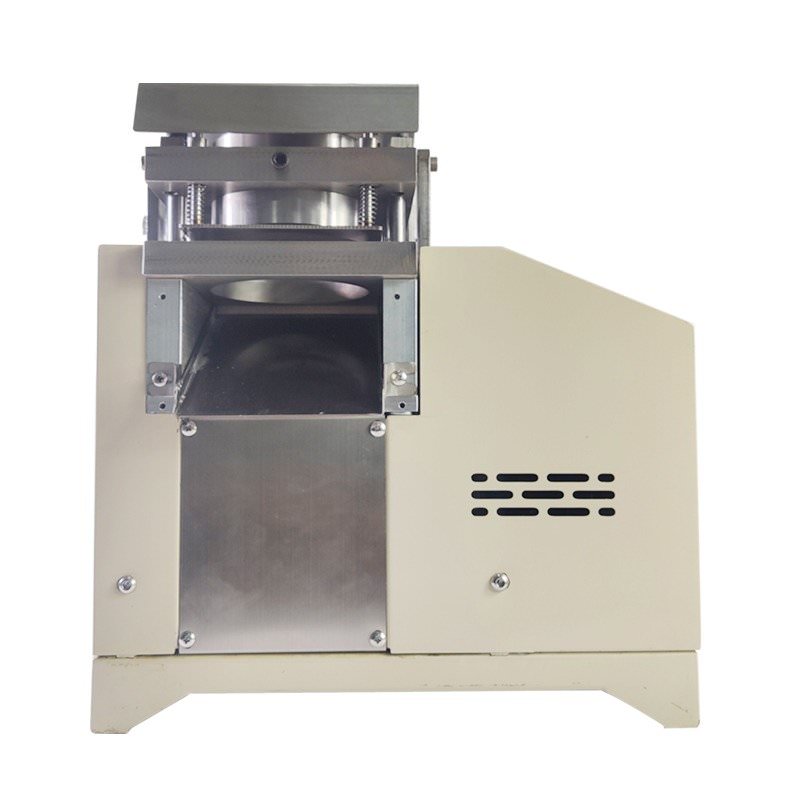

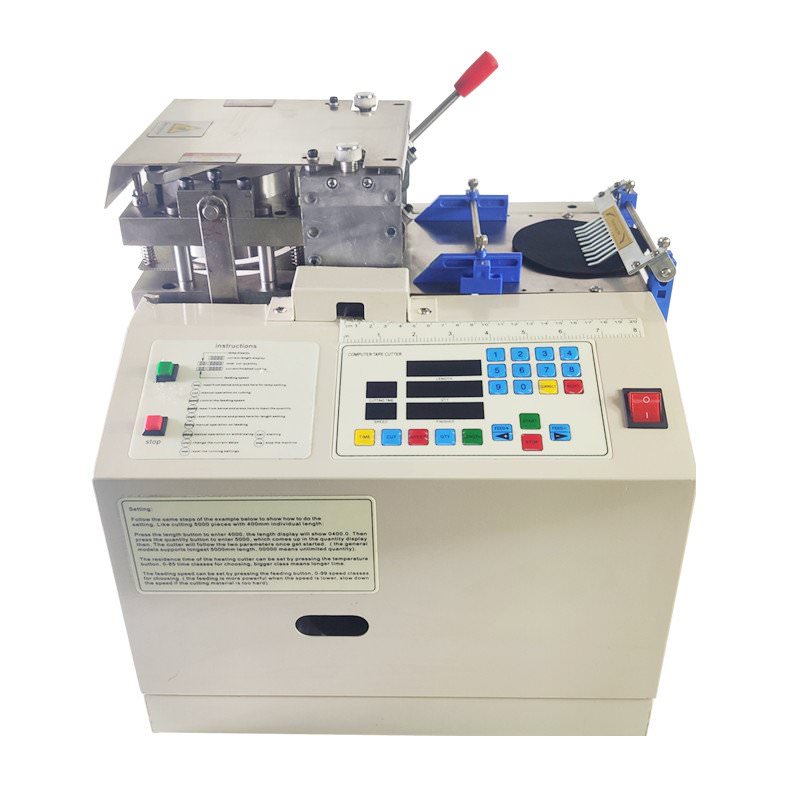

Front View

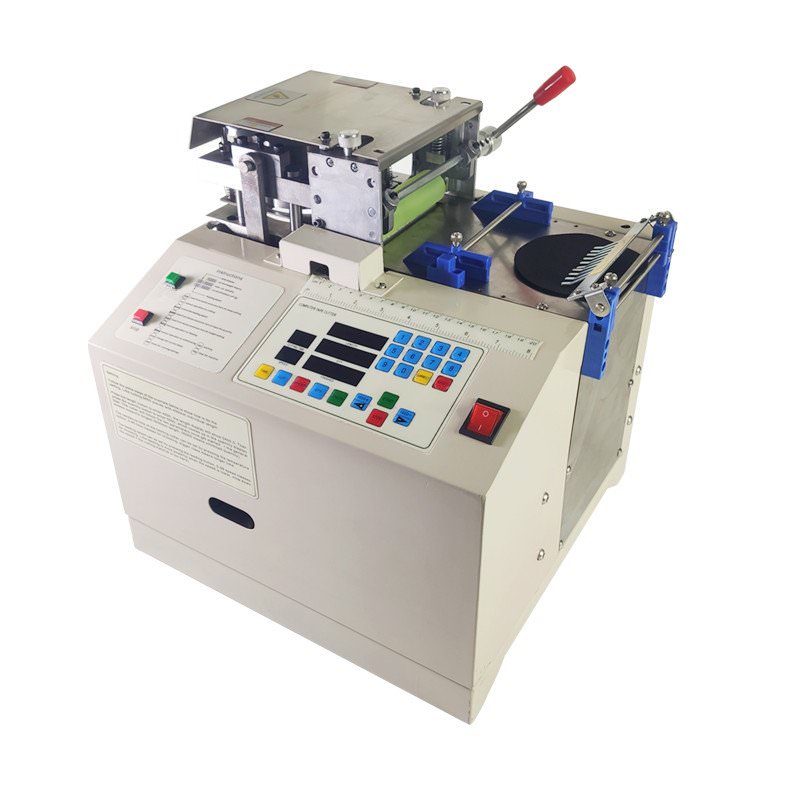

Side View

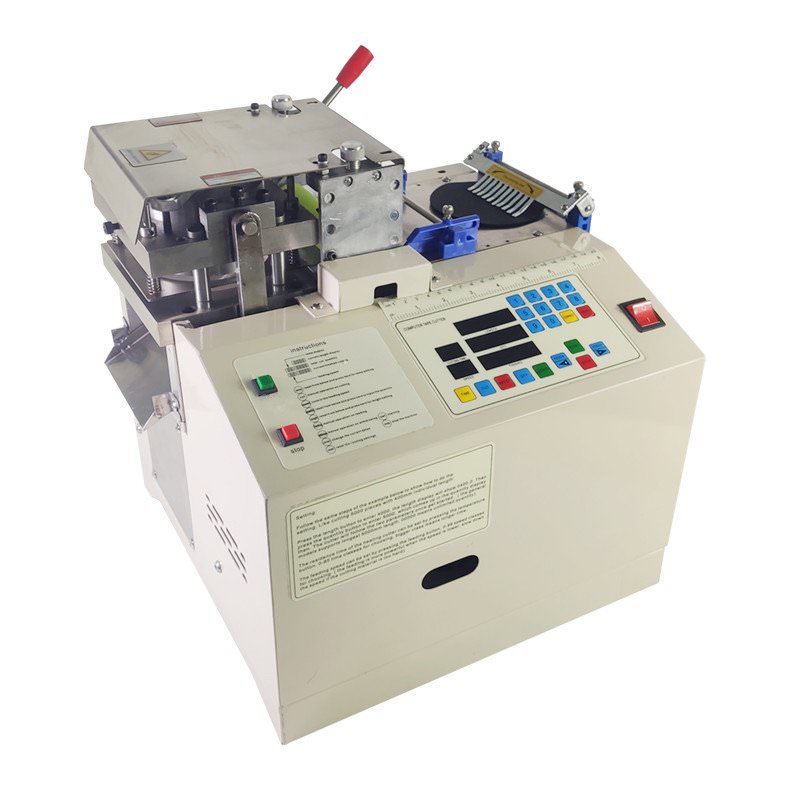

Side View

Side View

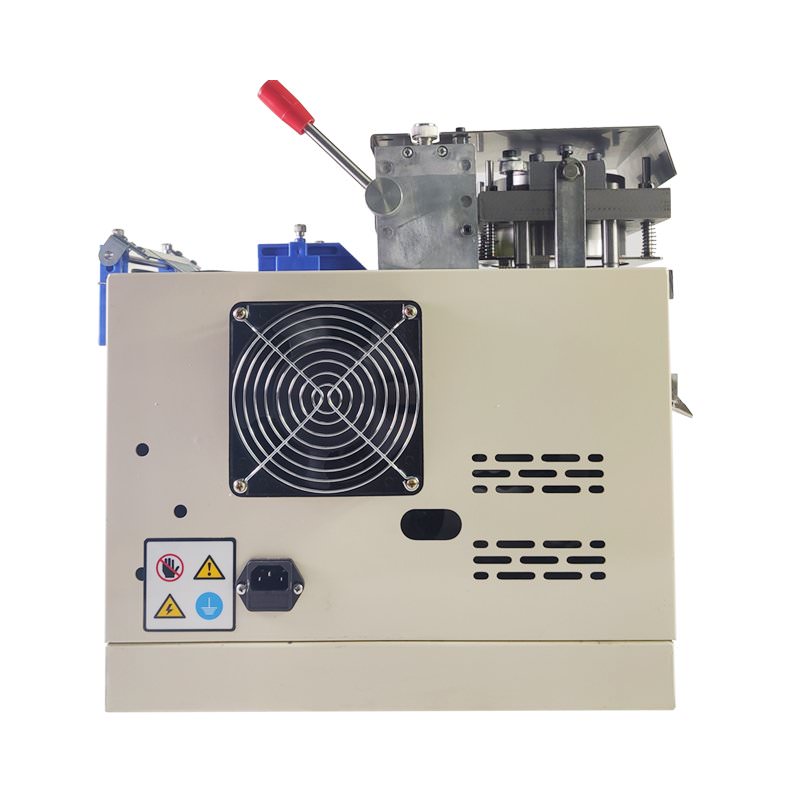

Back view

【Warranty 】

 As a velcro cutter machine supplier , all the spare parts of Big round velcro punch cutter machine ES-071  except  the knife  will have one year of free maintainance  by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice  after on line diagnosis .

【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping
