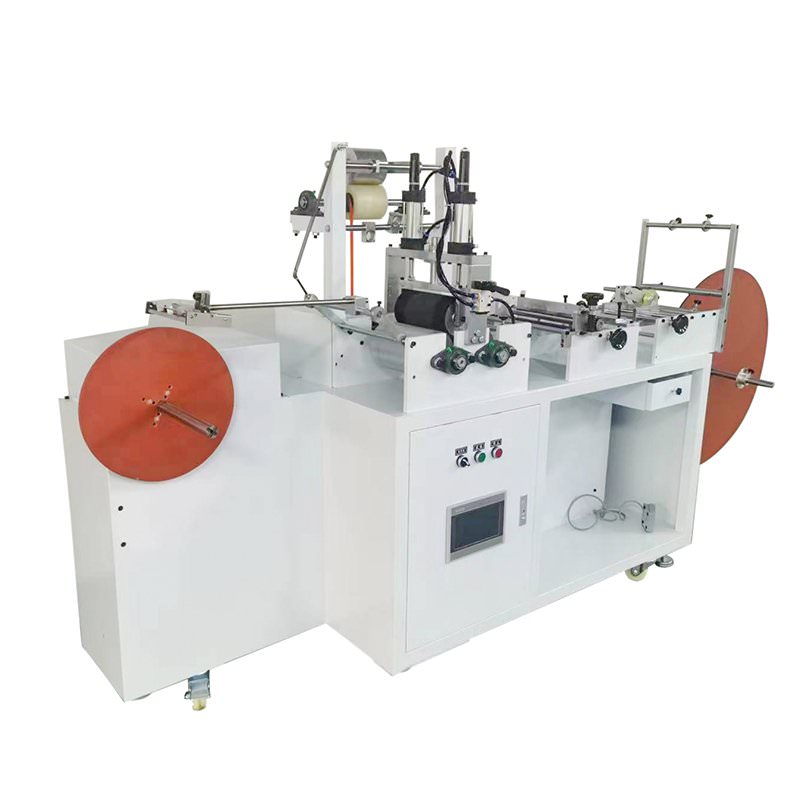

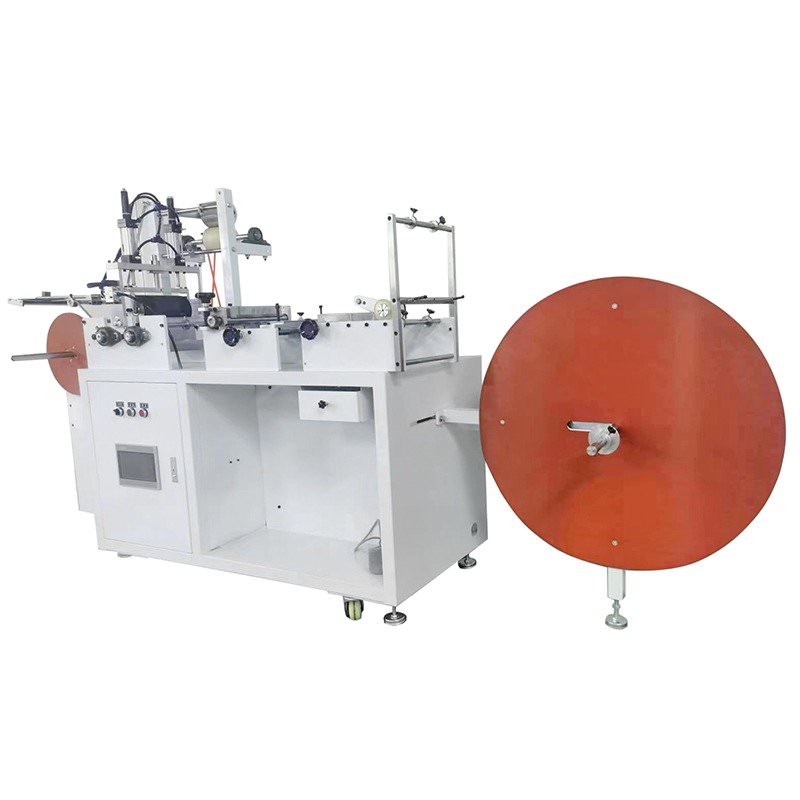

Hook and loop slitting winding machine ES-128-1

Hook and loop slitting winding machine ES-128-1

【Product Description】

The hook and loop slitting winding machine  ES-128-1  is designed for automatic slitting hook velcro ,loop velcro , hook and loop velcro ,adhesive velcro into getting into roll form . the slitting width is adjustable based on demand

The best advantage of this velcro slitting winding machine is that it had been equipped with separation roller which the roller can separate slitted unwanted velcro from the needed velcro and getting needed slitted velcro into roll form and easy for collection .

Youtube video

The maximum unwinding OD is 800mm and maximum rewinded OD is 500mm , it can slit velcro width of 180mm or 350mm based on the type of the machine customer choose , the minimum slitting width is 8mm , the machine productivity reaches 50 meters per minute , winding material thickness ranges 1-3mm

This hook and loop slitting winding machine ES-128-1 is Efficiently slitting away waste velcro and collect needed velcro from roll to roll which is high productivity and labour saving to velcro manufacturers.

【Technical Data】

Product Name: Hook or Loop velcro Tape Slitting Machine

Model: ES-128-1(180A/350A )

Function: slitting  hook or loop tape + rewinding + remove waste slitted velcro

Main Advantage: Efficient slitting away waste velcro and collect needed velcro

Voltage: 220V

Power: 2.2KW

Working Air Pressure: 0.7MPA

Operating System: PLC & Standard Touch Screen

Material Thickness: 1-3mm

Maximum Rewinding Material OD 500mm

Maximum Unwinding Material OD: 800mm

Maximum Material Width: 180/350mm

Core Size: 25mm (can be customised )

Number of Slitting Strips: Minimum slitting width of 8mm per strip

Machine Output: 50 meters per minute

Net Weight: Approximately 260KG

Machine Dimensions: 2850mm x 800mm x 1500mm

【Product Advantage】

1, Roll to roll  , Slit the velcro in roll to remove the redundant velcro edges and get slitted velcro into roll form

which is convenient for collection .

2, Efficient slitting away waste velcro and collect needed velcro

3,Widely applicable to hook velcro, loop velcro , hook and loop velcro and adhesive backed velcro as well .

【Product Details】

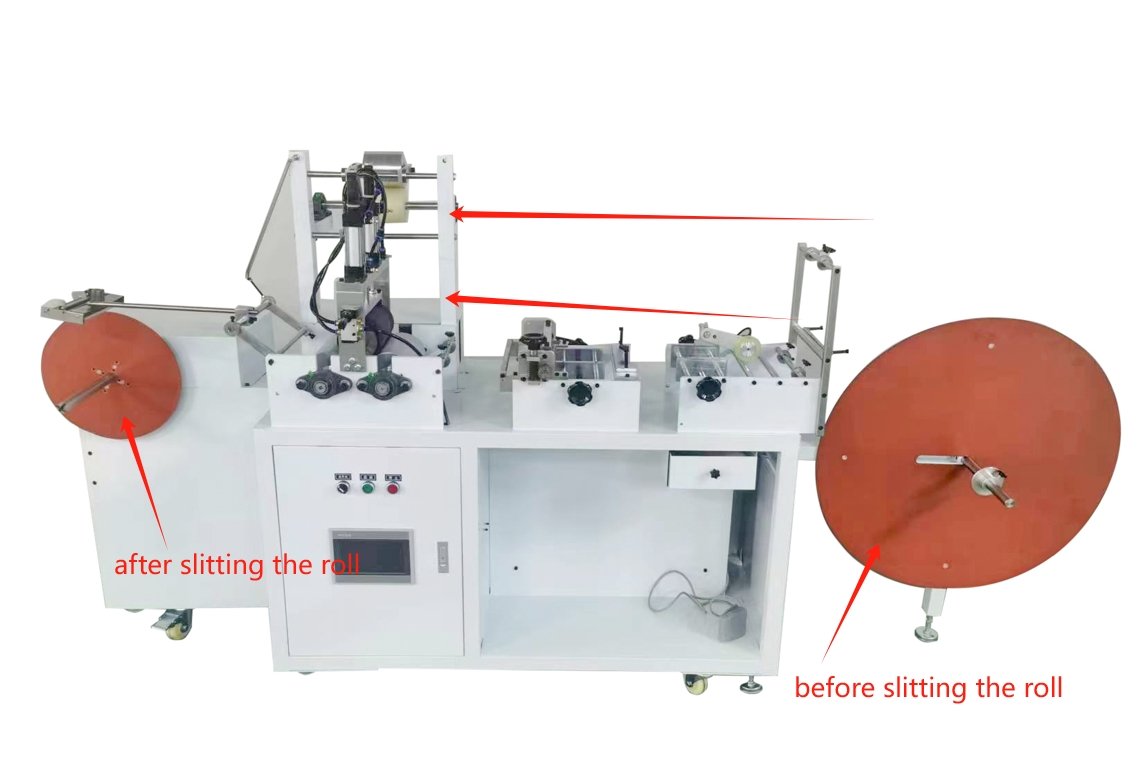

1,Roll to roll , the velcro roll is placed on downside of velcro release roller and double side tape on upper release roller

the velcro and double side tapes are joined by the double lamination roller and winded and collected into roll form

in collection roller , it is from roll to roll and save labour to wind into roll form .

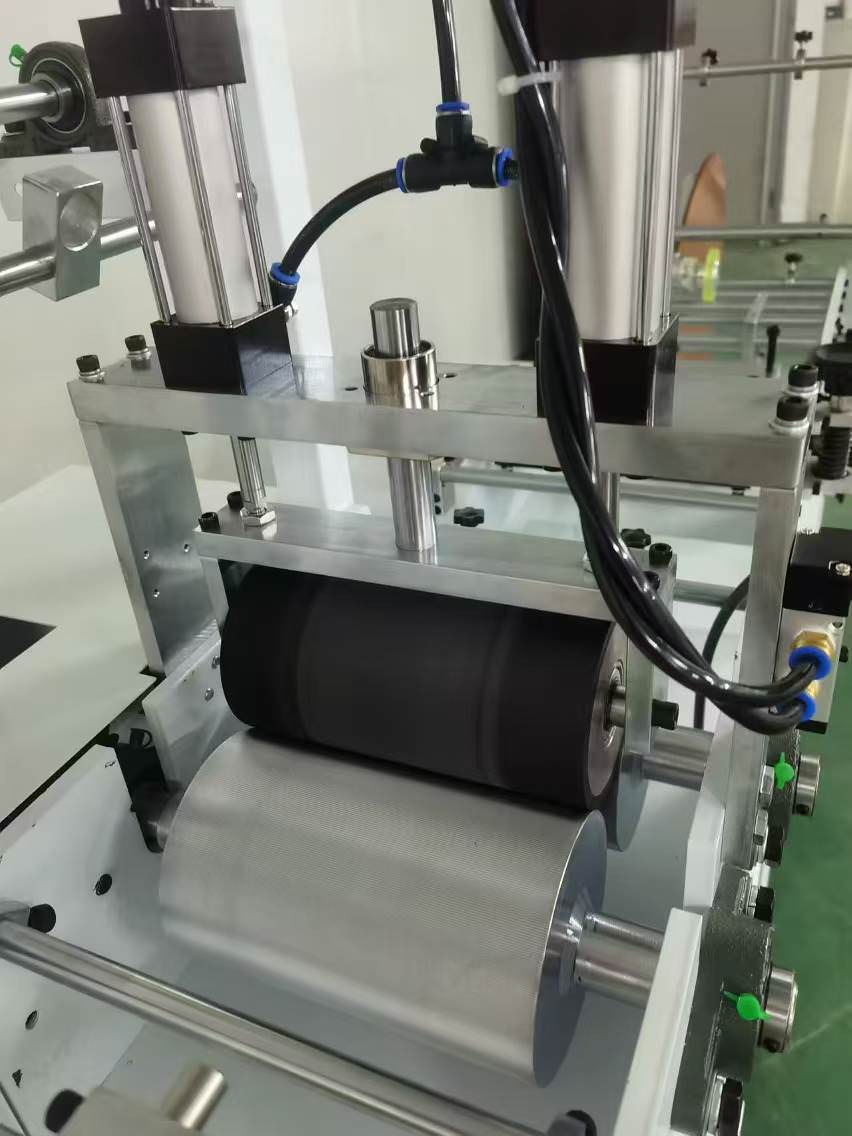

2,Separation roller  , the separation roller will feed the velcro foward and at the same time , it will roll down the waste velcro and roll the needed

velcro foward , in this case , the slitted waste velcro are separated from the needed velcro

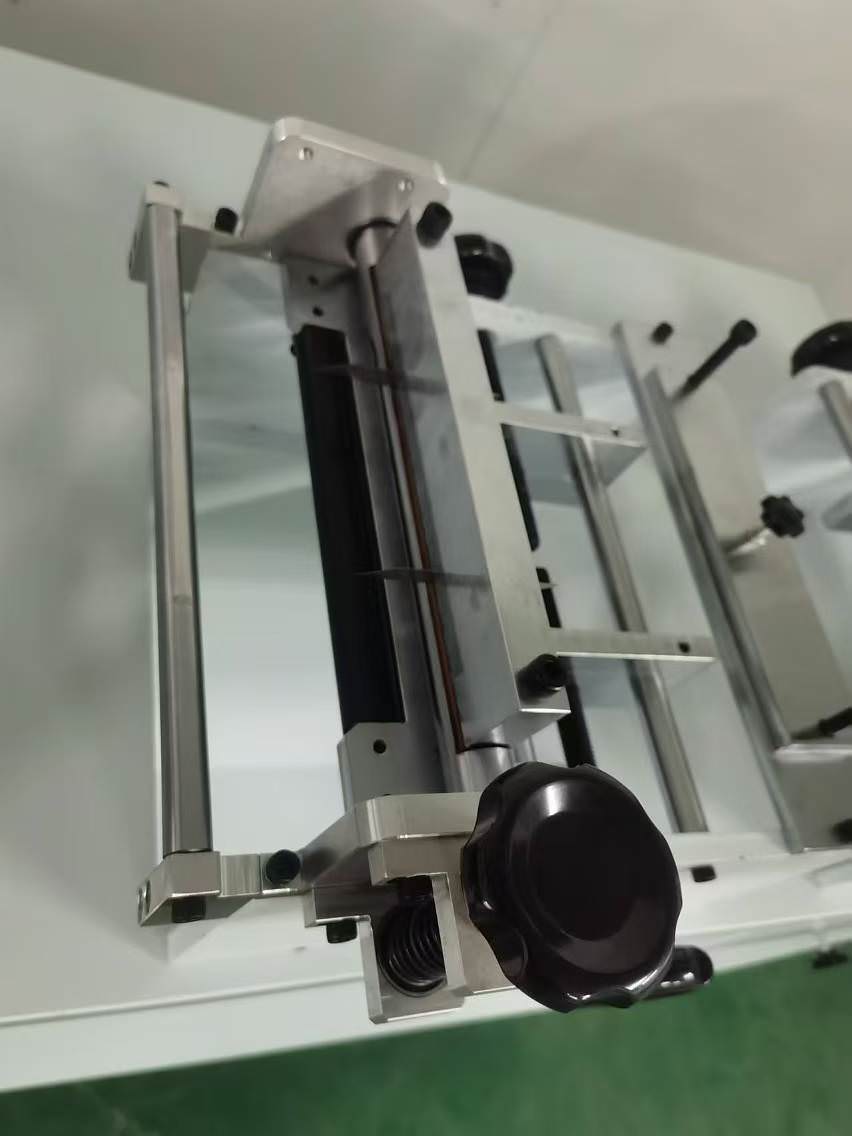

3, Slitting knife  , the distance between the slitting knife of this hook velcro slitting winding machine can be adjusted based on requirement

customer can set the slitting knife distance to slit out the needed velcro and slit away redundant velcro edges .

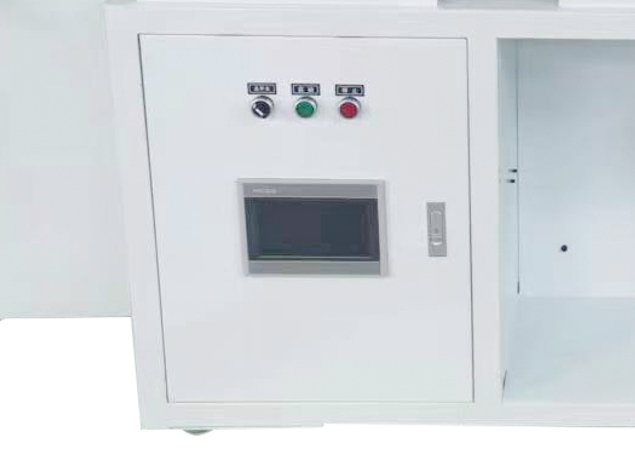

4,PLC touch screen ,the velcro slitting coiling machine  applies PLC touch screen which is easy to operate and stable performance

customer can set the processing speed baesd on requirement , the machine can also count wonding meters at the same time .

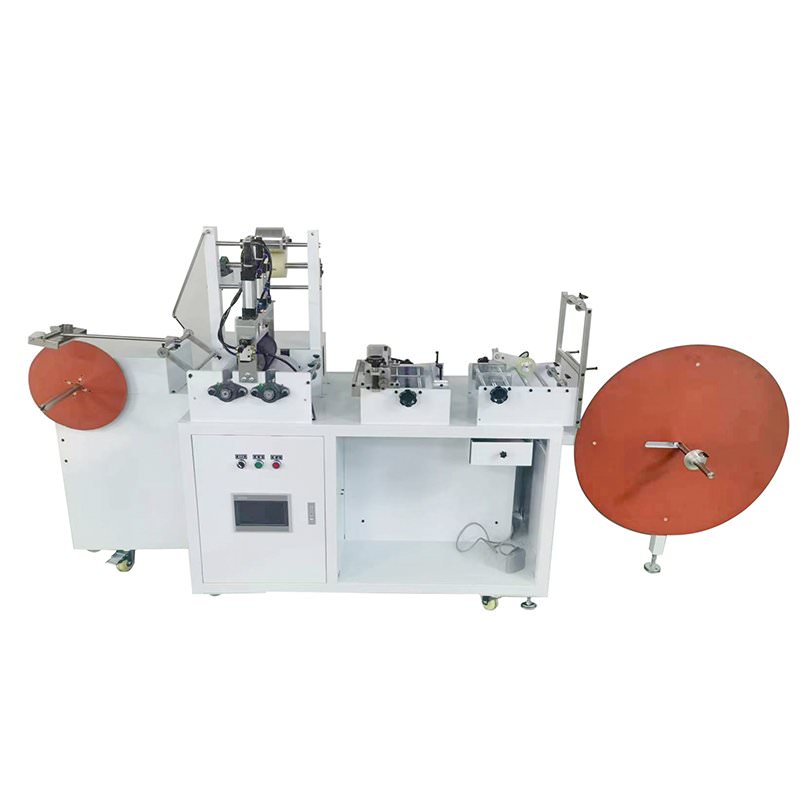

Front View

Side View

【Warranty 】

 As a hook and loop slitting winding machine  supplier , all the spare parts of the machine  will have one year of free maintainance

by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice

after on line diagnosis .

【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping
