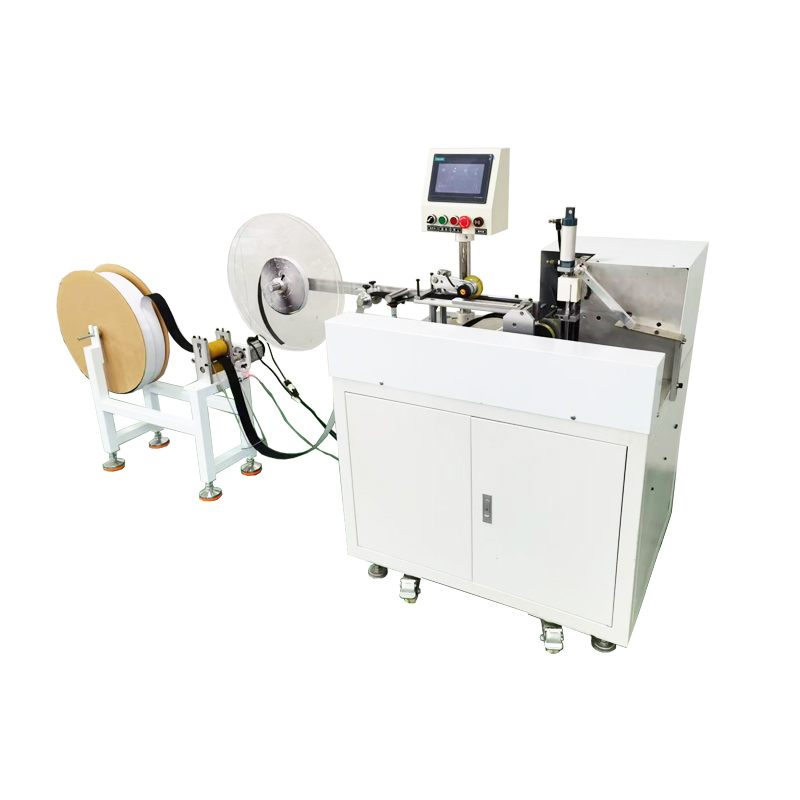

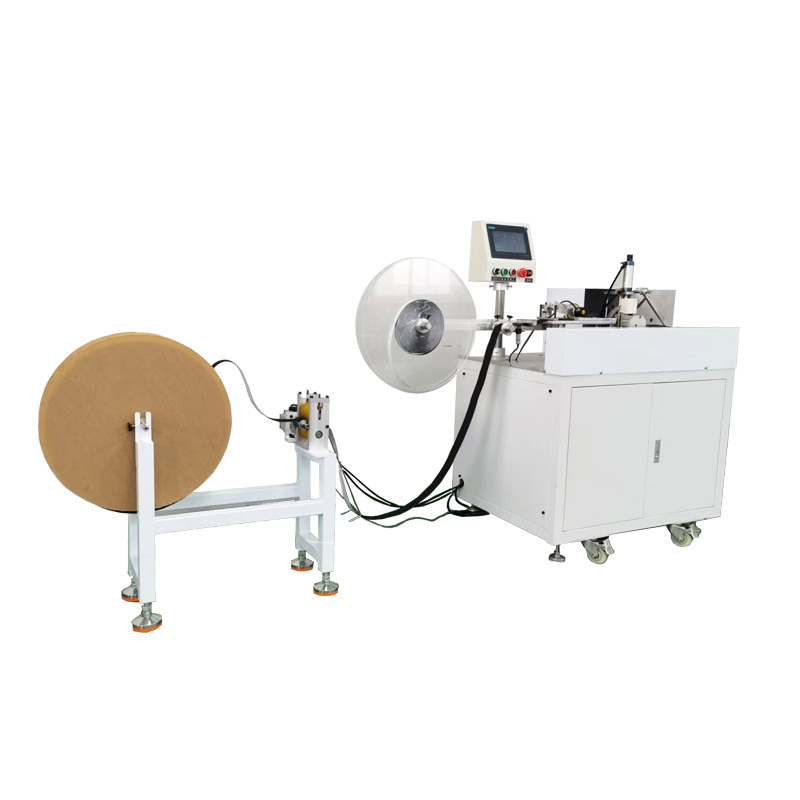

Velcro roll cutting and coiling taping ends machine ES-127
Velcro roll cutting and coiling taping ends machine ES-127 Velcro roll cutting and coiling taping ends machine ES-127

Velcro roll cutting and coiling taping ends machine ES-127

Product Details
Brand ESMAI
Serial Number ES-127
Country of Origin China
Certificate CE
Payment & Shipping Terms
Price Quote Based on quantity
Minimum Order 1 SET
Average Delivery Time Production 7-10 days, delivery time by sea
Payment Method TT
Package Details 1SET/WOODEN CASE
Ability to Supply 100 Sets/ month

Velcro roll cutting and coiling taping ends machine ES-127



The Velcro roll cutting and coiling taping ends machine  machine  ES-127 is designed specially for automatic cutting velcros into length , coiling into rolls and taping the ends to a fixed rolls .

This self adhesive velcro cutting winding machine is widely applicable to process self adhesive velcro , hook and loop velcros and normal velcros etc.

The cutting length ranges 1to 50meters  ,the processing material thickness ranges 1-3mm,   the maximum processing material width is 40mm , the maximum material roll diameter before processing is 500mm and the maximum diameter velcro roll after processing is 200mm .

Velcro roll cutting and coiling taping ends machine



Youtube video



The output is 1-9rolls /min based on the length of coiling rolls , this velcro roll cutting and coiling taping ends machine is also able to count how many meters of velcros had been processed and display on the touch screen for recording purpose .

Say goodbye to manual cutting and coiling into rolls , The ES-127 Velcro roll cutting and coiling taping ends machine  automates cutting ,coiling and taping ends process in one machine which is high productivity and laboring saving for customers which manufacture large quantity of velcro rolls .



【Technical Data】

 Product name : Velcro roll cutting and coiling taping ends machine

Model No.: ES-127

Main advantage : Cutting + coiling +taping ends in one machine

Voltage:220V

Machine power: 1.65KW

Air pressure :0.7MPA

Operating system : PLC Touch screen

Cutting length: 1-50meters

Material thickness: 1-3mm

Maximum material roll diameter after processing :200mm

Maximum material diameter before processing :500mm

Maximum processing material width :40mm

Roll core :16mm

Output :1-9rolls/min

Net weight : 135KG

Machine dimension : 1500mmX650mmX1300mm



【Product Advantage】



1,Count meters ,the machine can count how many meters of velcro had been processed


2,Automatic cutting velcro into length +coiling velcro into rolls +taping the ends of velcro rolls in one machine , high productivity and labour saving



3,Widely applicable to hook and loop velcros , self adhesive velcros with backing tapes  , normal velcros



【Product Details】



1,Holding boards  , the hold boards can adjust their width and hold velcro roll material above 500mm diameters

holding boards

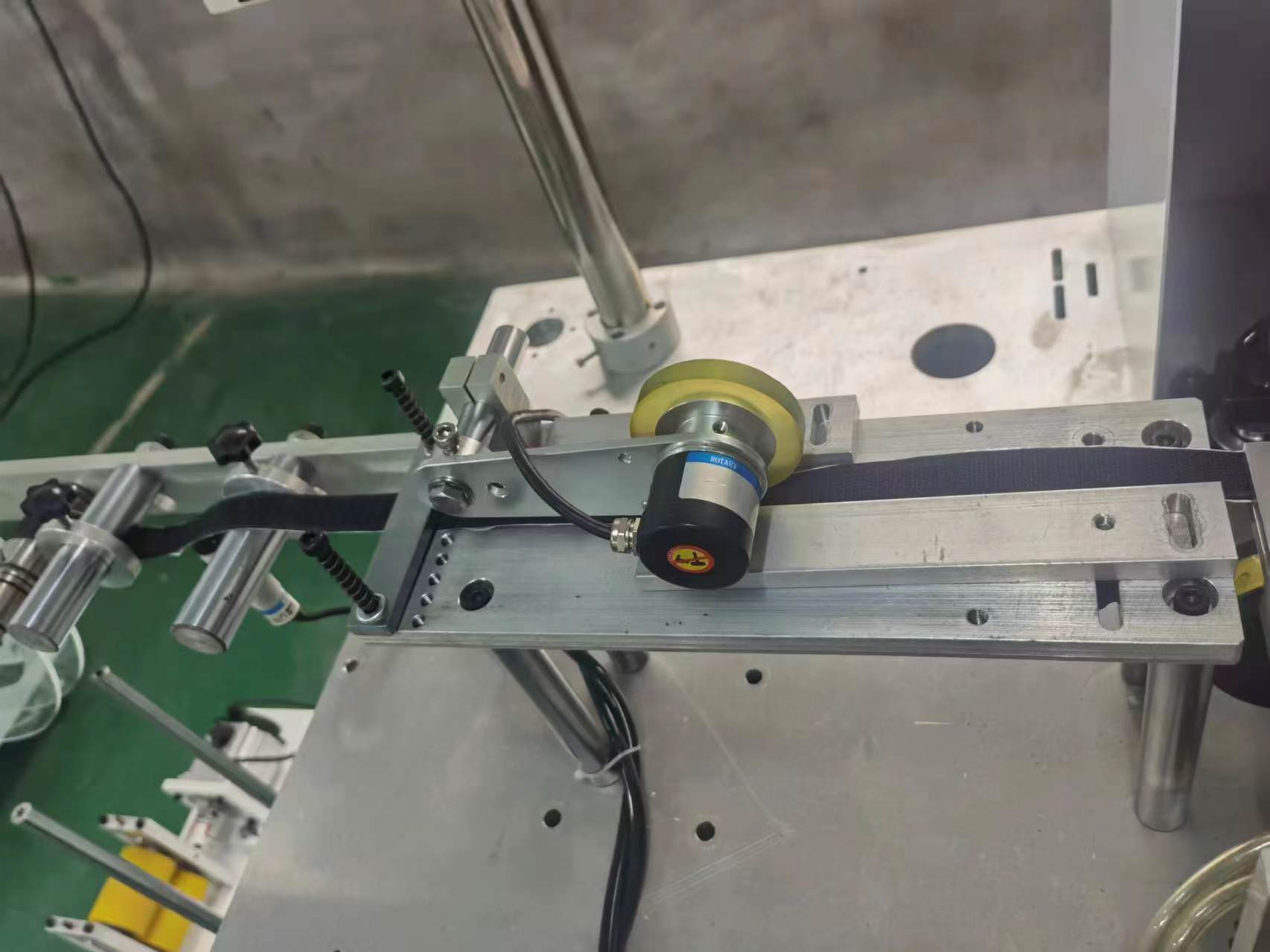

2,Count meters   this self adhesive velcro cutting coiling roll machine can count how many meters

of velcro material had been processed for better recording purpose .

count meter

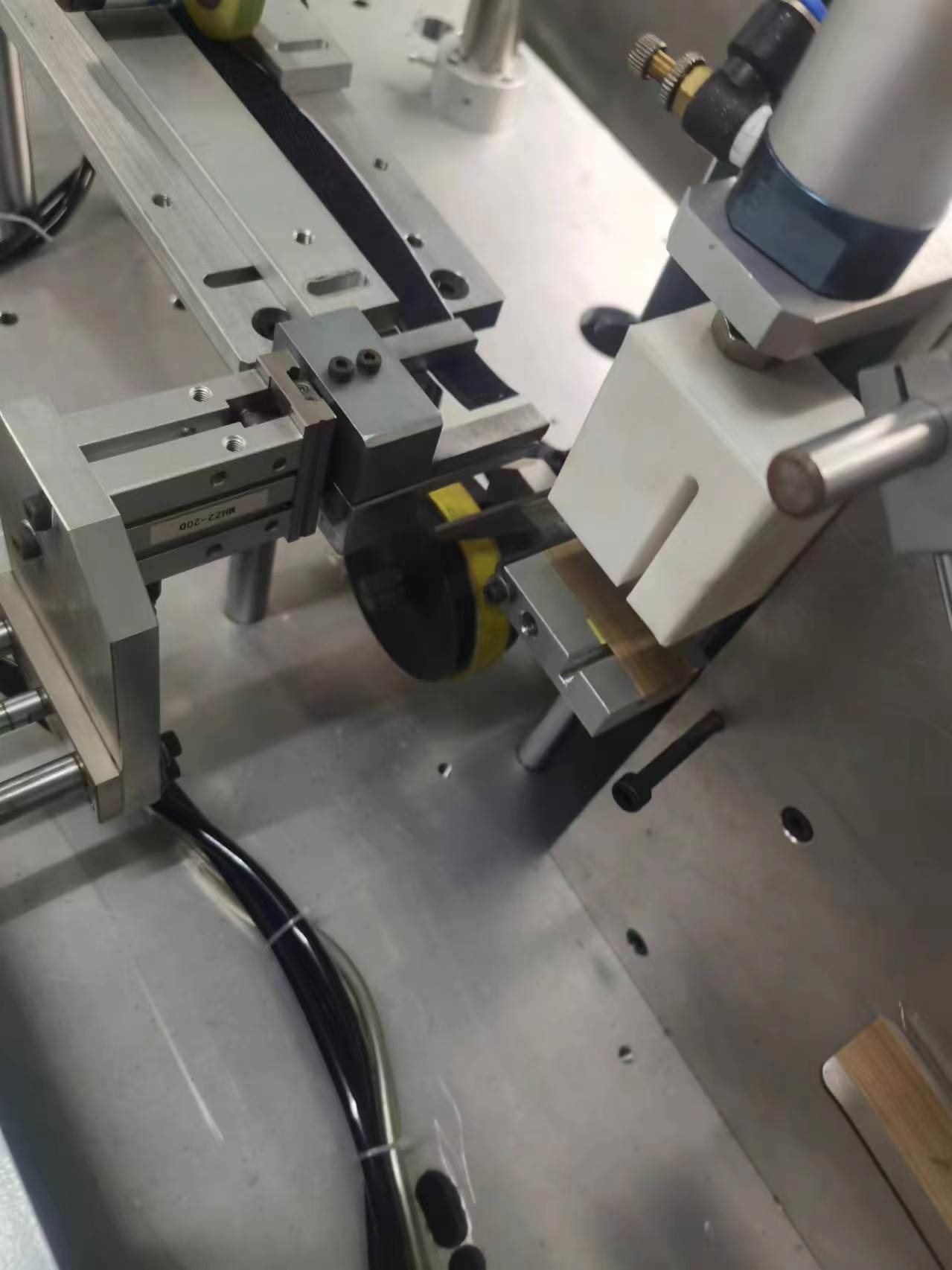

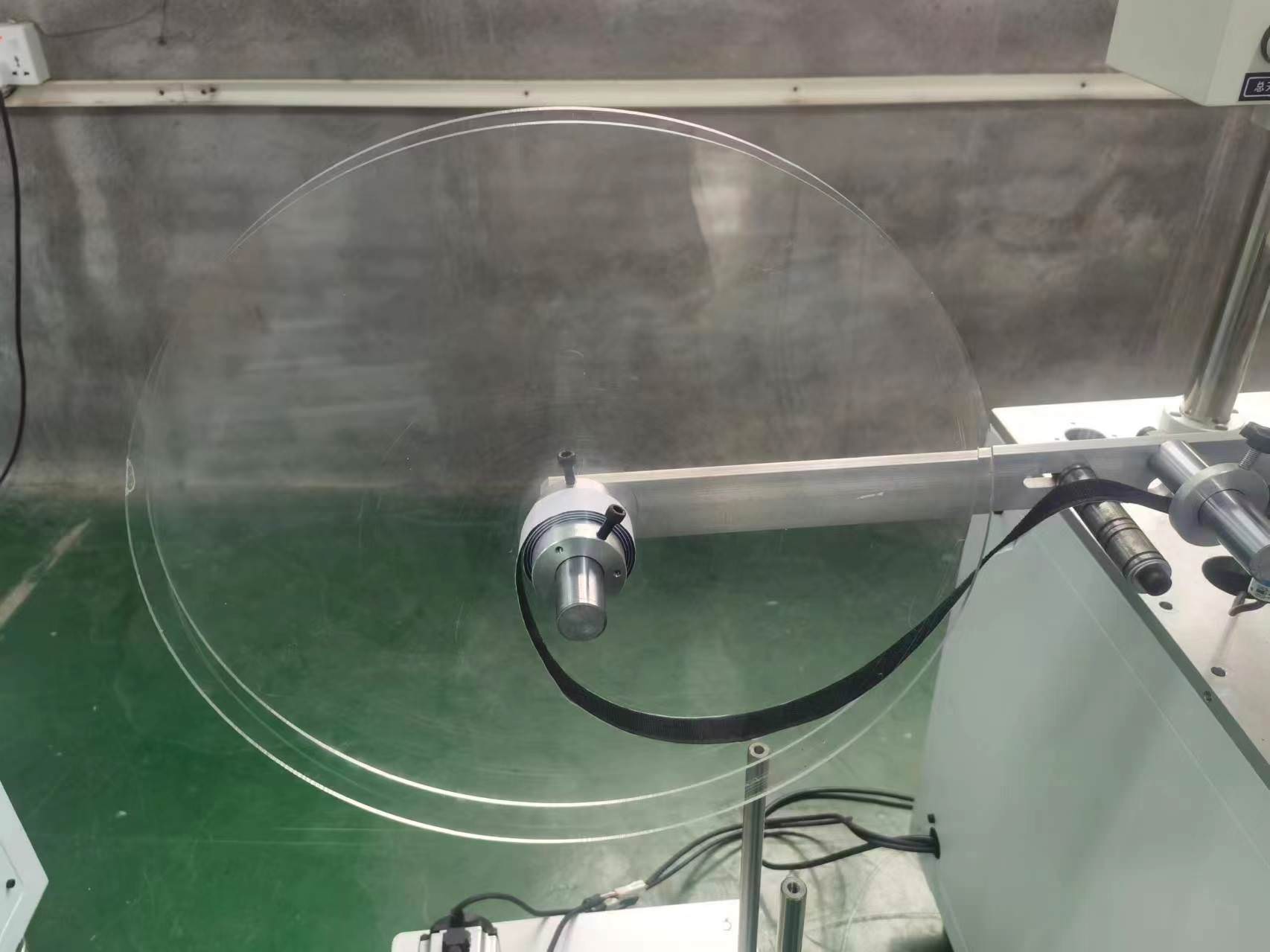

3, Clipping hands & taping ends   ,the clipping hands will draw the velcro to the cutting knife and cut off ,

winding device will wind velcro into rolls and tape up the ends to form a fixed velcro rolls .

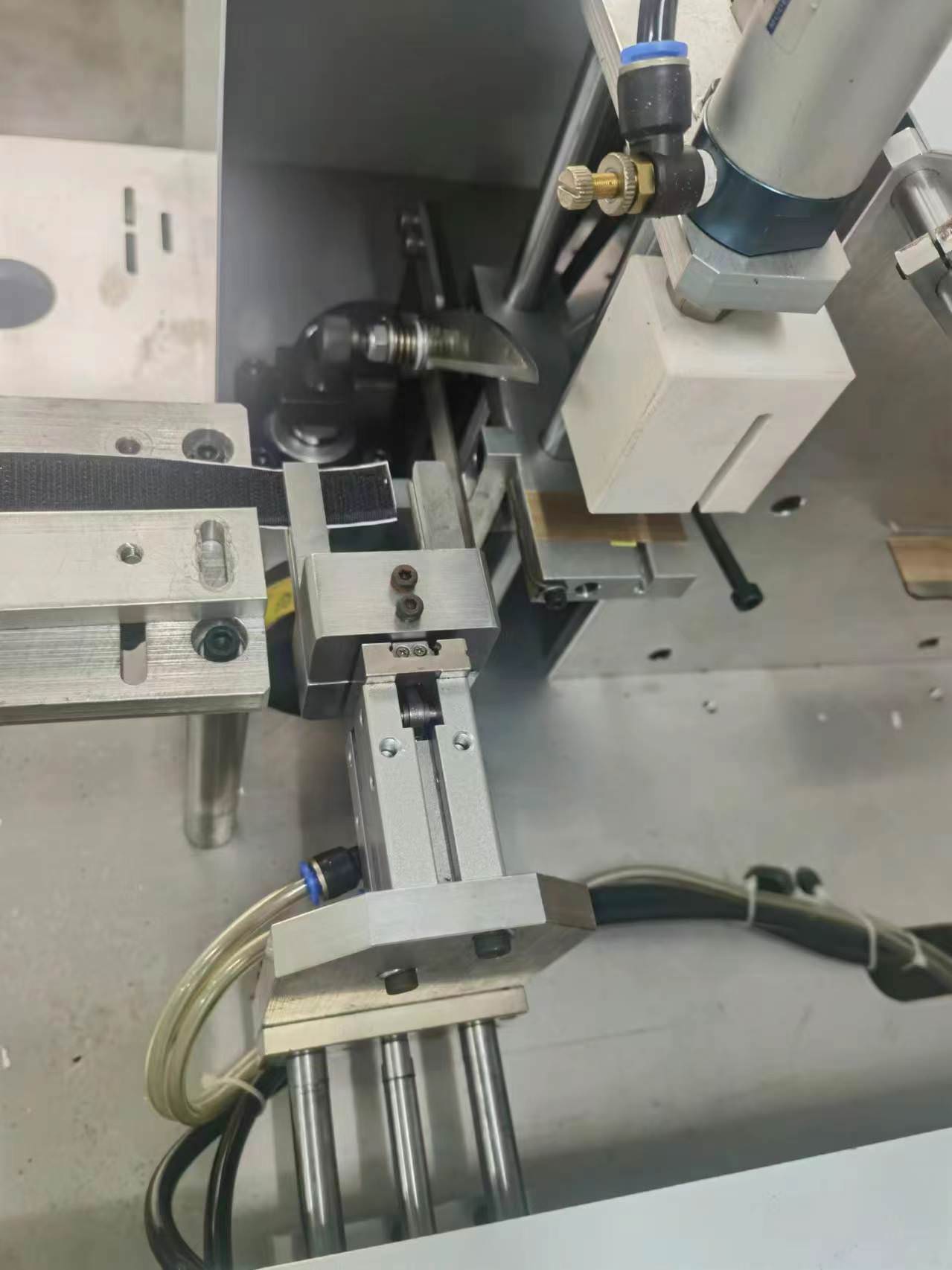

cutting and taping ends

cutting and taping ends 2

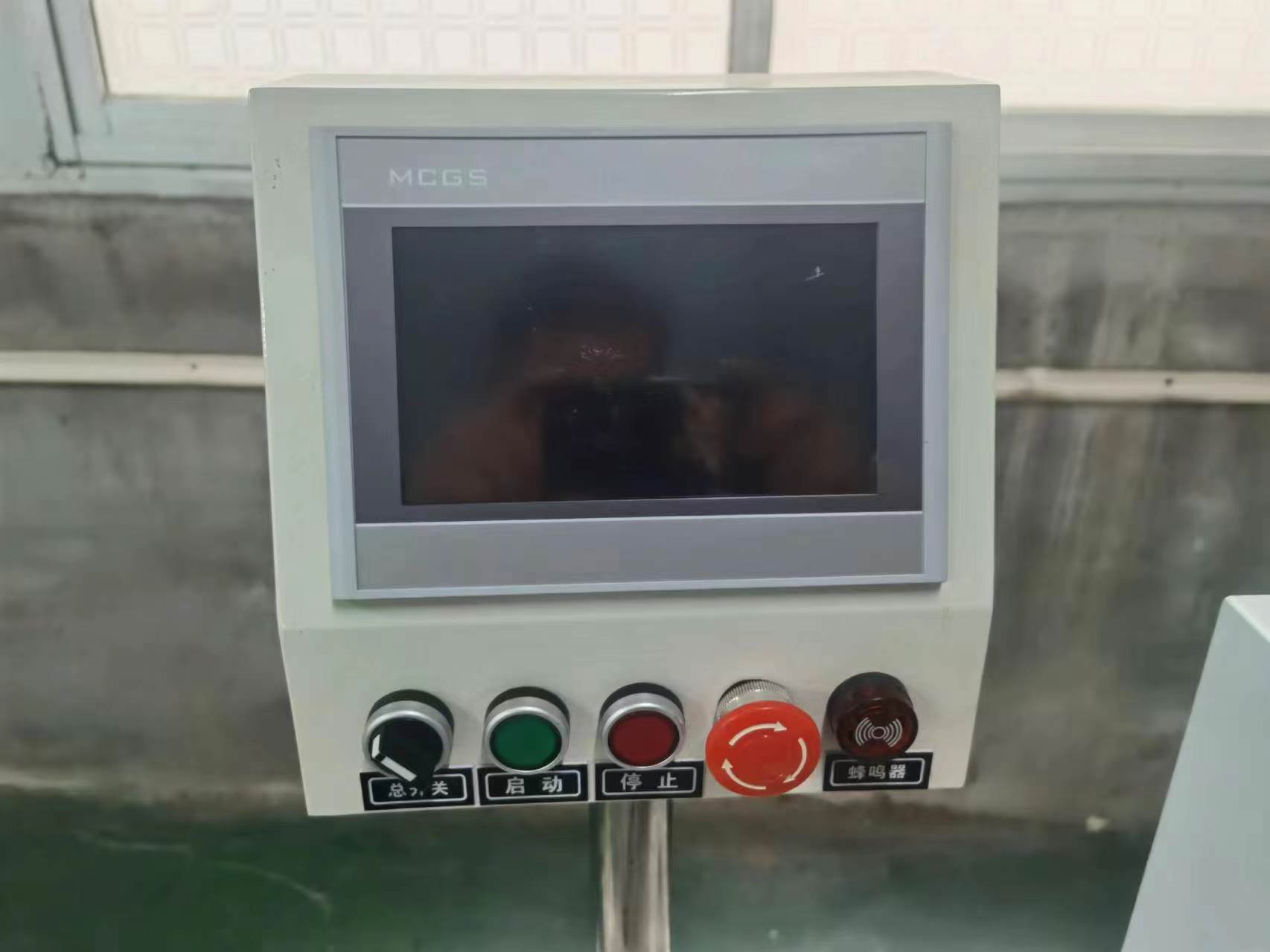

4,Touch screen , the hook and loop velcro cutting coiling machine applies with touch screen

and simplified control buttons which is easy to operate , customer can set the velcro cutting length ,

machine working speed ,etc .

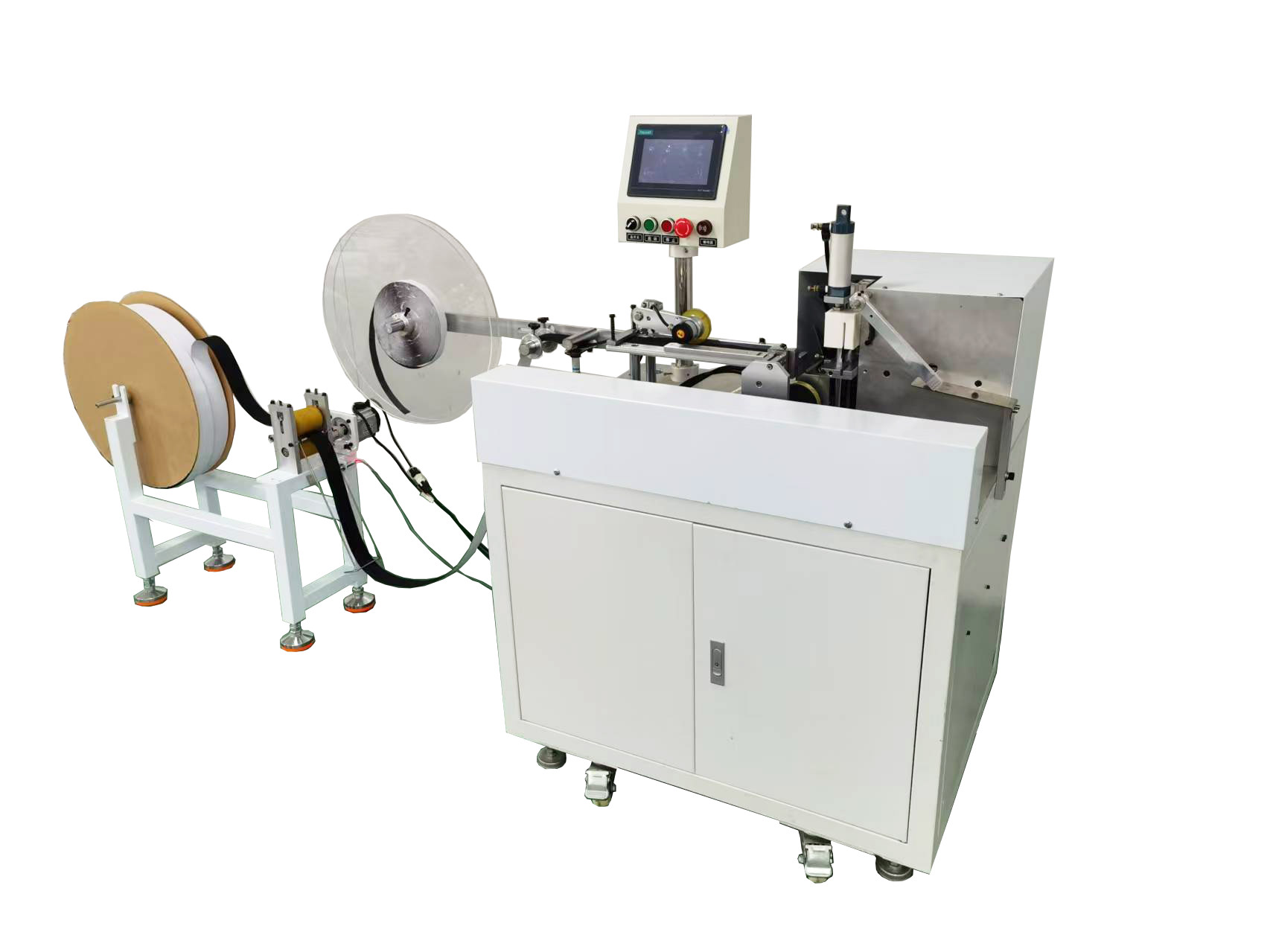

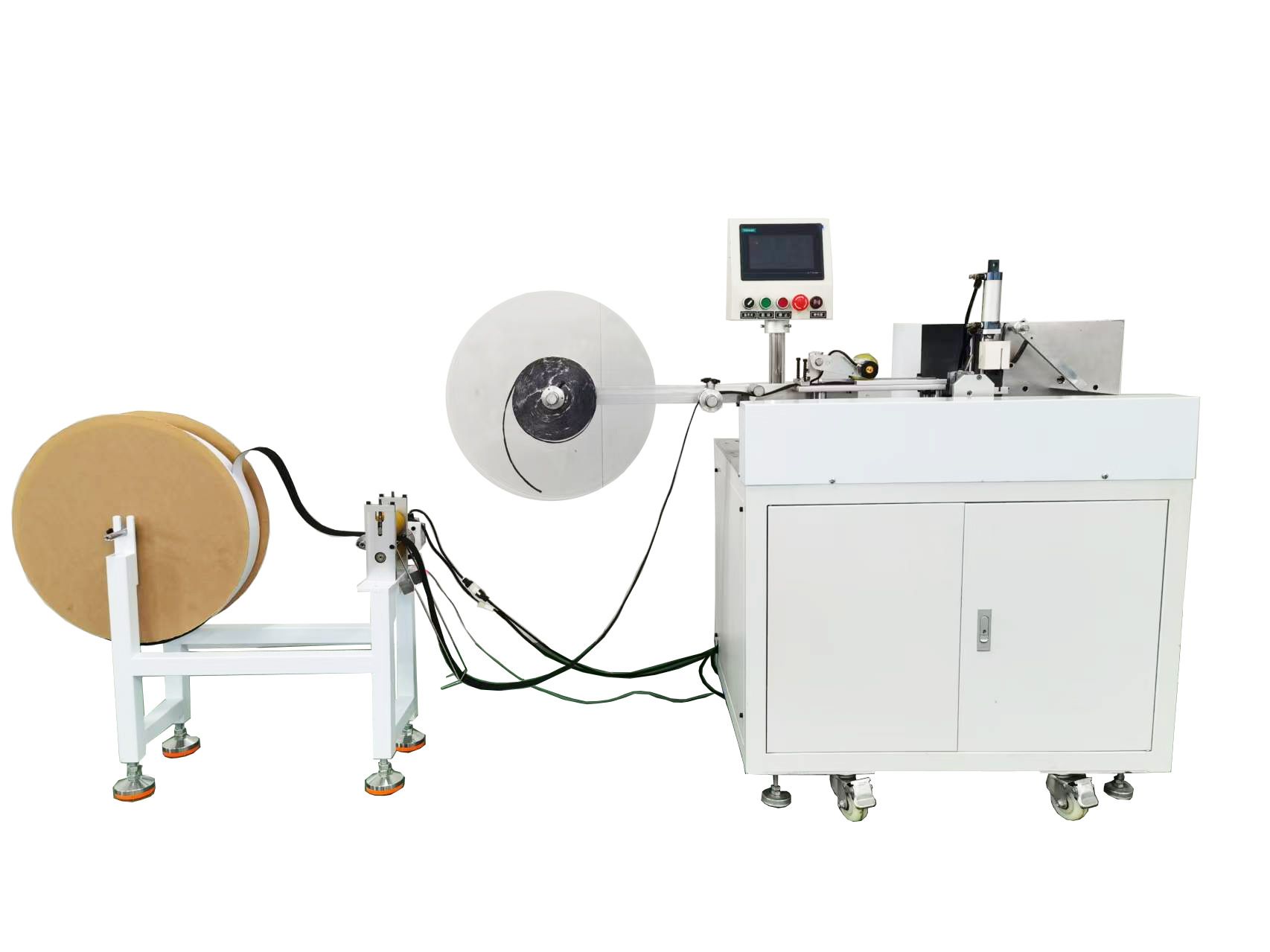

Front View

self adhesive velcro cutting winding machine

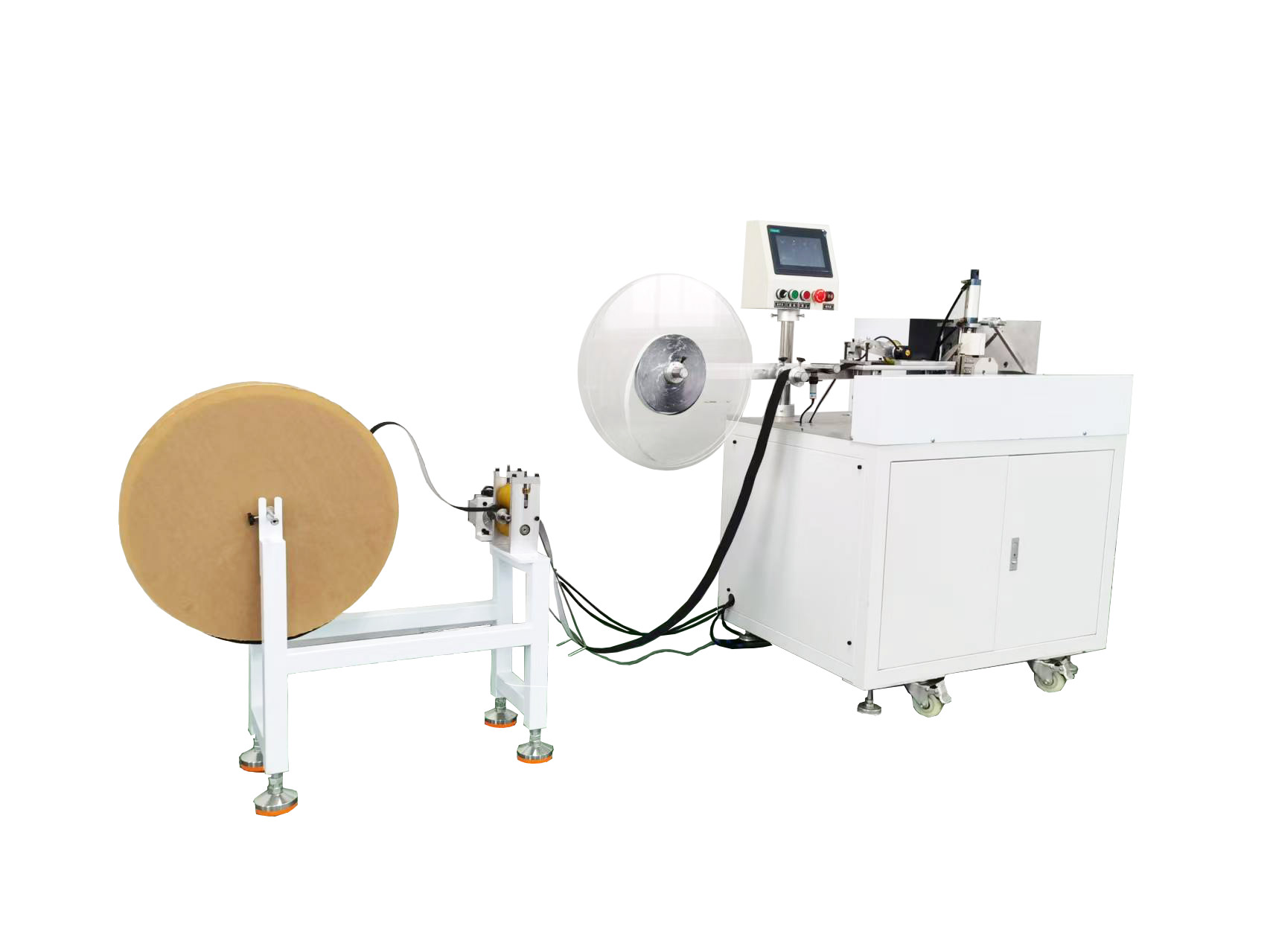

Back view

hook and loop velcro cutting coiling  machine















【Warranty 】

 As an velcro roll cutting and coiling taping ends machine ES-127 supplier , all the spare parts of the machine  will have one year of free maintainance

by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice

after on line diagnosis .



【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping
