Hook and Loop velcro cable ties fast die cut machine ES-090
Hook and Loop velcro cable ties fast die cut machine ES-090 Hook and Loop velcro cable ties fast die cut machine ES-090 Hook and Loop velcro cable ties fast die cut machine ES-090

Hook and Loop velcro cable ties fast die cut machine ES-090

Product Details
Brand ESMAI
Serial Number ES-090
Country of Origin China
Certificate CE
Payment & Shipping Terms
Price Quote Based on quantity
Minimum Order 1 SET
Average Delivery Time Production 4-8 days, shipment time to be determined by sea
Payment Method TT
Package Details 1SET/WOODEN CASE
Ability to Supply 100 Sets/ month

Hook and Loop velcro cable ties fast die cut machine ES-090



The Hook and Loop velcro cable ties fast die cut machine is designed for punching cut irregular shapes velcro out from the velcro material especially the adhesive velcro tapes featuring with automatic feeding machine from behind .

The adhesive velcro rolls usually stick to each other ,it is hard to pull them out for cutting process, so a back up feeder machine is a must to roll out the adhesive velcro first with strong power motor.  the feeder machine had adopted with a sensor device from the front , it will sense any tension of velcro during transport cutting process and signal the feeder machine to release more cutting material from velcro rolls  and consequently gurantees cutting length precision .

Punching mold can be customised from this adhesive velcro cutting machine  based on customer's electrical drawings and size data ,every punched velcro will be in same shape from the mold .

The maximum cutting width of this cat head velcro punch cutter machine is 200mm

A high power motor is the foundation for the stable and fast working performance of the punching mold ,  the needle head velcro punch cutting machine features with high productivity of 560 pieces or 260 pieces per minute based on if it is two issues of velcro  or one issue of velcro from one punch of the mold .

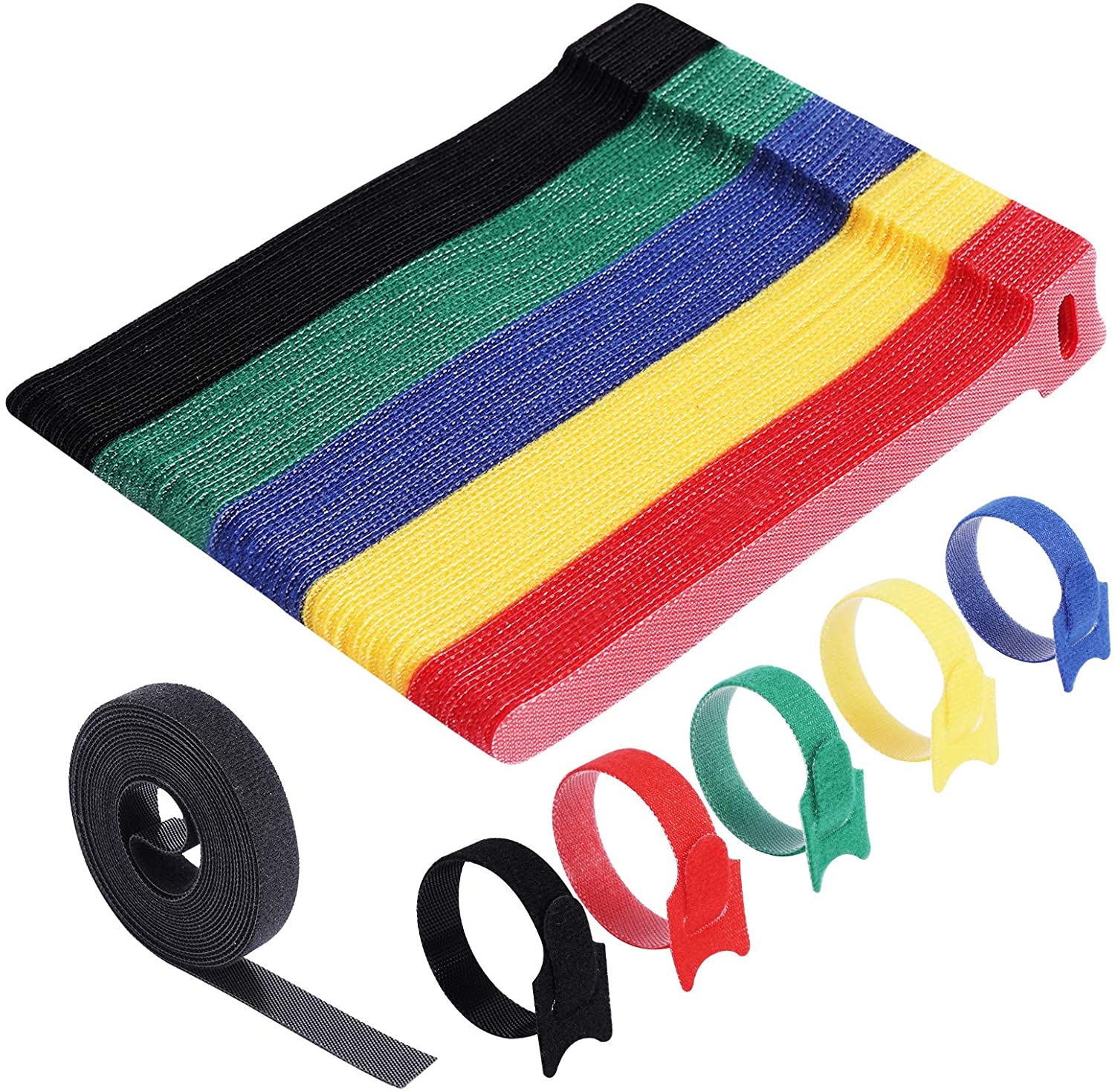

Hook and Loop velcro cable ties fast die cut machine

cable ties



Youtube video

Cat head velcro fast die cutting  /2 issues from one punching mold

Needle velcro fast die cutting  / 1 issues from one punching mold

【Product advantage 】

1, High productivity of  560 pcs /280 pcs per minute depending  one or two issues of velcro from one punching of the mold

2, Wide application  to punch cut all kinds of irregular shapes of adhesive velcro tapes  with  customised punching mold ,

3, Automatic feeding , there is a feeder machine from behind to issue the cutting material to the cutter machine if there is tension of cutting material transporting especially for adhesive velcros which is not easy to get out from the roll forms as they stick to each other .





【Product  Detail 】

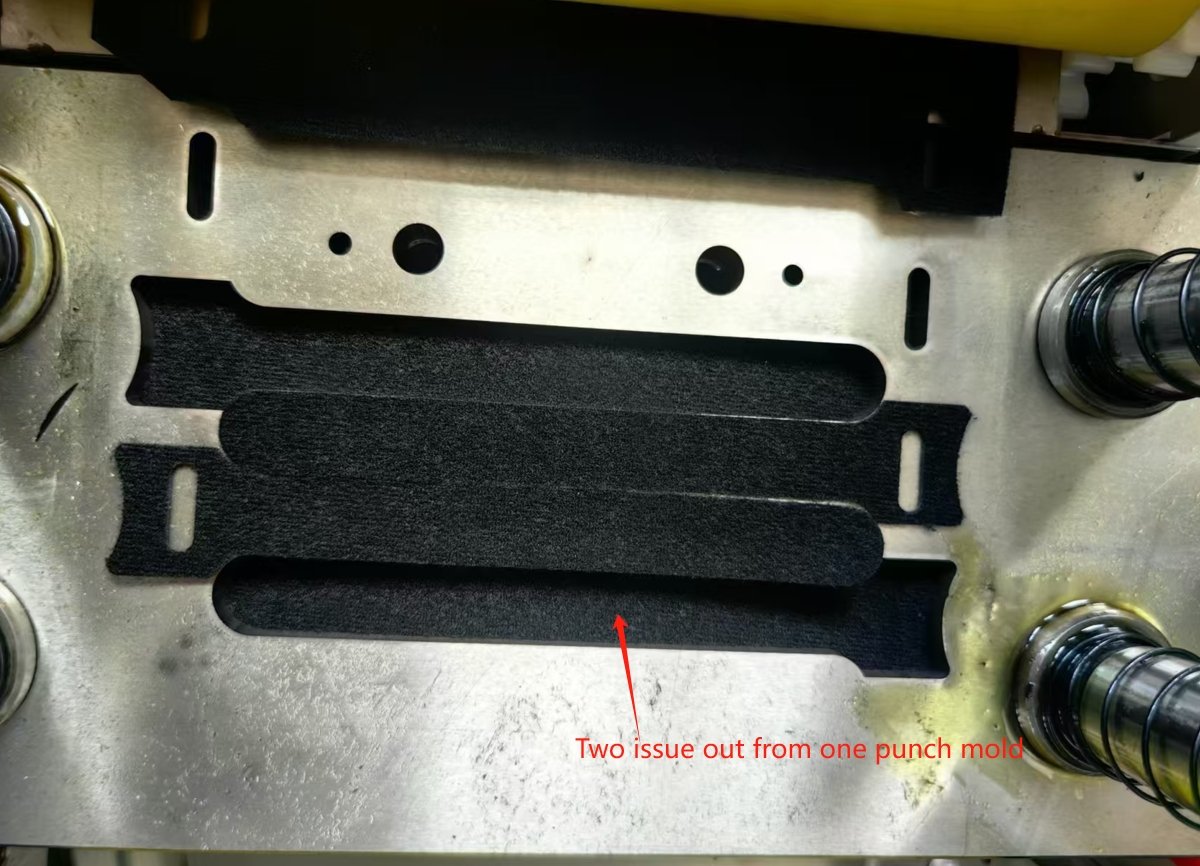

1,Punching mold , Customised punching mold with stable working performance making sure

every velcro are punched out in same size , velcro material will be  easy to fall cleanly off the mold . two issue from one punch of mold

for cat head velcro shapes reaching productivity of 560pcs/hour

punching molds

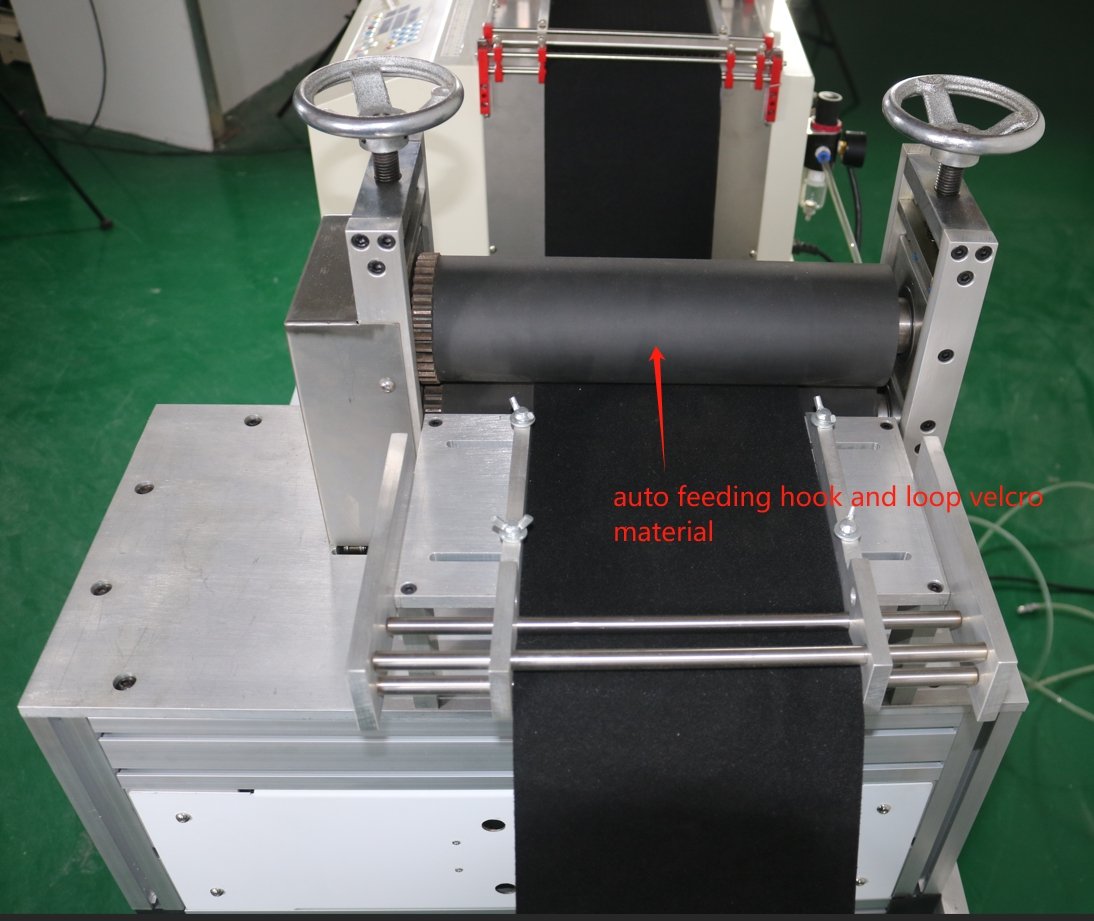

2 , Feeder machine , the feeder machine from the back will separate hook and loop velcro roll from the sticking status and

send in cutting material automatically especially for the adhesive velcros which stick to each other in roll forms , the feeder machine has a sensor in the front to detect any tension during tranporting of cutting material and order the feeder machine to release more cutting material to keep

cutting material transported smoothly and consequently avoid cutting length shortages and tolerances .

auto feeding

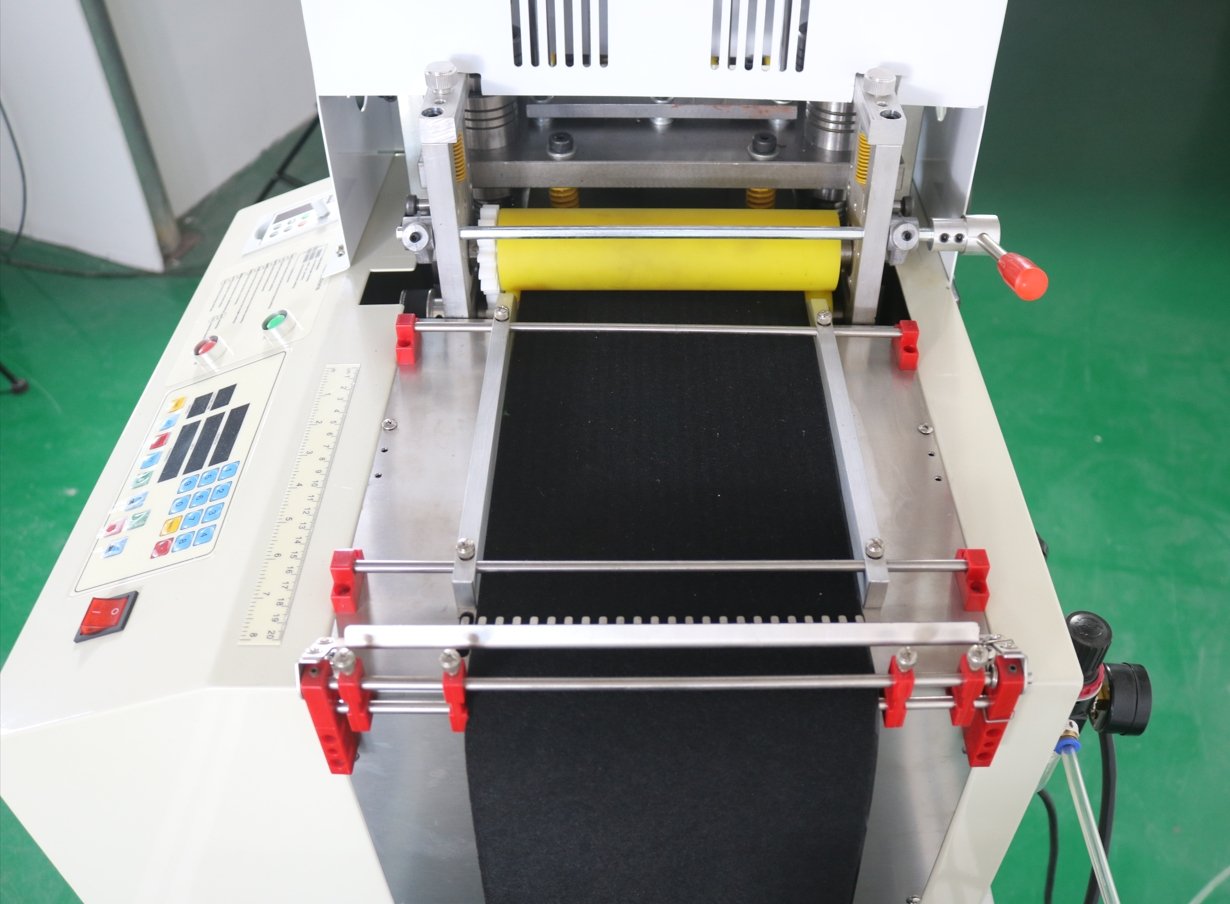

after hook and loop material are separated from the roll form and , In front of the machine , it had second velcro length transporting roller to

further feed velcro material for precision die cut purpose .

Feeding machine

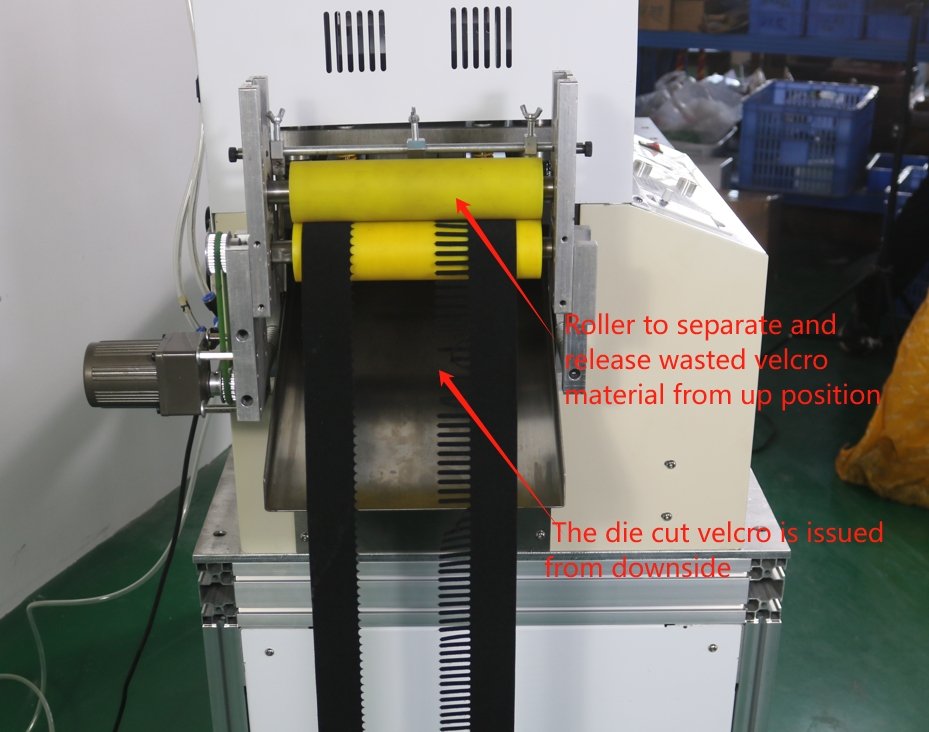

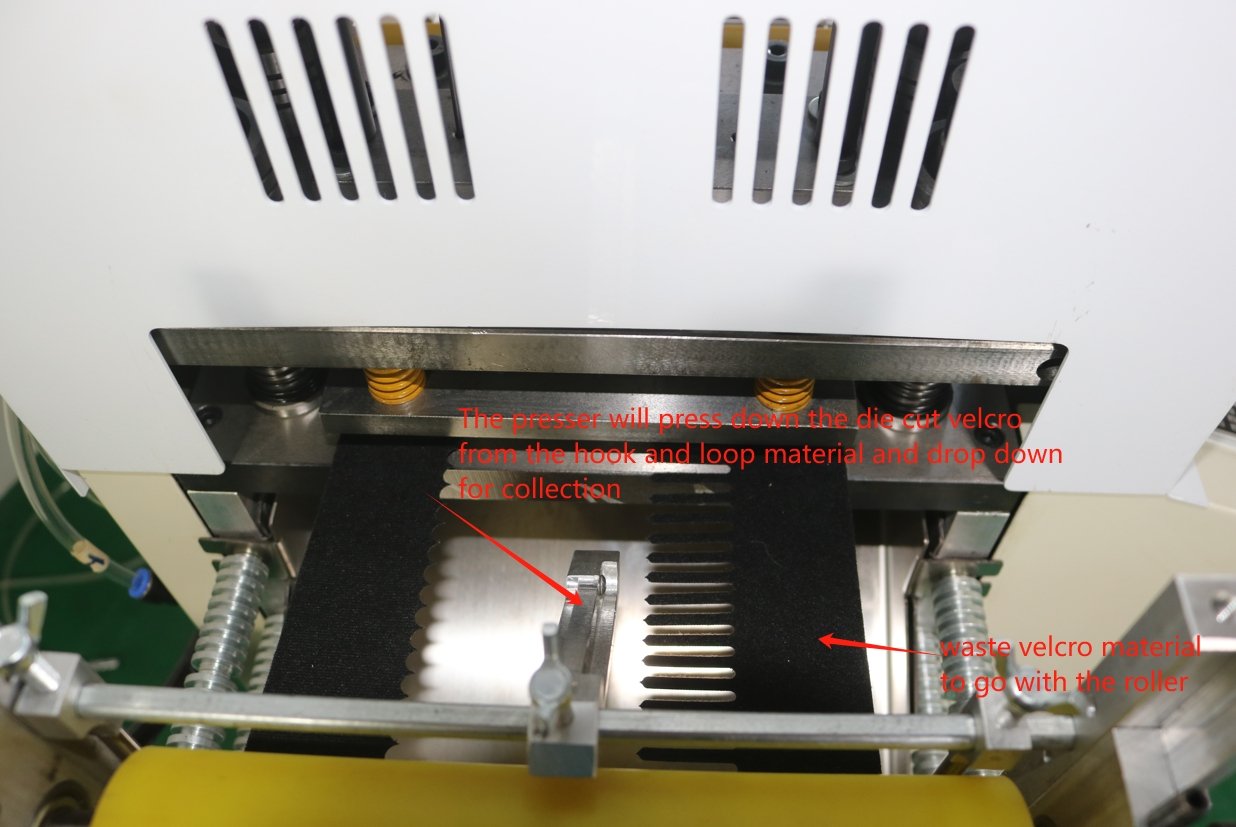

3, Material release , the die cut velcro will be pressed down from the hook and loop velcro material  for collection and

the unwanted waste velcro will be  rolled out by the roller in front .

material release 1

release material

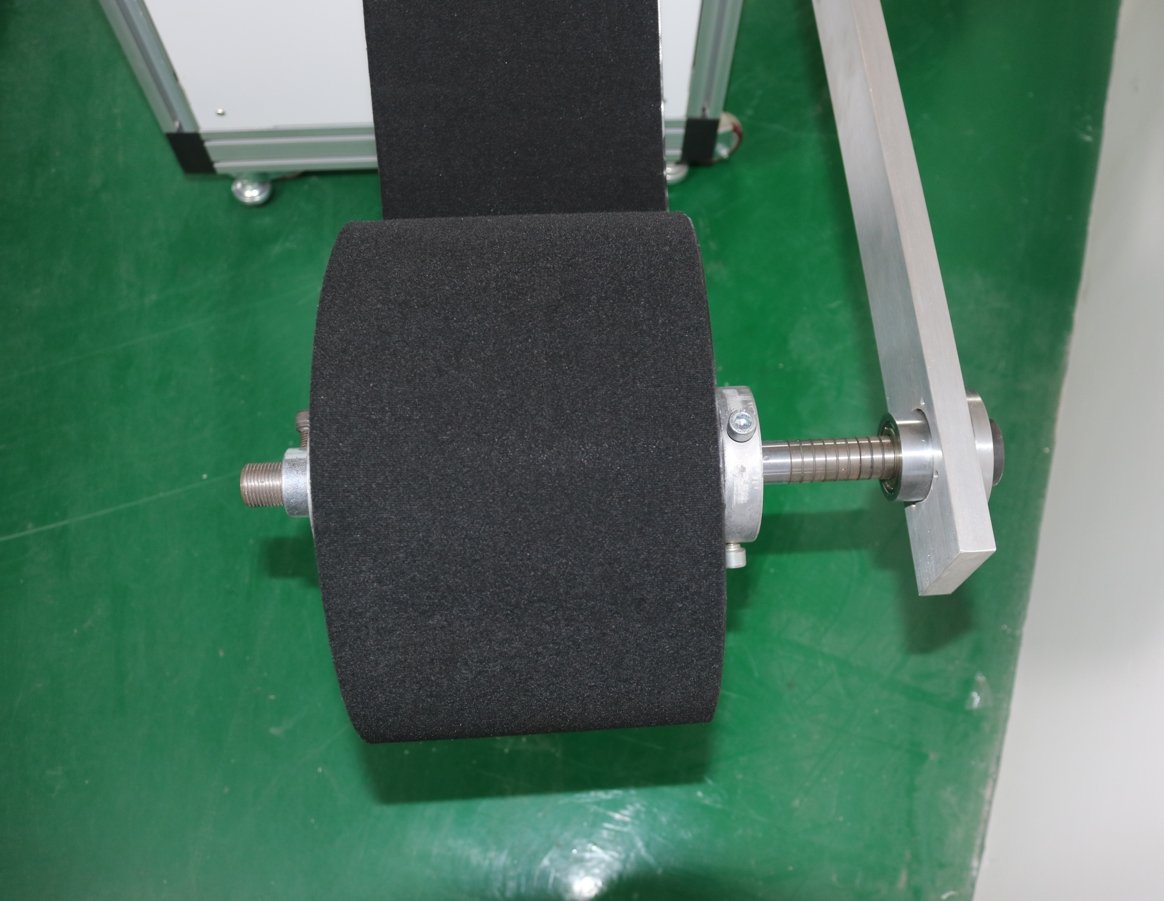

4, Material holder  ,the material holder  of this Adhesive velcro cable ties die cut machine can hold up to 10kg of velcro material

and easy release of cutting materialby the rotation mechanism  .

material holder r

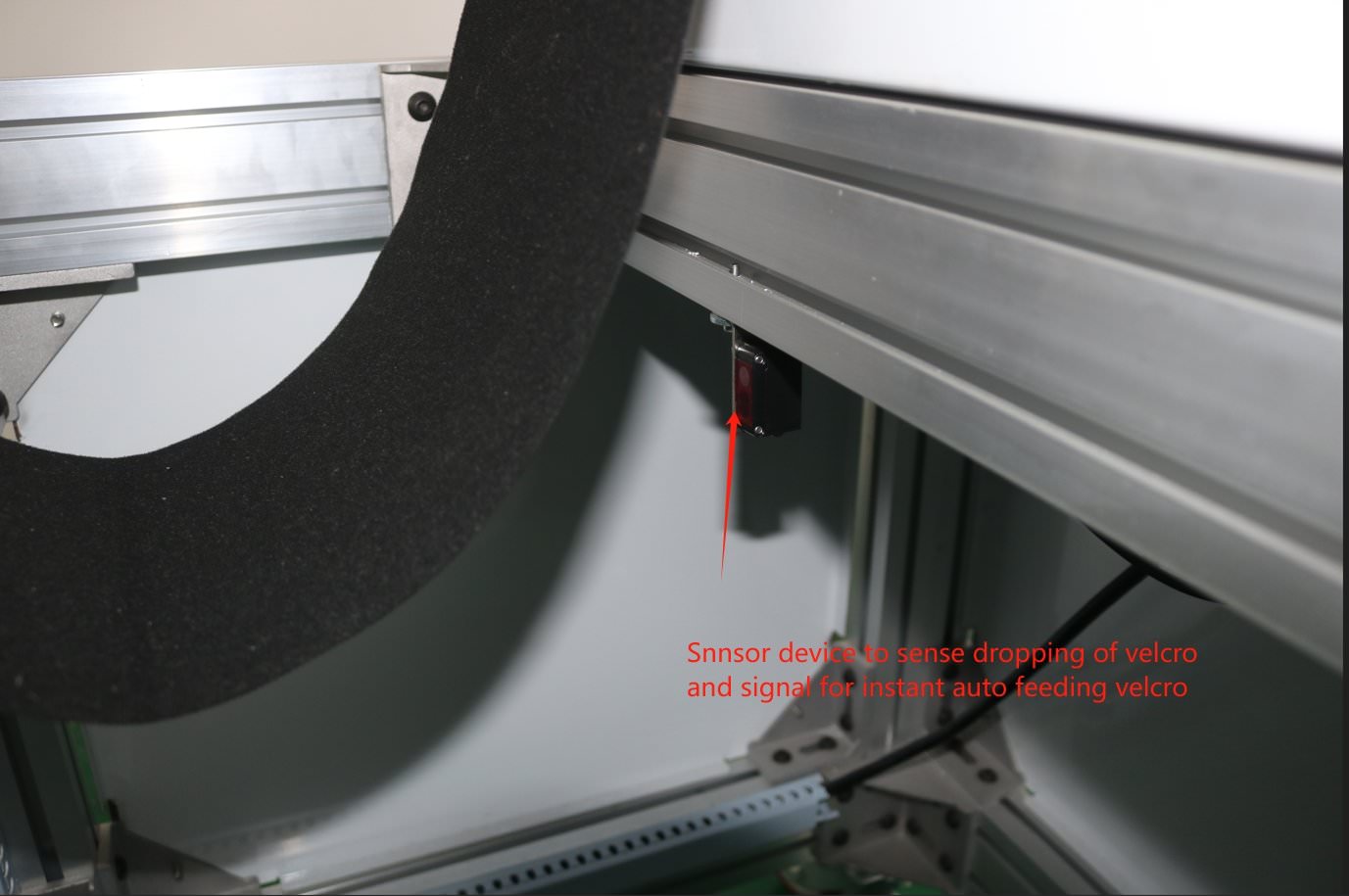

sensor feeding

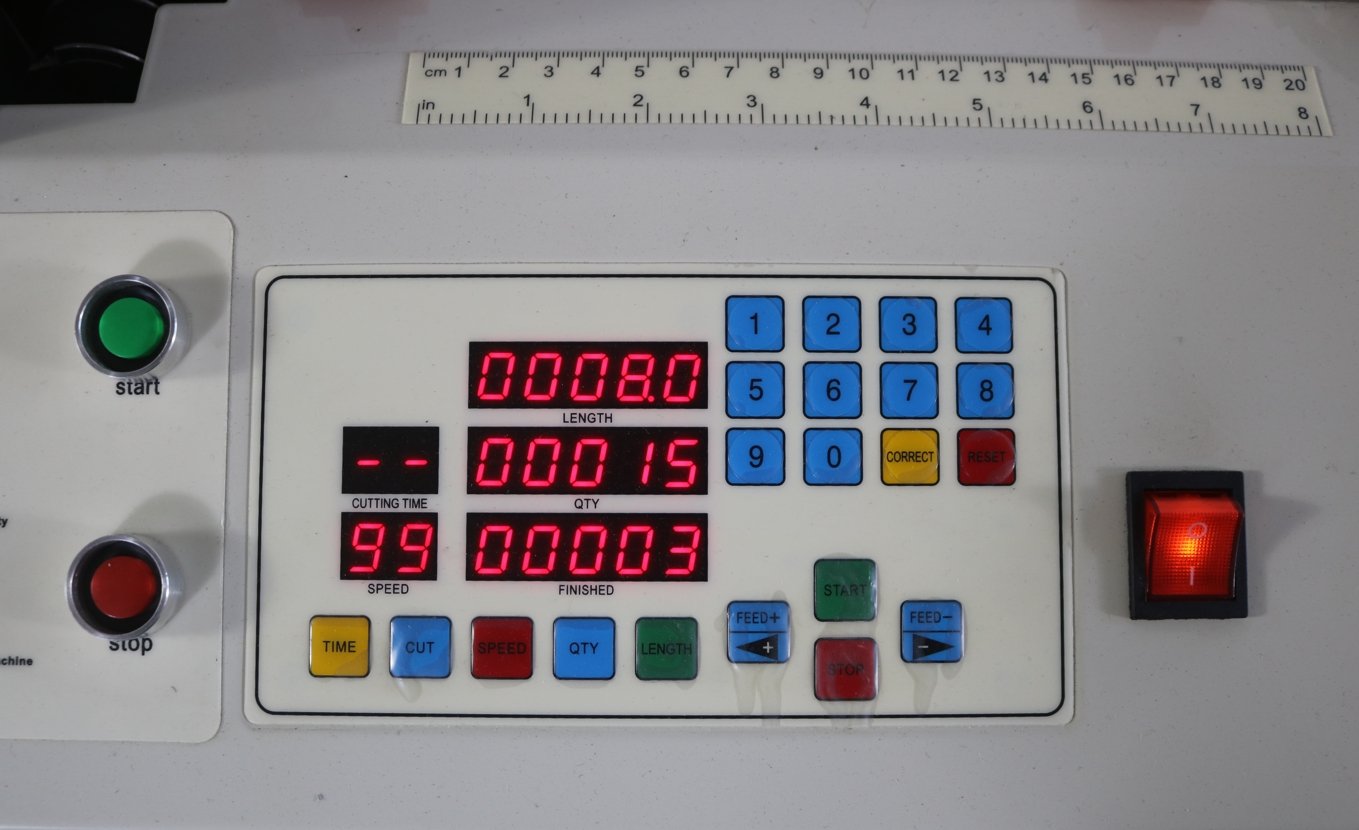

5, Operation screen ,this adhesive velcro cable wrap cutting machine will be easy to operate  with physical key screens ,customer

can set the cuttng length (die cutting width )and cutting amount will be ok ,speed is adjustable based on production requirement.

Operation screen





【Technical Data】

Model No.: ES-090

Brand :ESMAI

Product name : Hook and Loop velcro cable ties fast die cut machine

Feature :  High speed punching with automatic feeding.

Maximum cutting width  : 200mm

Punch cutting speed :  560 pieces/min  for two issue from one punch of the mold , 280 pieces /min for one issue from one punch of the mold .

Punching mold : Customised punch mold ,2 issue from one mold for cat head velcro ,1issue from one punch mold for needle shape velcro

Power : 750W

Motor : High power motor up to 1KW

Net Weight : 120KGS

Dimensions: L1200:W580:H1300mm

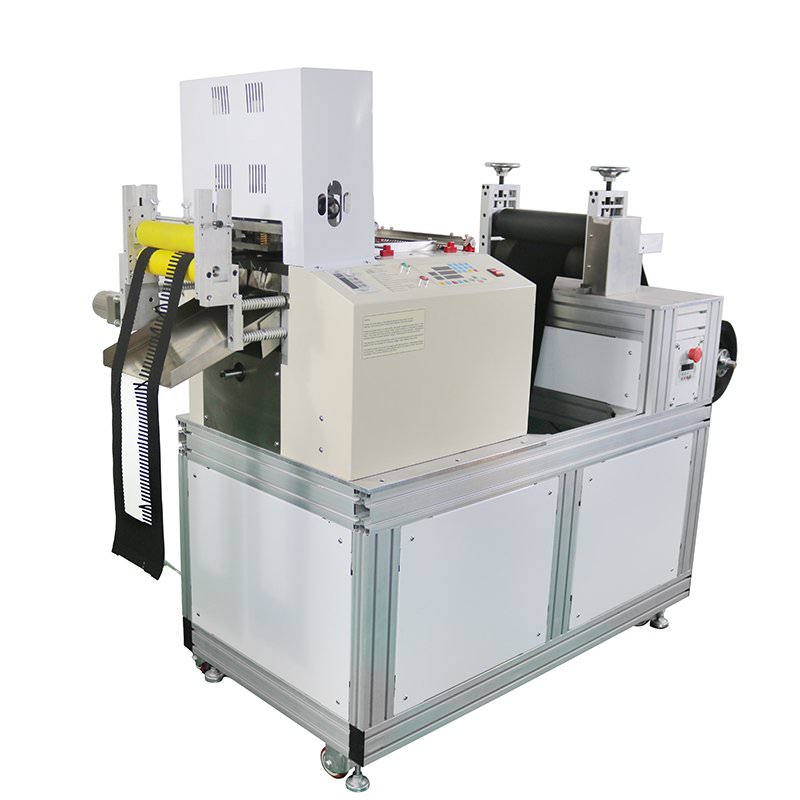

Front view



adhesive velcro cable wrap cutting machine

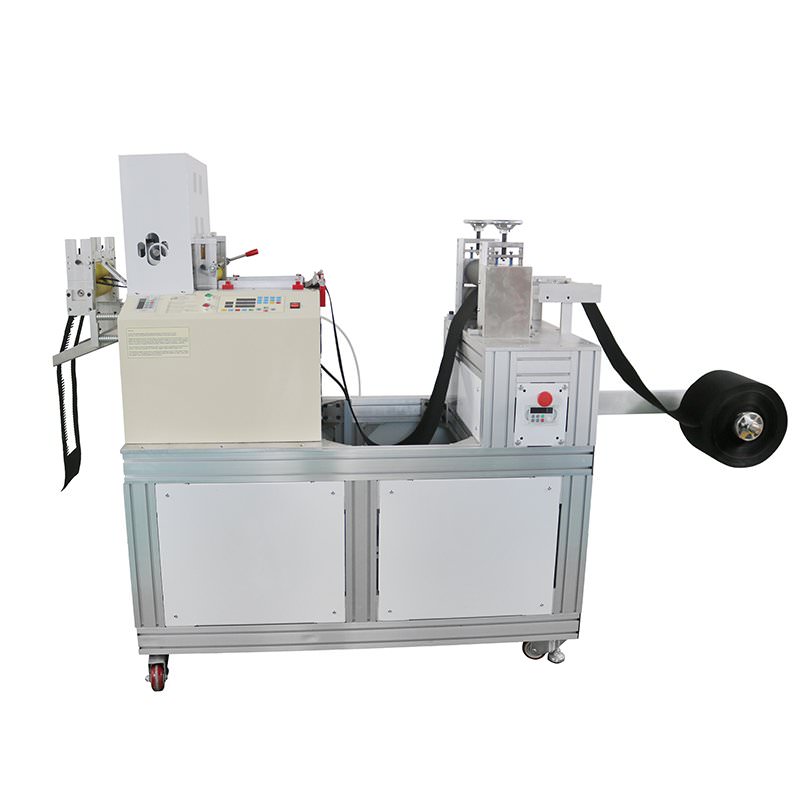

Side view



cat head velcro punch cutter machine

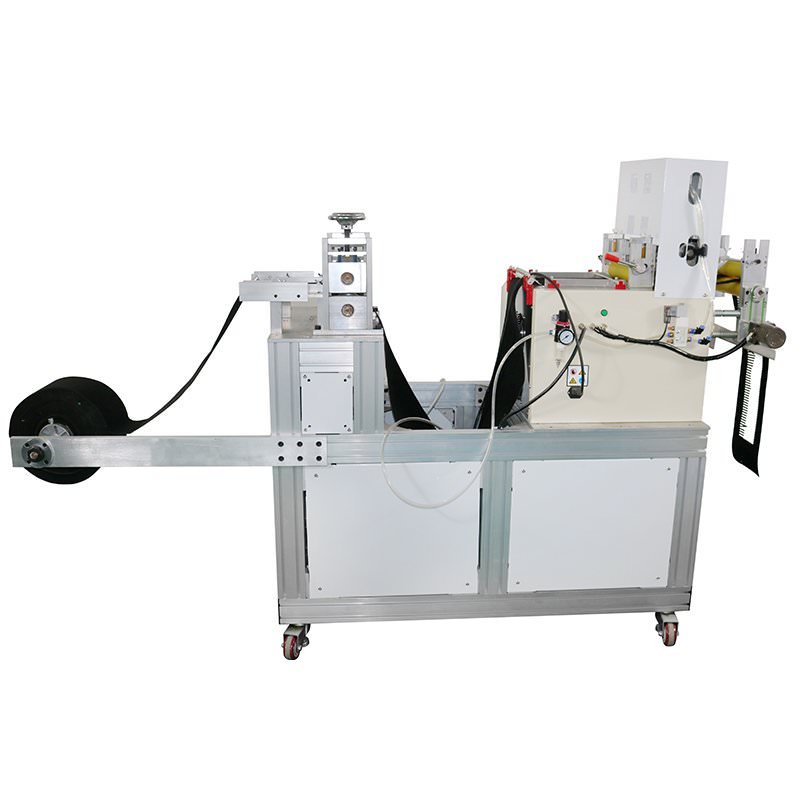

Back view



needle head velcro punch cutting machine



【Warranty】

All  the spare parts of Hook and Loop velcro cable ties fast die cut machine  ES-090  will have one year of free maintainance by changing the spare parts

for free and free shipping of spare parts to overseas clients starting from the issuing date of commercial invoice  after on line diagnosis .



【Packing】

1SET/ Wooden case (Inside the wooden case will be packed with foam pading material to protect the machine goods)
