velcro cutting and stacking machine

Product Details
Brand ESMAI
Serial Number ES-091
Country of Origin China
Certificate CE
Payment & Shipping Terms
Price Quote Based on quantity
Minimum Order 1 SET
Average Delivery Time Production 7-10 days, delivery time by sea
Payment Method TT
Package Details 1SET/WOODEN CASE
Ability to Supply 100 Sets/ month

 Velcro cutting and stacking machine ES-091

【Product Description】

The velcro cutting and stacking machine  ES-091 is designed for automatic cutting velcro to length and stack the cut to length velcro in good order , the maximum cutting width is 200mm and two pcs of velcro can be cut and stack at once which is high productivity  , the stacked velcro is in good order and can be easily taken out from the stacking device .  The machine combines auto Feeding velcro+ Cutting velcro to length + Auto stacking cut velcro in good order  in one machine

velcro cutting and stacking machine



Youtube video



The maximum stacking length is 400mm and can be customised , the stacking height is 230mm and can be customised , two pcs of 90mm width at maximum can be cut and stacked together . the holder boards can hold velcro roll diameter up to 500mm , the velcro ID is 25mm and can be customised based on customer requirements .  the machine power is 1000W ,the cutting motor applies servo motor and the feeding machine applies close loop stepping motor

This magic tape cutting and stacking machine had been equipped with a feeder machine from behind to feed material automatically by applying a feeding sensor to sensor pulling of velcro and feed material in time , the feeding speed can be set freely and machine cutting speed can also be set based on production requirements .



【Technical Data】

Product name :Velcro cutting and stacking machine

Model No.: ES-091

Function : Auto Feeding velcro+ Cutting velcro to length + Auto stacking cut velcro in good order

Voltage :220V

Machine power: 1000W

Cutting motor: Servo motor

Feeding motor :300W Close loop stepping motor to feed material

Stacking material method : Air motivated ,Stacking width 0-200mm

Work pressure:0.7MPA

Operation system : Normal touch screen

Maximum stacking length : 400mm (can be customised)

Maximum stacking width : 200mm for single velcro , stacking two pcs of 90mm width velcro

Maximum stacking height : 230mm (can be customised)

Maximum velcro roll to feed : 500mm

Velcro roll ID : 25mm( can be customised)

Machine productivity : 200pcs /min( based on 350mm length to stack two pcs at one time)

Machine Net weight : 220KG

Machine size:1500*640*1300mm



【Product Advantage】



1,Auto Feeding velcro+ Cutting velcro to length + Auto stacking cut velcro in good order


2, Cutting and stacking two velcros at the same time



3,Adjustable machine speed and feeding speed , high productivity .



【Product Details】

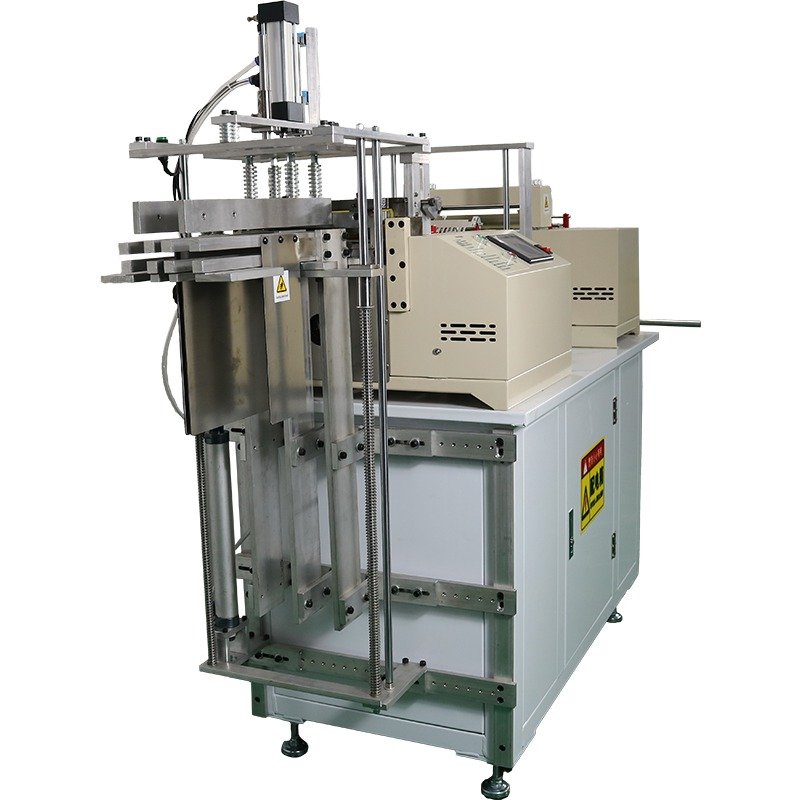

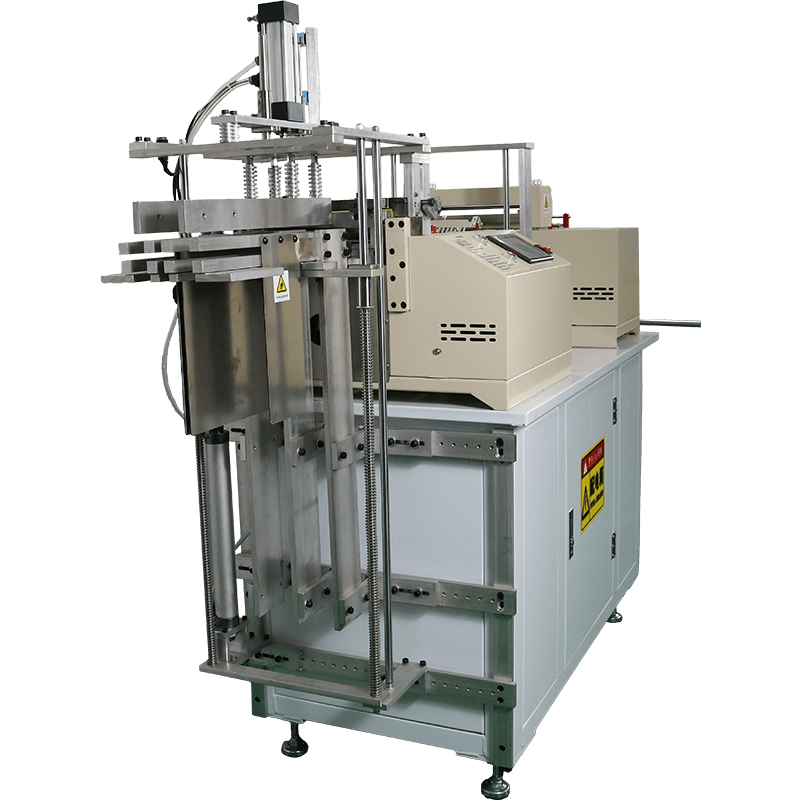

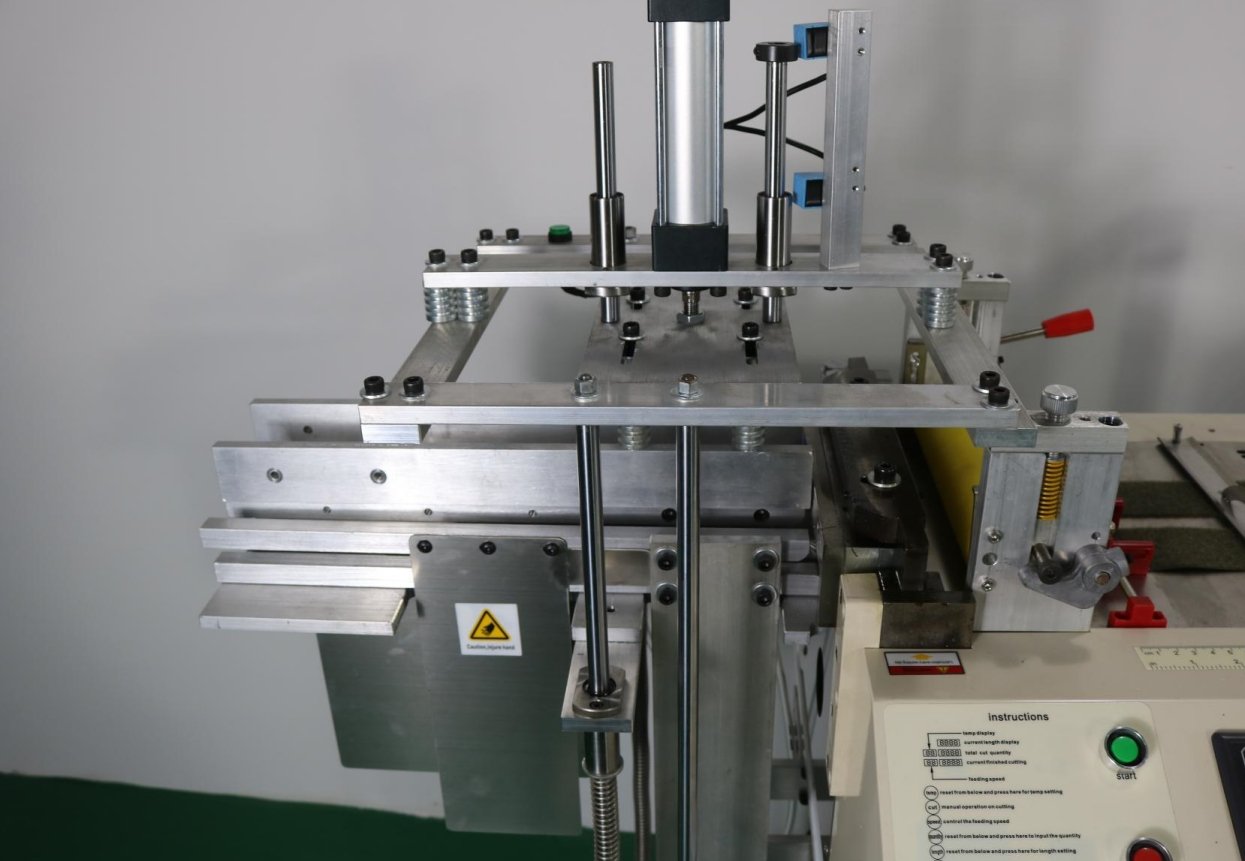

1,Stacking device , this stacking device is air motivated to  collect and stack cut to length velcro in good order

 , the maximum stacking length is 400mm and can be customised  and the stacking height is 230mm .

stacking device

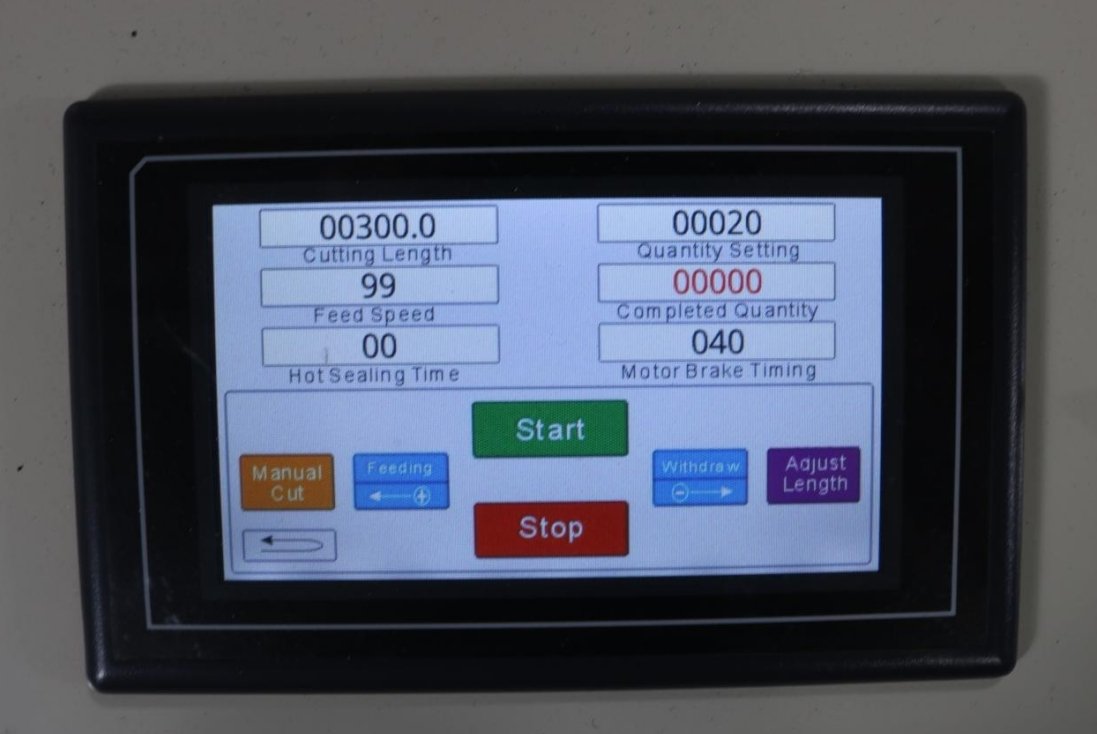

2,Touch screen, the touch screen of this hook and loop  velcro cutting and stacking machine will be easy to operate ,custom can set

the cutting length ,total cutting quantity and cutting speed freely on the machine .

Touch screen

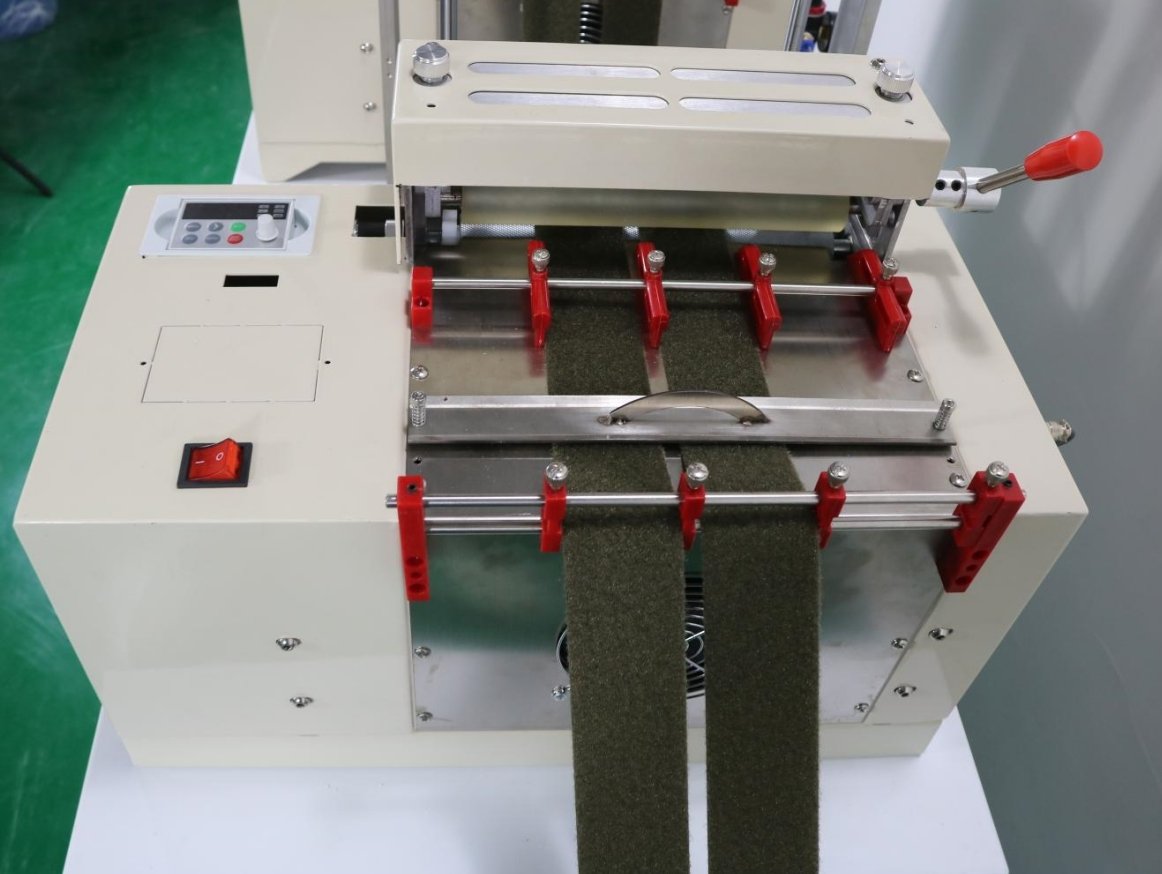

3, Feeding device , this hook and loop velcro cutting and piling machine had been equiped with a feeding device to feed velcro

material automatically , the feeding sensor will be lifted when velcro material are pulled front and signal to the feeding machine to

feeding velcro material automatically .

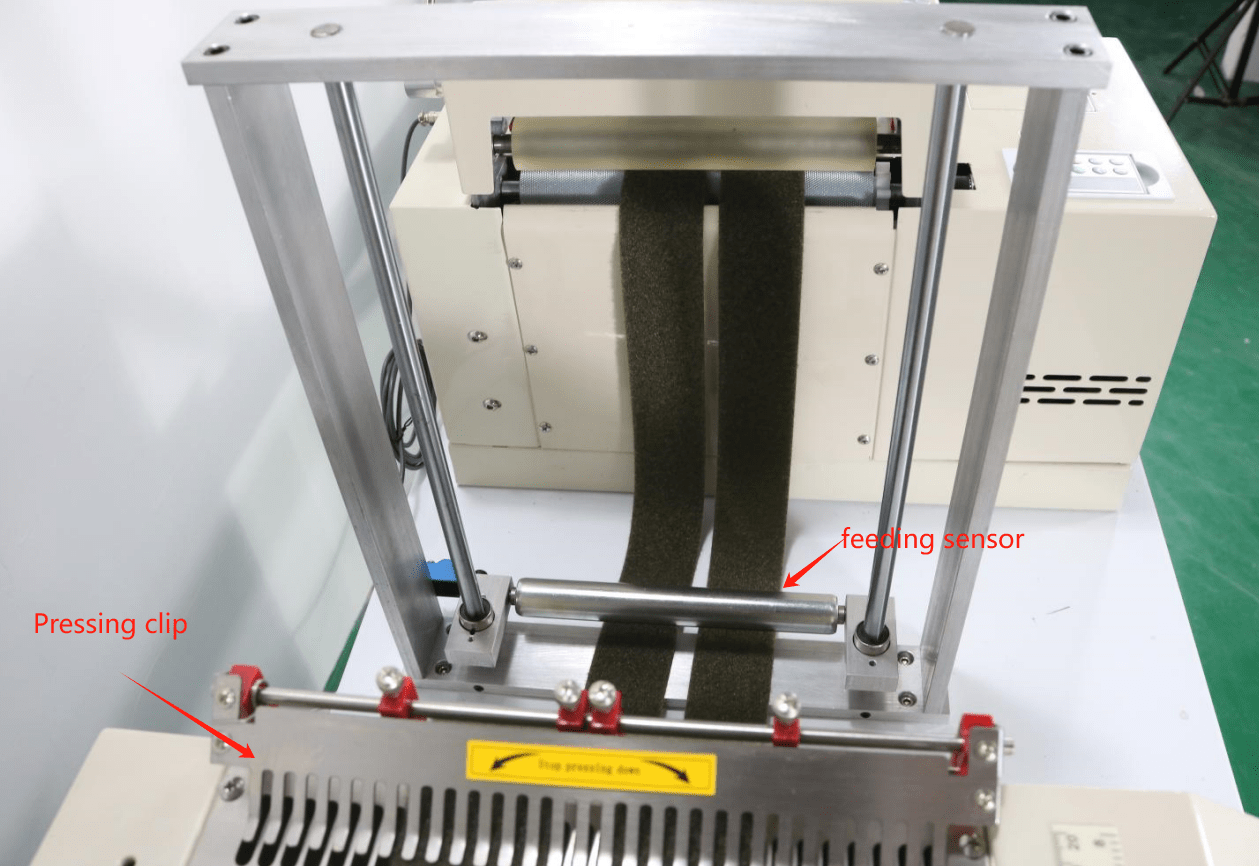

feeding sensor

The pressing clip press velcro beneath it , when the velcro material runs out  ,the pressing clip fall down into the machine and raise alarm to remind

workers to load on new material  and the machine will stop working .

feeding snesors

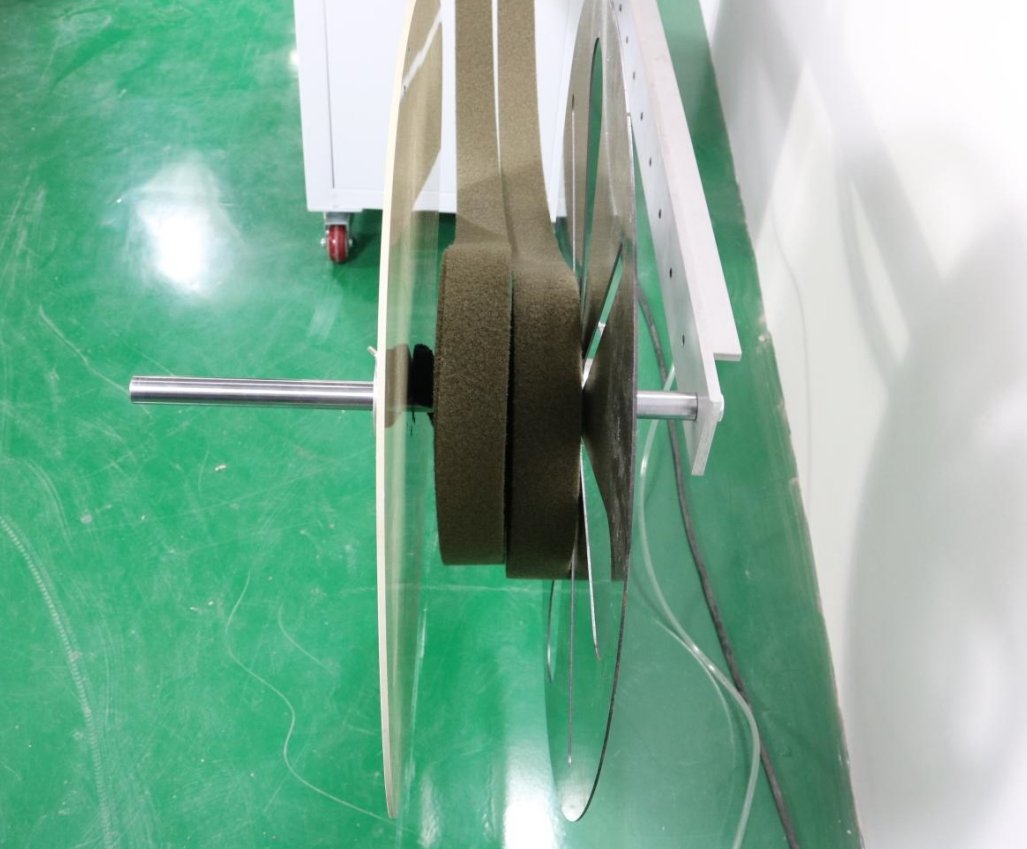

4,Holder boards  ,the holder boards is 500mm diameter ,it can hold velcro roll up to 500mm diameter and two velcro roll can be

loaded on it at the same time .

Holder boards

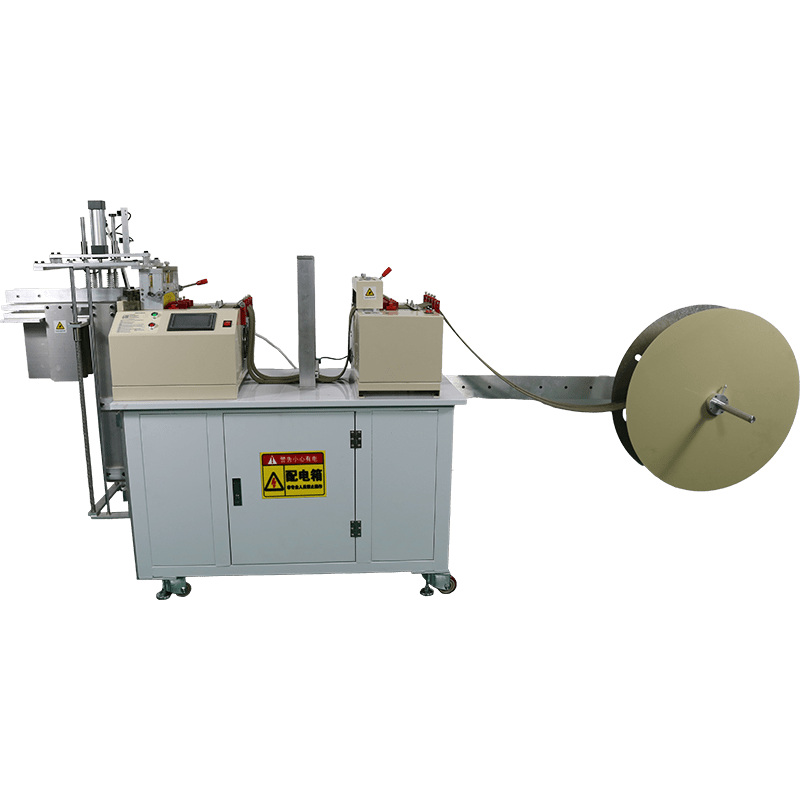

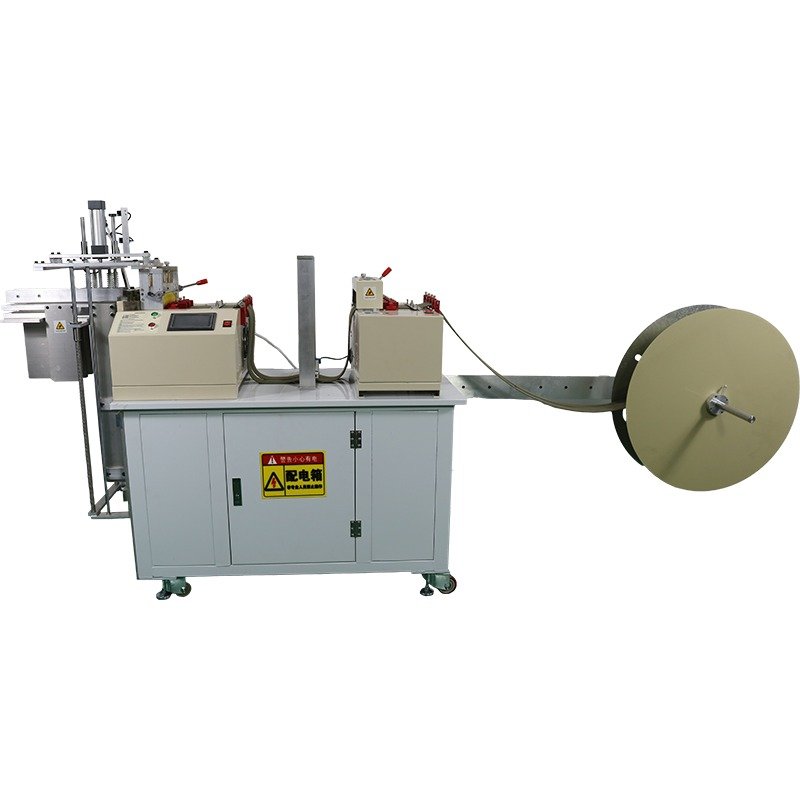

Front View

hook and loop  velcro cutting and stacking machine

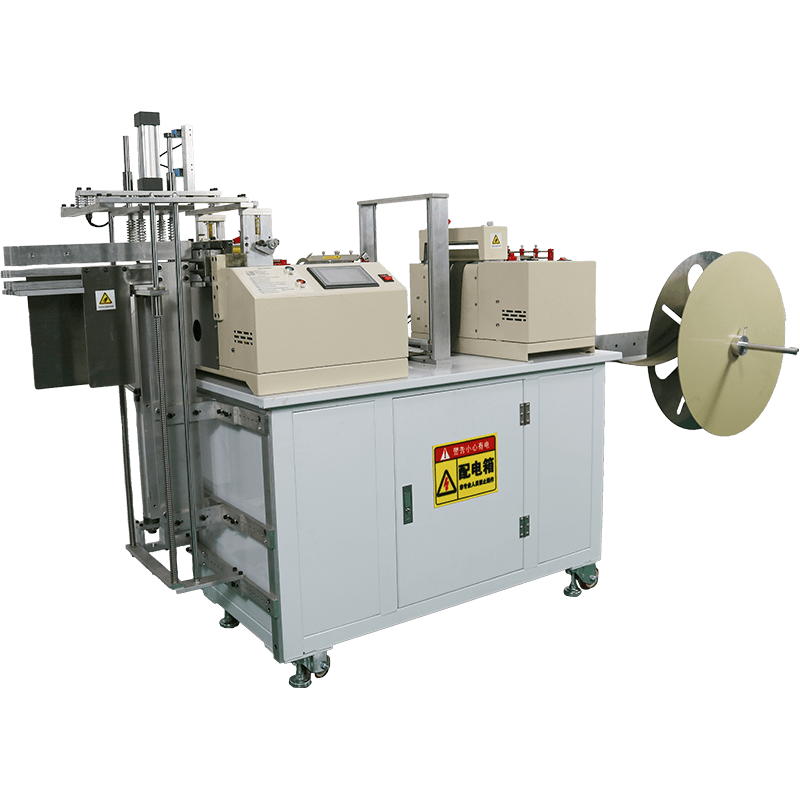

Side View

hook and loop  velcro cutting and piling machine

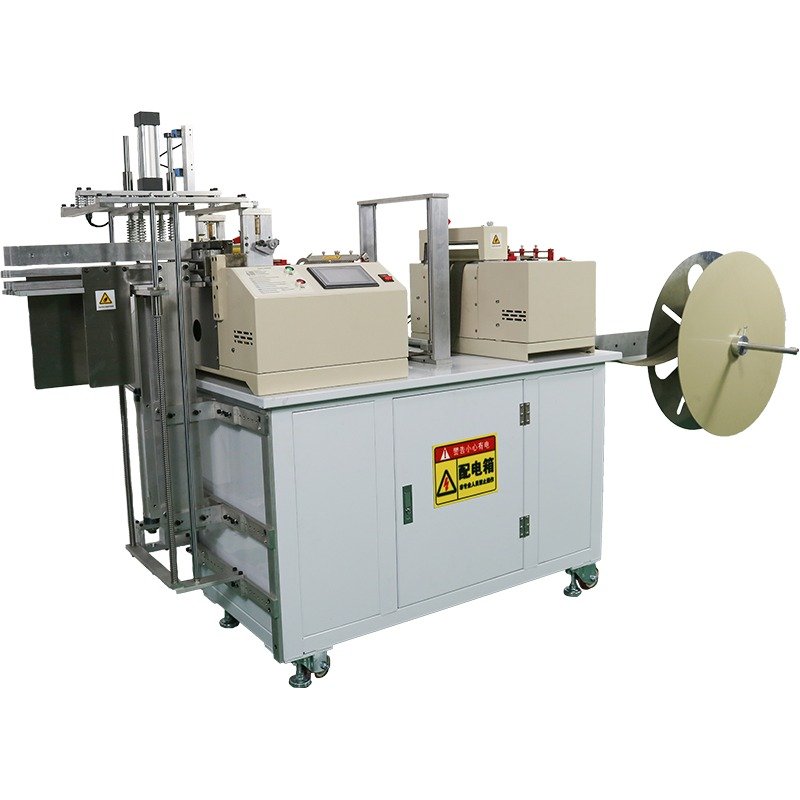

Side View

velcro cutting and piling machine









【Warranty 】

 As a velcro cutting and stacking machine supplier , all the spare parts of the machine  will have one year of free maintainance

by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice

after on line diagnosis .



【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping
