Velcro webbing roll separating coiling machine ES-125

Velcro webbing roll separating coiling machine  ES-125

The Velcro webbing roll separating coiling machine  ES-125  is designed for automatically separating and coiing velcro rolls,webbing rolls or other material rolls into small rolls in one machine .

This velcro roll separation winding machine  can count how many meters of material to be coiled up into rolls , after coiling up into rolls,the scissor will cut off the length and the coiled rolls will be taped the end into a fixed rolls .

The machine power is 2KW , this velcro webbing roll separation winding machine applies simplified PLC touch screens which is easy to operate the machine , the coiling speed  is 5-8 rolls per minute based on 3 meter per roll . the processing material thickness ranges 1-3mm,  it also can be customised ,the cutting length ranges 1-50 meters .

This velcro webbing roll separating coiling machine ensures high productivity and labour saving for customer to separate big rolls into small and tape them up manually .

【Technical data】

Product name : Velcro webbing roll separating coiling machine

Model No： ES-125

Function : Count meter +Cut into length +Coiling up into roll+ Tape ends  .

Votage：110/220V

Machine power: 2KW

Operation system ： PLC Touch screen

Working pressure： 0.7mpa

Material thickness：1-3mm (Can be customised based on actual material)

Material coiling diameter: 50- 200mm

Cutting length range : 1-50meter(  ,can be customised)

Productivity ： 5-8  Rolls/min（Based on 3meter per roll）

 Machine net weight:  280kg

Packing dimenion(L*W*H)： 2000*650*1500(mm)

【Product Advantage】

1, Count meter +Cut into length +Coiling up into roll+ Tape ends in one machine which is fully automatic

2, Easy to operate , the velcro webbing roll separation winding machine will be easy to operate by appying PLC simplified touch screen

3,High productivity and labour saving  ,the big roll of velcro will be separated into small rolls with fast productivity and labor cost saving

【Product detail 】

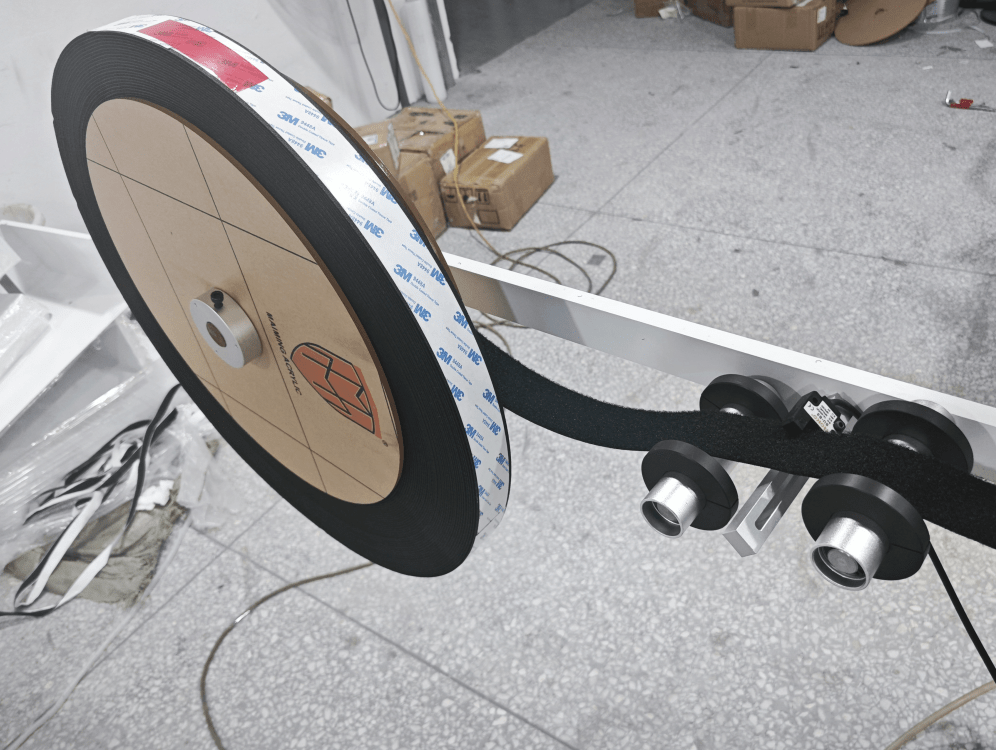

1,  Roll material holder , the material is held on the roll material holder  for good processing .

they do not swing around as they are fixed but allow a little space for smooth feeding material .

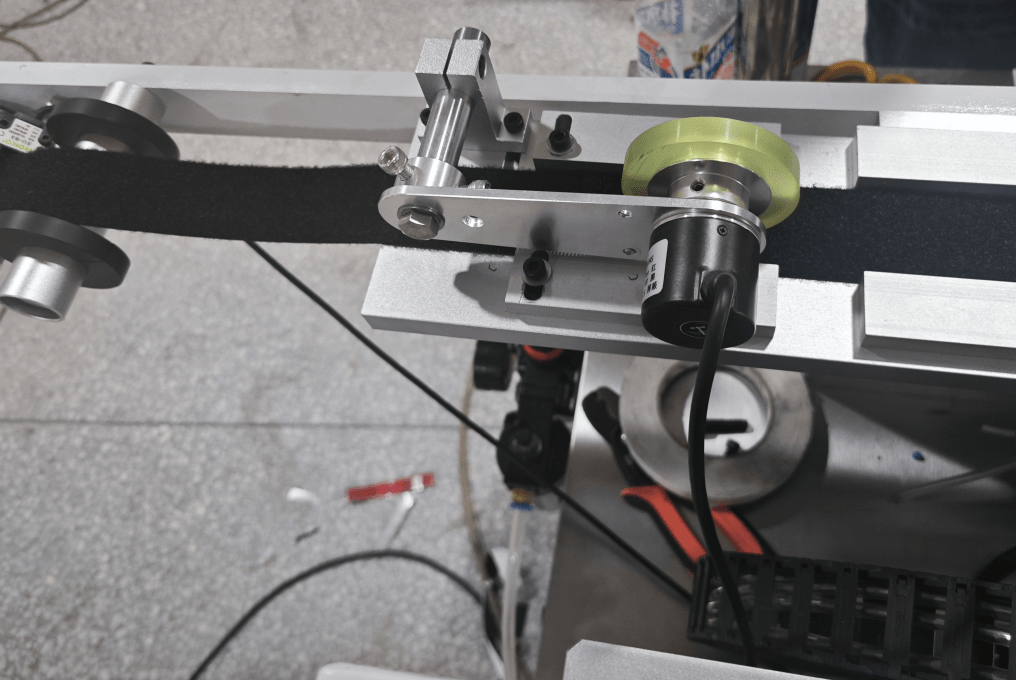

2,Fixures ,  the material will be transported in one straight line by the fixtures , the roller will

press down and avoids cockying of the material during transportation of material to ensure

good quality of coiled up rolls by the webbing roll dividing coiling machine

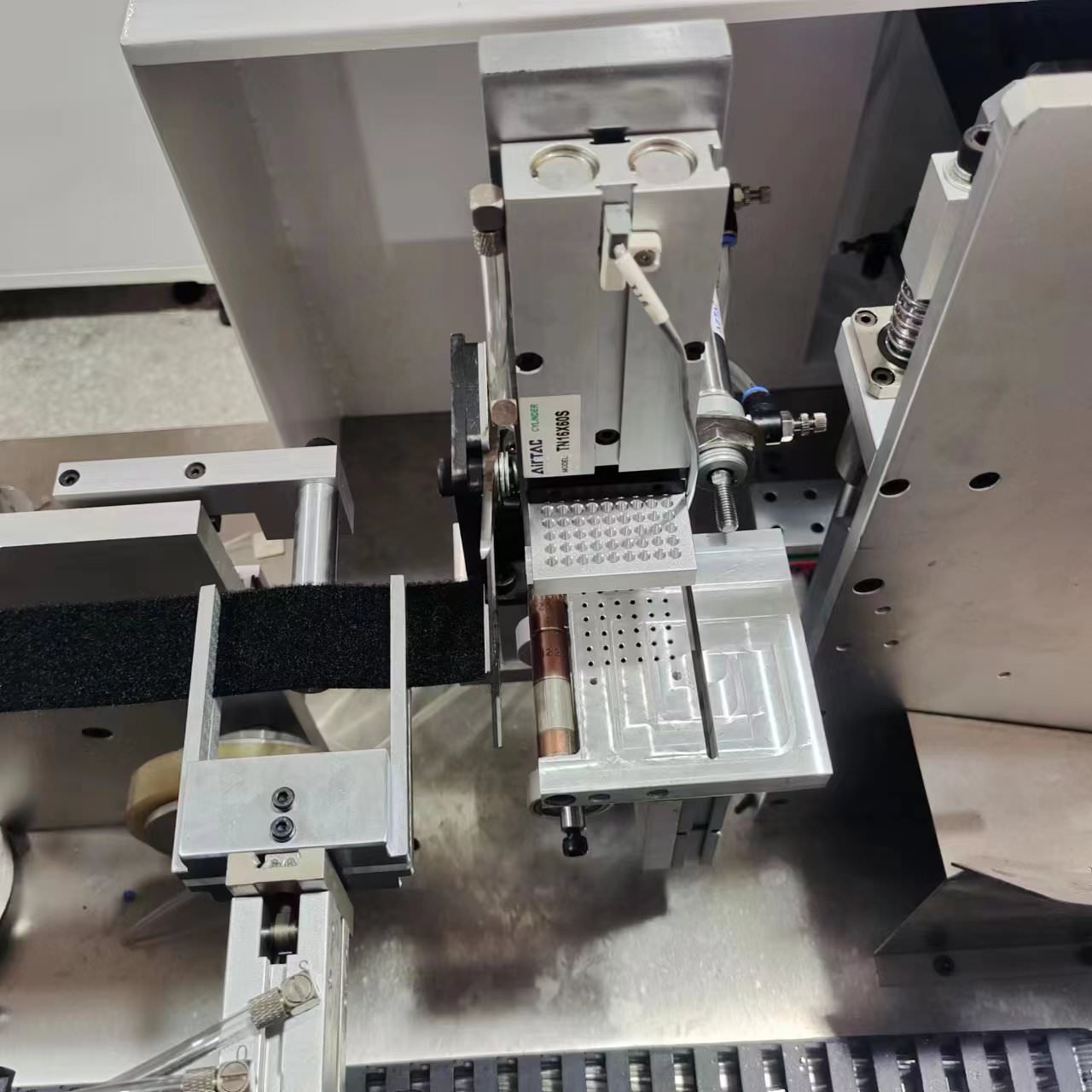

3, Cuttter scissors  ,the mechanical clip will draw the material to the coiling device and after coiling up

into fixed length , the scissor will  cut off the material and the tail of material will be taped up on the coiled rolls

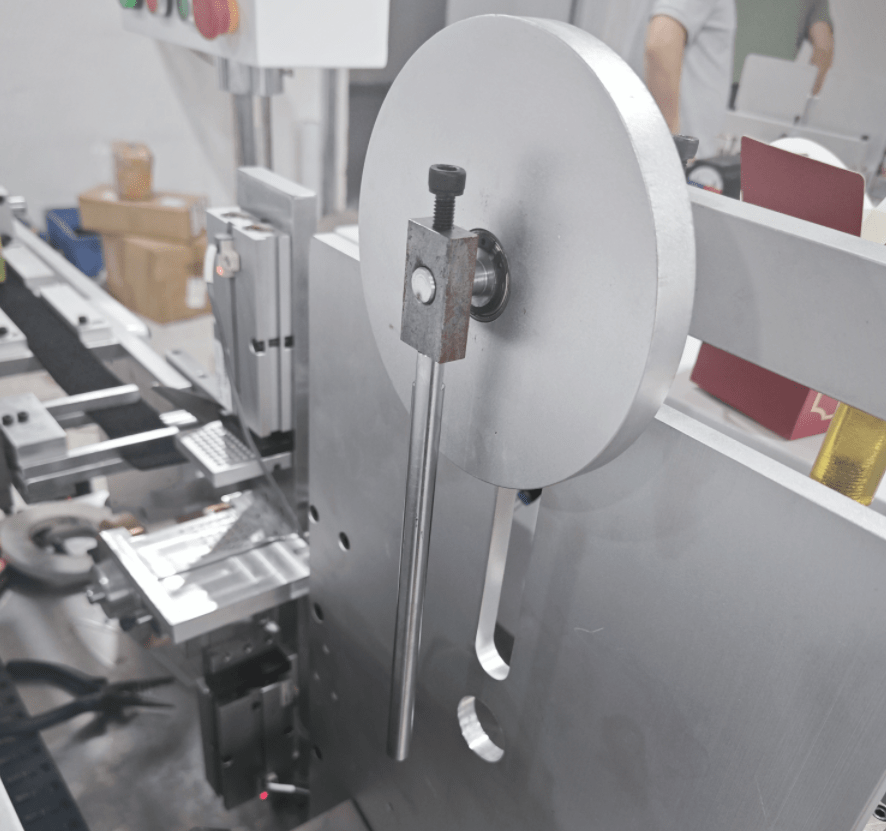

4, Coiling up devices  , the coiling board will press down and the other holder protrudes out and

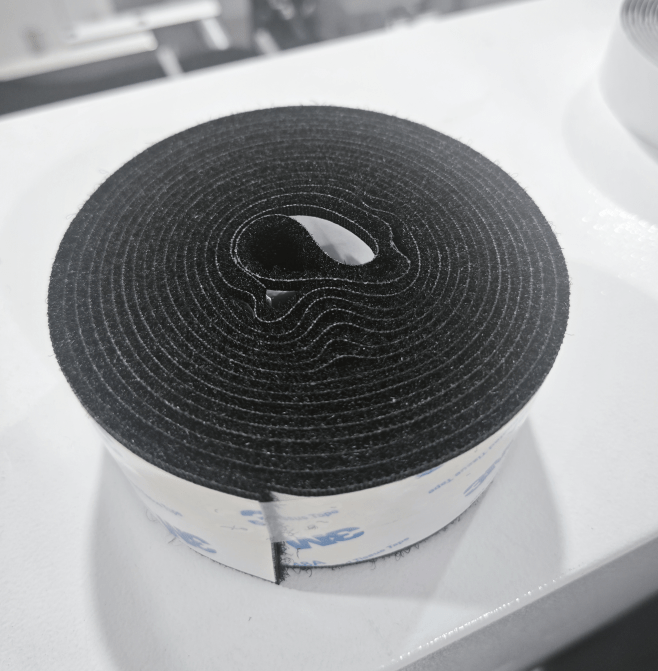

coil velcros or the other material into roll forms and automatically tape the tails .

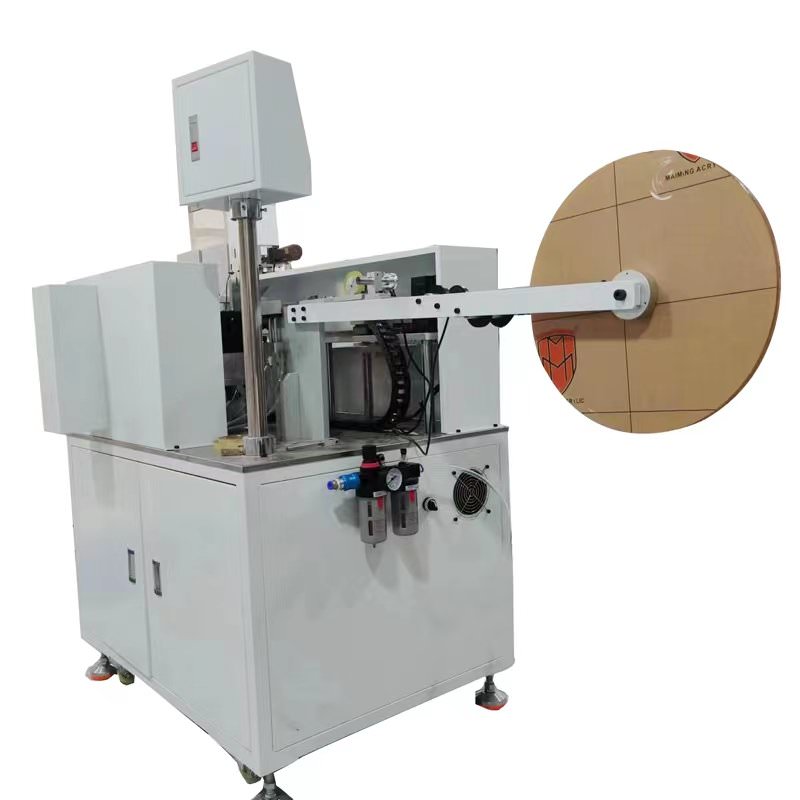

【Front view】

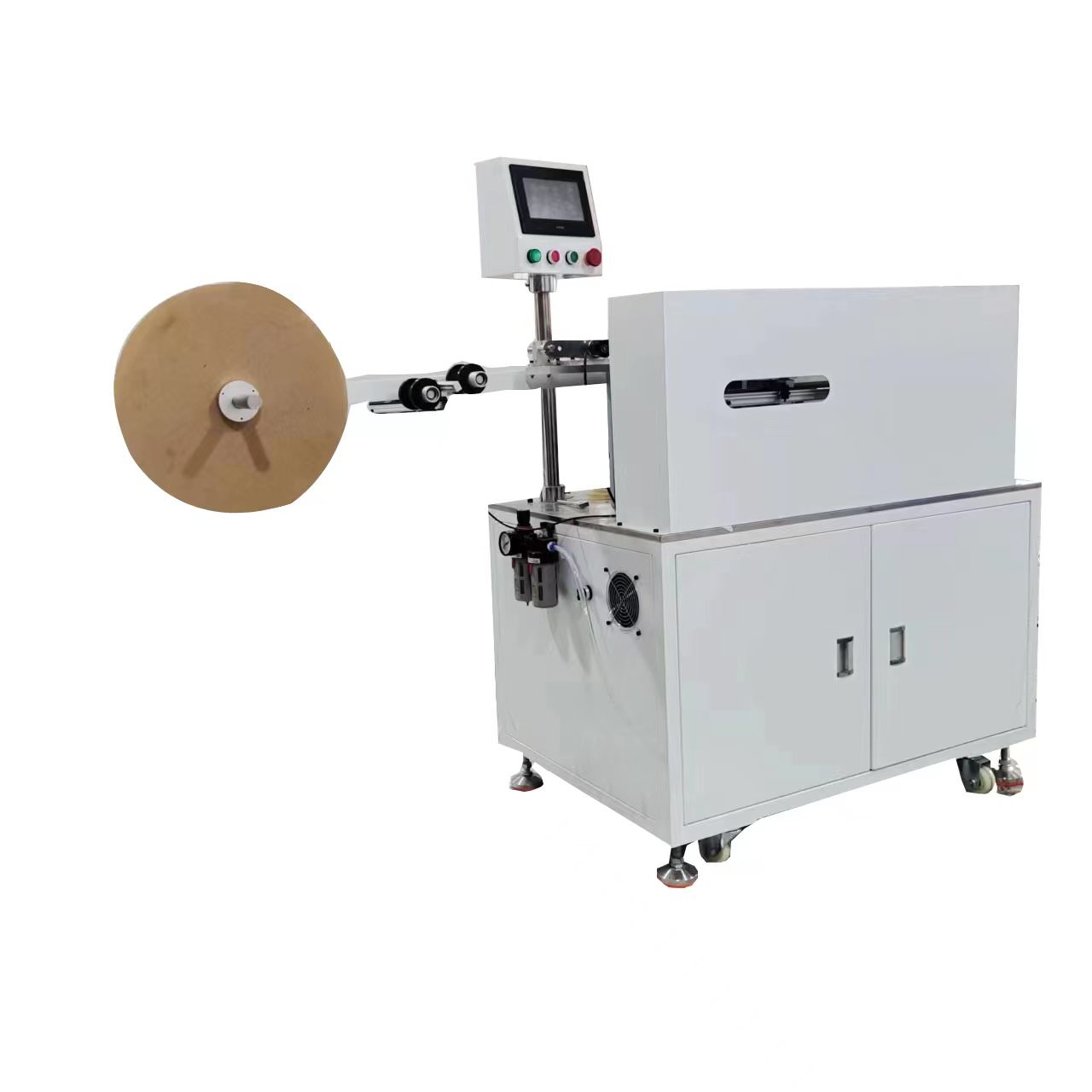

【Side view】

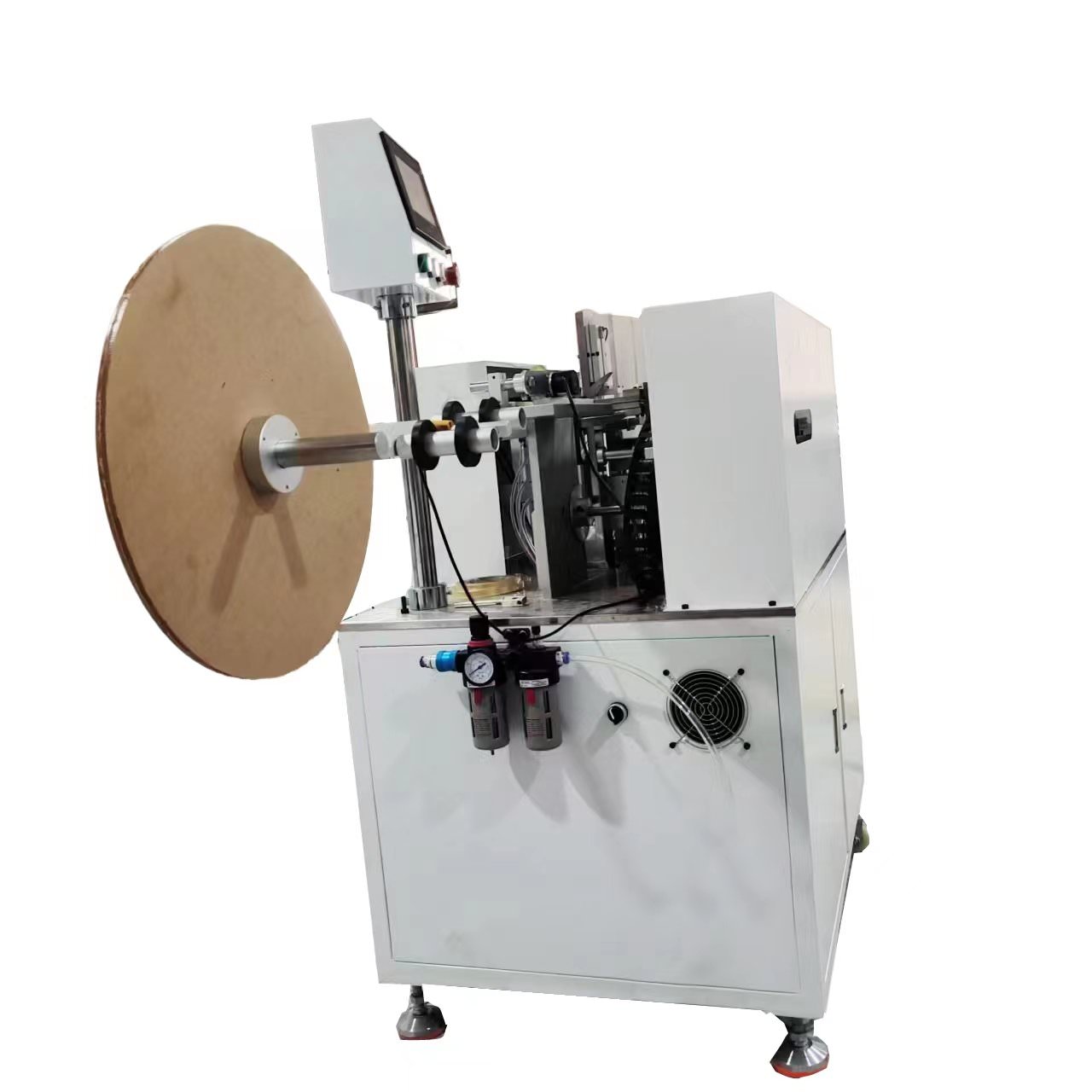

【Side view】

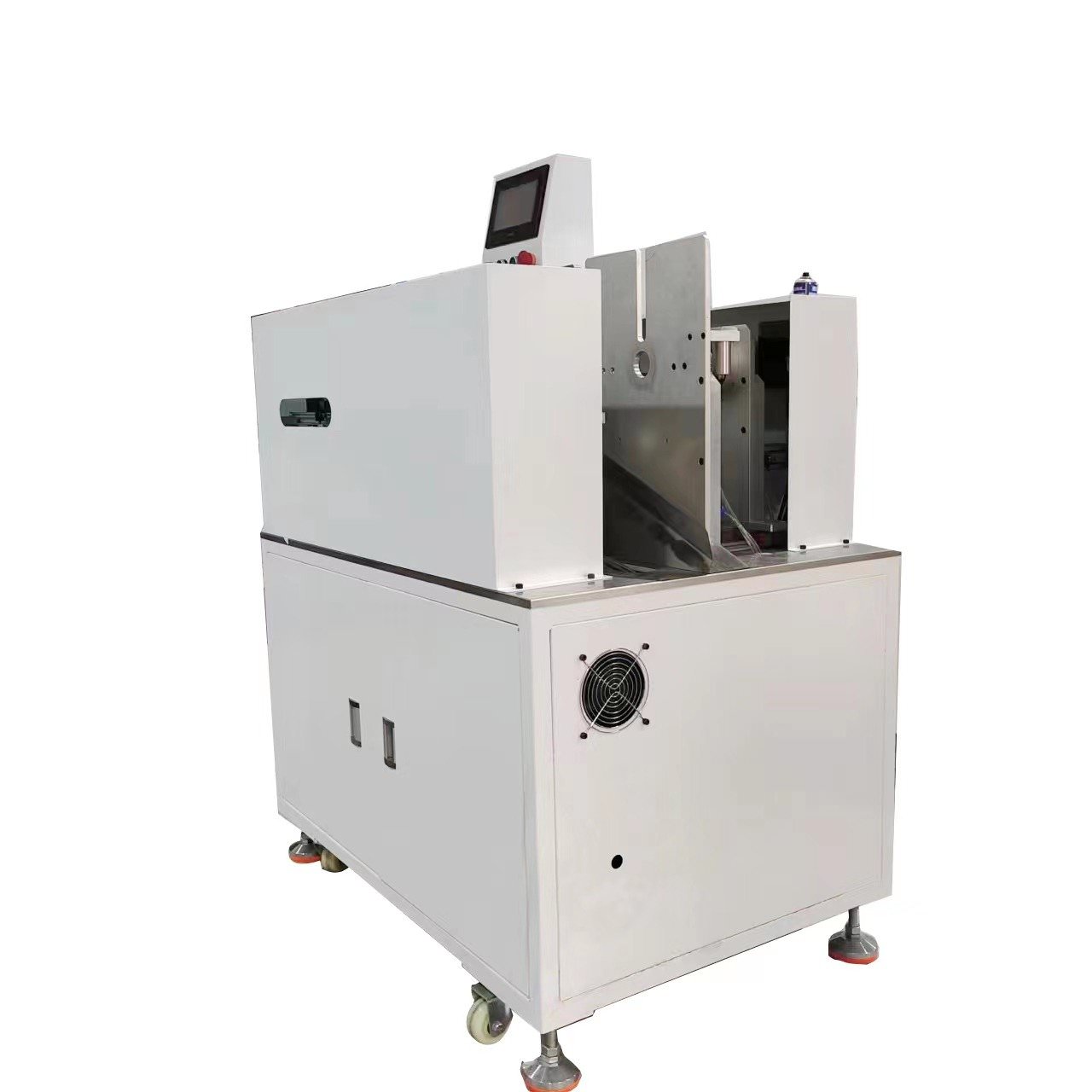

【Back view】

【Warranty】

All  the spare parts of the velcro webbing roll separating coiling machine will have one year of free maintainance  by changing the spare parts for free

and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice  after on line diagnosis .

【Packing】

 Wooden Case Packing for overseas safe shipping , 1SET /WOODEN CASE
