Adhesive backed velcro tape cutting machine
Adhesive backed velcro tape cutting machine Adhesive backed velcro tape cutting machine Adhesive backed velcro tape cutting machine

Adhesive backed velcro tape cutting machine

The adhesive backed velcro tape cutting machine  ES-071-2 is designed for automatic cutting adhesive velcro , adhesive hook  or loop  into die cut or straight cut  shapes without sticking to  the knife molds

Product Details
Brand ESMAI
Serial Number ES-071-2
Country of Origin China
Certificate CE
Payment & Shipping Terms
Price Quote Based on quantity
Minimum Order 1 SET
Average Delivery Time Production 7-10 days, delivery time by sea
Payment Method TT
Package Details 1SET/WOODEN CASE
Ability to Supply 100 Sets/ month

Adhesive backed velcro tape cutting machine ES-071-2

The adhesive backed velcro tape cutting machine  ES-071-2 is designed for automatic cutting adhesive velcro , adhesive hook  or loop  into die cut or straight cut  shapes without sticking to  the knife molds ,  By applying specialized knife molds , The adhesive velcro cutting machine enables adhesive velcro doesn't  stick to the knife mold during cutting process which avoids  trouble to clean the knife molds frequently .

Adhesive backed velcro tape cutting machine



Youtube video



The adhesive backed velcro tape cutting machine supports a maximum cutting width of 100mm and a cutting length range of 1-5000mm, with a cutting speed of 50-100 meters per minute ,customer can set the cutting speed based on requirement .  this machine utilizes a stepper motor for feeding and an AC motor for the cutting knife which ensures stable performance of both feeding and cutting process  . when running out of adhesive velcro material ,the machine will raise alarm to remind staff to load on new material which doesn't require close attention to the machine .

By customising the knife mold, customer can do a lot different shape cut or fully die cut to cut different pattern adhesive velcro like round corner velcro , half round velcro , square velcro ,fully round velcro etc . it will be wide application .

The best advantage of this adhesive backed velcro tape cutting machine is that it had been equipped with a non-sticking blade to ensure smooth cutting of adhesive Velcro without sticking to knife molds which saves labour to clean the knife mold frequently and ensures high productivity .



【Technical Data】

Product name: Adhesive backed velcro tape cutting machine

Model: ES-071-2

Function: Customized cutting knife mold to cut different shapes of adhesive Velcro, lack of material alarm, batch pause alarm

Features: Non-sticking blade for cutting adhesive Velcro

Maximum cutting width: 100mm

Cutting length range: 1-5000mm

Cutting speed: 50-100 meters/minute

Operating system: Both key screen and touch screen can be customized

Motor type: stepper motor feeding, AC motor cutting knife

Machine power: 200W

Net weight/gross weight: 40/60KG (wooden box packaging)

Machine size: : L 370 W 355 H 450MM



【Product Advantage】



1,Non sticking to knife mold for cutting adhesive velcros  with specialized knife mold .


2, Customised knife mold to support both shape edge cut and fully die cut .



3,Adjustable machine speed and feeding speed& out of material Alarm , high productivity  and labour saving .



【Product Details】



1,Specialized knife mold  , this  self adhesive velcro die cutter machine applies with specialized knife mold which enables the adhesive velcro  doesn't stick to the knife mold in the cutting process which avoids post treatment of cleaning the knife mold .

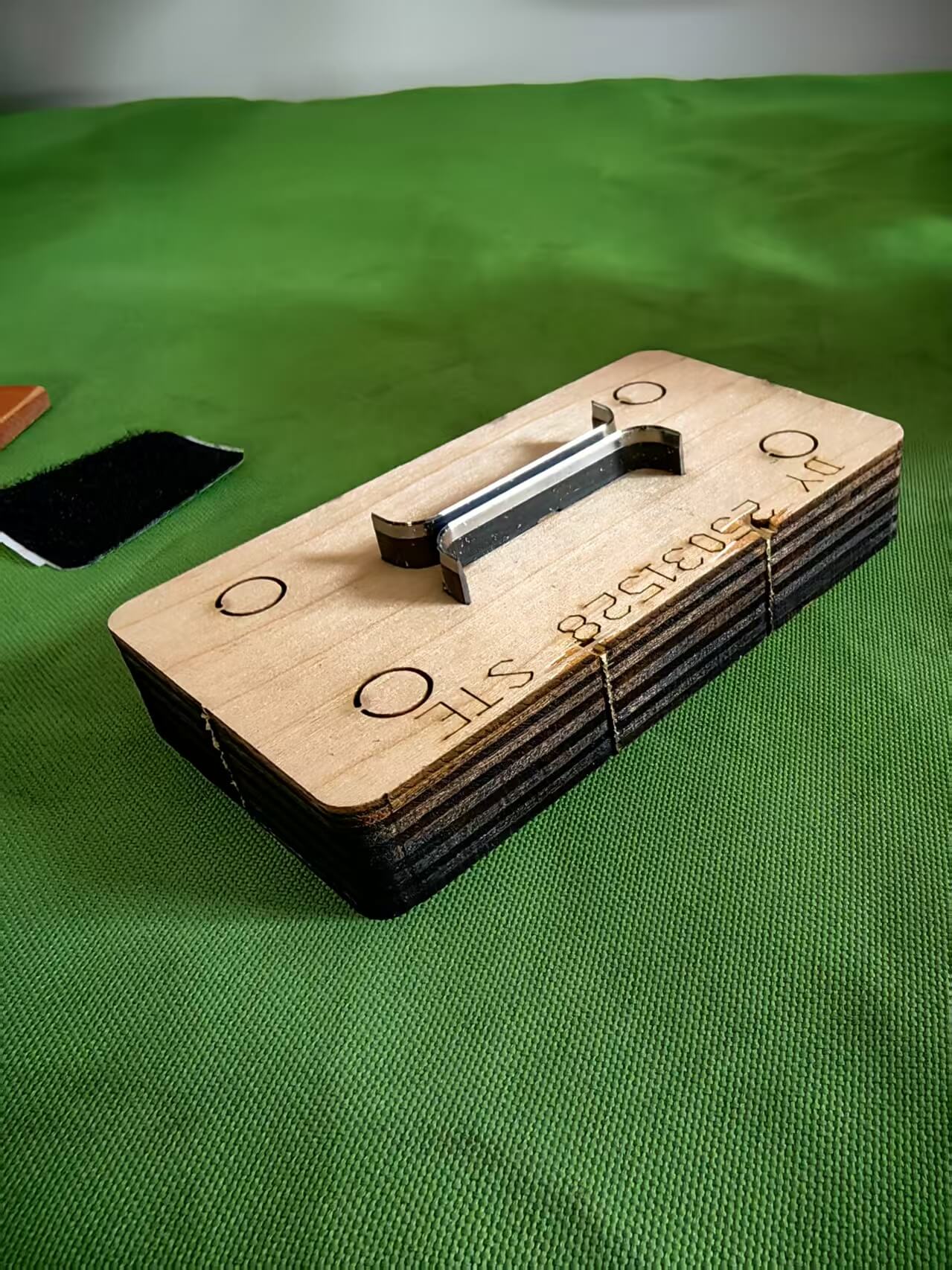

customised non sticking mold

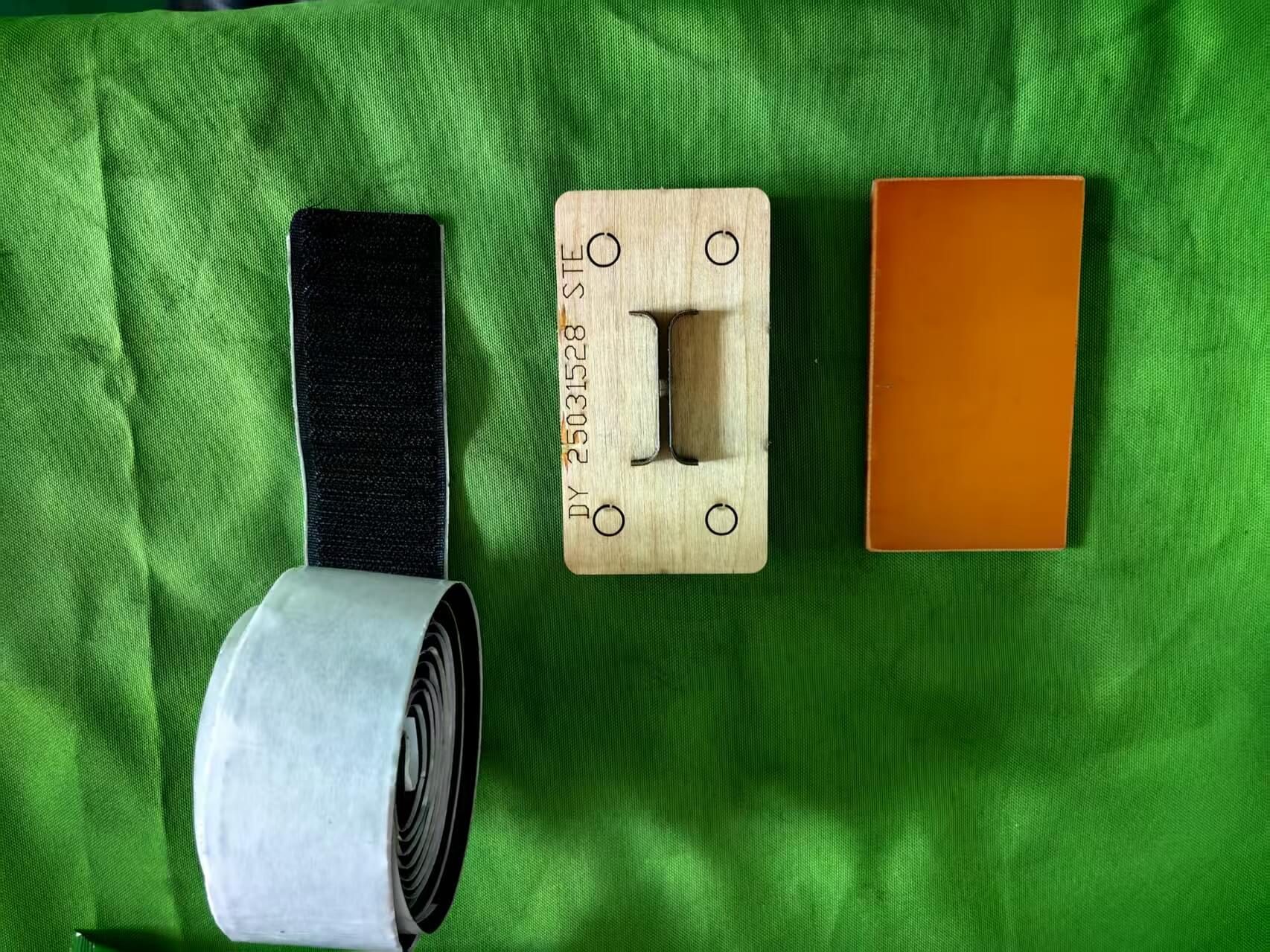

customised mold

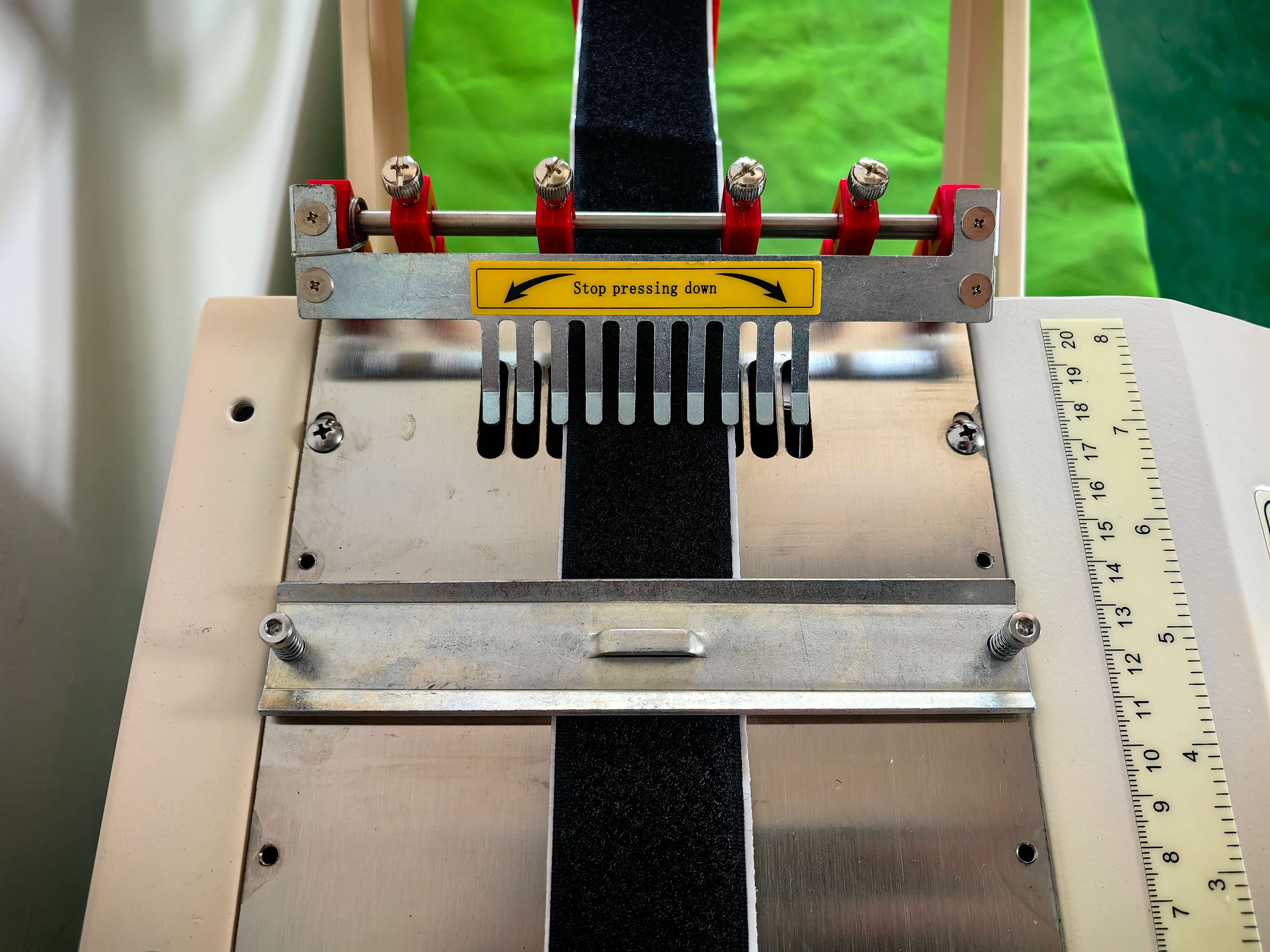

2,Fixtures , the  adhesive hook and loop round corner cutting machine had been equipped with fixtures which ensures adhesive velcro tapes are fed in one straight line , the clipper which holds the adhesive velcro down will signal the machine to raise alarm when running out of material .it will fall down beneath the machine surface and sound alarm to remind workers to load on new material .

Fixture

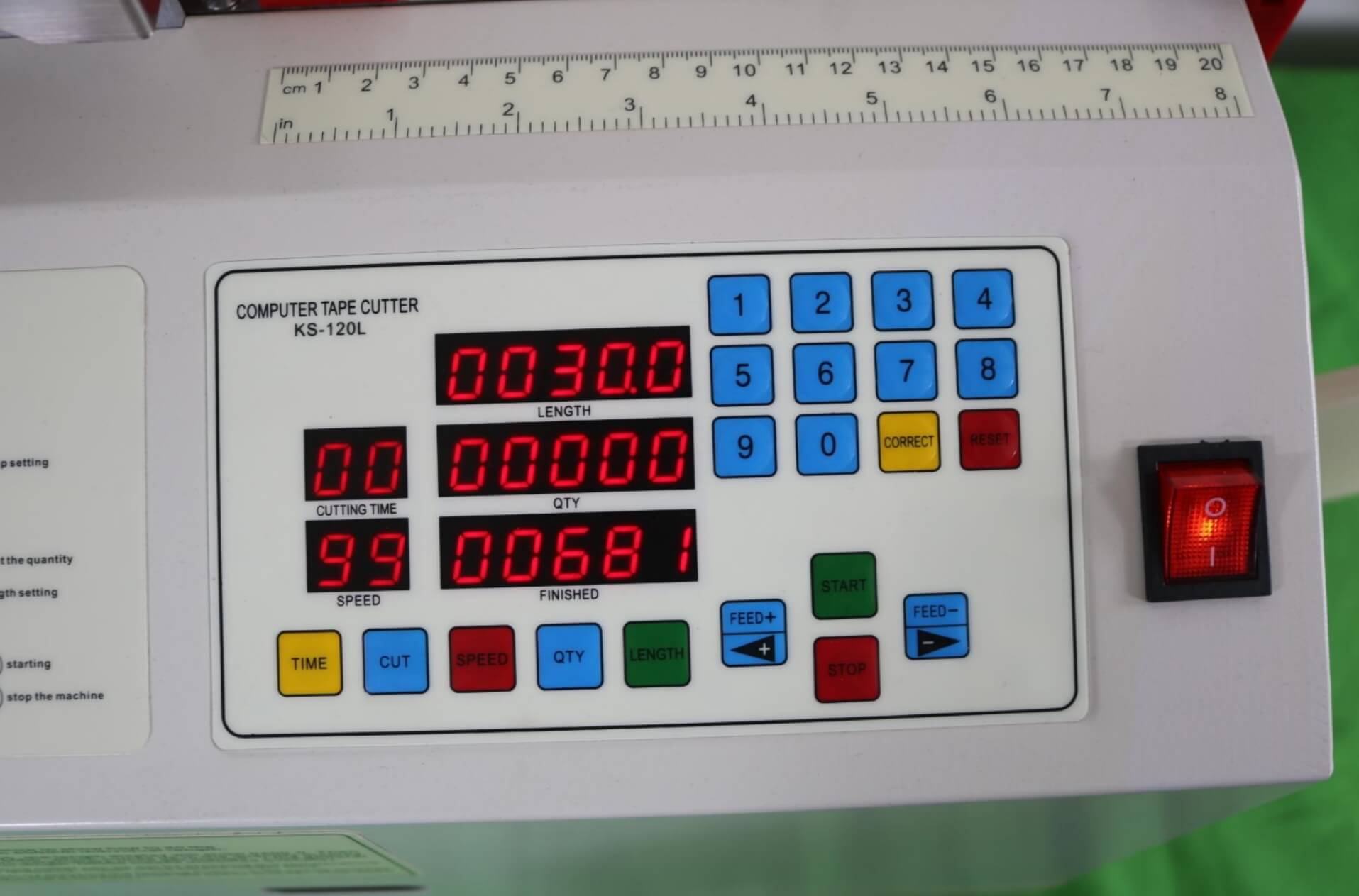

3, Operation screen , this adhesive velcro corner cutting machine applies operation screen which is easy to operate , customer can set the cutting length , total cutting quantity and also cutting speed based on production requirement .

operation screen

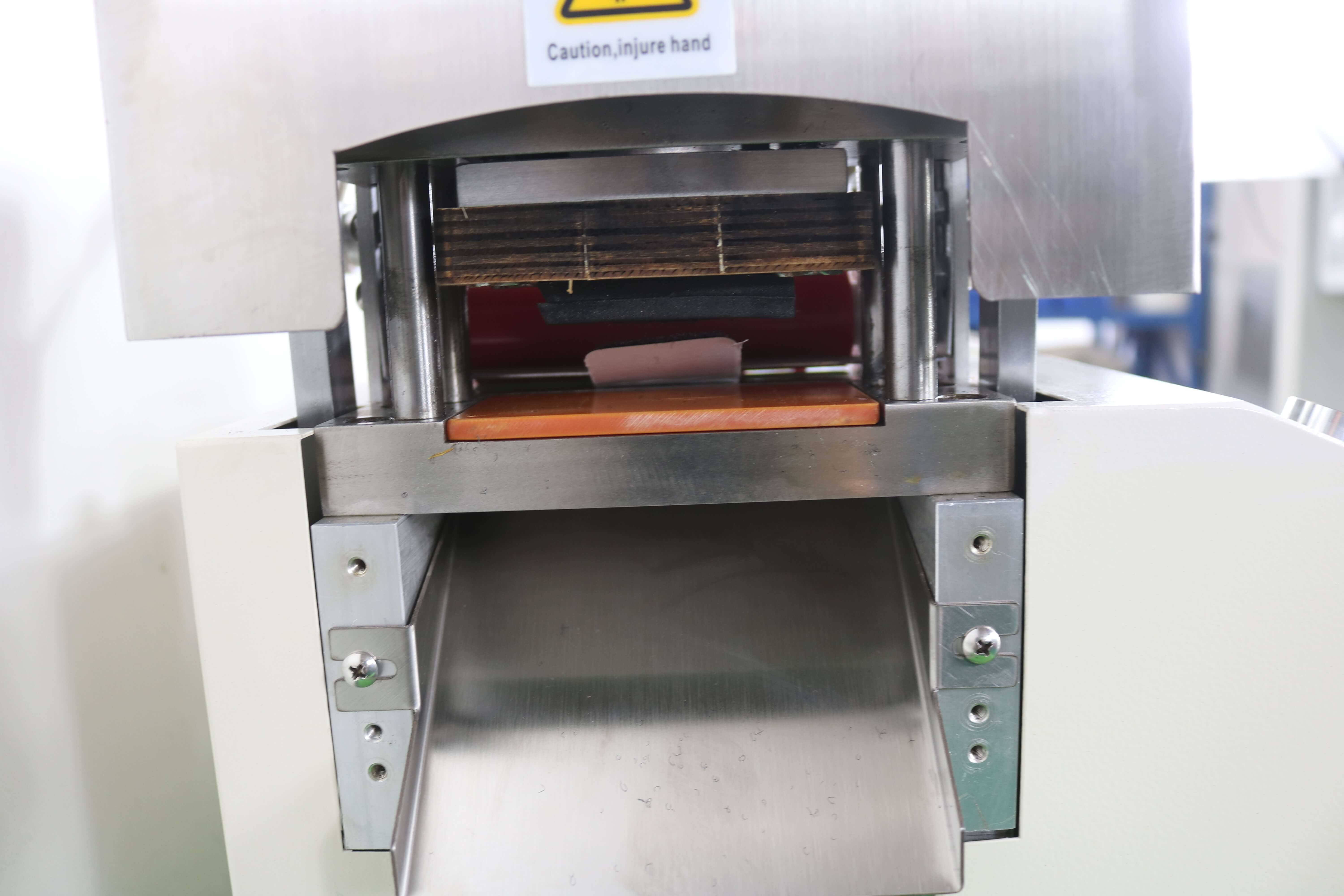

4,Alternate AC motor ,this round corner adhesive velcro cutting machine  uses AC motor for cutting which ensures stable working  performance of cutting process , the die cut velcro will be in standard shape and clean cut edge .

knife mold

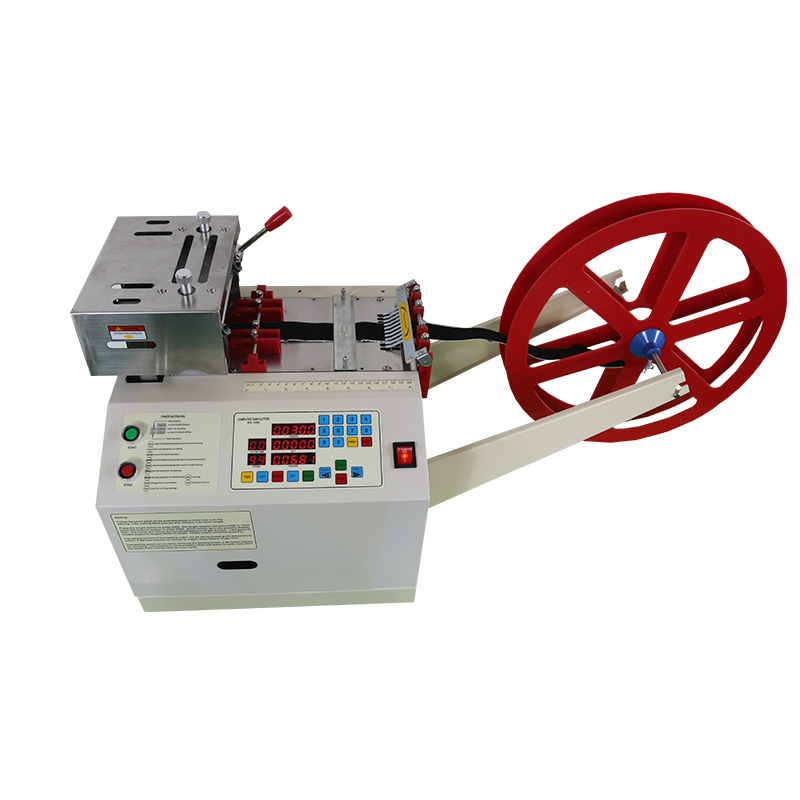

Front View



self adhesive velcro die cutter machine





Side View

adhesive hook and loop round corner cutting machine



Side View

adhesive velcro corner cutting machine









【Warranty 】

 As an adhesive backed velcro tape cutting machine  supplier , all the spare parts of the machine  will have one year of free maintainance by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice after on line diagnosis .



【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping
