Automatic tubing cutter machine ES-008
Automatic tubing cutter machine ES-008 Automatic tubing cutter machine ES-008

Automatic tubing cutter machine ES-008

  The automatic tubing cutter machine cutting machine ES-008  is made for cutting all kinds of tubing and cords OD range between 0-20 mm into desired cutting length. like EPDM , PVC ,PE silicon

Product Details
Brand ESMAI
Serial Number ES-008
Country of Origin China
Certificate CE
Payment & Shipping Terms
Price Quote Based on quantity
Minimum Order 1 SET
Average Delivery Time 7-10 days
Payment Method TT
Package Details 1SET/Wooden case
Ability to Supply 1000 Sets/ month

Automatic tubing cutter machine ES-008



The automatic tubing cutter machine cutting machine ES-008  is made for cutting all kinds of tubing and cords OD range between 0-20 mm into desired cutting length. like EPDM , PVC ,PE silicone tubings cords , PVC heat shrink sleeves ,elastic rubber bands  etc .

Usually silicone material is hard to cut into precise length  , We can also customise this automatic tubing cutter to cut  silicone /rubber tubings and cords  into precise length with electrical eye device .

We have two typies of ES-008 to choose from based on the tubing cutting OD ,   one is 0- 10 mm  , the other is 0-20mm

You can set the desired cutting length , total cutting amount and the machine will do the rest , proceed to automatic cutting sequence . the cutting speed can be also adjusted freely base on your production needs .

This automatic tubing cutter ES-008  features with automatic cutting ,labour saving and lever up production .

Notes : the machine is also called small tube cutting machine , medical tubing cutter , rubber tube cutting machine , pvc heat shrink sleeve cutter ,



automatic tubing cutter machine



【Product  Detail 】

1, Simple control board which  easy to operate  and teach staff to use the machine

2 ,Chinese and english language at switch

3, Delicate setting for cutting length , total cutting machine , cutting speed , batch amount and batch  stopping time



【Technical Data】

Model No.: ES-008

Brand :ESMAI

Product name : The automatic tubing cutter machine

Voltage: 220/110V  50/60HZ

Power:250W

Cutting Diameter: 0—10mm  or 0-20mm

Net Weight : 28KGS

Dimensions: L360:W300:H350mm



【Customised design 】

In contrast to the same cutting machine on the market, when the cutting length is over 300mm  , the cutting length will have tolerance ,

and the longer the cutting length , the bigger the length difference.

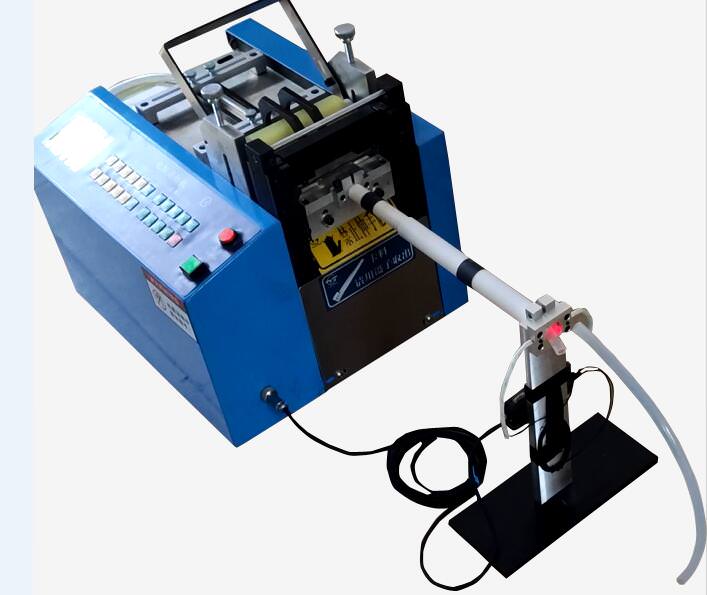

For this automatic cutting machine , it had been equiped with electrical eye , it manages to cut  silicone tubings&silicone cords into precise same length

however your cutting length which is within 1 meter. It will replace your current cutting method done manually ,save your labour and increase production efficiency

【Processing】

1,Connect the Electrical source and turn on the cutting machine ( The machine flank had a switch )

2,Load the cutting material  near the knife by press the " +" " _"button for adjustment , let the roller do the job.

3,Set the Cutting Length by press "SET"  then "LEN "button to set your target  cutting length.

4,Set the Cutting Amount by Press " SET" then "TOL" button to set your target cutting amount pieces.

5, Initiate the  Cutting Sequence by press "Run‘’button ,then the cutting machine will automatically cut your material into desired cutting length.

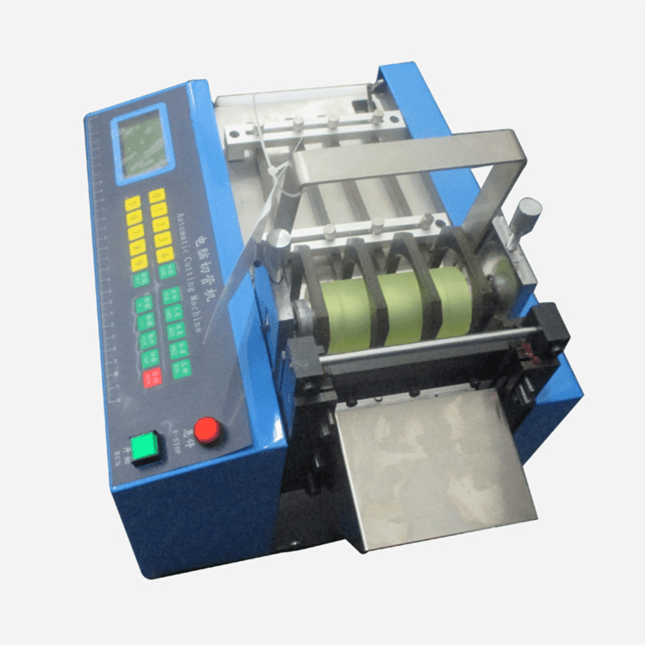

Front view

pvc heat shrink tube cutting machine

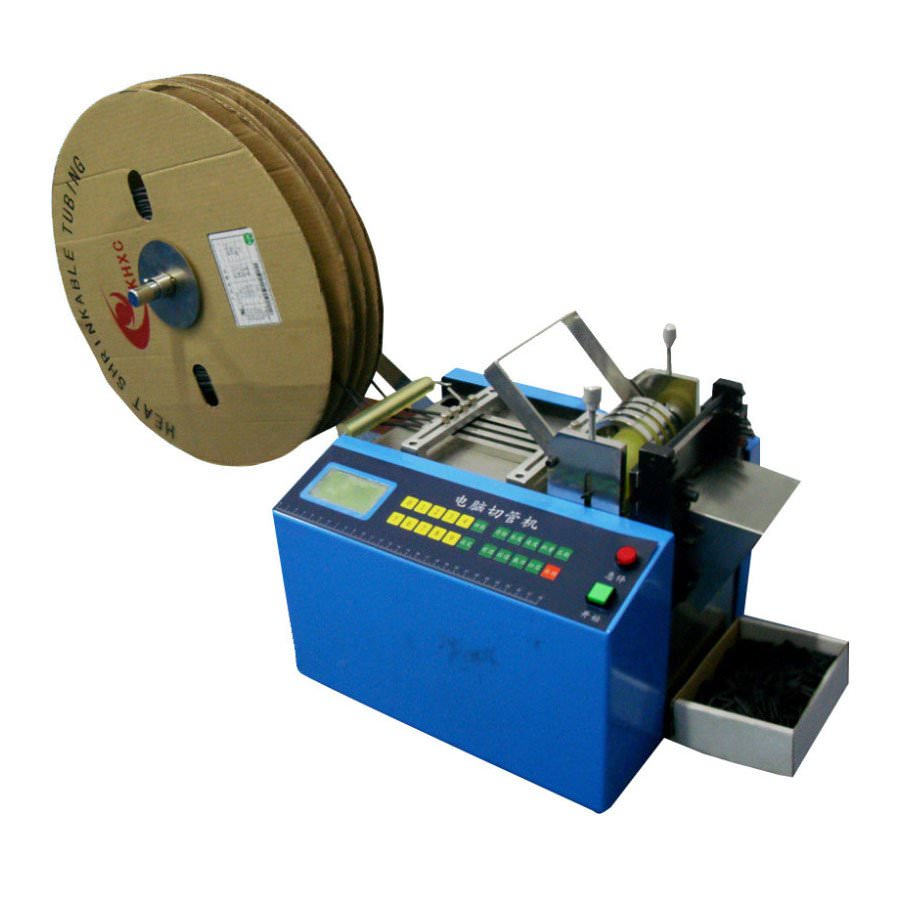

Side view

medical tube cutting machine



【Warranty】

All  the spare parts of automatic tubing cutter machine ES-008   except the knife will have one year of free maintainance by changing the spare parts for free

and free shipping of spare parts to overseas clients starting from the issuing date of commercial invoice  after on line diagnosis .



【Packing】

1SET/ CARTON  (Inside the carton will be packed with foam pading material to protect the machine goods)
