The automatic silicone tube profile cutter machine ES-082

Product Details
Brand ESMAI
Serial Number ES-082
Country of Origin China
Certificate CE
Payment & Shipping Terms
Price Quote Based on quantity
Minimum Order 1 SET
Average Delivery Time Production 2-4 days, delivery time 5-7 days by express
Payment Method TT
Package Details 1SET/CARTON
Ability to Supply 500 Sets/ month

The automatic silicone tube profile cutter machine ES-082



【Product Description】

The automatic tubing cutter machine cutting machine ES-008  is made for automatic cutting of all kinds of silicone tubes or extruded profile seals  into desired cutting length. it is also widely applicable to  cut extruded  rubber tubings , EPDM , PVC ,PE  tubings , PVC heat shrink sleeves ,elastic rubber bands  etc .

This silicone profile tube automatic cutter machine cuts silicone tubing OD ranges 0- 18mm , the cutting length ranges 1mm- 99999.99mm , the cutting speed and total cutting amount , batch amount ,batch interval time can all be set delicately based on customer requirement .

Customer can set the desired cutting length , total cutting amount and the machine will do the rest , proceed to automatic cutting sequence and requires no baby sitting as when cutting material runs out , the machine will trigger the alarm so workers can know and put on new cutting material .

This silicone extruded tube seals cutter machine  ES-082   features with wide application to all kinds of extruded tubings ,sleeves or cords and  automatic cutting ,labour saving and lever up production .

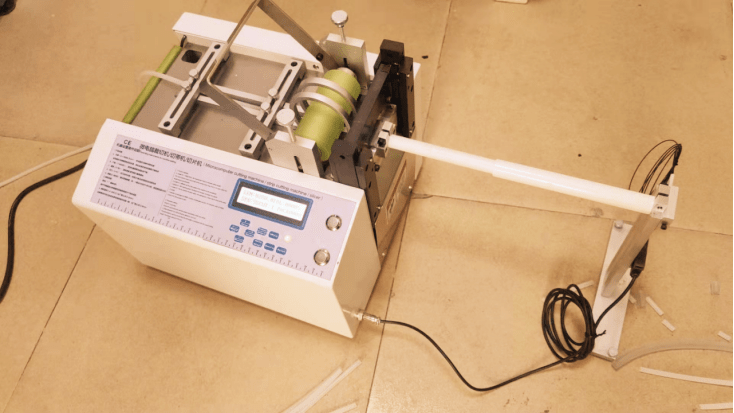

The automatic silicone tube profile cutter machine

Youtube video



【Product advantage 】

1, Same cutting length , the cutting length will be the same as what sets on the cutting machine .

2, Vertical straight cutting finish , the fixture bars will lead the extruded silicone straight foward  and avoid swaying .

3,Wide application to silicone extruded tubings &profiles &seals



【Product  Detail 】

1,Directing fixtures , which ensures multi extruded silicone pieces can be processed at one time

to increase productivity.

directing fixture

2 ,Sensor equiped at tail of the machine , if cutting material runs out , it will trigger the alarm and let workers

put on new cutting material in a timely manner

sensor device

3,The top screws can adjust the roller pressure for cutting different sizes of extruded silicone and

the roller can be lifted by pressing down the handle.

adjusting screws

4, Simplified control board , easy to operate and teach staff to use , delicate setting for cutting length ,

total cutting amount , cutting speed , batch amount and batch  stopping time

simple control boards

5,Heat dispersing fans , the rubber washer cutting machine  is equiped with heat dispersing fans

which constantly disperse heat during working and ensures long hours working and life span of the machine

heat dispersing fan

【Technical Data】

Model No.: ES-082

Brand :ESMAI

Product name : The automatic silicone tube profile cutter machine

Voltage: 220/110V  50/60HZ

Power:250W

Cutting Diameter: 0-18 mm

Cutting length : 1mm- 99999.99mm

Net Weight : 28KGS

Dimensions: L360:W300:H350mm



【Customised design 】

In contrast to the same cutting machine on the market, when the cutting length is over 500mm  , the cutting length will have a little tolerance ,

and the longer the cutting length , the bigger the length difference.

For this automatic cutting machine , it  can also be equiped with electrical eye , it manages to cut  silicone tubings&silicone cords into exact precise same length

however your cutting length which is within 1 meter. It will replace your current cutting method done manually ,save your labour and increase production efficiency

cutter machine

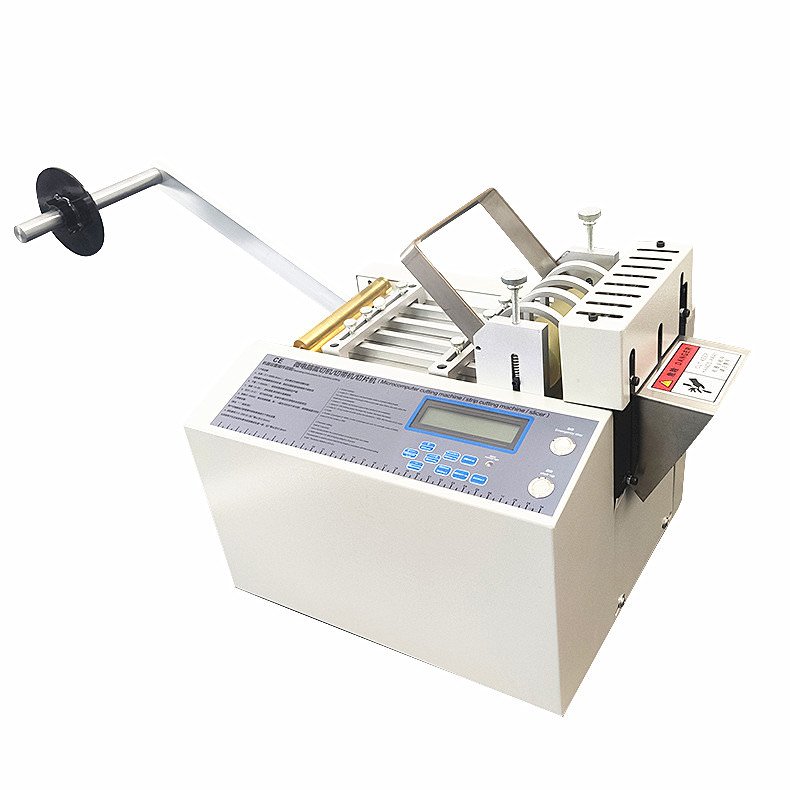

Front view

automatic silicone tube cutter machine

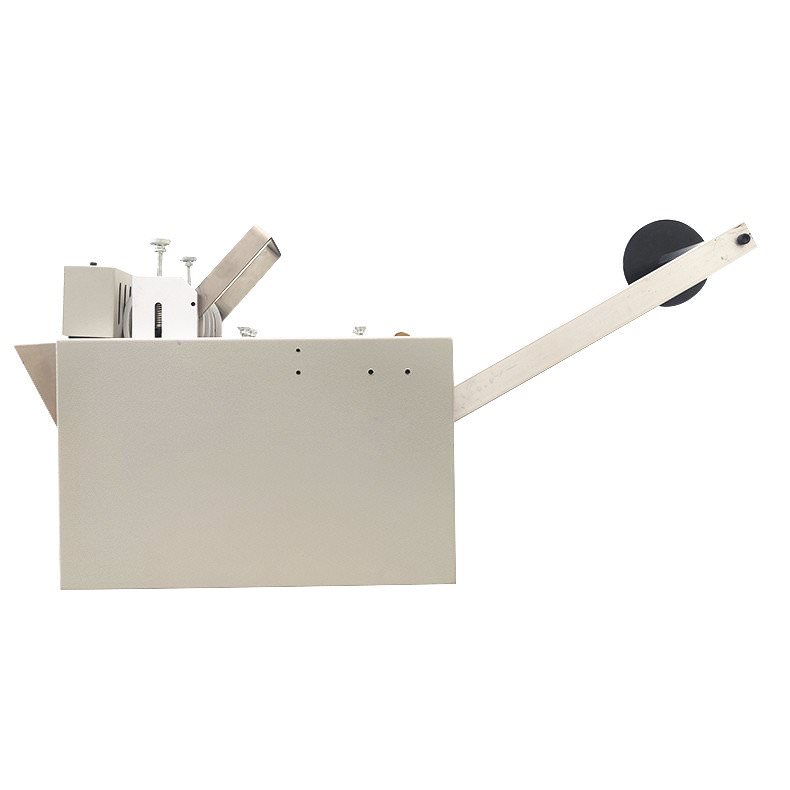

Side view

silicone profile tube automatic cutter machine

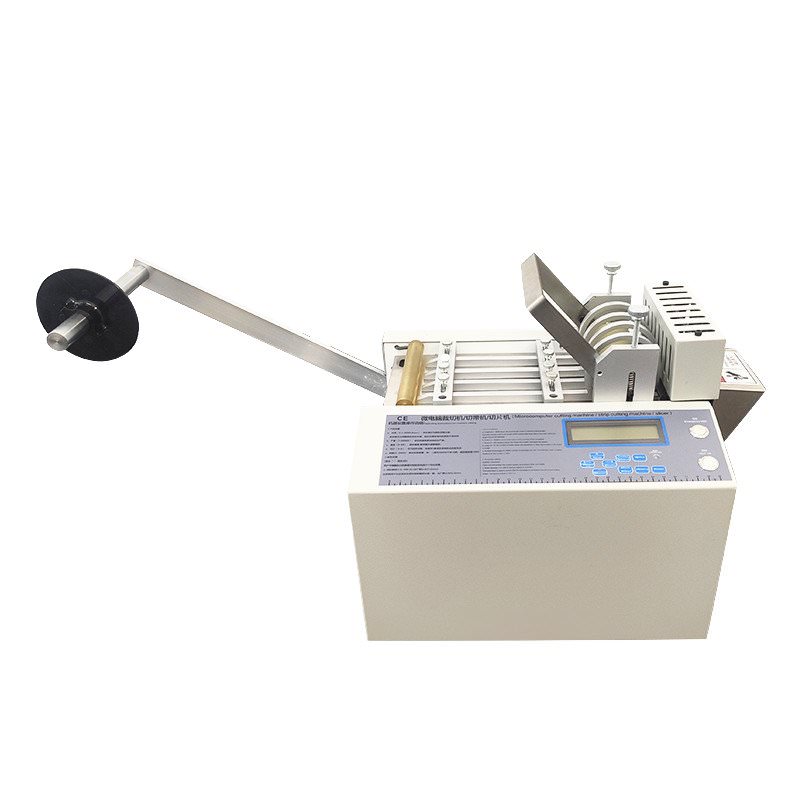

Side view

siliocne extrusion seals cutter machine

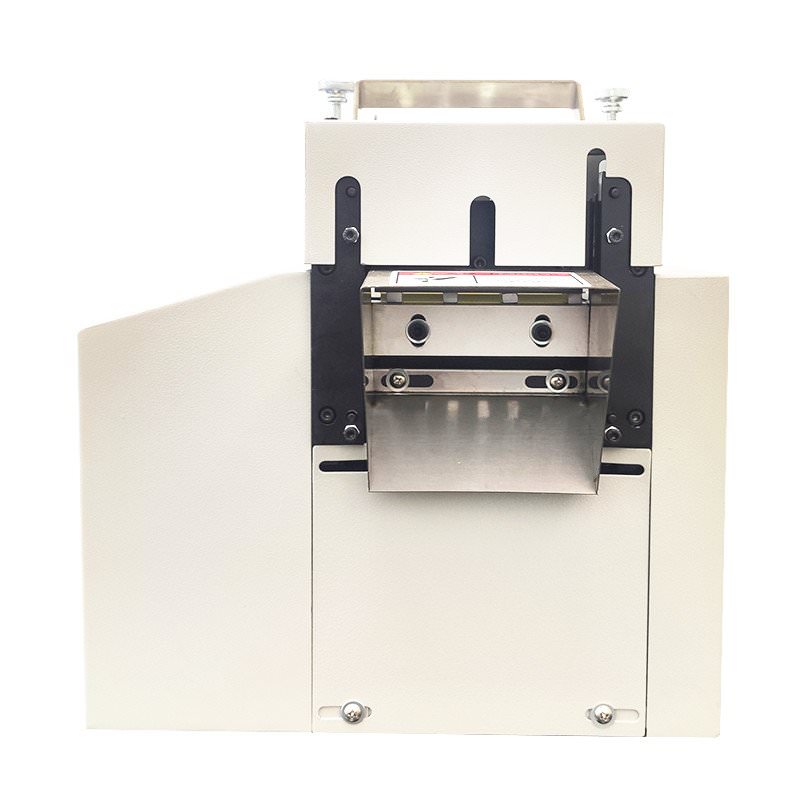

Back view



silicone extruded seals cutter machine



【Warranty】

All  the spare parts of the automatic silicone tube profile cutter machine  ES-008   except the knife will have one year of free maintainance by changing the spare parts

for free and free shipping of spare parts to overseas clients starting from the issuing date of commercial invoice  after on line diagnosis .



【Packing】

1SET/ CARTON  (Inside the carton will be packed with foam pading material to protect the machine goods)
