Automatic precision silicone tubing cutter machine ES-081

Automatic precision silicone tubing cutter machine   ES-081

【Product Description】

The automatic precision silicone tubing cutter machine  ES-081 is designed specially for automatic cutting silicone tubes with high precision cutting length .

This silicone tubing accurate length cutting machine combines automatic feeding silicone tubing material and cutting silicone tubes precisely into length in one machine to gurantee cutting length precision .

It applies with double transport belts which can adjust belt band distance to hold and transport different size silicone tubings , the double transport belt bands also had big contacting surface with silicone tubing material to avoid slipping and enhance cutting length precision . the cutting length precision is +_3mm for cutting 1 meter length silicone tubings

Youtube video

This silicone tubing accurate length cutting machine is equipped with 4 sets of 57 stepping motors which gurantees stable performance , it is also equipped with touch screen which is easy to operate .

The cutting length ranges 1mm- 99999mm , the cutting diameter  ranges 1 mm- 16mm, the machine speed is adjustable based on production requirement ,the average output is 4800pcs per hour based on 300mm cutting length of silicone tubes

Say goodbye to manual cutting , The ES-081 silicone tube cutter machine  automates feeding silicone tubes and cut silicone tubes into precise length in one machine which is labour saving and high productivity

【Technical Data】

Product name : Automatic precision silicone tubing cutter machine

Model No.: ES-081

Function : Automatic feeding material +precision cutting length

Main advantage : Cutting edge straight + Cutting length precision

Transporting method : Belt band transporting

Voltage：220V 50/60HZ

Motor type :57 Stepping motor of 4sets

Operation system: PLC Touch screen

Cutting length : 1mm-99999mm

Maximum cutting diameter : 16mm (can be extended )

Cutting Precision: +-3mm for 1meter cut length

Machine speed: 80pcs/min (300mm length example)

Machine Productivity : 4800pcs/Hour

Machine N.W : 40KG

Machine dimension :  L*W*H420*820*650mm

【Product Advantage】

1,Automatic feeding material +precision cutting tubing into length
in one machine

2, Precise same cutting length and straight cutting edge ,cutting Precision: +-3mm for 1meter cut length

3, High productivity of 4800pcs/Hour based on 300mm cutting length as example

【Product Details】

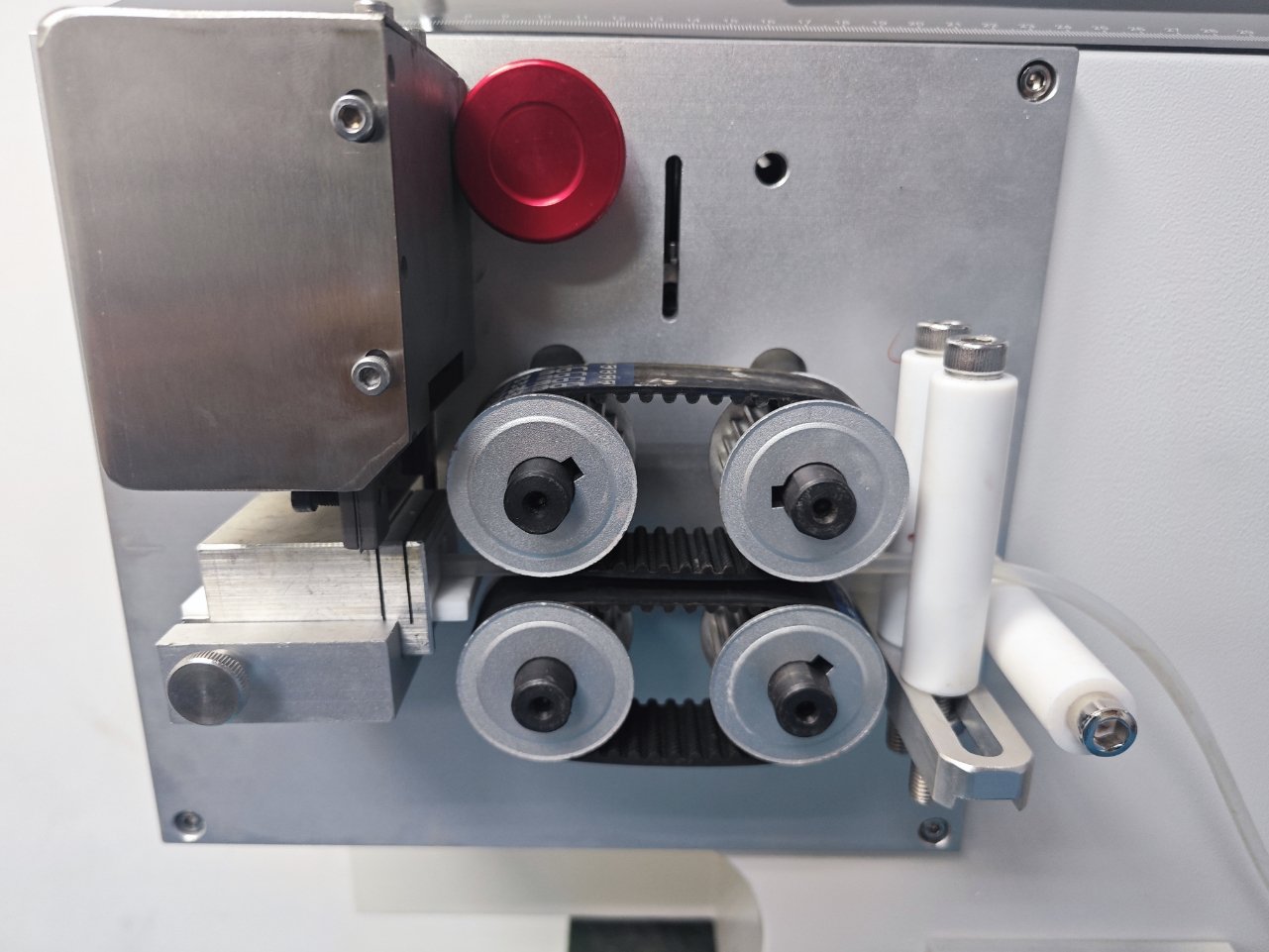

1,Double transport belt bands , this silicone tube precise length cutting machine applies with double transport belts

which had larger contacting surface with tubing material compared to roller transporting method which avoids slipping

and mataintains cutting length precision . the double transport belt bands distance can also be adjusted to hold different

OD size tubings which wide application

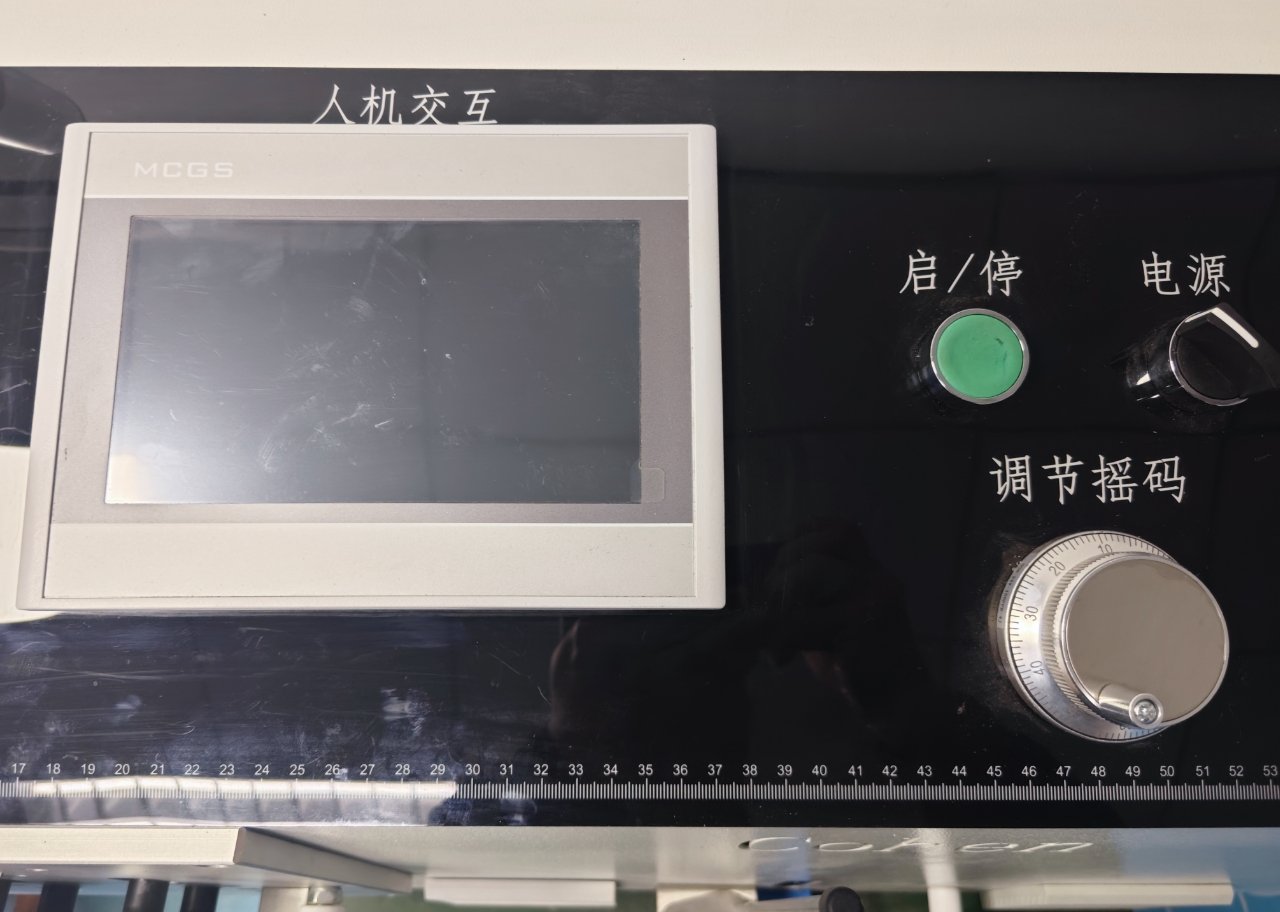

2,Touch screen control   this silicone profile cutting machine  applies with touch screen

control which is easy to operate , customer can set cutting length , working speed ,etc .

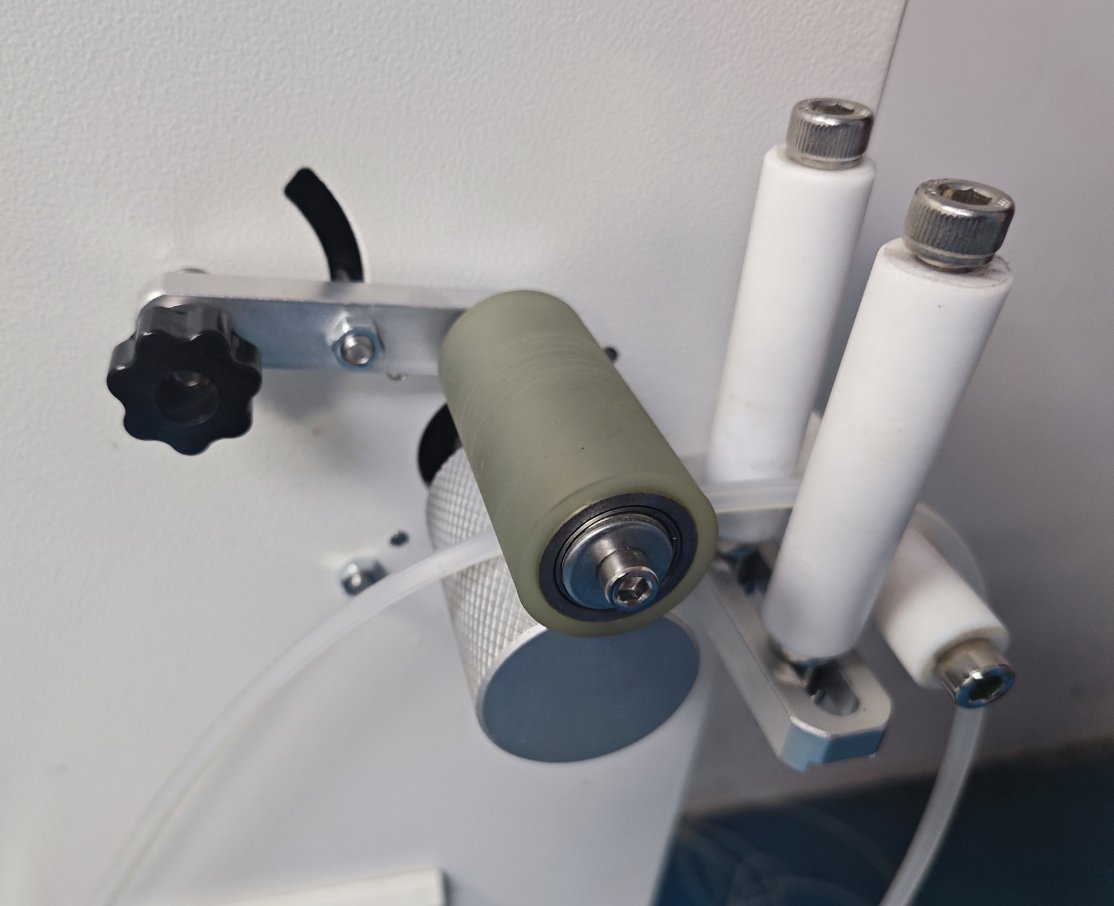

3, Feeding device  ,this silicone strip cutting machine also had been equipped with feeding device

that can feed silicone tubing material automatically to the cutting knife for cutting which avoids

pulling and gurantees cutting length precision .

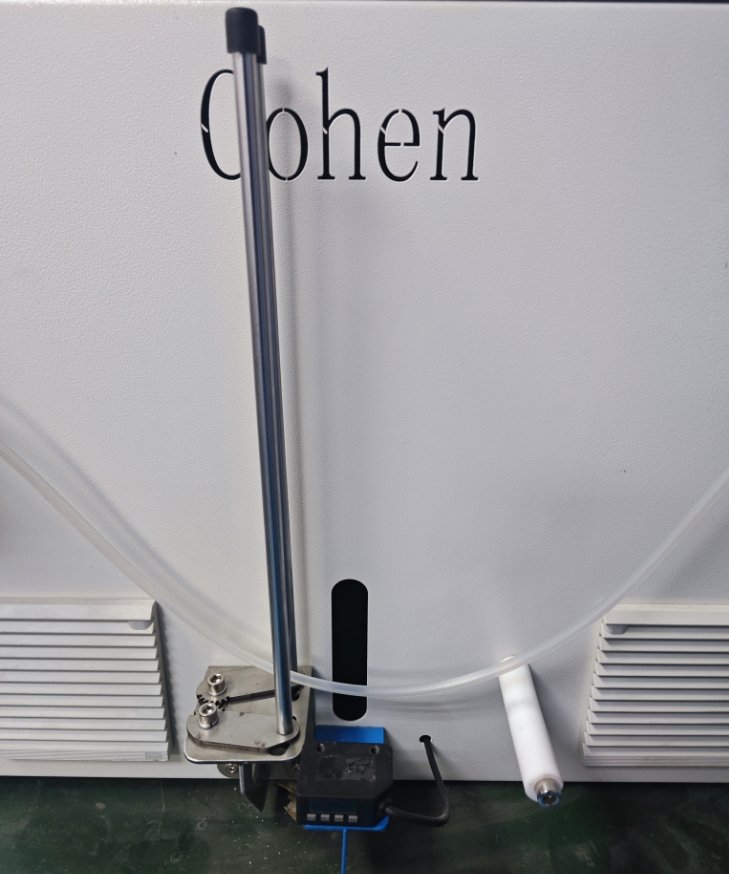

4,Sensor to sense matrerial , the silicone tubing material will pass under the sensor device , the sensor device

can sense the material when the material gets down and signal the feeding device to feed more silicone tubing

material

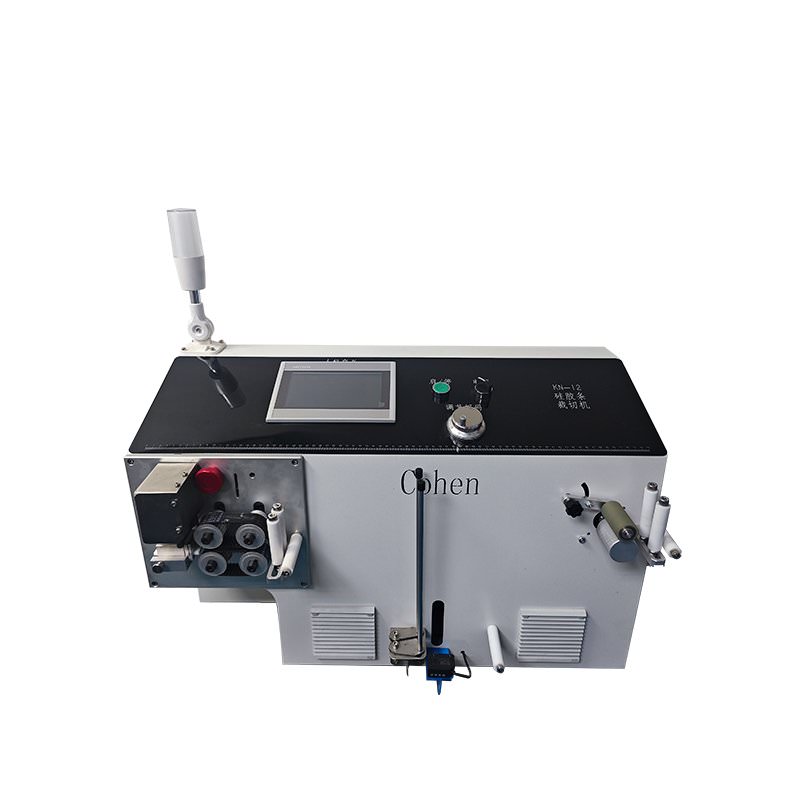

Front View

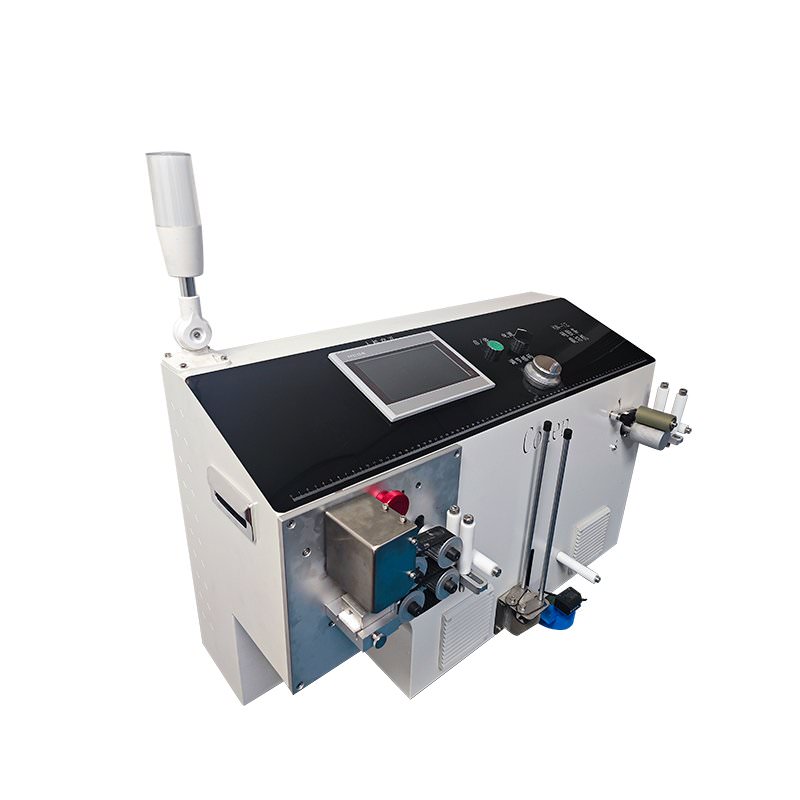

Side View

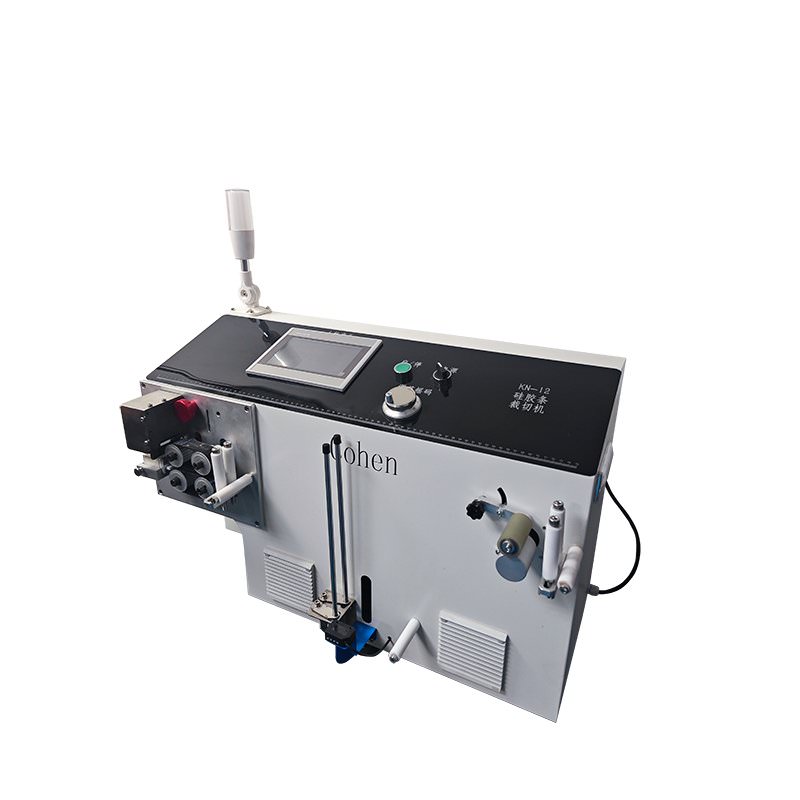

Side View

【Warranty 】

 As an automatic precision silicone tubing cutter machine supplier , all the spare parts of the machine  will have one year of free maintainance

by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice

after on line diagnosis .

【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping
