Silicone tube roll winding and ranking machine

Product Details
Brand ESMAI
Serial Number ES-054
Country of Origin China
Certificate CE
Payment & Shipping Terms
Price Quote Based on quantity
Minimum Order 1 SET
Average Delivery Time Production 7-10 days, delivery time by sea
Payment Method TT
Package Details 1SET/WOODEN CASE
Ability to Supply 100 Sets/ month

Silicone tube roll winding and ranking machine  ES-054

【Product Description】

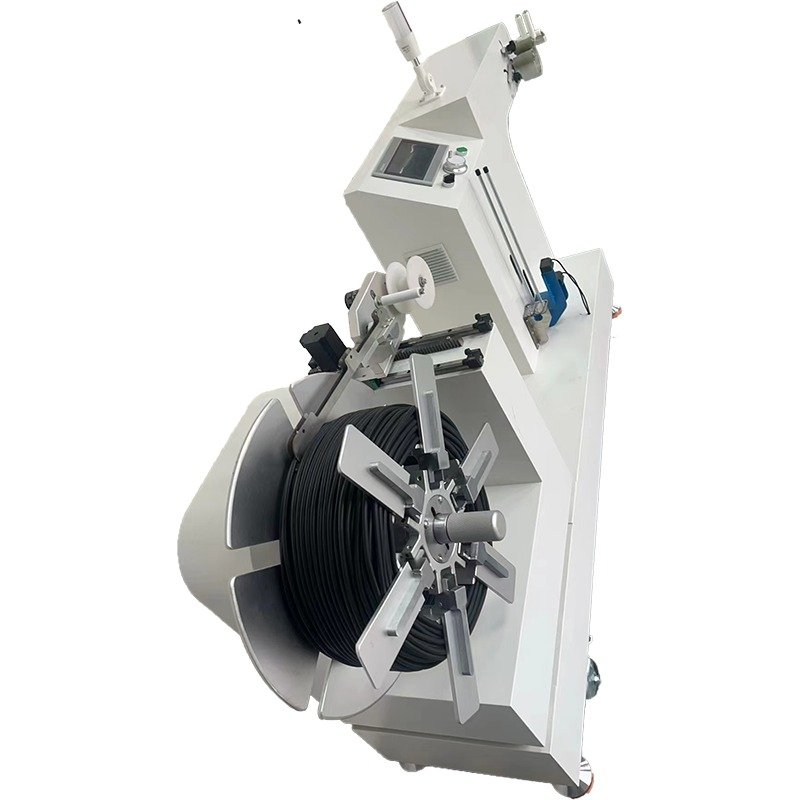

The silicone tube roll winding and ranking machine ES-054 is designed for automatic winding and ranking silicone or rubber tubes  into roll form and in good order .this silicone tube roll coiling and ranking machine also applies with prefeeding devices which can feed silicone rubber tubes automatically for winding process .the ranking  device can go left and right to rank silicone tubes on the same horizon which allows the silicone rubber tubes are winded in good order.

Silicone tube roll winding and ranking machine



Youtube video



This silicone tube roll winding machine applies with PLC touch screen which will be easy to operate the machine , the winding length ranges 1- 50 meters based on the size silicone rubber tubes . the winding silicone tube OD ranges 1-20mm , the maximum tube winding roll OD is 500mm , the ranking width is 150mm at maximum ,the ranking width can be adjustable .

This silicone tube roll winding and ranking machine can also weigh the silicone tubes rolls after winding to know the weight and also it can count meters to record how many length silicone tubes had been coiled . the machine achieves productivity of 15-20Rolls/Hour  based on 50meters per roll which is high productivity and labour saving to wind it manually .



【Technical Data】

Product name : Silicone tube roll winding ranking machine

Model No.: ES-054

Function : Prefeeding +auto ranking and winding +weighing winded rolls +Count meters

Advantage : Automatic winding silicone tube into roll with ranking in good order

Voltage:220V

Machine power:800W

Operating system:PLC touch screen

Winding motor type:Stepping motor

Winding length : 1-50 meters (based on tube size )

Winding silicone tube OD: 1-20mm

Maximum winding tube roll diameter:500mm

Tube roll adjustable ID :150-230mm

Ranking width:150mm

Productivity: 15-20Rolls/Hour , based on 50meters per roll

Machine N.W:135KG

Machine dimension:1580mmX650mmX1300mm



【Product Advantage】



1,Prefeeding silicone rubber tubes ,automatic winding and ranking the silicone tubes into good roll form


2,Weighing and count meters  , the machine can weigh the silicone tube rolls to know its roll weight

it can also count meters



3,Adjustable winding speed , high productivity and labour saving to wind manually



【Product Details】

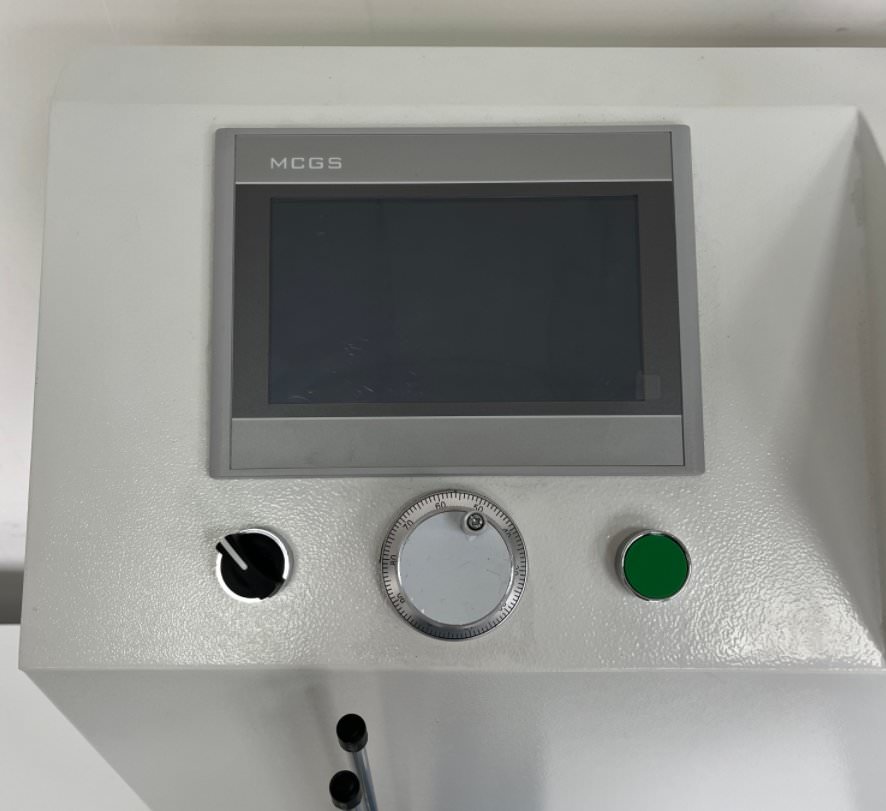

1,PLC Touch screen , this silicone tube roll coiling and ranking machine applies with plc touch screen controls which customers

can set the winding length , winding speed and other prameters on the machine .

plc

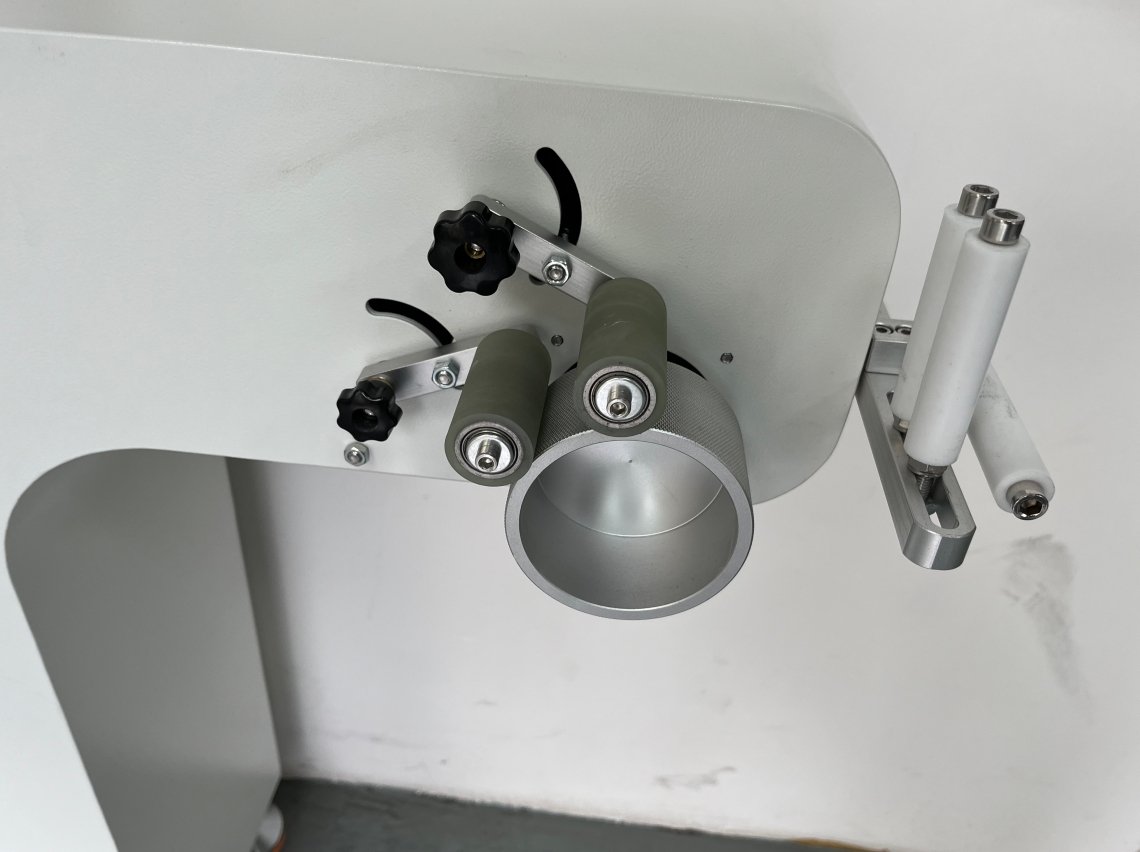

2,Prefeeding material, the prefeeding system applies with feeding rollers and fixtures ,it will receive signal from the

sensors , once it receive signal from the sensors ,it will start to feed silicone tube material to winding system for good

winding purpose which avoids pulling and tension in the winding process .

prefeeding

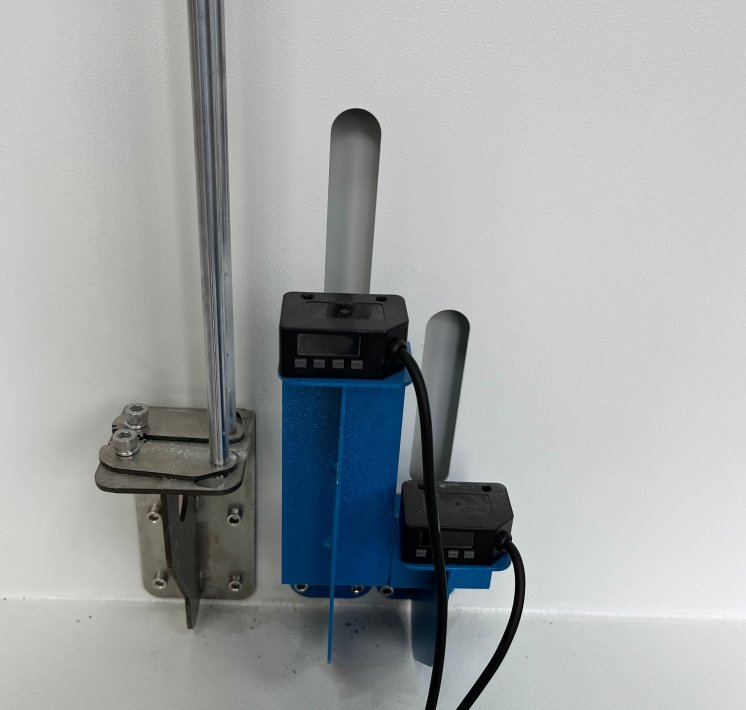

3, Sensors , the silicone rubber tubes will pass through the sensors , when the silicone rubber tubes drops down

to touch the sensors , the prefeeding system will work and feed silicone rubber tubbes automatically . it avoids

pulling and tension which ensures the winding length had small length tolerance .

sensor

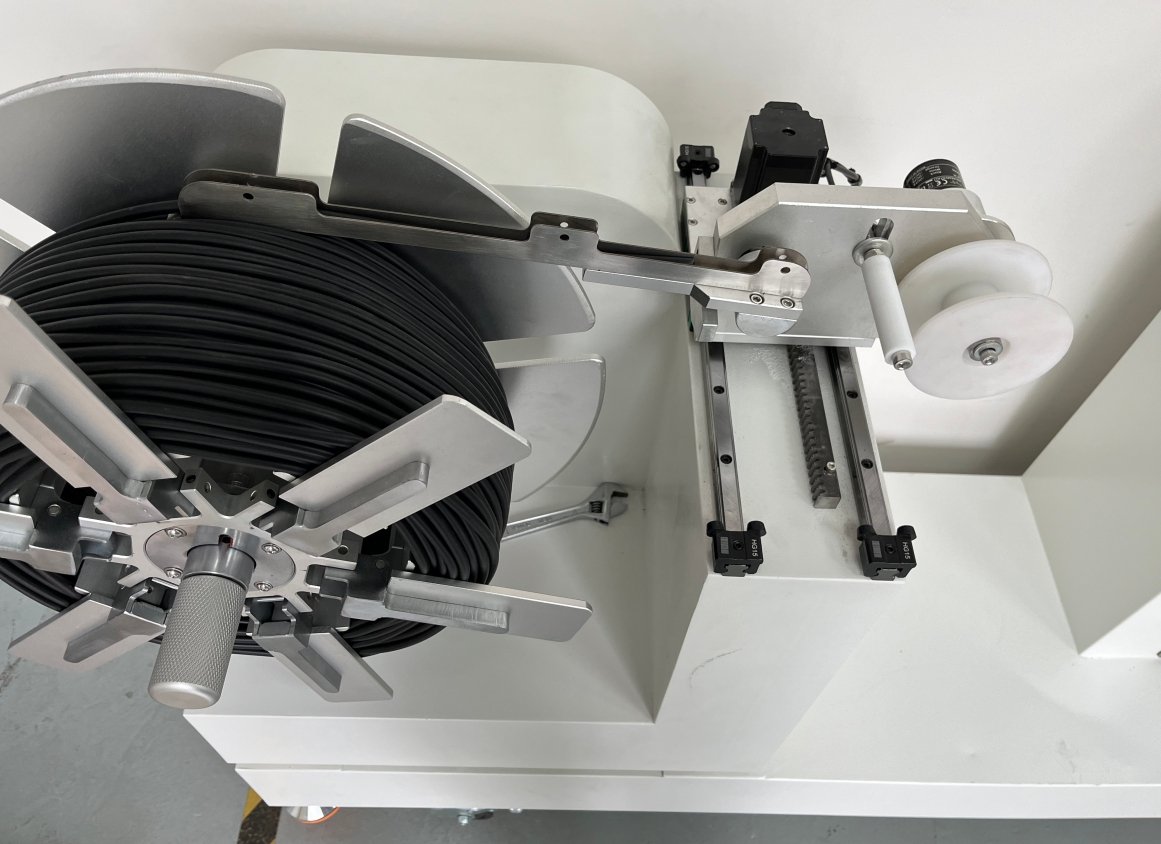

4,Winding and ranking silicone tube into roll  ,the rubber tube roll winding machine ES-059 can wind and also rank

the silicone or rubber tubes on the same horizon in good order , the maximum ranking width is 150mm

ranking

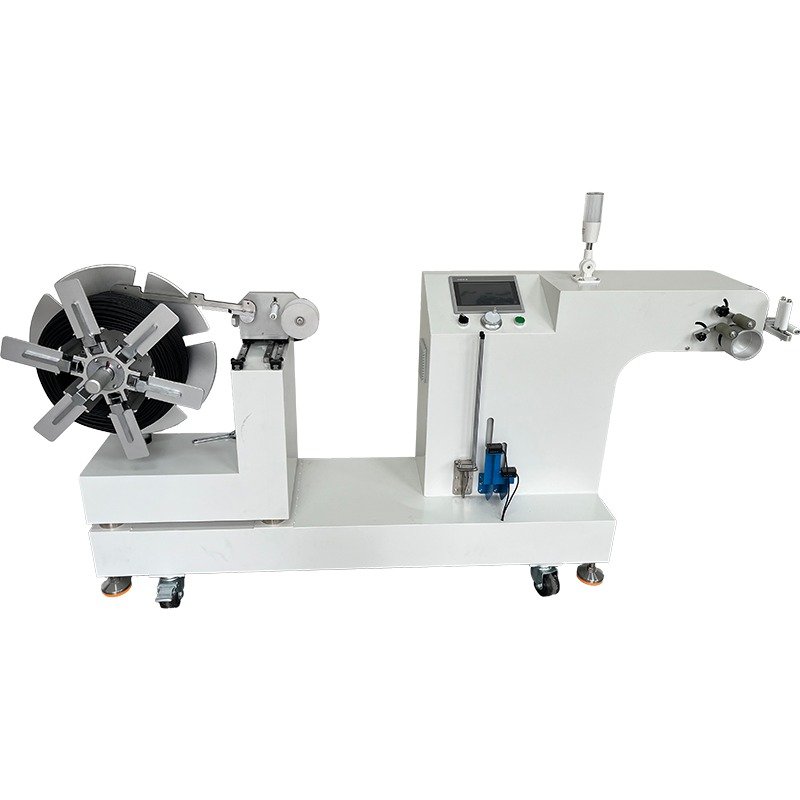

Front View

silicone tube roll coiling and ranking machine

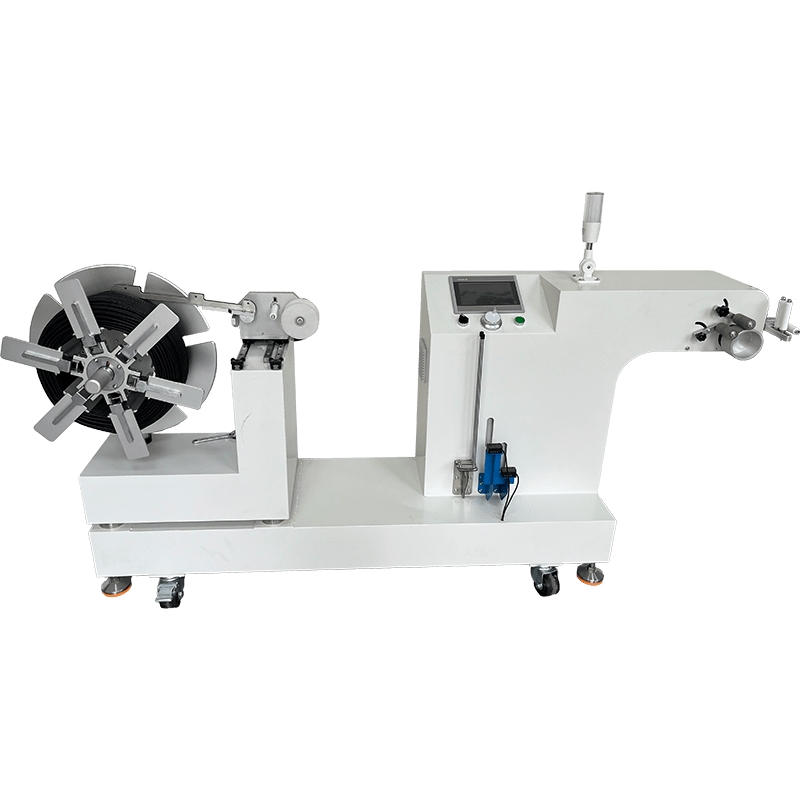

Side View



silicone tube roll winding machine

















【Warranty 】

 As a silicone tube roll winding and ranking machine supplier , all the spare parts of the machine  will have one year of free maintainance

by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice

after on line diagnosis .



【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping
