Silicone rubber washer lathe cutting machine ES-102

Silicone rubber washer lathe cutting machin ES-102

【Product Description】

TheSilicone rubber washer lathe cutting machin ES-102 is designed for automatically cutting washers with smoth and straight cutting edge making high quality nice washers and gaskets, this washer automatic cutting machine is widely applicable to silicone or rubber tubes ,sleeves and other tubing materials.

The machine applies with PLC touch screen which is easy to operate and fitted with high power stepping and servo motor which support the high speed rotation of the main axis which holds the rubber material rotate fastly and also support the stable performance of  knife rotation .  the smooth and straight cutting edge of the washers attributes high speed rotation of the main axis and knife  as well and precision control the knife movement.

The size of fixture stick which support and holds the tubing material can customised based on customer's cutting material sizes . customer is welcome to send their actual material sample ,we will customise the size fixture stick for our customers .

The silicone rubber washer automatic cutting machine  also had been equipped with a pusher that can pushes out the finished cut material automatically which saves labour.

Youtube video

【Technical Data】

Product name :  Silicone rubber washer lathe cutting machin                                 Maximum cutting material wall thickness : 10mm

Brand : ESMAI                                                                                                          Motor :  High precision stepping motor &Servo motor

Model No.: ES-102                                                                                                   Voltage: 220/110V , 50/60HZ

Application  : Lathe high speed rotation cutting washers                                       Power:  Two phaze 1.5KW

Knife material :  Mold steel knife                                                                             Maximum cutting length(width):160mm

Main axis speed : 1440R/Min                                                                                   Feature :  Automatic cut washer+push out cut washer

ID range (fixture stick support cutting material) :Customise(15-51mm)                 Net Weigth : 98KG

Touch screen control system : PLC+touch screen                                                   Product dimension   :  880*950*980mm (L*W*H)

【Product Advantage】

1, Wide application to all kinds of silicone or rubber tubings ,sleeves to make nice and high quality  gaskets washers .

2, Smooth and straight cutting edge  of finished cut washers with high speed main rotation axis which holds the cutting material and high quality steel knife

3, Self pushing out the finished cut washers without taking them out manually which is labor saving .

【Product Detail 】

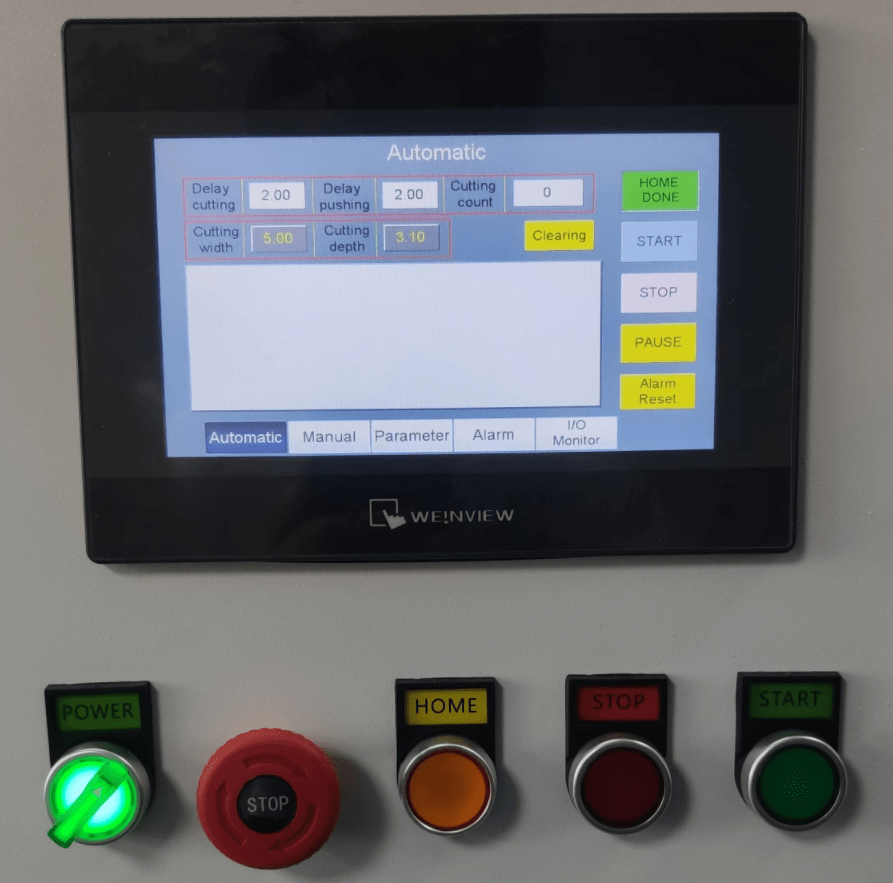

1,Easy to operate touch screen  , the rubber washer cutting machine is applied with touch screen whish is easy to operate ,

customer set knife start cutting position , knife cutting depth ,cutting width , total cutting amount easily on the machine

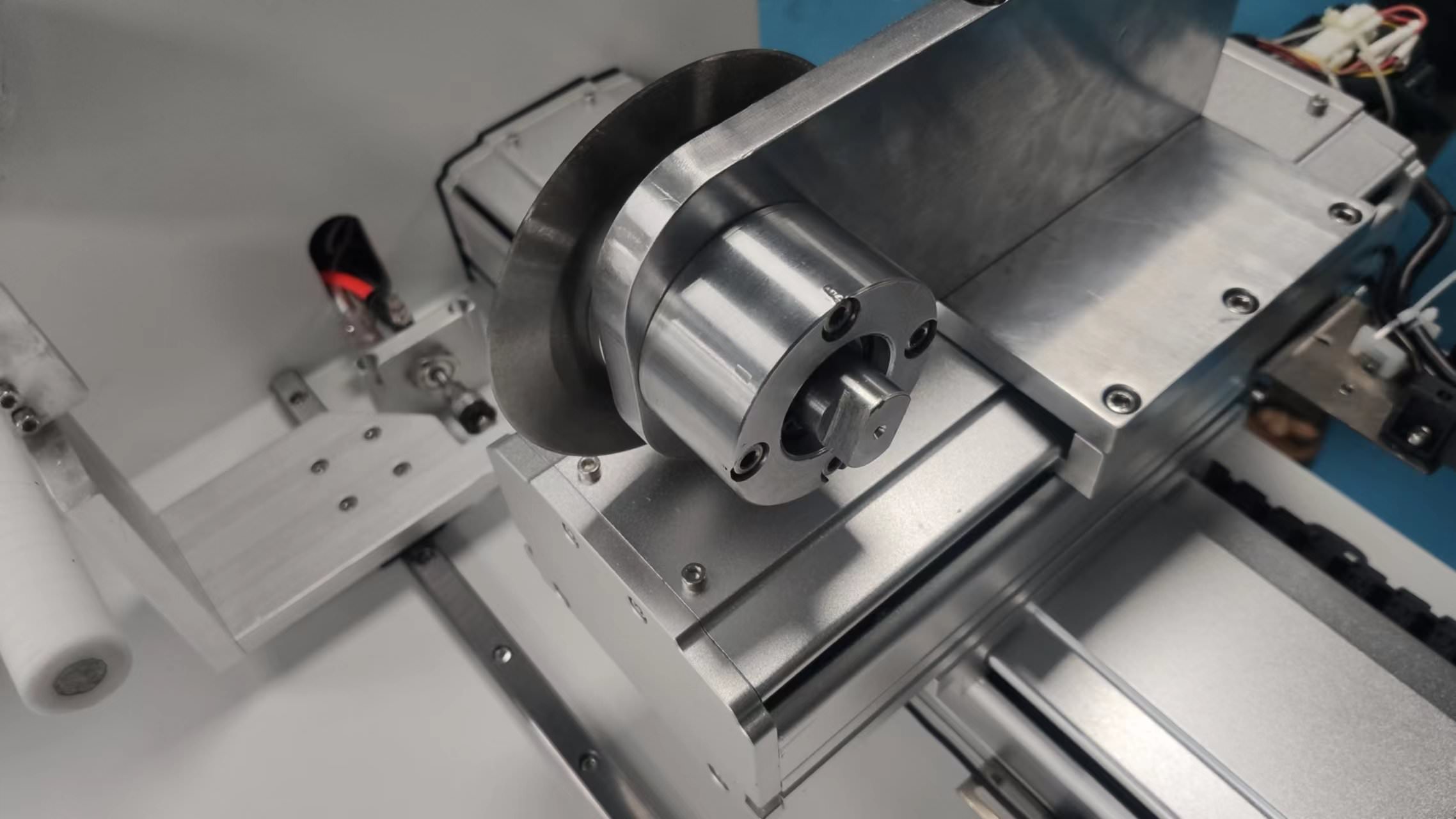

2, Rotation knife  ,the machine applies high quality stainless steel round knife with rotation movement driven

by the high power motor to cut straight and smooth washer .

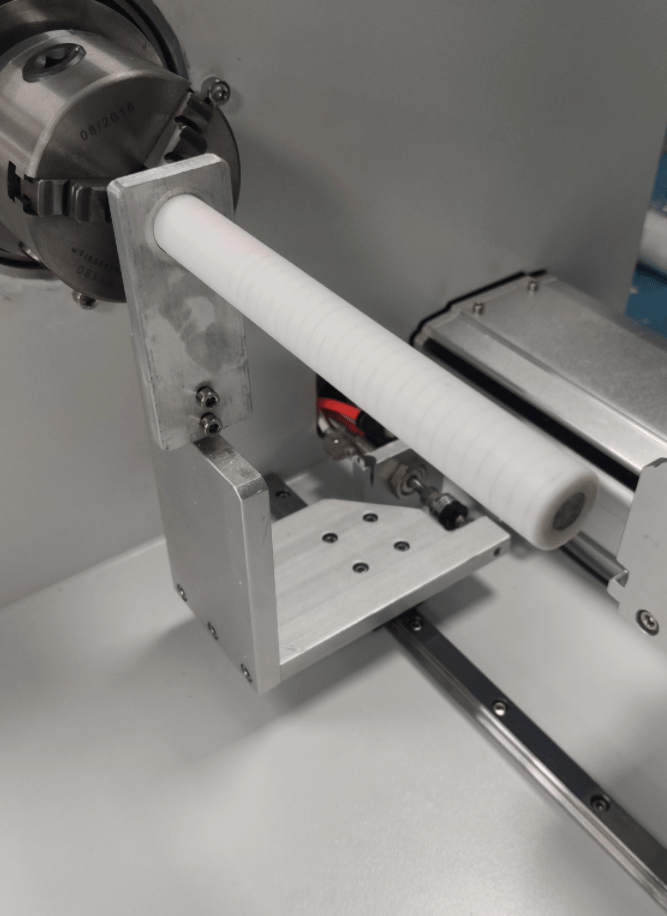

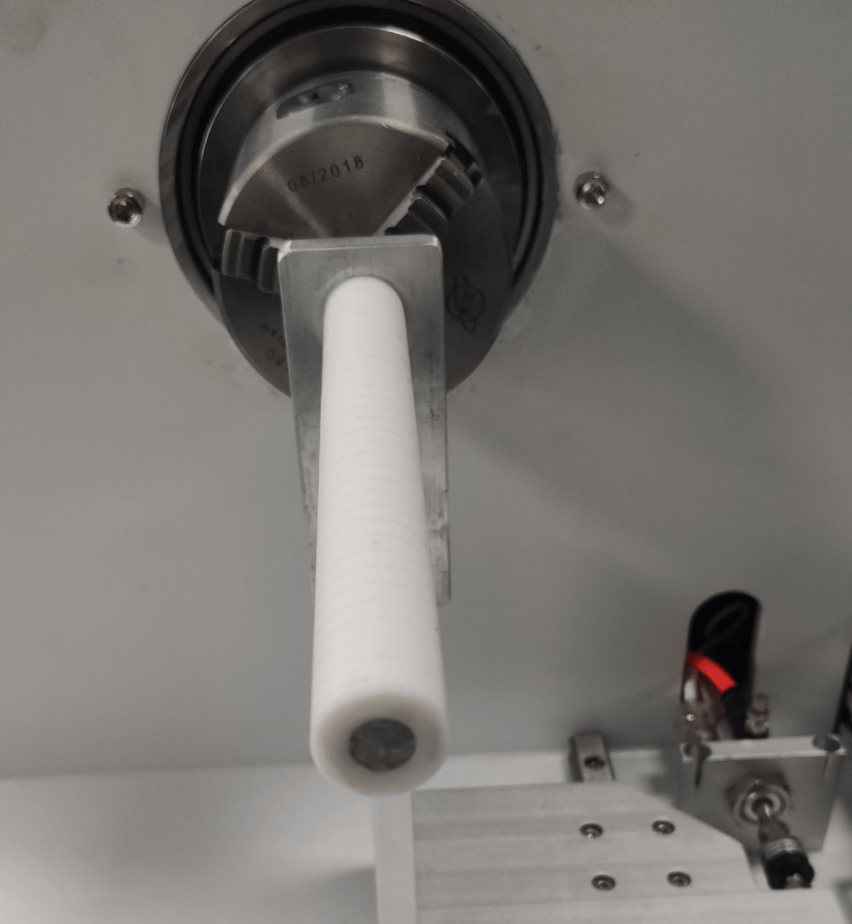

3,Stick fixtures  ,the white stick fixtures can be customised to different sizes as rubber tube&sleeve is in different  size from customers .

the white stick fixture is important to hold and support the rubber tubing&sleeves from inside ,a little tight but not too much

to ensure cutting quality .

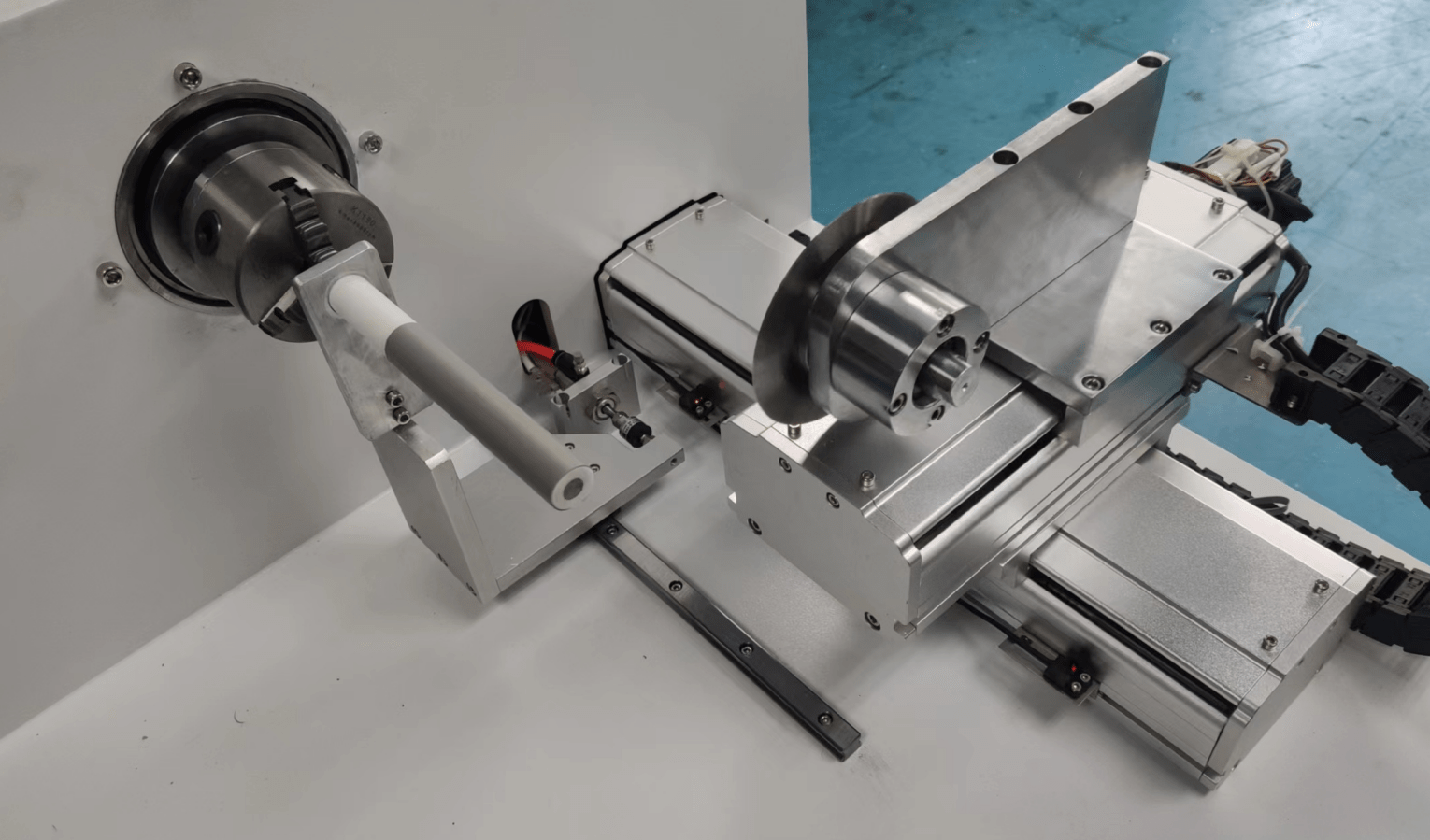

4, High speed Main axis rotation    ,the main axis which holds the cutting material can rotate in high speed of 1440R/min

which gurantees cutting edge straightness and smoothness .

5, Pusher , the pusher can push out the cutting material automatically without taking them out manually which is labour saving

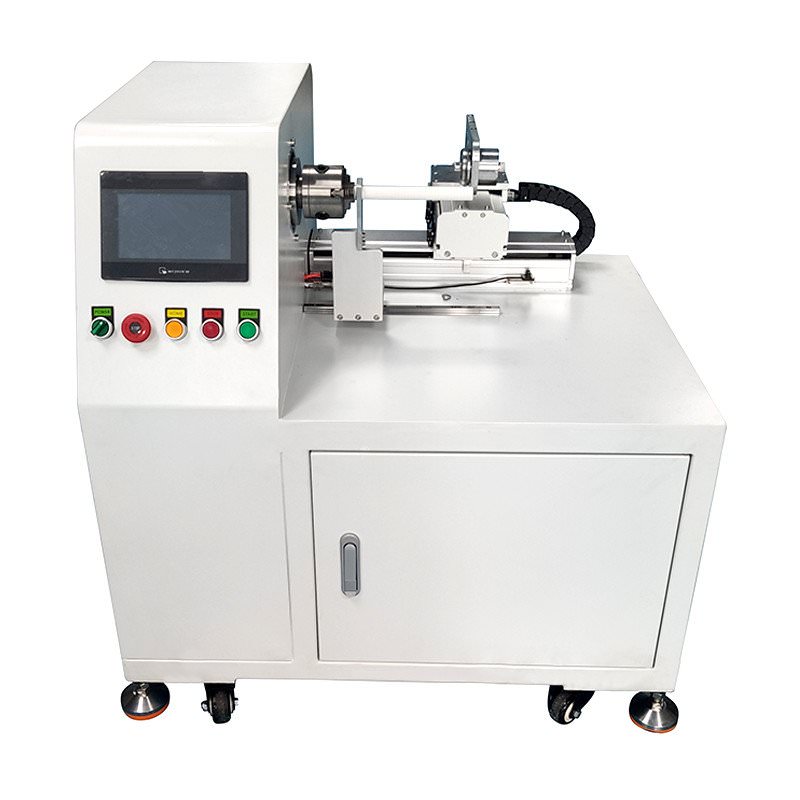

Front View

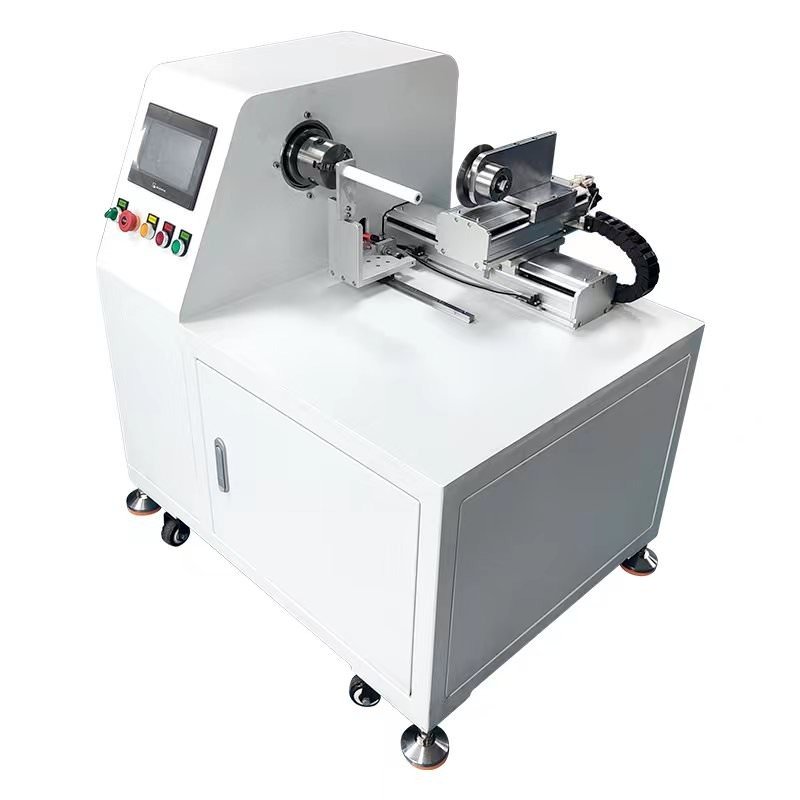

Side View

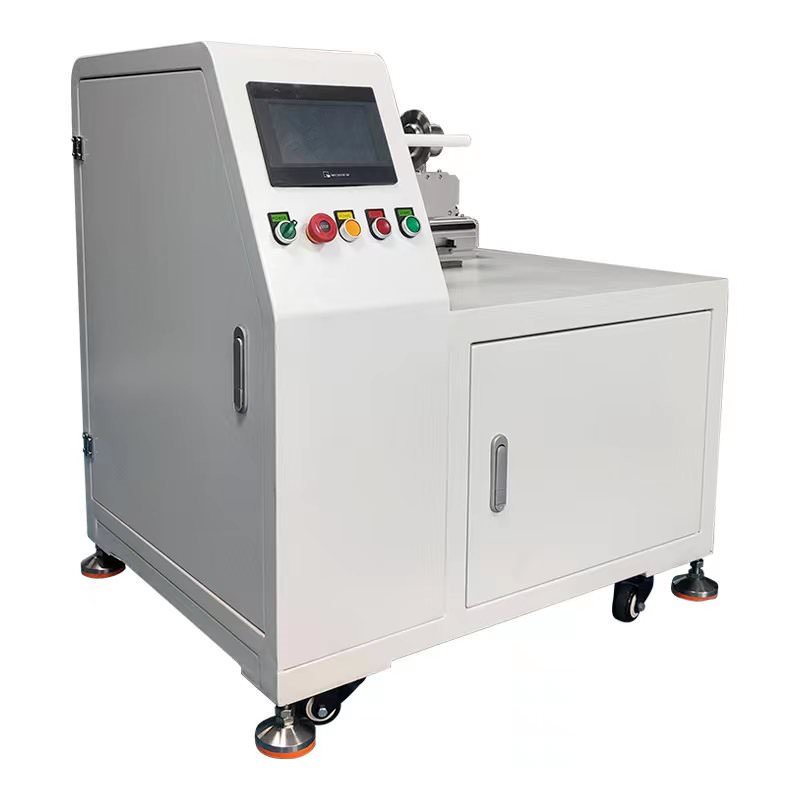

Side View

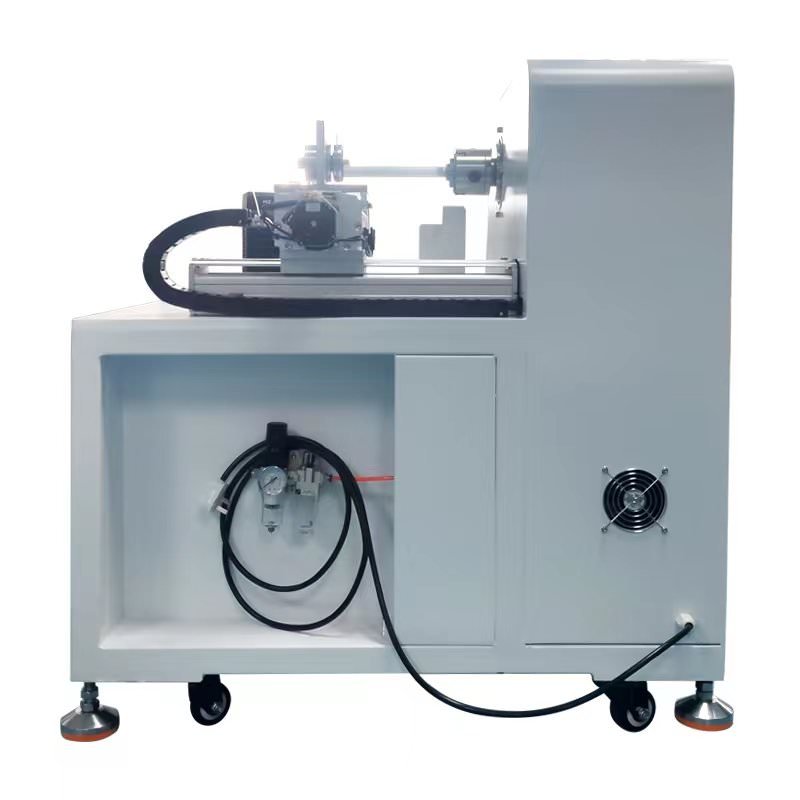

Back View

【Warranty 】

 As a professional cutting machine manufacturer , all the spare parts of the  Silicone rubber washer lathe cutting machin ES-102  will have one year of free maintainance  by changing

the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice  after on line diagnosis .

【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping
