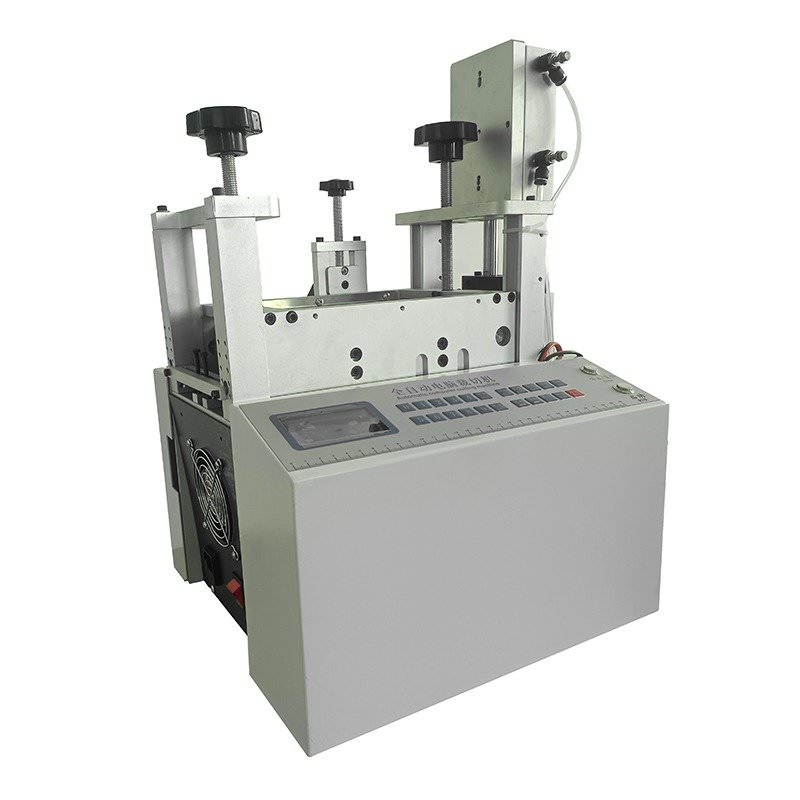

Big size silicone rubber cords tube cutting machine

Big size silicone rubber cords tube cutting machine ES-080-1

【Product Description】

The big size silicone rubber cords tube cutting machine  ES-080-1 is designed for automatic cutting large size and high shore hardness silicone or rubber cords ,tubes and profiles with big air cylinder reinforced high power cutting knife which is easy to cut these large size and high shore hardness material .

Youtube video

This high hardness silicone tube cords cutting machine applies with double transport belt bands which can adjust the double transport belt bands distance to fit and hold different size silicone or rubber cords tubes which is wide application ,the double transport belt bands had rough surface and had large contacting surface with silicone and rubber cords tubes which avoids slipping and maintains cutting length precision .

The cutting length ranges 1-99999.99mm ,cutting OD rangs 1-60mm , the machine speed is adjustable based on production demand . this large size rubber cords tubes automatic cutter machine is specalized for cutting large size high shore hardness silicone and rubber cords tube profiles which is high productivity and labour saving .

【Technical Data】

Product Name: Big size silicone rubber cords tube cutting machine
Brand: ESMAI

Model: ES-080-1

Function: Automatic cutting of high-hardness big size silicone tubes profiles

Main Advantages: Precise transportation of silicone tubes using a conveyor belt, accurate cutting length, adjustable conveyor belts distance

which is suitable for transporting different sizes of silicone tubes and profiles . Enhanced cylinder for cutting large-size, high-hardness silicone tubes.

Voltage: 220V

Power: 500W

Working Air Pressure: 0.7MPA

Operating System: Standard Touch Screen

Cutting OD : 1-60mm

Cutting Length: 1-99999.99mm

Cutting Length Accuracy: Within 1mm (e.g., for a cutting length of 500mm)

Speed: 0-99 (adjustable)

Machine Output: 25 pcs per minute (based on 350mm length)

Net Weight: 35KG

【Product Advantage】

1,Specialized for cutting big size and high shore hardness silicone and rubber cords tubes .

2,Precise cutting length with small cutting length tolerance with the help of large double transport belts which had big contacting surface with

silicone and rubber material

3,Widely applicable to silicone and rubber cords profiles tubes gaskets of different sizes varies 1-60mm OD

【Product Details】

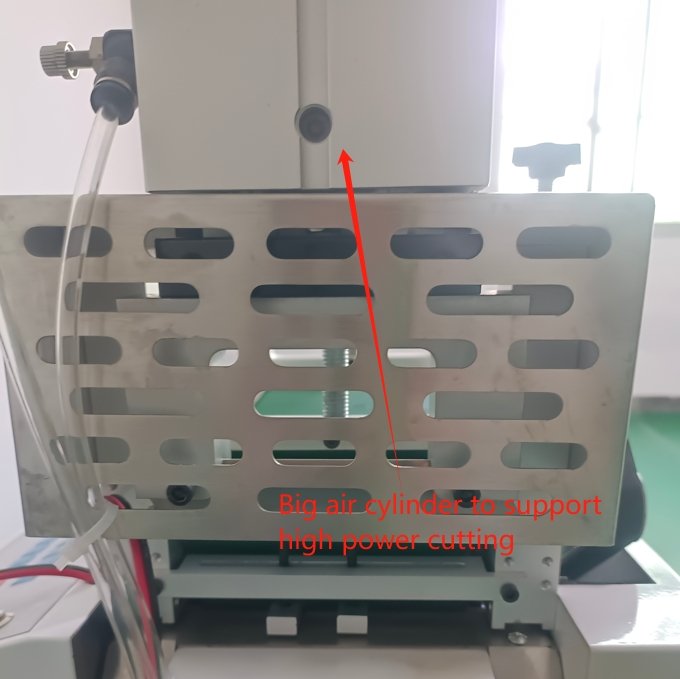

1,Big air cylinder  , the large silicone rubber cords tube cutting machine applies big air cylinder which reinforce the cutting

power on the knife to cut big and high shore hardness silicone and rubber cords tubes profiles at ease .

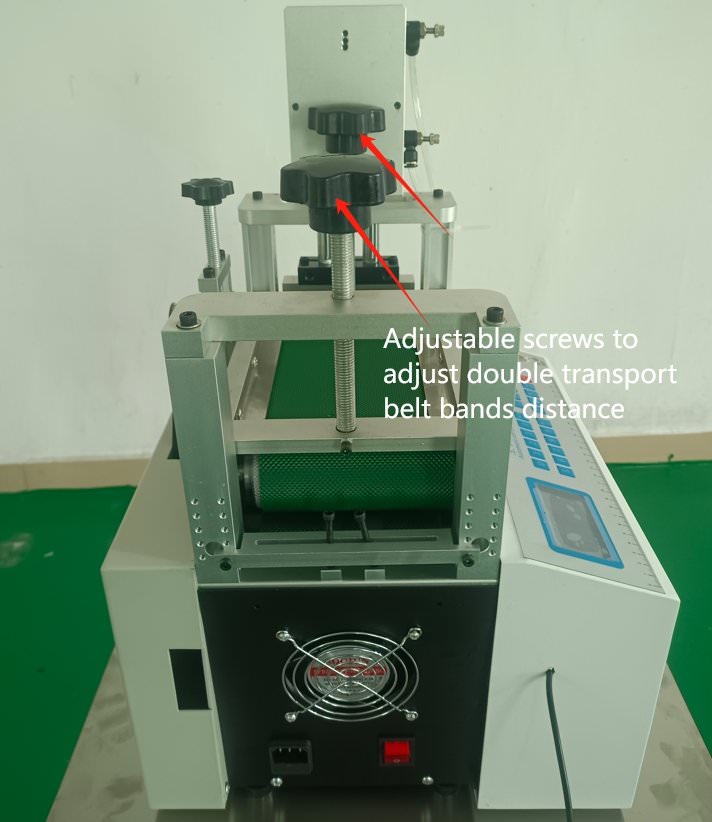

2,Adjustable screws , the double transport belt bands distance can be adjusted by loosening or tightening the top screws

to fit and hold tightly different size silicone or rubber cords tubes profiles  which is wide application .

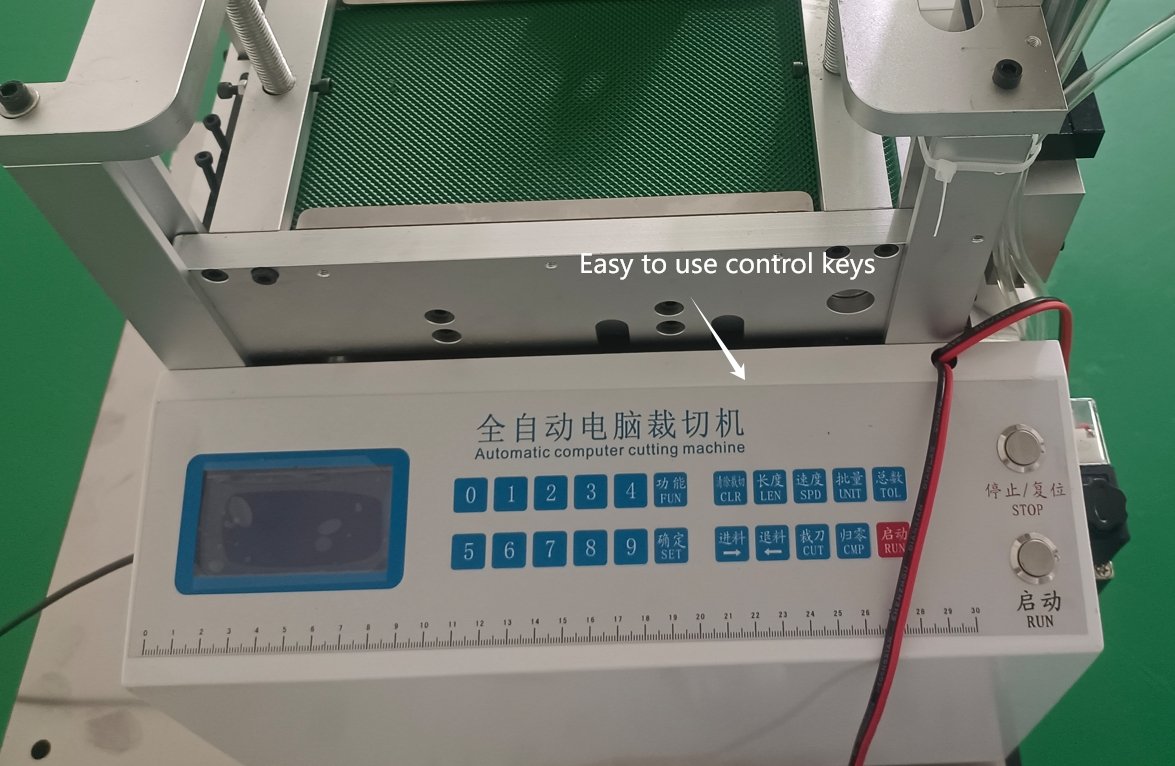

3, Easy to use control keys  , the high hardness silicone rubber cords profiles cutting machine had control keys

which is easy to identify ,customer can set the cutting length and cutting amount and machine speed based on

production requirement.

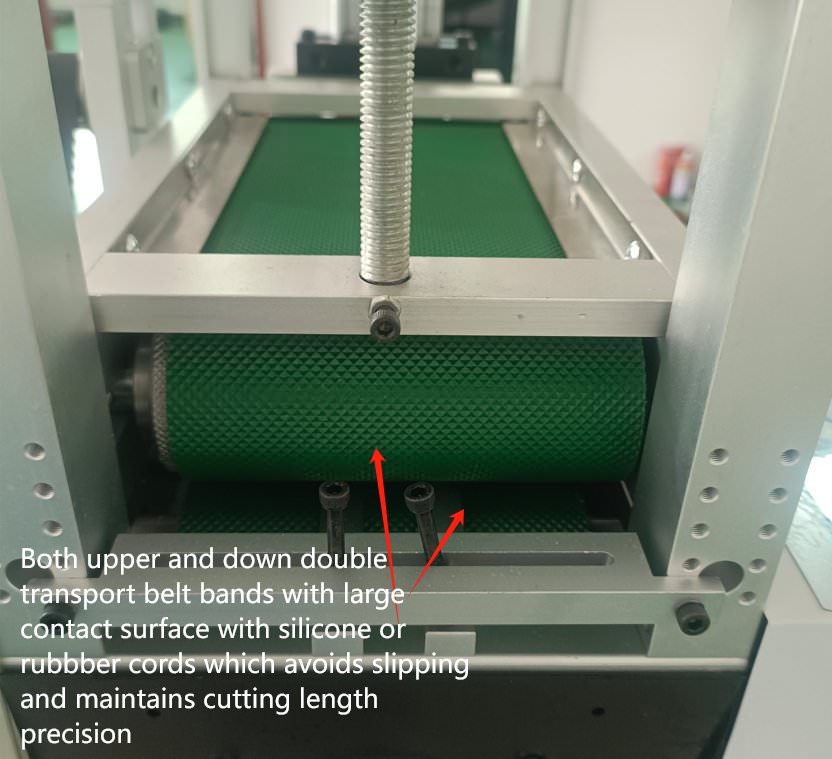

4,Large contacting surface  ,both the upper and down double transport belts had rough and large contacting surface

with silicone and rubber material during transporting the length which avoids slipping and maintains cutting length precision

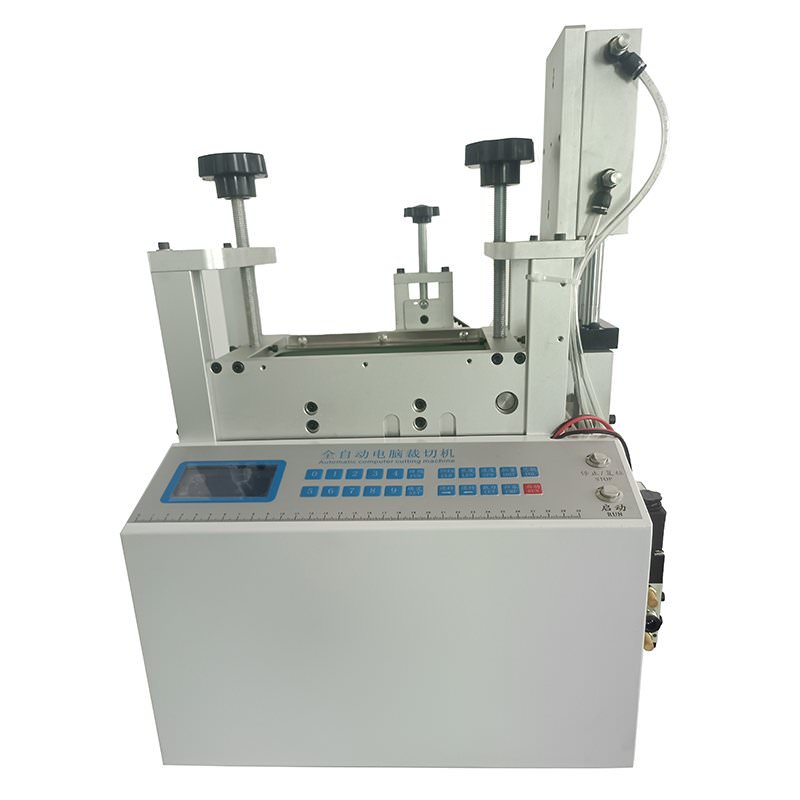

Front View

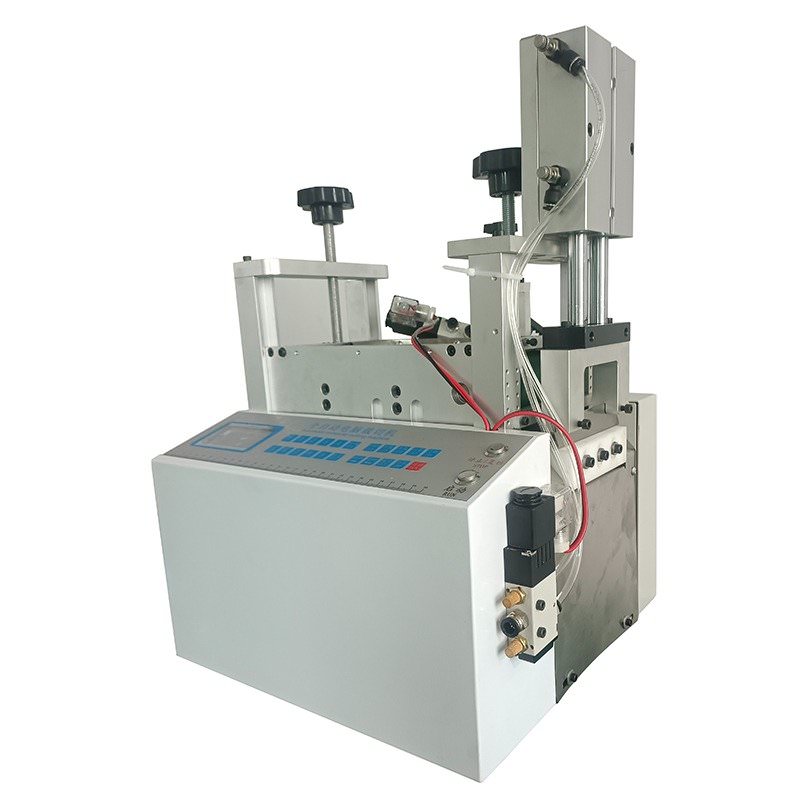

Side View

Side View

【Warranty 】

 As a Big size silicone rubber cords tube cutting machine  supplier , all the spare parts of the machine  will have one year of free maintainance

by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice

after on line diagnosis .

【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping
