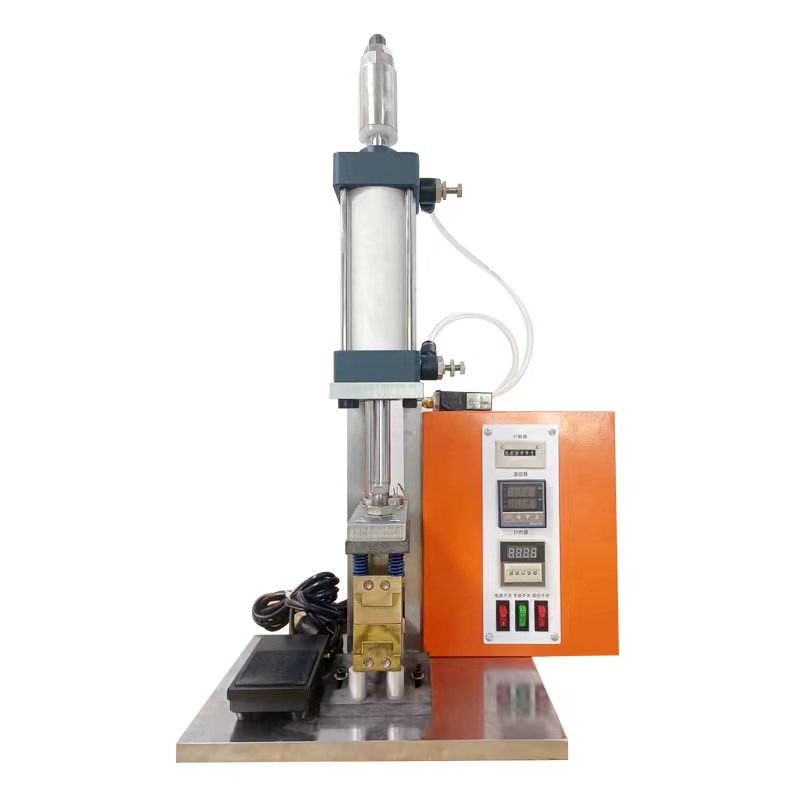

Silicone cords o ring joining vulcanizer machine

The silicone cords o ring joining vulcanizer machine  ES-069

【Product Description】

The silicone cords o ring joining vulcanizer machine ES-069 is designed for  joining large size silicone rubber cords ,silicone tubes ,silicone profiles into o ring gaskets with high production efficiency . this silicone cords o ring splicing machine can be used in a variety of industries, including automotive, aerospace, and manufacturing. They are particularly useful in applications where a strong, leak-proof seal is required.

This silicone o ring joining press machine applies with a big air cylinder which issues 300KG for the mold pressure  which is good joining large size silicone rubber cords , the machine is air motivated which it will be linked to air compressor , the  strong air force will maximize the heat efficiency together with high temperature  and allow the adhesive to cure fastly for a strong and nice bonding of silicone rubber cords or tubings .

This silicone cords o ring joining vulcanizer machine supplies high temperature of up 400 degrees , the mold die is made of copper which will be of high heat tranfer efficiency.  the cavity in the copper mold is based on customer's door seals sizes .

This silicone o ring joing vulcanizer machine will be easy to operate ,customer can set heat temperture , heat pressing time for bonding different type and size of silicone cords gaskets into o rings , Great productivity is ensured by this joining vulcanizer machine.

【Technical data】

Model No.: ES-069

Product name : Silicone cords o ring joining vulcanizer machine

Mold Material : Copper

Type: Air cylinder reinforced type

Upper Mold size: 40*80*13mm(Mold Thickness Ajustable)

Down mold size : 40*80*13mm(Mold Thickness Adjustable)

Copper Mold Temperature Range:0-400℃

Heating time range : Set heating time freely in seconds/minutes/hours

The Fast working frequency:1000 times/hour

Working  Air Pressure: 0.7mpa

Power Input: AC220V 1200W

Net weight: ：22KGS

Maximum pressure :300KG

Machine Size: L400*W300*H620mm

【Product Advantage】

1, Fast joining silicone cords into o ring gaskets which is more efficient and productive .

2, Big mold pressure by the big air cylinder for joining large size silicone cords with good bonding quality

3,Customise thicker mold and mold cavity can be made freely for customer based on their silicone cords sizes .

【Product detail 】

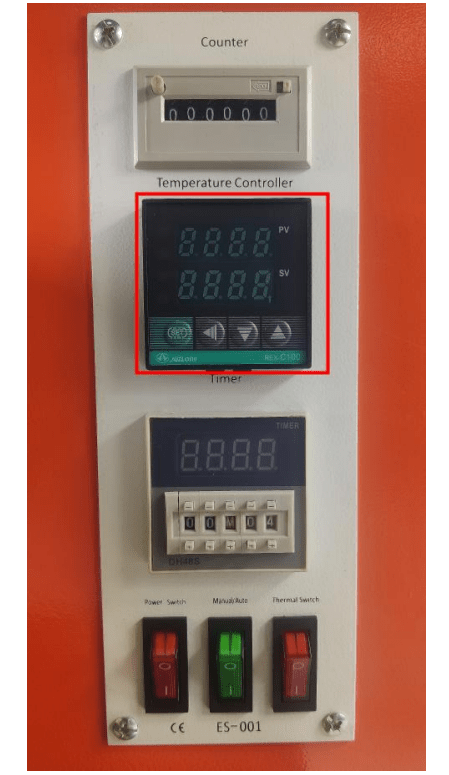

1,  Easy to use control board , the silicone cords joining press machine will be easy to use

there is counter to record how many o rings are bonded , temperaturer controller to

set heating temperature ranges 0-400 ℃ and timer to set exact heat pressing time .

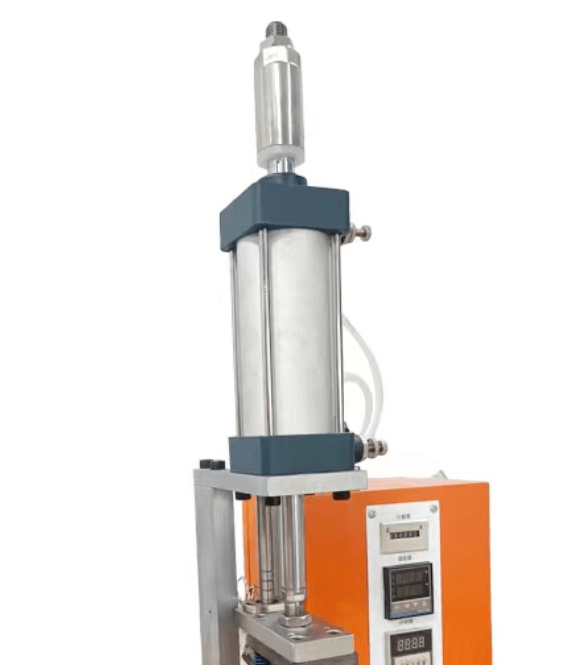

2,Big air cylinder and long travel range which issues 300KG  air pressure

and gurantees strong heat pressing of the mold and make nice bonded big silicone cords .

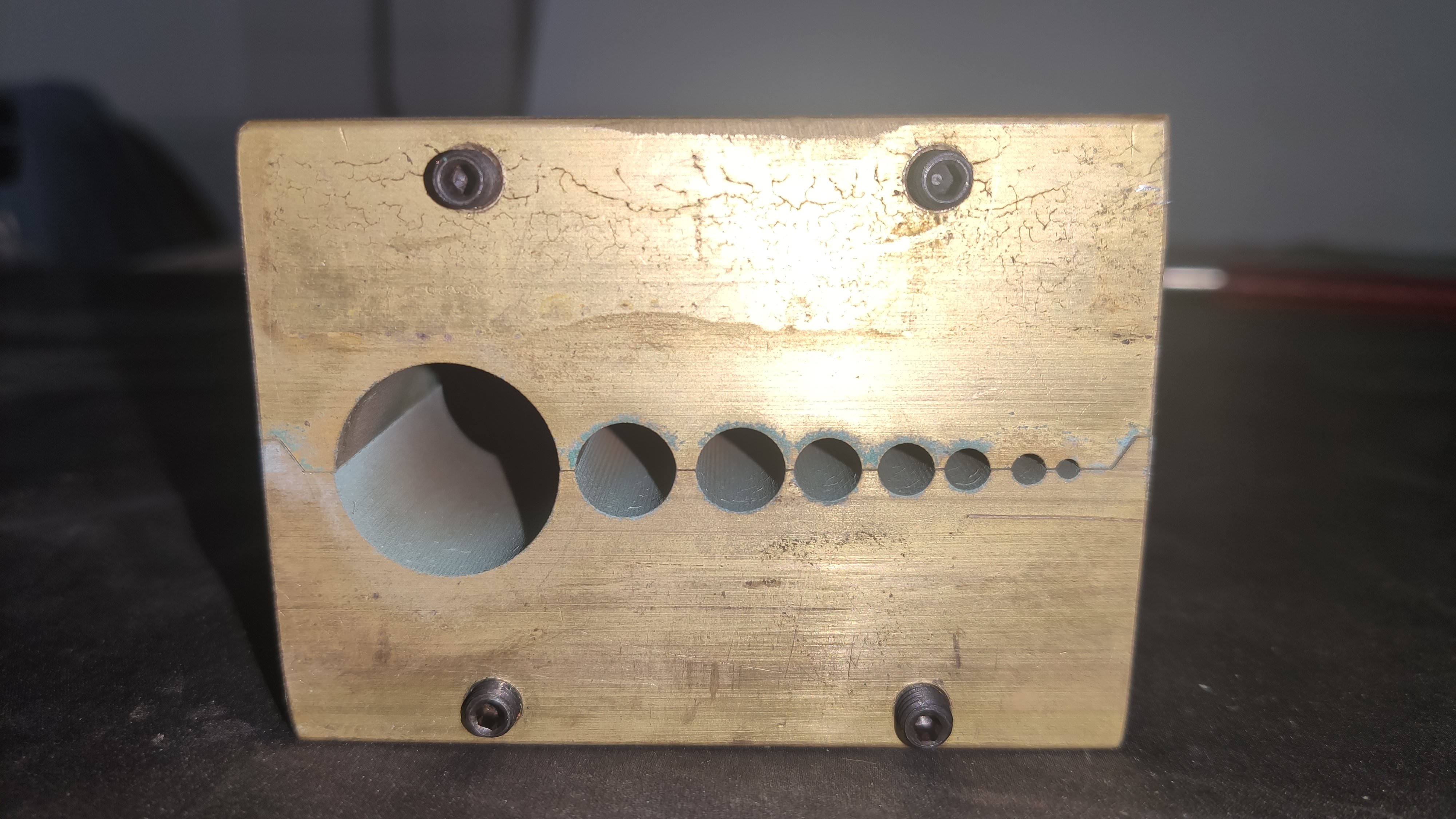

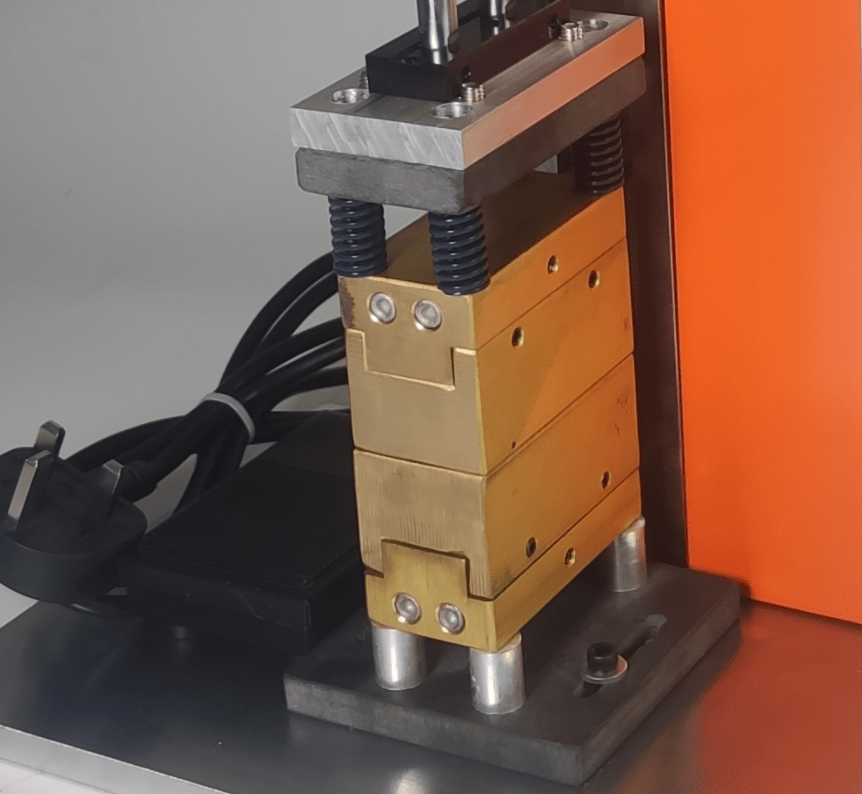

3, Customised copper mold ,the hot mold which heat press the silicone cords is made of copper

and of high heat tranfer efficency  , both upper mold and down mold is 25mm thickness which

can make big size cavity on the mold based on customer's silicone cords sizes .

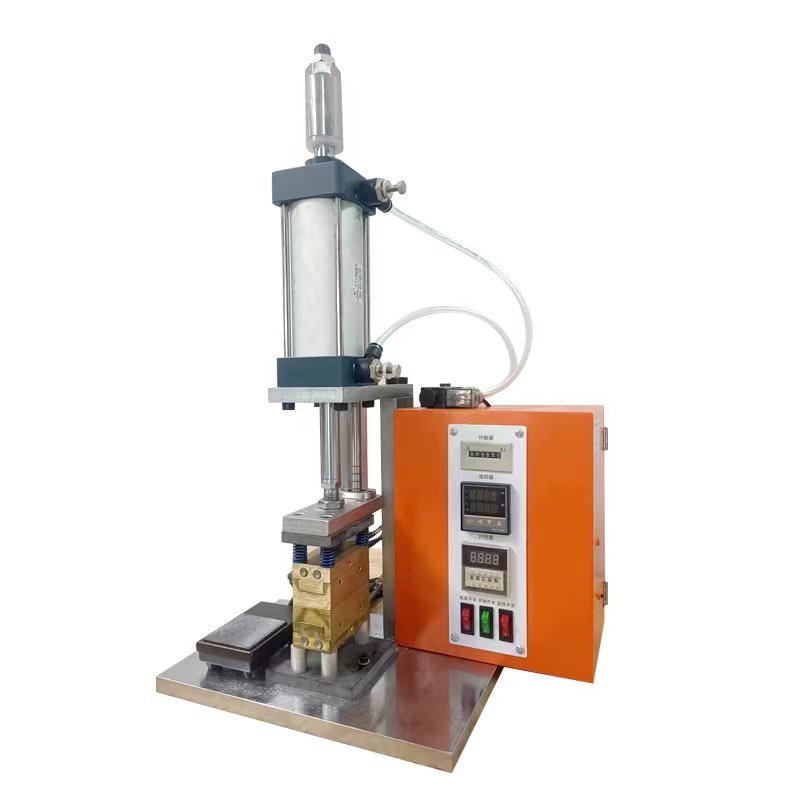

【Front view】

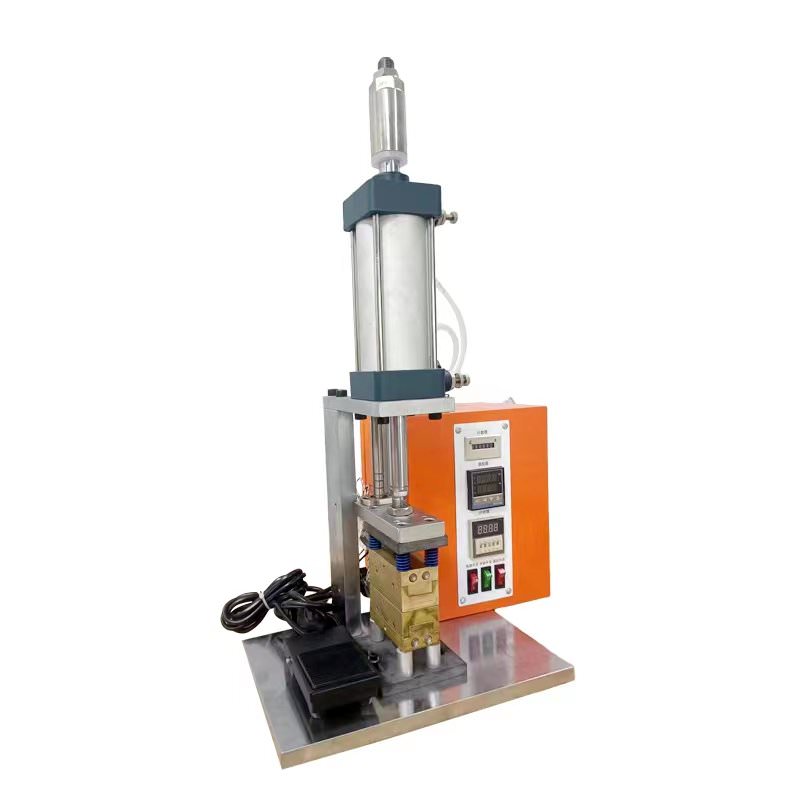

【Side view】

【Side view】

【Warranty】

All  the spare parts of the silicone cords o ring joining vulcanizer machine will have one year of free maintainance  by changing the spare parts for free

and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice  after on line diagnosis .

【Packing】

 Wooden Case Packing for overseas safe shipping , 1SET /WOODEN CASE
