Silicone tube gaskets precision cutting machine

Silicone tube gaskets precision cutting machine ES-058

【Product Description】

The silicone tube gaskets precision cutting machine ES-058 is designed  for automatic cutting silicone tube gaskets profiles into precise length by applying double transport belt bands with driving force from both upper and down belt bands and self feeding device to feed silicone material from behind for precision length cutting performances.

For the double transport belt bands , they can adjust their belt band distance to hold different size silicone gaskets tubings for transporting , the big belt bands had strong abrasion resistance against silicone material to avoid slipping which will cause length shortages .there is also a pressure value recorder equipped on top of the belt bands to show the exact pressure value of double transport belt bands with silicone material . too much pressure , the actual cutting length will increase , too little pressure , it will cause length shortages .

Youtube video

The silicone tube automatic cutting machine is also equipped with feeding device with sensors , when the silicone material reached certain height , the feeding speedwill increase and the silicone material will drop down to lower position , the feeding speed then reduce accordingly ,it will ensure the smooth feeding process the whole time .

The cutting length ranges 1mm-99999mm , the  silicone tube cutting OD is 1-25mm , the cutting length precision reaches _+3mm based on 1 meter cut length . This silicone profile gaskets accurate length cutting machine  productivity  reaches 4800pcs/hour on average(based on 300mm cut length)

This silicone tube precision cutter machine applies with touch screen for control operation , customer can set cutting lenght ,machine speed ,feeding speed ,total cuting quantity etc . it is easy to operate the machine .

Say goodbye to manual cutting  , The Silicone tube gaskets precision cutting machine  increases cutting length precision and productivity , the cutting edge is also straight by applying the fixture blocks for straight cutting edge purpose .

【Technical Data】

Product name : silicone tube gaskets precision cutting machine

Model No.: ES-058

Machine Function : Prefeeding material +precison cutting

Advantage : Cutting length precision +cutting edge straight

Transport Length method : Double belt band transport

Voltage : 220V 50/60HZ

Machine power : 750W

Motor type : 57 stepping motor

Operation system : Touch screen/PLC

Cutting length :1mm-99999mm

Cutting OD range : 1-25mm

Cutting precision：_+3mm based on 1 meter cut length

Machine speed：80pc/min((based on 300mm cut length))

Machine productivity： 4800pcs/hour on average(based on 300mm cut length)

Machine Net Weight：120KG

Machine dimension： L1350*W500*W500MM

【Product Advantage】

1,Precise Cutting length by applying double transport belt bands transporting and prefeeding device

2,Straight and smooth cutting edge by applying fast cutting knife and fixtures blocks to hold silicone material steadily for cutting purpose

3,Widely applicable to all kinds of silicone tube strips ,gaskets profiles cords and other extruded silicone material

【Product Details】

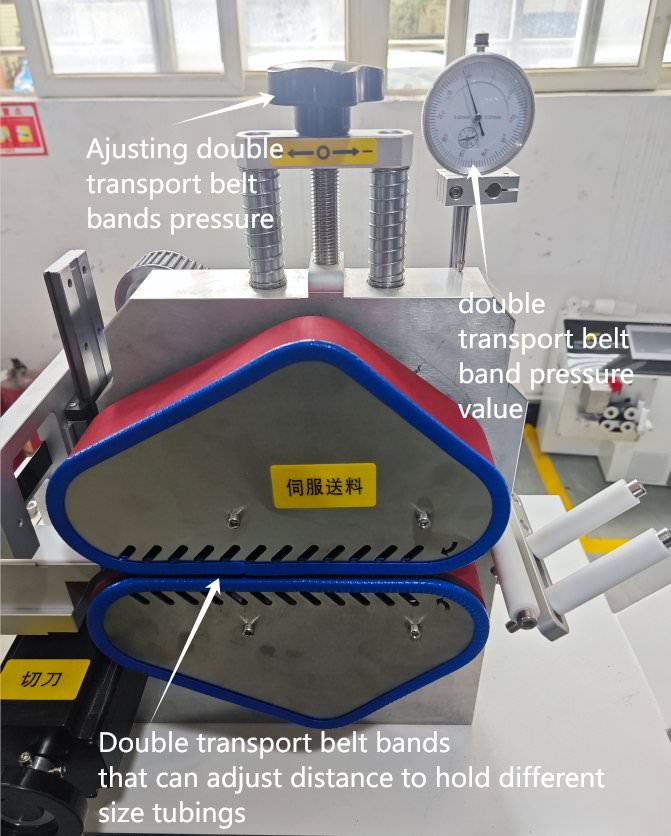

1,Double transport belt bands  , this silicone tube automatic cutting machine applies with double transport belt bands had driving force

on both bands to transport silicone tube gaskets and the belt bands had  large contacting surface with silicone and

great abrasion resistance with silicone material to avoid slipping in the transport process so as to ensure cutting length precison

the double transport belt bands distance can be adjusted to hold different size tubings . there is also a pressure value recorder on top

to record double transport belt band contacting pressure with silicone material , too much pressure , the silicone material gets to longer cut length

too little pressure , the silicone material gets to shorter cut length , we can adjust the top screw to adjust double transport belt pressure

based on pressure value on the pressure value recorder .

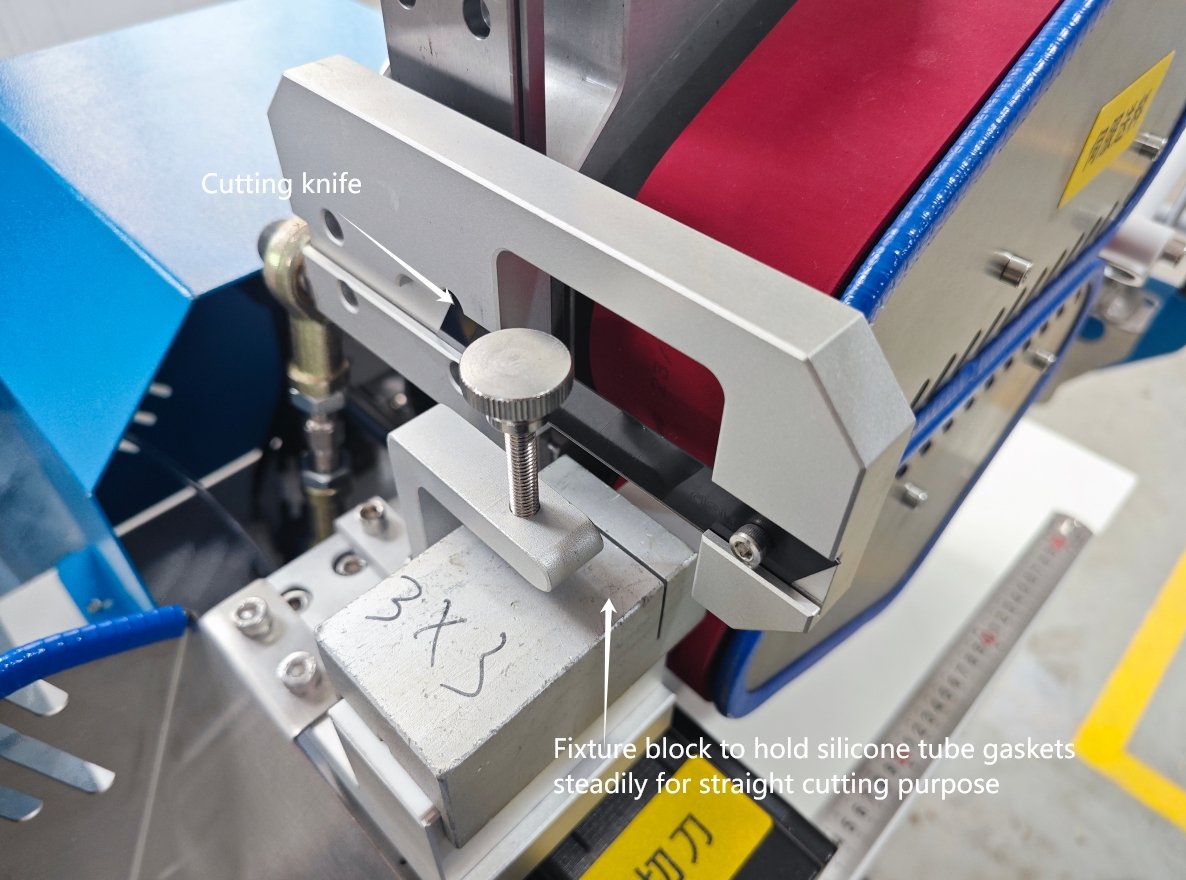

2,Cutting knife and fixtures blocks , the knife cutting structure is stable and cut fastly , there is

fixture blocks beneath the knife that can hold silicone material steadily for straight cutting edge purpose

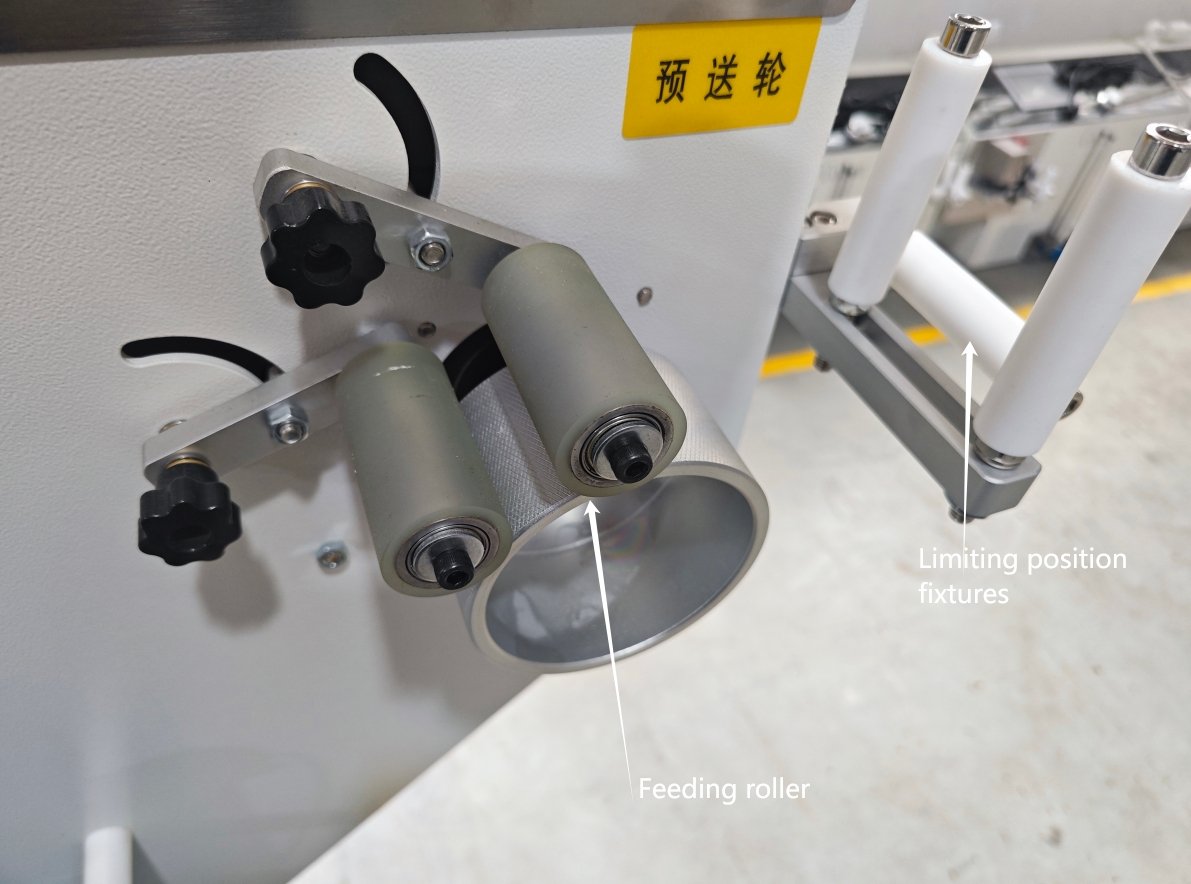

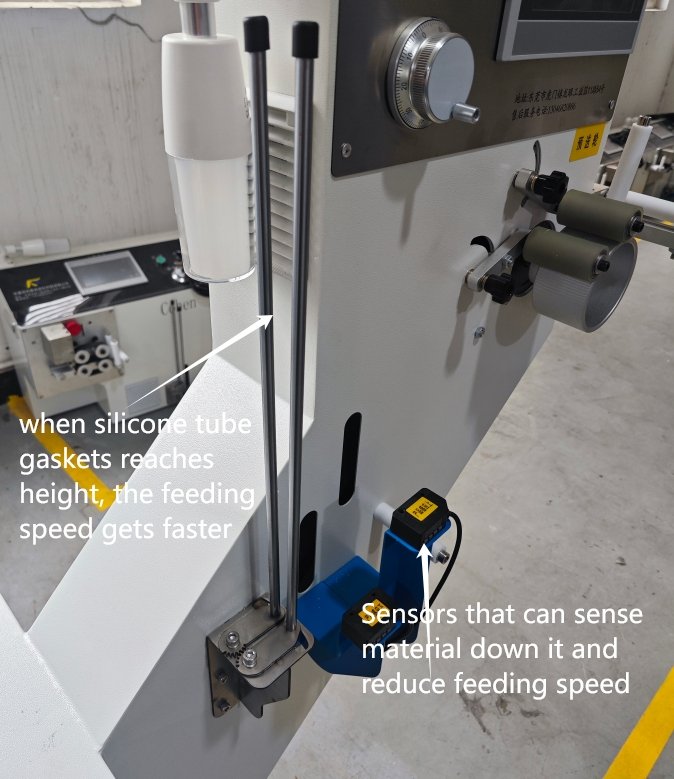

3, Prefeeding device &sensors ,to avoid pulling in the transporting silicone material process ,the

silicone material will have to be prefeed first , this silicone profile gaskets accurate length cutting machine

applies the prefeeding device , the sensor can sense material near it ,it will order the feeding roller to

reduce feeding speed , when the silicone gaskets material reachs to heights ,  the sensor will order the feeding

roller to increase feeding speed and the silicone material will consequently drop down to lower position . it

gurantees smooth feeding process .

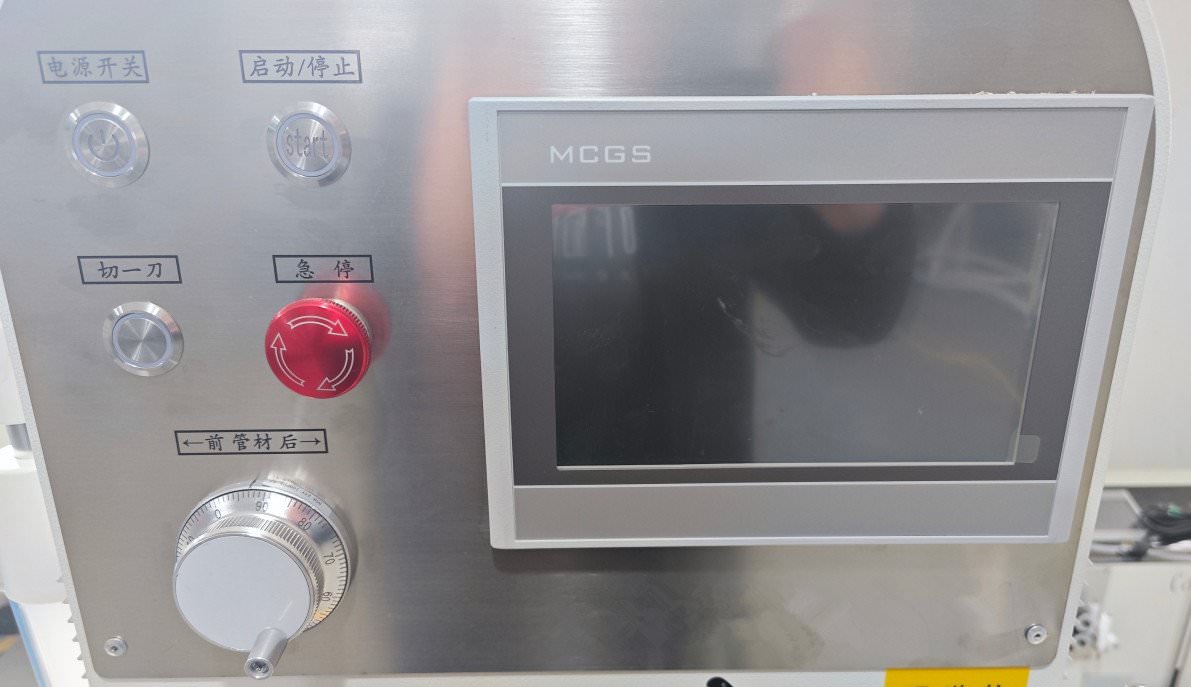

4,Touch screen   ,this silicone oring gaskets cutting machine applies with touch screen control and key pressing buttons

customer can set total cutting amount ,cutting length ,machine speed , prefeeding speed etc.

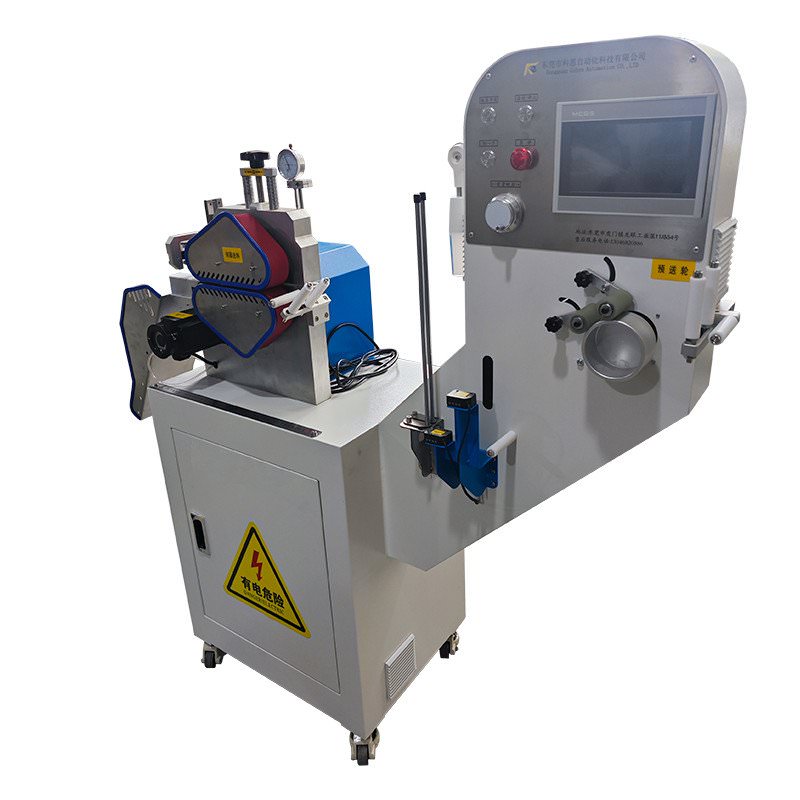

Front View

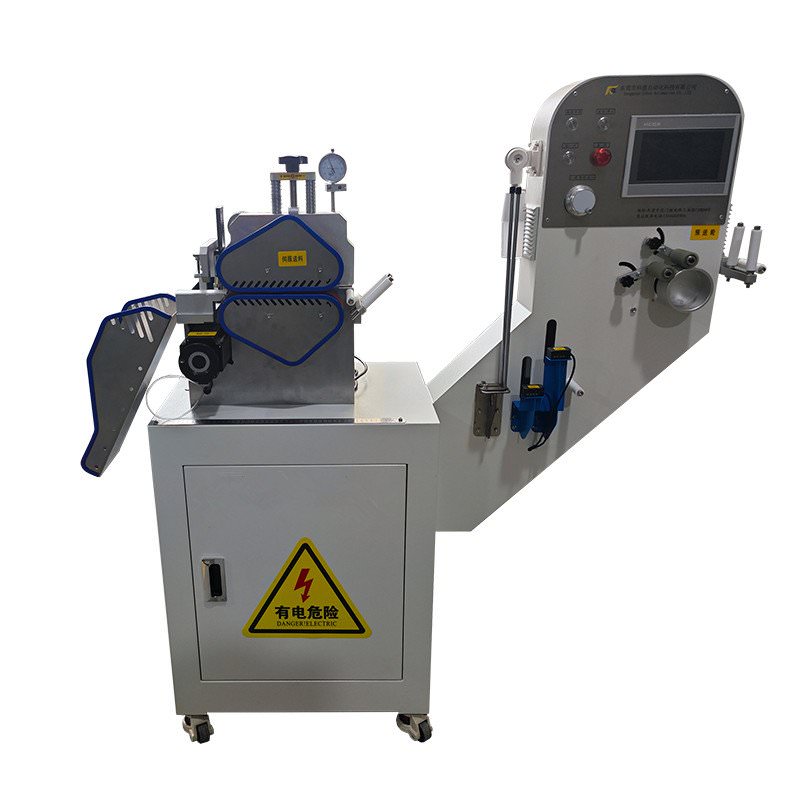

Side View

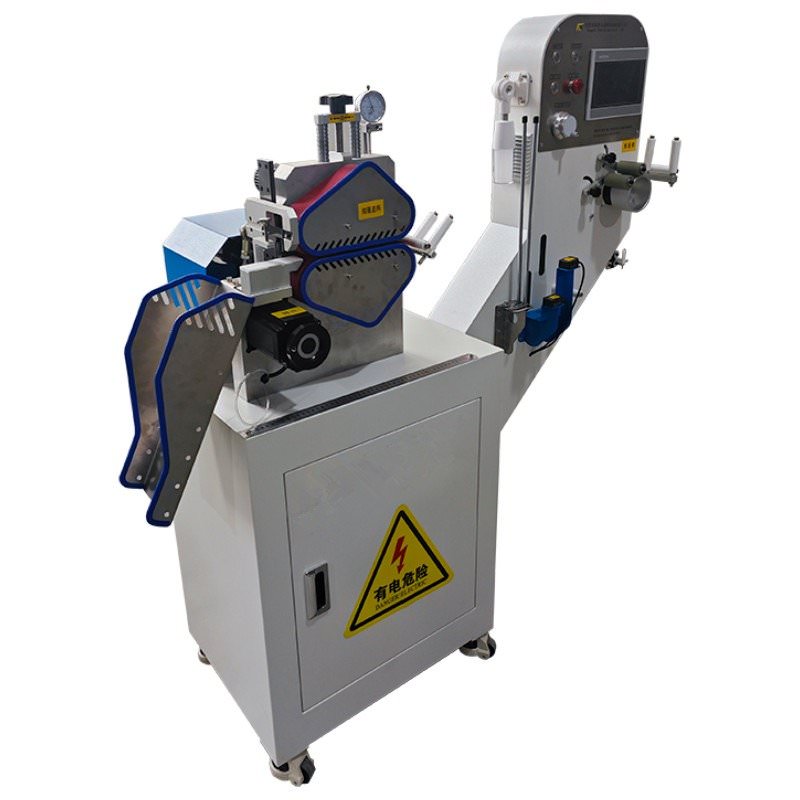

Side View

【Warranty 】

 As a silicone tube gaskets precision cutting machine  supplier , all the spare parts of the machine  will have one year of free maintainance

by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice

after on line diagnosis .

【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping
