silicone tube cords accurate length cutting machine

The silicone tube cords accurate length cutting machine  ES-080

【Product Description】

The silicone tube cords accurate length cutting machine ES-080 is designed for cutting all kinds of silicone tubes ,silicone cords , silicone profiles and other extruded silicone material . the machine applies double transport band which had large contacting surface with silicone material ,it increases abrasion and avoids slipping for transporting silicone material and consequently  gurantee cutting length accuracy with small cutting length tolerance .

The cutting edge is straight with fixtures loaded beneath the cutting knife to hold silicone material straight for smooth and straigth cutting edge .

The silicone cords cutter machine machine cuts silicone tubing OD ranges 0- 20mm ,the double transport band distance can be adjusted to fit tightly with different size silicone tubing cords material .  the cutting length ranges 1mm- 99999.99mm , the cutting speed and total cutting amount of this silicone tube corrugated tube cutting machine ,cutting length , batch amount ,batch interval time can all be set delicately based on customer requirement .

Great productivity and high quality cut silicone tubing cords profiles are achieved by this silicone tube silicone rubber profile cutting machine.

Youtube video

【Product advantage 】

1,Cut extruded silicone material with accurate length  by applying the double transport band to transport silicone material ,

it had large contacting surface with elastic silicone material which increase abrasion and avoids slipping and

consequently maintains cutting length precision compared to traditional roller transporting method

The double transport band distance can be adjusted to fit different size silicone material with right amount of contacting pressure

while the traditional roller will deshape the silicone material after pressing and transporting silicone tube cords to cutting length .

2, Vertical straight cutting finish , fixtures will be equipped down the cutting knife to avoid swinging and hold silicone material straight

for straigth cutting edge .

3,Wide application to all kinds and all sizes of silicone tube cords , extruded tubings &profiles &seals .

【Product  Detail 】

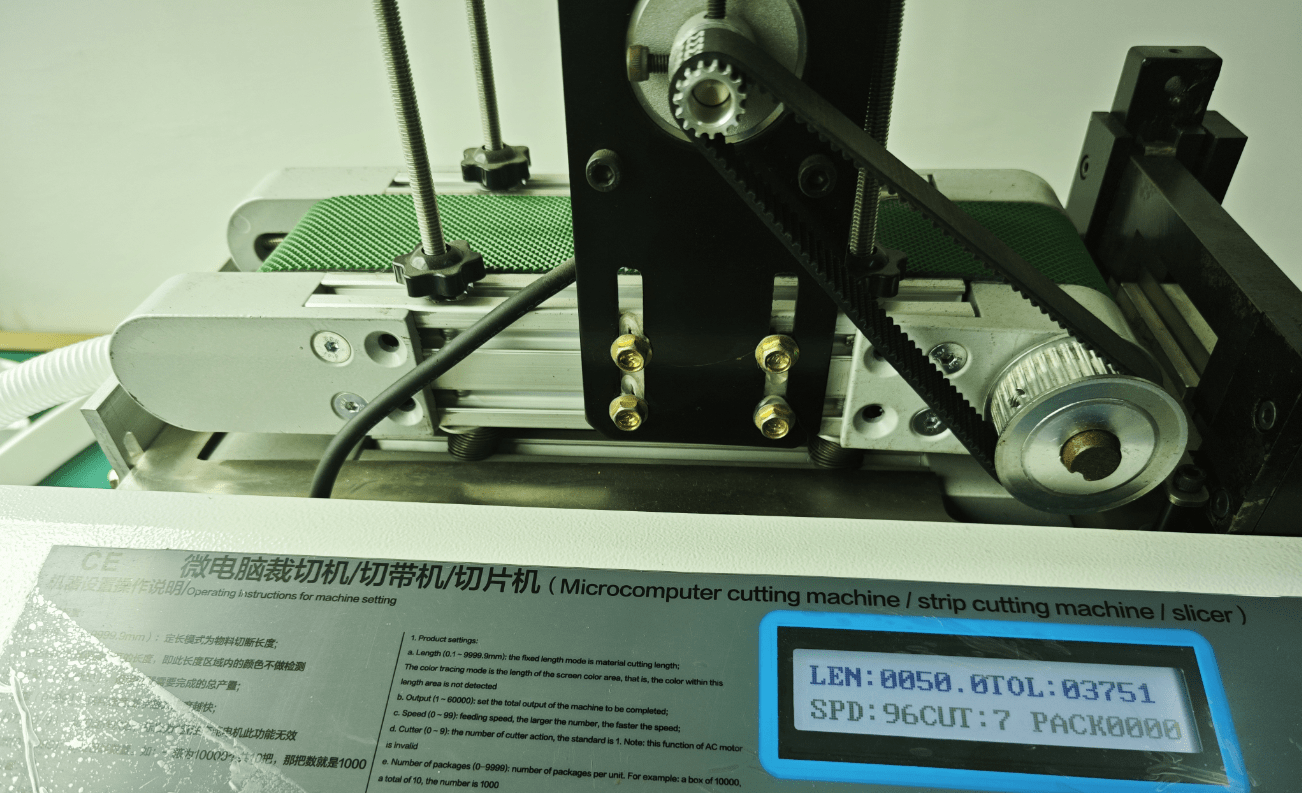

1,Double transport band design  ,the machine applies double transport band for transporting the silicone

tube and silicone cords length which had large contacting surface with the elastic silicone rubber tubing cords

which avoids slipping during transporting process  and maintains cutting length precision .

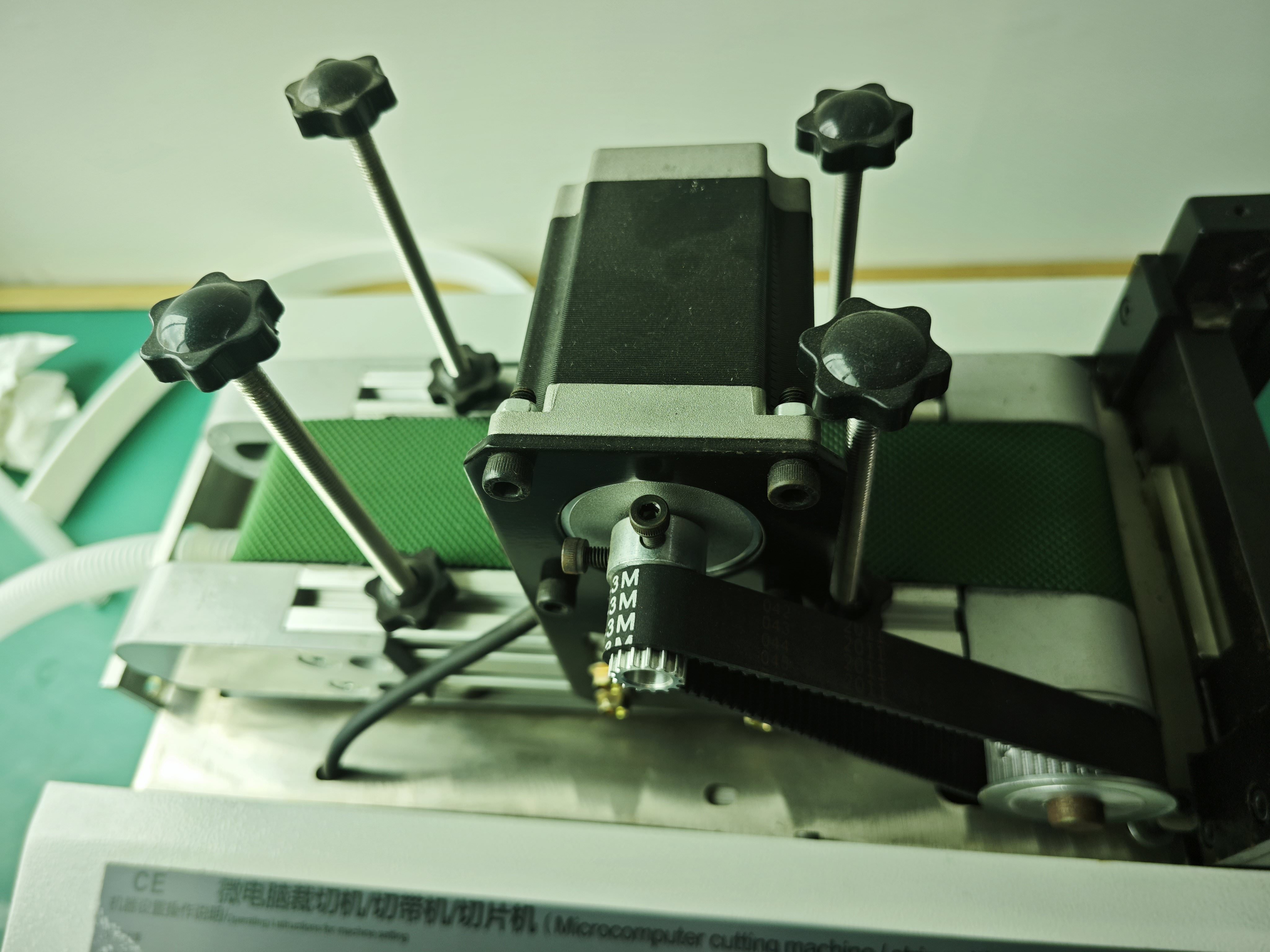

The four adjustment screws on the top can be adjusted  to increase or close the double transport

band distance to allow it to fit with different size tubing cords profiles and transport length without slipping

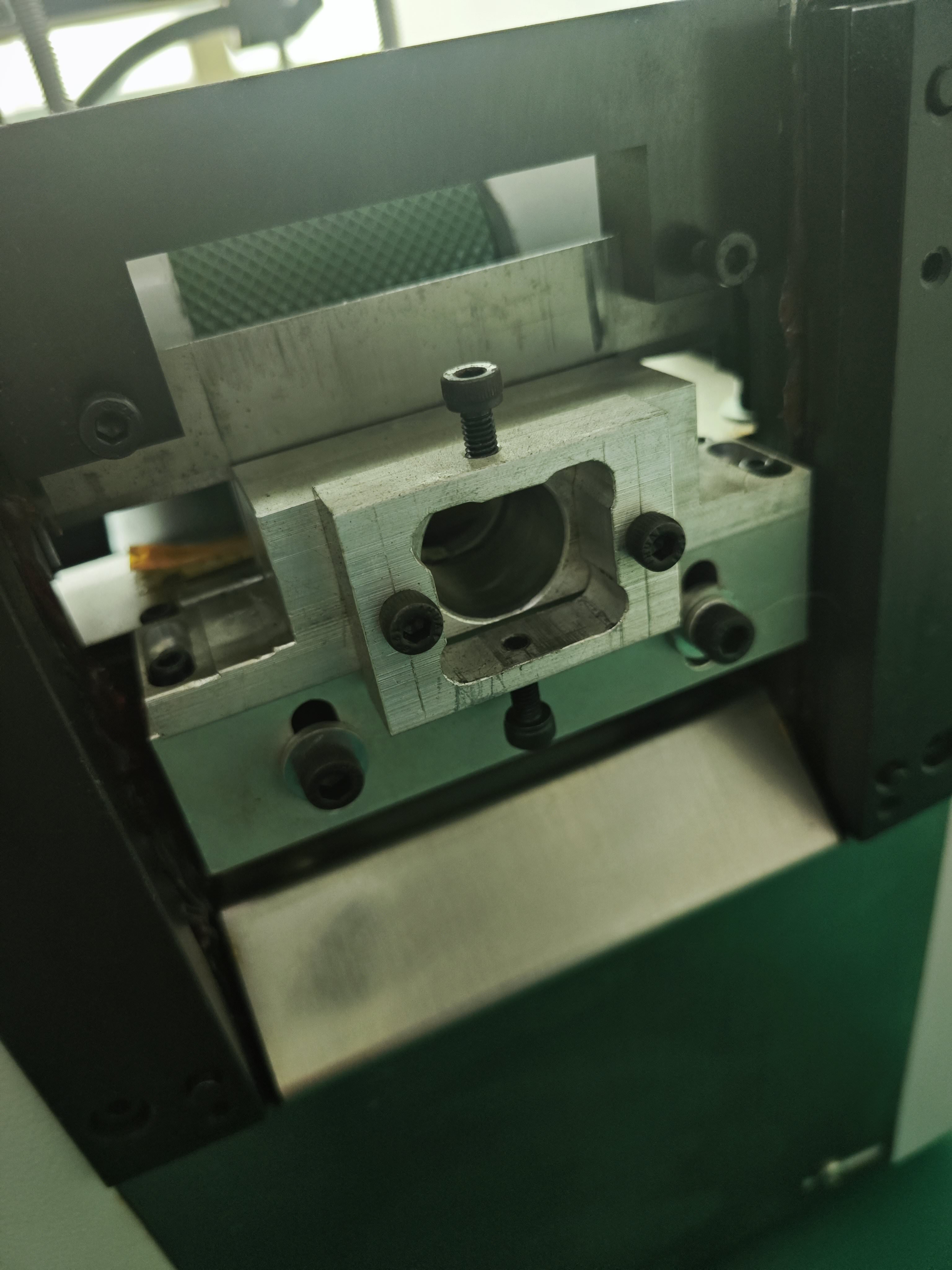

2, Customised fixtures beneath the knife to hold tubing cords for straight cross section cutting edge

3,, Simplified control board ,the machine applies with simplified control board which made the machine

easy to operate and it doesn't require intensive training for operating this machine

4,Heat dispersing fans , the heat dispersing fan will disperse the heat generated by the

working of the machine  and gurantees long working hours of the machine .

【Technical Data】

Model No.: ES-080

Brand :ＥＳＭＡＩ

Product name : silicone tube cords accurate length cutting machine

Feature : with double transport band transporting silicone material

Cutting Diameter: 0-20 mm

Cutting length : 1mm- 99999.99mm

Cutting length tolerance : within 2mm (cut 500mm length silicone tubes )

Output/speed : 0-99

Voltage: 220/110V  50/60HZ

Power: 800Ｗ

Net Weight : 28KGS

Dimensions:　Ｌ３4０：Ｗ３2０：Ｈ３8０ｍｍ

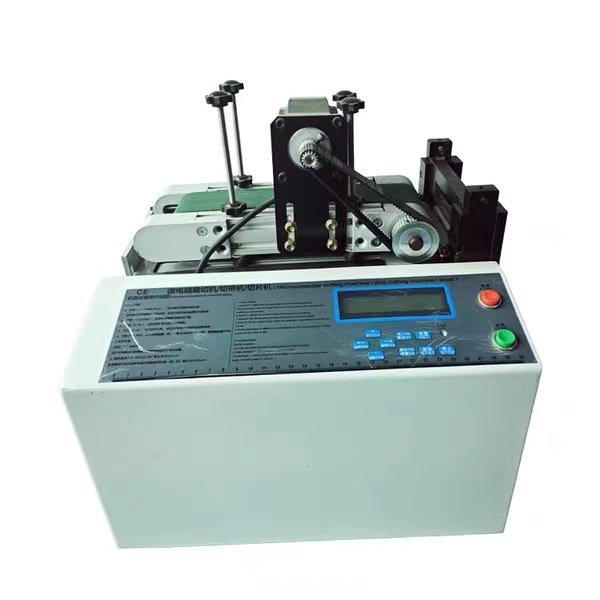

Front view

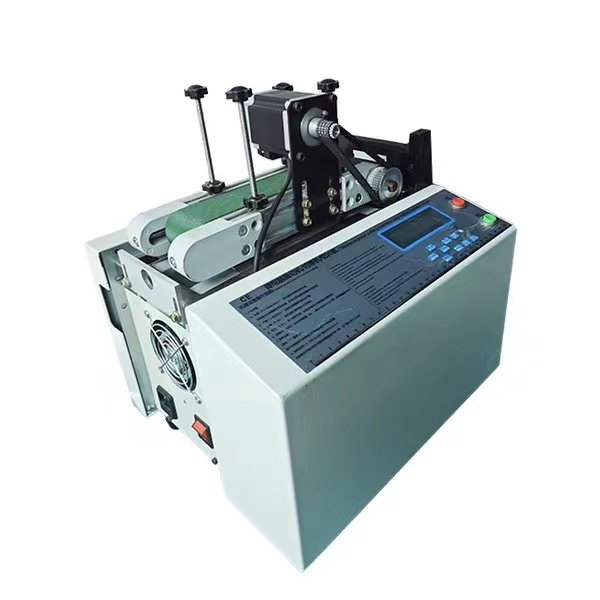

Side view

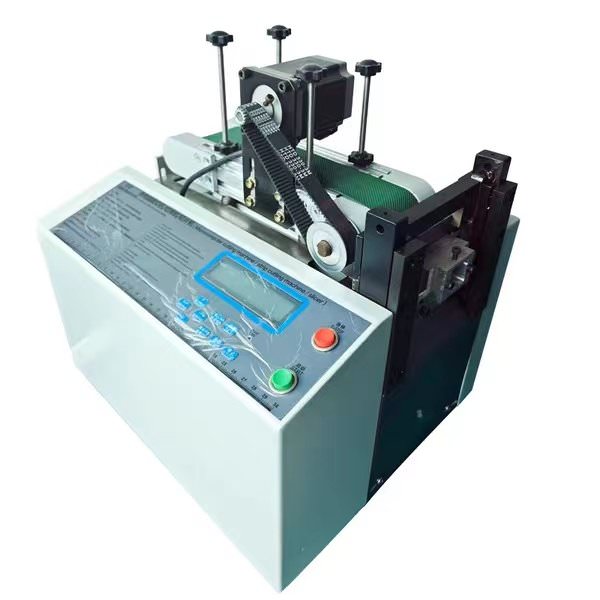

Side view

【Warranty】

All  the spare parts of silicone tube cords accurate length cutting machine  ES-080  will have one year of free maintainance by changing the spare parts

for free and free shipping of spare parts to overseas clients starting from the issuing date of commercial invoice  after on line diagnosis .

【Packing】

1SET/ CARTON  (Inside the carton will be packed with foam pading material to protect the machine goods)
