Self adhesive silicone strip laminating machine

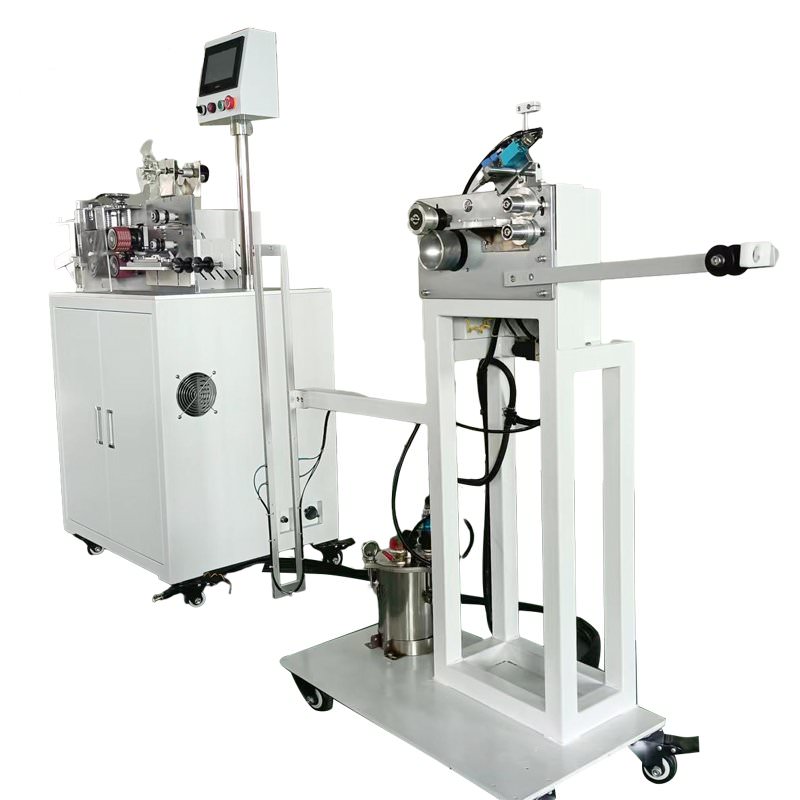

Self adhesive silicone strip laminating machine ES-087

【Product Description】

The self adhesive silicone strip laminating machine ES-087  is designed for automatically laminate extruded silicone material with double side or 3m tapes , it combines auto  auto Brushing silicone primer on silicone surface , auto laminate silicone strip with double side tape  ,auto cutting laminated material into length and self feeding material with sensor device  in one machine which is high productivity and labour saving .

The laminating  material width ranges 2-30mm ,it can also be customised by enlarging the fixtures . the lamination material thickness ranges 1-25mm ,the machine power is 850W, the lamination speed ranges 15-30 meters/min (based on product type)

Youtube video

The adhesive backed silicone strip laminating machine  applies with PLC touch screen for operation controls which is easy to operate , It had been equiped with a silicone primer brushing device which will coat the silicone primer on the silicone surface first for surface treatment , so the silicone material will have better adhesion with double side tapes , the primer treated silicone will then join with the double side tapes and laminated by the double transport band which can adjust their distance to hold and laminate different thickness silicone material without deshaping them .  the silicone with 3m tape joining machine will cut the laminated material into fixed length after lamination .

The laminated slicone strips or profiles are good adhesion between the silicone and double side tapes  and without dislocation , this silicone profile with double side tape laminating machine ensures productivity and labour saving specialized for adhesive extruded silicones .

【Technical Data】

Product name：Self adhesive silicone strip profile with double side tape laminating machine
Model No. :  ES-087

Function : Brush silicone surface with primer +Laminate silicone with double tape + Cut silicone strip into length

Touch screen :PLC Touch screen& Key pressing

Voltage：220V

Power : 850W

Motor type ：Stepping motor

Laminating material thickness：1mm-25mm (Can be customised)

Laminating material width :2mm-30mm (Can be customised)

Cutting length range: 1-99999.9mm

Cutting length precision： +-1mm (Based on  1mter length silicone strip)

Productivity/Speed ：15-30 meters/min (based on product type)

Machine Net weight: 185kg

Machine dimension: L*W*H： 5500*550*1580(mm)

【Product Advantage】

1,Auto Brushing silicone primer on silicone surface + auto laminate silicone strip with double side tape +

auto cutting laminated material into length +self feeding material with sensor device .

2, Good lamination quality without dislocation and good adhesion .

3, High productivity ,labour saving .

【Product Details】

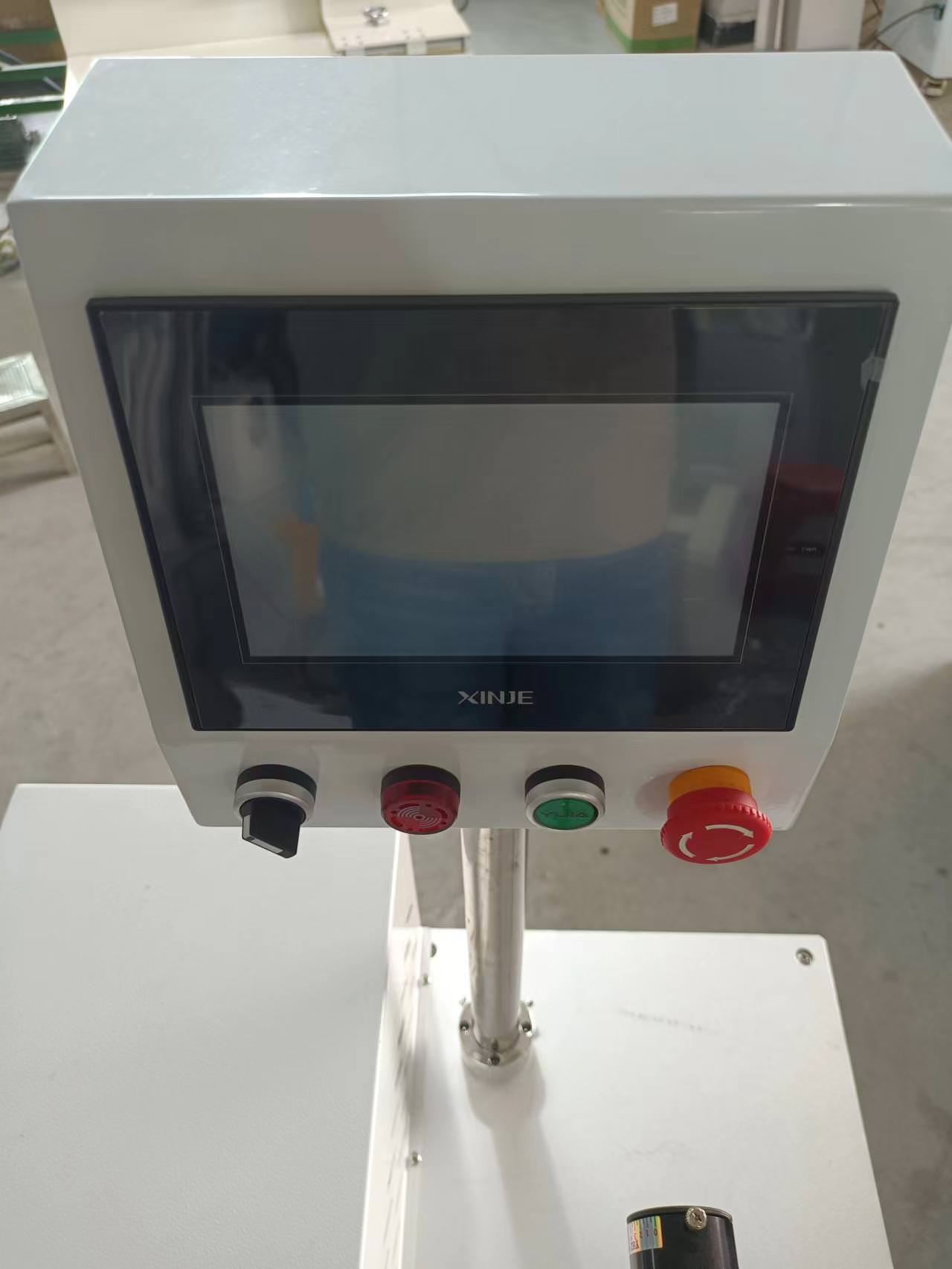

1,PLC Touch screen  ,the machine applies with PLC touch screens with combination with key pressing

which will be easy to operate

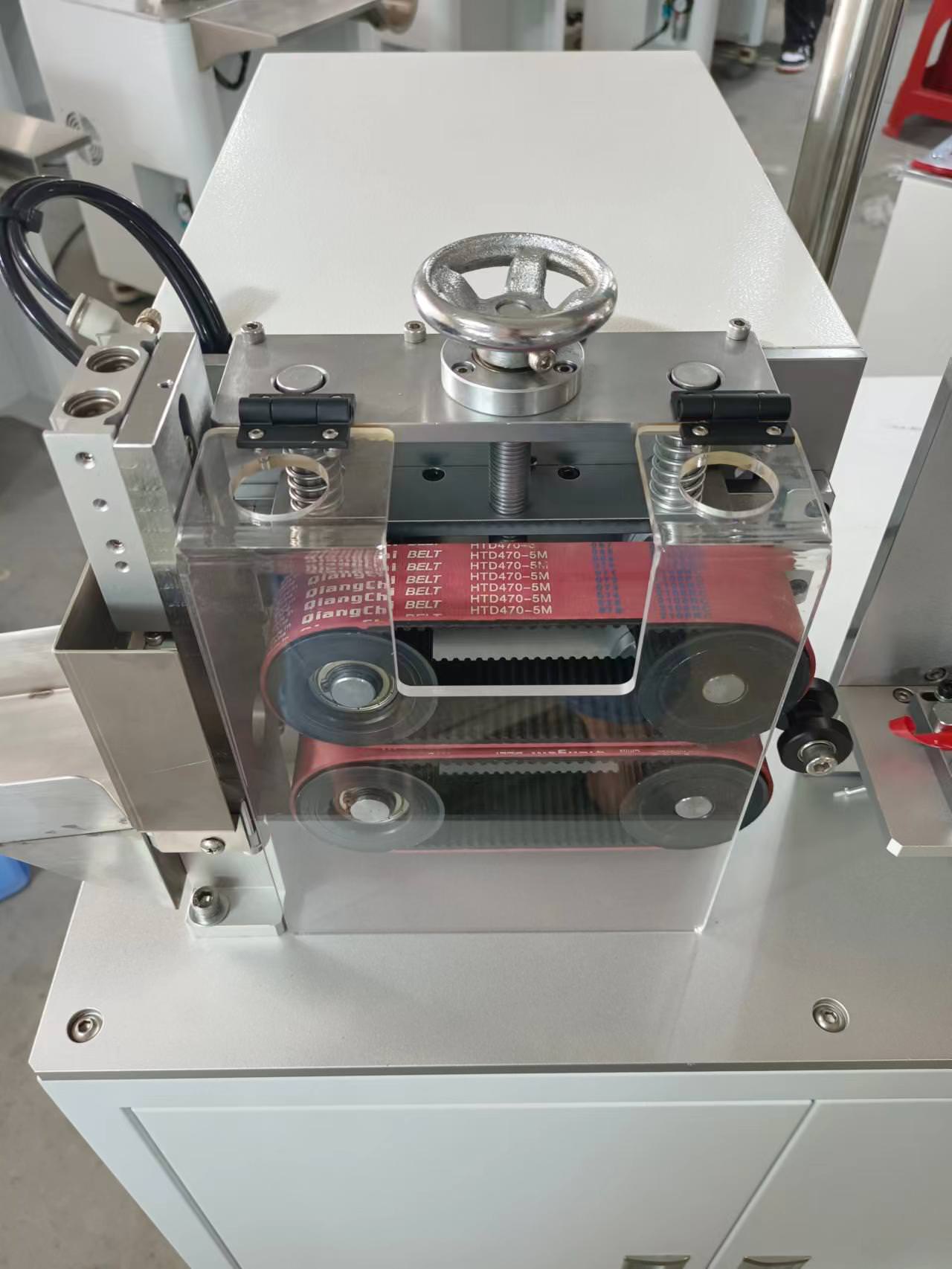

2, Double transport band  ,the double transport band can adjust their distance to laminate different thicknss

silicone strips or profiles without deshaping the laminating material .

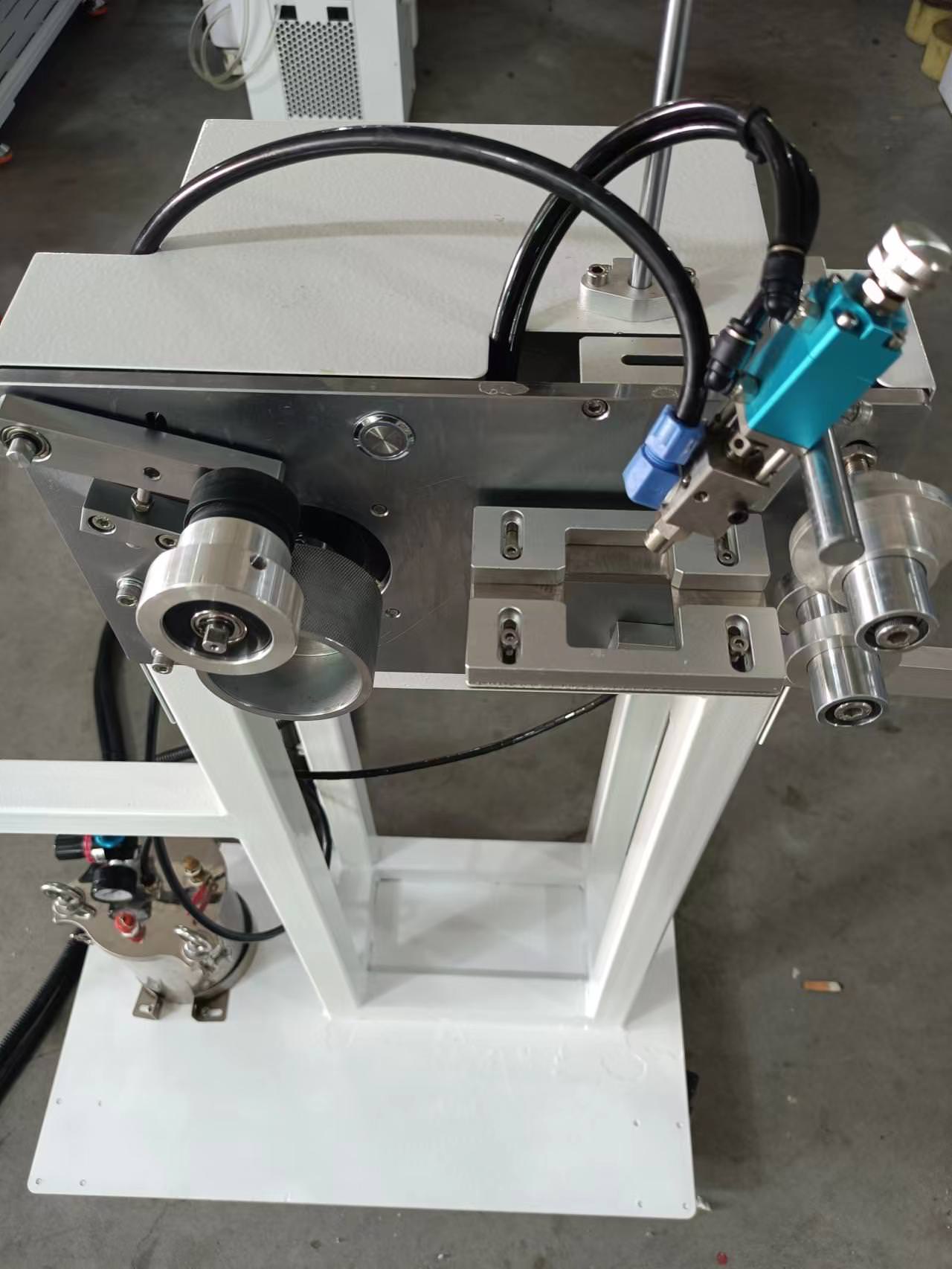

3, Silicone primer brushing device , the silicone primer device brushes primer on the silicone strips

surfaces for better adhesion of silicone strip with double side tapes, the brushing amount can be adjusted.

the silicone primer is placed in a container of the machine .

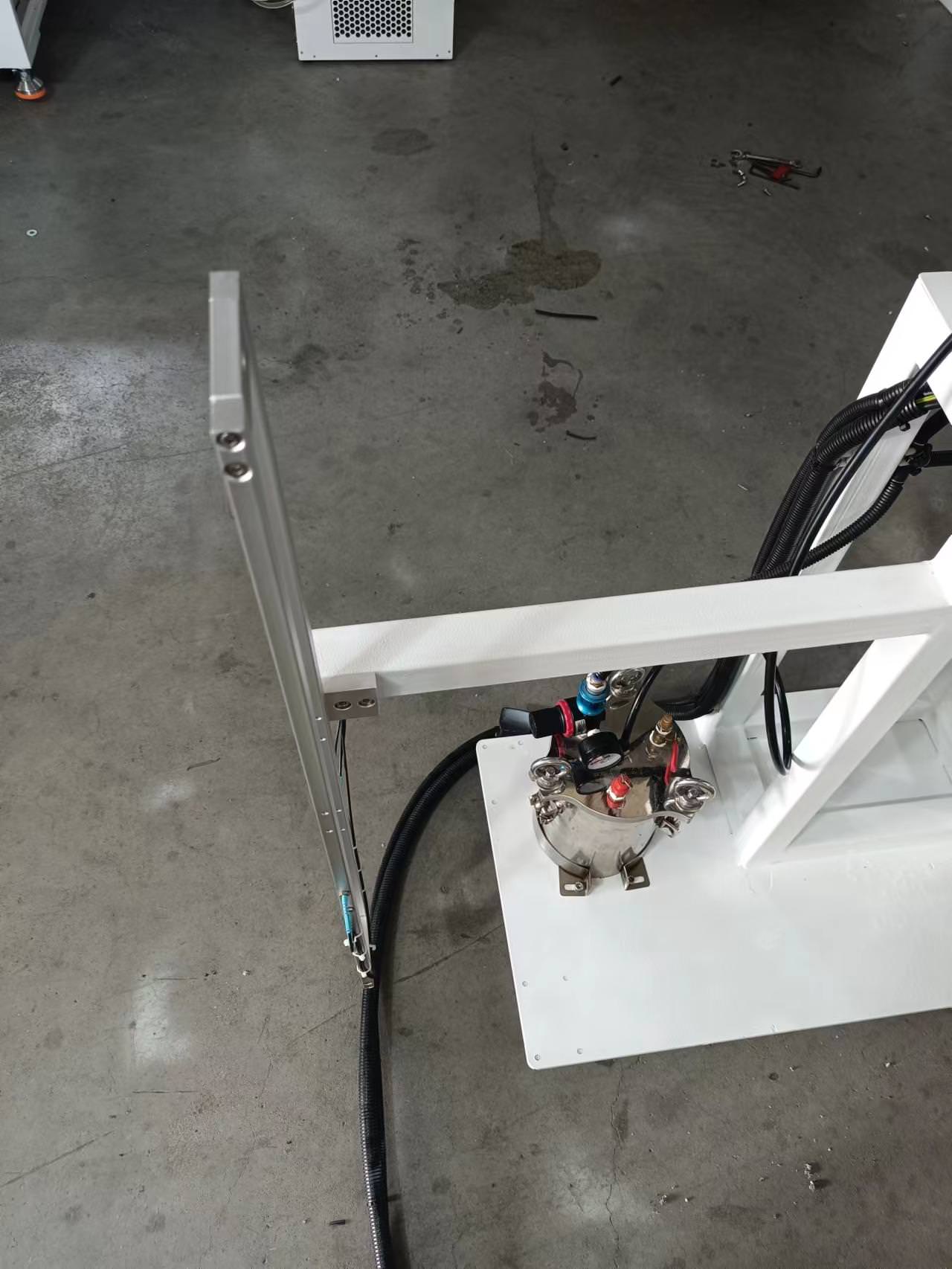

4, Sensor device  , when the laminating material goes up to certain height , the sensor device will work and

signal the feeder to feed with the material ensuring smooth lamination process without pulling .

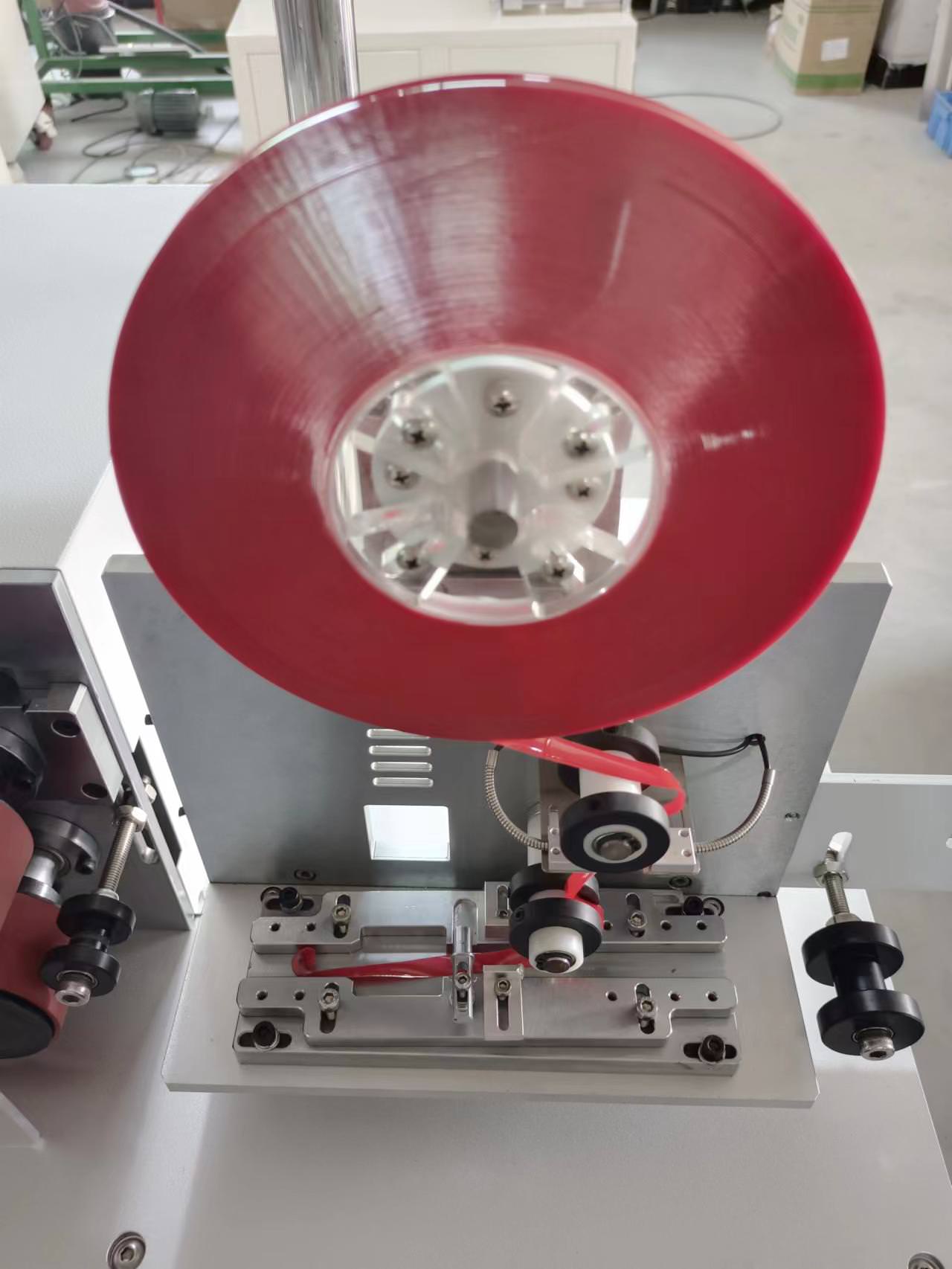

5, Double side tape holder device , The double side tape is held on vertical top of the machine

where  the silicone material will meet with the double side tape for lamination .

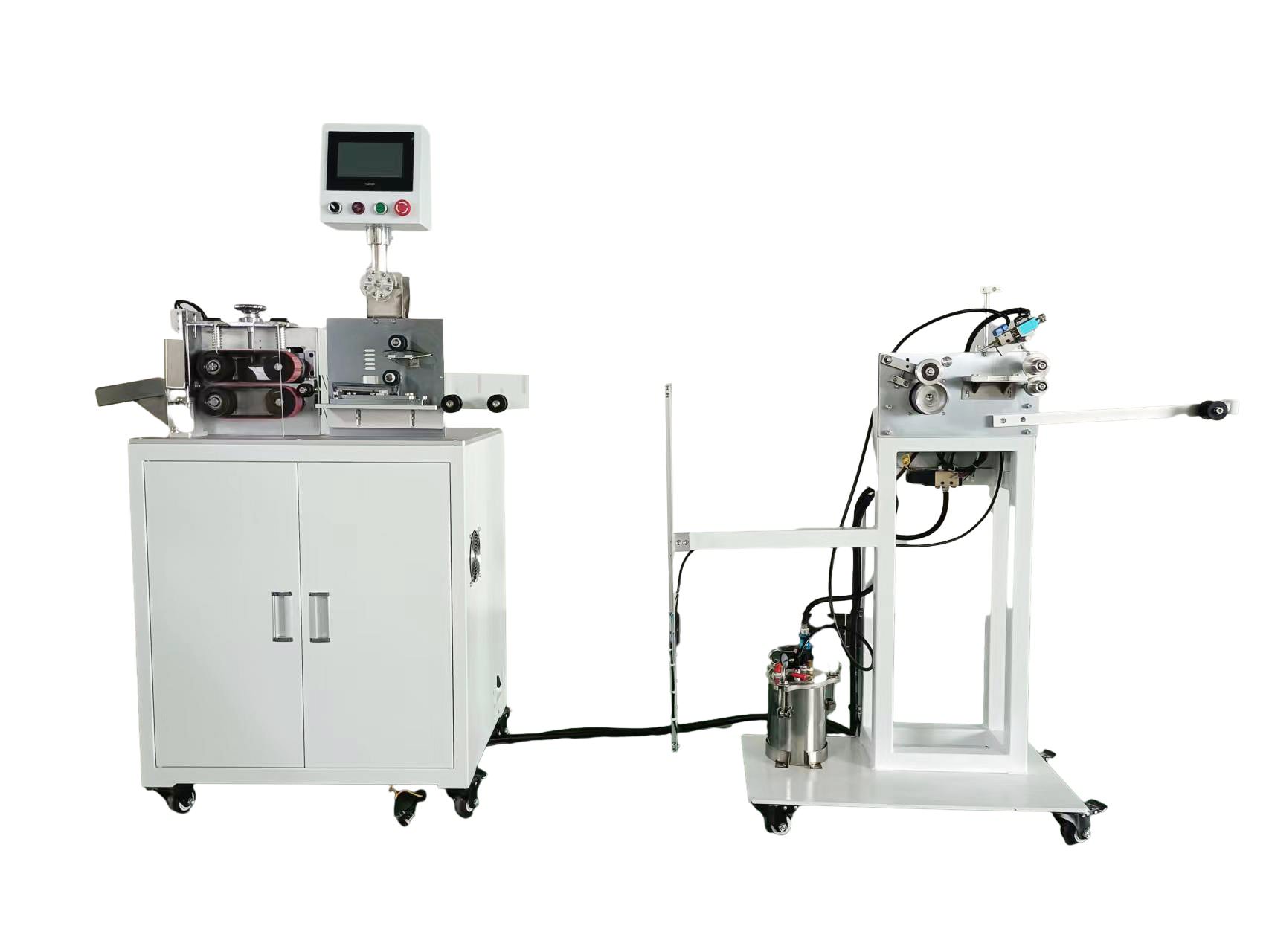

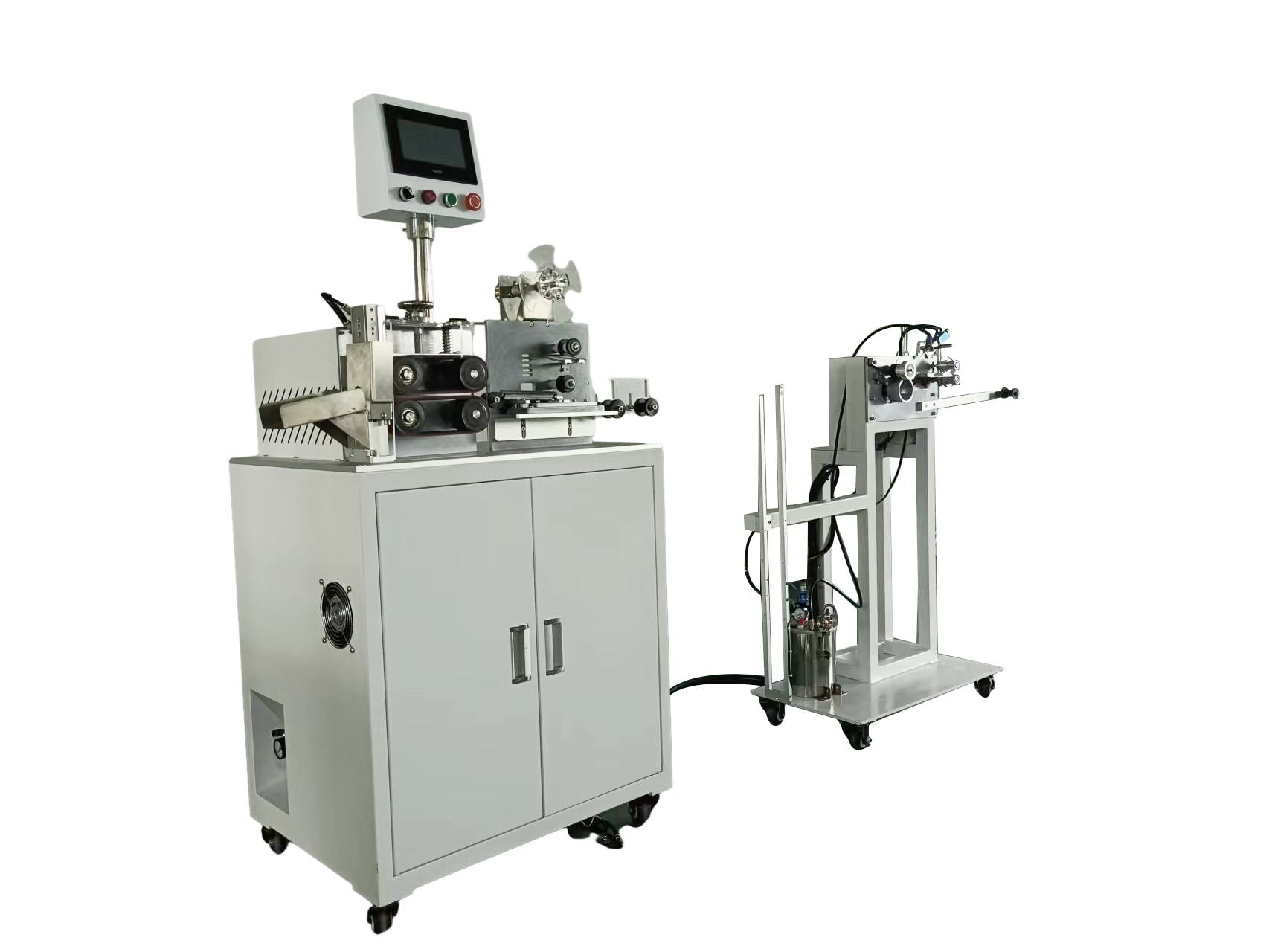

Front View

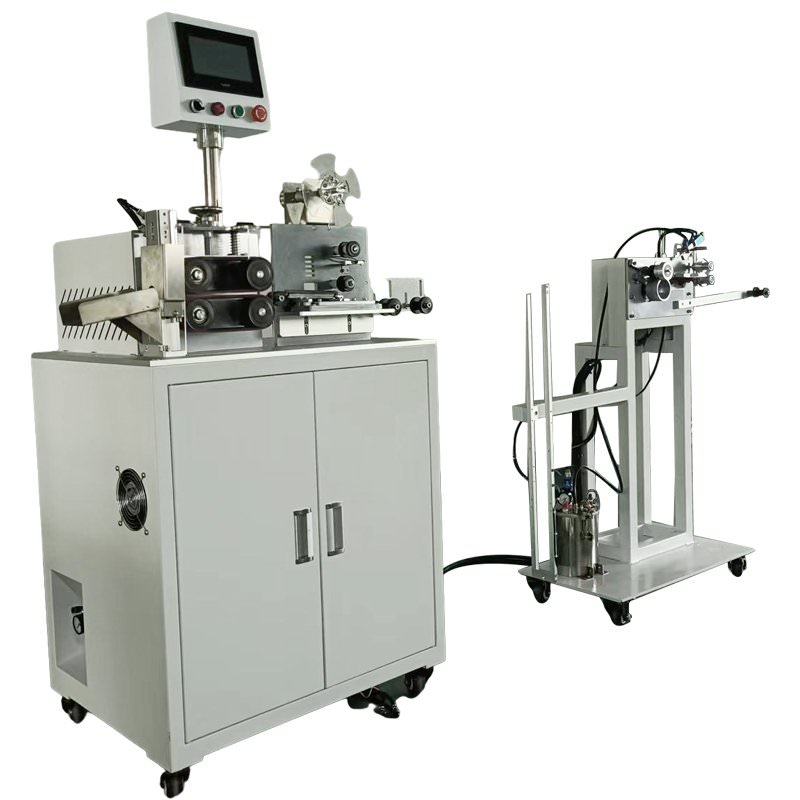

Side View

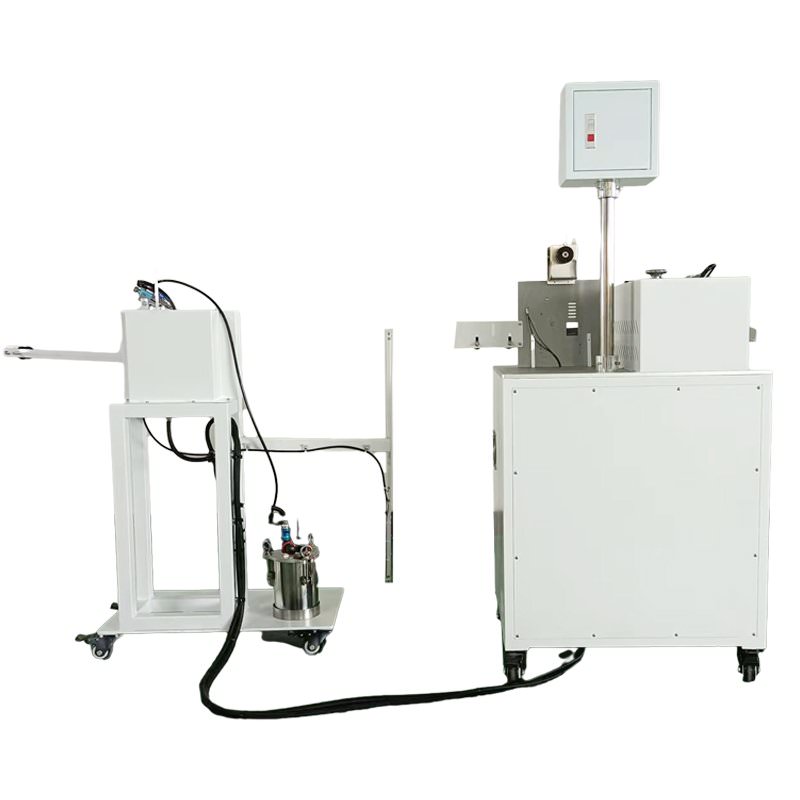

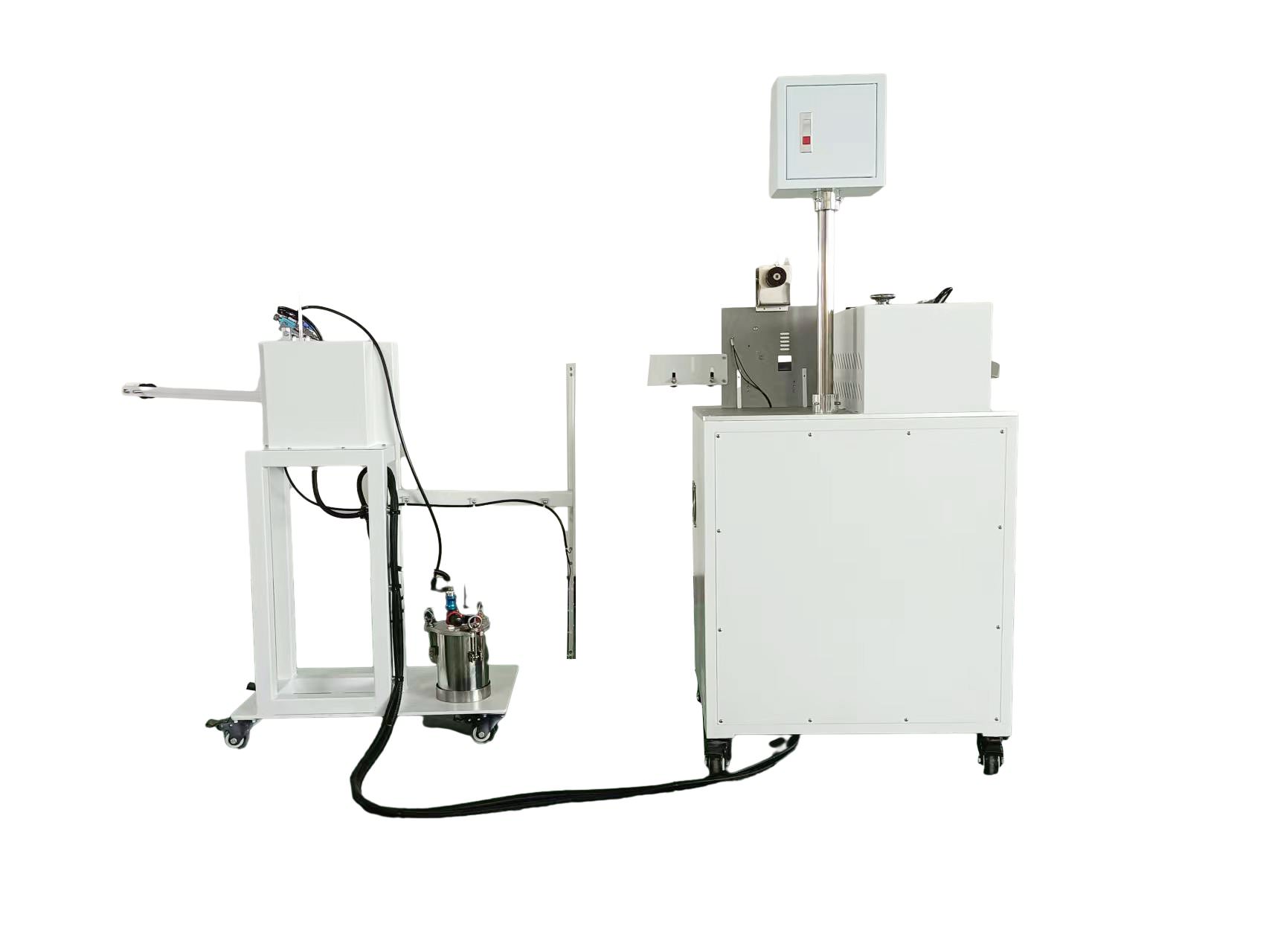

Back view

【Warranty 】

 As a professional post processing machine supplier , all the spare parts of  self adhesive silicone strip laminating machine  will have one year of free maintainance

by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice  after on line diagnosis .

【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping
