High speed silicone tube cords accurate cutting machine

High speed silicone tube cords accurate cutting machine ES-085

【Product Description】

The High speed silicone tube cords accurate cutting machine ES-085  is designed for fast cutting silicone tubes cords featuring with high speed cutting and high length

accuracy .it is widely applicable to cut silicone tube cords ,extrusion profiles .,rubber ,plastic , PVC tubes cords ,etc.

The cutting speed of this accurate silicone tube cutting machine reaches 1000 pcs/min based on 30-50mm cutting length , it applies with rotation knife driven by the

sevor high rotation speed motor , the machine also is backed with a feeding device which can sense lacking of material and sending tubing material in time for smooth

cutting purpose . the cutting length accuracy is +-1mm based on cutting 1 meter length silicone tubes , this fast silicone tube cutting machine  applies with double transport belt band which had large contacting surface with silicone material and maintains cutting length accuracy backed by the frequency control of adjustable speed motor

Youtube video

The cutting OD ranges φ3.0~φ25mm ,the double transport belt band can adjust their distance to hold different size tubings tightly . the cutting length ranges

1-99999.9mm , the high speed silicone tube cords cutting machine consists  three parts ,feeder device  + cutting machine + collection shelf  they work together

for good processing of silicone tubes ,cords ,pcv or plastic tubes with high productivity .

【Technical Data】

Product name : High speed accurate silicone tube cords cutting machine

Model No.: ES-085

Function : Cut silicone&rubber tube with high speed and accuracy +automatic feed material

Operaton system :PLC Touch screen&Button control

Voltage：220V

Machine power: 3.6KW

Motor type :  Sevor high rotation speed motor for cutting knife ,

frequency control of adjustable speed motor for feeding material

Cutting material OD/Height : φ3.0~φ25mm

Cutting width ：25mm

Cutting length: 1-99999.9mm

Cutting length accuracy： +-1mm (based on 1 meter silicone tube)

Speed/productivity ：1000 pcs/min（based on 30mm unit length）

Machine net weight :  280kg

Machine dimension： L*W*H： 3500*700*1500(mm) (when all parts lay out)

【Product Advantage】

1, High speed cutting by applying with sevor high rotation speed motor for the cutting knife ,

automatic feeding material with sensor to ensure smooth and fast cutting purpose .

2, Accurate cutting length &Straight cutting edge . the fast rubber tube cutting machine appplies with double transport belt

band and frequency motor to ensure cutting length are transported smoothly and with fixtures inside ,

the cutting edge is very straight result in smooth finish.

3, Wide application to silicone tube cords ,extrusion profiles .,rubber ,plastic , PVC tubes cords ,etc .

【Product Details】

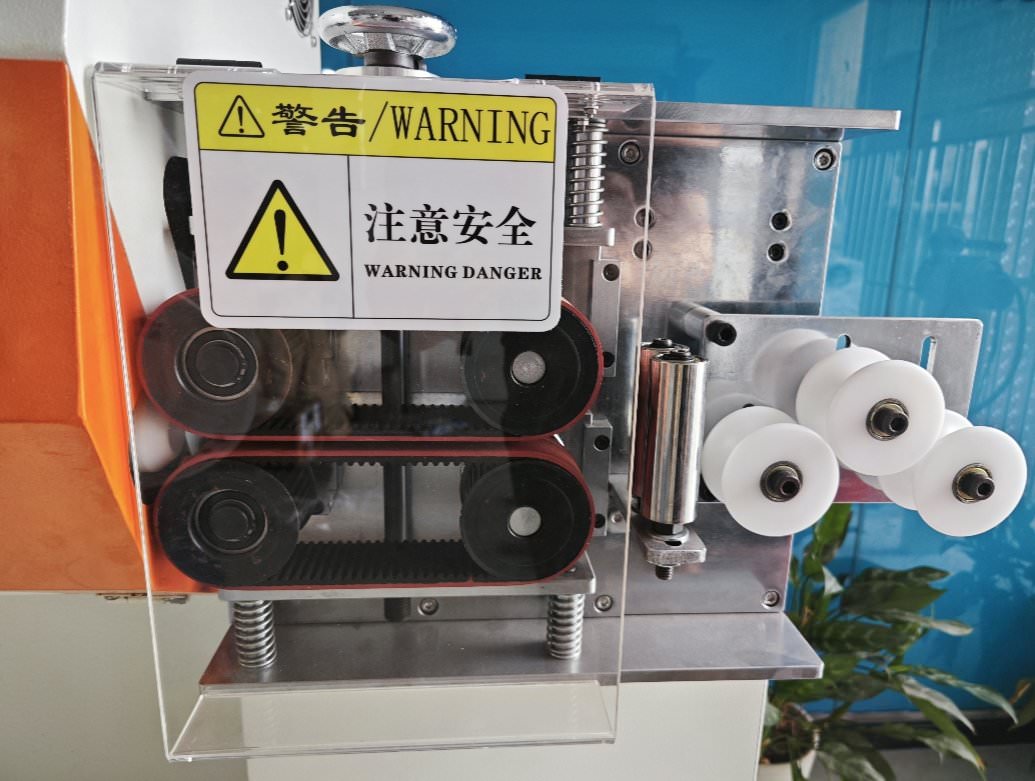

1,Double transport belt bands   , the double transport belt band had large contacting surface with

the silicone tubes ,it will avoid slipping  , in the meantime, the double transport belt bands are driving

by frequency control of adjustable speed motor to maintain cutting length precision .

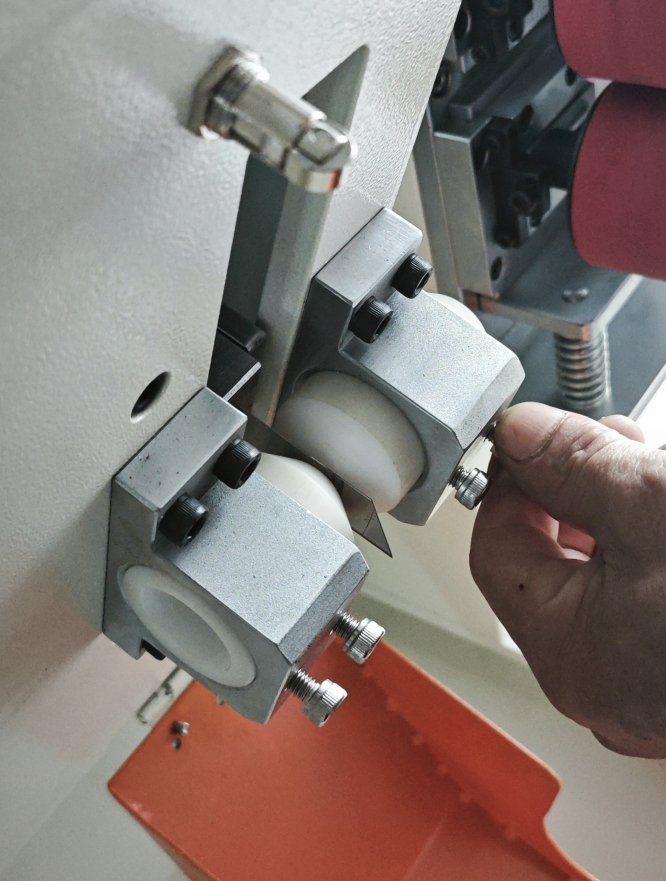

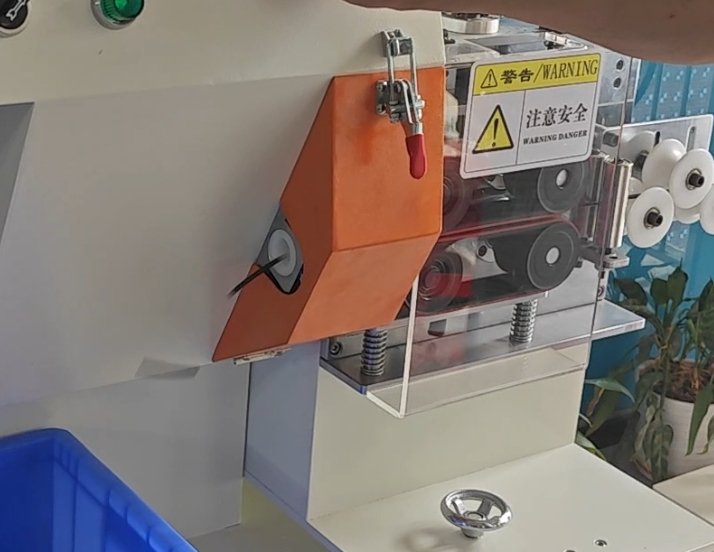

2, High speed rotation knife   ,the knife is rotation structure and is driven by sevor high rotation

speed motor which ensures high speed and strong power cutting .

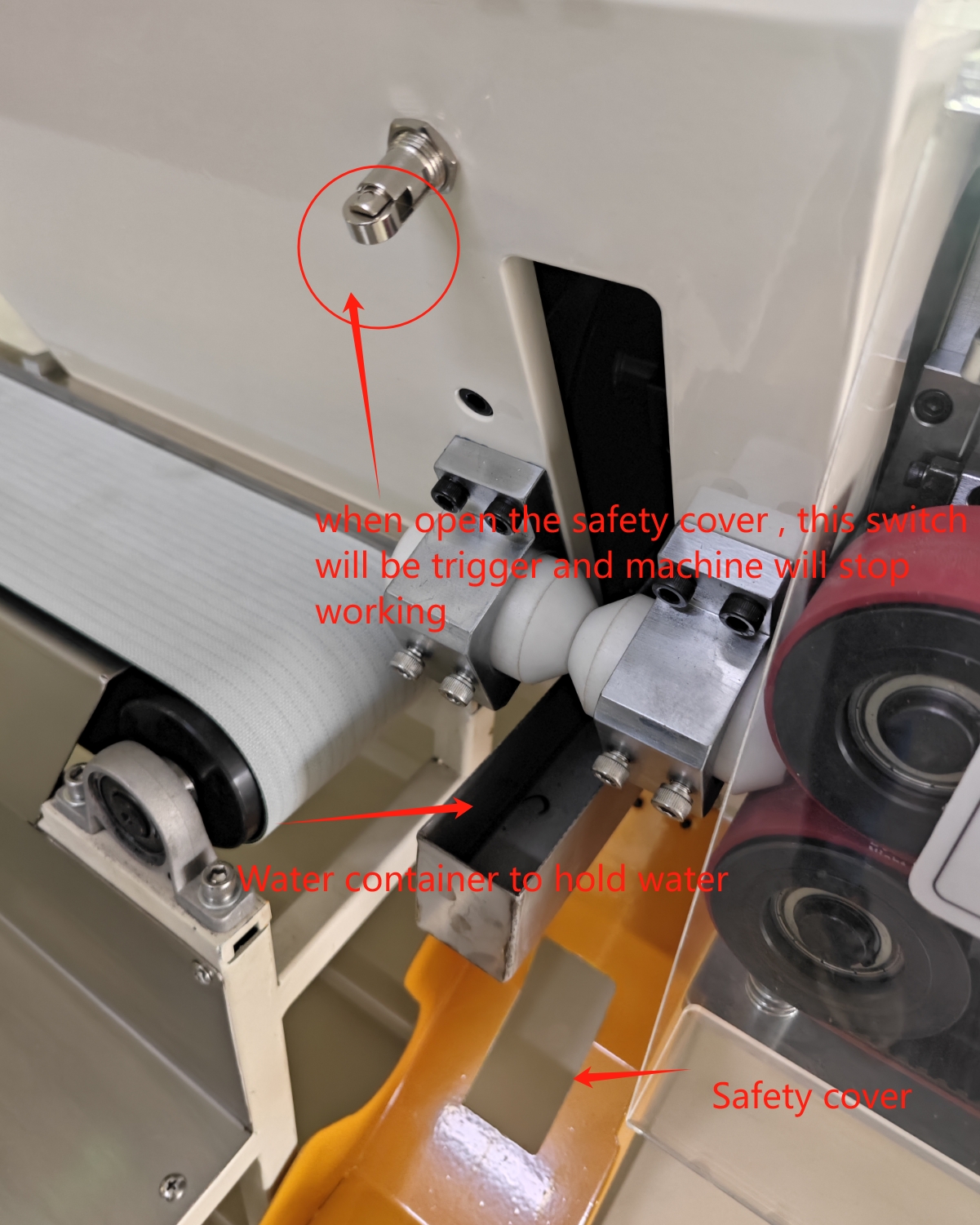

Protective cover with locker to ensure safety of workers .

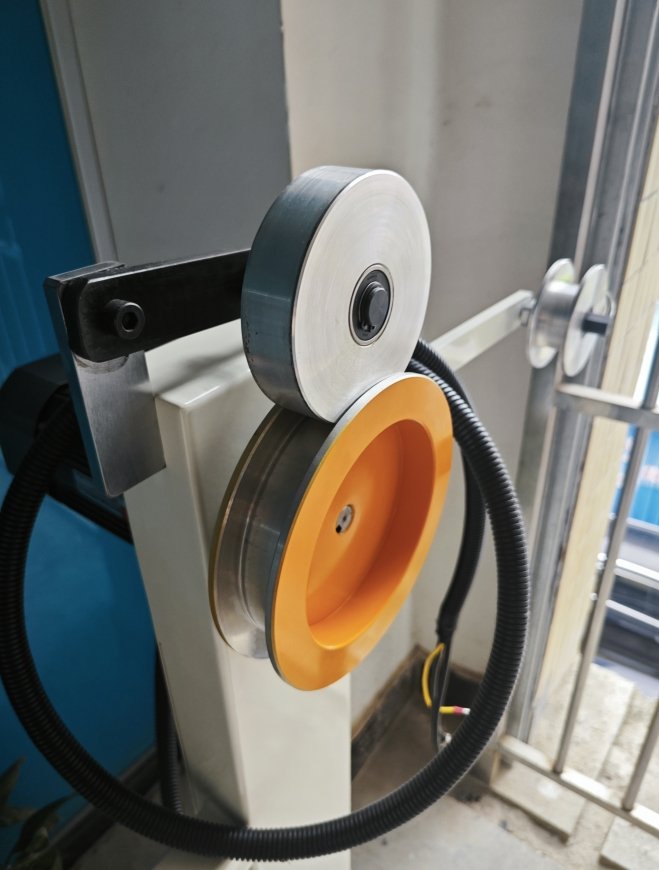

3, Feeding wheels ,  the feeding part ensures to feed tubing material in time for cutting machine

to process and with sensors to sense and avoid pulling and ensures smooth transporting of tubing

material

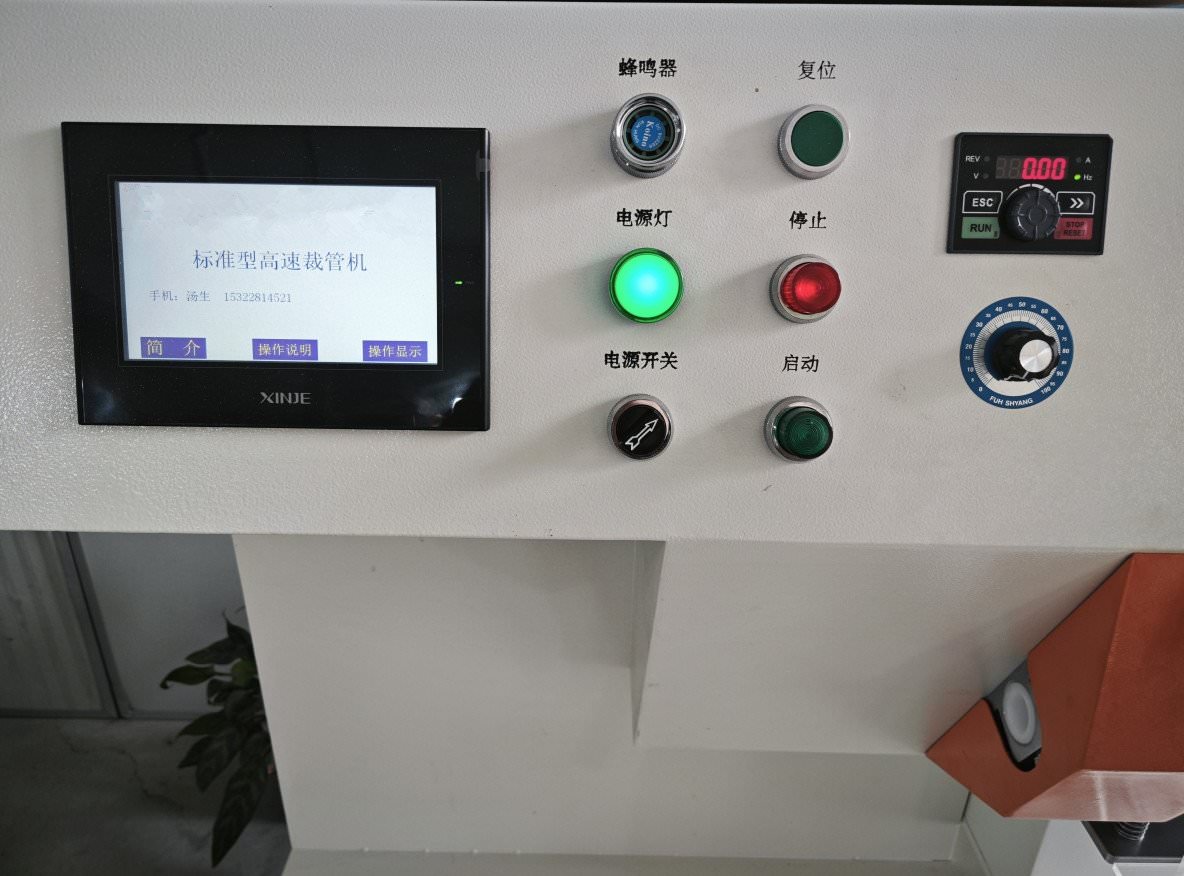

4, PLC touch screen &simplified button control , the high speed silicone tube cords cutting machine

applies with PLC touch screens which customer can set the unit cutting length ,total cutting amount ,cutting speed

etc . and also with simplified button controls to make the machine easy to operate .

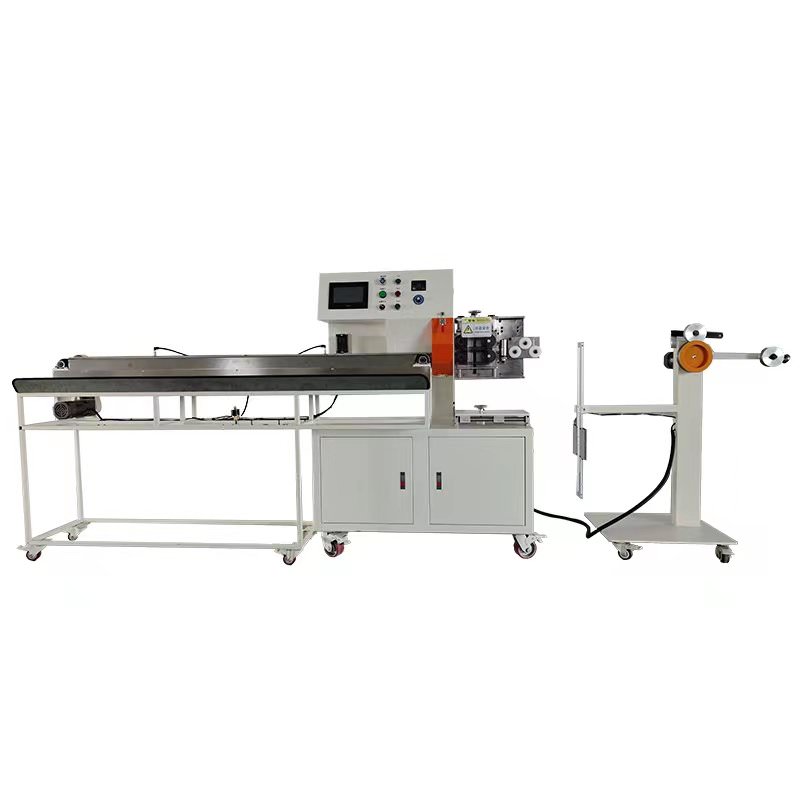

Front View

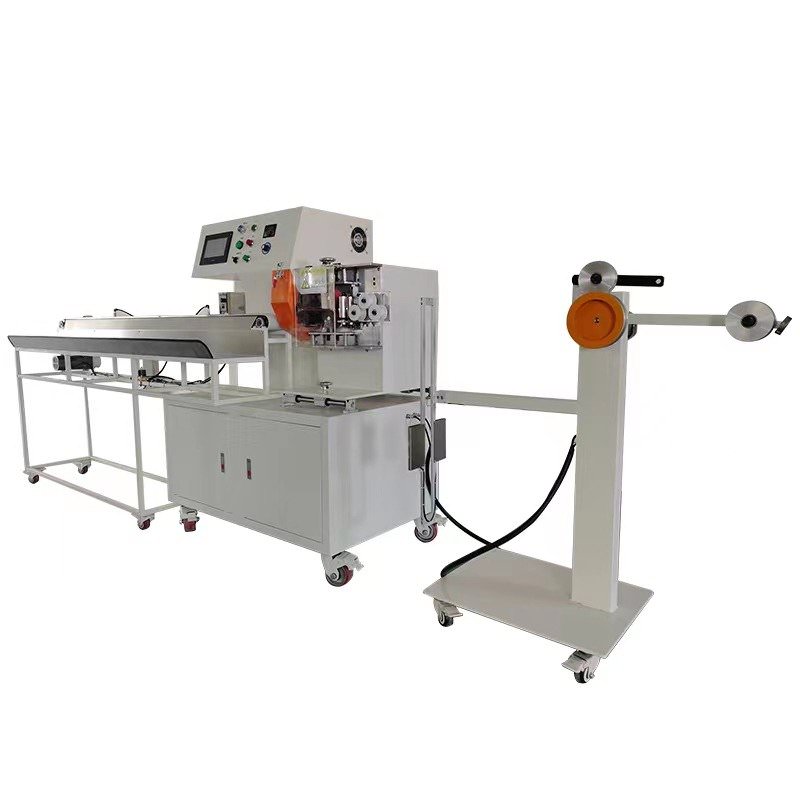

Side View

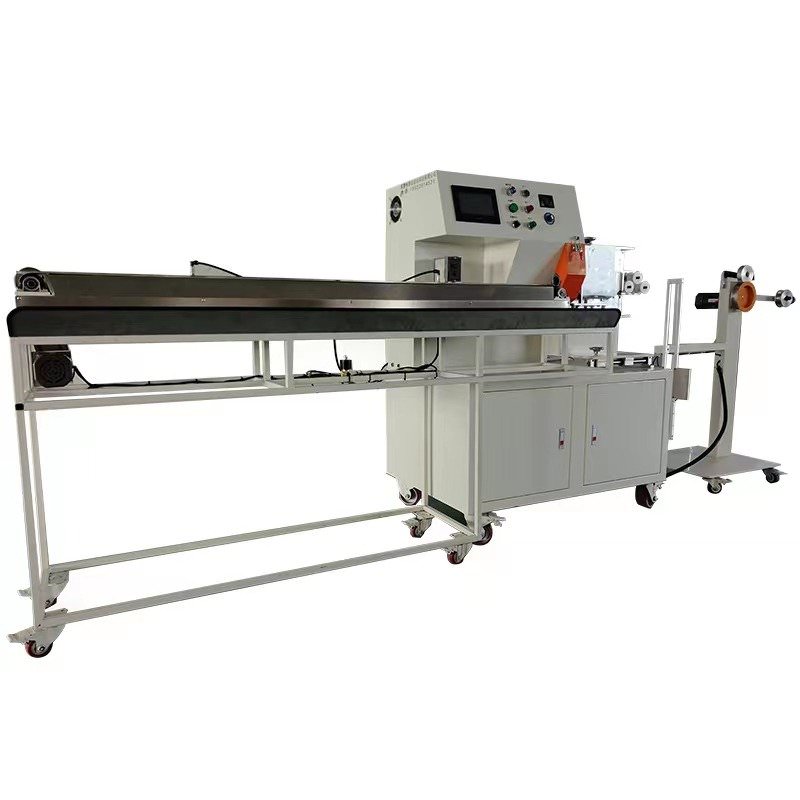

Side view

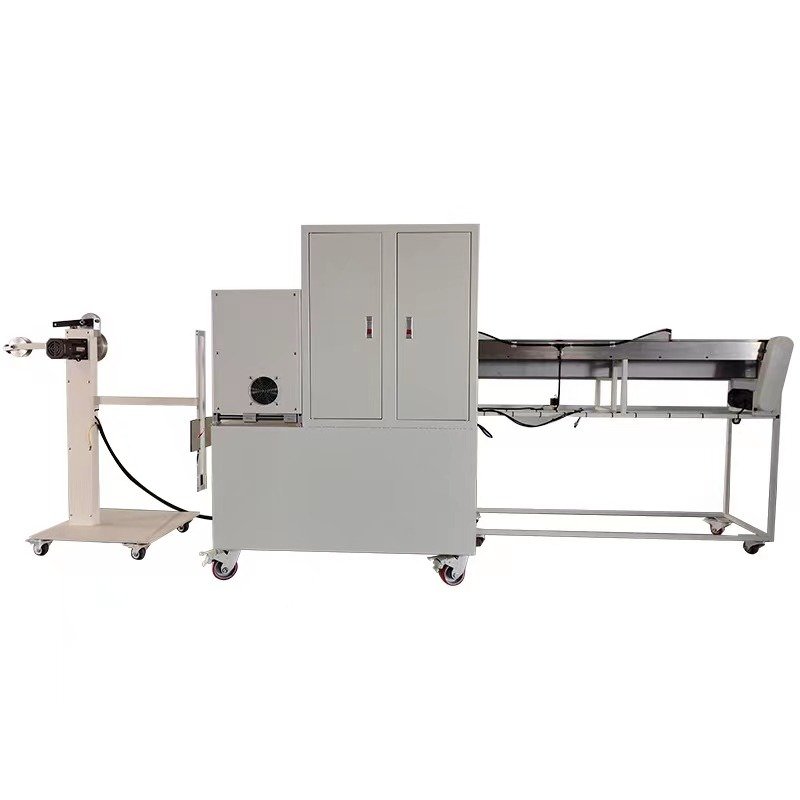

Back view

【Warranty 】

 As a cutting machine supplier, all the spare parts of  the high speed silicone tube cords accurate cutting machine except

the knife  will have one year of free maintainance by changing the spare parts for free and free shipping of spare parts to overseas clients

starting from the issuing date of commercial invoice  after on line diagnosis .

【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping
