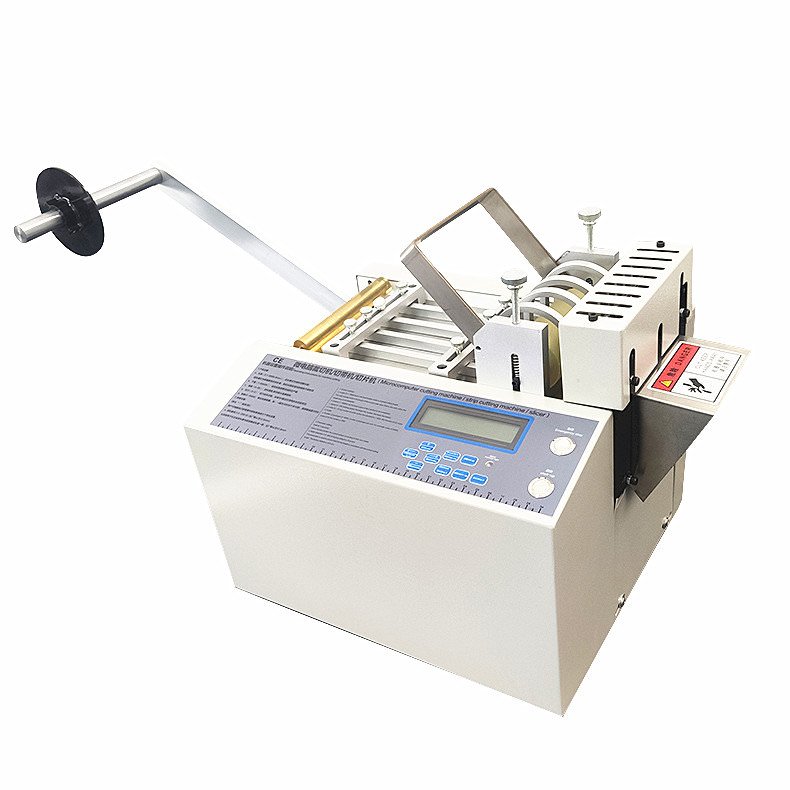

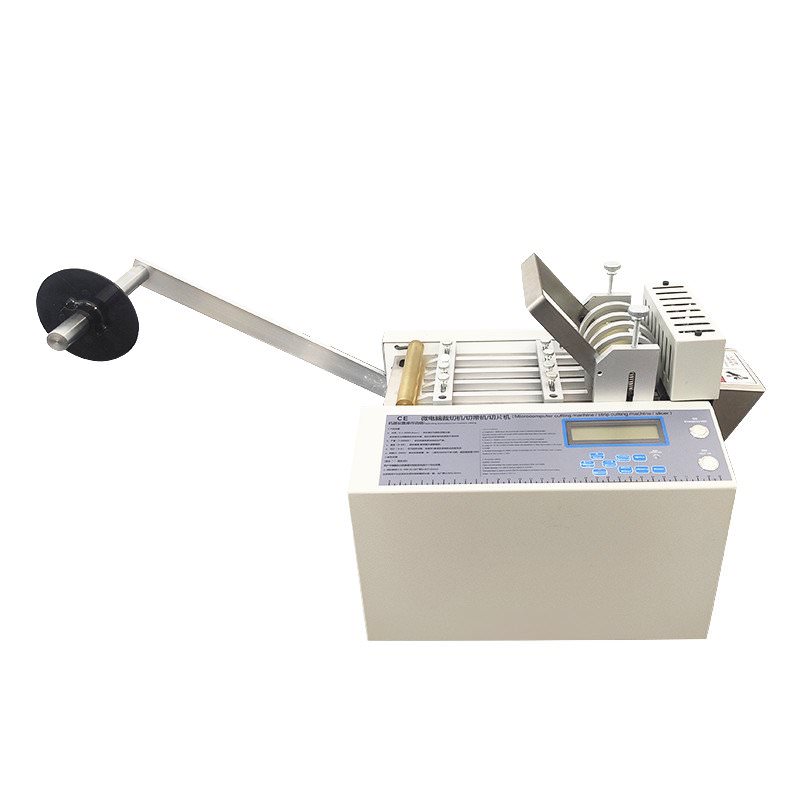

High speed silicone rubber washer cutting machine ES-082

The high speed silicone rubber washer cutting machine  ES-082

【Product Description】

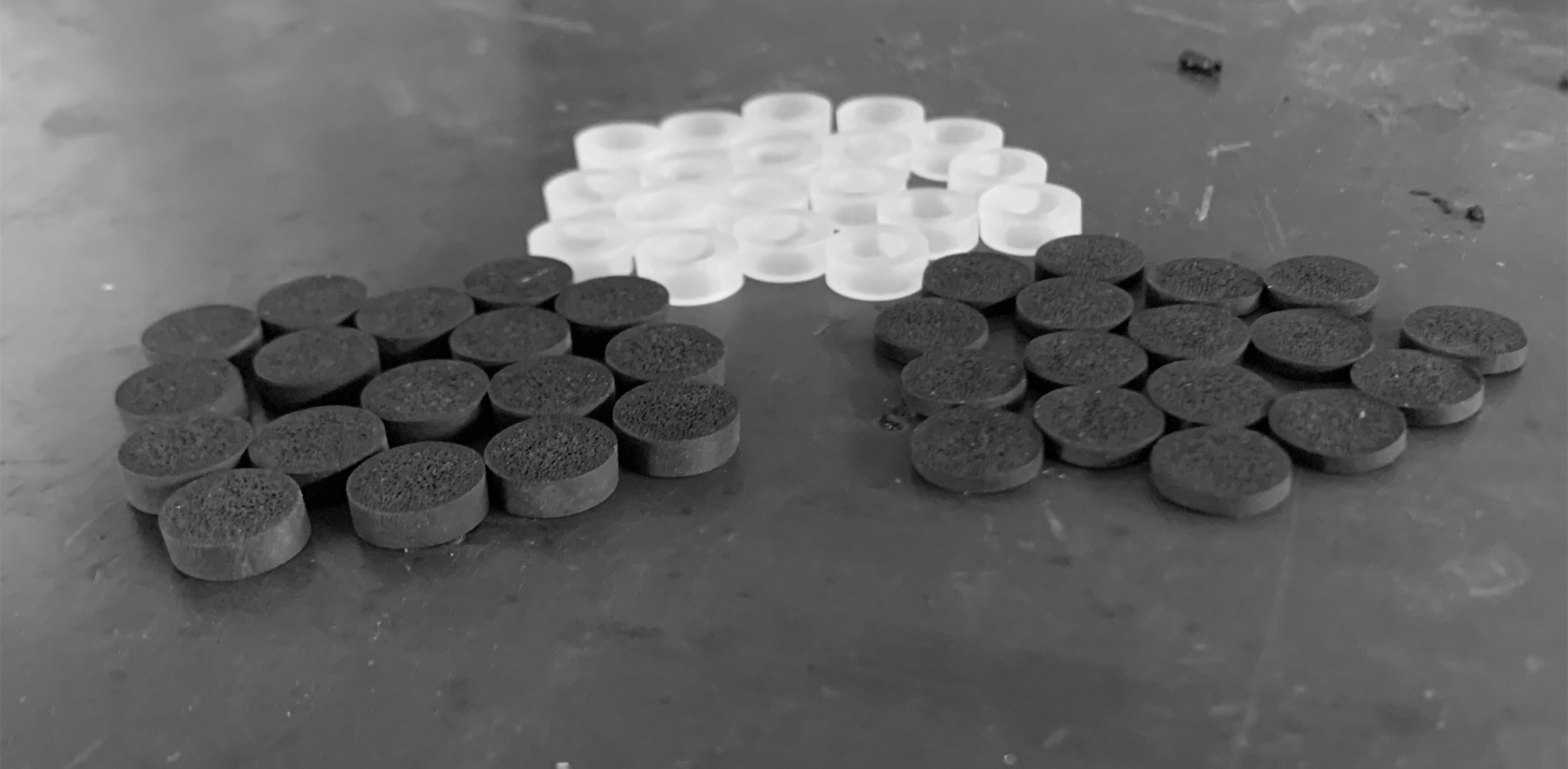

The high speed silicone rubber washer cutting machine ES-082  is made for fast cutting silicone or rubber tube cords into small length washers featuring with high output of 300-350 pcs/min  with the help of customised high power motor up to 1KW . This high speed rubber gaskets washer cutter will also be equiped with fixtures mold around the knife based on customer's tube cords OD sizes to ensure straight cutting edge of washers , above three cavities can be made on one fixtures ,so the machine can cut three tube cords at the same time which triple the production efficiency to at least 900-1050pcs/min .

it is also widely applicable to  cut extruded  rubber tubings , EPDM , PVC ,PE  tubings , PVC heat shrink sleeves ,elastic rubber bands  etc .

This washer gaskets cutting machine cuts silicone tubing OD ranges 0- 18mm , the cutting length ranges 1mm- 99999.99mm , the cutting speed and total cutting amount , batch amount ,batch interval time can all be set delicately based on customer requirement .

Customer can set the desired cutting length , total cutting amount and the silicone washer fast automatic cutting machine will do the rest , proceed to automatic cutting sequence and requires no baby sitting as when cutting material runs out , the machine will trigger the alarm so workers can know and put on new cutting material .

This high speed rubber gaskets washer cutter   ES-082   features with wide application to all kinds of extruded tubings ,sleeves or cords and  automatic cutting ,labour saving and lever up production .

Youtube video

【Product advantage 】

1,High output of 300pcs-350pcs /min for cutting one singular tube cords with high power motor up to 1kw ,the mutil fixture bars behind allow up to

3 rubber tube cords to be cut at the same time ,so the production output boost to at least 900-105pcs/min

2, Vertical straight cutting finish , we will customise the fixture mold around knife  based on customer's tube cords OD sizes. so washers are

cut straight and nicely .the fixture bars will also lead the extruded silicone straight foward  and avoid swaying .

3, Precise Same cutting length , the cutting length will be the same as what sets on the cutting machine .

4,Wide application to all kinds of silicone tube cords , extruded tubings &profiles &seals

【Product  Detail 】

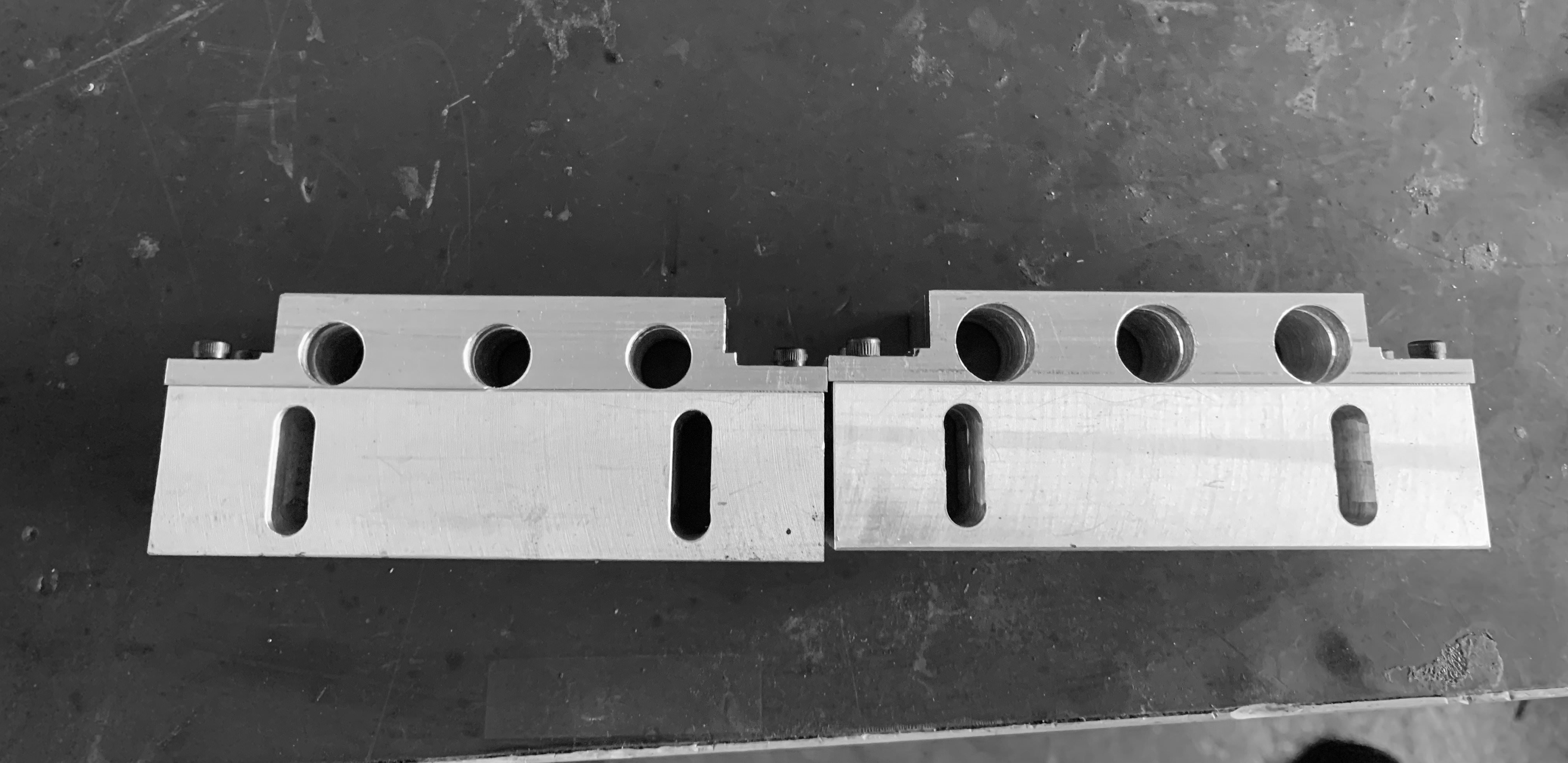

1,Customised fixture mold , we will customise the fixture mold based on customer's tube cords OD sizes ,

about three cavity sizes can be made on same fixture mold

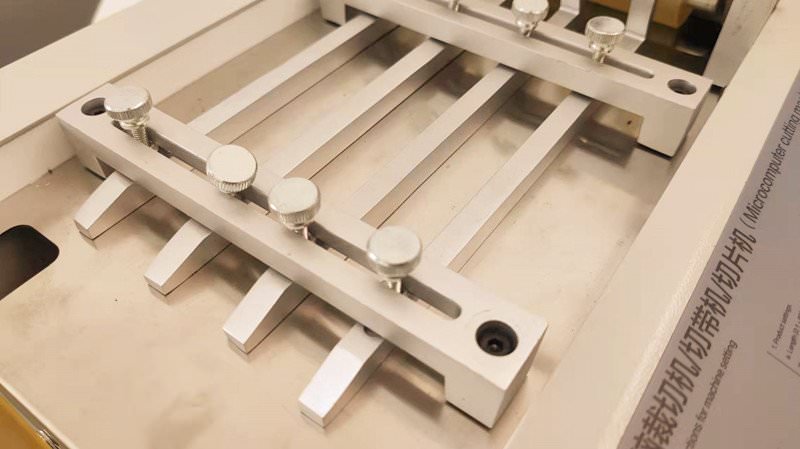

the directing fixtures behind will ensure that multi extruded silicone pieces can be processed at one time

to increase productivity ,more than three pieces can be cut at one time so production output can reach up to

900 pcs/min  for washer cutting

2 ,Sensor equiped at tail of the machine , if cutting material runs out , it will trigger the alarm and let workers

put on new cutting material in a timely manner

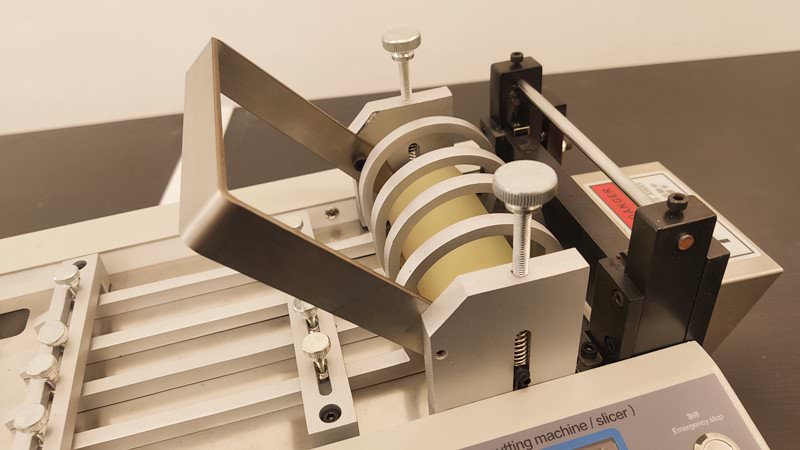

3,The top screws can adjust the roller pressure for cutting different sizes of extruded silicone and

the roller can be lifted by pressing down the handle.

4, Simplified control board , easy to operate and teach staff to use , delicate setting for cutting length ,

total cutting amount , cutting speed , batch amount and batch  stopping time

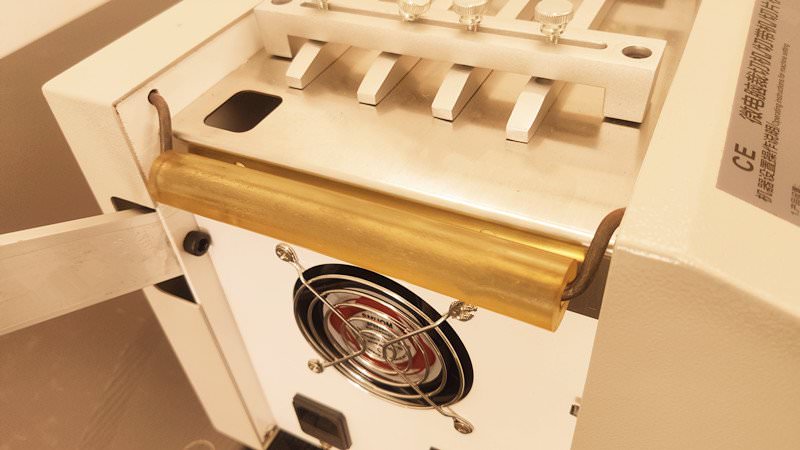

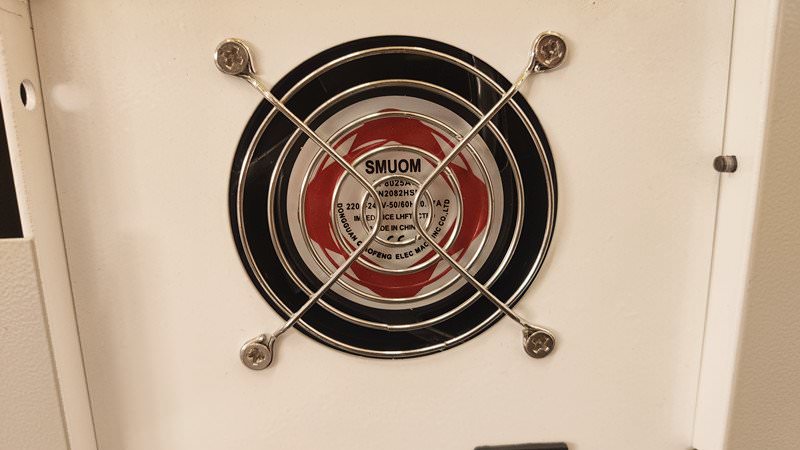

5,Heat dispersing fans , the rubber washer cutting machine  is equiped with heat dispersing fans

which constantly disperse heat during working and ensures long hours working and life span of the machine

【Technical Data】

Model No.: ES-082(custom type)

Brand :ＥＳＭＡＩ

Product name : The high speed silicone rubber washer cutting machine

Cutting Diameter: 0-18 mm

Cutting length : 1mm- 99999.99mm

Output/speed : 300-350pcs/min for 3mm length washer

Voltage: 220/110V  50/60HZ

Power: 1000Ｗ

Net Weight : 28KGS

Dimensions:　Ｌ３６０：Ｗ３００：Ｈ３５０ｍｍ

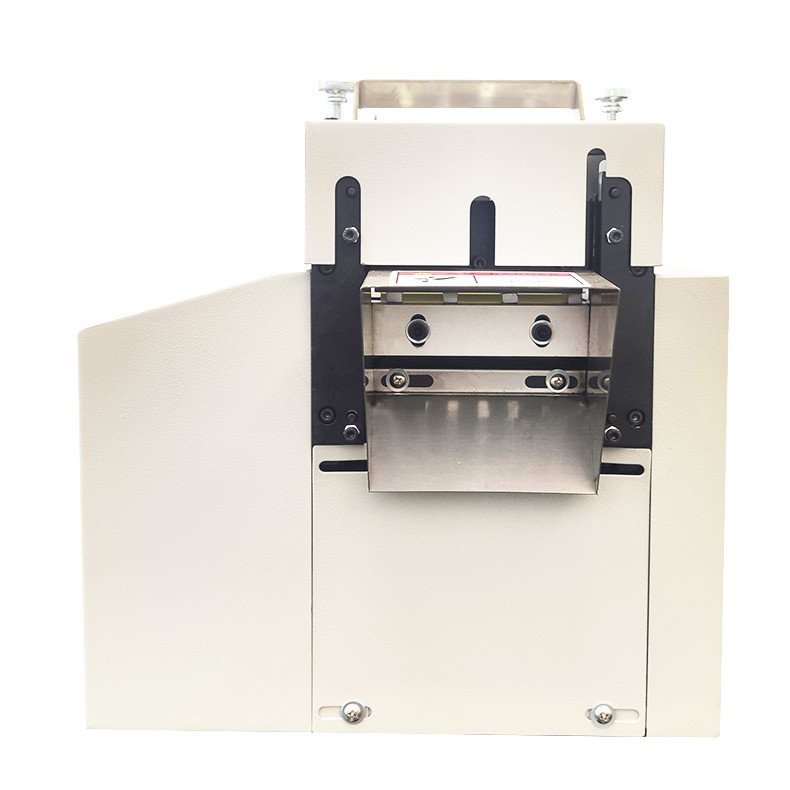

Front view

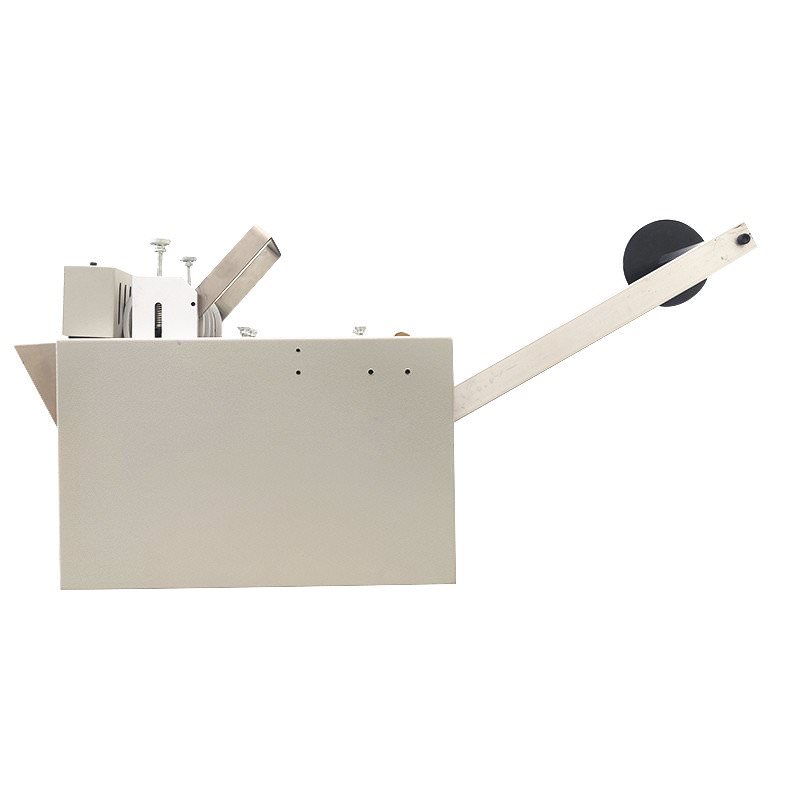

Side view

Side view

Back view

【Warranty】

All  the spare parts of high speed silicone rubber washer cutting machine  ES-082  will have one year of free maintainance by changing the spare parts

for free and free shipping of spare parts to overseas clients starting from the issuing date of commercial invoice  after on line diagnosis .

【Packing】

1SET/ CARTON  (Inside the carton will be packed with foam pading material to protect the machine goods)
