Heavy webbing sling cutting machine ES-062

Heavy webbing sling cutting machine   ES-062

 【Product Description】

The Heavy webbing sling cutting machine   ES-062 is made for cutting all kinds of tough and strong heavy webbings especially for the webbing slings .

This lifting webbing hot cutter  can supply hot cut of up to 650 ℃  and knife dropping speed can be set on this heavy duty webbing hot cutter so the knife can stay longer with the webbing cutting area to get maximum heat sealing effect .  when knife speed drop down , it will render knife cut weaker , so reinforced air pressing force is put on the knife to increase its cutting force and enable the machine to cut tough ,thick ,rigid thick webbings.

This hot knife heavy webbing cutter is of high power of 0.95KW and the knife blade is high speed thick steel blade which is durable in use .

 Youtube video

This safety webbing hot cutting machine is of 160 mm cutting width  , it is also equiped with leading fixtures which lead the cutting material straight  for a good quality cutting  and enable the machine to cut multi small width webbings at the same which will greatly lift the productivity .

This webbing slings cutter machine applies with easy to use control boards  which customer can manage to use the machine at ease and teach its staff easily . the cutting amount and cutting length setting data can be stored in the machine ,customer can trace the setting file and start the machine without repetitive setting .

【Technical Data】

Model No.:  ES-062

Product name : The heavy webbing sling cutting machine

Function :  Hot melting all kinds of thick rigid webbing with nice heat sealing edge and strong air force .

The machine cutting width : 1-160mm

Knife type : Hot knife ,High steel knife

Machine Power : 0.9KW

The maximum blade temperature : 650 ℃

The cutting length range : 1-99999 ℃

Weight : 75KG

Packing : Wooden case

【Product Advantage】

1 ,Good heat sealing effect ,The machine supply up to 650 degrees hot cutting temperature and knife speed can be slowed down to increase the heat sealing effect .

2,Air motivated pressing cut  ,the webbing sling cutting machine will be linked to an external air compressor.

3,High productivity , multi webbings  can be processed on the machine with separation leading fixtures.

4,Precise cutting length  ,High power motor and good quality motor is applied on the machine to ensure precise cutting length.

 【Product Details】

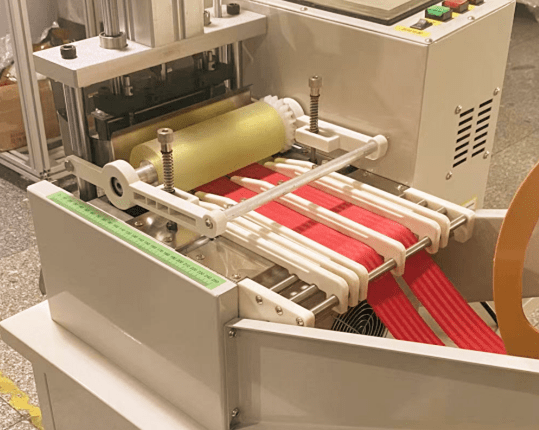

1, Leading fixtures

It will allow the machine to cut more than one webbing at one time

which  greatly lift productivity and lead webbing straight for cutting purpose

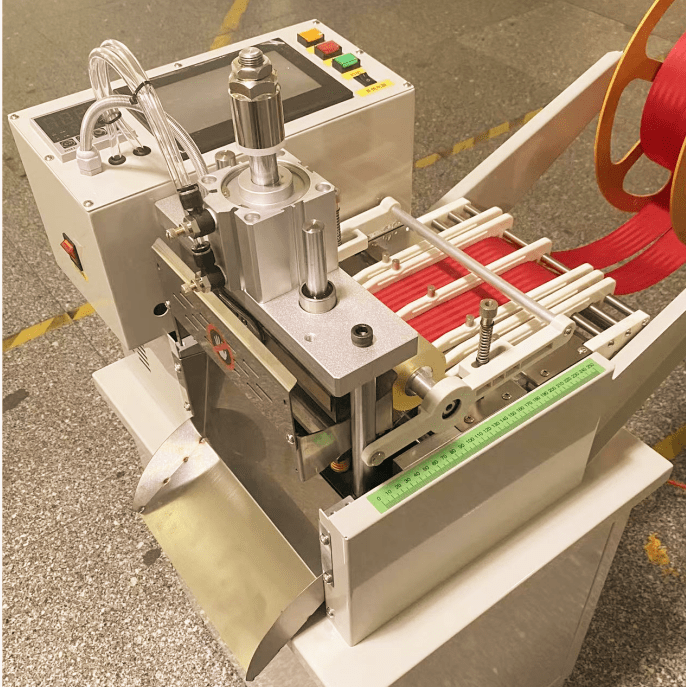

  2, External air compression force

The knife cutting force is elevated to compensate the weakened cutting force when

the knife dropping speed slows down for good heat sealing.

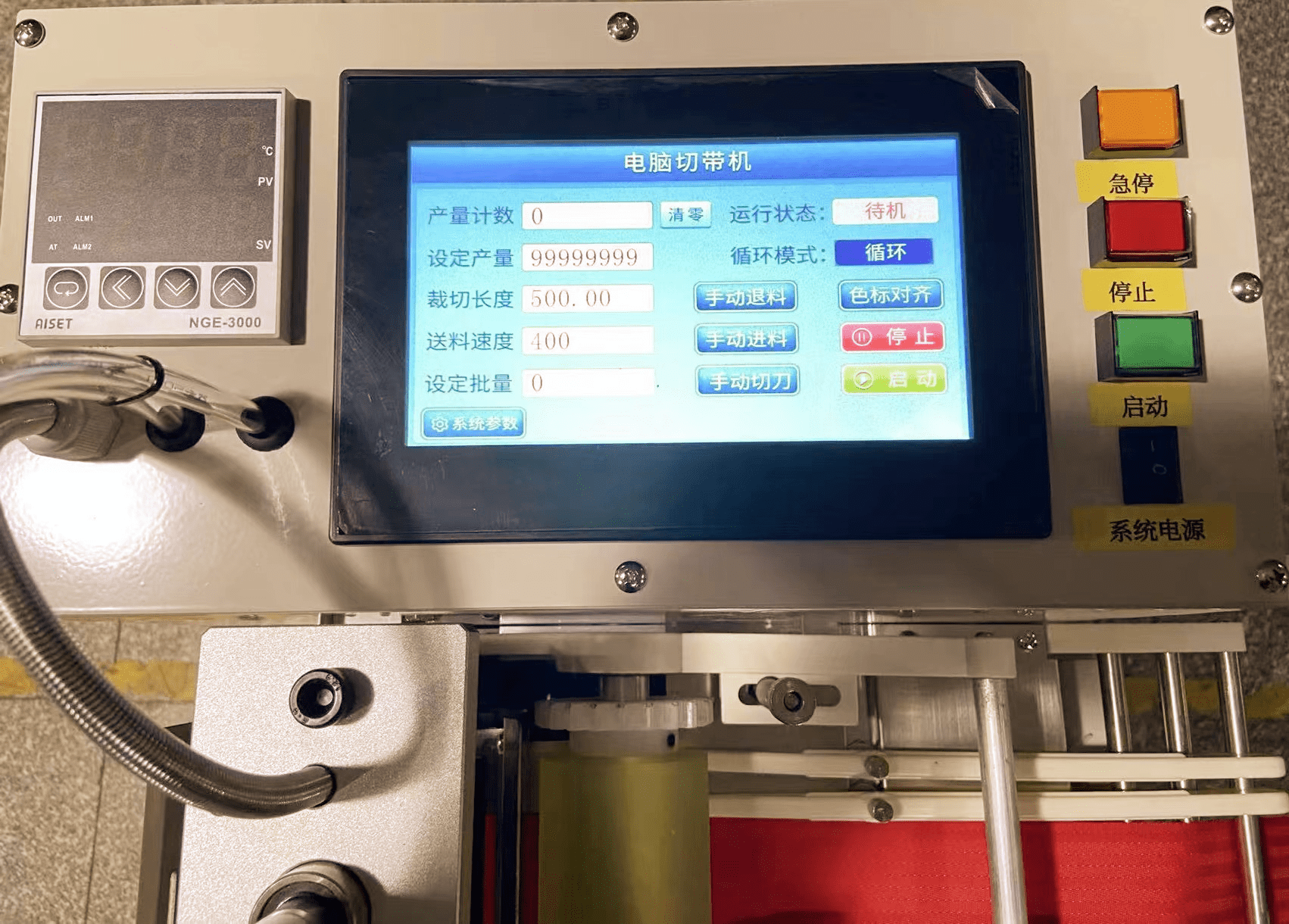

3,Easy to use touch screen control

The machine operation is simplifed into easy- to- use control keys

LCD display screen.

Both English & Chinese language is available,one key switch.

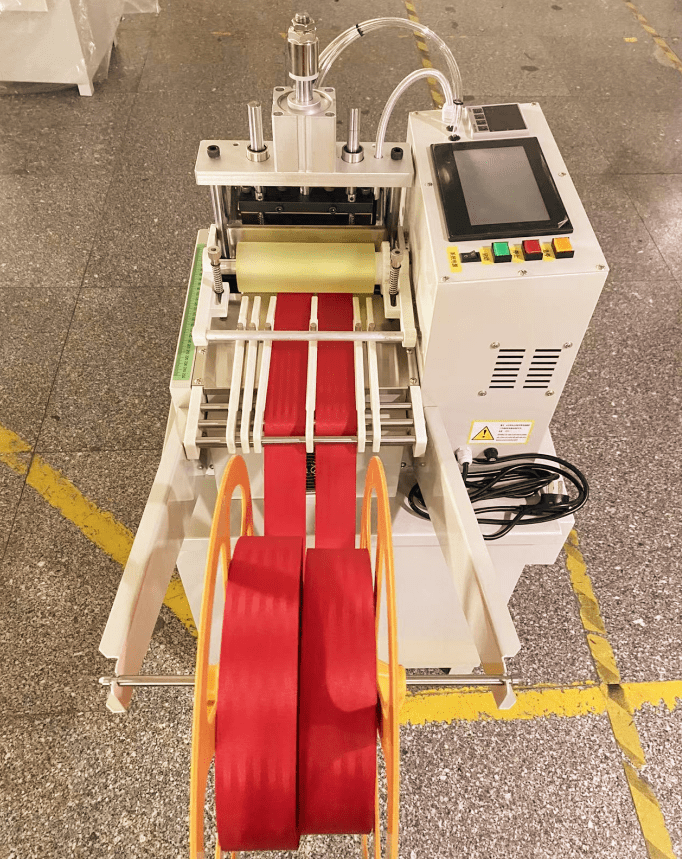

4,Big transport roller

The transport rubber roller is motivated by precision high power motor which roll out

fixed cutting length and transport cutting material precisely to the knife for cutting purpose

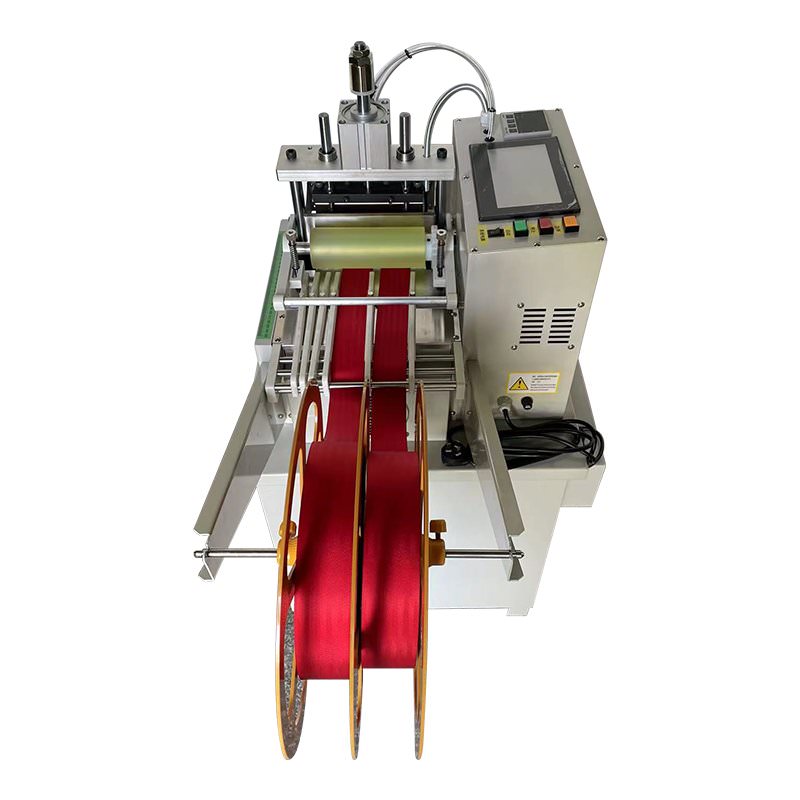

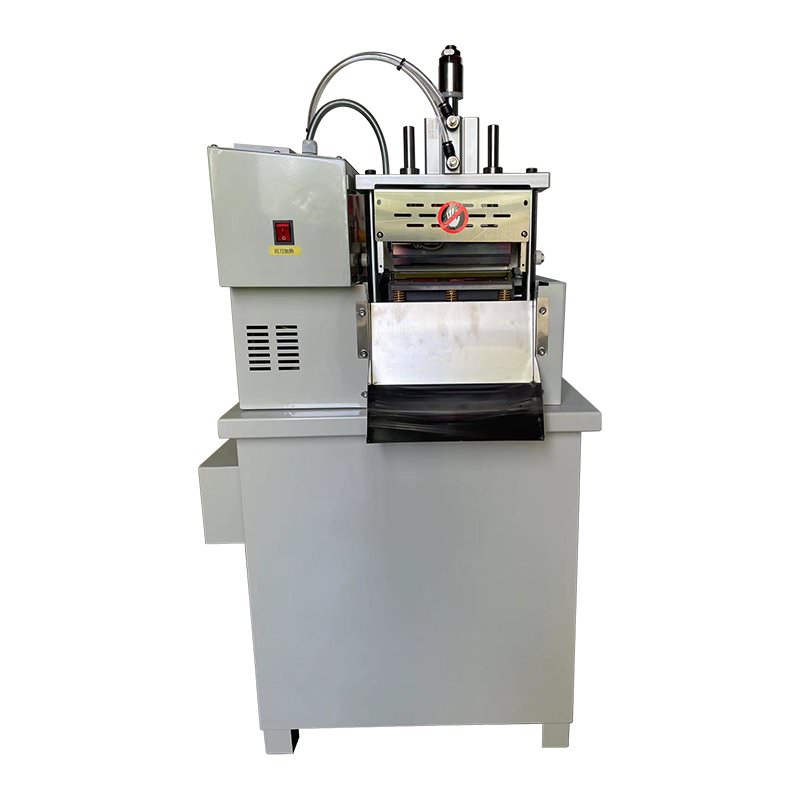

Front view

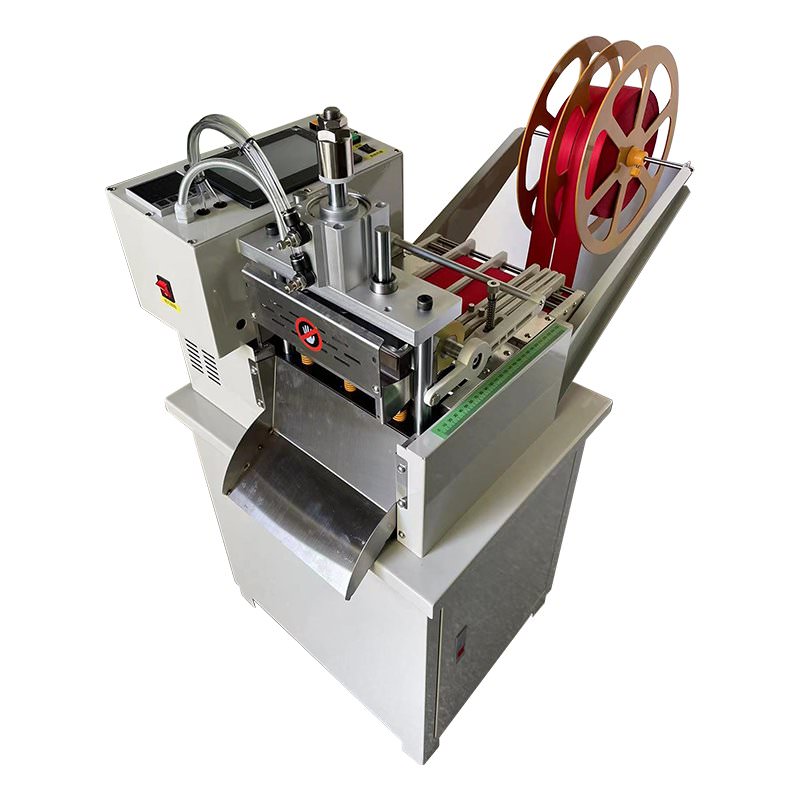

Side view

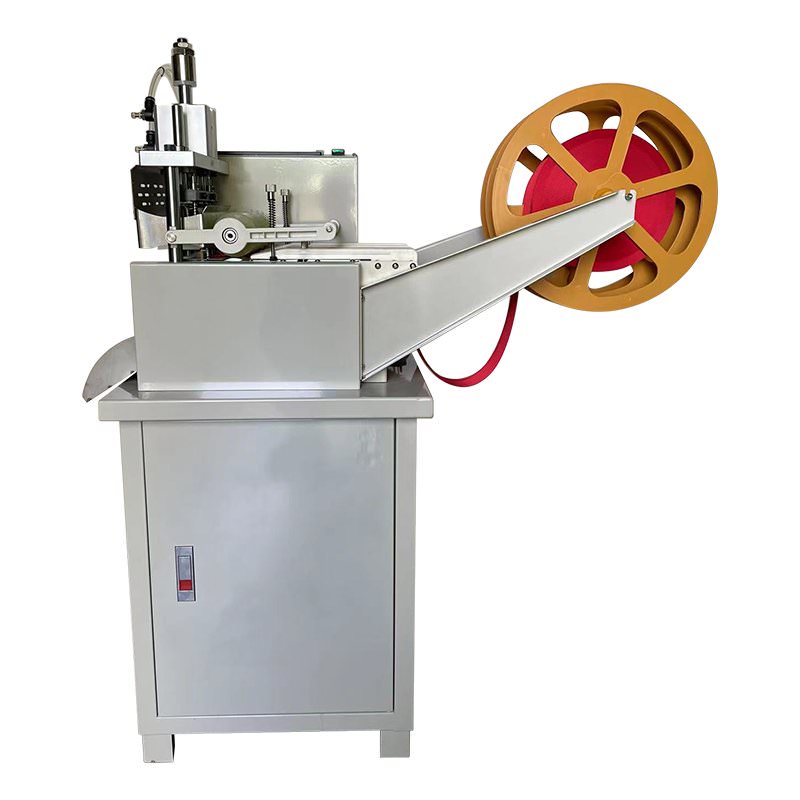

Side view

Side view

【Warranty】

All  the spare parts of  Heavy webbing sling cutting machine   ES-062  except the knife will have one year of free maintainance by changing the spare parts for free

and free shipping of spare parts to overseas clients starting from the issuing date of commercial invoice  after on line diagnosis .

【Packing】

1 Set/ Wooden case ,foam will be wrapped around the machine for safe protection before wooden case packing .
