Angle cut printed ribbon precision cutting machine ES-014-1

Angle cut printed ribbon precision cutting machine  ES-014-1

【Product Description】

The angle cut printed ribbon precision cutting machine is designed for hot cut thin printed ribbon material or webbings without sticking to the knife . there is a dragging device which is placed in front of the hot knife ,it would drag down the hot cut thin ribbon material and keep it away from sticking to the hot knife which might cause jamming the knife and get tangled in a roll .

This bevel cut ribbon cutting machine applies rotation knife which can rotate its angle cut position and cut out different angle shapes on both sides of the ribbon  ,the angle patterns and angle degrees can be set freely on the machine .

An panasonic electronic eye is equipped on the machine which can mark up the printed ribbon and cut the exact position of printed ribbon to ensure a complete printed ribbon is cut out accurately and nicely .

Youtube video

The cutting width of the machine ranges 1-90mm , machine power is 500W, the knife hot cutting temperature ranges 0-350 degrees , the electrical eye is from panasonic brand.

The best advantage of this  precise printed ribbon cutter machine is that it applies dragging device in front of the knife which keeps the hot cut ribbon material away from sticking to the knife . the other end of ribbon material will also pull back some length (can be set on the machinne) to avoid it from sticking to the hot knife . this accurate length pattern ribbon cutting machine is specially designed for thin ribbon cutting and save labour ,increase productivity .

【Technical Data】

Product name : Angle cut hot cut ribbon webbing automatic cutting machine

Mode No.: ES-014-1

Control system: Touch screen control

Product function : Hot cut +angle cut +precision cut

Product feature：Hot cut ribbon material with dragging device without sticking to the knife

Precision cutting mechanism :Electrical eye for precision tracking printed ribbon

Power: 500W

Knife Type：Hot knife

Power：110/220V

Cutting speed ：110Times/Min（based on 50mm cutting length）

Cutting width: 1-50mm

Cutting length: 1-99999mm

Maximum hot cutting temperature: 350℃

G.W: 28KG

Packing dimension: L550×W410×H490MM

【Product Advantage】

1,Hot cut thin ribbon without sticking to the hot knife with dragging device in front of the knife

2, Bevel angle cut which allows the rotation knife to cut different angle edges on both sides of ribbons or webbings

3, Precision cutting to cut complete printed ribbon with image or patterns with electrical eyes enabling to track every prints on the ribbon

and signle the knife to cut in exact position of the ribbon.

【Product Details】

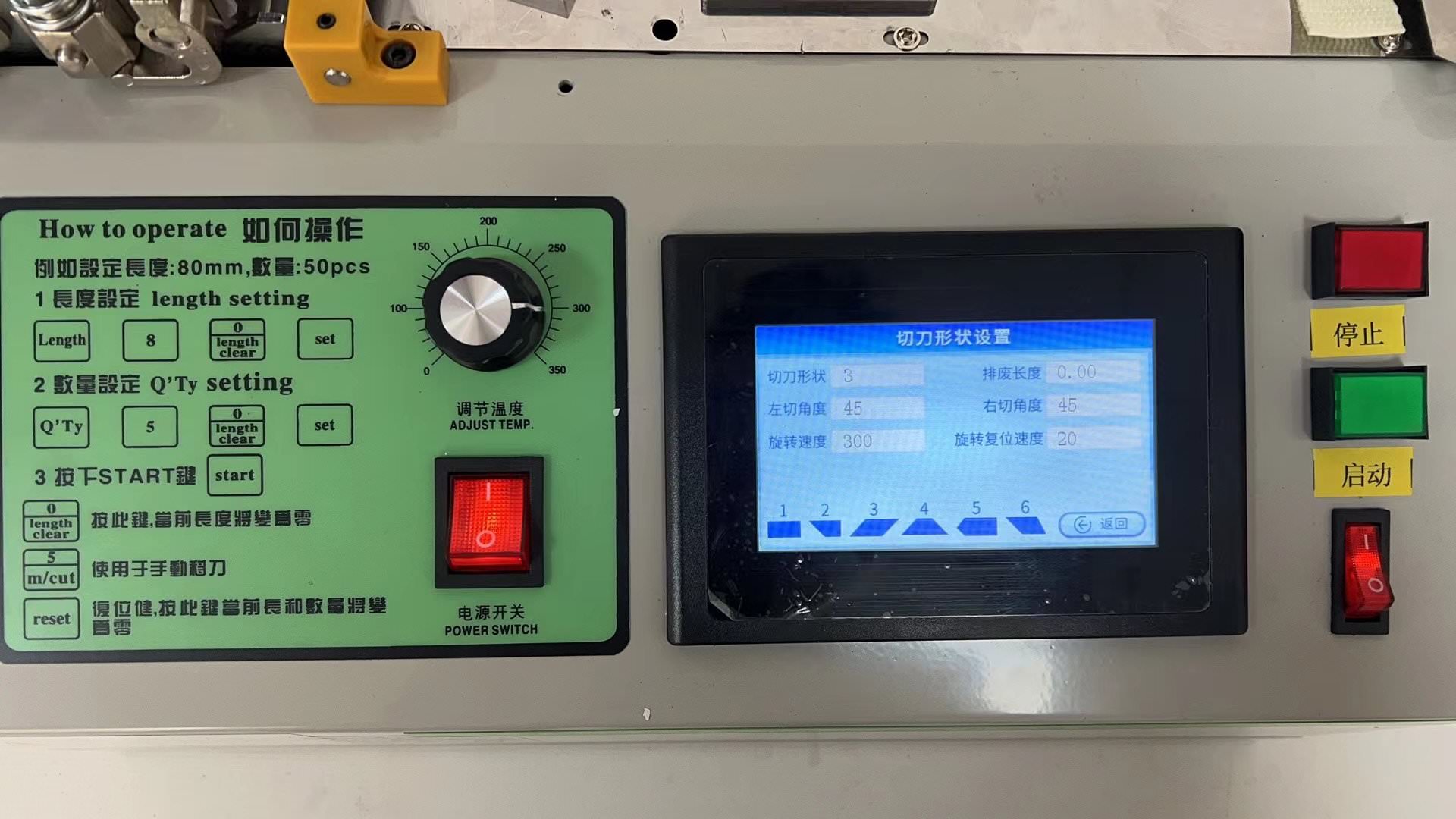

1,Touch screen control , this hot cut ribbon cutting machine applies touch screen which is easy to operate

and stable to use , customer can set angle cut , cuttting length , cutting amount easily on the machine etc.

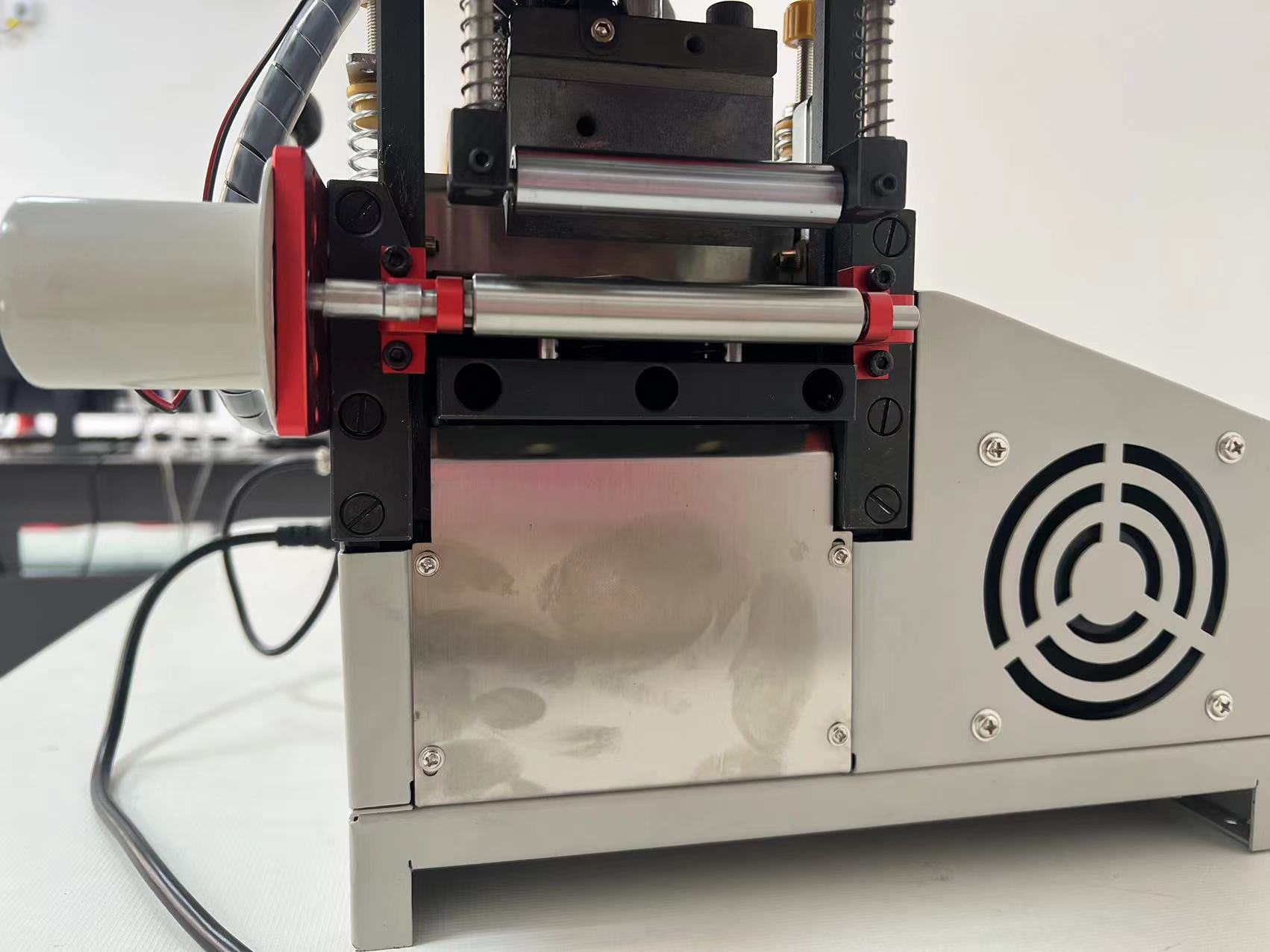

2,Hot knife with dragging device ,the hot knife had been equipped with dragging device in front of the knife

which enables the dragging device holds the finished cut ribbon and keep hot cut thin ribbon away from sticking

to the knife and cause possible jamming the knife .

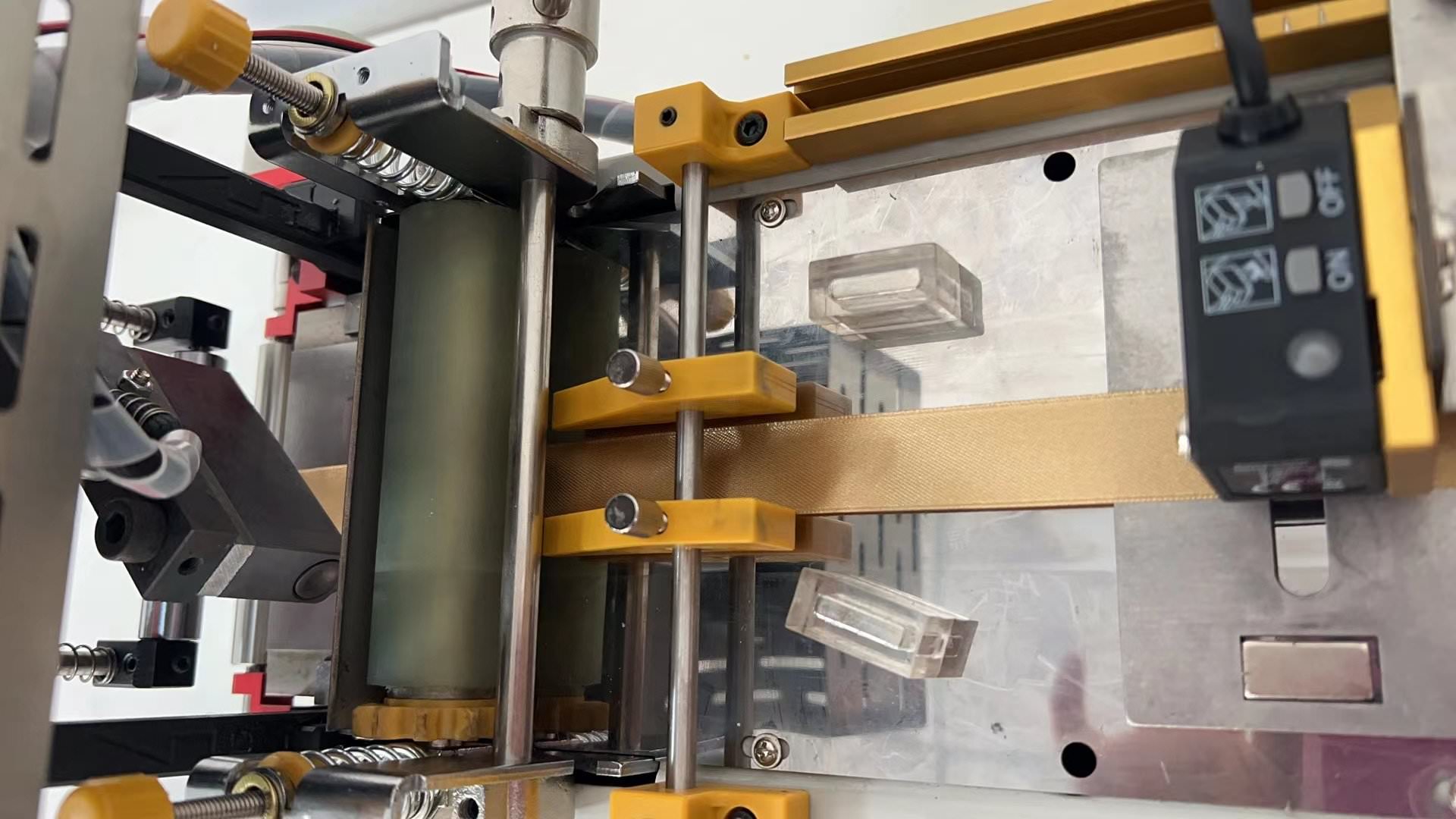

3, Precision electrical eye and rotation knife ,the electrical eye is equipped on the knife , it can mark up the printed ribbon

and cut in exact position of the ribbon .  the rotation knife can rotate its position and cut different bevel angle edges on both sides

of the ribbons or webbings .  the angle pattern can be set freely on the machine .

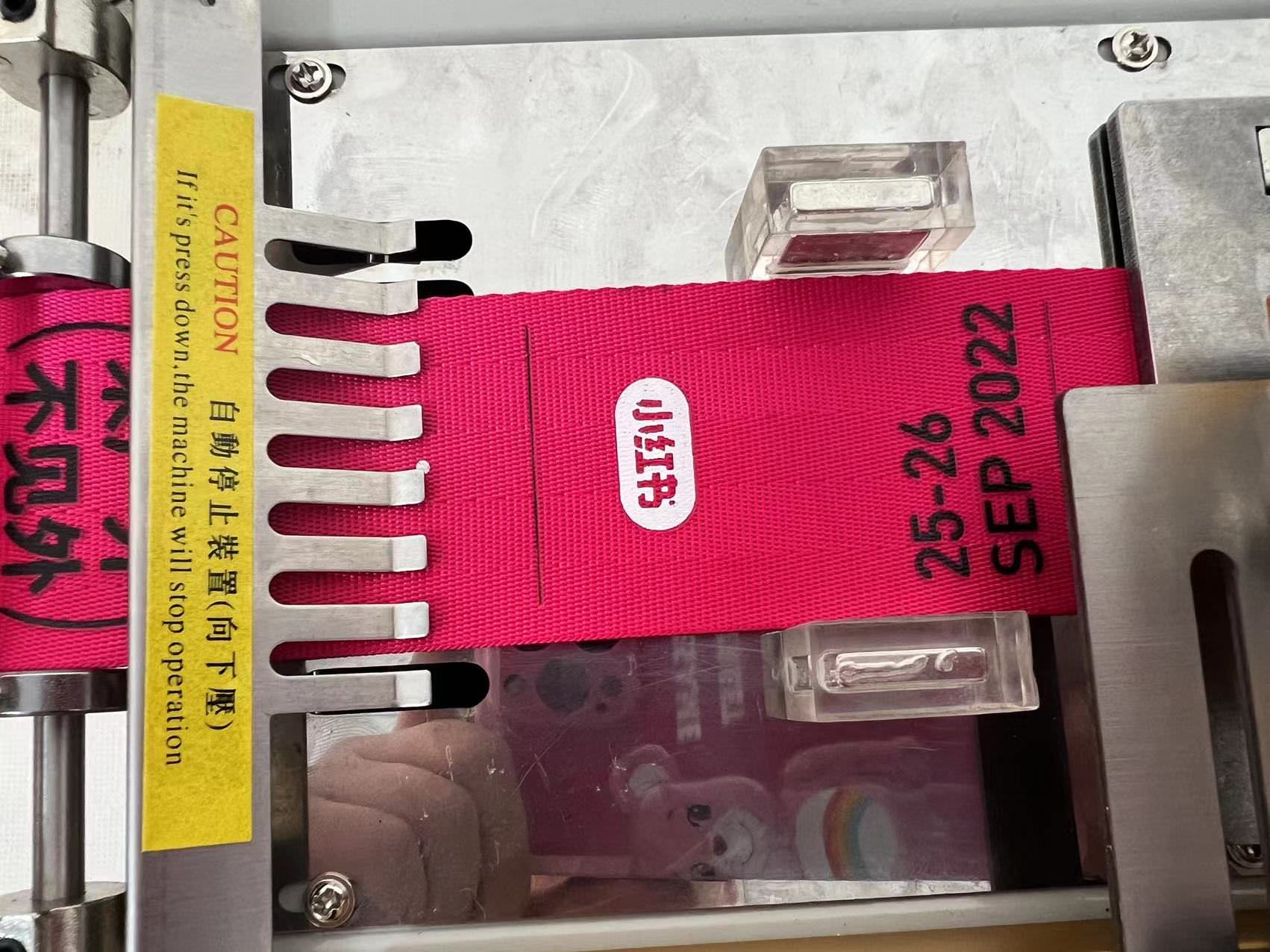

4, Material out alarm, the fixture which holds the cutting material steady for transport cutting process

when the cutting material runs out , the fixture fall down beneath the machine surface and raise the

alarm to remind workers to change or load on new cutting materail rolls .

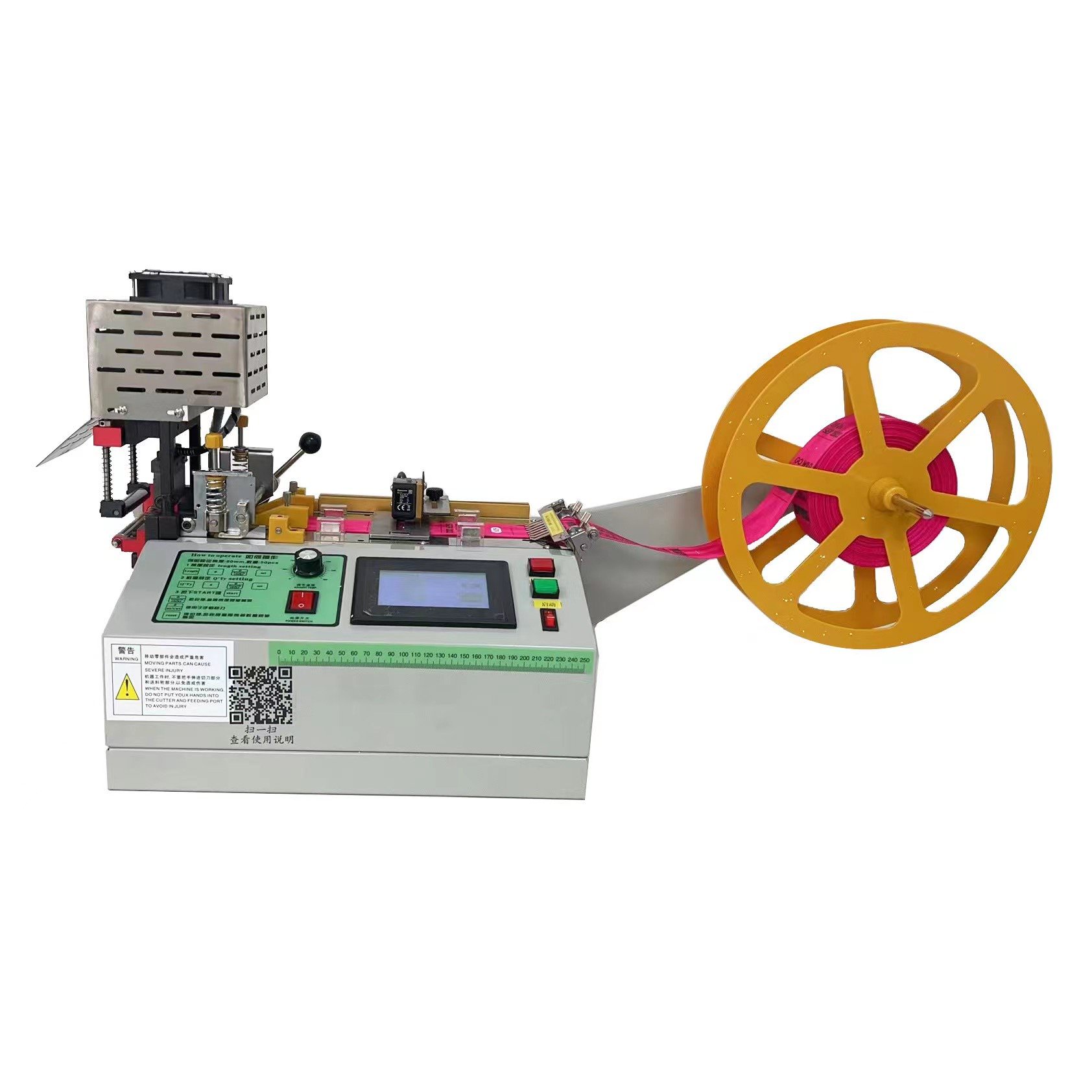

Front View

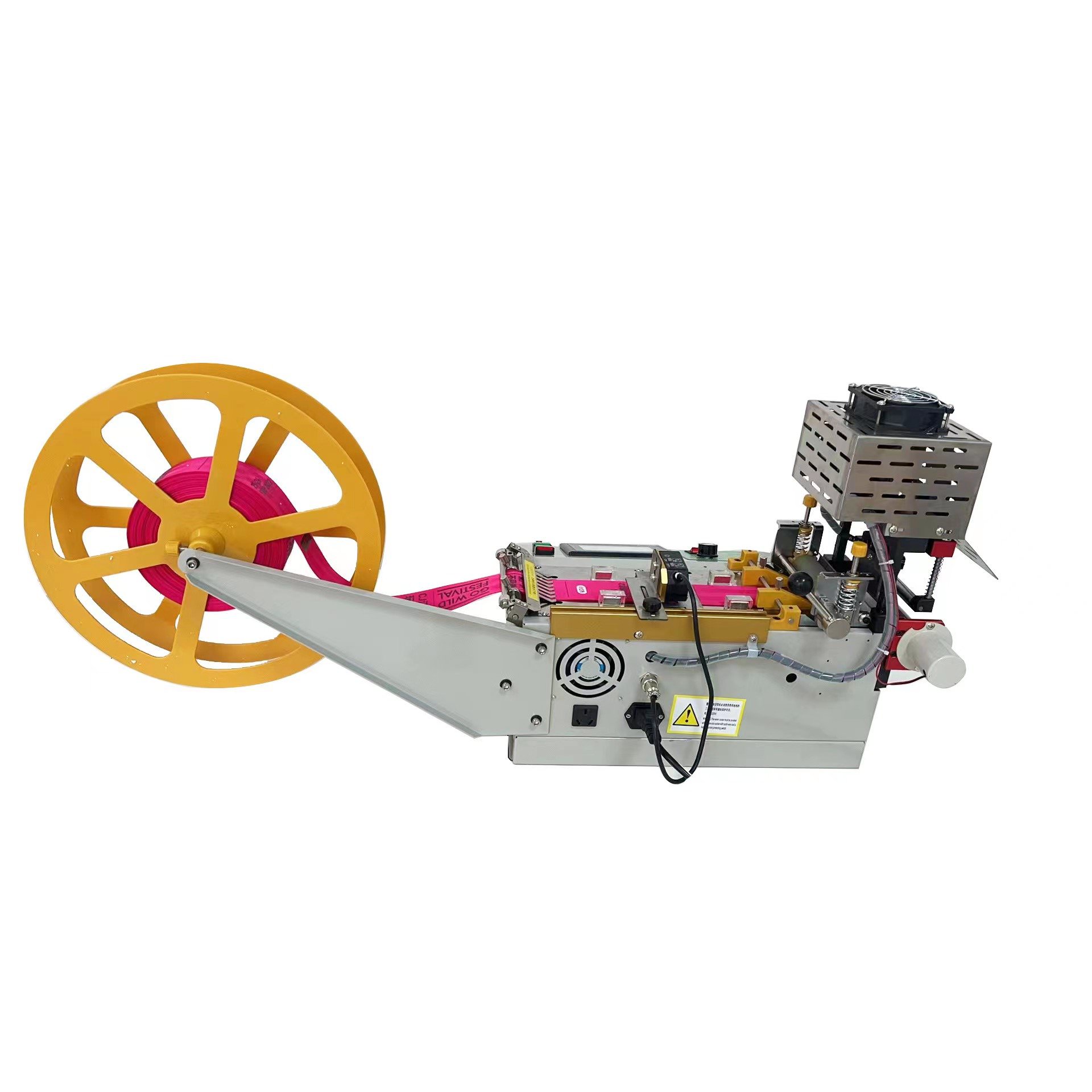

Side View

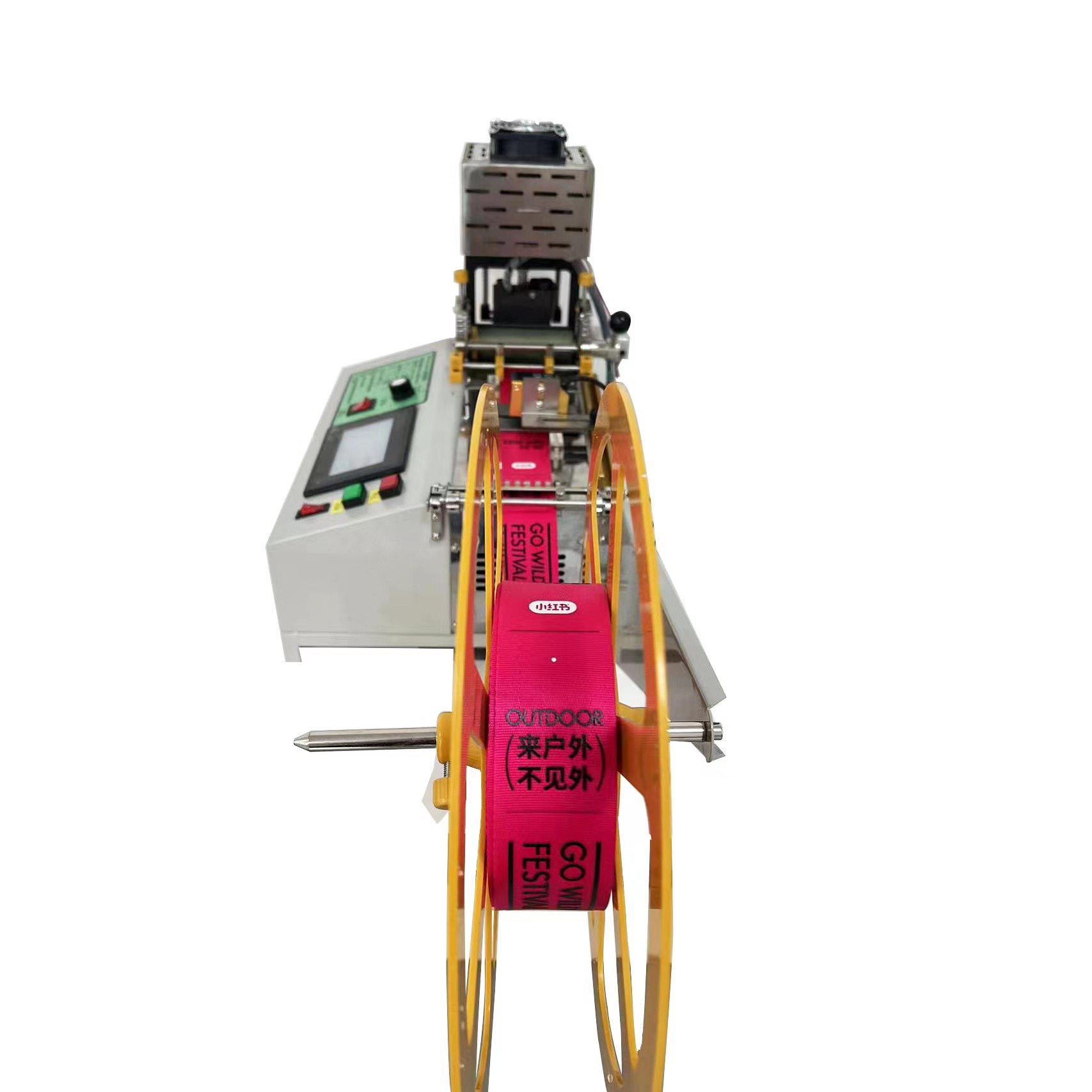

Side View

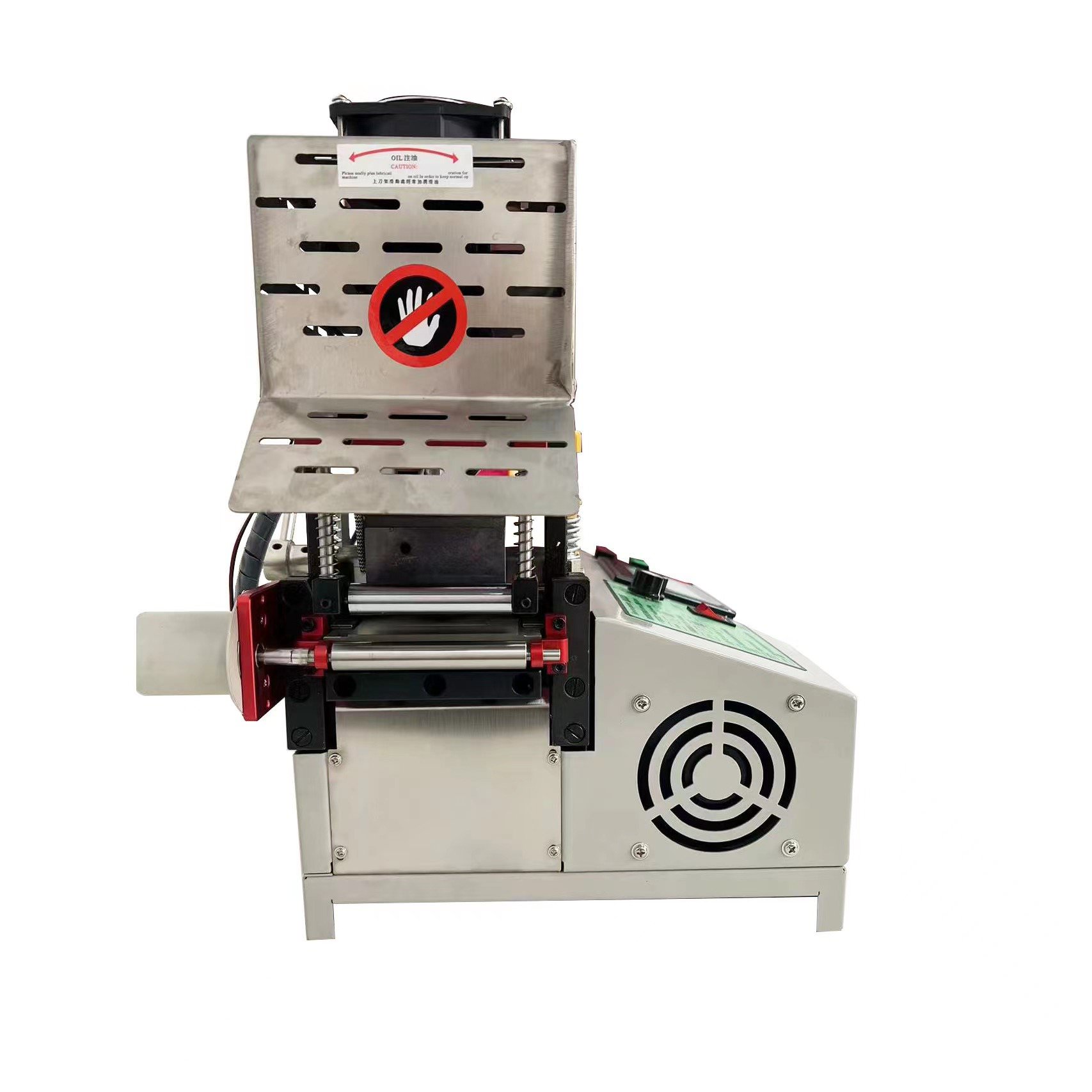

Back view

【Warranty 】

 As a angle cut printed ribbon precision cutting machine  supplier , all the spare parts of the  ES-014-1 machine will have one year of free maintainance

by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice

after on line diagnosis .

【Packing】

1Set/Carton ,foam paddings will be put inside wooden case for safe overseas shipping
