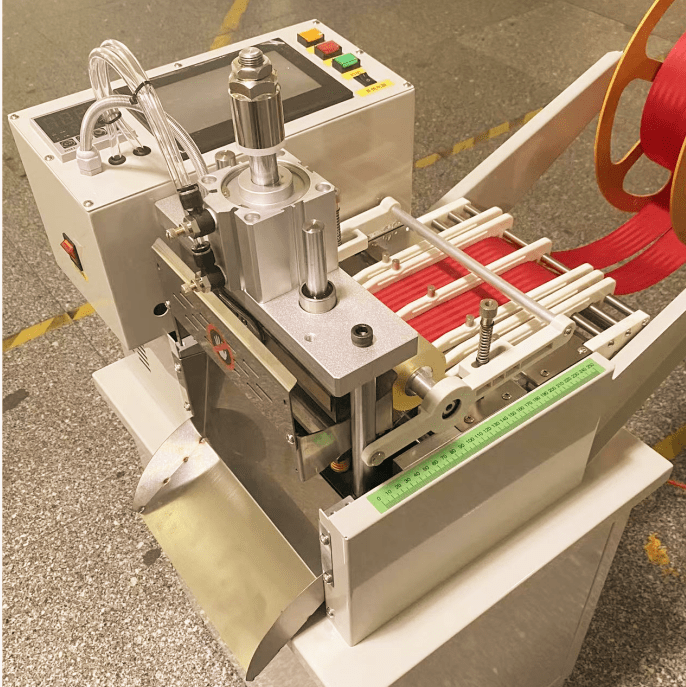

Rope hot cutter machine ES-062

The rope hot cutter machine ES-062

 【Product Description】

The rope hot cutter machine ES-062 is made for  hot cutting of all kinds of  big and tough ropes like  nylon ropes ,PP ,PE ropes, multi-plaited ropes, braided ropes &cords , etc

The heavy duty rope hot cutter is also suitable to hot cut  thick and strong webbing material like webbing slings etc . The hot cutting of this big diameter rope cutter is purely by heat melting off the big ropes with high heating temperature and high pressing force from the air cylinder .

This tough rope cutter machine  is of high power of 0.95KW and the knife blade is  high speed thick steel blade , the maximum OD of the rope cords that the strong rope cutter machine can cut is 16mm.

The tough rope cutter machine  support with hot cutting with heating temperature up to 650 degrees at maximum and with the assistance of the high pressing force supported by the air cylinder , this rope hot cutter machine  ES-062  can do hot cut  for all kinds strong ropes , the heat sealing effect will be great and cutting length will be precise .

The maximum cutting width of the machine is 160 mm and with help of the directing separating bars ,  the rope hot cutter machine can cut many ropes and webbings

at the same time which greatly lift the production efficiency.

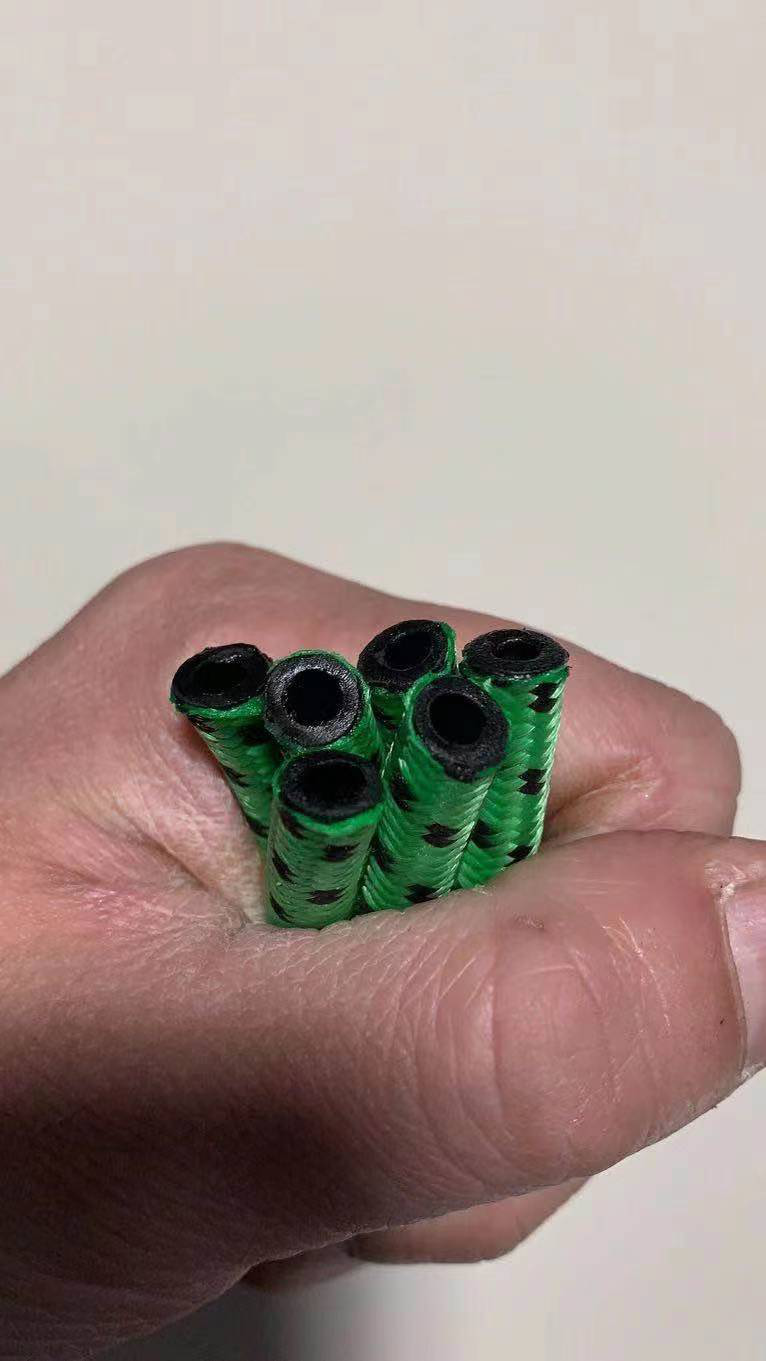

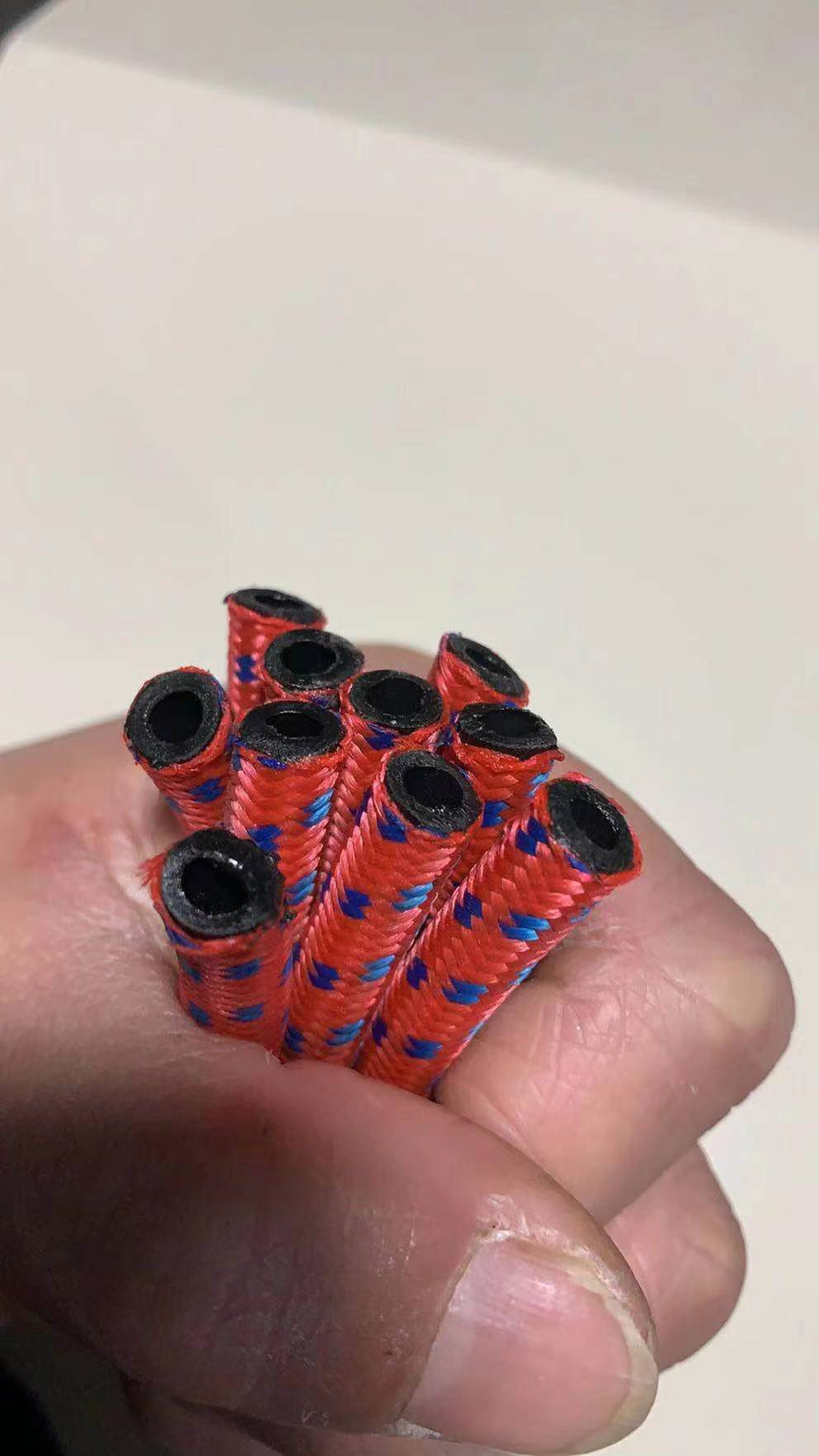

 Sample ropes melt off  by ES-062 with excellent heat sealing effect

【Technical Data】

Model No.:  ES-062

Product name : The heavy air motivated hot cut rope automatic cutting machine

Function :  Hot melting off all kinds of ropes with excellent heat sealing edge

The machine cutting width : 1-160mm

Knife type : Hot knife ,High steel knife

Machine Power : 0.9KW

The maximum blade temperature : 650 ℃

The cutting length range : 1-99999mm

Weight : 75KG

Packing : Wooden case

【Product Advantage】

1,There is no need baby sitting ,The machine will stop itself working when running out of cutting material

2,High productivity  ,the machine cutting width is 160 mm , the machine can cut many  ropes at the same time and consquently increase productivity.

3,Nice heat sealing, The machine power is  0.95KW and the knife temperature can heat up to 650 degrees at maximum . With the heavy pressing from the air cylinder ,

the machine can melt off more stronger ropes

4,Precise cutting length  ,the machine will cut ropes into same length。

 【Product Details】

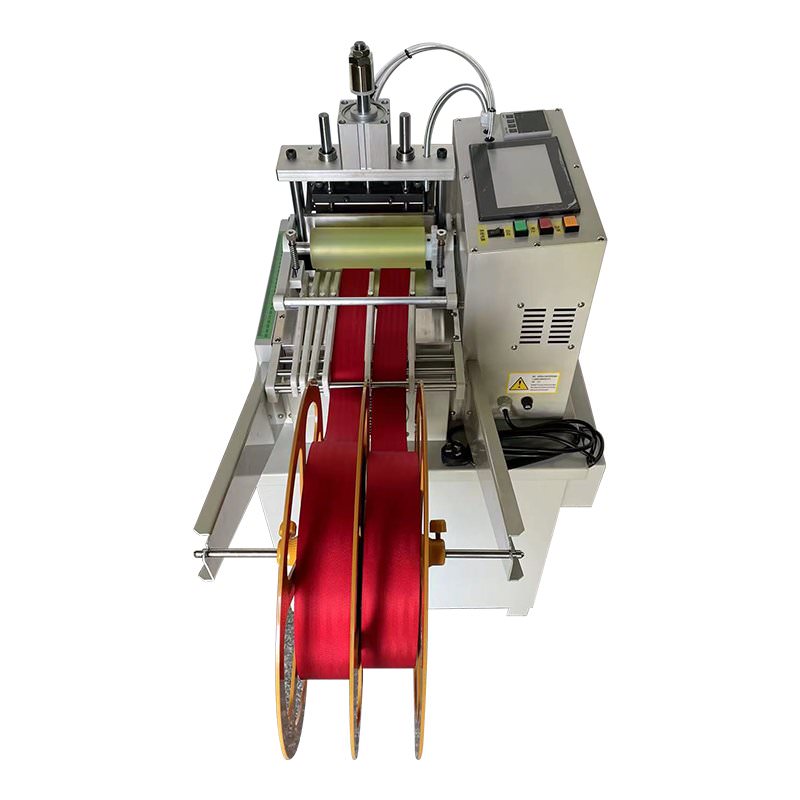

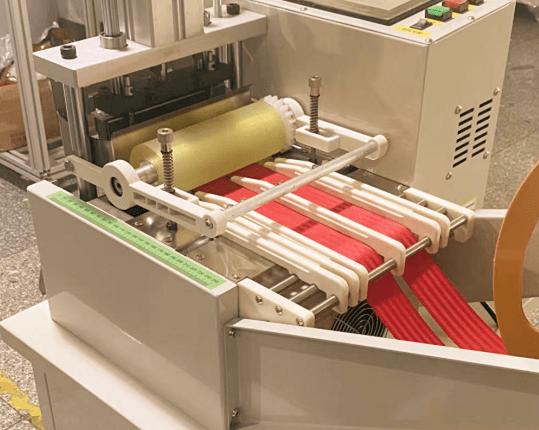

1, Alignment separation fixtures

which made the machine can  cut multi ropes at the same time

with the help of the aligment separation fixture bars .

  2, Pressing force from An Air cylinder

The knife melting cutting  is  powered by the air cylinder which maximize

the melting  efficiency and melt cutting off all kinds of strong ropes

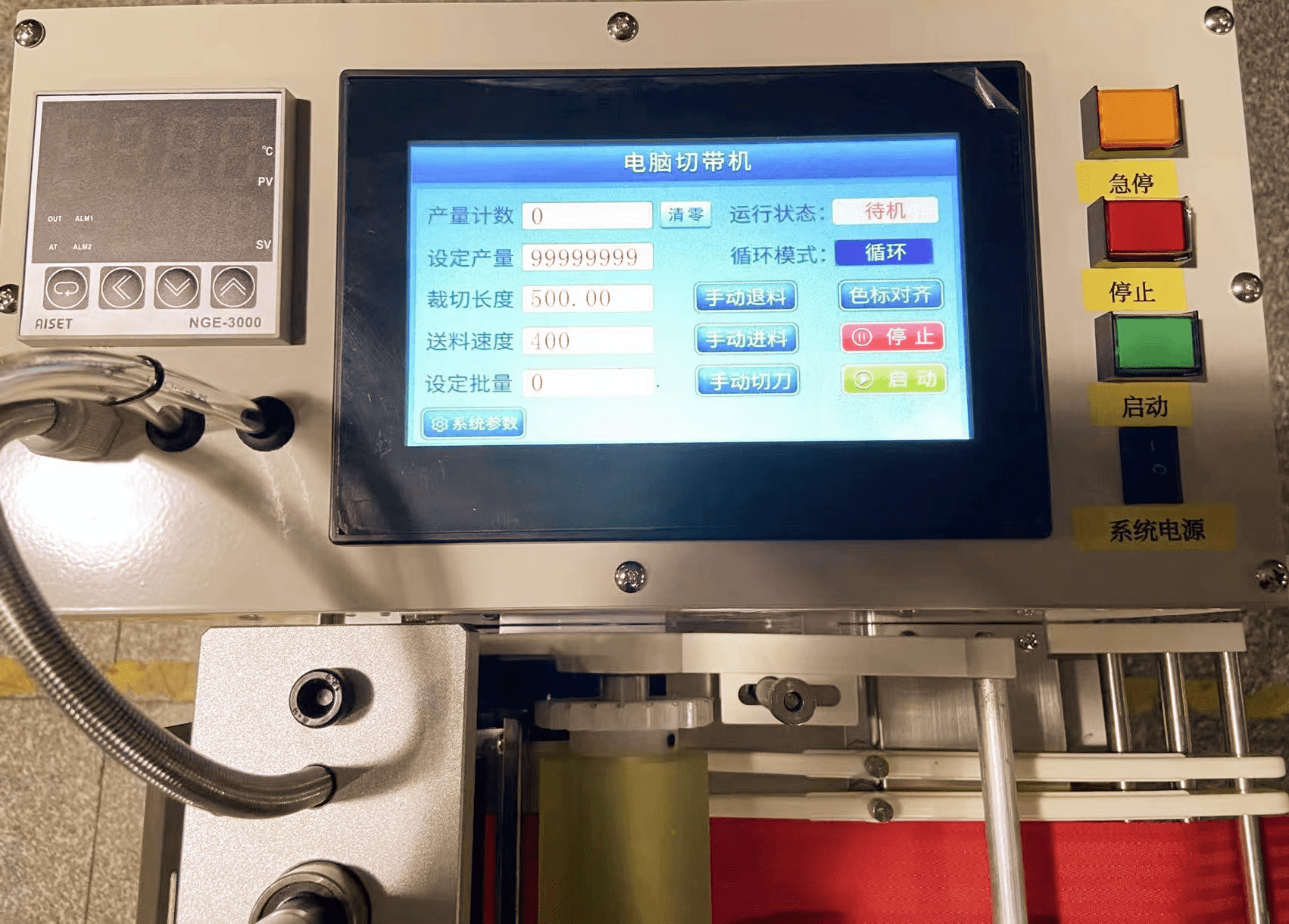

3,Simple-operation touch screen control board

Simple operation control board ,easy to use.

LCD touch screen

English & Chinese language,one key switch

4, Big rubber transport roller

The rubber roller increases abrasion and pressure with webbing or ropes

and transport cutting length precisely for knife cut .

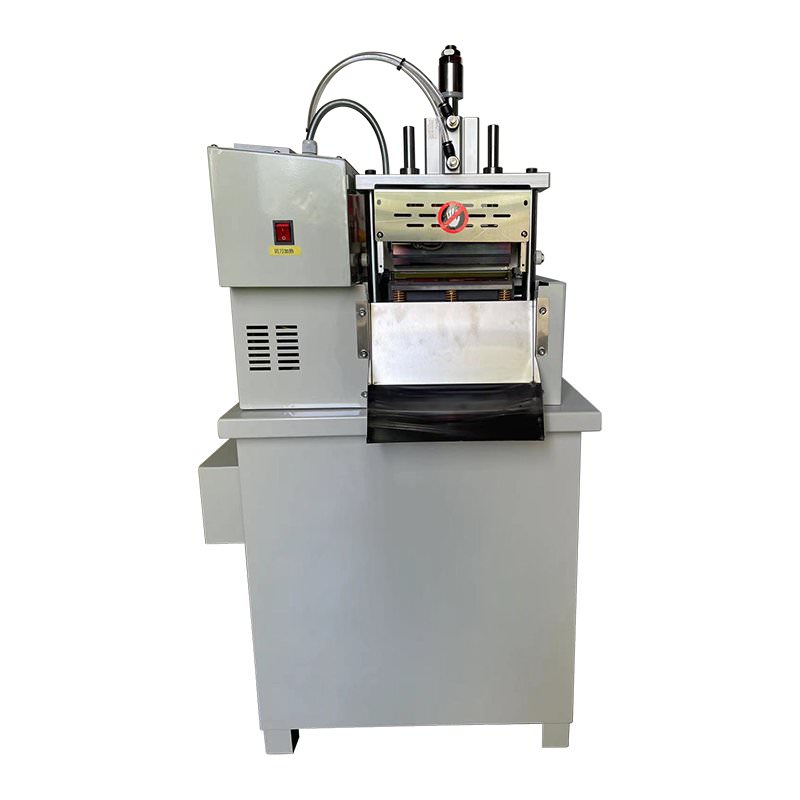

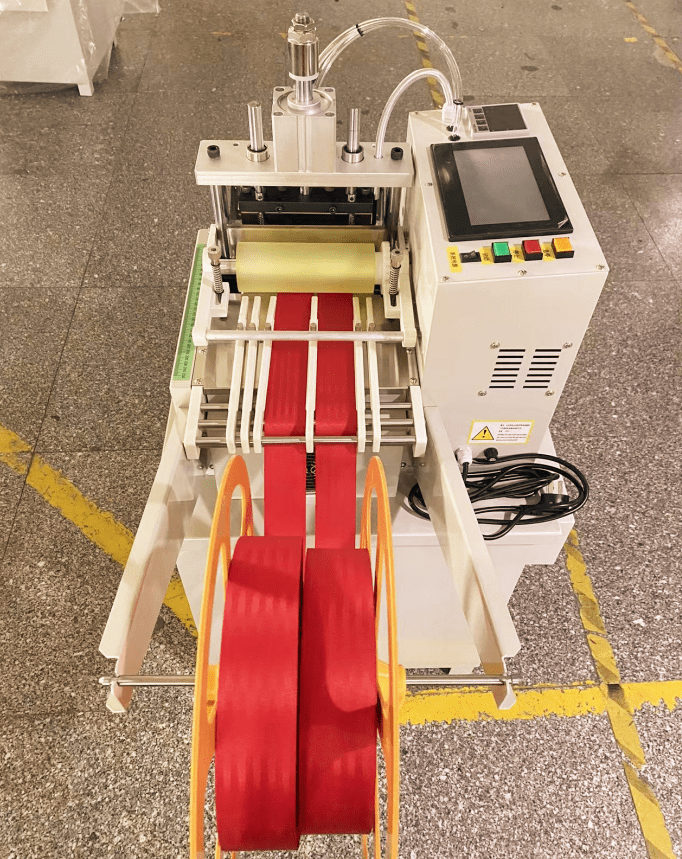

Front view

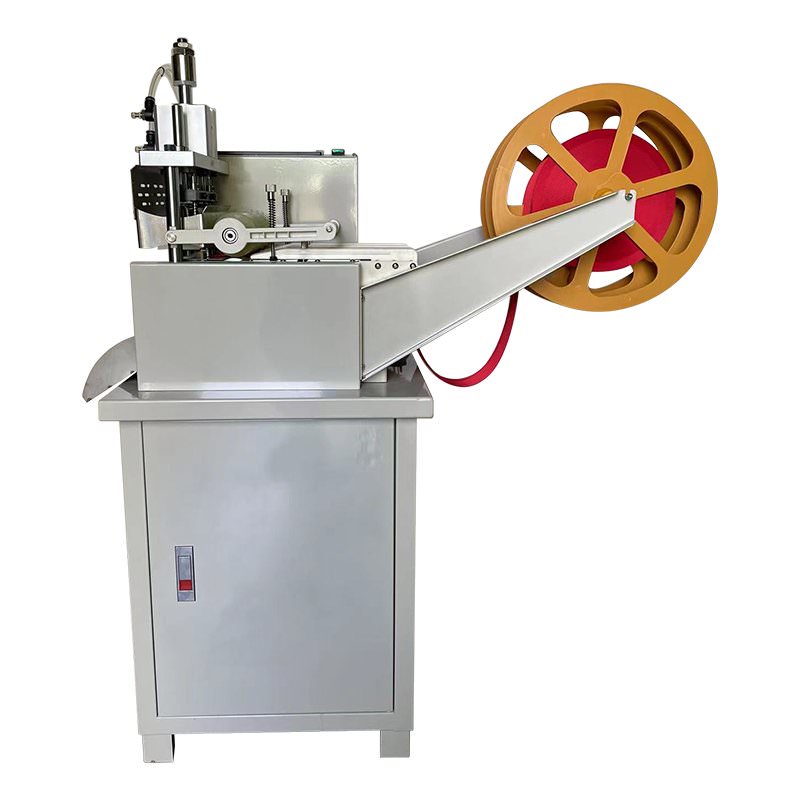

Side view

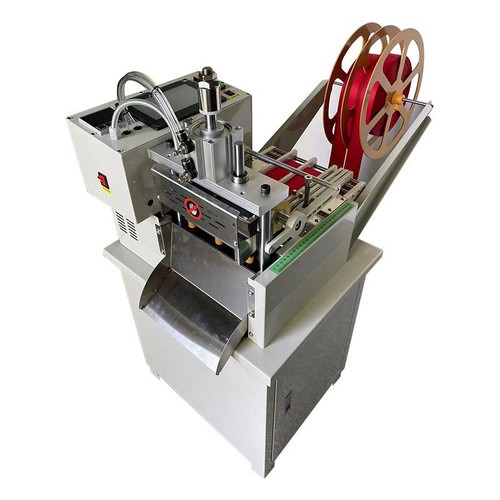

Side view

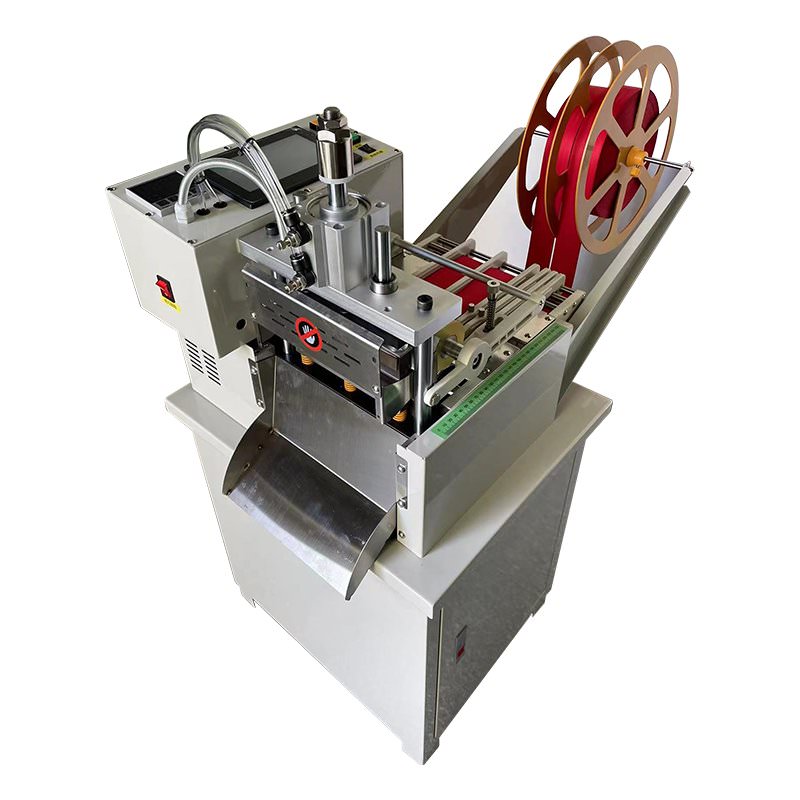

Side view

【Warranty】

All  the spare parts of  the rope hot cutter machine ES-062  except the knife will have one year of free maintainance by changing the spare parts for free

and free shipping of spare parts to overseas clients starting from the issuing date of commercial invoice  after on line diagnosis .

【Packing】

1 Set/ Wooden case ,foam will be wrapped around the machine for safe protection before wooden case packing .
