Tubular webbing hot cutter machine

Tubular webbing hot cutter machine   ES-108

The tubular webbing hot cutter machien ES-108 is designed for hot cutting tubular webbing and make sure the tubular webbing walls do not stick to each other after hot cutting  by applying hot steel wire as knife to heat seal the tubular webbings .

One important function of this tubuar webbing heat cut machine is that it can set knife cutting speed in two phase , knife cutting speed when it goes down to the tubular webbing and cutting speed for hot cutting after the knife contacting the tubular webbing material , usually we set knife cutting speed for phase 1 a little fast , knife cutting speed for phase 2 a littler more slowerly for knife to drop morely to heat sealing tubular webbing cutting edge well and nicely , more thicker and more tough tubular webbing requires knife dropping speed more slowly and all this can be set on this tube webbing cutting machine .

Youtube video

The tube webbing cutting machine  applies  touch screen control which is easy to operate and cutting width of the machine ranges 1-160mm , machine power is 1KW, the knife hot cutting temperature  can set from 0-650 degrees for good heat sealing based on different thickness tubular webbing material .

The best advantage of this  webbing sleeve hot cut machine is that it can hot cut webbing sleeve and the webbing sleeve do not stick to each other after hot cut which saved a lot post labours

【Technical Data】

Product name :Tubular webbing hot cutter machine

Model No.：ES-108

Function： Hot cut tubular webbing without sticking

Feature : Set knife dropping speed in two phase(slower speed for heating webbing)

Maximum cutting width:160mm

Cutting mechanism: Hot melt tubular webbing with hot steel wire

Hot cutting temperature:0- 650 ℃

Cutting lengh range : 1-4999mm

Cutting speed：50-100meters/min

Motor type：Stepping motor

Machine power：1kw

Net weight/Gross weight: 105KG/159KG(wooden case packed)

Machine dimension： :74*65*120mm

【Product Advantage】

1,Hot cut tubular webbing and make sure tubular webbing walls do not stick to each other after hot cutting  by applying the hot steel wire knife

2,  Nice and smooth heat sealing edges  on the tubular webbing cutting edges  by  setting knife dropping speed in two phase ,the knife speed can be set fast

but when contacting the tubular webbing for heating process , the knife drop down speed can be set more slowely for good heat sealing effect especially for more

tough and thick webbings  and hot cutting temperature can be set higher if necessary to achieve nice heat sealing edges .

3, Automatic cutting ,high productivity and saving labour ,specially designed for tubular webbing cutting .

【Product Details】

1,Touch screen control , this webbing sleeve hot cut machine applies touch screen which is easy to operate

customer can set cut cutting length ,total cutting amount , knife cutting speed and knife dropping speed

when contacting and heat sealing the tubular webbing .

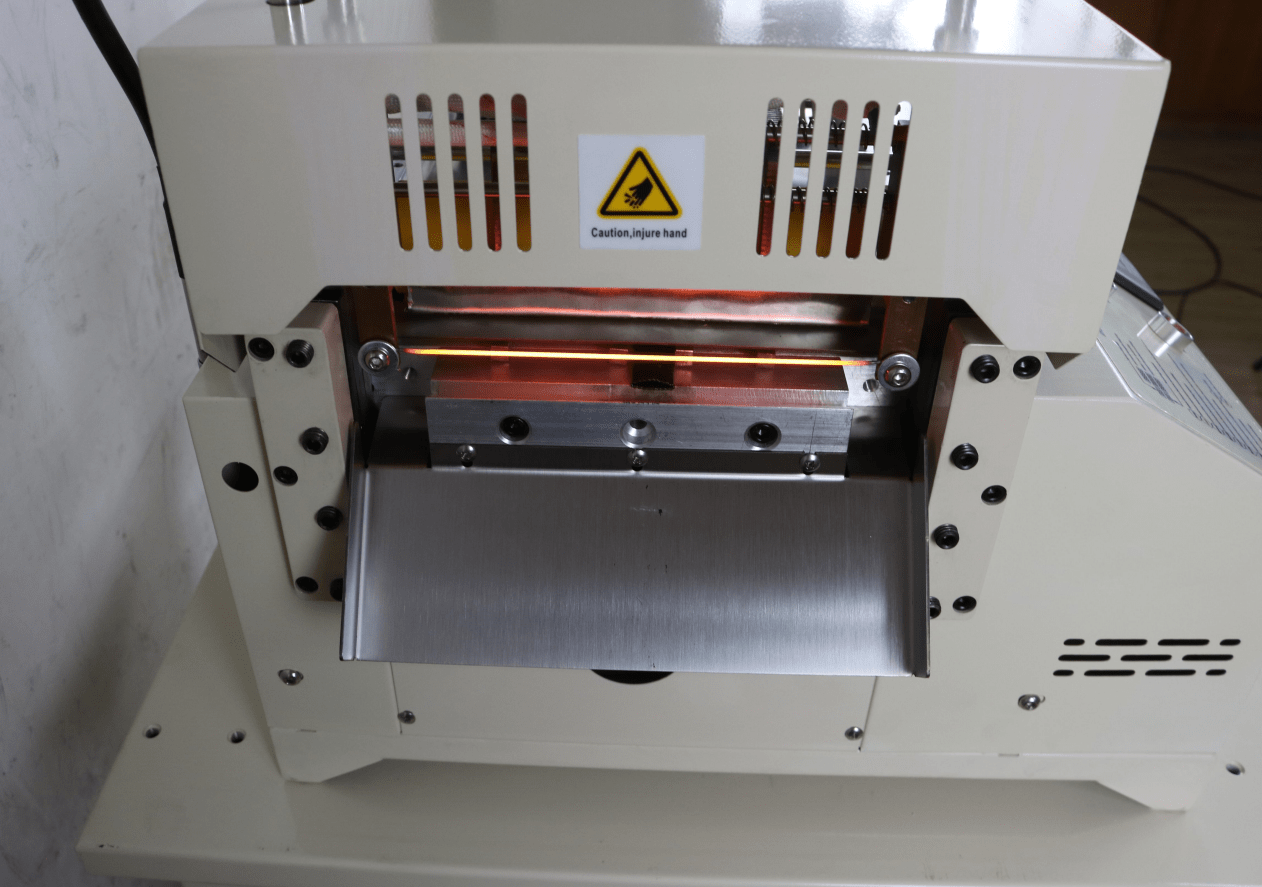

2,Hot knife with steel wire , the hot knife with steel wires enable the tubular webbing do not stick to each other

after hot cutting compared to normal straight knife cutting . and the steel wire dropping down speed can be set

morely slowly when metting the tubular webbing to get better heat sealing effect.

3, Out material alarm  ,the clip is holding the tubular webbing steady during the transporting and cutting process ,

when the cutting material runs out ,it will drop down beneath the machine and raise the alarm for changing

and loading new cutting material .

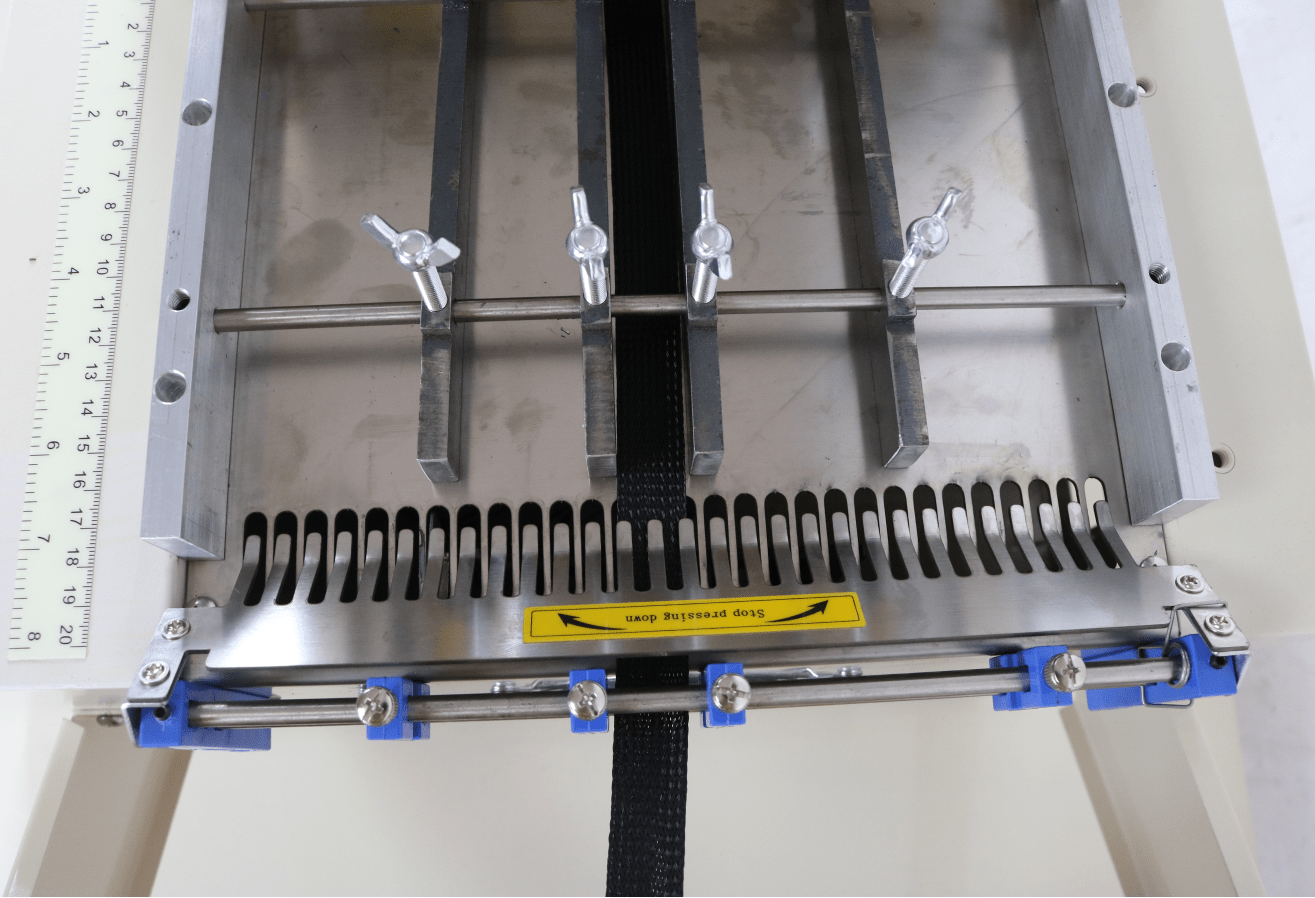

4, Fixtures , the fixture distances can be adjusted to hold diffferent width tubular webbings straightly

for good cutting qualilty .

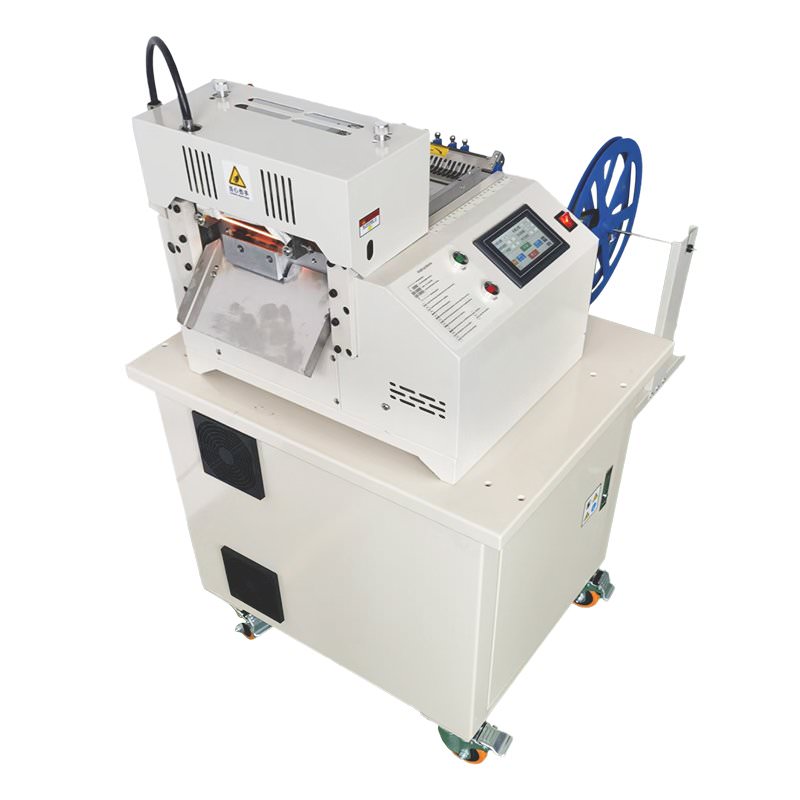

Front View

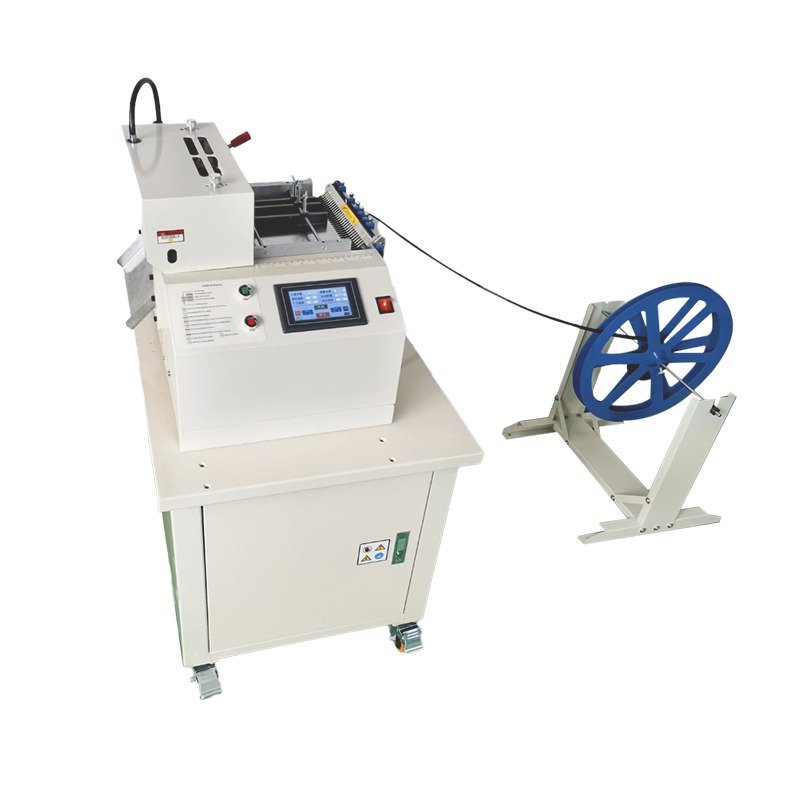

Side View

【Warranty 】

 As a tubular webbing hot cutter machine  supplier, all the spare parts of the  ES-108 machine will have one year of free maintainance

by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice

after on line diagnosis .

【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping .
