Tubular webbing hot cutting machine ES-108-1
Tubular webbing hot cutting machine ES-108-1 Tubular webbing hot cutting machine ES-108-1

Tubular webbing hot cutting machine ES-108-1

The tubular webbing hot cutter machien ES-108 is designed for hot cutting tubular webbing and make sure the tubular webbing walls do not stick to each other after hot cutting

Product Details
Brand ESMAI
Serial Number ES-108-1
Country of Origin China
Certificate CE
Payment & Shipping Terms
Price Quote Based on quantity
Minimum Order 1 SET
Average Delivery Time Production 7-10 days, delivery time by sea
Payment Method TT
Package Details 1SET/WOODEN CASE
Ability to Supply 100 Sets/ month

Tubular webbing hot cutting machine  ES-108-1

The ES-108-1 tubular webbing hot cutter is designed  for hot cutting tubular webbing, using customized fixtures to keep the material upright during cutting and prevent the tubulars walls from sticking together after hot cutting .

This tube webbing heat cutter machine  is equipped with customised fixture which holds tubular webbing , allowing it to simultaneously cut and open the tubular webbing for hot cutting , it heat seal the cutting edge well and the cutting edge do not stick to each other , this nylong tubular webbing hot cutting machine   machine is widely applicable to tube webbings , nylon or polyester tubular webbings , mesh tubes , heat-shrink tubing, insulation paper, wires, etc

Tubular webbing hot cutting machine

Youtube video



The polyester tubular webbing cutting machine  applies  operation panel which is easy to operate and cutting width of the machine ranges 1-100mm ,the  machine power is 1KW, customer can set cutting length ,total cutting quantity and cutting speed based on production requirement , the knife hot cutting temperature ranges 0-650 degrees for good heat sealing which is suitable to hot cut  different thickness tubular webbing material .

The greatest advantage of this tubular webbing hot cutting machine is its ability to hot cut webbing sleeves without causing the inner walls to stick together. This feature significantly reduces the need for additional manual separation, saving a great deal of post-processing labor and improving production efficiency



【Technical Data】

Product name: Tubular webbing hot cutting machine

Model: ES-108-1

Function: Cold and hot cutting of tubular webbing, no sticking edge after hot cut

Features: Customized Fixture to keep webbing upright for cutting

Maximum cutting width: 100MM

Cutting mechanism: Open tubular webbing edge and heat it for cutting

Hot cutting temperature: 0- 650 ℃

Cutting length range: 1-5000mm

Cutting speed: Take 50mm as an example, 100 cuts per minute

Motor type: Cutter AC with asynchronous motor, stepper motor for feeding

Machine power: 1kw

Net weight: 100KG

Machine size: 550*660*1000MM



【Product Advantage】



1,Hot cutting tubular webbing without sticking the edges by keeping the tubular webbing edge open with support of fixtures



2,  Achieving clean, smooth heat-sealed edges on tubular webbing by hot cutting knife .



3, Automatic cutting ,high productivity and saving labour ,specially designed for tubular webbing cutting .



【Product Details】

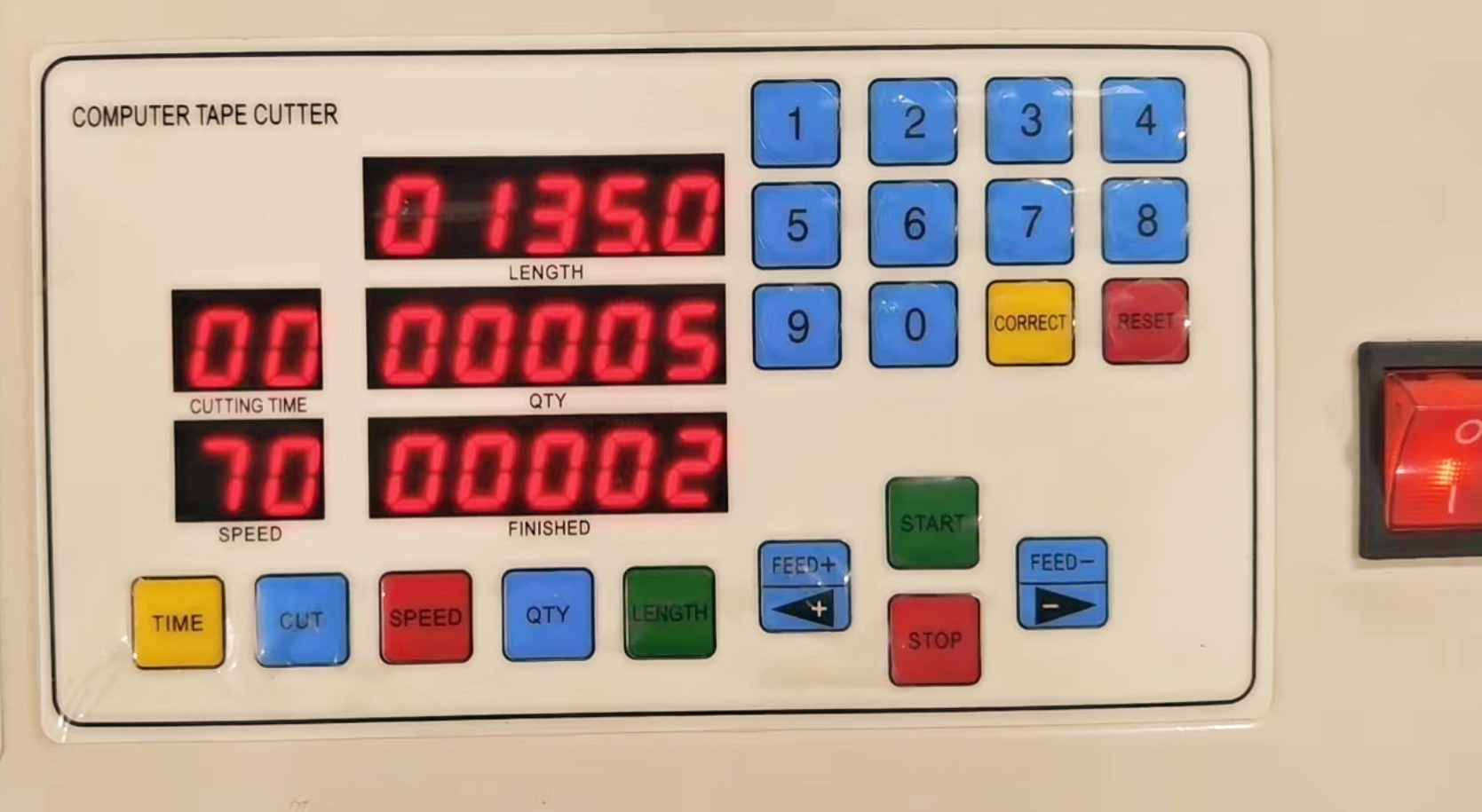

1,Operation screen , this webbing sleeve heat cutting machine  applies with operation screen hich is easy to operate

customer can set cut cutting length ,total cutting amount  and knife heating heating temperature can also be set  from

0-650 degrees based on different thickness webbing .

Operation screen

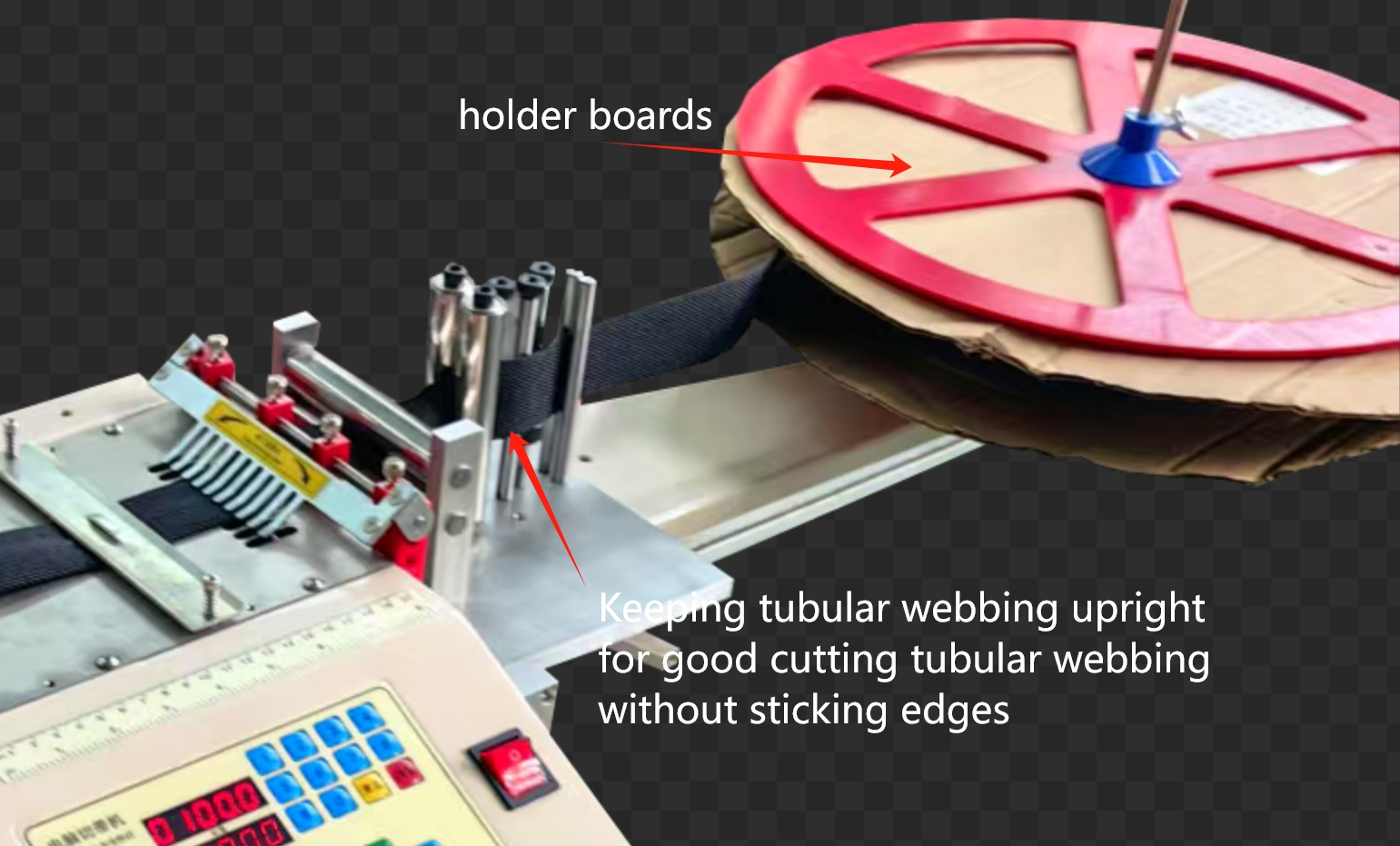

2,Customised cutting fixtures  , the tubular webbing will be held upright for hot cutting by the customised

cutting fixtures ,when the knife doing hot cut , the tubular webbing will open inside so the heat sealed edges will

not stick to each other after hot cutting .

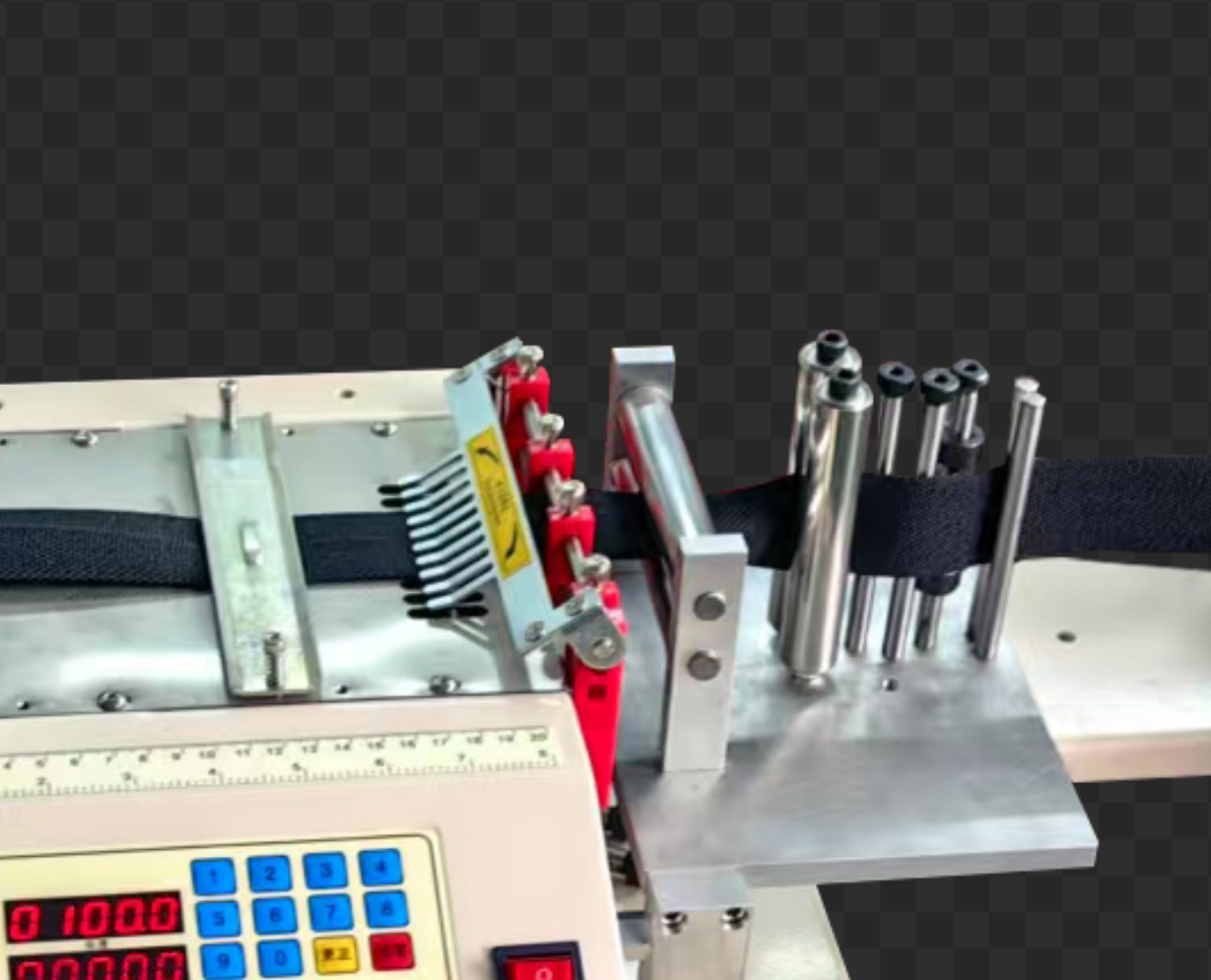

Custom fixtures



3, Out material alarm  ,this nylong tubular webbing hot cutting machine  will sound alarm when

running out of cutting material , the clipper which holds the tubular webbing will fall beneath the

surface of the machine and trigger the alarm to reminder workers to load on new material

 out material alarm

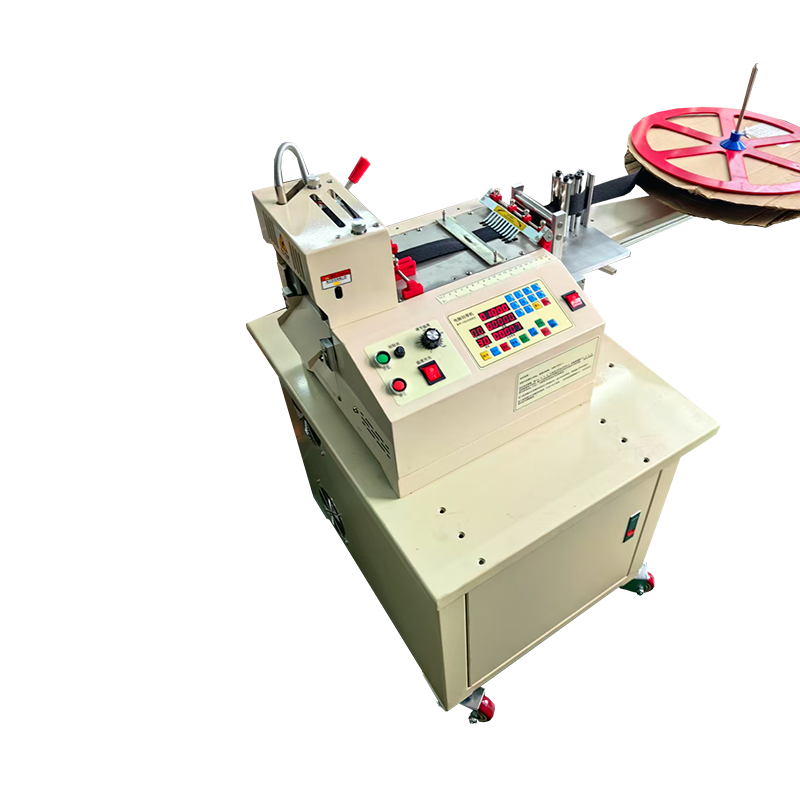

Front View

tube webbing heat cutter machine





Side View

nylong tubular webbing hot cutting machine





【Warranty 】

 As a professional tubular webbing hot cutting machine  supplier, all the spare parts of the  ES-108 machine will have one year of free maintainance

by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice

after on line diagnosis .



【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping .
