Large fabric hot&cold cut automatic cutting machine ES-074-1
Large fabric hot&cold cut automatic cutting machine ES-074-1 Large fabric hot&cold cut automatic cutting machine ES-074-1 Large fabric hot&cold cut automatic cutting machine ES-074-1

Large fabric hot&cold cut automatic cutting machine ES-074-1

Large fabric hot cold cut automatic cutting machine ES-074-1   The large fabric hot cold cut automatic cutting machine  ES-074-1 is designed for automatically cutting large fabric  or webbings  featuring wit

Product Details
Brand ESMAI
Serial Number ES-074-1
Country of Origin China
Certificate CE
Payment & Shipping Terms
Price Quote Based on quantity
Minimum Order 1 SET
Average Delivery Time Production -4 days, delivery time 5-7 days by express
Payment Method TT
Package Details 1SET/WOODEN CASE
Ability to Supply 500 Sets/ month

Large fabric hot cold cut automatic cutting machine ES-074-1



The large fabric hot cold cut automatic cutting machine  ES-074-1 is designed for automatically cutting large fabric  or webbings  featuring with large cutting width , it can do both hot and cold cut , the cutting edge will be smooth and heat sealed without fraying . it is also good to cut multi narrow webbing at the same time to boost productivity.

This machine applies with hot and cold knife , the hot knife temperature ranges 0-350 ℃ , the unit cutting length ranges 1-99999mm   , the maximum cutting width is 400mm for this machine

This large fabric hot cold cut automatic cutting machine requires no baby sitting  as it had been equiped a fixture clip on the machine which holds the cutting material steady for transporting and fall beneath the cutting machine when cutting material runs out and signal the machine to stop working and trigger alarm to remind workers to load on new cutting material

This large webbing fabric cutter applies with simplified control boards which will be easy to operate . the best feature of this machine is its large cutting width which is suitable to cut large width fabrics automatically and save labour.

large fabric hot&cold cut automatic cutting machine





Youtube video



【Technical Data】

Product name :  Large fabric hot cold cut automatic cutting machine                  Cutting length range  : 1-99999mm

Brand : ESMAI                                                                                                          Knife type :Hot&cold knife

Model No.: ES-074-1                                                                                               Voltage: 220/110V , 50/60HZ

Application  : automatic cutting large fabric or multi webbing                              Power:  0.95KW

Speed :  0-60 Adjustable speed                                                                               Maximum cutting width : 400mm

Hot cutting temperature : 0-350 ℃                                                                         Feature :  large cutting width

Output : 110PCS/Min  (taking 50mm length as example)                                      Net Weigth : 45KG

Control system : key with screen controls                                                              Product dimension   :  550*500*300 (L*W*H)



【Product Advantage】



1, Large cutting width  which allows this industrial fabric cutting machine  to cut all kind of large  fabrics or webbings



2, Straight and smooth cutting edge , with hot knife to heat seal the fabric cutting edge without fraying .



3, High productivity  with multi webbing or narrow fabric to be  cut at the same time .



【Product Detail 】



1,Simple use control board  , this large webbing hot and cold cutting machine  applies with control board with simplified control keys

which is easy to operate and also teach workers to use .





2,Mulit Heat dispersing fans  ,this large webbing fabric cutter machine had been equiped with multi heat  dispersing fans which blow heat away

instantly and maintains long working hours of the machine.





3,High qualiy motor ,this cloth cutting machine applies with high quality motor to gurantee stable working performance of the machine





4,Fixture clip , fixture clip applies on the machine surface to hold the cutting material steady during transport and once cutting material finished cutting ,

the fixure clip fall down beneath the machine surface and trigger alarm to remind workers to load on new cutting material

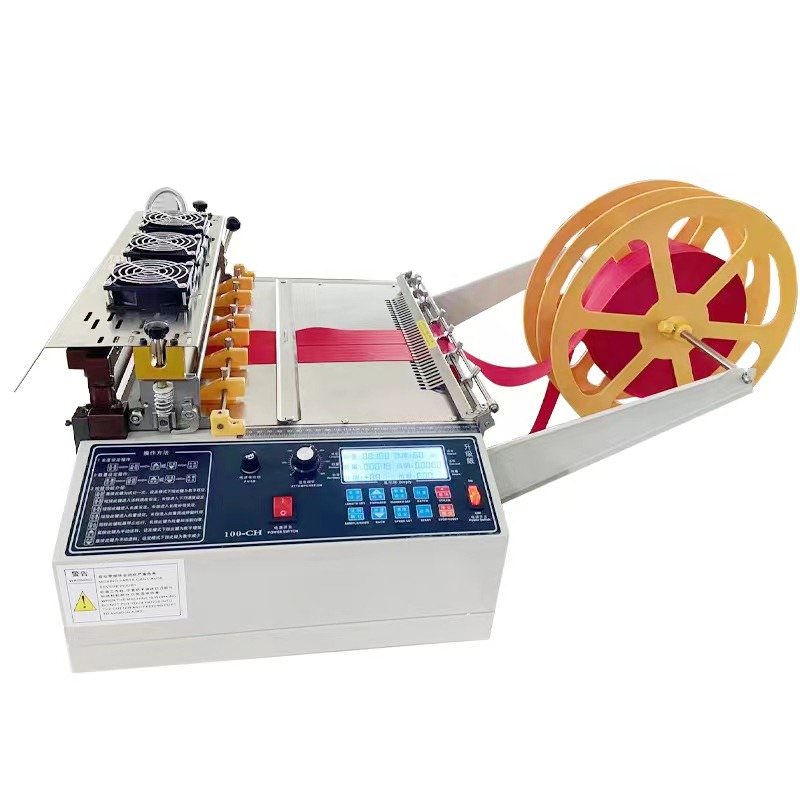

Front View

cloth cutting machine

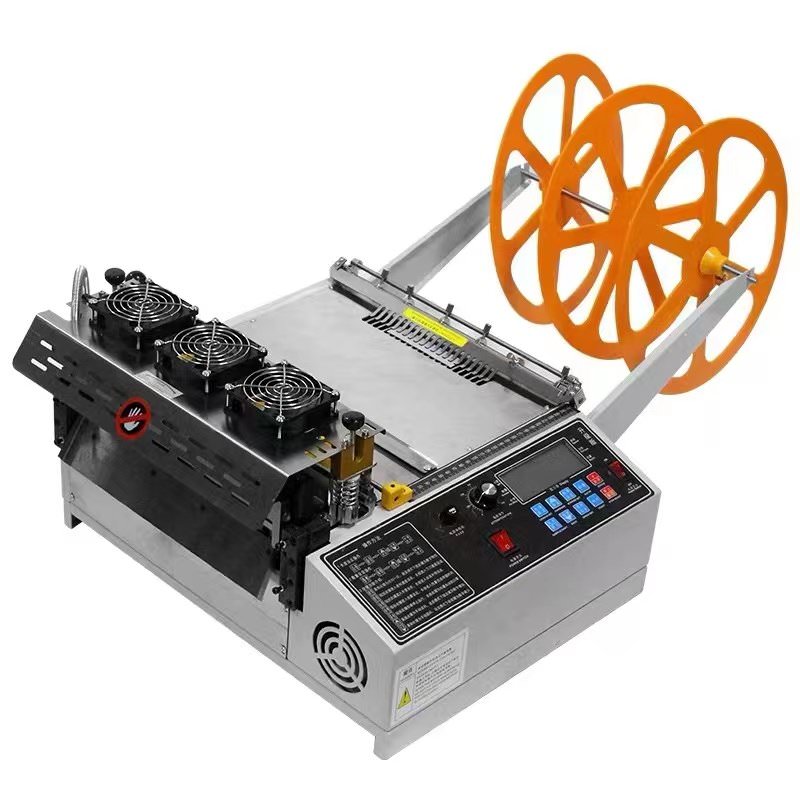

Side View

industrial fabric cutting machine

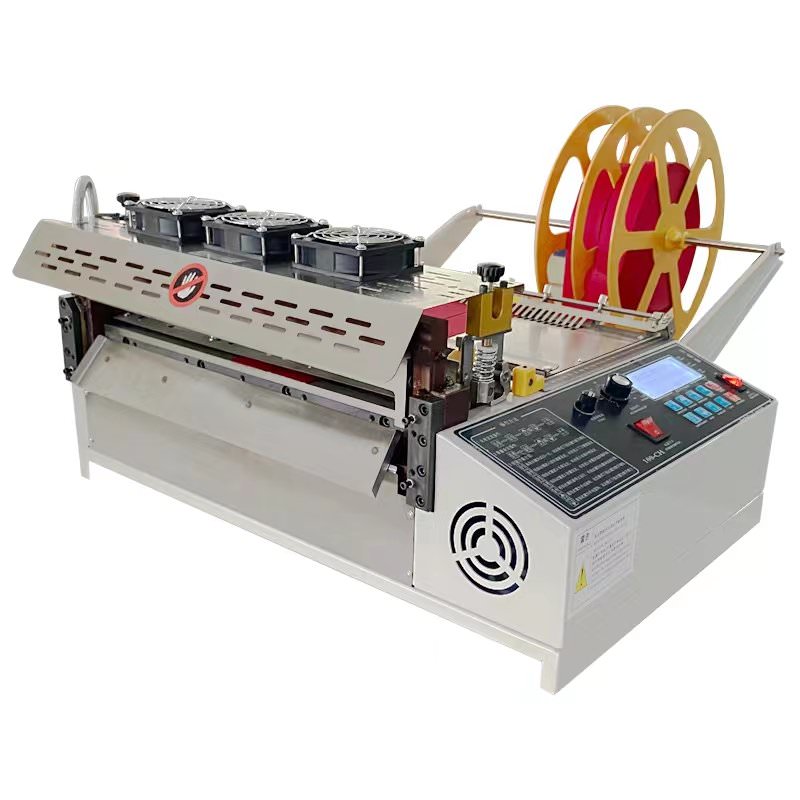

Side View

Large cloth cutting machine









【Warranty 】

 As a professional cutting machine manufacturer , all the spare parts of the large fabric hot cold cut automatic cutting machine ES-074-1  will have one year of free maintainance  by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice  after on line diagnosis .



【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping
