Roll to sheet cutting machine of high quality  ES-051
Roll to sheet cutting machine of high quality  ES-051 Roll to sheet cutting machine of high quality  ES-051

Roll to sheet cutting machine of high quality ES-051

The roll to sheet cutting machine of high quality   ES-051   The roll to sheet cutting machine of high quality  ES-051 is made for the automatic cutting all kinds of  rolll materials  into precise sheet

Product Details
Brand ESMAI
Serial Number ES-051
Country of Origin China
Certificate CE
Payment & Shipping Terms
Price Quote Based on quantity
Minimum Order 1 SET
Average Delivery Time Production 2-4 days ,delivery time to be determined by sea or by express
Payment Method TT
Package Details 1SET/Wooden case
Ability to Supply 1000 Sets/ month

The roll to sheet cutting machine of high quality   ES-051



The roll to sheet cutting machine of high quality  ES-051 is made for the automatic cutting all kinds of  rolll materials  into precise sheets and small pieces  like Plastic film rolls , PVC film rolls , PE film rolls , EVA rolls ,paper rolls &reels  , Leather rolls ,fabric rolls , nonwoven fabric rolls , ,thin metallic aluminium foil rolls and other roll materials  etc .

the roll to sheet cutter  features with a set of separating  knives which  is equiped  in the middle of the machine , They are able to cut separately the sheet material and cut off the roll materiall into sheet by the general knife . the general  knife material is made of high quality SKD11 high speed knife in special mechanical structure, The cutting edges will not leave any fraying remains .

The cutting width ranges  between 1-1220mm ,we had different model of automatic roll to sheet cutting machine based on the maximum cutting width . customer can choose their reel to sheet cutting machine based on their maximum width cutting material .

The reel to sheet cutter  are equiped with a feeder , a stand shelf , a cutting material receiver , they are package cutting solution to improve the production efficiency of customers' roll to sheet cutting process . The Cutting length precision is within 0.1mm .

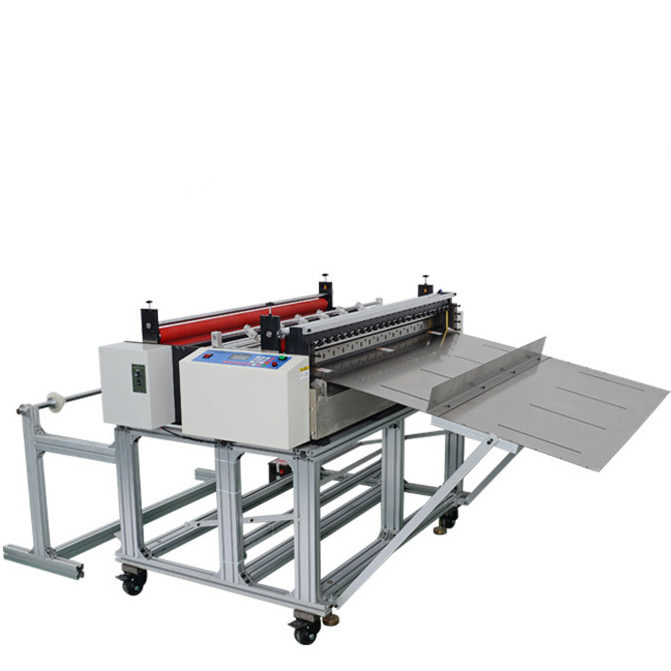

roll to sheet cutting machine ES-051

sample application cutting





【Youtube video】





Technical Data

Model No.:  ES-051

Product Name: The roll to sheet cutting machine

Usage : Cutting all kinds of roll material to sheet .

Power : 220V   50/60HZ

Cutting width range : 1-1220mm

Cutting length precision : 0.1mm

Knife material: SKD-11 high speed knife

Transport motor : High precision close- loop motor

Cutting knife motor: High power alternate motor

Maximum Machine Dimension :2500*1550*1220mm

Productivity : 30-120pcs/min

roll to sheet cutter machine

 【Product Advantage】

1, High  production efficiency with 120pcs/minute ,the ES-051  also can work non stop for 100 hours

 2, Nice cutting edges , The cutting knife is made of high quality SKD11 high speed knife in special mechanical structure ,

the cutting edges will show no fraying cutting edges .

3, Cutting length  precision  tolerance of 0.1 mm  , with a feeder behind which is applied with light-electricity sensor technology to release the cutting material beforehand to avoid the pulling from behind during transporting which consequently gurantees the cutting length precision.

4,  Humanised safety design ,the machine is designed safetly for worker use.



 【Product Details】

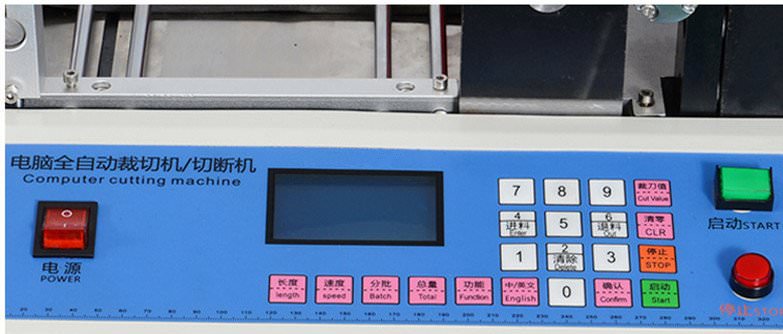

1,Both English Chinese Operating system

LCD display screen ,simple control board, easy operation ,

English Chinese language , one key to switch.

Cutting speed , Cutting amount , batch amount , batch stopping  time can be easily set.

control board

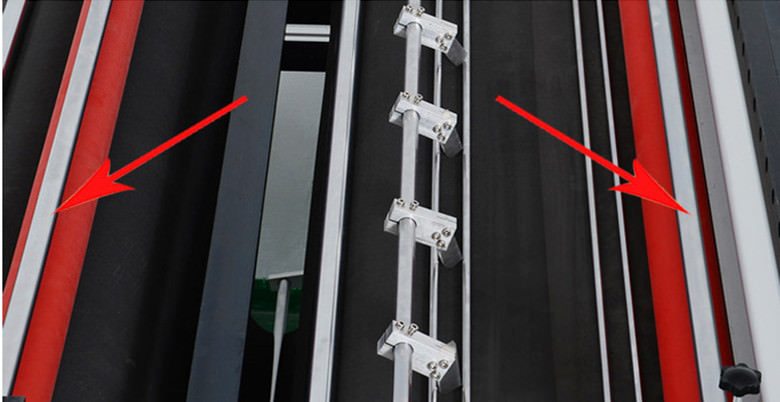

 2,Transport rubber rollers

Made from rubber , abrasion resistant, high temperature resistant,

 equiped with pressure screws on both ends , efficiently avoiding  cutting material slippery.

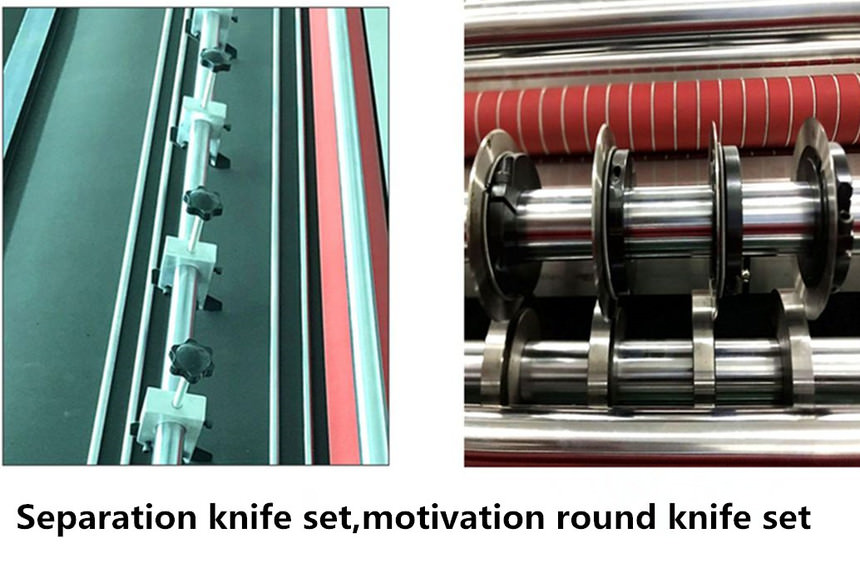

separation knives





  3, Vaccum-hot treatment steel knife

   Applies with high quality SKD11 high speed knife in special mechanical structure ,

sharp edges , durable in use , making the cutting edges smooth without hairy silks .

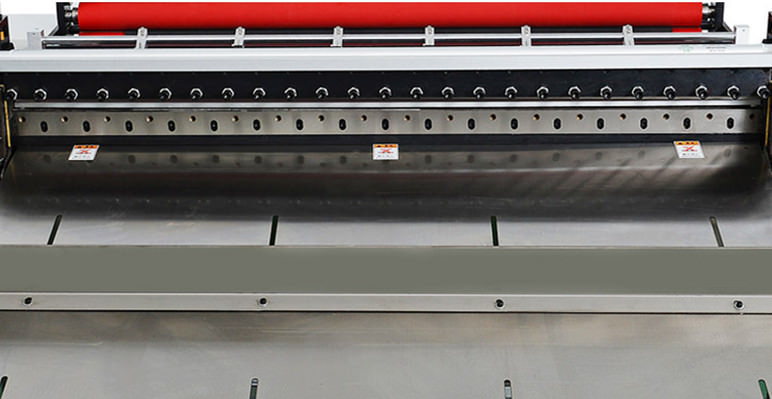

high speed knife





   4, Cutting material holding shelf

Ground standing designs ,firm and steady, with axis in center for rotation ,

 capable of holding all kinds of cutting material

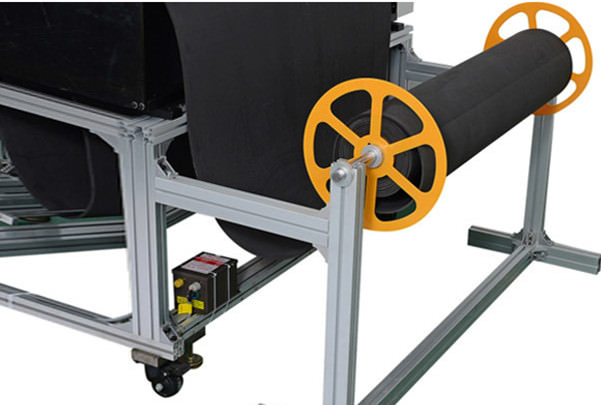

 holding shelf

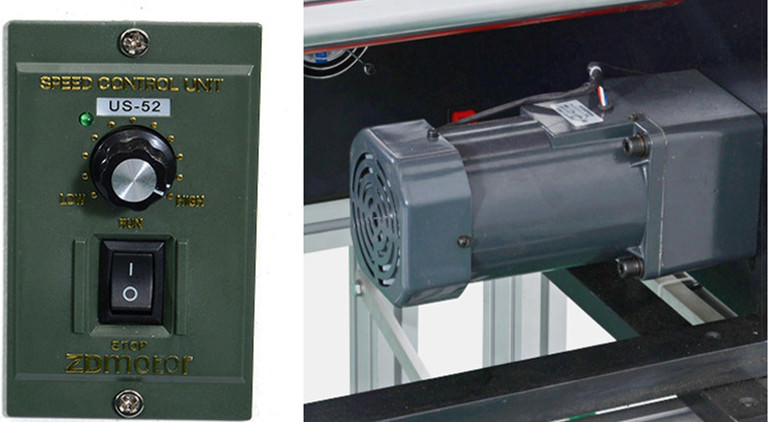

  5, Speed controller

Ajust the screws to control the speed ,change the speed during work ,

match with alternate speed changing motor to release cutting material

 beforehand to avoid pulling and guarantee cutting length precision.





 transport motor

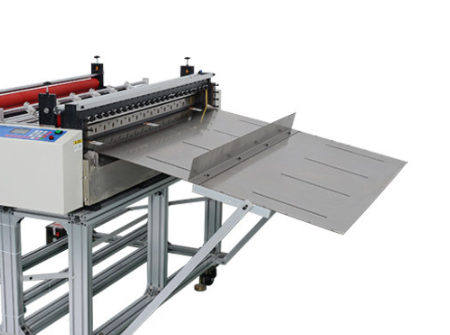

6, Cutting material receiver

The cutting material receiver will put your cutting material

 in order which help workers to collect them easily.

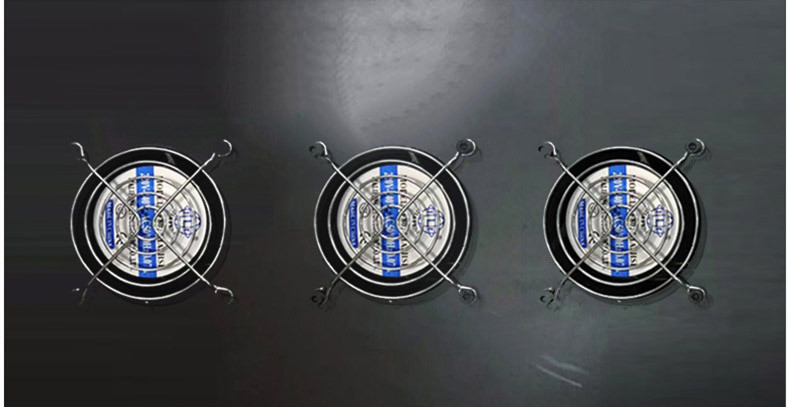

7, High power heat dispersing fan

Apply with a group of high power heat dispersing fans,

 lower the heating of the machine, ensuring long hours stable working.

multi fans





Custom designs



separation knives

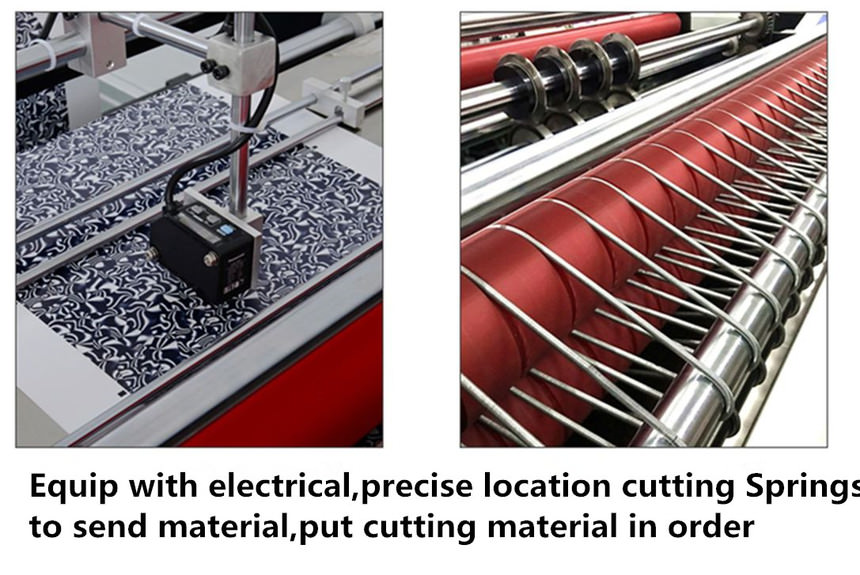

electrical eye device

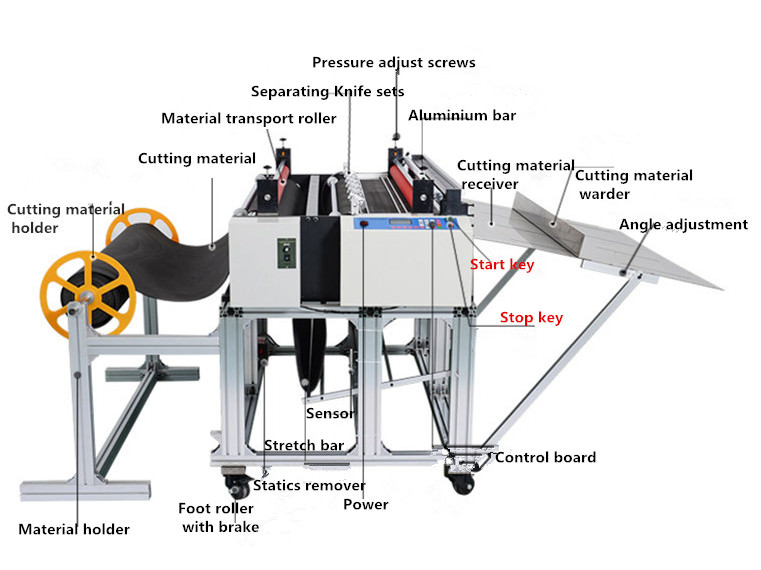

Front view

roll to sheet cutting machine

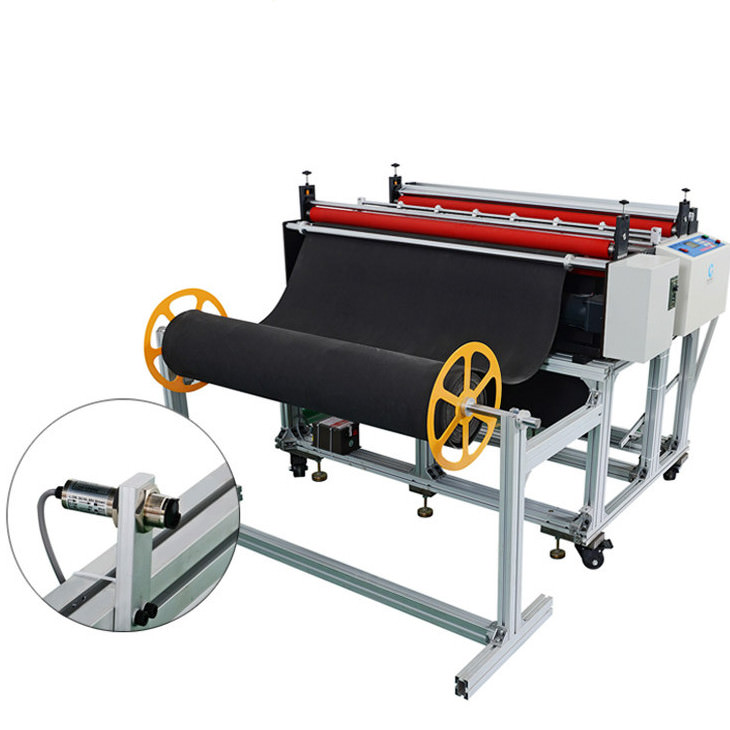

Back view

 roll to sheet cutter

  【Warranty

All  the spare parts of  roll to sheet cutting machine of high quality  ES-051  except the knife will have one year of free maintainance by changing the spare parts for free

and free shipping of spare parts to overseas clients starting from the issuing date of commercial invoice  after on line diagnosis .



 Packing

  1 Set/ Wooden case , foam sheet will be wrapped around the machine  before wooden case packing to protect the machine against rough hanlding
