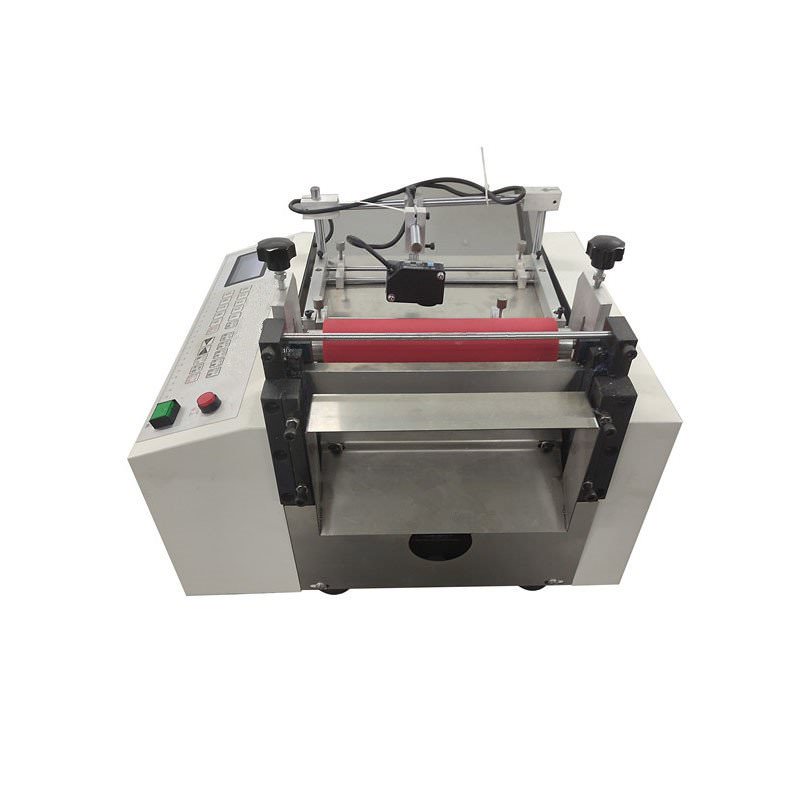

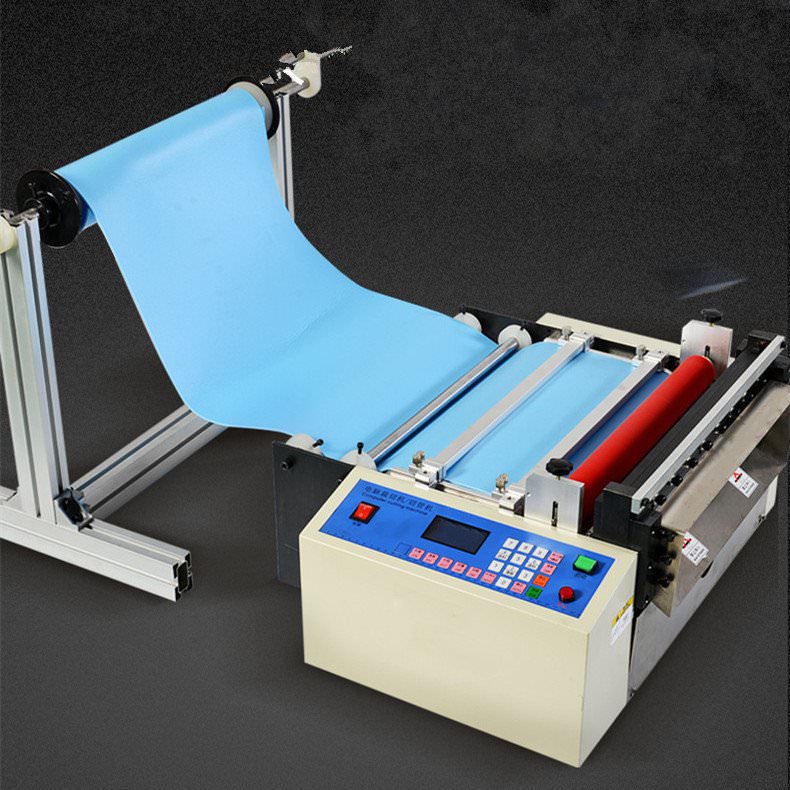

Paper roll to sheet cutting machine with photo cell ES-C200
The paper roll to sheet cutting machine with photo cell ES-C200 is made for cutting all kinds of roll material into sheet such as paper rolls , plastic rolls ,fabric rolls bearing with words or patterns with precision .
The paper roll to sheet precision cutter machine will cut paper rolls which prints with pattern or words precisely as it had been equiped with a photocell device on top of the machine .
The photocell will mark the words or pattern about 2 mm precision , the paper roll to sheet precision cutting machine will only cut where the photocell had its mark so as to make sure the words or picture bearing on the paper are preserved and intact.
ESMAI provised different models of the paper cutting machine with photocell , customer is welcome to share with their maximum cutting width for their cutting material . we will provide the right model roll ot sheet cutter machine .
【Youtube video】
【Product Advantage】

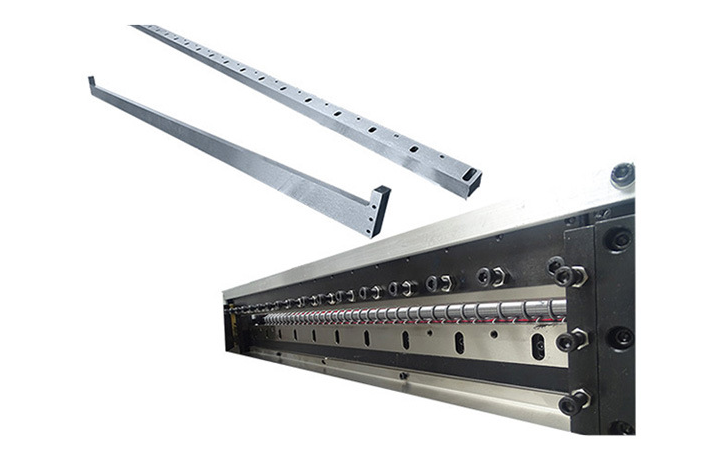

Abrasion Resistance High speed thick steel Knife
Maintaining Long time working
Applied with imported SKD-11 mold steel, thickness reached 14-23mm, sharp cutting and leave no fraying edges

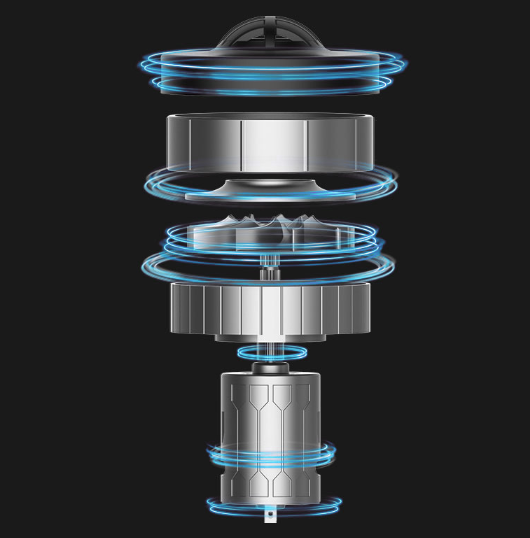

High Power motor
Alternate Motor&High Precision Transport Rolling &Cutting Performance &Steady Power
【Technical Data】
Cutting Blades Material : SKD-11 Transport Motor: High Function Stepping Motor

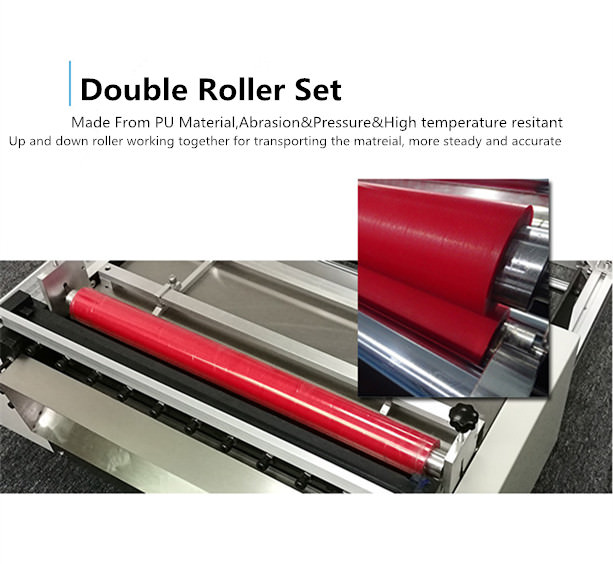

Roller Material : PU Cutting Blades Motor: High Precision Alternate Motor
Shelf Material : Aluminum Working Voltage: 220V ,50/60HZ
| Model No | Cutting Width | MaterialWeight(Steady/Suitable/Maximum) | Speed ((Steady/Suitable/Maximum)) | Machine Weight | Lenth(mm)+Shelf | Width(mm) | Height(mm) | Power(w) |
| ES-C100 (Thin blades) | <100 | 15kg (L Shelf) | 40/65/90 | 40kg | 380+(300) | 360 | 390 | 200 |
| ES-C100 (Thick blades) | <100 | 15kg (L Shelf) | 40/65/90 | 40kg | 380+(300) | 360 | 390 | 200 |
| ES-C100S(Cut metallics) | <100 | 15kg (L Shelf) | 40/65/90 | 45kg | 380+(300) | 450 | 390 | 350 |
| ES-C200(Table set) | <200 | 15kg (L Shelf) | 40/65/90 | 50kg | 380+(300) | 480 | 390 | 200 |
| ES-C300(Table set) | <300 | 20kg/30kg/40kg | 40/60/90 | 75kg | 590+(550) | 580 | 390 | 300 |
| ES-C400(Table set) | <400 | 20kg/30kg/40kg | 40/60/90 | 85kg | 590+(550) | 680 | 390 | 300 |
| ES-C500(Table set) | <500 | 20kg/25kg/35kg | 30/60/80 | 110kg | 620+(550) | 830 | 550 | 450 |
| ES-C600(Table set) | <600 | 20kg/25kg/35kg | 30/60/80 | 125kg | 620+(550) | 930 | 550 | 450 |
| ES-C700(Table set) | <700 | 20kg/25kg/35kg | 40/60/80 | 145kg | 620+(550) | 1030 | 550 | 450 |
| ES-C800(Table set) | <800 | 20kg/25kg/35kg | 40/60/80 | 160kg | 620+(550) | 1130 | 550 | 450 |
| ES-C1000(Table set) | <1000 | 15kg/20kg/30kg | 30/50/70 | 250kg | 640+(550) | 1330 | 550 | 850 |
| ES-C1200(Table set) | <1200 | 15kg/20kg/30kg | 30/50/70 | 290kg | 640+(550) | 1530 | 550 | 580 |
| ES-C500(Stand Set) | <500 | BELOW 150kg | 180/250/360 | 170kg | 1480 | 830 | 1220 | 650 |
| ES-C600(Stand Set) | <600 | 180/250/350 | 185kg | 1480 | 930 | 1220 | 650 | |
| ES-C700(Stand Set) | <700 | 170/230/340 | 215kg | 1480 | 1030 | 1220 | 650 | |
| ES-C800(Stand Set) | <800 | 170/230/330 | 230kg | 1480 | 1130 | 1220 | 650 | |
| ES-C1000(Stand Set) | <1000 | 150/200/280 | 340kg | 1500 | 1330 | 1220 | 850 | |
| ES-C1200(Stand Set) | <1200 | 140/180/250 | 380kg | 1500 | 1530 | 1220 | 950 |
【Customised solution】
Customised cutting solution is available from us to maximize customer value.

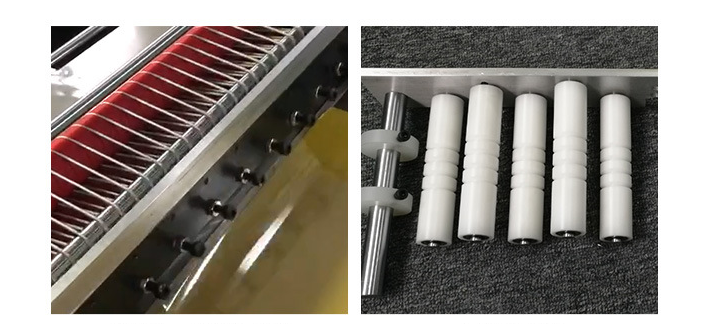

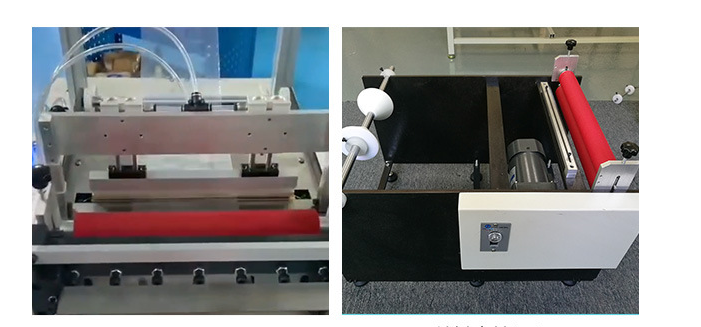

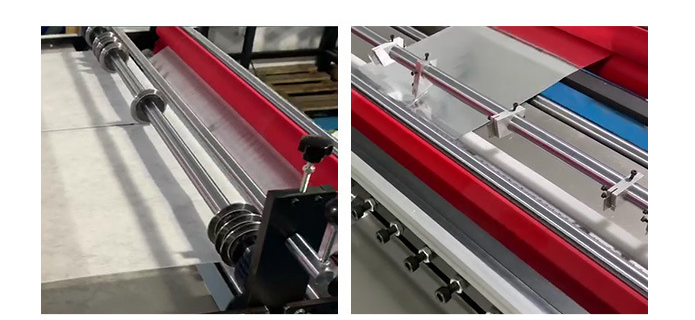

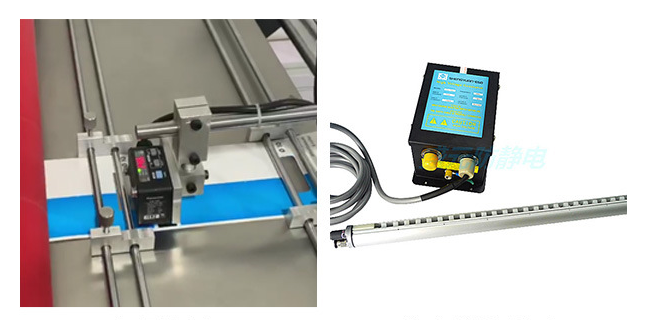

Photo cell device Statics Removing Equipment
Hot cutting Equipment Feeder device
Round Knife Set Separation Cutting knife Set
Overlaping Assistance Flat surface fixture device.

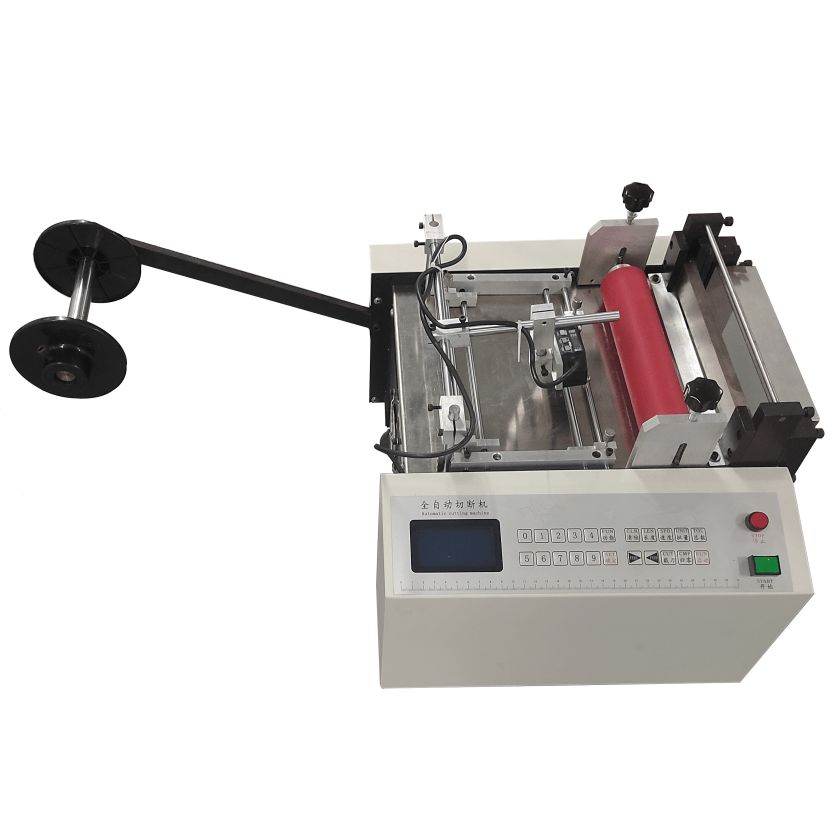

【Front view】
【Side view 】

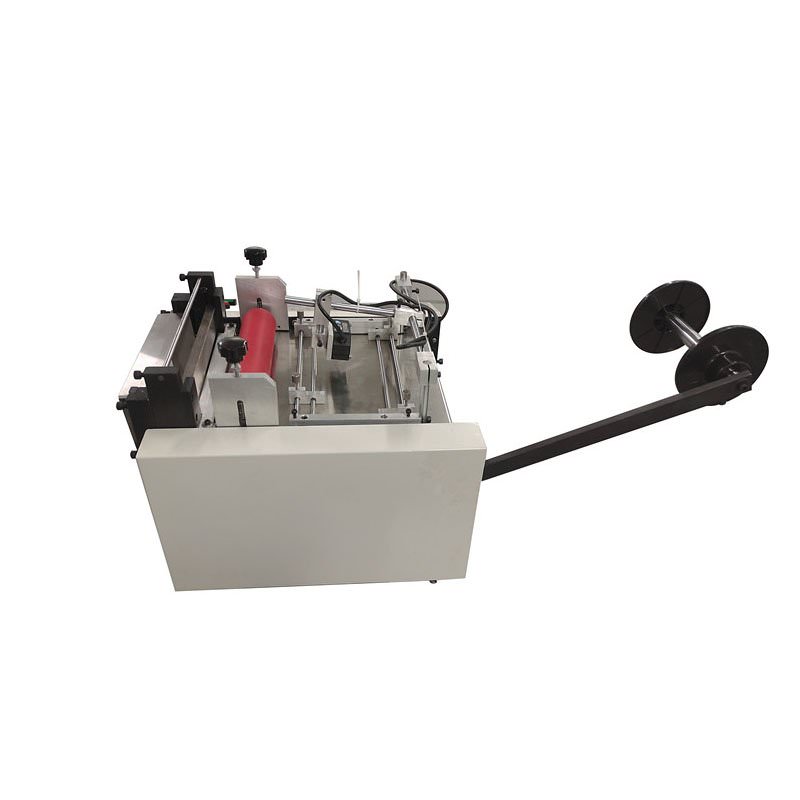

【Back view 】
【Warranty 】
All the spare parts of the paper roll to sheet cutting machine with photo cell ES-C200 except the knife will have one year of free maintainance by changing the spare parts for free
and free shipping of spare parts to overseas clients starting from the issuing date of commercial invoice after on line diagnosis .
【Packing】
1Set/ Wooden case (The goods will be wrapped up with foam paddings and and the packed with wooden case )
