Webbing cutting machine with hot and cold cut  ES-011
Webbing cutting machine with hot and cold cut  ES-011 Webbing cutting machine with hot and cold cut  ES-011 Webbing cutting machine with hot and cold cut  ES-011

Webbing cutting machine with hot and cold cut ES-011

Webbing cutting machine with hot and cold cut capability   ES-011    The webbing cutting machine with hot and cold cut capability  ES-011 is designed for cutting all kinds of webbings , Nylon webbings, PP webbings, PE webb

Product Details
Brand ESMAI
Serial Number ES-011
Country of Origin China
Certificate CE
Payment & Shipping Terms
Price Quote Based on quantity
Minimum Order 1 SET
Average Delivery Time 7-10 Days (production 2-3days, delivery 5-7 days )
Payment Method TT
Package Details 1Set /Carton ,foam paddings inside carton for delivery protection
Ability to Supply 10000 Set/ month

Webbing cutting machine with hot and cold cut capability   ES-011



The webbing cutting machine with hot and cold cut capability  ES-011 is designed for cutting all kinds of webbings , Nylon webbings, PP webbings, PE webbing ,etc into   precision same length featuring with automatic precision cutting with hot cut at the same time .

The webbing cutter  can reach 350 ℃ high temperature at maximum on the knife  which gurantees high heat efficiency when the webbing material contact the knife in such short time . the webbing cutting edge will melt instantly and cool off shortly and result in  non-fraying edges . the  cutting edge will look nice after hot cutting .

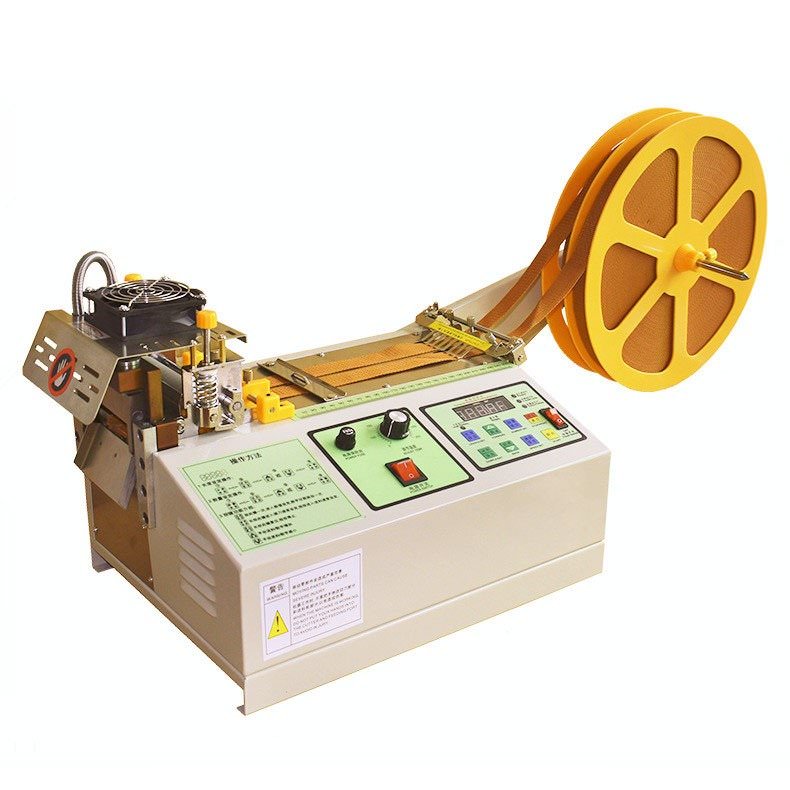

webbing cutting machine

The webbing automatic cutting machine  will automatically  do the cutting for webbings ,it is easy to operate and teach staff to use it ,  customer can set the cutting length ,total cutting amount , set the heating temperature  ,start the machine , the webbing strap cutter will do the rest , proceed to automatic cutting sequence which save human labour. once running out of cutting machine , the machine will self stop cutting process which requires no baby sitting .
The cutting speed reachs  150 times per minute for a single webbing of 50 mm unit cutting length  ,the maximum width it allow to cut is 90mm  which enable  the webbing hot cut cutting machine cut two webbings at the same time and consequently double up the productivity ,



【Technical Data】

Brand : ESMAI                                                                                     Knife Type : Hot &Cool  Cut

Model No.: ES-011                                                                             Voltage: 110V/220V

Type: Full Automatic Cutting Machine                                               Power:0.45KW

Cutting Speed : 110 Times/Minute(based cutting length 50mm)     Weight: 23/25kg

Size (L*W*H): 560*415*410(mm)                                                        Cutting width:1-90mm

Cutting Lenth: 1-99999mm                                                                Blade Maximum heating temperature: 350 ℃

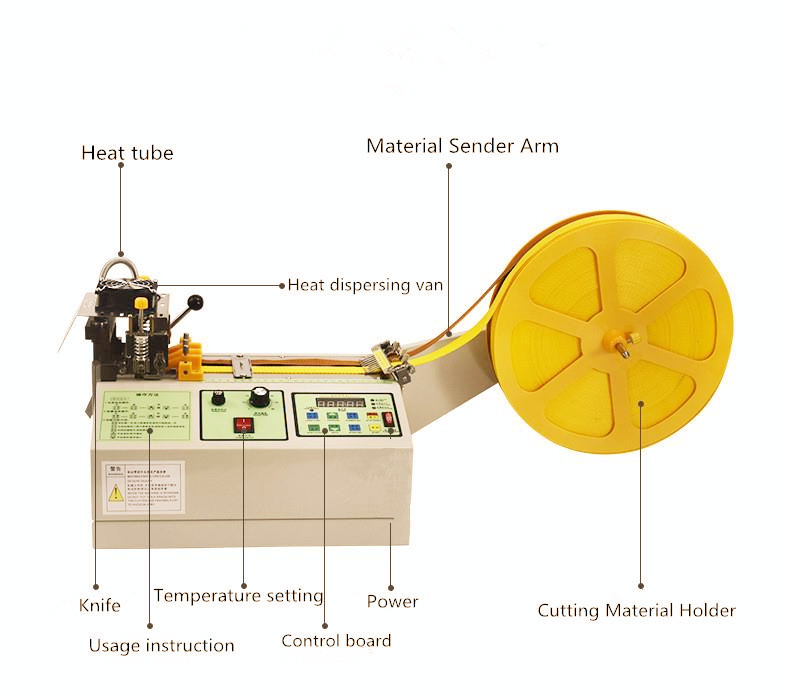

Product detail_副本_副本.jpg

【Product Advantage】



1, Smooth cutting with no fraying edges ,Cutting length tolerance within 0.1mm



2, Durable Knife blades with long term life span



3, Self terminating work when out of cutting material with the help of sensors, alarming device on it.



4,Easy usage with clear control board,which enble customer to teach their staff use the machine easily .





【Product Details】

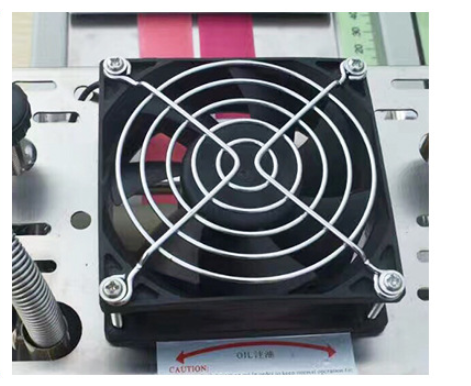

Heat dispersing fan

making sure the long hour working the cutting machine and extend machine life.

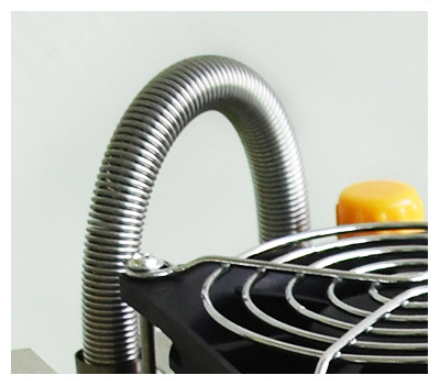

                                                                                         Heat Tube

                                                                                         High quality tube ,fast heating and durable

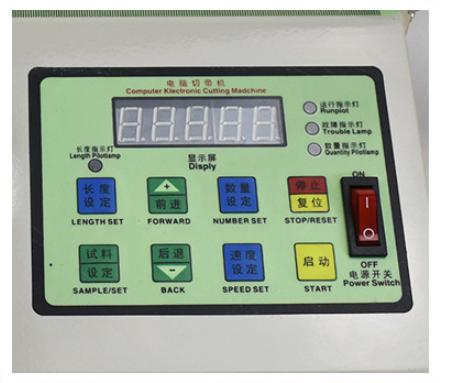

Easy Control board

Chinese & English Language in one ,LED screen

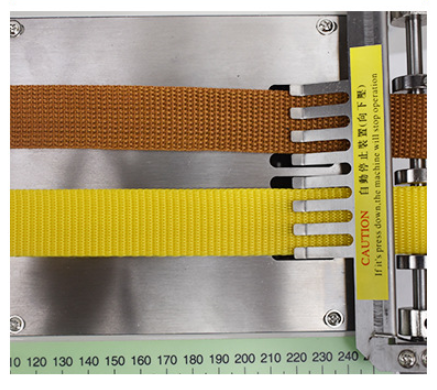

 Directing clips

 It will keep the cutting material transport steadily and avoid swinging ,meanwhile , when cutting                                                                                                                                                       material runs out , it will go beneath the machine surface and trigger alarm to tell that the machine                                                                                                                                                                 had finished the cutting .  Assisting the good quality of cut of your material , labour saving

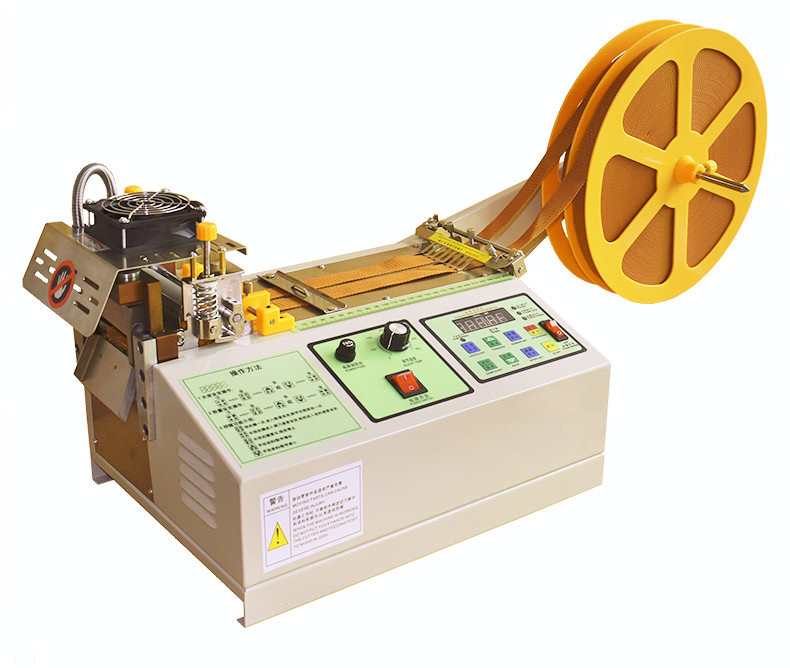

Front View

webbing automatic cutting machine

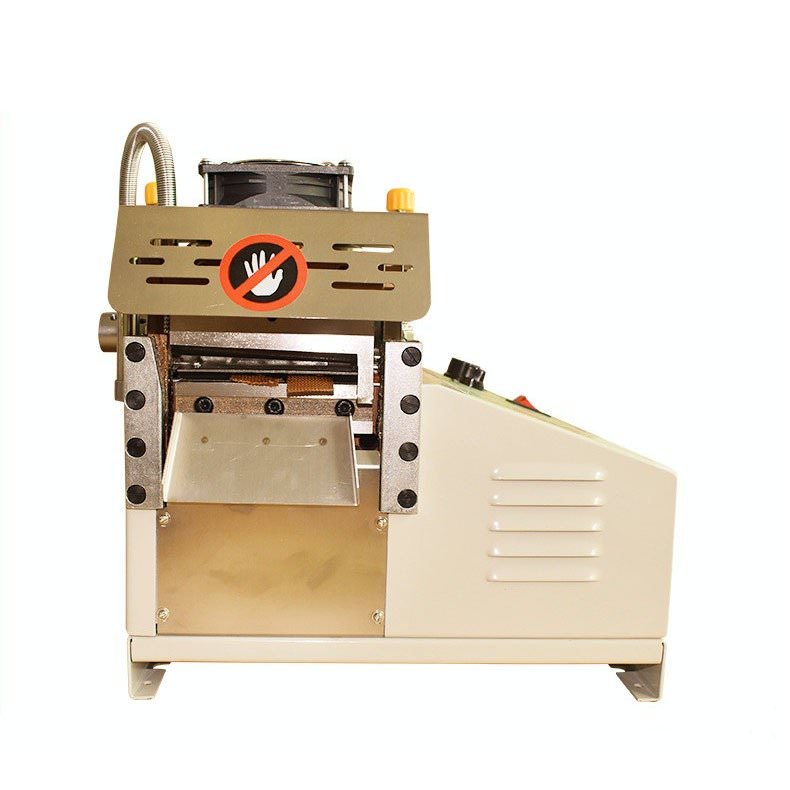

Side View

webbing hot cut automatic cutting machine

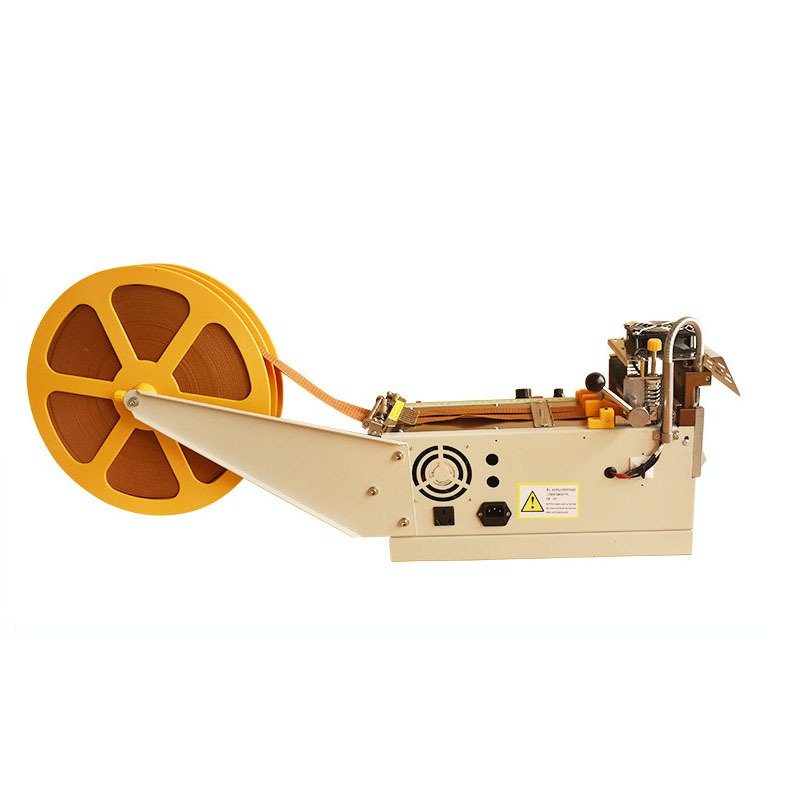

Back View



webbing strap cutter



【Warranty】

All  the spare parts of webbing cutting machine ES-011 except the knife will have one year of free maintainance by changing the spare parts for free and free shipping of spare parts to overseas clients starting from the issuing date of commercial invoice  after on line diagnosis .



【Packing】

1Set/Carton ,  foam paddings inside the carton to ensure safe overseas delivery.
