Adhesive velcro dots kiss cut cutter machine ES-072

Product Details
Brand ESMAI
Serial Number ES-072
Country of Origin China
Certificate CE
Payment & Shipping Terms
Price Quote Based on quantity
Minimum Order 1 SET
Average Delivery Time Production 7-10 days, delivery time 15-25 days by sea
Payment Method TT
Package Details 1SET/WOODEN CASE
Ability to Supply 100 Sets/ month

Adhesive velcro dots kiss cut cutter machine   ES-072

【Product Description】

The adhesive velcro dots kiss cut cutter machine  is designed for kiss cutting velcro dots &coins from self adhesive velcro tapes . the kiss cut velcro stays on the release paper and get collected into roll form which is in good order and is convenient for end use and direct for packing up .

The cutting depth precision of this velcro tape kiss cut machine reaches up to 0.001mm  which allow the machine to cut off the velcro but without cutting through the release paper ,it cuts right to the surface of release paper which is good for peeling kiss cut velcro velcro dots from release paper .

Separation of waste velcro and kiss cut needed velcro will be easy as the self adhesive velcro kiss die cut machine applies with big curve roller which supports the release paper steady for peeling , the peeling angle is set at 180 degrees which also faciliate the peeling , there is also a metal block which press down the kiss cut velcro and avoids it from sticking and going with waste velcro into roller form as after kiss cutting , there is still adhesive between the waste velcro and needed velcro , they are easy to stick to each other during separation. a small pressing roller is placed under big curve roller , the purpose of it is to pull down tightly the release paper for easy separation of waste velcro and needed velcro.

Adhesive velcro dots kiss cut cutter machine

Youtube video



The maxmium cutting width of the self adhesive velcro coins kiss cut  machine is 120mm ,it combines touch screen and buttons for easy operation of the machine

the machine general power is 2500W and applies with high power servo motor for good performance, the knife mold is customised plastic made mold and is economical for various velcro shape size application

The best advantage of this  self adhesive velcro dots kiss cutting machine is that the machine combines kiss cut +automatic feed in velcro tape material +automatical collect both waste velcro and kiss cut needed velcro into roll form and is practical and lower cost than the ones in the market which is good for velcro dots kiss cut start-up manufacturers



【Technical Data】

Product name:Adhesive velcro dots kiss cut cutter machine

Model No.:ES-072

Maximum cutting width120mm

FunctionKiss cut velcro +Separate waste velcro and needed velcro+ Auto feed + Auto collection finished material in rolls

Cutting depth precision0.001mm

MoldCustomised shape knife mold

ApplicationAdhesive Velcro tape ,silicone rubber and other material with release paper

Output100 cuts/Min (based on 14mm feeding length)

Control system Touch screen controlChinese&English language

Power2500W

Motor High power servo motor

Net Weight 350KG

DimensionL*W*H 1700*950*1400MM



【Product Advantage】



1, Precision kiss cut velcro into shape without cutting through the release paper ,cutting depth precision up to 0.001mm



2, Good separation of kiss cut needed velcro on the release paper and waste velcro



3, Collect both kiss cut velcro  and waste velcro into roll form ,easy for packing up .



4, Automatic feeding velcro material for kiss cut



【Product Details】

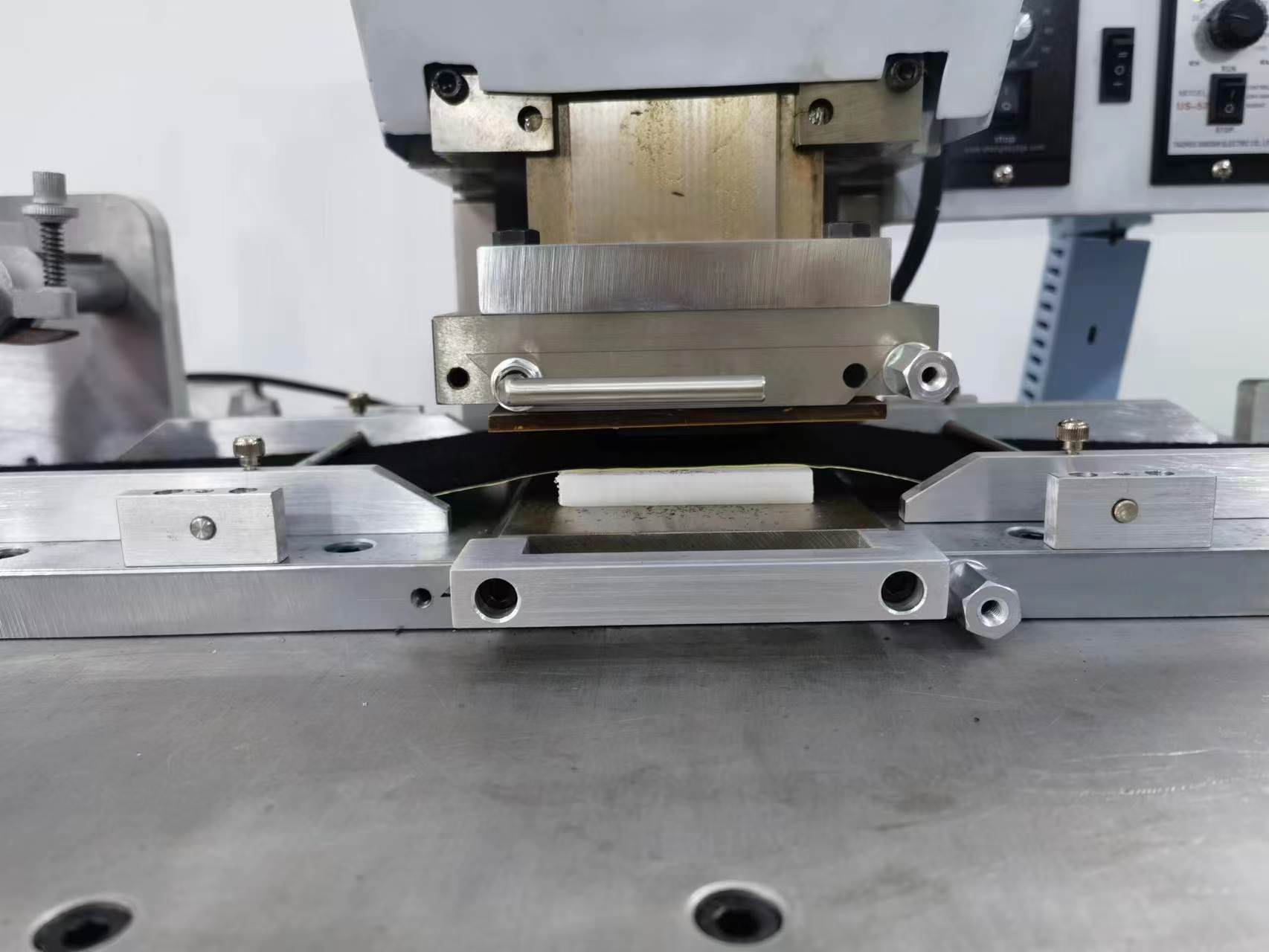

1,Precision cutting depth and customised plastic knife molds, the cutting depth can be can be set precisely

the cutting precision reaches 0.001mm which allows the knife mold to cut off velcro and cut right to the surface

of release paper

kiss cut mold

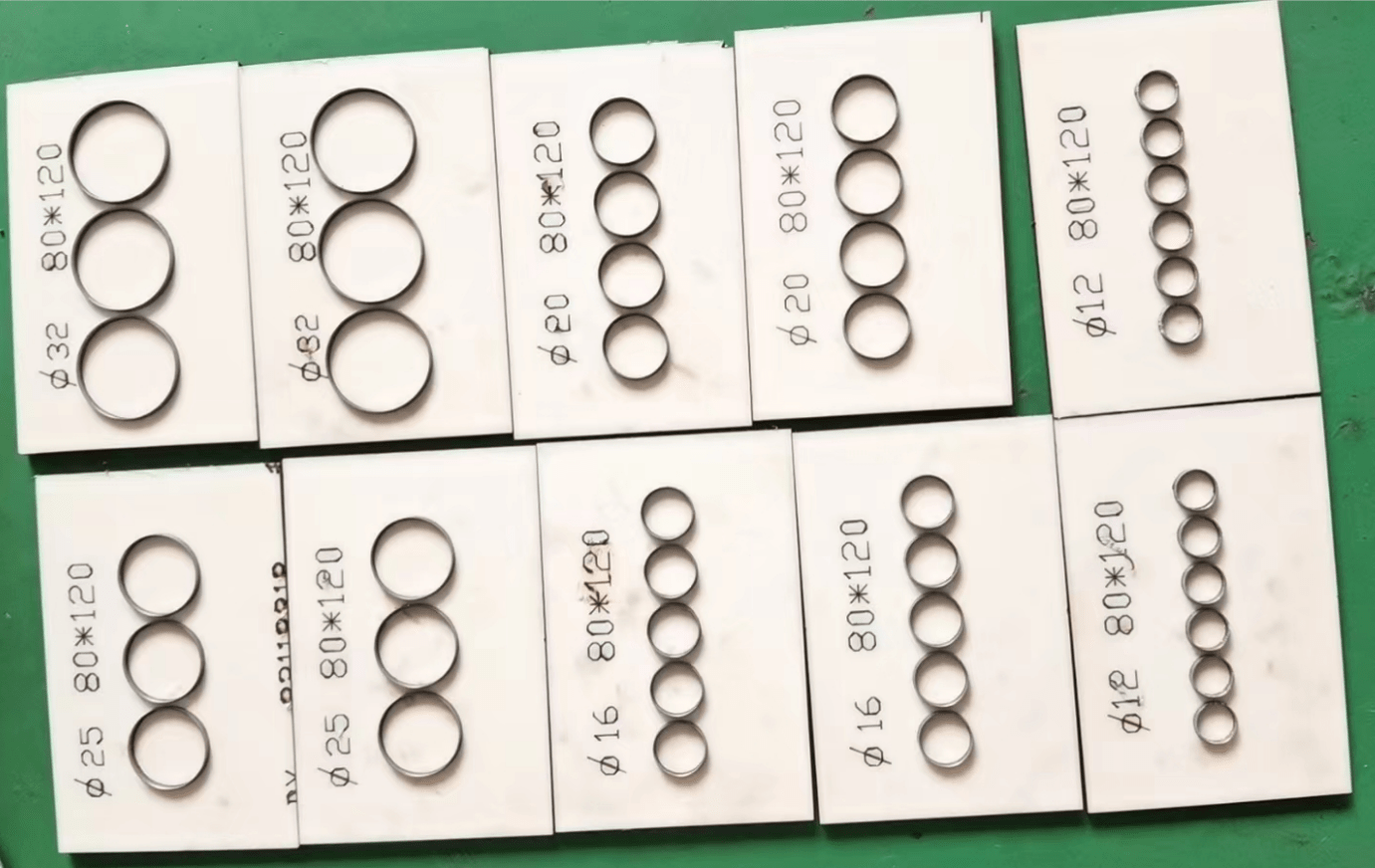

the knife molds can made with different shape for kiss die cutting , the knife mold is made of plastics

which is low cost and good for making many plastics molds for different size velcro for  kiss cutting

velcro molds

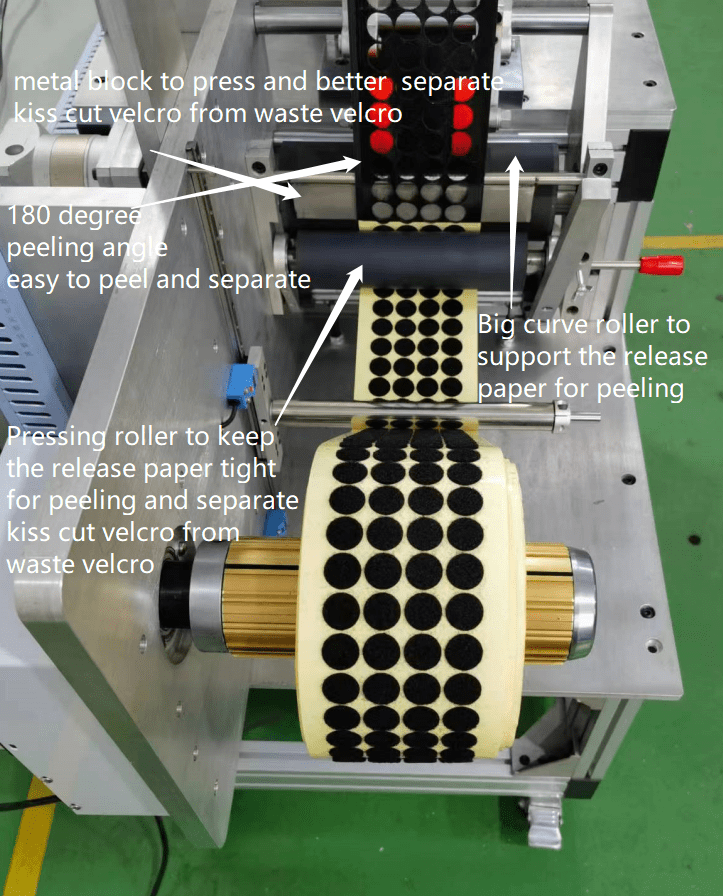

2, Good separation of waste velcro and needed velcro  ,the metal block will press down the kiss cut velcro to release paper

and avoid it from sticking and going with waste velcro into roll form. there is also a big curve roller which support the

release paper better for peeling ,the peeling angle is set at 180 degree angle position , also there is a small pressing roller

at the bottom of the big curve roller which will keep the  release paper pulled tightly for peeling



peeling and separate

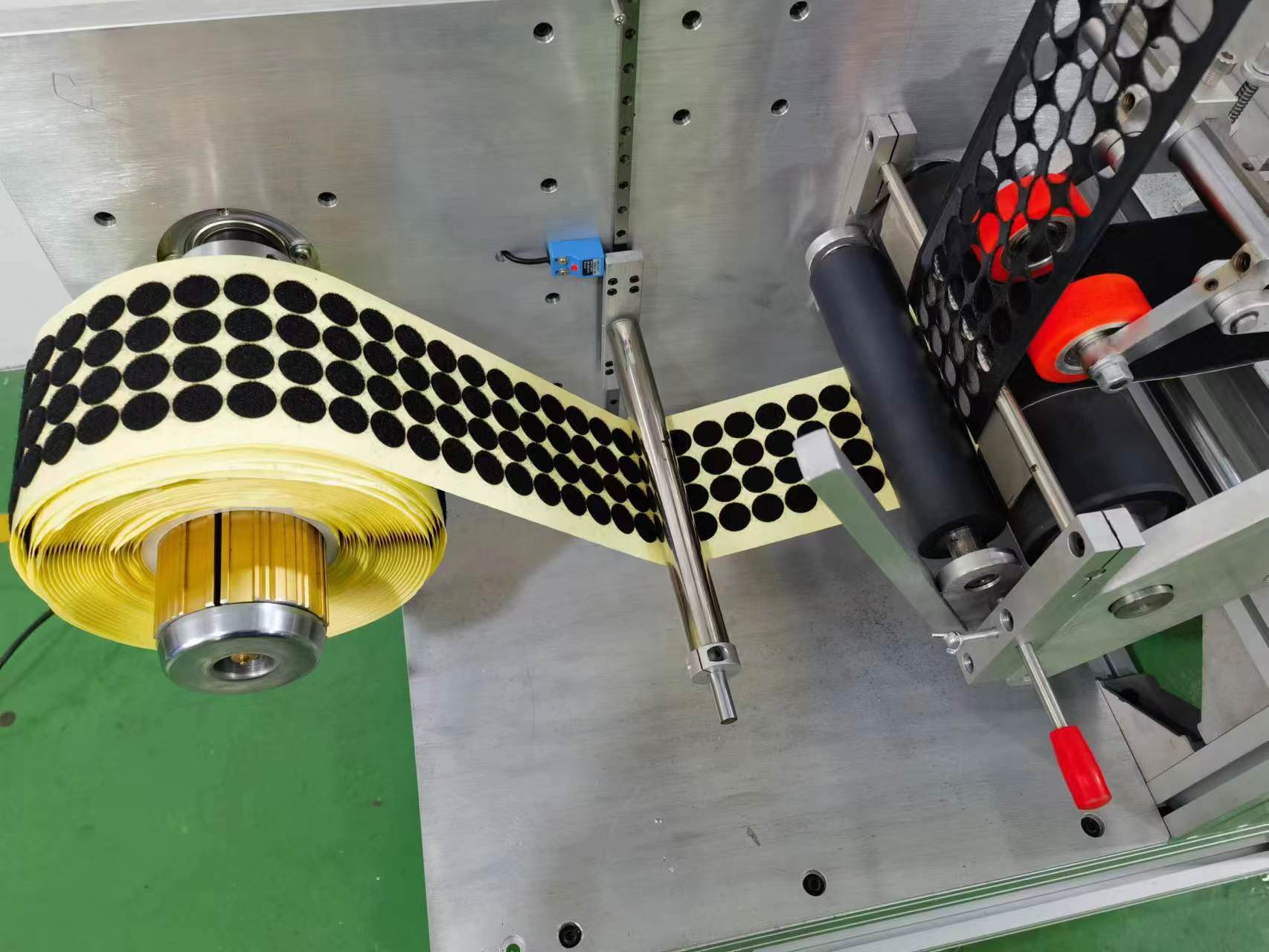

3, Collect kiss cut needed velcro into roll form , the collection roller had sensor besides it ,the sensor can sense

pulling beneath it  and signal the collection roller to automatically roll the needed velcro into roll form

 collect needed velcro into roll forrm

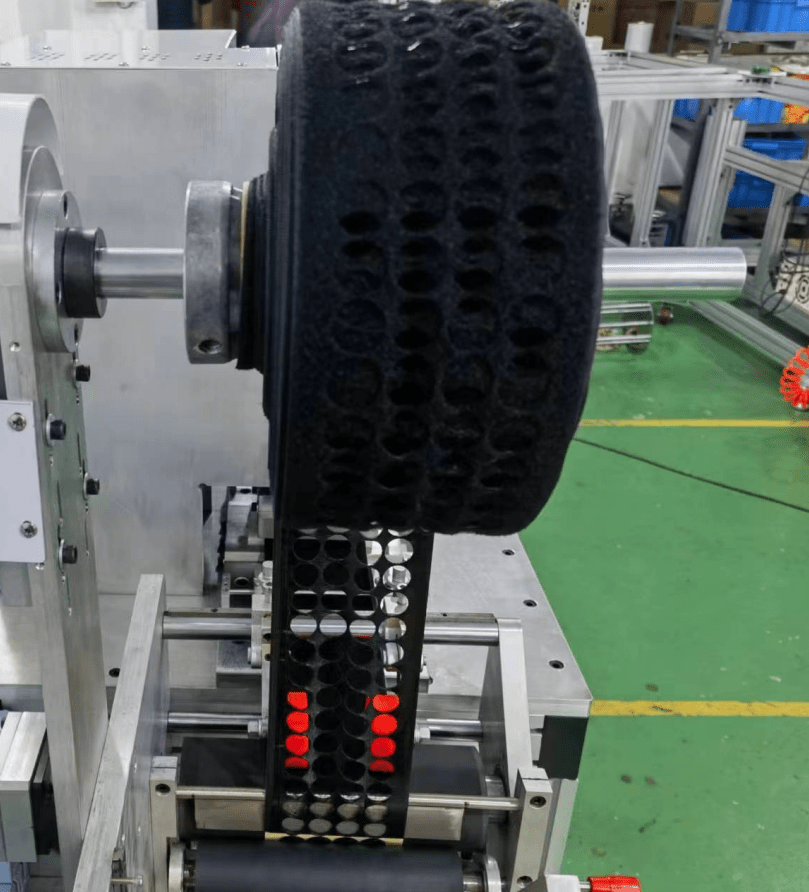

4,Collection waste velcro into roll form with collection roller ,the waste velcro collection roller applies strong

power motor to pull up tightly the waste velcro for easy peeling away from the release paper and collect waste velcro

into roll form

collection waste velcro

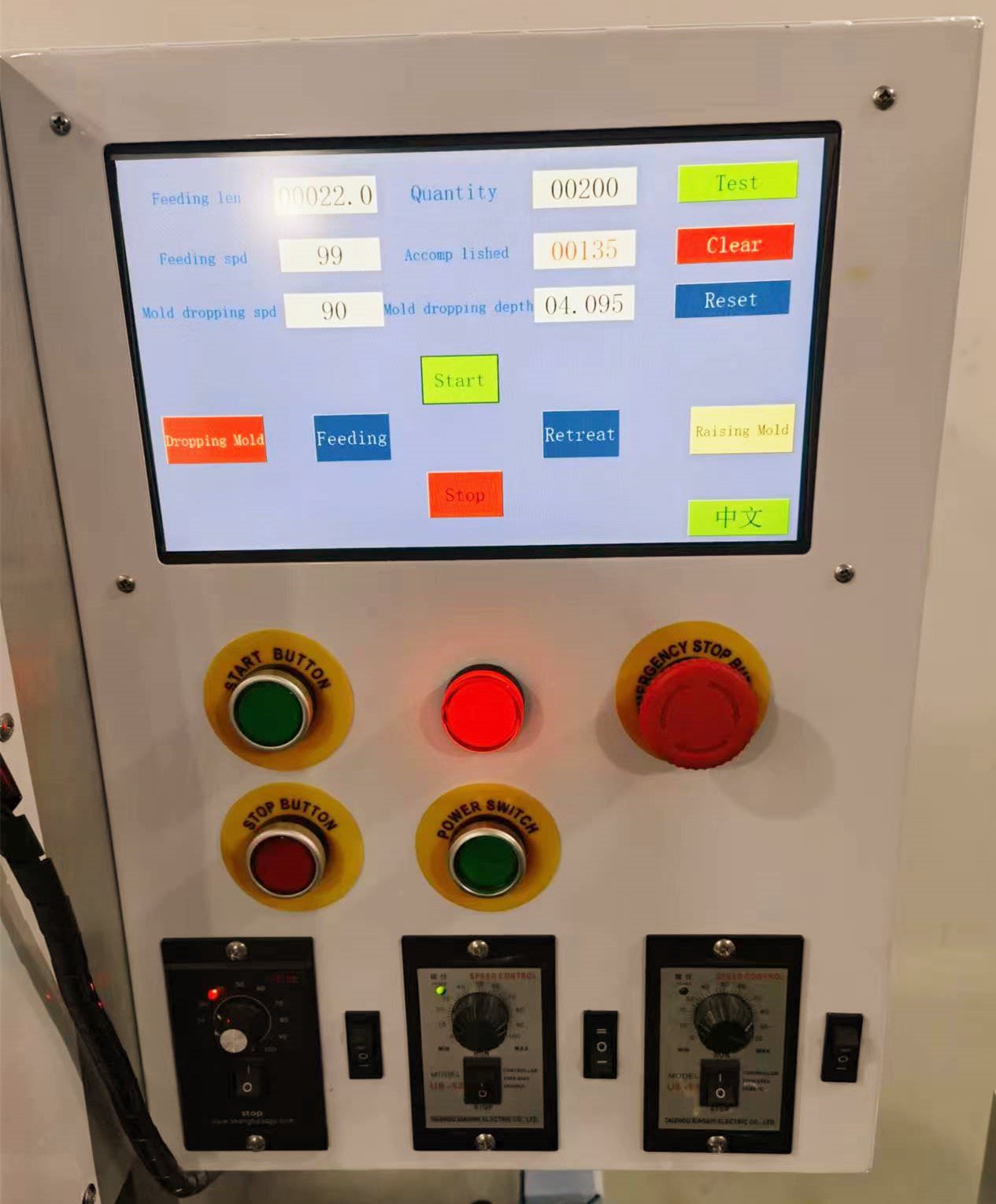

5,Touch  screen &button controls, the machine will be easy to operate with simplified touch screen controls

and button controls ,feeding length , cutting amount ,feeding speed and cutting depth  can be set freely etc.

touch screen &button control

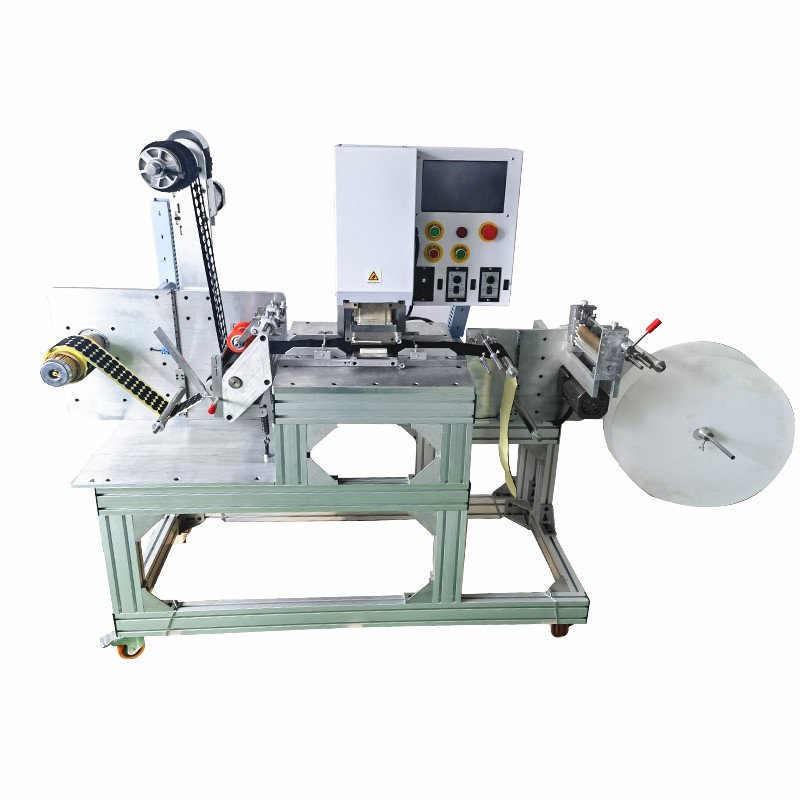

Front View

self adhesive velcro dots kiss cutter machine

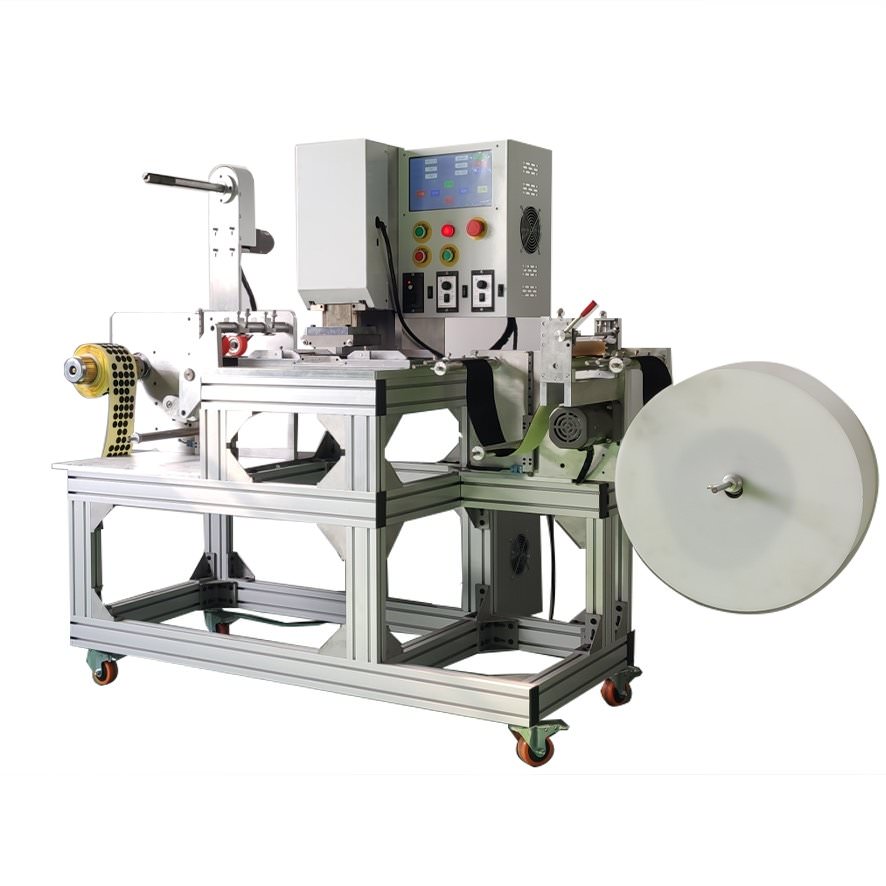

Side View

self adhesive velcro coins kiss cut  machine

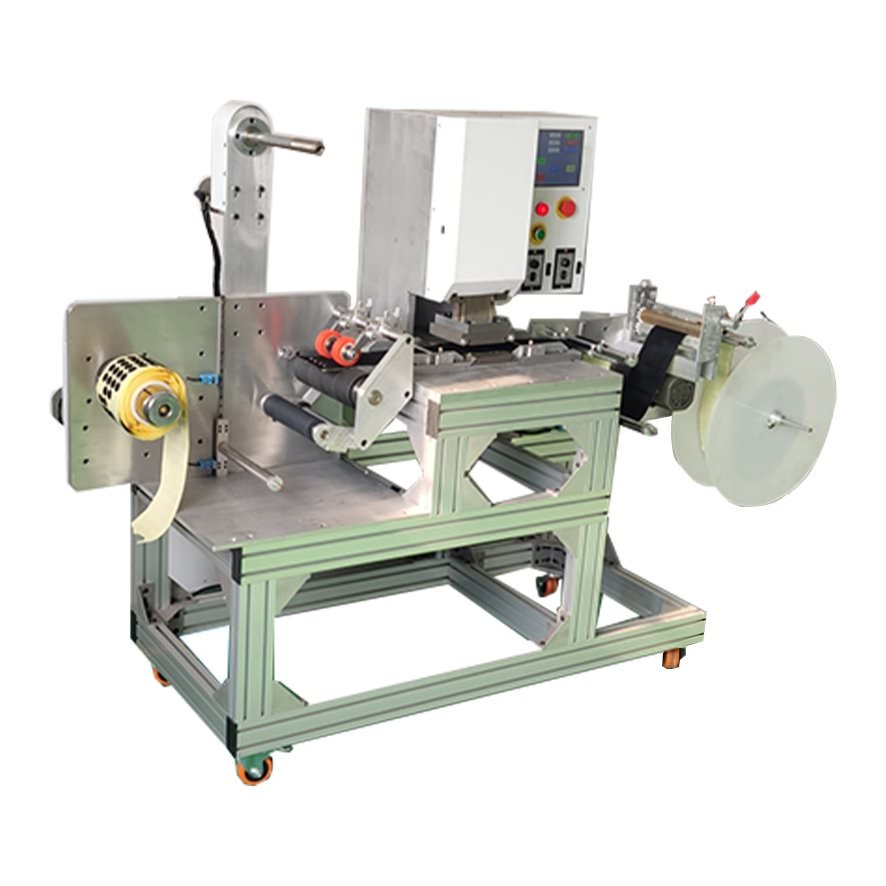

Side View

self adhesive velcro kiss die cut machine









【Warranty 】

 As a adhesive velcro dots kiss cut cutter machine supplier , all the spare parts of the  ES-072 machine will have one year of free maintainance

by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice

after on line diagnosis .



【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping
