Velcro roll slitting coiling cutting machine ES-128
Velcro roll slitting coiling cutting machine ES-128 Velcro roll slitting coiling cutting machine ES-128 Velcro roll slitting coiling cutting machine ES-128 Velcro roll slitting coiling cutting machine ES-128

Velcro roll slitting coiling cutting machine ES-128

Product Details
Brand ESMAI
Serial Number ES-128
Country of Origin China
Certificate CE
Payment & Shipping Terms
Price Quote Based on quantity
Minimum Order 1 SET
Average Delivery Time Production 7-10 days, delivery time by sea
Payment Method TT
Package Details 1SET/WOODEN CASE
Ability to Supply 100 Sets/ month

Velcro roll slitting coiling cutting machine   ES-128



The velcro automatic cutting and coiling machine ES-128 performs vertical slitting velcros , precise cutting of Velcro into custom lengths, and coiling into rolls and automatical taping the ends all within a single machine, streamlining the production line and reducing manual labor.

This velcro automatic cutting and winding machine is capable of handling materials with a thickness ranging from 1 to 3mm and accommodating cutting lengths from 1 to 50 meters, the ES-128 offers flexibility to meet diverse manufacturing requirements



velcro shape



Youtube video



The Maximum velcro  material diameter before processing is 800mm and maximum velcro material diameter after coiling is 130mm , the maximum processing material width is 120mm ,the machine can slit big width velcro into small width velcro before coling into rolls , the mininum slitting width is 8mm .

The velcro roll slitting coiling cutting machine is equipped with a user-friendly PLC touch screen interface, the operating system ensures easy control and monitoring of the production process .

With an impressive output ranging from 2 to 8 rolls per minute, this machine maximizes productivity while maintaining superior quality standards, enabling velcro manufacturers  to meet demanding production targets with ease.



【Technical Data】

Product name : Velcro roll slitting coiling cutting machine

Model No.:ES-128

Function : Vertical slitting +cutting velcro into length +coiling into rolls in one machine

Voltage:220V 50/60HZ

Machine power:2KW

Working pressure:0.7MPA

Operating system:PLC Touch screen

Cutting length: 1-50 meters

Processing material thickness:1-3mm

Maximum material diameter after coiling :130mm

Maximum material diameter before processing:800mm

Maximum processing material width:120mm

Roll core diameter :25mm

Minimum slitting width: 8mm

Output : 2-8rolls/min

Net weight:260KG

Machine dimension:2850mmX800mmX1500mm





【Product Advantage】



1, Vertical slitting +cutting velcro into length +coiling into rolls in one machine , it also automatically

 tape the ends for adhesive backed velcros


2, Velro Roll to roll , from Big rolls to process in small rolls , with feeder device to feed material from behind automatically



3, High productivity with slitting function , multi velcro rolls to be made at the same time  ,labour saving





【Product Details】

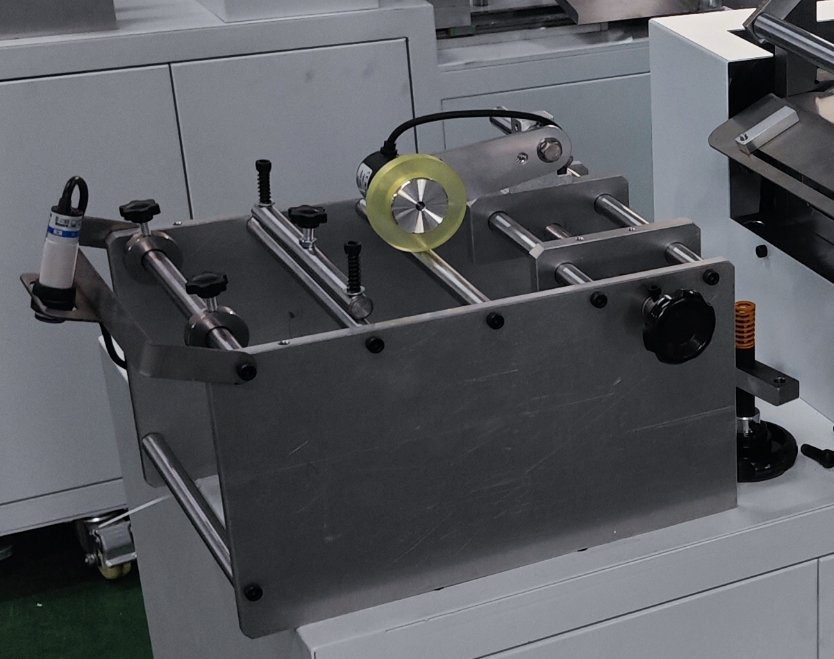

1,Count meters  , the velcro cutting and coiling machine  had been equiped with count meter device , it can record how

many meters of velcro had been processed

Counter meter

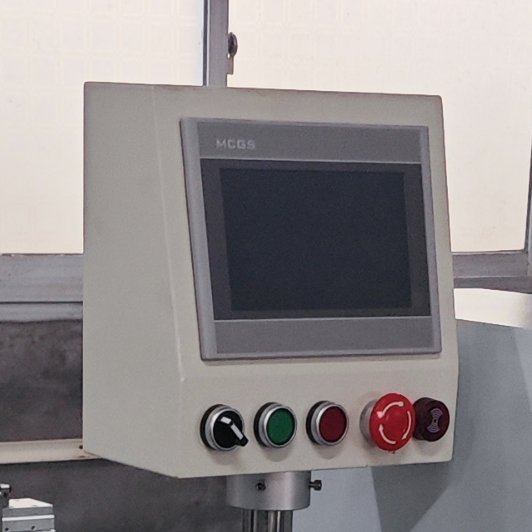

2,Touch screen control   the velcro automatic cutting and coiling machine applies with touch screen

control which is easy to operate , customer can set cutting length , working speed ,etc .

Touch screen

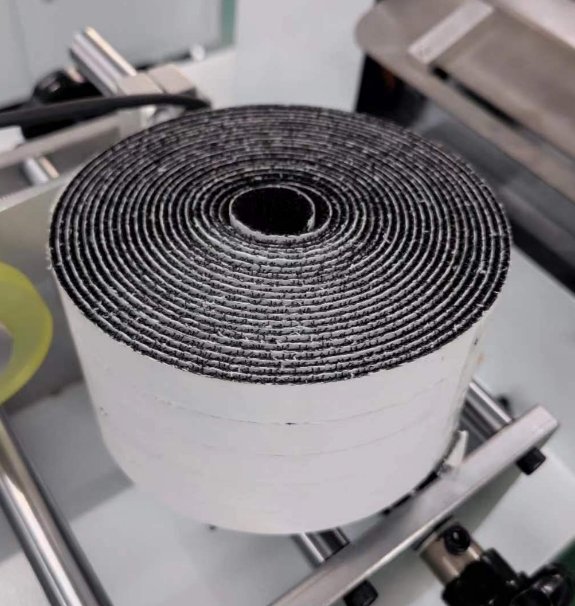

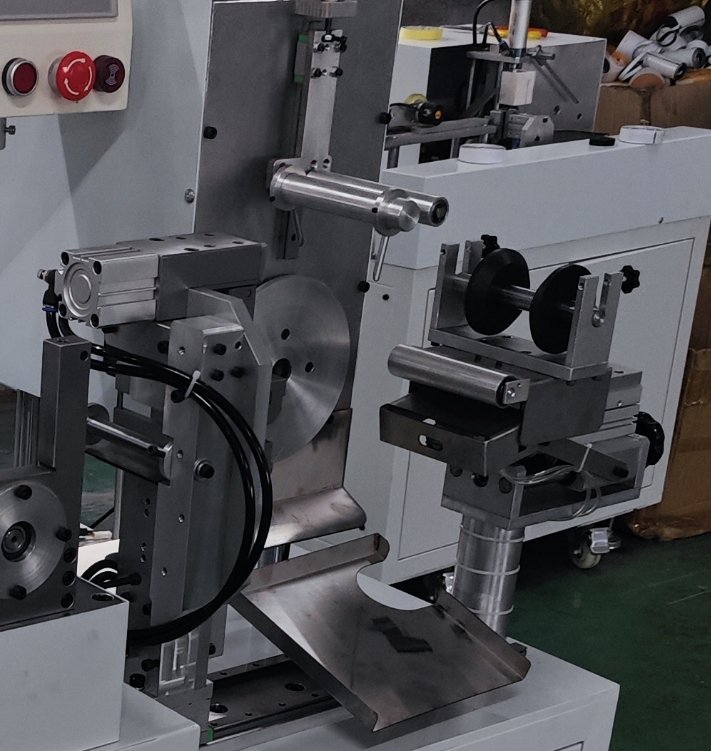

3, Coiling velcro into rolls and taping the ends  ,the coiling device can coil velcros into different size rolls

and the taping parts will automatically tape the ends of velcro rolls .



coiling and taping ends

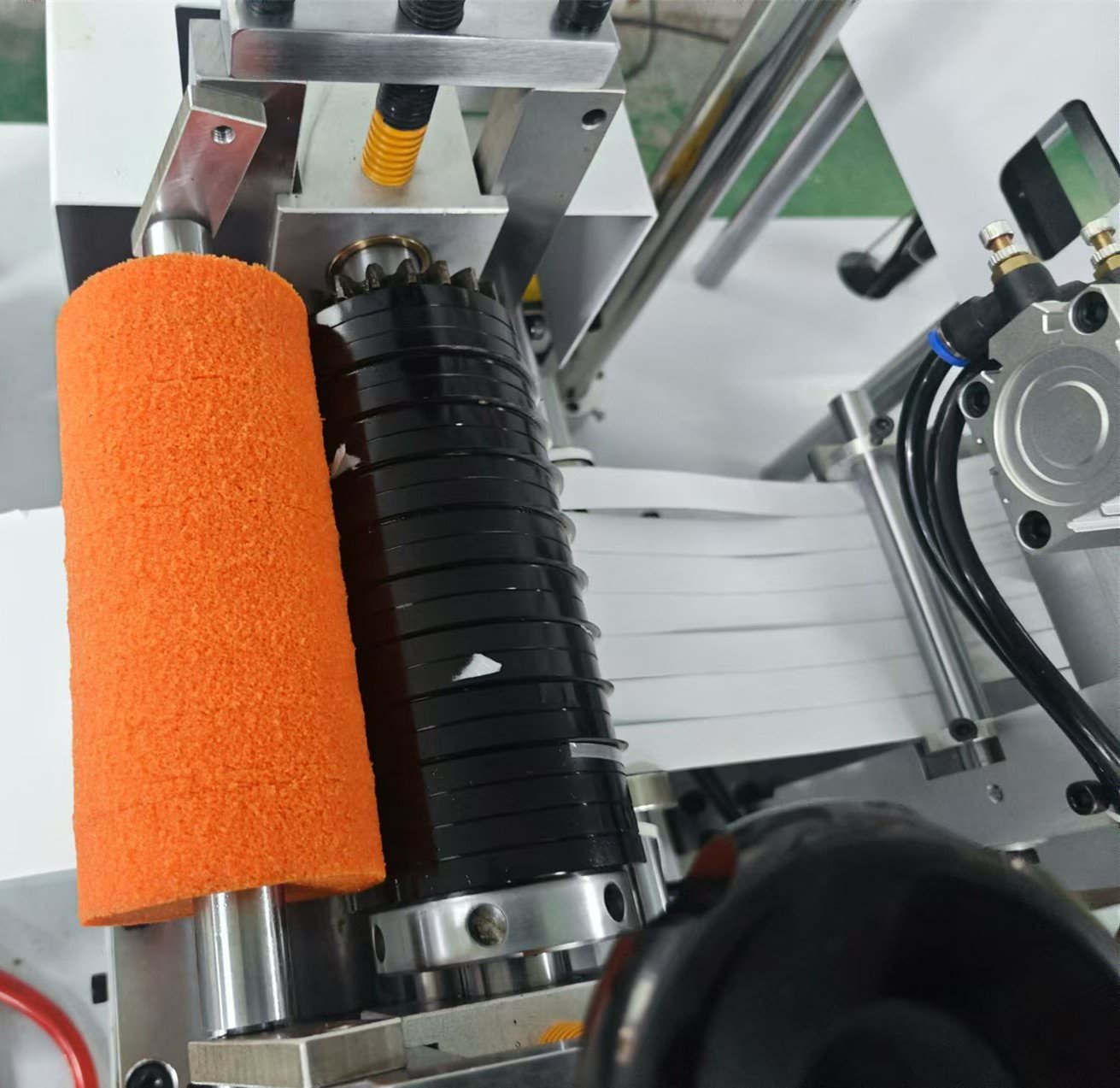

4, Slitting and cutting velcro to length , the velcro automatic cutting and winding machine can slit velcro into

small width ,the mininum slitting width is 8mm ,after slitting and coiling , the machine cut velcro to fixed cutting length .

slitting roller

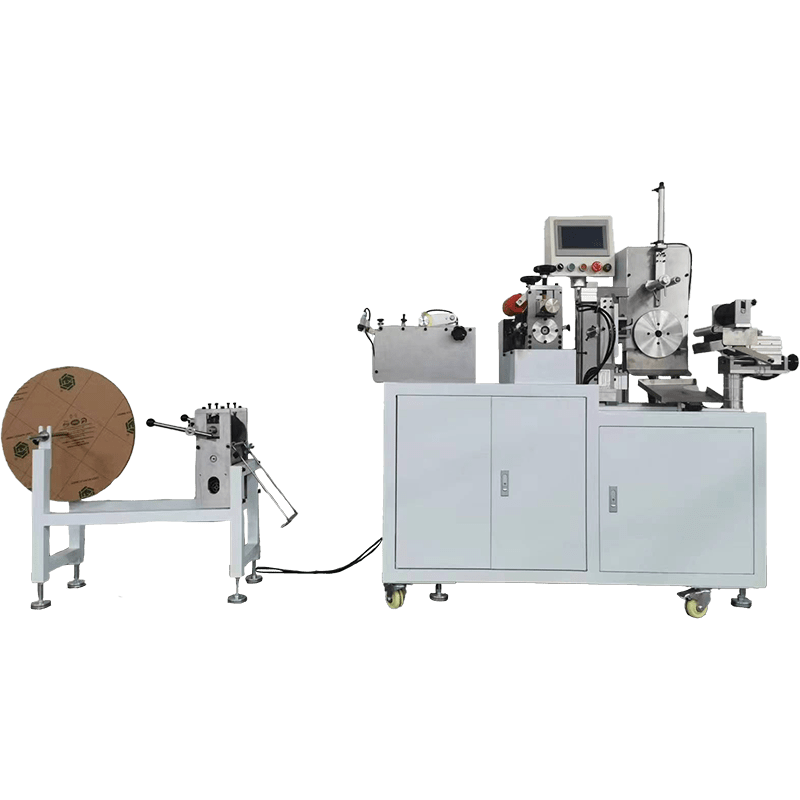

Front View

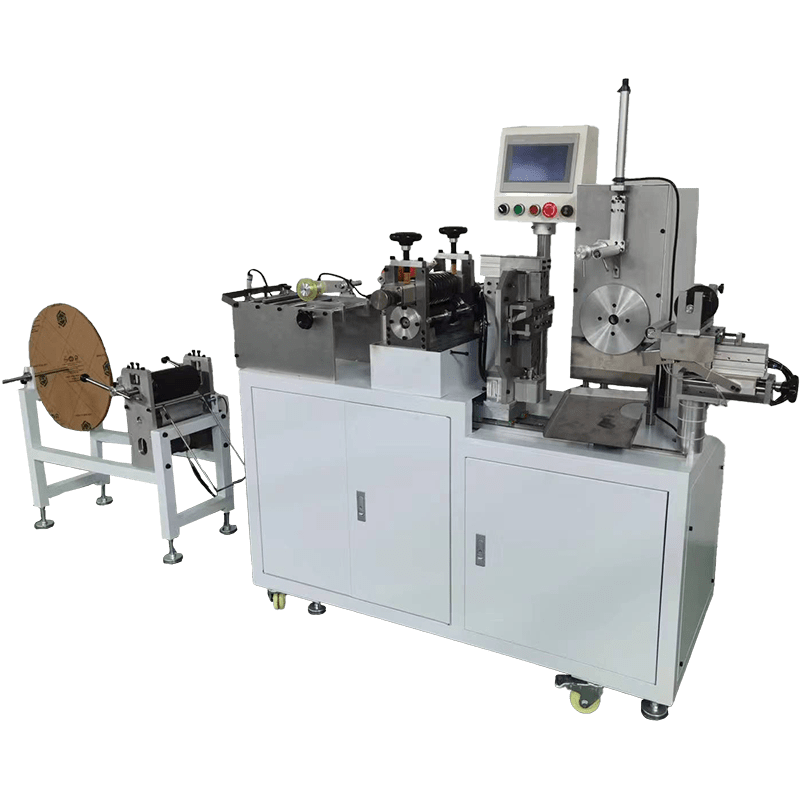

velcro automatic cutting and winding machine

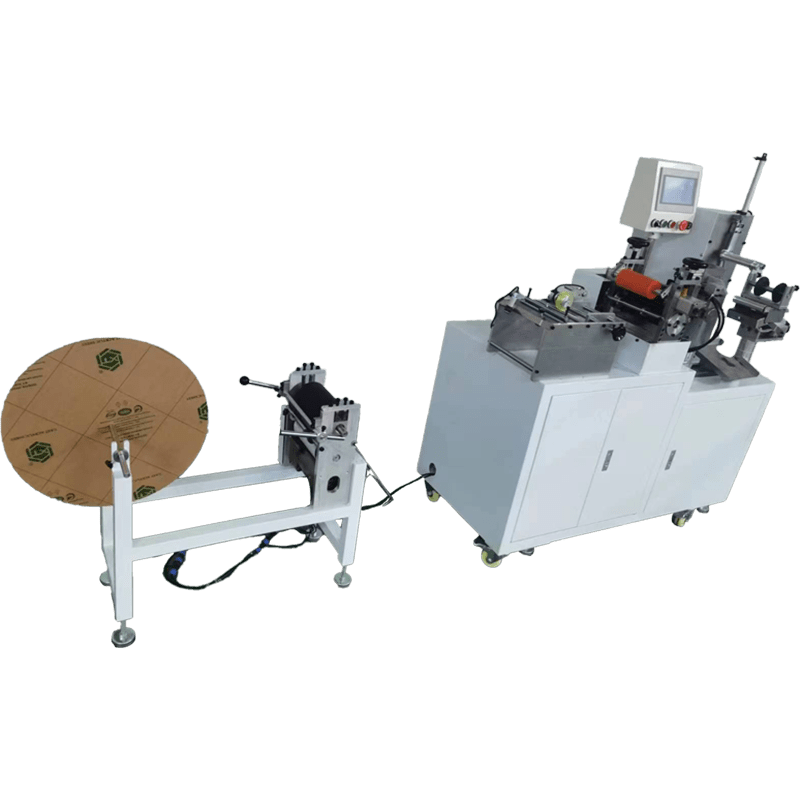

Side View





Side View



velcro automatic cutting and coiling machine

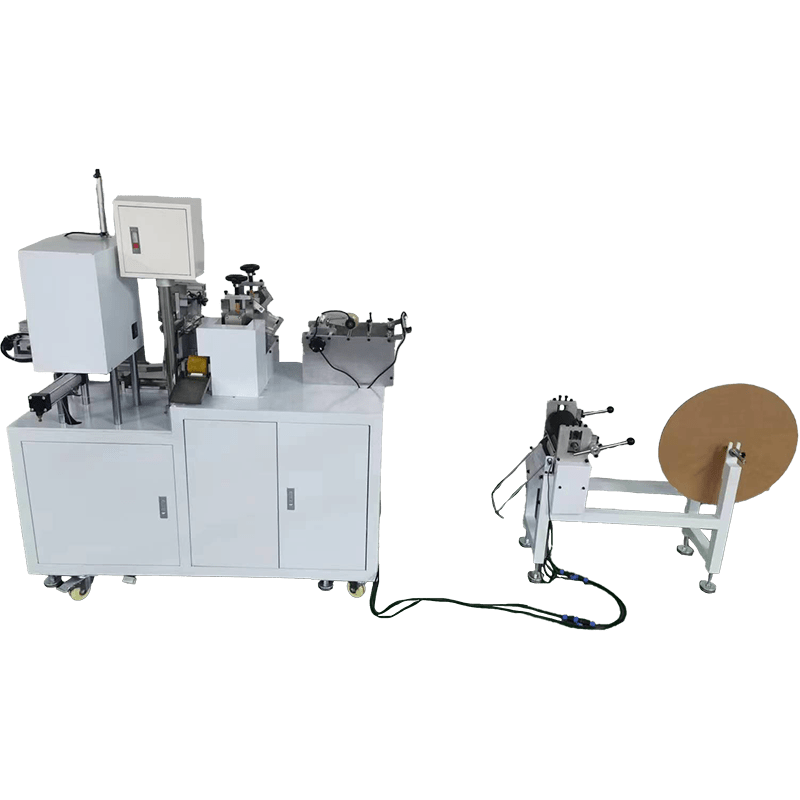

Back View

velcro roll automatic slitting winding machine



【Warranty 】

 As a velcro roll slitting coiling cutting machine supplier , all the spare parts of the machine  will have one year of free maintainance

by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice

after on line diagnosis .



【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping
